Stingray T2000 Series Instruction Manual

5330 East 25th Street
Indianapolis Indiana 46218
Phone: [phone]
www.tepid.com
Installation &
Maintenance Manual
Certied to ANSI Z358.1
Stingray Systems
SERIES T2000
Floor Mounted
Eye/Face Wash
In order to comply with the ANSI Z358.1 Standard the
following notes should be observed:
• Station should be assembled and installed in accordance
with the manufacturer’s instructions, including flushing fluid
delivery requirements.
• Station should be in accessible locations that require no
more than 10 seconds to reach. The eye/face wash station
shall be located on the same level as the hazard and the
path of travel shall be free of obstructions that may inhibit
its immediate use.
• Station should be located in an area
identified with a highly visible sign
positioned so the sign shall be visible
within the area served by the eye/face
wash station. The area around the eye/
face wash station shall be well-lit.
• Eye/Face wash flow pattern shall be positioned with
nozzles not less then 33 inches (83.8 cm) and no greater
than 53 inches (134.6 cm) from surface on which user
stands and 6 inches (15.3 cm) minimum from wall or
nearest obstruction.
• If shut off valves are installed in the supply line for
maintenance purposes, provisions shall be made to
prevent unauthorized shut off.
• Refer to ANSI Z358.1 to ensure compliance.
NOTES: It is recommended to ush pipes prior to installing
emergency eye/face wash xture. Instructions should be
reviewed prior to starting the installation. Remove parts from
packaging and verify all necessary parts are accounted for
and not damaged. Please contact Stingray Systems for any
missing or damaged parts prior to starting installation.
Stingray Systems recommends that you work safely at all
times and in a manner consistent with the OSHA Lock/Tagout
standard, 29 CFR 1910.147 and other applicable standards.
tepid.com

Installation &
Maintenance Manual
Certied to ANSI Z358.1
INSTALLATION SUPPLIES
Supplies Included:
• Floor Mount Plate P
• Pedestal Pipe Assembly P
• Tepid Manifold Assembly P
• Bowl Assembly P
• Eye/Face Wash Block P
• Dust Covers P
Supplies Required (Not Included):
• Pipe Sealant or Teflon Tape - To Be Used
On All Piping Connections
• (3) 3/8" Floor Anchors Specific for Floor Substrate

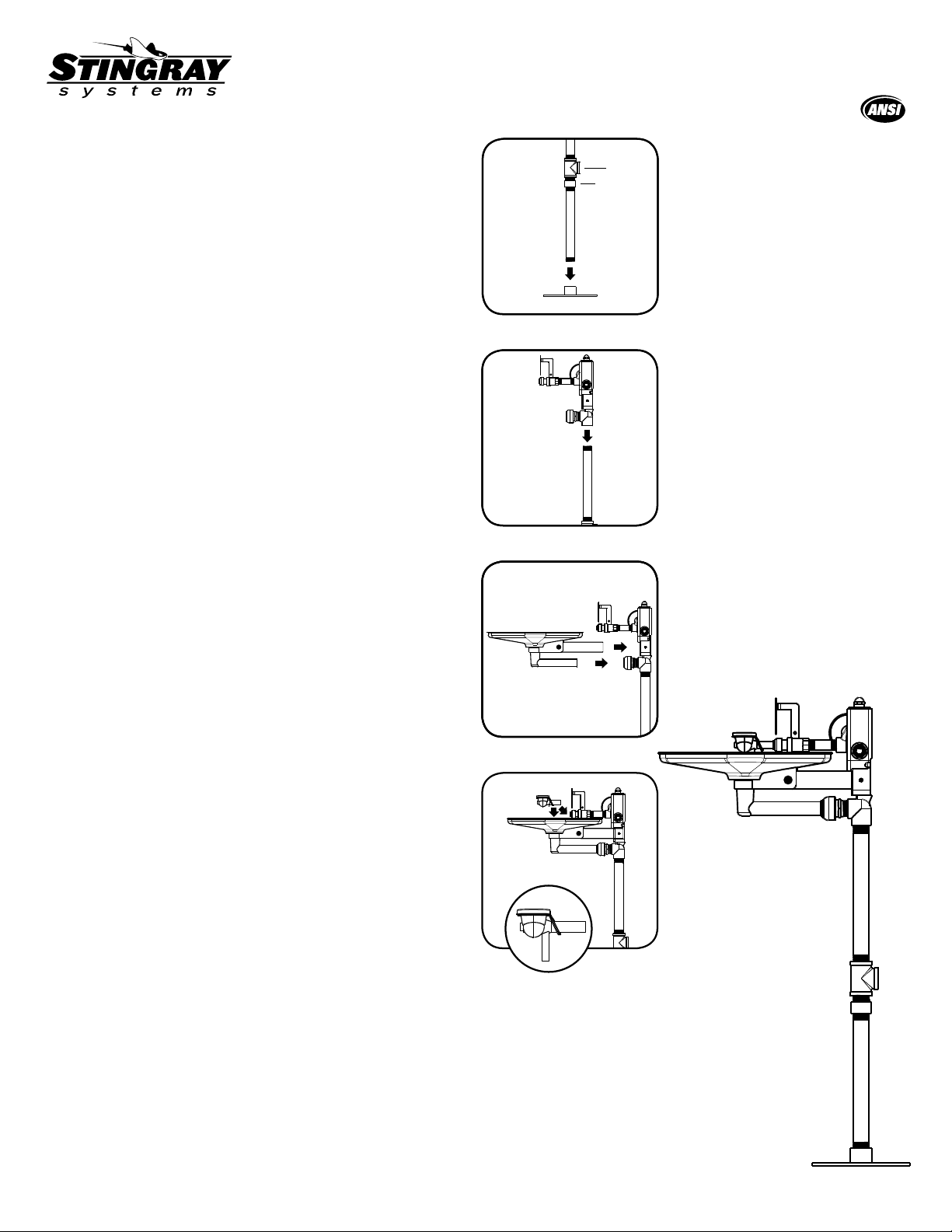

PEDESTAL INSTALLATION
1. Thread section of Pedestal Pipe to Floor Mount Plate
(creating the Floor Base Assembly) oriented as shown.
2. Insuring that drain connection is located to the rear of the
unit or away from where user will stand, thread Tepid
Manifold Assembly onto end of Floor Base Assembly.
3. Position partially assembled unit at final location. Using
the Floor Mount Plate as a template, install three
anchors (not included) into the floor. Secure partially
assembled unit to the floor with the anchors.
4. Insert Bowl Assembly into Manifold with red
drainpipe going into drain fitting. Insert drain fitting
on Tepid Manifold Assembly to red drainpipe
on Bowl Assembly. Tighten setscrews on side of
Tepid Manifold Assembly to support tube.
5. Loop Dust Covers onto inlet tube on Eye/
Face Wash Block. Secure the Eye/Face Wash
Block to the Bowl Assembly by ensuring the
legs of the block straddle the tab on the bowl.
6. Mount sign near the assembled unit
at the desired location.
7. Remove
Checks from protective wrapping and install on
the Tepid Manifold connection, making sure the arrows
are aligned correctly (pointing toward the assembly).
8. Ensure the activator is the “off” position. Then, connect
½" NPT supply piping (not included) to assembled station.
Installer to provide sufficient support of piping; assembled
station should not be relied on as piping support.
9. Connect 1" NPT drain piping (not included) to
drain outlet at the back of the station.
10. Open supply line to check for leaks. Push on activator
to insure adequate flow and drainage through Eye/
Face Wash Block. Pull back to stop water flow.
2
ABS Bowl Shown
Drain
Blocking
Coupler
1
2
4
5

Installation &
Maintenance Manual
Certied to ANSI Z358.1
FIXTURE TROUBLESHOOTING
Problem Checklist
No flow. Make sure the water supply for station is on.
Verify checks of Tepid Manifold Assembly
correctly installed. Remove eye pieces and
clean out any debris.
Water does
not drain
properly.
Check to see if station is installed level and
correct as needed. Make sure nothing is
blocking drain of the bowl. Remove any debris.
Make sure Blocking Coupler is at bottom of tee.
Double check the main waste line for the facility.
Make sure there is no blockage and that it can
handle the required drainage.
Water leaks
between
fittings or
connections.
Tighten all connections. If leak persists,
disassemble, apply additional sealant and
reassemble.
Insufficient
flow to eye/
face wash.
Turn water supply to station off. Remove the
eye pieces and clean out any debris. Make sure
diverter is fully opened. Verify pressure to station
is at 30 psi as required.
MAINTENANCE
Emergency Eye/Face Wash System shall be activated on a
weekly basis to verify operation and to flush the lines per the
American National Standards Institute (ANSI). Inspections
shall be recorded with inspector’s name and date tested.
Should the need to repair or replace any parts
on this station, please contact Stingray Systems.
Before any repairs are performed, please verify
that the water supply to the station is shut off.
GUARANTEE
We guarantee the Stingray Systems product to be free from
defects in workmanship and material, and for a period of
eighteen (18) months from date of shipment from the factory
or one (1) year from date of installation, whichever occurs
first, will replace any parts found by us to be defective. We
will not be held responsible, however, for any labor incidental
to, or for any damages caused by defective material.
With any questions, please do not hesitate in contacting us
at: 1-888-445-4142 or via email at [e-mail].
3
VALVE TROUBLESHOOTING
Problem Checklist
No hot water. Ensure hot water is on. Check pressure at both
inlets. Pressures must be near-equal, or seats will
check and only allow cold water. Need at least
30 psi at both hot and cold inlets. Need at least
a 20 degree difference between hot water and
set temperatures, as well as cold water and set
temperatures. Inspect checks for debris; clean/
replace if needed. Remove thermostat and check
for debris. Make sure liner can move. Clean
thermostat. If continues, replace thermostat.
No cold water. Ensure hot connects to hot side; cold to
cold side. Inspect checks for debris; clean/
replace if needed. Remove thermostat and
check for debris. Ensure liner can move. Clean
thermostat. Replace thermostat if needed.
No water. Ensure hot water is on. Check pressure at both
inlets. Pressures must be near-equal, or seats
will check and only allow cold water. Need at
least 30 psi at both hot and cold inlets. Need at
least a 20 degree difference between hot water
and set temperatures, as well as cold water and
set temperatures. Inspect checks for debris;
clean/replace if needed. Remove thermostat and
check for debris. Ensure liner can move. Clean
thermostat. Replace thermostat if needed.
Insufficient
flow.
Ensure hot water is on. Check pressure at both
inlets. Pressures must be near-equal, or seats
will check and only allow cold water. Need at
least 30 psi at both hot and cold inlets. Need at
least a 20 degree difference between hot water
and set temperatures, as well as cold water and
set temperatures.Inspect checks for debris;
clean/replace if needed. Remove thermostat
and check for debris. Ensure liner can move.
Clean thermostat. Replace thermostat if needed.
Temperature
fluctuation.
Ensure incoming building pressure is not
fluctuating. Inspect supply lines for other
equipment that may be reducing pressure to
the emergency fixtures. Check pressure at both
inlets. Pressures must be near-equal, or seats
will check and only allow cold water. Need at
least 30 psi at both hot and cold inlets. Need at
least a 20 degree difference between hot water
and set temperatures, as well as cold water and
set temperatures. Inspect checks for debris;
clean/replace if needed. Remove thermostat
and check for debris. Ensure liner can move.
Clean thermostat. Replace thermostat if needed.
Leaks around
thermostat.
Remove thermostat and check O-ring. If
damaged or worn, replace/tighten.
Water in
thermostat.
Check connection. Replace thermometer.

Installation &
Maintenance Manual
Certied to ANSI Z358.1
4
WEEKLY TEST RECORD
Month Test 1 Test 2 Test 3 Test 4
January
February
March
April
May
June
July
August
September
October
November
December
January
February
March
April
May
June
July
August
September
October
November
December
Plumbed emergency eyewashes, eye/face washes, drench
hoses, shower, and combinations systems shall be activated
and tested for a period long enough to verify operation and
ensure that flushing fluid is available.
WARNING: This product contains chemicals known to
the State of California to cause cancer and birth defects or
other reproductive harm. (Installer: California law requires
that this warning be given to the consumer.)
For more information: www.oehha.org/prop65
