STL B-RT10 User manual

1SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
B-RT10
B-RL10
INSTRUCTION MANUAL

2SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Warnings and Notices for Users and Installers
This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and
safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will nd
important information in this manual that could prevent property damage and/or serious injury to the user and installer.
STL products are intended to alert pedestrians and other operators of the presence of personnel, the operation of emergency vehicles, an emergency
site, and any warning needs. This does not ensure that pedestrians or drivers will react, heed, or observe emergency warning signals. Nor does the use
of emergency signals grant or ensure you the right of way. It is your responsibility to make sure you can proceed safely before driving against tra󰀩c,
entering an intersection, responding at a high rate of speed, or walking on or around tra󰀩c lanes.
Your STL emergency vehicle devices should be tested daily to ensure the device and all its functions are operating correctly. If you experience a
malfunction contact STL’s Customer Service immediately for troubleshooting options, or a warranty or service claim. You must ensure that the projection
of the visual and audible signal is not blocked by vehicle components (i.e.: open trunks, visors, compartment doors), vehicles, other obstructions, or
people.
This is professional grade equipment and is intended for strict use by authorized personnel only. It is the user’s responsibility to understand and obey all
laws regarding emergency warning devices. You must know and be familiar with all applicable city, state, and federal laws and regulations prior to the
use of emergency vehicle warning devices.
SpeedTech Lights, Inc assumes no liability for any loss resulting from the use of this warning device. Proper installation is vital to the performance of the
warning devices and safe operation of the emergency vehicle. Since the operator is under stressful environments the equipment must be properly wired
and mounted to ensure e󰀨ectiveness and safety. Therefore controllers must be properly installed and placed within convenient reach of the operator so
eye contact with the roadway is never lost.
The e󰀨ectiveness of your STL equipment is highly dependent upon correct mounting and wiring. Improper wiring and mounting of the warning device will
reduce the output and performance of the equipment. Emergency warning devices frequently require high electrical voltages and/or currents. Properly
protect and use caution around live electrical connections. Grounding or shorting of electrical connections can cause high current arcing, which can
cause severe personal injury and/or serious vehicle damage, including re.
Electromagnetic interference can be caused by many electronic devices used in emergency vehicles. To ensure that this doesn’t happen to you, Light
Bars should be mounted a minimum of 12” - 34” from the radio antenna and do not power your equipment from the same circuit or share the same
grounding circuit with radio communication equipment. After installation, test all the vehicle’s equipment together to ensure everything operates free of
interference.
Driver and/or passenger airbags (SRS) will impact the way you mount your equipment. Any equipment installed in the deployment area of the airbags
will damage or dislodge the airbags and sensors. This will also reduce the e󰀨ectiveness of the airbags to protect the passengers and therefore these
areas must be avoided. Installers must make sure that this equipment along with any parts, hardware, wiring, power supplies, and switch boxes do not
interfere with the airbags, SRS wiring, or sensors.
All STL equipment needs to be mounted and installed according to the vehicle manufacturer’s instructions and securely attached to a part of the vehicle
of su󰀩cient strength to withstand the forces applied by the equipment. This device should be permanently mounted within the zones specied by the
vehicle manufacturer. This especially applies to equipment mounted on the exterior of the vehicle to avoid dislodging. Mounting units on the interior of
the vehicle by a method other than permanent mount is discouraged as it may become detached under aggressive driving conditions such as sudden
braking, collision, or swerving.
PROPER INSTALLATION COMBINED WITH OPERATOR TRAINING IN THE PROPER USE OF EMERGENCY WARNING DEVICES IS ESSENTIAL
TO ENSURE THE SAFETY OF EMERGENCY PERSONNEL AND THE PUBLIC.
Unpacking Your STL Product
• Unpack your unit to identify all parts including but not limited to: Light Bar, switch box, brackets, screws, bolts, wiring harness, fuses, etc.
• Some parts may be in small bags.
• Some products may be packaged inside boxes of other products.
• Some parts such as Gutter Brackets, may be in the foam protection. Double check that no parts are left within the foam protection or left in the box.

3SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Important Points for Your Safety and Longevity of Your Light Bar
• Installers are required to have a good understanding of automotive electronic systems and procedures for proper installation.
• Never stare directly into the LEDs as momentary blindness and/or eye damage may occur.
• Never take any lights through a car wash. Use only water to clean the outer body/lens of your equipment.
• Never use a pressure washer to clean any STL products. Inspect and test your product daily to ensure it operates properly and is mounted
correctly.
• Never cut wires or work on a unit while the unit is still connected to a power source.
• Never install this product or route any wires through or in the deployment area of the airbag. Doing so may cause serious personal injury as it will
damage or reduce the e󰀨ectiveness of the airbag by causing the unit to become a projectile. Reference the owner’s manual for your vehicle to nd
the airbag deployment area. The User/Installer assumes all responsibility to determine proper mounting location, based on providing ultimate safety
to all passengers in the vehicle.
• If the product requires you to drill holes, the installer must ensure that the drilling process does not damage any vehicle components or other vital
parts. Check all sides of the mounting surface before beginning to drill. Make sure to deburr all drilled holes and remove any metal remnants or
shards to avoid injury and wires from becoming spliced. Grommets are to be installed in all wire passage holes.
• Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and
located as close to the power take o󰀨 points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL
for all products. DO NOT use a fuse with a higher amp rating than the initial fuse included by STL for all products.
• Insulation displacement connectors are not to be used.
• In order for STL products to operate at optimum e󰀩ciency, a secure and good electrical connection to the battery’s Ground Post must be made. The
recommended procedure requires the unit’s ground wire be connected directly to the NEGATIVE (-) battery post. DO NOT use Circuit Breaks.
• Instruction manuals should be stored in a safe place for reference if you need to reinstall the unit or perform maintenance. They can also be
found at the main site under the product listing at www.SpeedTechLights.com. If your product is no longer available on the website contact STL’s
Customer Service at 800-757-2581 for assistance.
• If your product requires the use of a control box or remote device to turn on and control your equipment, make sure it is installed in a location that
allows both the user and the vehicle to operate safely in any driving condition.
• Never activate or control your equipment in hazardous driving conditions.
• Use SXL type wire in the engine compartment where higher heat resistance is required according to SAE J-1128. All wires should be in accordance
with the minimum wire size and other recommendations made by the manufacturer and be protected from hot surfaces and moving parts.
• FAILURE TO FOLLOW THESE SAFETY PRECAUTIONS, WARNINGS, NOTICES, AND INSTRUCTIONS COULD RESULT IN DAMAGE TO THE
PRODUCT OR VEHICLE THAT WILL VOID YOUR WARRANTY AND/OR CAUSE SERIOUS INJURY TO YOU AND YOUR PASSENGER.
Pre-Installation and Testing
BENCH TEST all units prior to installation by connecting the Positive Cable (Red) and Negative Cable (Black) to a power source to ensure all the
features and parts of the Light Bar are functional.
Test Check List:
• LED diode and LED Module functionality
• Flash patterns
• Non-volatile memory
• Physical damage
If you have trouble call Customer Service at 800-757-2581 before proceeding.
Maintenance
While STL’s Light Bars are very durable, there are some things you need to keep in mind and practice to preserve the longevity and function of your Bar.
• Never take any STL Light Bars through a car wash, such as a pressure washer, automatic car wash, brushes that will scratch your equipment or
similar car washes or equipment where chemicals, high pressure water, and materials may scratch or damage your equipment.
• Use Water (H2O) with a soft cloth to clean your Light Bar and lenses.
• Yellowing of clear lenses may occur overtime. Lenses can be purchased by calling STL Customer Service at 800-757-2581.

4SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Grand Control Switch Box Operation (Sold Separately)
Power Button:
• Toggle to power the Light Bar On and O󰀨.
Flash Pattern Button:
• Toggle button to cycle to the next ash pattern with each press.
• Non-Volatile memory recalls the last ash pattern selected.
• Hold for 3 seconds to toggle Steady Burn mode.
• Hold for 5 seconds to toggle Random pattern mode.
TD Button*:
• 1st press: TD Steady Burn On.
• 2nd press: TD O󰀨.
AUX Button*:
• Toggle power to AUX cables On and O󰀨.
Back Plate Mount:
• Included with Grand Control Switch Box purchase.
* Warning lights do not need to be activated for these Buttons to function.
Extension Cable (Sold Separately)
• If you have an extension cable with connectors, connect the corresponding ends to one another.
Use the connector at the end of the cable to plug into the control box.
• If you have an extension cable with one connector, you will need to cut the connector o󰀨 of the main
cable harness coming out of the Light Bar. Save it as a spare part. You will solder and heat shrink
each wire within the cable harness to each wire in the extension cable harness. DO NOT cross
connect wires. Use the connector at the end of the extension cable to plug into the control box.
• If you have an extension cable with no connectors, you will need to cut in the middle of the main
cable harness coming out of the Light Bar. You will solder and heat shrink each wire within the
cable harness to each wire in the extension cable harness. DO NOT cross connect wires. Use the
reattached connector from the end of the main cable harness to plug into the control box.
• NOTE: DO NOT leave connectors, cables, solder points exposed to heat, moisture, or debris.
Wiring Diagram
Wire Color Function
Red*
Positive
Black*
Negative
Yellow
Flash Pattern
* Indicates a main power cable.
Wire Color Function
White
Positive (When bypassing Grand Control Box)
Blue
Take Down Steady
Green
Take Down Flashing
NOTE: All cables except Negative contact +12 VDC.

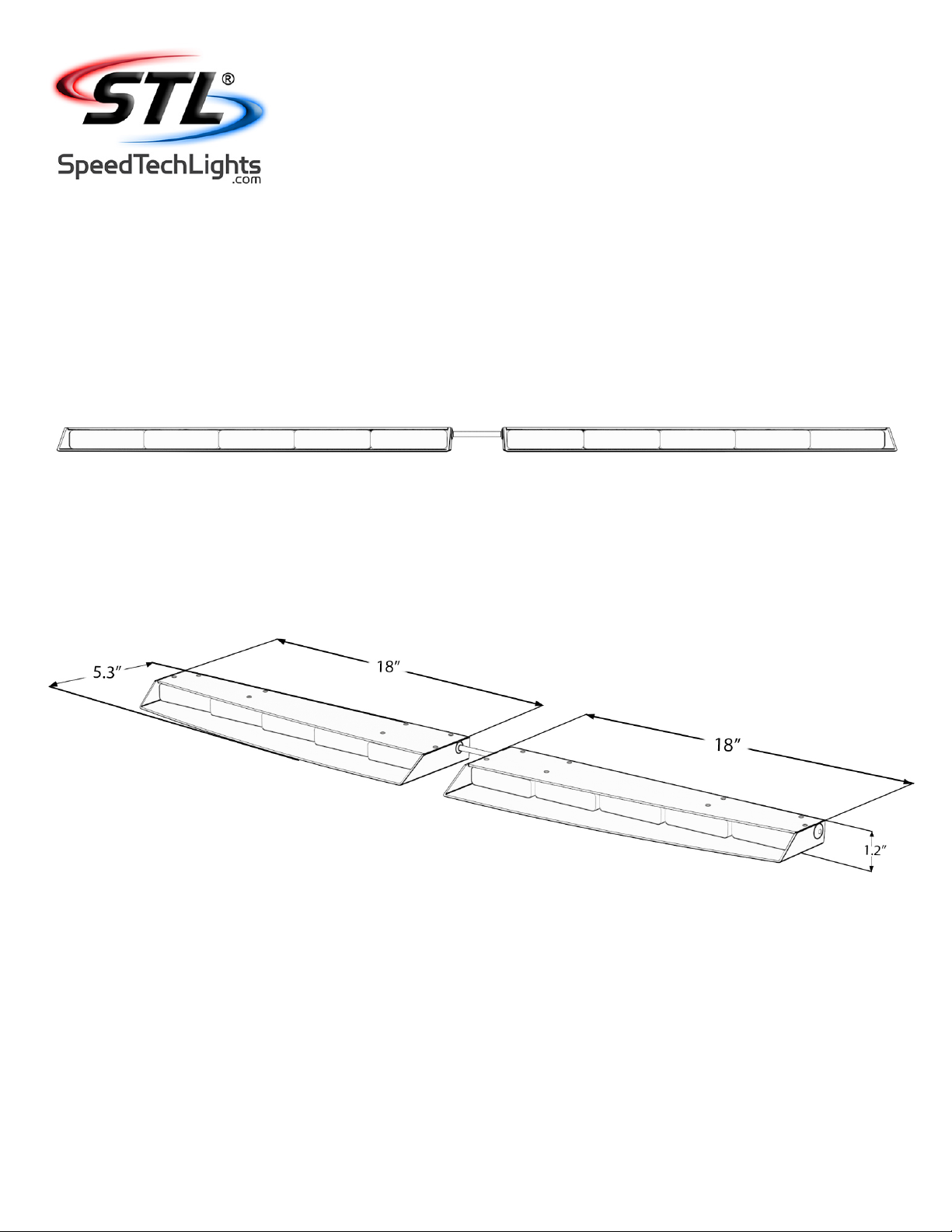

Specications
Voltage 12 VDC
Amps < 4.2
Optic TIR / Linear
LED Count TIR: 48 / Linear: 48
Cable Length 12’ Light Bar Cable, 12.5’ Cig Plug Cable, 12.5’ AUX Cable
Cable Length Between Each Side 2.5’
Flash Patterns 32
AUX Wiring Diagram
Wire Color Function
Red AUX Positive
Blue AUX Negative

Base
Base
Base
Base
Base
5SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR

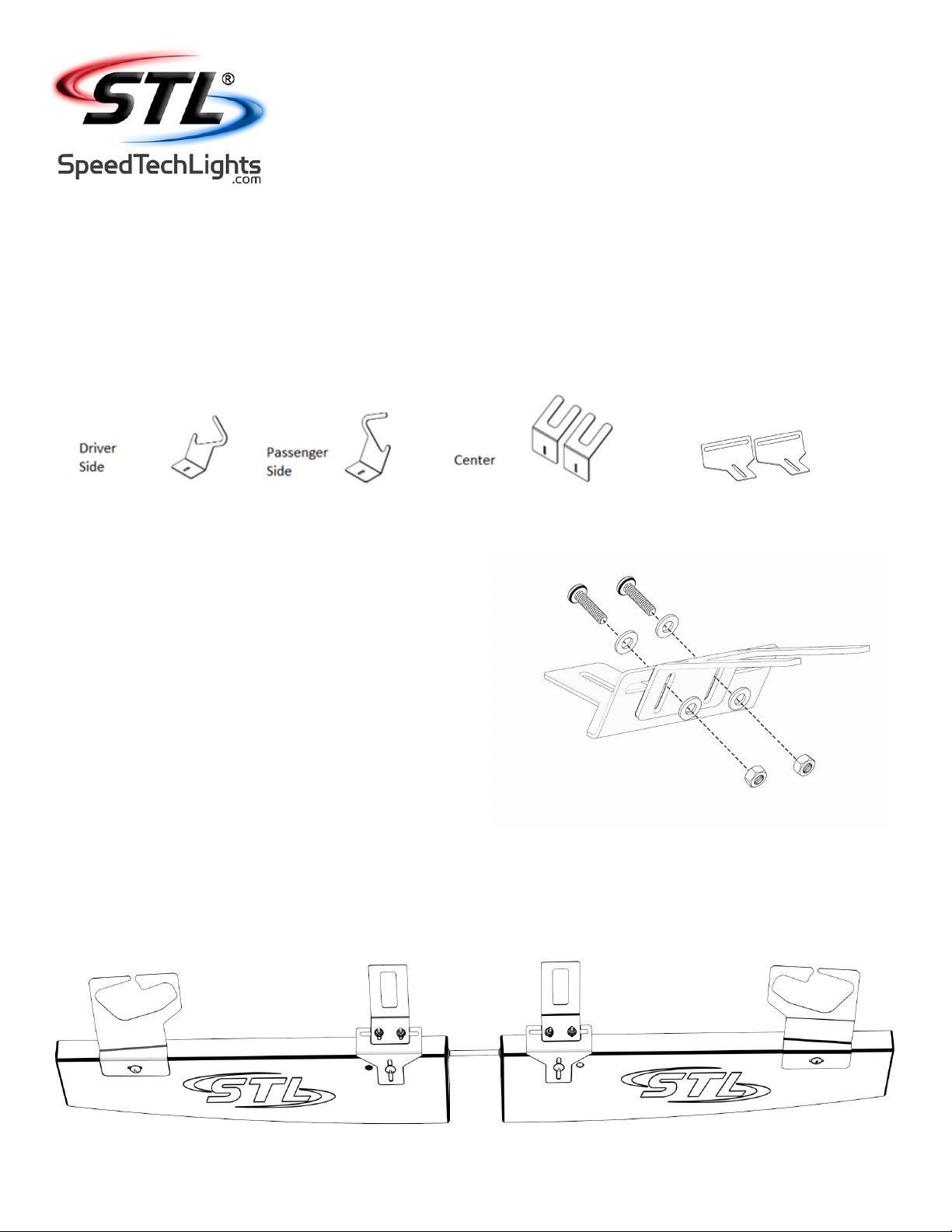

Available Visor Bracket Mounts

6SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Mounting Bracket Contents
Inspect contents of package before proceeding.
Q-3070 Universal Bracket (Included)
Universal Brackets:
• (4) Base brackets
• (4) Universal long forked visor brackets
• (4) Universal short forked visor brackets
Universal Bracket Hardware Contents:
• (8) Philips pan head screws
• (12) Philips pan head short bolts
• (12) Flat large diameter washers
• (12) Split lock washers
• (8) Hex nuts
• (2) Rubber protective strips
Bracket Spacer Contents:
• (8) 5.14 mm spacers
• (8) 10 mm spacers
Q-302 and Q-304 (Sold Separately)
Q-302 and Q-304 Vehicle Specic Brackets:
• (1) DL bracket
• (1) PR bracket
• (2) Center brackets
Q-302 Vehicle Specic Bracket Hardware Contents:
• (4) Philips pan head short bolts
• (4) Flat washers
• (4) Split lock washers
• (2) Rubber protective strips
Q-304 Vehicle Specic Bracket Hardware Contents:
• (8) Philips pan head short bolts
• (8) Flat washers
• (8) Split lock washers
• (2) Rubber protective strips
Q-301 (Sold Separately)
Q-301 Vehicle Specic Brackets:
• (1) DL bracket
• (1) PR bracket
• (2) Center brackets
• (2) Base brackets
Q-301 Vehicle Specic Bracket Hardware Contents:
• (4) Philips pan head short bolts
• (4) Flat large diameter washers
• (4) Split lock washers
• (4) Philips pan head screws
• (8) Flat small diameter washers
• (4) Hex nuts
• (2) Rubber protective strips
Q-300, Q-303, Q-305 and Q-306 (Sold Separately)
Q-300, Q-303, Q-305 and Q-306 Vehicle Specic Brackets:
• (1) DL bracket
• (1) PR bracket
• (2) Center brackets
• (4) Base brackets
Q-300, Q-303 and Q-305 Vehicle Specic Bracket Hardware
Contents:
• (4) Philips pan head short bolts
• (4) Flat large diameter washers
• (4) Split lock washers
• (4) Philips pan head screws
• (8) Flat small diameter washers
• (4) Hex nuts
• (2) Rubber protective strips
Q-306 Vehicle Specic Bracket Hardware Contents:
• (4) Philips pan head short bolts
• (4) Flat large diameter washers
• (4) Split lock washers
• (8) Philips pan head screws
• (16) Flat small diameter washers
• (8) Hex nuts
• (2) Rubber protective strips

7SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR

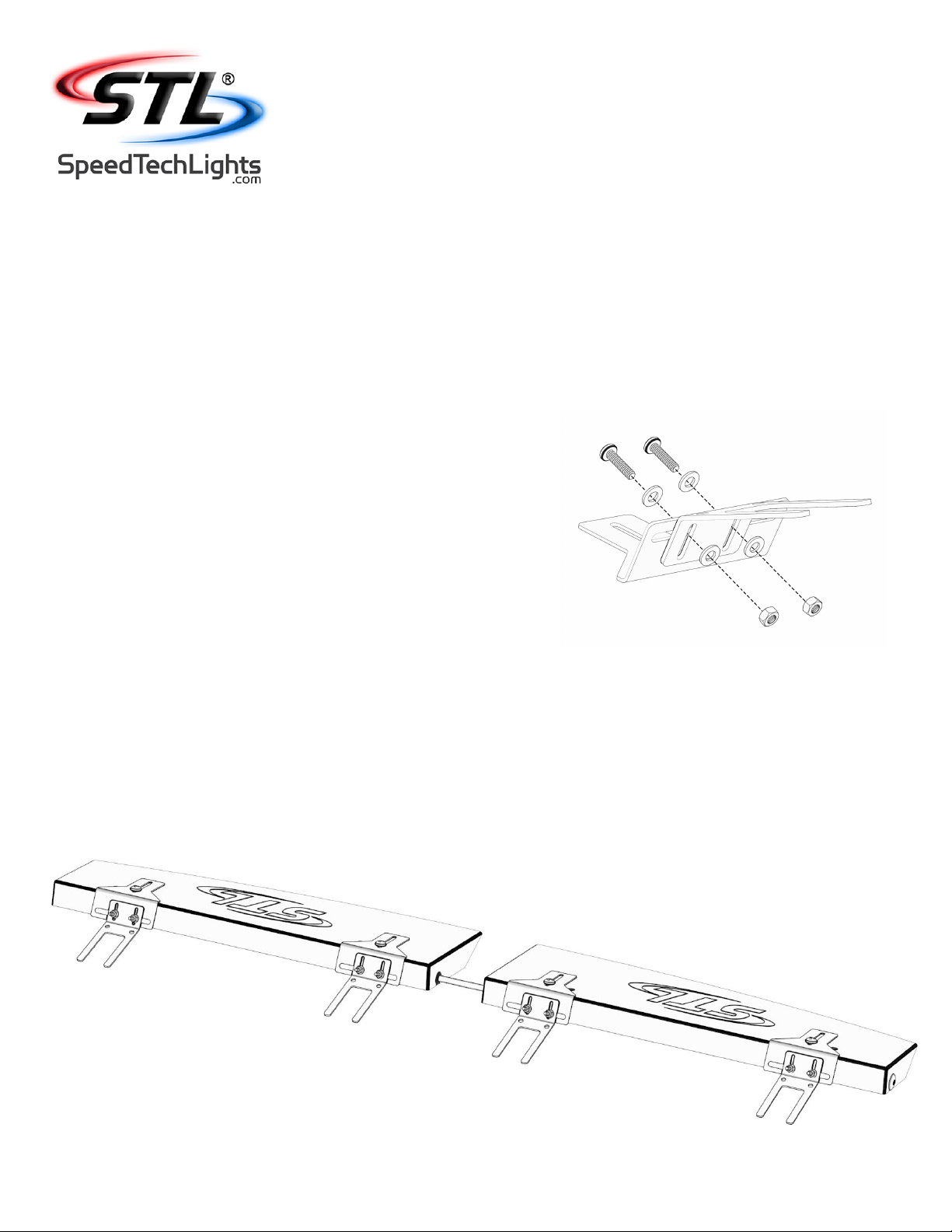

Q-3070 Universal Mounting Bracket Installation
Base Bracket and Q-3070 Universal Visor Bracket Assembly
To attach the base bracket and visor bracket, you will need the following for each of the (4) assemblies:
• (2) Phillips pan head screws
• (4) Flat washers
• (2) Split lock washers
• (2) Hex nuts
Note: The Universal Visor Bracket comes with (2) sets of forked visor
brackets. Choose the length of fork that will work best to t your vehicle.
1. Take both brackets and overlap the openings.
2. Insert (2) Phillips pan head screws through the base
bracket opening.
3. On the other end, insert (2) at washers, (2) split lock
washers, and (2) hex nuts to secure.
NOTE: Do not fully tighten at this point as adjusting
will need to be done.
4. Repeat Steps 1 - 3 for each assembly. There will be a
total of (4) assemblies.

8SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR

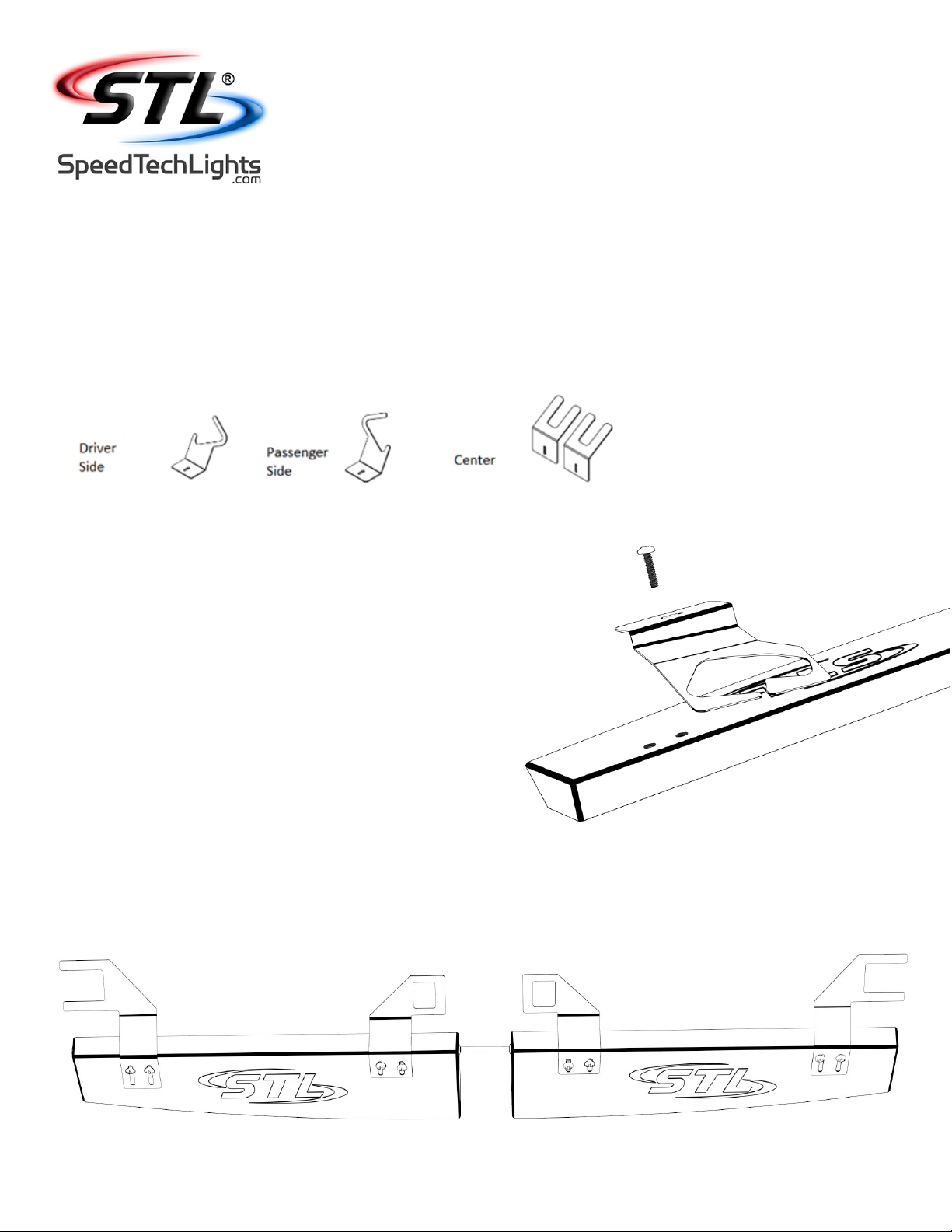

Attaching Assembly to Raptor Light Bar Base
There are (4) holes on the bottom of each Raptor segment, (8) holes total.
NOTE: Some assemblies and brackets only require
(1) hole to be used for mounting. Choose the hole
that will allow best tment to the vehicle.
1. Attach each assembly using the appropriate selected
mounting hole, via the base bracket, using (1) Phillips
pan head screw. Hand tighten only at this point.
2. With all the assemblies now in place, adjust each
visor bracket and base bracket to t the vehicle. The
ashback guard with the rubber stripping applied should
be contacting the windshield. If the ashback guard
is not touching the windshield you will need to use
the other hole on the bottom of the Raptor and/or you
will need to include spacers (see Page 10 for Spacer
Installation).
3. Once the exact positioning of the brackets is
determined, remove each assembly from the Raptor
base to fully tighten the visor bracket and base bracket
together. Reattach each assembly back to the Raptor
base (as in Step 1).

Center Center Passenger SideDriver Side
Base
9SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Base Bracket and Q-300 / Q-303 / Q-305 / Q-306 Visor Bracket Assembly
NOTE: This assembly is very similar to the Universal Bracket assembly. The only dierence is the Vehicle
Specic visor brackets will be used instead of the Universal forked visor brackets to pair with the base brackets.
For this example, the Q-303 Vehicle Specic Brackets will be used.
NOTE: Hardware quantity used will vary based on single or double mounting holes.
1. Take (1) base bracket and the Driver Side Vehicle
Specic visor bracket and overlap the openings. Insert
(1) Phillips pan head screw and (1) at washer through
visor bracket opening. On the other end, insert (1) at
washer and (1) hex lock nut to secure both brackets
together.
NOTE: Do not fully tighten at this point as adjusting
will need to be done.
2. Repeat Step 1 for the Passenger Side Vehicle
Specic visor bracket and the (2) Center Vehicle Specic
visor brackets. There will be a total of (4) assemblies.

Center Center Passenger SideDriver Side
Base
10 SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Base Bracket and Q-301 Visor Bracket Assembly
NOTE: This assembly is very similar to the Universal Bracket assembly. The only dierence is the Center visor
brackets will be used instead of the Universal forked visor brackets to pair with the base brackets. Also the Driver
and Passenger side brackets will be mounted directly to the body of the bar without the use of base brackets.
For this example, the Q-301 Vehicle Specic Brackets will be used.
NOTE: Hardware quantity used will vary based on single or double mounting holes.
1. Take (1) base bracket and the Center Vehicle Specic
visor bracket and overlap the openings. Insert (1) Phillips
pan head screw and (1) at washer through visor bracket
opening. On the other end, insert (1) at washer and (1)
hex lock nut to secure both brackets together.
NOTE: Do not fully tighten at this point as adjusting will
need to be done.
2. Repeat Step 1 for the other Center Vehicle Specic
visor bracket. There will be a total of (2) assemblies.
3. Take (1) Driver Side Vehicle Specic visor bracket and
mount to light bar directly to the Driver side outter most
hole.
NOTE: Do not fully tighten at this point as adjusting will
need to be done.
4. Repeat Step 3 for the Passenger Side Vehicle
Specic visor bracket.

Center Center Passenger SideDriver Side
11 SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Q-302 / Q-304 Visor Bracket Assembly
NOTE: These Vehicle Specic Visor brackets do not require a base bracket assembly. These brackets attach
directly to the mounting holes on the Raptor Light Bar base.
For this example, the Q-304 Vehicle Specic Brackets will be used.
NOTE: Hardware quantity used will vary based on single or double mounting holes.
1. Take (1) Driver Side Vehicle Specic visor bracket and
mount to light bar directly to the Driver side outter most
hole.
NOTE: Do not fully tighten at this point as adjusting
will need to be done.
2. Repeat Step 1 for the Passenger Side Vehicle
Specic visor bracket.
3. Repeat Step 1 for the (2) Center Vehicle Specic visor
brackets.

12 SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
Spacer Installation
NOTE: Spacers are included to assist in adjusting the Visor Light Bar to the windshield for any base bracket
assembly. Spacers are not intended for use with Vehicle Specic Brackets that mount directly to Raptor base.
1. Take both brackets and overlap the openings.
2. Insert (2) Phillips pan head screws through the base
bracket opening.
3. Select necessary size spacer and place spacer onto
each screw between the brackets.
4. On the other end, insert (2) at washers, (2) split lock
washers, and (2) hex nuts to secure.
NOTE: Do not fully tighten at this point as adjusting
will need to be done.
5. Repeat Steps 1 - 4 for each assembly. There will be a
total of (4) assemblies.

13 SpeedTech Lights, Inc © 2019
RAPTOR®
VISOR LIGHT BAR
All rights reserved. No part of this Instruction Manual may be reproduced, distributed, transmitted, or otherwise shared in any form or by any means,
including but not limited to photocopying, recording, electronic delivery, .PDF reproduction, or any other means of reproducing all or any part hereof without
the express prior written consent of SpeedTech Lights, Inc, except for non-commercial purposes as permitted by United States copyright law. Customers
of SpeedTech Lights, Inc, may download and print this Instruction Manual for use with products sold to the customer by SpeedTech Lights, Inc. However,
no part of this Instruction Manual may be otherwise or subsequently reproduced, downloaded, disseminated, published, or transferred, in any form or by
any means, except with the prior written consent of SpeedTech Lights, Inc.
Flash Pattern List
• Steady Burn
• Steady Burn Left Side. Quad Flash Right Side 120 FPM
• Steady Burn Right Side. Quad Flash Left Side 120 FPM
• Double Flash Alternating 180 FPM
• Double Flash Front/Back 210 FPM
• Triple Flash 75 FPM
• Double Flash Left/Right 210 FPM
• Double Flash 2 In/2 Out
• Double Flash Alternating
• Quad Flash 60 FPM
• Quad Flash 90 FPM
• Single Flash Left/Right 210 FPM
• Back to Front Sweep
• Single Flash Alternating 120 FPM
• Single Flash 75 FPM
• Single Flash 60 FPM
• Single Flash 150 FPM
• Single Flash Alternating 300 FPM
• Single Flash Alternating 270 FPM
• Single Flash 180 FPM
• Single Flash 90 FPM
• Variable Speed Left/Right
• Slow Back to Front Sweep
• Variable Speed Alternating
• Variable Speed
• Left/Right Double Time
• Clockwise/Counter Clockwise Sweep
• Clockwise Sweep
• Counter Clockwise Sweep
• Fast Clockwise Sweep
• Fast Counter Clockwise Sweep
• Random
Flash Pattern Shortcuts
• Hold for 3 seconds to toggle Steady Burn mode.
• Hold for 5 seconds to toggle Random pattern mode.
About Flash Patterns
• All STL LED products are equipped with a non-volatile memory which will recall the last ash pattern when the Light Bar is turned on.
• Set the ash pattern by pushing the Flash Pattern button on the Grand Control Box to cycle through the various patterns.
• If you are not using the Grand Control Box, follow the wiring diagram to identify the Flash Pattern wire to manually cycle through patterns.
