Stocks AG Fan Jet Mini i-CON 65 User manual

Read carefully before installation and
operation
Fan Jet Mini i-CON
65 & 130
Original Operating Manual
and Parts List
Original Instructions, Revision 1 August 2020
This document must not be copied duplicated or distributed without prior consent .
All and patent rights apply
STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.
Tel: [phone] Email: [email protected] www.stocks-ag.co.uk

2
Section Page No.
2 Index 2
3-1 General information 3
3-2 Technical data 3
3-3 Intended use 3
3-4 Unintended use 3
4 Contents of the EC Declaration of Conformity 4
5 Contents of the UKCA Declaration of Conformity 5
6-1 Machine identification 5
6-2 Warranty 5
7 Safety 6
8 Emergency Stop Instructions 8
9 Maintenance 9
10 Safety warning decals and safety signs 10
11-1 Clearing a blockage 11
11-2 Hopper Removal 11
11-3 Storage 11
11-4 OPTIONAL Heavy Duty Waterproof Cover 11
11-5 Disposal 11
12-1 Fitting to a vehicle or implement 12
12-2 OPTIONAL ATV Fitting Kit 12
12-3 OPTIONAL UTV Fitting Kit 12
13 Mounting Plate 13
14-1 i-Con Control system 14
14-2 Wiring diagram 14
15 Machine components 15
16-1 i-Con instrument functions 16
16-2 Precision farming software access - OTIONAL 16
17-1 Setting the headland deflectors 17
17-2 Spread width and pattern 17
18-1 Setting the feed rate 18
18-2 Feed roller configurator 18
19 Calibration Hopper 19
20 Calibration (page 1) 20
21 Calibration (page 2) 21
22 Fan Jet Mini Parts drawing 22
23 Fan Jet Mini Parts list (page 1) 23
24 Fan Jet Mini Parts list (page 2) 24
14-3 Electrical Connections 14
Index

3
3 - 1 General information
Congratulations on your Fan Jet Mini purchase;
Please check the machine for any transport damage upon receipt and advise your supplier
of any problems immediately. Late claims regarding any damage may be rejected.
IMPORTANT
This Operating Manual forms part of the machine and must be readily available for the operator
who must read and follow the points covered before use
3 - 2 Technical data
Model: Fan Jet Mini i-Con
Hopper capacity: 65 litre or 130 litre
65 litre machines: Net weight:40kg Dimensions (W x D x H) 50 x 56 x 82cm (boxed 52cm x 58cm x 100cm)
130 litre machines: Net weight:45kg Dimensions (W x D x H) 60 x 60 x 90cm (boxed 62cm x 62cm x 113cm)
Max. spreading width: 12 m
Recommended working width: 2-12 m
*Operating Voltage 12v; Power requirement 30 amps Motor outputs: 360 watt
Max. disc speed: 3700 rpm
*Noise level: 85dB
3 - 3 Intended use
This machine has been designed for the agricultural, horticultural and amenity sector to apply slug pellets from
2m to 12m and various small seeds to varying widths depending upon the seed density and can be mounted to
operate facing forwards or backwards.
Often mounted on the rear of drills and sets of rolls to apply slug pellets.
Any other use is considered to be unintended and the manufacturer will not be liable for any resulting damage.
Suitable for UTV vehicles and some ATV fitments OPTIONAL fitting kit available (see page 12)
The operator alone bears the associated risk if used for unintended use.
Intended use also includes compliance with the conditions for operation, maintenance, and repairs.
The implement may only be used, maintained and repaired by persons who have relevant experience and
aware
of the risks involved.
The applicable accident prevention regulations as well as the other generally safety-related, occupational
health and road traffic regulations must also be observed.
Specifications descriptions and illustrations in this manual are accurate at the time of this publication but may
be subject to change this manual are correct at the time of printing but we reserve the right to change and
improve them. This machine is designed with safety in mind.
Maintenance and servicing in accordance with this manual will ensure safe operation and reliability of your
machine for many years.
Designed solely for use in agricultural and amenity operations (intended use).
The manufacturer is not liable for any resulting damage if the machine is used for any other purpose than the
Intended use also includes compliance with the conditions for operation, maintenance, and repairs prescribed
within this instruction manual.
3 - 4 Unintended use
This machine is not designed to apply abrasive materials such as sand & grit or for applying salt products

4
E.C. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 06th August 2020
Position: Managing Director
t. [phone] f. [phone] e. [e-mail]

5
UKCA. DECLARATION OF CONFORMITY
Machine Type: Mounted Agricultural Implement - Pellet and Seed application broadcasters
Model(s): Fan Jet Pro All Variants & Versions
Fan Jet Pro Plus All Variants & Versions
Fan Jet Twin All Variants & Versions
Fan Jet Mini All Variants & Versions
Fan Jet Duo All Variants & Versions
Turbo Jet All Variants & Versions
Rotor Meter All Variants & Versions
Rotor Meter Air Force All Variants & Versions
Micro Meter All Variants & Versions
Maxi Meter All Variants & Versions
Serial No. ……………………………………………………………………………………………
Manufacturer: Stocks Ag Ltd
Cromwell Road
Wisbech
Cambridgeshire PE14 OSD
United Kingdom
This is to declare that the above machine conforms to the relevant Essential Health and Safety Requirements of the
Machinery Directive 2006/42/EC, implemented in the United Kingdom by Statutory Instrument 2008 No.
1597 – The Supply of Machinery (Safety) Regulations 2008 as amended.
The following standards have been applied in the design and construction of this machine:
BS EN ISO 12100: 2010 Safety of machinery – Basic concepts, general principles for design – Basic
terminology, methodology.
BS EN ISO 4254-1: 2015 Agricultural machinery – Safety - General requirements
BS EN ISO 4254-8: 2018 Agricultural machinery – Safety – Solid fertilizer distributors.
BS EN ISO 13854: 2019 Safety of machinery – Minimum gaps to avoid crushing of parts of the
human body.
BS EN ISO 13857: 2019 Safety of machinery – Safety distances to prevent hazard zones
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs.
The manufacturer stated above holds the technical file for this machine.
Signed on behalf of Stocks Ag Ltd
Name: J Woolway
Date: 01st December 2020
Position: Managing Director
t. [phone] f. [phone] e. [e-mail]

6-1 Machine identification
The machine the serial number decal is mounted on the steel chassis to one side of the hopper
6-2 Warranty
We provide a 12 month warranty as of the date of invoice
(your invoice for the machine will serve as a warranty certificate).
This warranty is applicable for cases of material or construction faults and does not include parts that are
damaged by normal or excessive wear.
Warranty expires if damage is caused by external forces, operator error, modifications, Jet washed or if
the machine has not been used for its intended use.
Contact the company whom you purchased the machine from in the event of any problems, or before
attempting any repair. If the base machine or the controls system are modified in any way this will void
any warranty claim.
Please see our conditions of sale for full details a copy of which available upon request
Please record the machine serial number here; S/N ……………………………….
Purchase date: ………………………………… Dealer ……………………………...
CE
MINI

7
7 Safety
Ensure care is taken when lifting the machine
Safe lifting practice to be observed when handling as the net weight is over
25kg
We advise safety shoes and protective gloves are worn when handling the machine
Assistance may be required when lifting or lowering the machine
Care to be taken to avoid crushing due to the weight of the machine.
When lifting or fitting the machine to the parent vehicle or implement ensure work is performed on level
ground or flat surface to avoid slipping, stumbling or falling.
PERSONAL PROTECTION EQUIPMENT It is the responsibility of the operator or maintenance
persons handling the machine to ensure the appropriate personal protection equipment is worn for
the material being applied or to prevent contamination to the machine or the environment.
WARNING Always observe all application standards and guidelines provided by the
product manufacturer as some products may be toxic ! If unsure contact your supplier for more
information.
NOTE if unsure contact your seed or product supplier for more information.
WARNING Ear protection required if working in close proximity to the machine as it ex-
ceeds 80dB
If applying slug pellets or other toxic material and the parent vehicle has a closed cab the operator must
ensure the cabin is always closed and the air filter system is in good order.
If fitted to an ATV or UTV vehicle ensure the stability of the parent vehicle is not affected when the machine is
in use. If in doubt contact the manufacturers of the vehicle.
After working the machine ensure that any unused product is returned safely to its original packaging
Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied
If unsure contact the material supplier for more information.
WARNING Always adhere to the warning information as the disc rotates
very fast and has sharp edges.
Granules leave the fan at very high speed in all directions and care must be taken by the
operator to keep well clear and out of the spreading zone when the machine is in operation.
It is the responsibility of the operator to ensure that no other persons enter the
spreading zone whilst the machine is in operation.
WARNING Do not put your hands inside the hopper when the machine is running as the
feed mechanism is powerful and can cause injury.
The machine may only be used, maintained and repaired by persons who have relevant experience or a
machinery dealer who is aware of any risks involved.
The applicable accident prevention regulations as well as the other generally safety-related, occupational
health and road traffic regulations must also be observed.
The manufacturer is not liable for any damage resulting from unauthorised modifications and the use of
components and auxiliary parts.
The machine must be checked regularly by the operator (before each use) for any damage loose bolts or
electrical connections, vibrations, unusual sounds, and to ensure they function correctly.
The machine must not be operated in wet weather conditions and not to be used during thunderstorms.
Observe the generally applicable safety and accident prevention regulations.
Use the hopper tipping facility to empty the hopper of toxic materials to prevent harm to humans and animals
after each use and prior to storage.
WARNING Always isolate the power supply if servicing or leaving the machine unattended.
NOTE UK users; more information regarding slug pellet and best practice available at:
www.getpelletwise.co.uk

8
POWER
ON /OFF
8 Emergency stop instructions
1. Power down the control system immediately by pressing and holding down the left-hand
rubber end cap on the instrument control panel for approx. 2 seconds — then release to power off.
2. Disconnect the power supply by unplugging the power cable or removing the inline
40amp fuse.

9
9 Maintenance
WARNING Always ensure the power supply is disconnected before any maintenance work or
cleaning of this machine by unplugging the power cable or removing the 40amp fuse in the power
cable.
Ensure the parent machine is stationary and parked on level ground before working on the
machine
The machine must be checked regularly by the operator for any damage loose bolts or electrical
connections, vibrations, unusual sounds, and to ensure they function correctly.
WARNING Protective clothing must be worn when applying or handling toxic products
(See page 7)
Always observe all guidelines provided by the product manufacturer with regards to handling
storage and disposal of products. Take care not to spill any product that could contaminate the
machine or the environment ensuring any product removed from the machine is put back into its
original container.
Before use
1. Ensure the machine is securely mounted
2. Check the power supply and ensure the power cable is connected direct to the vehicle battery
3. Check the feed block assembly’s to ensure the feed rollers are clean and replace any worn feed rollers
4. Check the feed rollers rotate freely before starting work
Daily checks
1. Check the disc to motor shaft socket screws on the lower side of the spinning disc to ensure they are
tight and the spinning disc turns with the motor
2. Check the stainless disc for any wear or distortion and replace prior to use if necessary.
3. Check the feed block assembly’s to ensure the feed rollers rotate freely
After each use
1. Empty hopper before removing the feed block assembly and clean the machine thoroughly ensuring all
residue has been cleaned from the hopper feed rollers and body of the machine.
2. Disconnect the power supply
3. Replace the PVC waterproof cover (if applicable)
4. Store in dry conditions to protect the machine and control system from moisture
WARNING
DO NOT JET WASH THIS MACHINE

10
10 Safety WARNING decals
Important ; Be aware of the safely warning below which are all relevant to this machine
WARNING
Read and understand the Operators Manual
instructions before operating this machine
Operator errors can result in serious injury
WARNING
Danger due to thrown or flying objects
Always maintain a safe distance whilst the
machine is in operation
WARNING
Risk of injury
Possible trapping point when tipping hopper
WARNING
Keep Clear
Maintain a safe distance from the machine
when in operation
Wear the appropriate protective personal
equipment
WARNING
Do Not Jet Wash
This machine is not designed to
withstand Jet Washing !
WARNING
Risk of injury
Be aware the feed mechanism is powerful and
can cause serious injury

11
11-1 Clearing a blockage
Switch off the main power switch on the control panel
Ensure the parent machine is stationary, switched off, and parked on level ground
Ensure the main power switch on the control panel is off and unplug the 2 core power supply cable from the
control box or disconnecting the power cable from the vehicle battery.
Ensure appropriate personal protection equipment is worn for the product being applied
Ensure any product removed is put back into its original container
Care to be taken not to spill any product that could contamination the environment.
Empty the hopper of any remaining product
11-2 Hopper removal
Removing the hopper for cleaning and maintenance
Ensure the hopper is completely empty and free from any product residue
Ensure appropriate personal protection equipment is worn for the product being applied
Release the rubber lid retaining straps and remove the
lid. The hopper can then be lifted away after removing
the retaining plate(s) from within the hopper by re-
leasing the M8 external fixing nuts and washers.
NOTE When replacing he hopper ensure the Gasket fit-
ted under the base of the hoper is in good order
Replace if damaged; part number FJ017S
11-3 Storage
Disconnect the power supply by unplugging the power
cable or removing the fuse in the power cable if storing
the machine for long periods.
It is the responsibility of the operator to ensure the
hopper is empty after each and use and cleaned
thoroughly before storage.
Store in dry conditions to protect the machine and control system from moisture
Always clean and spray electrical connectors with a moisture repellent spray when not in use for long
periods.
11-4 Optional PVC Waterproof Covers
Heavy duty White PVC cover fitted with eyelets and bungie cord for easy attachment
65L Waterproof PVC Cover Part No. LC65 130L Waterproof PVC Cover Part No. LC130
Available through your local Stocks AG dealer
11-5 Disposal
Ensure that any persons handling the machine are aware that the machine may have been used
to apply toxic chemicals and so the appropriate personal protection equipment should be worn.
Ensure the hopper contents have been removed and any toxic residue removed and put back into a sealed
contained or disposed of in accordance with the manufacturers guidelines to eliminate any possible
contamination of others or the environment. Always adhere to the local disposal regulations paying
particular attention to the plastics, rubber, and electrical components.

12
12-1 Fitting to a vehicle or parent machine
Safe lifting practice to be observed when handling the machine as the net weight is over
25kg.
Safety shoes and protective gloves to be worn when handling the machine
With a full hopper the 65L machine could weigh in excess of 90kg and the 130L machine 95kg and
so ensure the machine is securely attached to a suitably strong rigid mounting point. If unsure
seek advise from the parent machine manufacturer or supplier. Locally fabricated mounting frames
are not the responsibility of Stocks AG Ltd
NOTE the machines can be operate facing forwards or backwards. Ensure the disc height is a
minimum of 1 metre above the crop canopy or the ground – more height may improve the
maximum spread width.
Ensure the power cable is connected direct to the parent vehicle 12v battery and the fuse is fitted
correctly.
12-2
Optional ATV Fitting Kit
Part No. FJ-005-BKT (available through your local dealer)
WARNING Always check specification of any ATV rear carrier before ordering
Many rear carriers will not have the load carrying capacity to support the weight of a ful-
ly laden Fan Jet mounted on an ATV kit.
Please check with your ATV supplier as modification may be available.

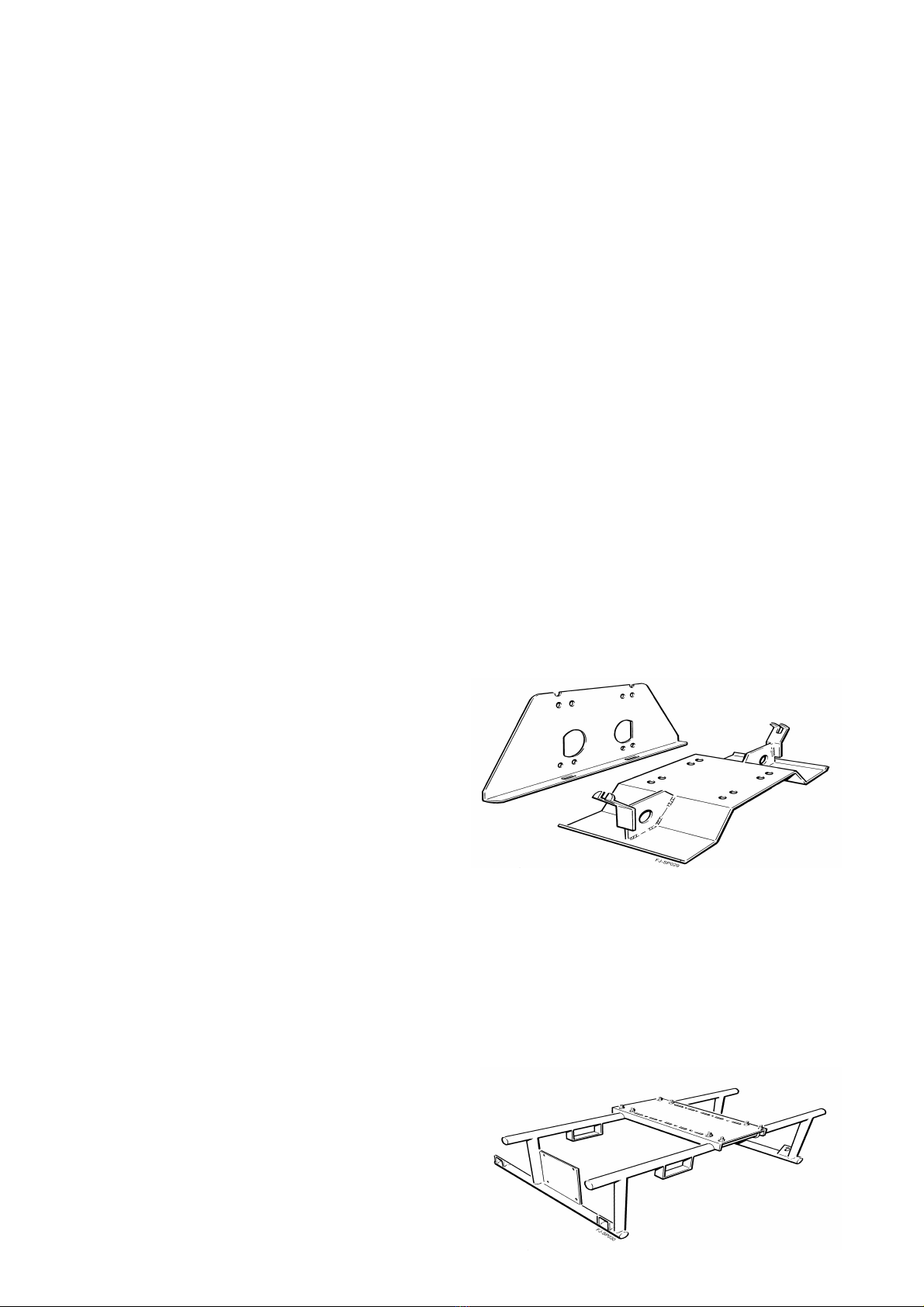

The Stocks ATV Kit provides a quick and easy way to attach your Fan Jet to the rear carrier of your
ATV. Designed as a universal fitment to elevate the Fan Jet to gain more height to the spinning
disc. The formed steel base plate with quick fit clamps and jacking screws to mount the machine to
the base plate and to adjust the angle of the disc when the ATV is fully laden. The kit includes an
operator protection plate which bolts onto the
back frame of the machine plus a short power and
connector cable to maximise the power at the disc
motor.
These are to be fitted rather than the standard
length cables supplied with the Fan Jet machine.
WARNING the i-CON instrument is not
waterproof and so will need to be protected
12-3 Optional UTV Fitting Kit
Part No. FJ-005-UTV (available through your local dealer)
The cost option UTV kit available for most UTV fitments
Offering a sturdy fitting option with 4 hooked anchor points with hand release fittings.
One piece tubular steel construction with detachable machine mounting plate.
Fixed fork lift point safe and easy lifting on and off vehicle.

13
13 Mounting Plate
Mount the machine using the tipping base plate. This has 4 holes in the base to take M12 bolts (see below)
use these to attach to the parent vehicle. The base plate can be repositioned to fit the holes in the back of
the machine to attach to a vertical mounting point – use whichever is best for you.
Ensure there is sufficient room to tip the hopper for emptying and ensure any potential trapping
points are noted taking care not to trap hands or fingers.
The tipping base plate is attached to the chassis by 2 bolts and spacers which act as the pivot, and a
removable steel pin secured by an ‘R’ clip
There are 2 positions for the pin – use these to help level the Fan Jet.
The machine must be on level ground or flat surface before tipping the hopper to avoid the
hopper accidently tipping forward once the tipping pin has been removed.
To tip the hopper, remove the pin whilst supporting the hopper, lower gently when emptying the hopper.
Addional Base Plates available; Part No. FJ718A

14
14-3 Electrical Connections
Power requirement is 12 volts with a minimum continuous 30amp supply. Ensure the power supply cable is
connected direct to the vehicle battery to ensure maximum power. Connect the positive wire (fused) to the
positive (+) terminal and negative earth connection to the negative (-) terminal
NOTE the disc should rotate in a clockwise direction when viewed from above.
WARNING Failure to connect to the vehicle battery may result in control function problems and
possible damage to the vehicle battery and charging system must be in good condition to achieve the best
results. All cables and controls are fitted with matching plugs and sockets.
WARNING any modifications to the wiring, fuse holder or control system will invalidate any warranty claim
and may effect the performance of the machine
14-1 i-CON Control system
All control system components integral to the applicator unit are factory fitted.
The Instrument has a 4.3" Colour Touch Screen which has 4 basic menu keys (see page 16)
Separate heavy-duty power cable and head unit leads interconnect the tractor and the Seed Applicator
Unit.
The following components need to be installed during fitment (packed in hopper from factory)
 i-Con Instrument; TJ117C
 Instrument cables; TJ118C and TJ242A
 Power Cables; FJ107E
 GPS Receiver; TJ255B
14.2 Wiring diagram
i-Con
Instrument
Instrument Connector
Cable TJ118C
6m Instrument
Cable TJ242A Junction
Box
TJ119D
7m Fused
Power Cable
12v Disc Motor
(not used)
Feed
Motor
Hopper Level
Sensor
GPS Receiver
OPTIONAL Ground Speed Radar TJ233A
OPTIONAL 6m Radar Cable TJ234
Cut Out Switch

15
15 Machine components
Feed Motor
The feed motor can be turned ON or OFF, either manually via the head unit, or automatically by the
remote mounted spring finger switch which can be fitted to the linkage or the implement. The feed motor
must be switched ON via the head unit for the spring finger switch to work automatically.
Spring Finger Switch
The switch should be mounted to a suitable place on the implement or linkage of the tractor, thus
deflecting the spring, and automatically switching the feed motor off or on accordingly as the circuit is
made or broken.
Position the finger switch so that the tip of the spring comes into contact with the moving part of the
implement or linkage when lifted out of work, and remains deflected until the implement is lowered back
into work. NOTE. Ensure that there is sufficient and positive deflection on the spring to prevent accidental
switching ON or OFF if the implement moves slightly up or down in work.
The standard wiring as supplied for this switch is when the spring is at rest, the feed motor will run
normally. If required, the switch can work in the opposite mode by changing the position of the 2
wires inside the switch
so that the switch is out of work when the sprung is at rest.

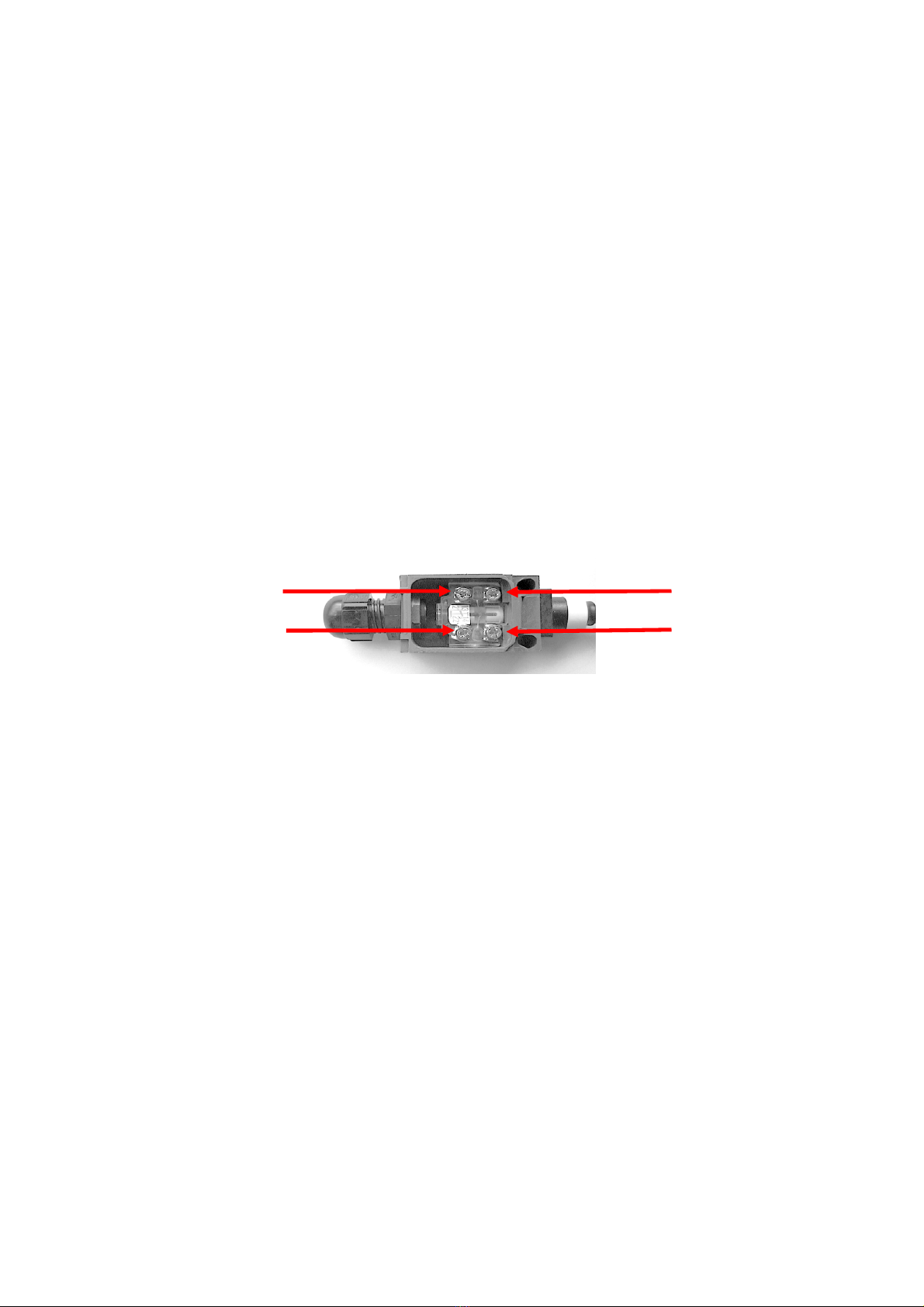

To change over remove the PVC cover plate held in position with the retaining screw to access the wiring
terminals. Remove the 2 wires from terminals 13 and 14 and re-connect to terminals 21 and 22
(nearest the gland nut) then re-fit the PVC cover plate. (NOTE the area meter also stops when the feed
motor stops)
12v Disc Motor
The disc motor can be switched on and off and the disc speed adjusted on the instrument panel
GPS Sensor
Small and compact with integrated magnetic base for ease of fitting to tractor cab or suitable mounting
position. Fitted with a 5m lead which plugs into the i-Con instrument connector cable
Hoper Level Sensor
The instrument will alarm once the product in the hopper falls below the level of the sensor
Main Power Cable
The power cable should connect directly to the vehicle battery posts to ensure adequate 12v supply to
the disc motor. The in-line is 25 amp.
This 7m power cable connects from the battery to the power input flylead on the machine. .
Instrument Lead
The 6m instrument lead connects to the junction box mounted on the machine, and runs to the i-Con
instrument panel connector lead in the tractor cab.
NOTE Extension power and instrument cables are available if required.
Please contact your local Stocks AG dealer for more information.
21
1422
13

16
Forward Speed / Area and
Operang Range (0-100%)
Indicator
Manual Pre-Start
Forward Speed or Area
display
Metering On/Off -
Metering Status
Power On/Off
HOME
Return to Main
Screen
SCROLL between Menu
Pages
SD /USB Read /
Write indicator
ESCAPE
to previous Menu page
ENTER
Confirm an opon or
value within a menu
Fan/Disc On/Off
Fan/Disc Status
Set Applicaon Rate
Nudge – Decrease
Nudge – Increase
Applicaon Rate
(kg/ha or Seeds/m2) and
16-1 i-CON Instrument functions
16-2 Precision farming software access
OPTIONAL
The instrument can be unlocked to activate the precision farming program as a cost option
This is something that can be requested when the machine is purchased or can be added at a later date
Please contact your local Stocks dealer for more details
· Seed Application Rate (kg/ha or Seeds/m2).
· Forward Speed (km/hr).
· Minimum/Maximum Forward Speed indicator with alarms, (beyond which the programmed seed rate
cannot be maintained).
· Metering Unit Status (On/Off) and Alarm.
· Fan (or Spinner - depending on installation) Status (On/Off) and Alarm.
· Hopper contents (kg) and Low Level Alarm.
· Part and Full (Job) Totals for Area (ha), Product dispensed (kg) and hours worked.
· Grand Total for Area (ha), Product (kg) and hours worked.
Other features include,
· Simple and intuitive touchscreen Alarm codes and diagnostic displays in the event of system malfunction.
· menus for Forward Speed / Product calibration and adjustment.
· ‘Pre-start’ - ensures seed delivery begins immediately the drill enters work (user-programmable).
· Rate ‘Nudge’ – on-the-move rate adjustment in pre-set increments (user-
programmable).
NOTE a comprehensive control system user guide also supplied (packed with the i-Con instrument)

17
17-2 Spread width and pattern
BASIC RULE. The spread width is dependent upon the density of the granule or seed, and the disc speed
(plus other factors).
Large, dense granules and seeds with a high disc speed give the maximum spread width – small, light
granules and seeds will not spread as far.
Other factors affect the spread width:
Type of slug pellet. Typically, a large, dense hard pellet should spread further than a small, light, soft pellet,
because it is comparatively heavy and does not powder on the disc. Typically, a ‘wet’ produced pellet will be
hardest, a steam produced pellet mid range, and a dry produced pellet the softest. However, the line
between traditional ‘mini’ pellets and ‘full size’ is blurred – most are of similar size and some lower priced dry
produced pellets termed, as ‘minis’ are actually larger and heavier than more expensive wet produced pellets,
and can have a good spreading characteristics.
Seed varieties and dressings. Different varieties and dressings will affect the density and the spread.
Wind Conditions. Dead calm conditions are the optimum; any wind will affect the width pattern.
High forward speed. The same as driving into a headwind of the same speed on a calm day, and this will
peel the edges of the spread pattern backwards and inwards.
Disc speed. Altering the disc speed will affect the width and pattern. A higher disc speed will give a wider
spread width.
Disc condition Ensure in good condition and not worn excessively. Replace if necessary.
Low disc height. Will not allow the product to reach its maximum width before gravity takes over.
Low electrical power. Will not allow the disc to reach full speed.
High application rates. Loads the disc more than a lighter rate and can slow it down.
Incorrect disc angle. It must be at least horizontal – not angled downwards.
It is the responsibility of the operator to ensure that no other persons enter the spreading zone
whilst the machine is in operation.
17-1 Setting the headland deflectors
Adjustable deflectors that reduce the exit aperture from the disc are incorporated
into the Fan Jet to physically limit the spread width for headland control.
Undo the black plastic knob at the rear of the chassis and slide each deflector
around the disc as far as required to prevent chemical granules from entering a
watercourse of grass margin.
Re-tighten the locking knob.
NOTE Use the motor disc speed in conjunction with the deflectors, and the bias
adjustment.

18
18-1 Setting the feed rate
The feed rate is adjusted by the feed motor speed and by fitting different feed roller combinations.
Each combination giving different feed rates of material per revolution. Refer to the Calibration Procedure and
with the appropriate feed rollers fitted, follow the instructions. You may have to change the feed rollers to
obtain the application rate within a sensible forward speed range which is calculated during the calibration
procedure.
When re-fitting the end plates to the feed block after changing the configuration, the end plate should be able
to fit flush with the feed block by hand, without having to pull it home with the socket head screws.
The assembled rollers and spacers should not be under compression.
NOTE. You should be able to rotate the feed shaft with your fingers – if it feels excessively tight, check the
feed roller and spacer composition or call Stocks AG for advice.
WARNING Always observe all application standards and guidelines provided by the
product manufacturer as some products may be toxic !
If unsure contact your supplier for more information.
NOTE always ensure a stainless
disc is fitted to each side of the set
of 1,2,3,4 or 5 feed rollers used in
each half of the feed block.
They are important and needed to
reduce friction between the feed
rollers and the plastic spacers.
Photo of a feed block assembly with 6
feed rollers and 6 blacking spacers fitted
18-2 Feed roller configuration
For higher outputs or applying large seeds or granules the
machine is also supplied with 2 larger 8 section feed rollers
and spacers to allow 1 or 2 to be fitted as required.
The feed rollers are easily changed by removing the feed
block as follows.
NOTE Empty the hopper completely before removing
the feed block.
Photo of a feed block assembly with 2
larger 8 section feed rollers fitted
1. Undo and remove the 2 black
plastic knobs holding the feed block
in place
2. Slide the complete mechanism out
3. Undo and remove the 4 socket
head screws on the end of the
housing opposite the retaining plate
and remove the end plate
4. Slide the rollers and spacers off
the shaft, and replace with the
alternative rollers and spacers in the
required combination
5. Refit the end plates and re-fit the
feed block and black plastic knobs.
The machine is fitted 10 white 5mm polyurethane 18 tooth feed
rollers as standard these have a stainless steel drive disc embed-
ded. Depending on the combination of required seeding rate,
implement width and forward speed 2 to 10 feed rollers can be
fitted with maximum rates achieved by fitting all 10 feed rollers.
The black 5mm wide spacers supplied are the same width as the
white feed rollers and used to replace feed rollers as required

19
19 Calibration Hopper Part No. FJ-005-CAL-MINI
Fitting Instructions
(Similar machine shown)
1. With an empty hopper, remove the feed block assembly
from the machine
2. Slide the Calibration Hopper into the Fan Jet in place of
the feed block with the hopper uppermost, ensure the drive
shaft aligns and secure with the supplied screw knobs.
4. Secure with the two small blacks PVC knobs supplied.
3. Insert the (removed) feed block into the Calibration
Hopper, ensure the drive shaft aligns by slowly rotating the
feed shaft
5. Place a suitable container under the Calibration Hopper to collect pellets whilst calibrating

20
20 i-CON Calibration (Page 1 of 2)
You will need a suitable container to collect the product or seed when calibrating, and an accurate set of
scales which weighs in grams
At the machine
1. Fit the calibration hopper and feed block assembly (see page 19)
2. Position a suitable collection tray directly underneath the calibration hopper to catch the product
3. Place a few kilograms of seed in the hopper
At the ICON instrument
1. Switch the spinning disc off at the instrument (see page 16)
2. Switch the head unit ON via the left hand side push
button – wait until the start-up routine has finished
and displays the main “home screen”
3. Scroll through to the Setup Menu and select the
Applicator Icon
4. Adjust the implement width accordingly - refer to the
RDS manual, page 25, section 3.3, Set Implement
Width
5. Ensure the correct application rate is
entered – select and adjust accordingly,
refer to the RDS manual, page 21, section 3.1, Setting the Application Rate
6. Ensure the feed roller setup is appropriate for the intended product or seed type, application rate and
forward speed range for application
7. The instrument calculates the calibration factor from the working width, target application rate, and the
metered weight delivered whilst calibrating. If however as a result of the calibration routine, you find that
you cannot achieve your desired field speed, displayed in the top right corner of the screen, then
re-configure the feed roll assembly and repeat the calibration procedure
8. Prime the feed rollers with product by pressing and holding briefly the prime button on the junction box
- this will ensure a higher initial calibration accuracy, empty the contents of the tray back into the hopper
9. For an Auto Calibration from the Product Setup page, touch
10. Touch and enter the quantity that you wish to dispense for calibration purposes. You can enter
the quantity in grams if preferred. The CAL factor will however, still be calculated in kg/rev
11. Touch on the screen page
12. After the key the motor runs at the calibration speed (calculated from the Simulated Forward
Speed, Width, Application Rate and current calibration factor)
13. The dispensed weight (based on the current calibration factor) is displayed
14. Weigh the product dispensed and then enter the measured weight, and press
15. A new calibration factor is then re-calculated and displayed
16. Your in field min and max speeds will be displayed as per the image to the right hand side. If you find
that you cannot achieve your desired field speed, then re-configure
the feed roller assembly and repeat the calibration procedure
(see page 18 for more details)
17. Touch to save the new factor, it is advised to repeat the
calibration 2 more times to ensure accuracy
