STOVES RICHMOND S900 DF User manual

USER GUIDE
A commitment to:
Stoves Range DF / GTG Part Number: 083644901 Date: 30/04/18

To contact Stoves about your appliance, please call:
Calls are charged at the basic rate, please check with your telephone service provider for exact charges
Alternatively general, spares and service information is available from
our website at: www.stoves.co.uk
Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW
Warranty Registration
0800 952 1065
*Please call our Customer Care team for extended
warranty
Spares Store
0344 815 3745
Customer Care Helpline
0344 815 3740
In case of difculty within the UK
To contact us by email:
[email protected]
To register your appliance by mail:
Please complete the warranty
card and return to the address
supplied
To register your appliance online:
www.stoves.co.uk
Your new appliance comes with our 12-month guarantee, protecting you against electrical and
mechanical breakdown. To register, please complete the registration form included, register online
or by phone. For full terms & conditions of the manufacturer’s guarantee, please refer to the web-
site above. In addition, you may wish to purchase an extended warranty. A leaet explaining how to
do this is included with your appliance.
Our policy is one of constant development and improvement, therefore we cannot guarantee the
strict accuracy of all of our illustrations and specications. Changes may have been made subse-
quent to publishing.
GB - Great Britain þ
IE - Ireland þ
DE - Germany
ES - Spain
FR - French
IT - Italy
PL - Poland
NL - Netherlands
SE - Sweden
CN - China
NZ - New Zealand
AU - Australia
Countries of destination:

Thank you for buying this British-built appliance from us.
This user guide book is designed to help you through each step of owning your new product.
Please read it carefully before you start using your appliance, as we have endeavored to answer as
many questions as possible, and provide you with as much support as we can.
General information, spares and service information is available from our website.
If you should nd something missing from your product or have any questions that are not covered in
this user guide, please contact us (see contact information inside the front cover).
European Directives
As a producer and a supplier of cooking appliances we are committed to the protection of the
environment and are in the compliance with the WEEE directive. All our electric products are
labelled accordingly with the crossed out wheeled bin symbol. This indicates, for disposal
purposes at end of life, that these products must be taken to a recognized collection points,
such as local authority sites/local recycling centres.
This appliance Complies with European Community Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.
This appliance conforms to European Directive regarding Eco design requirements for energy-related
products. Our policy is one of constant development and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and specications - changes may have been made subse-
quent to publishing.
Disposal of Packaging Material
The packaging materials used with this appliance can be recycled. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.
UK ONLY GAS WARNING:
If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Help line at 0800 111999
INTRODUCTION

WARNING
• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless
continuously supervised. This appliance can be used by children
aged from 8 years and above and persons with reduced
physical sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
• Do not use a steam cleaner on any cooking range, hob or oven
appliance.
• If your appliance is tted with a lid, any spillage should be removed
from the lid before opening. The hob surface should be allowed to
cool before closing the lid (if tted).
• Ensure that the appliance is switched off before replacing the lamp
to avoid electric shock.
• The appliance is not intended to be operated by means of an
external timer or separate control system.
• Unattended cooking on a hob with fat or oil can be dangerous and
may result in re.
• NEVER try to extinguish a re with water, but switch off the
appliance and then cover the ame with a lid or damp cloth.
• Danger of re: Do not store items on the cooking surfaces.
• Only use hob guards designed by the manufacturer of the cooking
appliance or indicated by the manufacturer of the appliance in
the instructions for use as suitable or hob guards incorporated in
the appliance. The use of inappropriate hob guards can cause
accidents.
• If the cooker is placed on a base, measures have to be taken to
prevent the appliance slipping from the base.
SAFETY

• Never put items directly on the base of the oven or cover the oven
with foil, as this can cause the base element to overheat.
• Accessible parts may become hot when the grill is in use. Children
should be kept away.
• Do not place articles on or against the appliance
CAUTION
• This appliance must not be installed behind a decorative door in
order to avoid overheating.
• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
• The use of a gas cooking appliance results in the production of
heat, moisture and products of combustion in the room in which
it is installed. Ensure that the kitchen is well ventilated especially
when the appliance is in use: keep natural ventilation holes open
or install a mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance may call for
additional ventilation, for example opening of a window, or more
effective ventilation, for example increasing the level of mechanical
ventilation where present.
• This appliance is for cooking purposes only. It must not be used for
other purposes, for example room heating.
• (Gas through glass models only) In case of hotplate glass
breakage, immediately shut off all burners and any electrical
heating element and isolate the appliance from the power supply,
do not touch the appliance surface, do not use the appliance.
• Fire Safety Advice
If you do have a re in the kitchen, don’t take any risks - get every-
one out of your home and call the Fire Brigade.
SAFETY

Ifyouhaveanelectricalreinthekitchenandyouconsiderit
safe to do so:
• Pull the plug out, or switch off the power at the fuse box - this may
be enough to stop the re immediately
• Smother the re with a re blanket, or use a dry powder or carbon
dioxide extinguisher
• Remember: never use water on an electrical or cooking oil re.
• Other Safety Advice
• Servicing should be carried out only by authorised personnel.
• Do not operate the appliance without the glass panel correctly
tted.
• There is a risk of electric shock, so always make sure you have
turned off and unplugged your appliance before starting. Always
allow the product to cool down before you change a bulb.
• Do not modify the outer panels of this appliance in any way.
• This appliance must be earthed.
• The appliance must never be disconnected from the mains supply
during use, as this will seriously affect the safety and performance,
particularly in relation to surface temperatures becoming hot and
gas operated parts not working efciently. The cooling fan (if tted)
is designed to run on after the control knob has been switched off.
• GAS WARNING! - If you smell gas: Do not try to light any
appliance, Do not touch any electrical switch. Contact your local
gas supplier immediately.
SAFETY

Getting to know your product
Note: Your appliance layout may differ depending on the model.
Note: All numbers refer to the nominal power rating in Kilowatts (kW)
Dual Fuel Hob 90cm Gas-Thru-Glass Hob 90cm
Dual Fuel Hob 100/110cm Gas-Thru-Glass Hob 100/110cm
Fascia
Top Oven
Fanned
Oven
Multifunction
Oven
Fascia Fascia
90cm 90cm Deluxe 100/110cm
Top Oven
Multifunction
Oven
Fanned
Oven with
Splitter
Top Oven
Multifunction
Oven
Fanned
Oven
Slow
Cook
Note: Please refer to the shaded cavity diagrams throughout this book on it’s use.
1
2
4
2
3
12
31 2
2
4
5
5
5
2
2
3
1
2
23
1
USING YOUR APPLIANCE
Wok Wok
Wok Wok Wok

Control Panel 90cm Dual Fuel
Control Panel 90cm Dual Fuel Deluxe
Control Panel 90cm Dual Fuel Gas-Thru-Glass Deluxe
Cook zones Cook zones
Oven
Grill
Oven Top Oven/Grill
Oven Selector Control
Cook zones
Cook zone
Oven
Top Oven/Grill Split Cavity
Hob and Oven controls Hob and Oven controls
Hob and Oven controls Hob and Oven controls
Clock/Programmer
Oven
Top Oven/Grill Oven SelectorControl
Cook zones
USING YOUR APPLIANCE
Oven
Top Oven/Grill
Split Cavity
Clock/Programmer
Thermostat indicator
Thermostat indicator
Thermostat indicator
Thermostat indicator Thermostat indicator
Cook zones Oven Top Oven
Oven Selector Control
Hob and Oven controls Hob and Oven controls
Clock/Programmer
Thermostat indicator
Thermostat indicator Thermostat indicator

Control Panel 100/110cm Dual Fuel
Control Panel 100/110cm Dual Fuel Gas-Thru-Glass Deluxe
USING YOUR APPLIANCE
Clock/Programmer
Cook zonesCook zones OvenGrill
Thermostat indicator
Top Oven
Oven
Slow Cook
Hob and Oven controls Hob and Oven controls
Oven Selector Control
Cook zones Cook zones
Oven
Oven Selector Control
Top Oven
Clock/Programmer
Grill Oven
Thermostat indicator
Slow Cook
Hob and Oven controls
Hob and Oven controls
Thermostat indicator
Thermostat
indicator
Thermostat indicator
Thermostat indicator Thermostat indicator

Appliance functions
Note: Your oven may not have all of the functions shown here. We recommend for best cooking results,
please preheat your oven for 15 minutes and 3-5 minutes for grilling.
Only slow cook using the dedicated function. When using the multifunction oven, rstly select the
fanned oven feature.
Intense Baking Defrost
Base Heat with Fan Conventional Oven
SSlow Cook Fanned Oven
Fanned Grill Low Grill
Oven Selector Control Single Grill
Conventional Grill Dual Grill
Top Heat Base Heat
Lights Only Pizza Function
Bread Proving Keep Warm
Oven Selector Control Electric oven Hob
OFF
OFF
S
120
140
160
180
200
220
240
260
OFF
USING YOUR APPLIANCE

Ovens and Grill
Choose required setting
When using the top oven or main oven, the white thermostat indicator light will come on until the
selected temperature is reached.
When the Top oven/grill or grill is switched on, the cooling fans come on to keep the fascia and control
knobs cool during cooking/grilling. The cooling fans may operate when the main ovens are in use,
depending on the temperature setting. The fans may continue to operate for a period after the oven/grill
has been switched off. During use the fan may cycle on and off, this is normal.
Important: Never put items directly on top the base of the oven, or cover the oven base with foil, as
this may cause the element to overheat. Always position items on the shelf.
The left hand main oven will not operate if the programmer is set to Auto, see clock/programmer
section.
Top Oven - Grill
THE DOOR MUST BE OPEN WHEN THE GRILL IS USED.
Main Oven - Grill
THE DOOR MUST BE CLOSED WHEN THE GRILL IS USED FOR FANNED AND CONVENTIONAL
GRILLING.
Tall Oven - Grill (90cm Deluxe only)
THE DOOR MUST BE OPEN WHEN THE GRILL IS USED.
USING YOUR APPLIANCE

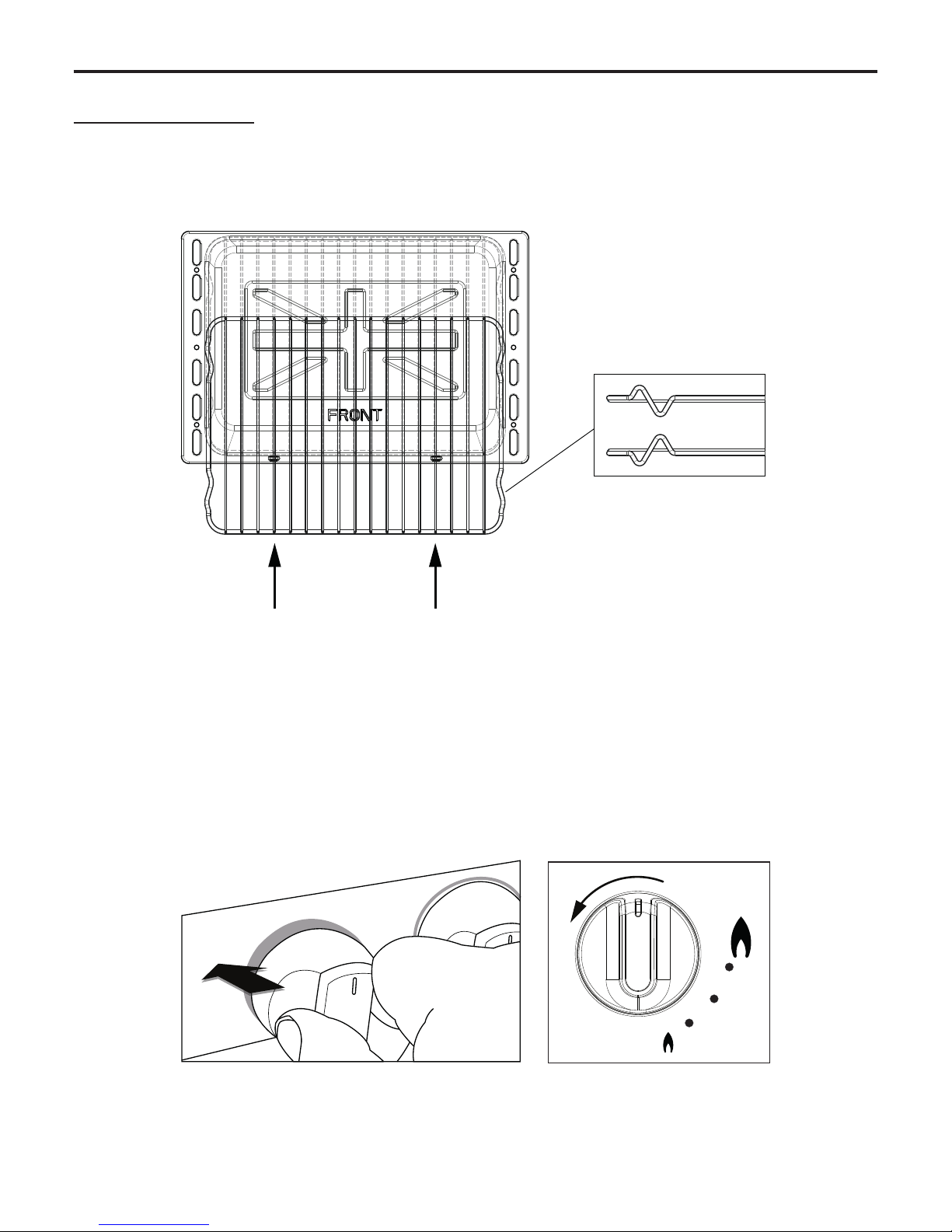

Grill pan and trivet
The grill trivet (inside the grill pan) can be inverted to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a higher or lower shelf position, or adjusting the grill
setting.
Inverted
Hob
• Press the control knob to ignite the gas for up to 15 seconds then release. For the wok, please allow
the burner to warm up for a few minutes.
• Once lit, turn the control knob to the required setting.
If the burner fails to ignite within this time, release the control knob and wait 1 minute before attempting
to re-ignite.
USING YOUR APPLIANCE

Fitting burner caps and heads
angled
parallel
burner cap
burner head
burner cap not central

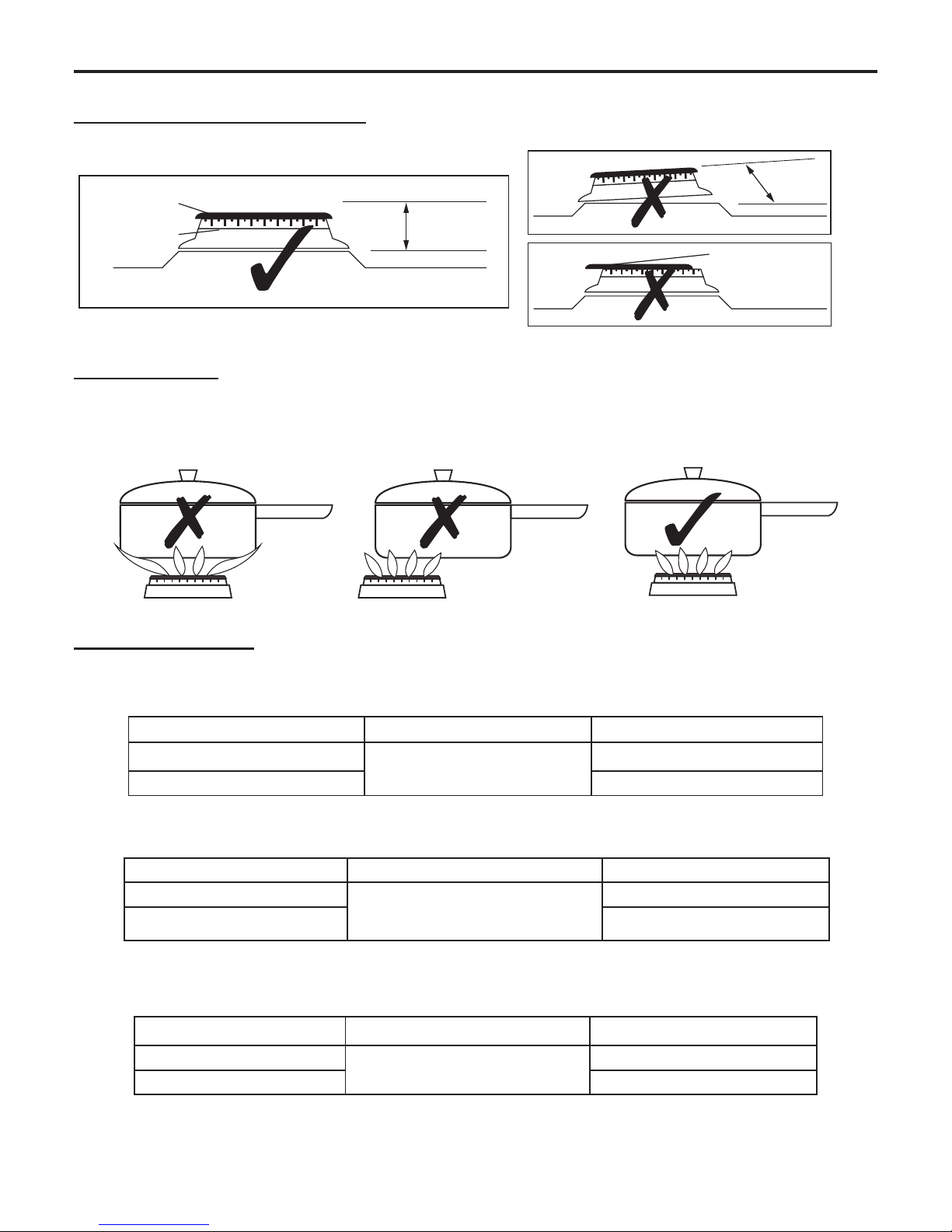

Pan placement
Always make sure that your pans are placed centrally and do not allow the ame to extend over the
base of the pan. Do not place pans directly onto the burners.
Pan sizes required
Dual Fuel
Hob Cook Zones Minimum Pan Sizes (mm) Maximum Pan Sizes (mm)
Rapid & Wok 100 260
All other cook zones 250
90cm Gas-Thru-Glass
Cook Zones Minimum Pan Sizes (mm) Maximum Pan Sizes (mm)
Wok
100
300
All other cook zones 220
100cm/110cm Gas-Thru-Glass
Cook Zones Minimum Pan Sizes (mm) Maximum Pan Sizes (mm)
Wok 100 280
All other cook zones 220
Warning: Do not allow cooking vessels to overlap cooking zones
Note: GTG - Ensure when locating the GTG pan supports, they securely locate onto the pins on the
hotplate
USING YOUR APPLIANCE

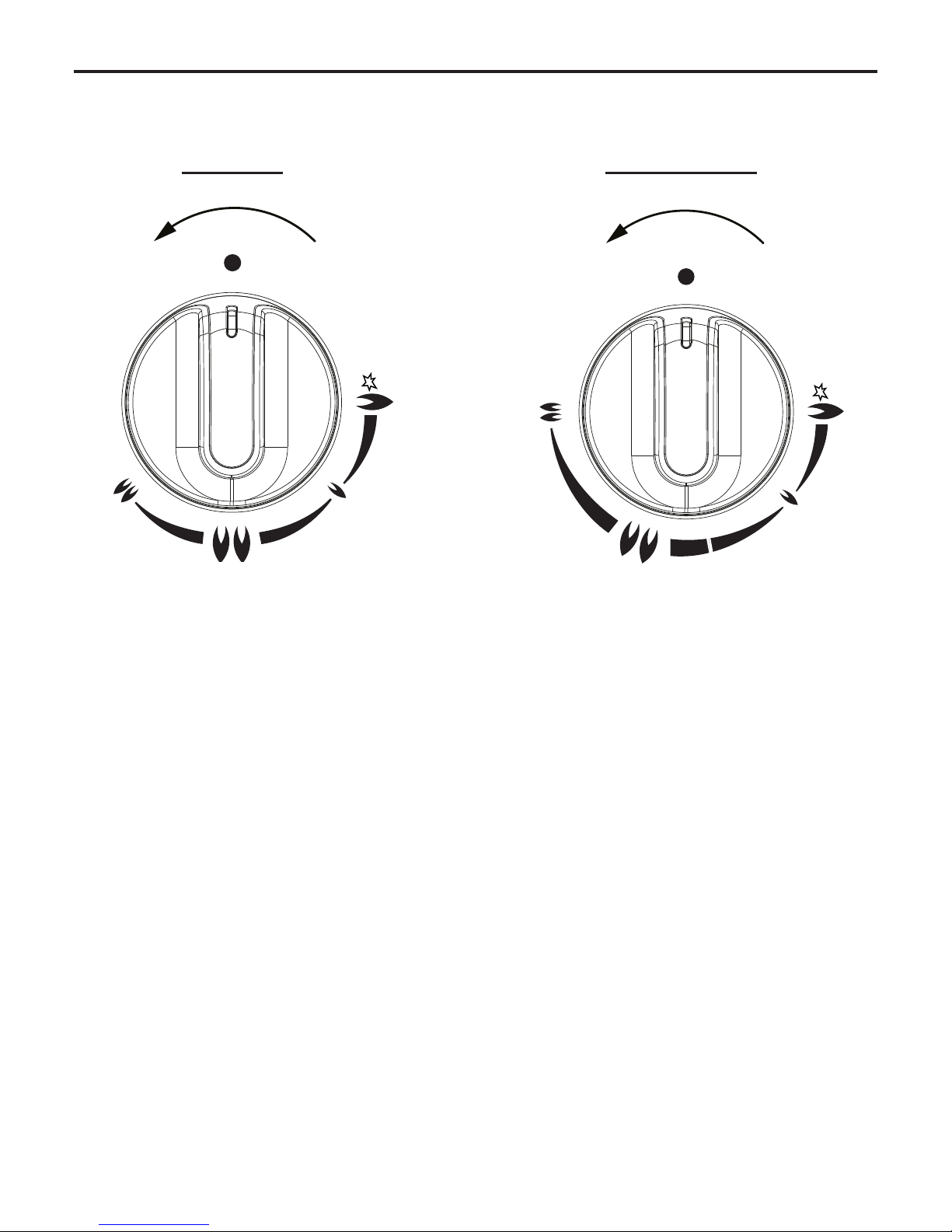

Using the Dual Wok
90cm Wok 100/110cm Wok
OFF
OFF
To ignite the outer burner of the wok, turn the control knob to the ignition and ame symbol (1). Hold for
15 seconds until the ame takes hold. Then turn the control knob to the desired power.
To activate the outer and inner wok rings together, turn the control knob to the dual ame symbol (2). To
reduce the power of both wok rings, turn the control knob to (3).
3
2 2
1 13
USING YOUR APPLIANCE

USING THE GRILL
7.160
Warning: Accessible parts may
become hot when the grill is in
use. Children should be kept away
BEFORE YOU START GRILLING. . . .
Before you use the grill, make sure you
have placed the grill shelf in the posi-
tion you need as once the grill is on you
may injure yourself if you try to move the
shelf.
• Do not close the door while the grill
is in use.
• Turn the top oven control knob to the
required grill setting.
• Turnthegrillcontrolknob(iftted)
to the heat setting you require.
• To switch off, return the control
knob(s)tothe‘off’position.
• The cooling fan will come on during
use, and may continue to run for
some time afterwards.
• To adjust your results, you can turn
the grid over, or remove it altogether.
• The dual grill uses all of the top ele-
ment and is ideal for grilling large
quantities of food.
• The single grill uses part of the ele-
ment only, and is better suited to grill
smaller amounts of food.
The grill pan
This appliance comes with a grill pan and
trivet.
Shelf & Trivet adjustments
Speed of grilling can be adjusted by
changing the shelf position or the turning
the trivet.
• High: For thin foods and toasting.
• Low: For thicker meat pieces.
Types of grill
Dual grill: has two grill elements which
can be used together, or as a single
grill.
For best results:
Pre-heat the single grill for 5
minutes and the dual grill for 3
minutes.
i
i
Aluminium Foil
Never cover the grill pan or grill trivet
with foil, or allow fat to build up in the
grillpan,asthiscreatesarehazard.

USING THE GRILL
7.160
Food Type Time Approx
(mins)
Bacon 8-15
Sausages 12 - 15
Chops
•Lamb
•Pork
10 - 15
15 - 25
Toast
•2rounds
•4rounds
1-2(perside)
1-2(perside)
Bread products
•Buns
•Teacakes
1-2(perside)
1-2(perside)
Cheese on toast
•2rounds
•4rounds
4-5
4-5
Fish
•llets 10 - 15
Chicken
•llets 20 - 30
Beef Steaks
•rare
•medium
•welldone
Gammon Steaks
7 - 10
10 - 15
15 - 20
12 - 15
As with any cooking guide, all
times are approximate and can
be adjusted to suit personal
taste.
i

8.100
USING THE TOP OVEN
When you are cooking keep children
away from the vicinity of the oven.
Caution: The top element gets
extremely hot when in use, so
take extra care to avoid touch-
ing it.
The top oven is a conventional oven.
Note: The top oven is not controlled by
the programmer.

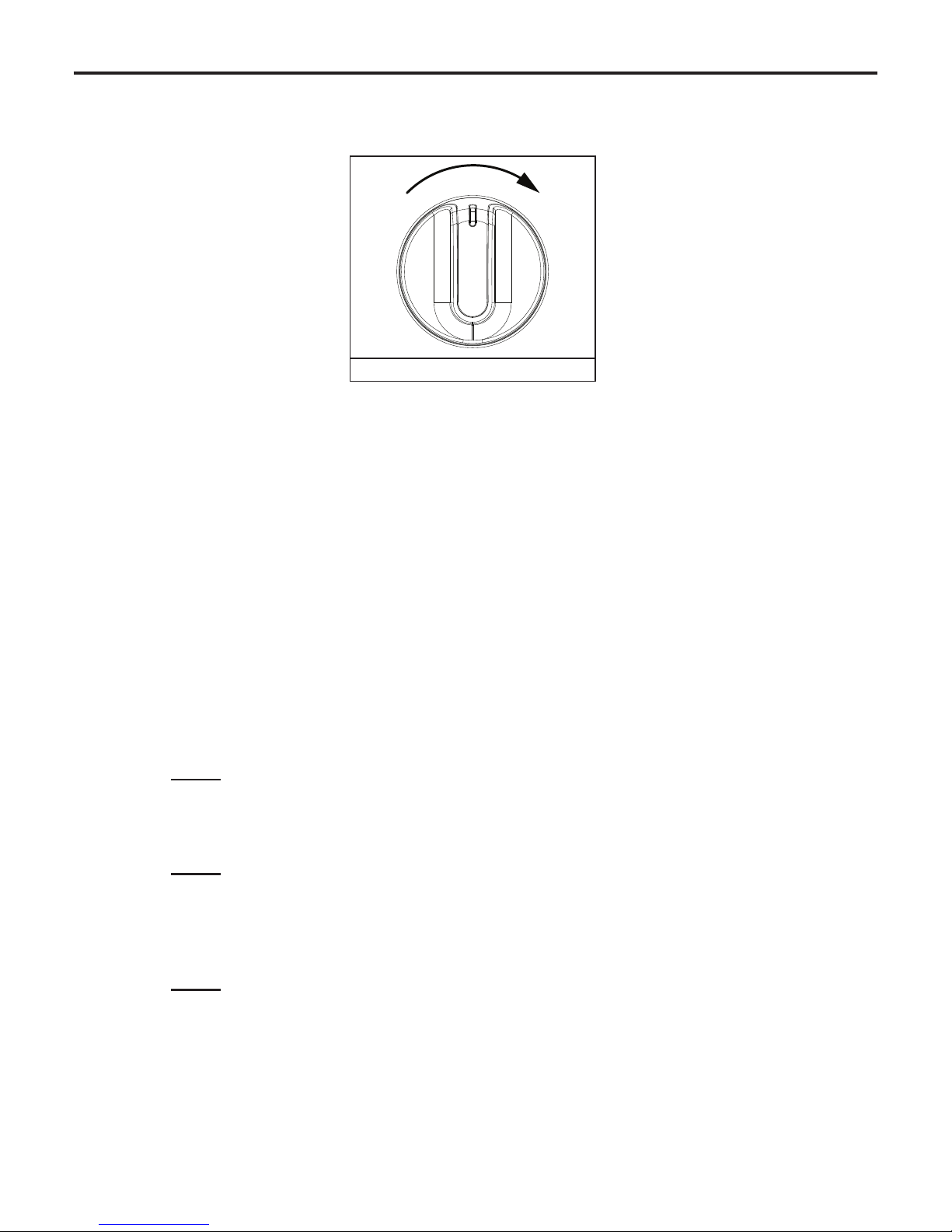

To turn on the top oven
Turn the temperature control knob until
the required temperature is selected.
The white thermostat indicator will come
on until the selected temperature is
reached, and then go off. It will turn on
and off periodically as the thermostat
operates to maintain the selected tem-
perature.
To switch off, return the top oven control
knob to the off position.
Important: Never put items directly on
the base of the oven, or cover the oven
base with foil, as this may cause the ele-
ment to overheat. Always position items
on the shelf.
The cooling fan
When the top oven is switched on, you
will hear the cooling fan come on - this
keeps the fascia and control knobs of the
appliance cool during cooking. The fan
may continue to operate for a period after
the oven control has been switched off.
Preheating
The oven must be preheated when cook-
ingfrozenorchilledfoods,andwerec-
ommend preheating for yeast mixtures,
batters,soufés,andwhiskedsponges.
Preheat the oven until the indicator light
switchesoffforthersttime,thiswill
take up to 15 minutes depending on the
temperature selected.
If you are not preheating the oven, the
cooking times in the following guide may
need to be extended, as they are based
on a preheated oven.
Shelf positions
Whencookingfrozenorchilledfood,use
the highest possible shelf position, while
allowing some clearance between the
food and the top element.
The oven shelf must be positioned with
the up-stand at the rear of the oven and
facing up. Position baking trays and roast-
ing tins on the middle of the shelves, and
leave one clear shelf position between
shelves, to allow for circulation of heat.
When using the top oven
As part of the cooking process, hot air is
expelled through a vent at the top of the
oven(s).Whenopeningtheovendoor,
care should be taken to avoid any possible
contact with potentially hot air, since this
may cause discomfort to people with sen-
sitive skin. We recommend that you hold
the underneath of the oven door handle.

8.100
USING THE TOP OVEN
TOP OVEN BAKING GUIDE
Cooking times
These times are based on cooking in a
preheated oven.
These cooking times are approximate,
duetothesizeandtypeofcookingdish
and personal preferences.
Shelf positions
Asageneralguide,whencookingfrozen
or chilled food, use the highest pos-
sible shelf position, while allowing some
clearance between the food and the top
element. Follow the instructions given on
packaging.
Item Temperature
(°C)
Shelf
Position
Approximate cooking time
Small cakes
Victoria sandwich
(2x180mm/7”)
Swiss roll
Semi rich fruit cake
(180mmx7”)
Scones
Meringues
180
160
200
140
215
90 - 100
1
1
1
1
1
1
15 - 20 mins
20 - 25 mins
8 - 12 mins
2¼ - 2¾ hours
10 - 15 mins
2 - 3 hours
Shortcrust pastry
Puff/akypastry
Choux pasrty
200 - 210
200 - 210
200 - 210
1
1
1
Dependsonsize&typeofcook-
ingdish&alsothelling
Biscuits
Sponge pudding
Milk pudding
160 - 200
150
140
2
1
1
10 - 20 mins
30-45mins
2 - 2½ hours
Cooking temperatures
The temperature settings and time given
in the Baking Guides are based on dishes
made with block margarine. If soft tub
margarine is used, it may be necessary
to reduce the temperature setting. If a
recipe gives a different temperature set-
ting to that shown in the guide, the recipe
instruction should be followed.
Because the top oven is more compact,
it may be necessary to reduce cooking
temperaturesspeciedinrecipesbyupto
20°C.
Use the baking guide as a reference for
determining which temperatures to use.

9.100
USING THE MAIN OVEN - ELECTRIC
Accessible parts may be
hot when the oven is used.
Young children should be
kept away.
To switch on the oven
Turntheovencontrolknob(s)tothe
required setting.
Thewhitethermostatneon(iftted)will
come on until the selected temperature
is reached and then go off; it will turn
on and off periodically as the thermostat
operates to maintain the selected tem-
perature.
To switch off, return the control knob to
the off position.
When using the oven
As part of the cooking process, hot air
is expelled through a vent in the oven.
When opening the oven door, care should
be taken to avoid any possible contact
with potentially hot air, since this may
cause discomfort to people with sensitive
skin. We recommend that you hold the
underneath of the oven door handle.
PREHEATING
Fanned oven
When cooking sensitive items such as
soufeandYorkshirepuddingsor,when
cooking bread, we recommend that the
oven is preheated until the neon switches
offforthersttime.Foranyothertypes
of cooking, a preheat may not be re-
quired.
Conventional oven
Preheating is always required
Manual Operation (Left hand oven
only)
The programmer must be set to manual
operation before the main oven can be
used.IfA(Auto)isontheprogrammer
display, return the oven to manual by
pressing the up and down buttons simul-
taneously Any programme which has been
set is cancelled.
The cooling fan
The cooling fan may operate when the
main oven is on and may continue to op-
erate for a period after the oven has been
switched off.
OVEN FURNITURE
Oven shelves
The oven shelf must be positioned with
the upstand at the rear of the oven and
facing upwards.
Position baking trays and roasting tins on
the middle of the shelves.
Baking tray and roasting tins
For best cooked results and even brown-
ing,therecommendedsizebakingtrays
and roasting tins that should be used are
as follows;
Baking tray 350mm x 250mm
Thissizeofbakingtraywillholdupto12
small cakes.
Roasting tin 370mm x 320mm
We recommend that you use good quality
cookware. Poor quality trays and tins may
warp when heated, leading to uneven
baking results.

9.100
USING THE MAIN OVEN - ELECTRIC
Slow cooking ( Setting or 100°C)
• Makesurethatfrozenfoodsarethor-
oughly thawed before cooking.
• Do not slow cook joints of meat
or poultry weighing more than
2¼kg/4½lb.
• Preheat the oven to 170°C and cook
for 30 minutes, then adjust the oven
control to or 100°C (slow cook
setting)fortheremainderofthe
cooking time.
• Slow cooking times will be about 3
times as long as conventional cooking
times.
• Do not open the oven door unneces-
sarily during slow cooking, as this will
result in heat loss at low tempera-
tures.
• Alwaysusedisheswithtightlytting
lids.Torectifybadlyttinglids,place
foil over the dish underneath the lid.
Aluminium foil
Use foil only to cover food or cooking
dishes, using foil to cover the shelves or
ovenbasecreatesarehazard.
Cooking with a fanned oven
As this is a high efciency oven,
you may notice the emission of
steam from the oven when the door
is opened. Please take care when
opening the door.
If you are used to cooking with a conven-
tionalovenyouwillndanumberofdif-
ferences to cooking with a fan oven which
will require a different approach:
Therearenozonesofheatinafanoven
as the convection fan at the back of
the oven ensures an even temperature
throughout the oven.
This makes it ideal for batch baking - eg;
when planning a party as all the items will
be cooked within the same length of time.
Foods are cooked at a lower temperature
than a conventional oven, so conven-
tional recipe temperature may have to be
reduced. Please refer to the conversion
chart.
Preheating is generally not necessary as a
fan oven warms up quickly.
Thereisnoavourtransferenceinafan
oven, which means you can cook strong
smellingfoodssuchasshatthesame
time as mild foods - eg; milk puddings.
When batch baking foods that will rise
during cooking - eg; bread - always
ensure that enough space has been left
between the shelves to allow for the rise.
Notes:
When 2 or more shelves are being used, it
may be necessary to increase the cooking
time slightly.
Because the 2 oven shelves are wider
than in many ovens, it is possible to cook
2 items per shelf - eg; 2 victoria sand-
wiches or 2 casseroles.
Although you need to keep in mind the
points‘Tohelptheaircirculatefreely’
with careful choice of dishes and tins, it
is possible to cook a complete meal, and
perhapssomethingelseforthefreezer,in
the oven at the same time.
When roasting meats, you will notice that
fat splashing is reduced, which is due in
part to the lower oven temperatures, and
will help keep cleaning of the oven to a
minimum.
Because a fan oven has an even tem-
perature throughout the oven, there is no
need to follow the shelf positions given in
the baking guide.
