STOVES ST BI600G User manual

USER GUIDE
A commitment to:
Stoves BI 60 Gas Part Number: 083800700 Date: 24/06/19

To contact Stoves about your appliance, please call:
Calls are charged at the basic rate, please check with your telephone service provider for exact charges
Alternatively general, spares and service information is available from
our website at: www.stoves.co.uk
Glen Dimplex Home Appliances, Stoney Lane, Prescot, Merseyside, L35 2XW
Warranty Registration
0800 952 1068
*Please call our Customer Care team for extended
warranty
Spares Store
0344 815 3745
Customer Care Helpline
0344 815 3740
In case of di󰀩culty within the UK
To contact us by email:
[email protected]
To register your appliance by mail:
Please complete the warranty
card and return to the address
supplied
To register your appliance online:
www.stoves.co.uk
Your new appliance comes with our 12-month guarantee, protecting you against electrical and
mechanical breakdown. To register, please complete the registration form included, register online
or by phone. For full terms & conditions of the manufacturer’s guarantee, please refer to the
website above. In addition, you may wish to purchase an extended warranty. A leaet explaining
how to do this is included with your appliance.
Our policy is one of constant development and improvement, therefore we cannot guarantee the
strict accuracy of all of our illustrations and specications. Changes may have been made
subsequent to publishing.
GB - Great Britain þ
IE - Ireland þ
DE - Germany
ES - Spain
FR - French
IT - Italy
PL - Poland
NL - Netherlands
SE - Sweden
CN - China
NZ - New Zealand
AU - Australia
Countries of destination:

Thank you for buying this British-built appliance from us.
This user guide book is designed to help you through each step of owning your new product.
Please read it carefully before you start using your appliance, as we have endeavored to answer as
many questions as possible, and provide you with as much support as we can.
General information, spares and service information is available from our website.
If you should nd something missing from your product or have any questions that are not covered in
this user guide, please contact us (see contact information inside the front cover).
European Directives
As a producer and a supplier of cooking appliances we are committed to the protection of the
environment and are in the compliance with the WEEE directive. All our electric products are
labelled accordingly with the crossed out wheeled bin symbol. This indicates, for disposal
purposes at end of life, that these products must be taken to a recognized collection points,
such as local authority sites/local recycling centres.
This appliance Complies with European Community Directives (CE) for household and similar electrical
appliances and Gas appliances where applicable.
This appliance conforms to European Directive regarding Eco design requirements for energy-related
products. Our policy is one of constant development and improvement, therefore we cannot guarantee
the strict accuracy of all of our illustrations and specications - changes may have been made
subsequent to publishing.
Disposal of Packaging Material
The packaging materials used with this appliance can be recycled. Please dispose of the packaging
materials in the appropriate container at your local waste disposal facilities.
UK ONLY GAS WARNING:
If you smell gas, Do not try to light any appliance. Do not touch any electrical switch.
Call the Gas Emergency Help line at 0800 111999
INTRODUCTION

WARNING
• During use the appliance becomes hot. Care should be taken to
avoid touching heating elements.
• Children less than 8 years of age shall be kept away unless
continuously supervised. This appliance can be used by children
aged from 8 years and above and persons with reduced
physical sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning the use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
• Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the oven door glass or the hob since they can scratch the
surface, which may result in shattering of the glass.
• Do not use a steam cleaner on any cooking range, hobs and oven
appliances.

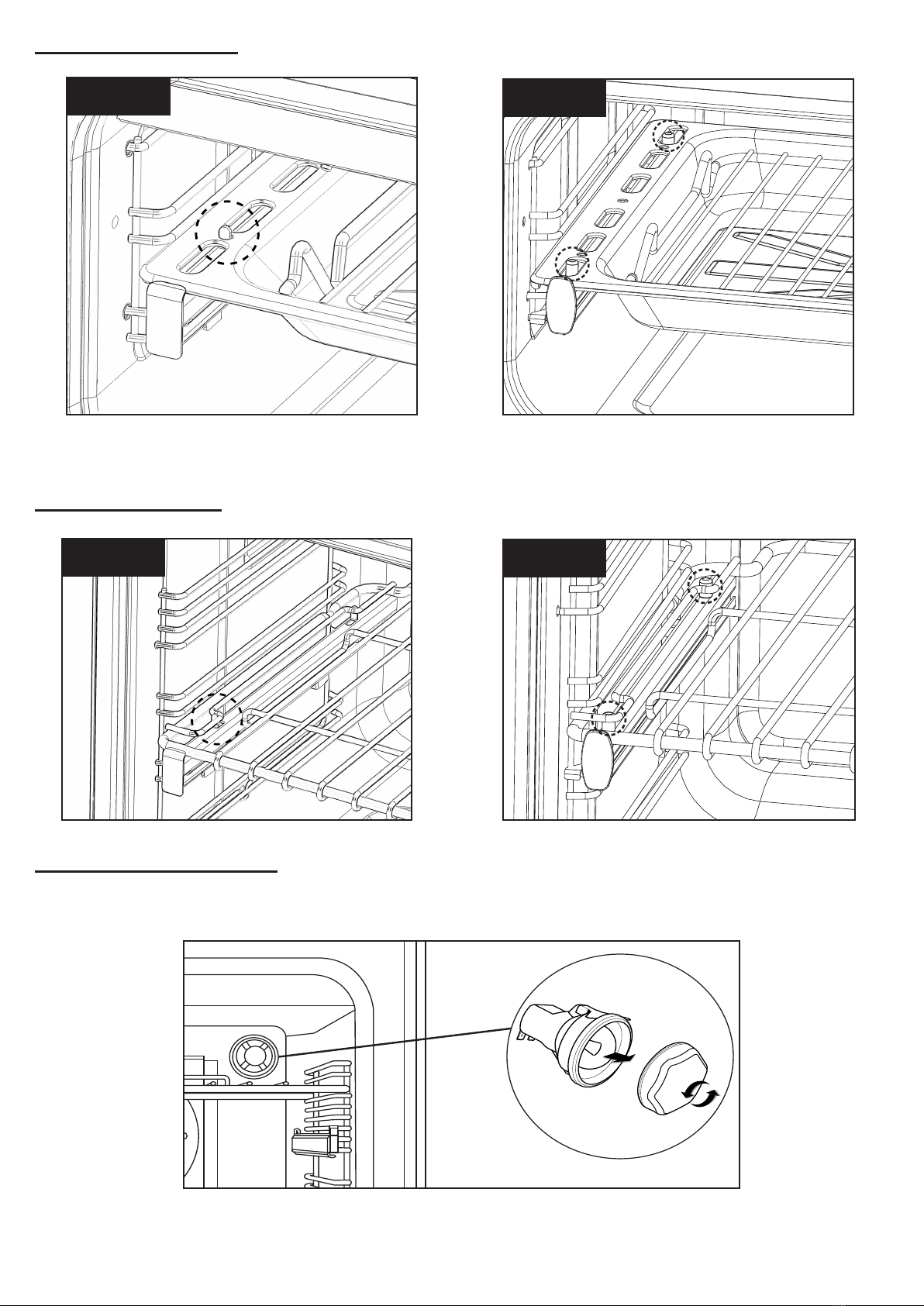

• To avoid electric shock, ensure that the appliance is switched o󰀨
before replacing the bulb.
• Accessible parts may become hot when the grill is in use. Children
should be kept away.
• Always switch o󰀨 your appliance and allow it to cool down before
you clean any part of it.
• Although every care has been taken to ensure this appliance has
no sharp edges, we recommend that you wear protective gloves
when installing and moving this appliance. This will prevent injury.
• This appliance must be tted to a switch providing all pole
disconnection with a minimum contact separation of 3mm.
• Connection should be made with a suitable exible cable with a
minimum temperature of 70oC.
CAUTION
• The use of a gas cooking appliance results in the production of
heat, moisture and products of combustion in the room in which
it is installed. Ensure that the kitchen is well ventilated especially
when the appliance is in use: keep natural ventilation holes open
SAFETY

or install a mechanical ventilation device (mechanical extractor
hood). Prolonged intensive use of the appliance may call for
additional ventilation, for example opening of a window, or more
e󰀨ective ventilation, for example increasing the level of mechanical
ventilation where present.
• This appliance is for cooking purposes only. It must not be used for
other purposes, for example room heating.
• The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
• This appliance must not be installed behind a decorative door in
order to avoid overheating.

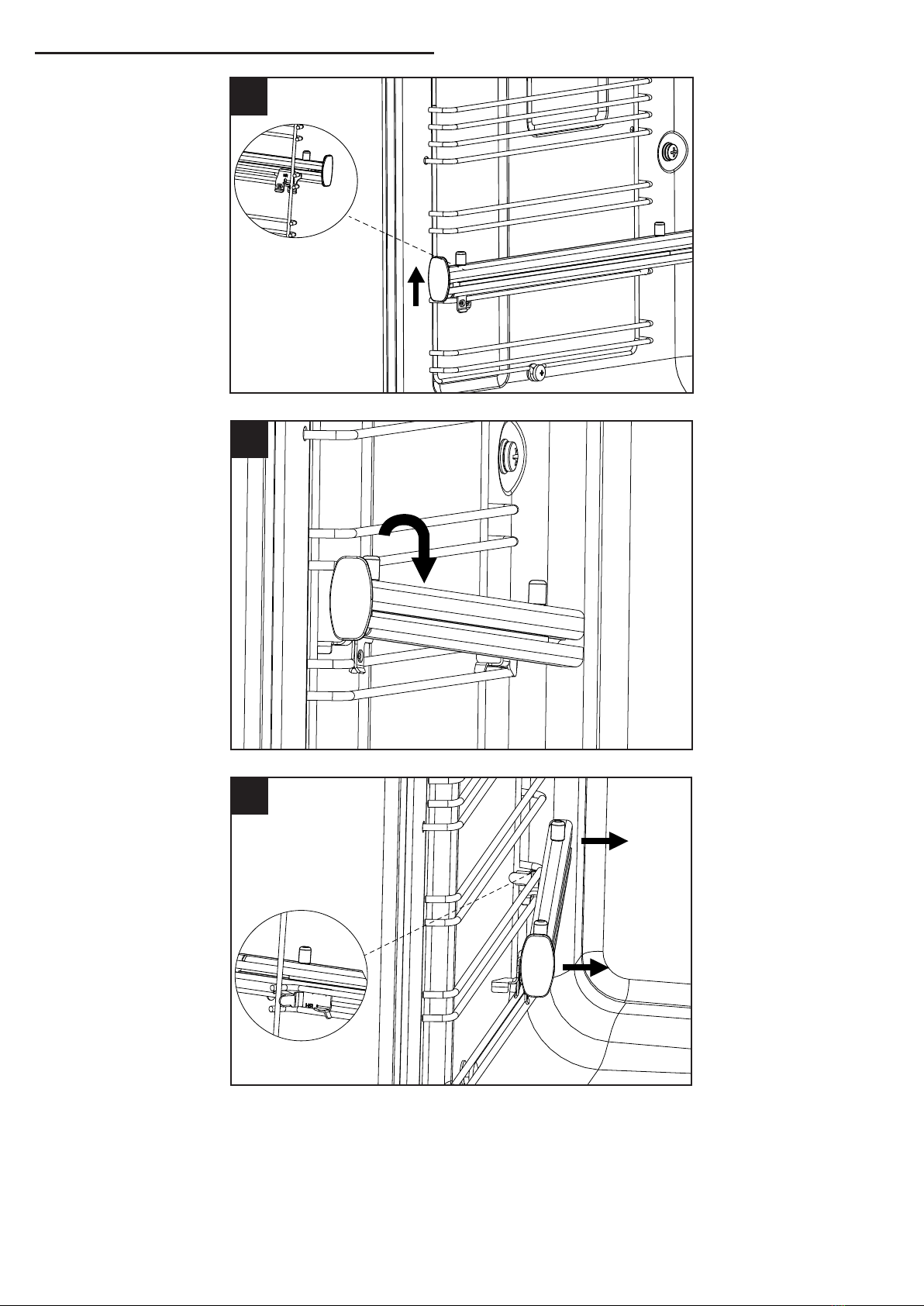

• Ensure shelving is correctly installed. See the sections on the shelf
runners and shelf location within this book.
• Fire Safety Advice
If you do have a re in the kitchen, don’t take any risks - get everyone out of your home and call the
Fire Service.
Ifyouhaveanelectricalreinthekitchen:
• Pull the plug out, or switch o󰀨 the power at the fuse box - this may be enough to stop the re
immediately
• Smother the re with a re blanket, or use a dry powder or carbon dioxide extinguisher
• Remember: never use water on an electrical or cooking oil re.
• Other Safety Advice
• Servicing should be carried out only by authorised personnel.
• Do not operate the appliance without the glass panel correctly tted.
• There is a risk of electric shock, so always make sure you have turned o󰀨 and unplugged your
appliance before starting. Always allow the product to cool down before you change a bulb.
• Do not modify the outer panels of this appliance in any way.
• This appliance must be earthed.
• The appliance must never be disconnected from the mains supply during use, as this will seriously
a󰀨ect the safety and performance of the appliance, particularly in relation to surface temperatures
becoming hot and gas operated parts not working e󰀩ciently. The cooling fan (if tted) is designed to
run on after the control knob has been switched o󰀨.
• GAS WARNING - If you smell gas, Do not try to light any appliance. Do not touch any electrical
switch. Call the Gas Emergency Help line at 0800 111999.
• IF YOUR PRODUCT IS BROKEN OR DAMAGED IN ANY WAY, PLEASE CONTACT THE
CUSTOMER CARE HELPLINE FOR REPLACEMENT PARTS.

USING YOUR APPLIANCE
Getting to know your product
Note: Your appliance layout may di󰀨er depending on the model.
Control Panel 60cm
Oven/Grill functions
Use Soven setting for slow cooking (120 / 125°C). Do not try to slow cook using any of the other oven
functions
Oven/Grill
Clock/Programmer Grill
Oven
O󰀨

Oven
Oven
When the oven or grill is switched on, the cooling fan comes on to keep the facia and control knobs
cool during cooking/grilling. The fan may continue to operate for a period of 10 minutes after the oven
or grill has been switched o󰀨.
Ignition
Push in and turn the oven control knob to the ‘FULL ON’ position. Continue to push the control knob in
until the ignition unit sparks. The burner will ignite automatically. Once lit, turn the control knob to the
required setting. To turn o󰀨, return the control knob to the ‘o󰀨’ position.
If after 15 seconds the burner has not lit, turn o󰀨 the oven and leave the compartment door open. Do
not hold the control knob in for more than 15 seconds. Wait at least one minute before a further attempt
to ignite the burner.
Turn the control knob to the required setting. To turn o󰀨, return the control knob to the “o󰀨” position.
Grill
THE DOOR MUST BE OPEN WHEN THE GRILL IS USED FOR CONVENTIONAL GRILLING.
We recommend to preheat the grill 3 minutes.
Grill
Turn the control knob clockwise to the grill position. To turn o󰀨, return the control knob to the “o󰀨”
position.
Note: Never operate the grill between the grill symbol and the ‘o󰀨’ position.

Grill pan and trivet
The grill trivet (inside the grill pan) can be inverted to give a high or low position, or it may be removed.
The speed of grilling can be controlled by selecting a higher or lower shelf position.
Inverted
For the quickest toasting results, always place the shelf into the top position runners and place the grill
pan with the trivet on the shelf.

Please be aware that only the main oven is controlled by the programmer.
Clock / Programmer
Note: Your clock / programmer may not have all these functions
Minute minder
MenuMinus Plus
Cooking time / Duration
Time of day
Keylock
Auto cooking
Automatic mode
Manual mode
Volume level
7-segment display
Max. adjustable minute minder
Max. adjustable cooking time
Display hours:minutes
Display minutes:seconds
, ,
Using the touch controls
Menu - Scroll through to select a function
Plus - Increase time or volume
Minus - Decrease time or volume
When a function is selected and the time or volume is set, the chosen function will automatically start
seven seconds after setting.
Manual Mode
If the programmer is not in semi-automatic or full-automatic mode you can use oven functions manually.
The manual icon is also on the display.

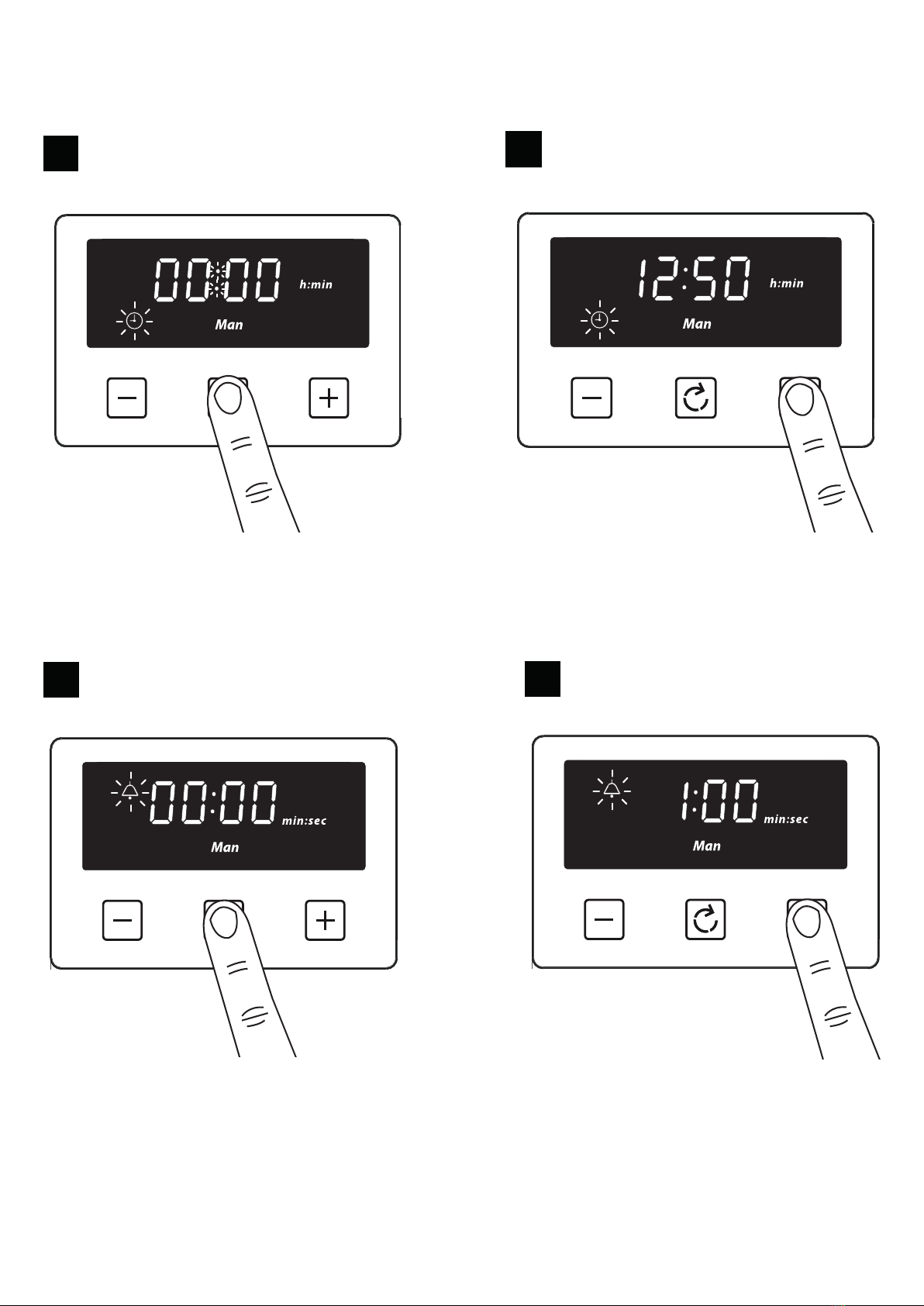

Setting the time of day
By pressing menu, scroll through the functions until you reach ‘time of day’.
1Press the function button until the ‘time of day’
symbol appears
2Press the plus or minus buttons to set a time
Setting the minute minder
The maximum cooking time that can be set is 99 minutes.
1Press the function button until the ‘minute
minder’ symbol appears
2Press the plus or minus buttons to set a time
Once set, the minute minder will start to countdown in steps of seconds. The display will show the
minute minder symbol and the remaining time. The countdown will continue in the background, if other
functions are being set.
When the set time for the minute minder has completed, an alarm is heard and the minute minder
symbol will ash on the display. Press any button to stop the alarm and the time of day is displayed.

To modify or cancel the minute minder
Return to the minute minder function and use either the plus or minus buttons to adjust the time. By
setting the time to ‘0.00’, this will cancel the countdown.
Setting the cooking time (the duration of time the oven will operate for) Semi
Automatic cooking
The maximum cooking time that can be set is 23 hours and 59 minutes.
1Press the function button until the ‘cooking
time’ symbol appears
2Press the plus or minus buttons to set a time
Once set, the automatic mode, auto cooking symbol and the time of day is displayed.
When cooking is completed, an alarm is heard and the manual mode symbol ashes on the display.
Press the Menu button to stop the alarm and then the ‘time of day’ will then be displayed. Pressing the
Menu button again will return to manual mode.
To modify or cancel the cooking time
Return to the ‘cooking time’ function and use either the plus or minus buttons to set the time. By setting
the time to ‘0.00’, this will cancel the countdown.

Setting the volume
Press the menu button until “LX” (X = 1, 2 or 3) ashes on the display. Use the plus or minus buttons to
select a tone.
Note: Default tone is L3
Activating / deactivating Key lock
1Press and hold the plus button for 3-5
seconds
2
Once the Key lock is active, the buttons will be inactive. A two beep signal will be heard if the buttons
are pressed.
To deactivate the Key lock
Press and hold the plus button for 3-5 seconds. The Key lock symbol will disappear and the appliance
can continue to be used.
Note: In case of main power loss for a short time (about 1.5 minutes), timer maintains its status.
Key lock status and buzzer tone are memorized independent of the power loss duration.

Removing Shelf Runners
Warning: Please allow runners to cool before moving.
To Open
Standard shelves
Front of appliance
2
Ensure the shelf is fully pushed
back towards the back of the
oven, until the shelf stopper is
reached.
Slightly raise the shelf and
insert in the chosen shelf
position
1

Your product will be supplied with either one of the tted Telescopic guides as shown. Please refer to
the instructions below.
Option 1: Removing Telescopic guides
Option 1 Option 2
1
2
3

Option 2: Removing Telescopic guides
1
2
3

Full width oven pan
Note: Please ensure the wires / oven pan locate around the small tabs on the telescopic runner.
Telescopic sliders
Changing the light bulb
Warning: To avoid electric shock, ensure that the appliance is switched o󰀨 before replacing the bulb.
Not all appliances have the same number and type of bulbs. Before you replace your bulb, check to see
what type you have. Please remember that bulbs are not covered by your warranty.
Option 1
Option 1
Option 2
Option 2

CLEANING YOUR APPLIANCE
Dos
Note: Always switch o󰀨 your appliance and allow it to cool down before you clean any part of it.
Note: Please take extra care when cleaning over the symbols on the control panel, as this can lead to
them fading.
H
Tips: Some foods can mark or damage the metal or paint work e.g.; Vinegar, fruit juices and salt.
Always clean food spillages as soon as possible.
Note: When cleaning the grill, take care of the xing brackets and xings.
Don’ts
IT IS IMPORTANT TO CLEAN YOUR APPLIANCE REGULARLY AS A BUILD UP OF FAT CAN
AFFECT ITS PERFORMANCE OR DAMAGE IT AND MAY INVALIDATE YOUR GUARANTEE.
IN ADDITION TO THE ABOVE, DO NOT USE METAL SCRAPERS TO CLEAN THE OVEN DOOR
GLASS.
• Undiluted bleaches
• Chloride products
• Warm, soapy water • Wipe with damp cloth
• Dry with a soft cloth
• Clean, wrung out cloth
• Wire Wool
• Abrasive cleaners
• Nylon pads
• Steam cleaners
Do not place in the
dishwasher:
• Cast iron griddle
• Pan supports
• Burner caps & skirts
We o󰀨er a great range of cleaning products and accessories for your appliance.
To shop, please visit our website located at the front of this User Guide.

Please keep this handbook for future reference, or for anyone else
who may use the appliance.

Please keep this handbook for future reference, or for anyone else
who may use the appliance.

Gas built in oven
TECHNICAL DATA
Databadge Lower part of the front frame and rear of the appliance
Electric supply 220V - 240V ~ 50Hz 1W - maximum 1750W (if tted with an electric
grill)
Appliance class Class 3 built in oven and grill
Gas category Natural Gas I2H (20) LPG I3+ (28-30/37) (see Note.1)
Gas pressure settings G20 Natural gas @ 20 mbar
G31 Propane gas @ 37 mbar
G30 Butane gas @ 28 - 30 mbar
Warning: This cooker must be earthed.
THIS APPLIANCE CAN BE CONVERTED FROM NAT GAS TO LPG.
Note. 1: Check the product data badge for the gas category that this product is suitable for use
on. If you are unsure please ring the Customer Care Helpline that can be found at the front of
this book.
Any conversion should be carried out by a competent person (e.g Gas Safe engineer).
Burner Nominal rate on (kW) Injector size
Nat Gas LP Gas Nat Gas LP Gas
60
Oven 2.40 2.40 1.15mm 70 AMAL
Grill N/A N/A N/A N/A
Total heat input 2.40 2.40 N/A N/A
Conversion Kit 012860223
Note: A conversion kit is available from our Spares Store. Contact details can be found at the front of
this User Guide.
