STRALUS SLLS001 User manual

Important
Please read before
operation
Model SLLS001
User Manual
S Line Bed

2

Contents
3
1 Essential Information 5
1.1 Technical Specifications 5
1.2 Intended Use 6
1.3 Unintended Use 7
1.4 Transportation Position 8
1.5 Liability 9
2 Functions and Features 10
2.1 Overview 10
2.2 Hand Control 11
2.3 Style Pack 11
2.4 Mattress 12
2.5 Castors and Brakes 13
2.6 Battery (Optional) 13
2.7 Wall Bumper 14
2.8 Electronics and Software 14
2.9 Accessories 14
3 Using your Stralus Care Bed 15
3.1 Getting Started 15
3.2 Everyday Use 18
3.3 Moving your Stralus Bed 23
3.4 End of Product Life 24
4 Keeping It Clean 25
5 Maintenance 26
6 Troubleshooting 27
7 Appendix 29
8 Notes 30

Essential Information
1
4
Thank you for choosing Stralus.
Forward thinking healthcare products
engineered and designed in Australia

Essential Information 1
5
1.1 Technical Specifications
Mechanical
Minimum Height 195mm
Maximum Height 700mm
Back Rest Angle 0 - 70º
Knee Break Angle 0 - 30º
Safe Working Load (SWL) 200kg (440lbs)
Overall Dimensions Standard Single:
940mm x 2100mm
King Single:
1129mm x 2100mm
Product Weight Standard Single:~117kg
King Single: TBC
TGA Number ARTG 239572
Underbed Clearance 130mm (when bed is
raised above 350mm
Castor Braking 3 Positions:
Total Brake, Neutral
and Direction Lock
Electrical
Power In 230V AC, 50-60 Hz
Power Out 24V DC, 6A
Duty Cycle 10%, 2min / 18min
Ingress Protection IPX4
Insulation Class & Type Class II - Type B
Battery Backup Capacity:
(Optional) 24V, 1.3Ah Max.
Charging Current:
500mA
Charging Time:
2hrs 36mins
Max. Operation Time
at SWL: 15mins
Hand Pendant Control 8-Button Control
with Auto-Contour
Attendant Control Panel Optional
(ACP)

Essential Information
1
6
1.2 Intended Use
This product has been developed and tested for use
under specific conditions. These are defined as the
conditions of Normal Use.
Use of this product outside of Normal Use may
create a hazardous situation for the resident,
operator or another party. To avoid this ensure the
product is only used in accordance to the following
conditions and all instructions in this document.
— Intended Resident: This bed is intended for a
resident over 12 years old and taller than 139cm.
— Intended Environment: This product should only
be used in a facility where medical supervision
and care is available. This includes nursing
homes and rehabilitation centres. This product
must not be used in an acute care, hospital or
domestic environment.
— Locked Castors: When operating the bed, with
or without a resident, the bed castors must
remain locked.
— 200kg Safe Working Load (SWL): The load on
the bed can never exceed 200kg. This includes
accessories, mattress and style packs. The load
must be distributed evenly.
— 2 Minute Duty Cycle: Continuous operation
of bed is limited to 2 minutes. An 18 minute
cool down is required for every 2 minutes of
continuous use.
— Annual Servicing: This product requires regular
maintenance with a service check carried out by
a qualified service technician. A service interval
of 12 months is required to maintain good
working order, and uphold the standard product
warranty.
— Mattress: This product may only be used with
mattresses of the size specified in Section 2.4.
— User Training: Operators of this product must
be familiar with all conditions and parameters
presented by this document.

Essential Information 1
7
1.3 Unintended Use
The following list of potential misuses would
constitute a significant hazard to the resident,
operator or a third party.
Please note this list outlines only some types
of misuse which have been identified by the
manufacturer. This is not a complete list and
this product should only be used according
to conditions of Normal use.
— Resident Transportation: This product is not
intended for transportation of residents. The
product should only be moved when in the
transportation position.
— Multiple residents/visitors: This product cannot
be used by multiple people. This includes sitting
on the edge of the bed.
— Oxygen Rich Environment: This product is not
suitable for use in an oxygen rich environment.
— Operations or Medical Procedure: This bed
cannot be used to perform any serious medical
procedure including operations or diagnostic
procedures.

Essential Information
1
8
1.4 Transportation Position
To move this product the operator must first place
the bed in the transportation position. A step by step
guide to moving your Stralus bed can be found in
Section 3.3
The transportation position defines the following
conditions. The bed may only be moved once all
these conditions have been met.
NOTE ON STABILITY AND BUMPS:
This product has been designed to function on slopes of
less than 10 degrees and be transported over bumps with a
maximum height of 20mm. Transportation through environments
outside this should not be attempted. If the operator is unsure
of the environment they must consult their facility manager.
— Not Supporting a Resident: The bed is not
supporting a resident or any other person in any
manner. This includes lying, sitting, leaning or
resting on the bed.
— Not Supporting a Load: The bed may not
have any additional load other than mattress,
linen, accessories and style packs when in the
transportation position.
— Maximum Height: The bed is at its maximum
height before transportation.
— Back and Head Rests are Flat: Both the back
and leg rests must be completely flat.
— Lockout Activated (If Applicable):
If the bed is equipped with an attendant control
panel (ACP) the lock out should be enabled.
— Power cable is stored safely and correctly:
See Section 3.2
— Wall bumper is held up: Using provided tether,
see Section 3.1 for use.

Essential Information 1
9
1.5 Liability
Stralus accepts no liability for any injury, damage
or loss, which may result directly or indirectly from
use of this product outside the parameters defined
by this document. It is the responsibility of the
operator to obtain and read the latest version of all
documentation.
Stralus reserves the right to make design and
documentation modifications at any time. These
modifications shall reflect technical advances which
Stralus may implement without prior notification.
Please visit www.stralus.com.au for the latest
documentation revisions.

Functions and Features
2
10

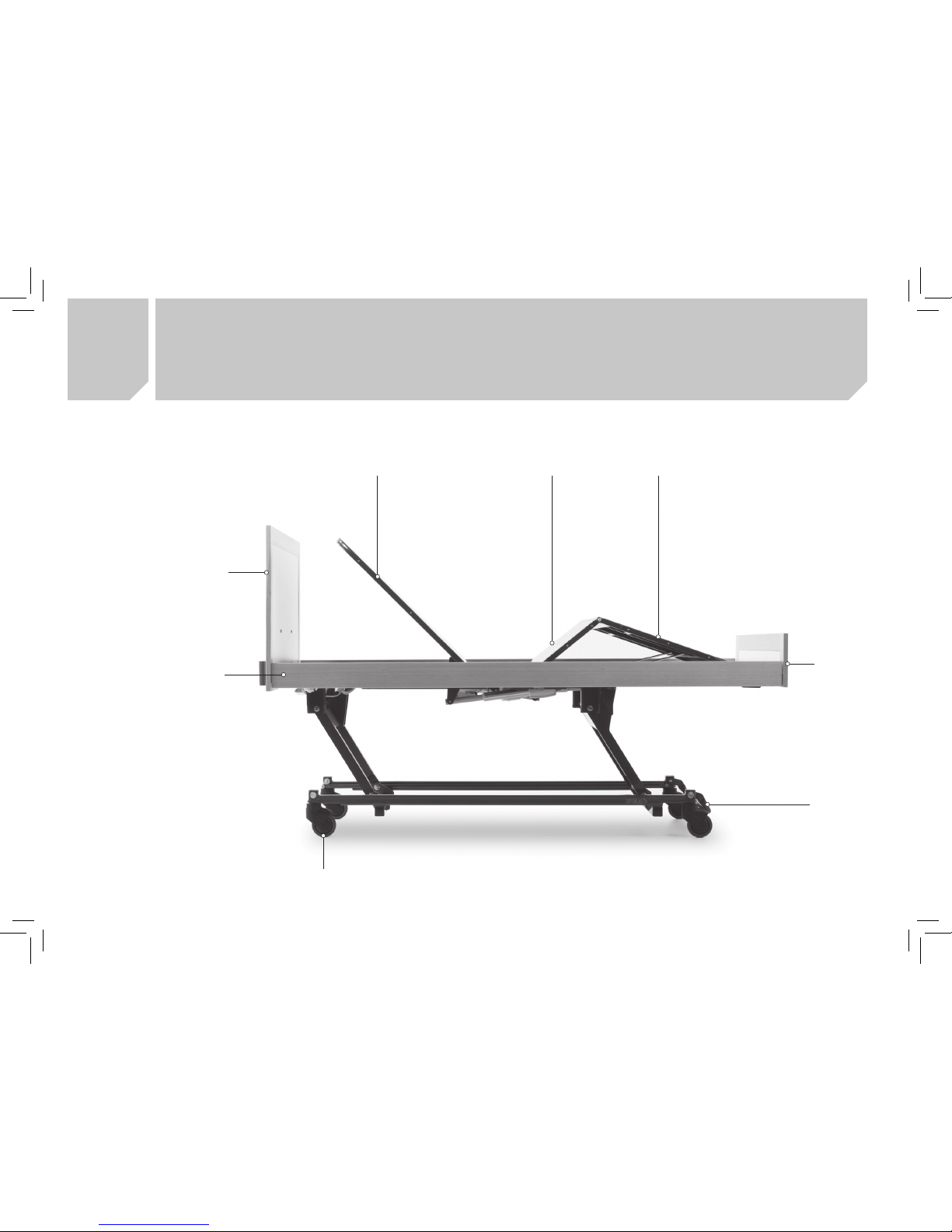

2.1 Overview
BRAKE PEDAL
KNEE BREAK FOOTRESTBACKREST
HEADBOARD
SIDEBOARD
FOOTBOARD
CENTRAL LOCKING CASTORS, WITH DIRECTION LOCK

Functions and Features 2
11
2.2 Hand Control
Operation of the bed is controlled by the Hand
Pendant Control shown.
2.3 Style Pack
The Stralus Care Bed is provided with a choice of
Style Packs, designed to improve the resident’s
experience.
The Style Pack consists of Headboard, Footboard
and Sideboards.
Please contact your Stralus representative for
information on Style Pack options.
BACKREST UP / DOWN
BED HEIGHT UP / DOWN
FOOTREST UP / DOWN
AUTO-CONTOUR UP / DOWN
C
M
Y
CM
MY
CY
CMY
K
User-Manual_Stralus_SLLS001_S-Line-Bed_v1.pdf 1 24/08/2015 9:04:48 AM

Functions and Features
2
12
2.4 Mattress
The following mattress sizes are recommended
for use with the Stralus Care Bed;
Single Mattress - Approved Sizes
Length (mm) Width (mm) Height (mm)
1960 865 125
1960 865 150
1960 865 200
King Single Mattress - Approved Sizes
Length (mm) Width (mm) Height (mm)
1960 1060 125
1960 1060 150
1960 1060 200

Functions and Features 2
13

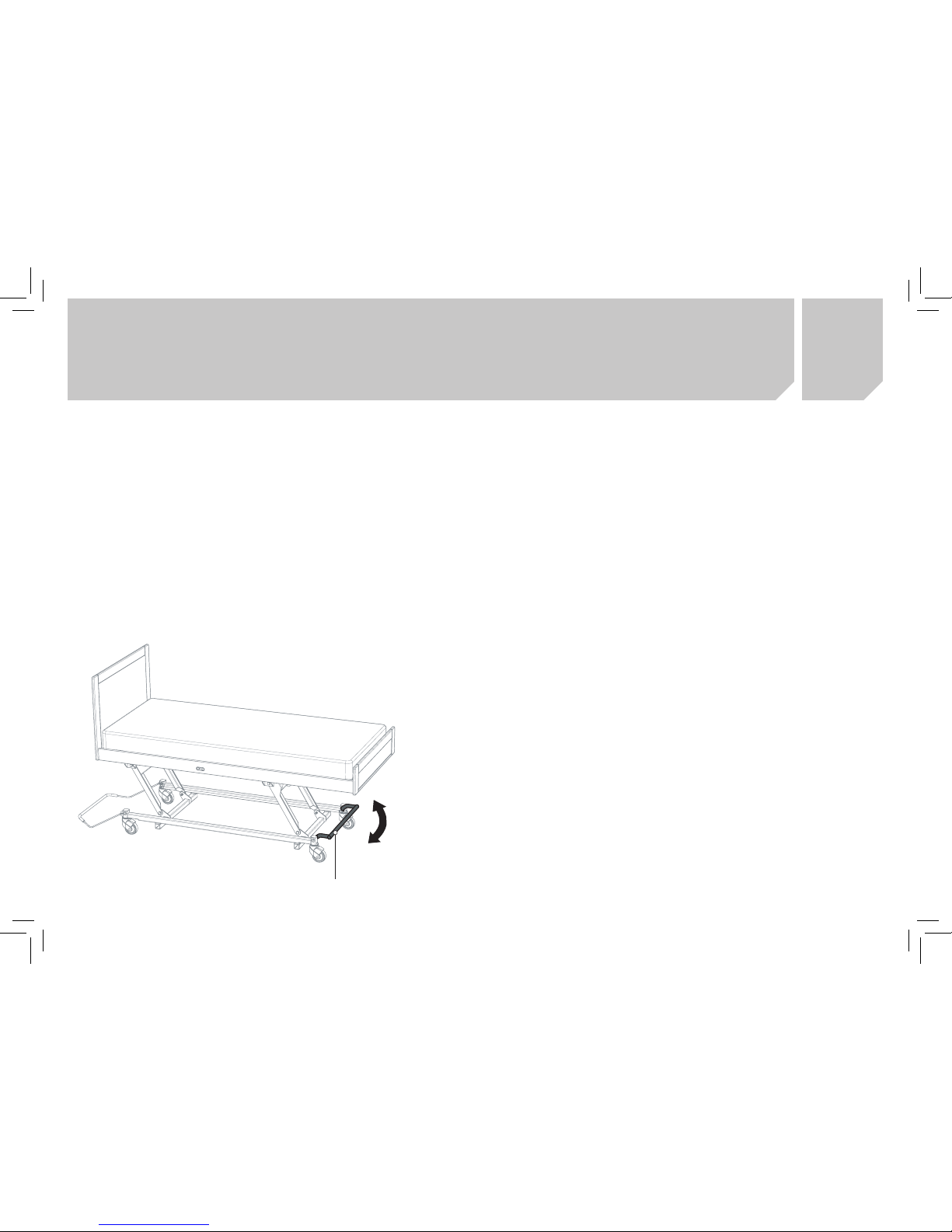

2.5 Castors and Brakes
Every Stralus bed comes fitted with a braking
castor system, containing the following modes:
— Total Brake
— Neutral
— Direction Lock
Central Locking is controlled through
the Brake Pedal at the foot end of the bed.
2.6 Battery (Optional)
Your Stralus bed can be fitted with an optional
battery backup pack, that allows operation without
mains power.
At your bed’s Safe Working Load the battery will
last for 15 minutes of continuous operation. This is
enough to raise and lower the bed 8 times.
The battery is automatically recharged when the bed
is plugged back into mains power.
Your battery will require 3 hours to be fully recharged.
The battery can only be replaced by a trained
service technician. For battery related faults please
refer to the troubleshooting section.
BRAKE PEDAL

Functions and Features
2
14

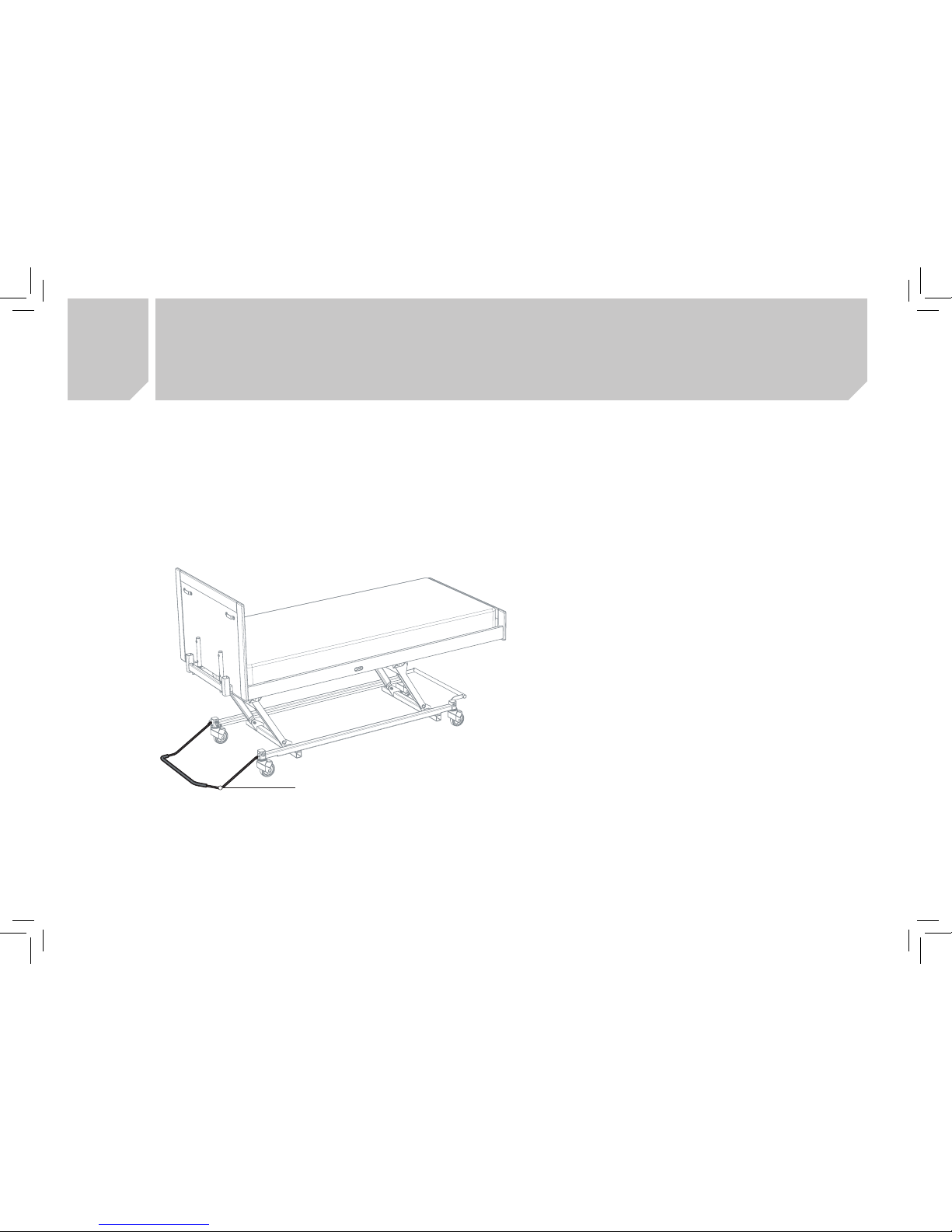

2.7 Wall Bumper
Your Stralus bed is fitted with a removable
Wall Bumper, to protect against damage to wall
or bed. See Section 3.1 for usage instructions.
2.8 Electronics and Software
This Stralus product contains an electrical actuator
system which is approved for applications within
medical facilities. This system complies with the
EMC directive 2004/108/EC.
Software used by this system has been designed
in accordance with IEC 60601-1-4 (Software for
Medical Devices).
For more details please contact your sales
representative.
2.9 Accessories
A variety of Stralus accessories can be used with
your bed. Only approved accessories are compatible.
For a complete list of available accessories please
contact your sales representative.
WALL BUMPER

Using your Stralus Care Bed 3
15
3.1 Getting Started
Before using your new Stralus Care Bed, please
make sure the following items have been assembled
correctly, as shown.
Headboard
Fasten Headboard to bed frame as shown;
Footboard
Fasten Footboard to bed frame as shown;

Using your Stralus Care Bed
3
16
Sideboard
Fasten Sideboard to bed frame as shown;
Plug in Hand Pendant Control
The Hand Pendant Control should be plugged
in as shown;
HAND PENDANT
CONTROL CABLE

Using your Stralus Care Bed 3
17
Battery Charge
If fitted with the optional battery, ensure the battery
is fully charged before using your Stralus bed.
The battery will charge automatically once the bed
is plugged into mains power, allow a minimum of 3
hours to fully charge the bed for the first time.
Wall Bumper
If the bed is positioned with the Headboard against
a wall ensure the bumper bar is resting on the floor
against the wall to avoid a collision with the wall
when the bed is lowered.
When transporting the bed ensure the Wall Bumper
is tethered to the bed frame as shown;
WARNING - RISK OF ENTRAPMENT:
The bed moves back and forth when raising and
lowering. This is a potential entrapment or collision zone.
Operators must monitor this area during use.
WALL BUMPER TETHER

Using your Stralus Care Bed
3
18
WARNING - RISK OF ENTRAPMENT:
To minimise chance injury or entrapment, please
complete the following checks before operating bed.
WARNING - RISK OF ENTRAPMENT:
Resident may become entrapped as they move on
the mattress surface. Ensure no accessory which may
constitute a risk is left on the bed and that the resident
is monitored regularly.
3.2 Everyday Use
Pre-Use Checklist
Check brakes are engaged, and the bed
is stable
Check that entrapment zones specific to
function are clear of any people, limbs, animals
and/or objects. Refer to warnings on the
following pages
Check that the Safe Working Load is not
exceeded by resident, mattress and accessories.
Check resident is positioned correctly
All parts of resident’s body are to be within
the bounds of the mattress
Resident’s head is at head end
Resident is lying on centreline of the mattress
Resident is lying face up

Using your Stralus Care Bed 3
19
Bed Height
Bed height can be adjusted using the
Hand Pendant Control.
WARNING - RISK OF ENTRAPMENT:
The operator must check that the area under bed
and behind the headboard are clear of:
— People
— Limbs
— Any other objects
Back Rest
Back Rest section of the bed can be raised
using the Hand Pendant Control.
WARNING - RISK OF ENTRAPMENT:
The operator must check that the area under bed
and behind the headboard are clear of:
— People
— Limbs
— Any other objects

Using your Stralus Care Bed
3
20
Knee Break
Knee Break can be raised using the
Hand Pendant Control.
WARNING - RISK OF ENTRAPMENT:
The operator must check that the area between
the knee break and the upper frame is clear of:
— People
— Limbs
— Any other objects
Auto-Contour
Back Rest and Knee Break can be simultaneously
raised using the Hand Pendant Control.
WARNING - RISK OF ENTRAPMENT:
The operator must check that the area between the
backrest / knee break and the upper frame is clear of:
— People
— Limbs
— Any other objects
