Stratco PL-5716 User manual

INSTALLATION GUIDE
STRATCO POOL PUMP FILTER STORAGE SHED
INSTALLATION GUIDE
BEFORE YOU START
PRIOR TO INSTALLATION
To ensure that the installation and erection of your Pool Pump Filter Storage Shed proceeds smoothly you should confirm that all the
components and materials listed on the components section have been supplied. Carefully read this installation guide to familiarise
yourself with all the steps involved and ensure that you have the correct tools and equipment for the job.
Pool Pump Filter Storage Sheds must be securely bolted to a permanent concrete base with sufficient masonry anchors securing all
four corners of the shed to prevent wind uplift.
IMPORTANT NOTES:
1. It is essential to clear and level the site prior to assembling your Pool Pump Filter Storage Shed.
2. Brush off any metal filings as you go. Loose metal filings can cause premature corrosion.
3. Note there are different types and colours of screws. Ensure that the right type and colour screw is being used at each location.
4. Stability and performance of the shed relies on the door being closed during high wind events.
5. Do not traverse the roof of the Pool Pump Filter Storage Shed .
6. Use heavy gloves when handling steel sheeting and flashings and never attempt to install a shed in windy conditions.
TOOLS & SAFETY GEAR
Rivet Gun Power Drill Phillips Head Driver Hex Head Driver 3.5mm Drill Bit &
10mm Masonry Bit
Gloves Safety Glasses Step Ladder 2 x Trestle / Saw-horse Tape Measure

POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE

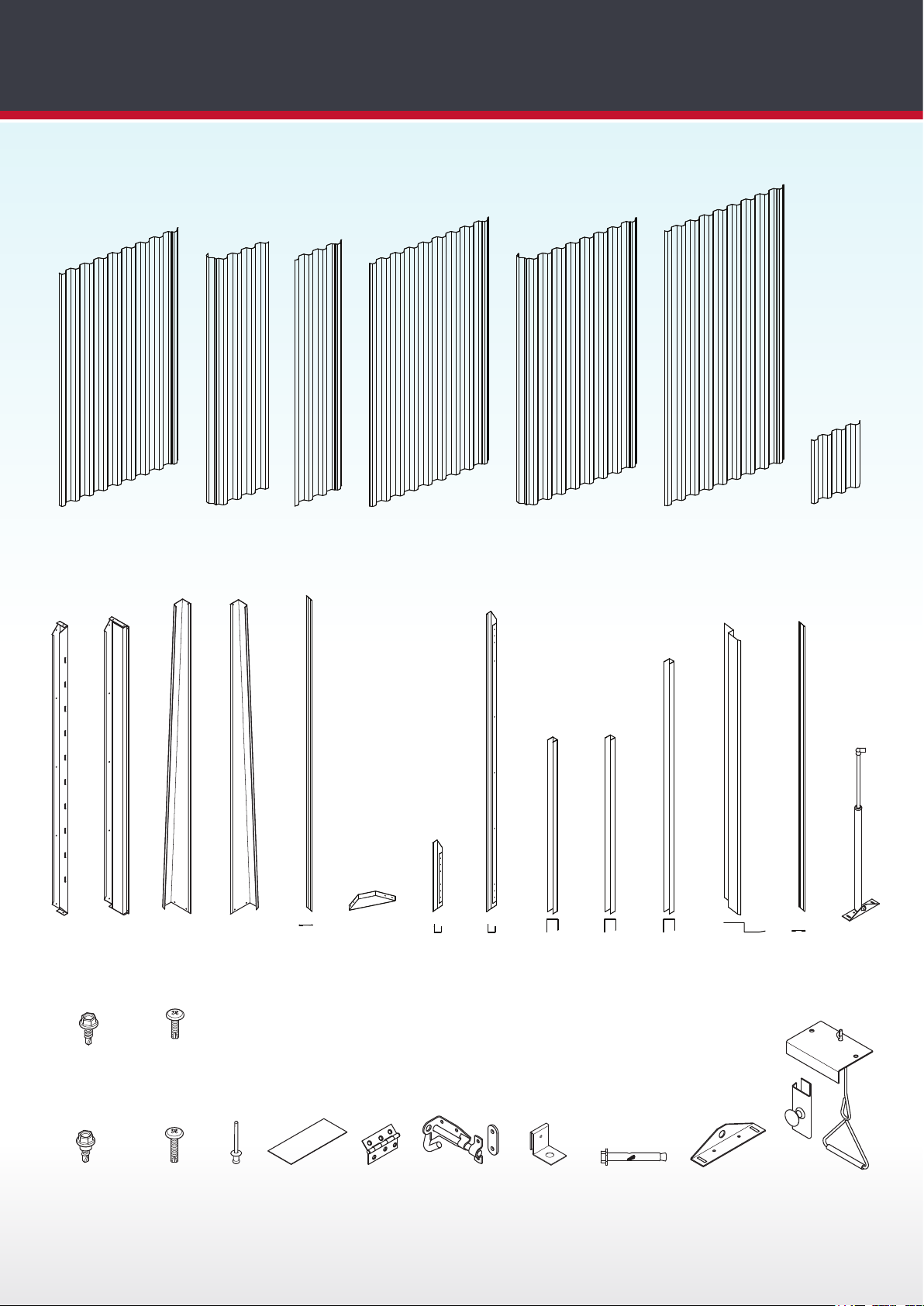

COMPONENTS
x8
CORNER BRACKET
x3
WALL SHEET
1350mm
x3
CORNER SHEET
1350mm
x1
FRONT WALL - RIGHT
1350mm
FRONT WALL - LEFT
x1
1350mm
x2
ROOF SHEET
1510mm
x1
DOOR SHEET
1290mm
x2
HOLE COVER SHEET
300mm
x1
FLASHING - FRONT
1475mm
x1
FLASHING - REAR
1475mm
x1
FLASHING - RIGHT
1515mm
x1
FLASHING - LEFT
1515mm
x2
ROOF BRACING
2050mm
x7
1400mm
WALL CHANNEL
x2
750mm
DOOR CHANNEL - SHORT
x1
760mm
DOOR SHROUD
x2
1440mm
DOOR BRACING
x2
1290mm
DOOR CHANNEL - LONG
x2
1350mm
DOOR JAMB
x2
10282
WALL CHANNEL - FRONT
x2
535mm
GAS STRUT
Hold Down
Lug
M8x47 Masonry
Anchor
10x16 Wafer-
Head Screw
10x16 Self-
Drilling Screw
Rivet
10x22 Wafer-
Head Screw
Padbolt
Mount Plate
Hinge Padbolt, Padbolt
Latch & Padbolt
Latch Spacer
Strut Bracket
x4
x100 x60
x4 x40 x1 x4 x8 x2x1
Pull Cord
Bracket and
Latch
x1
10x16 Self-
Drilling Screw
with neo washer
x24

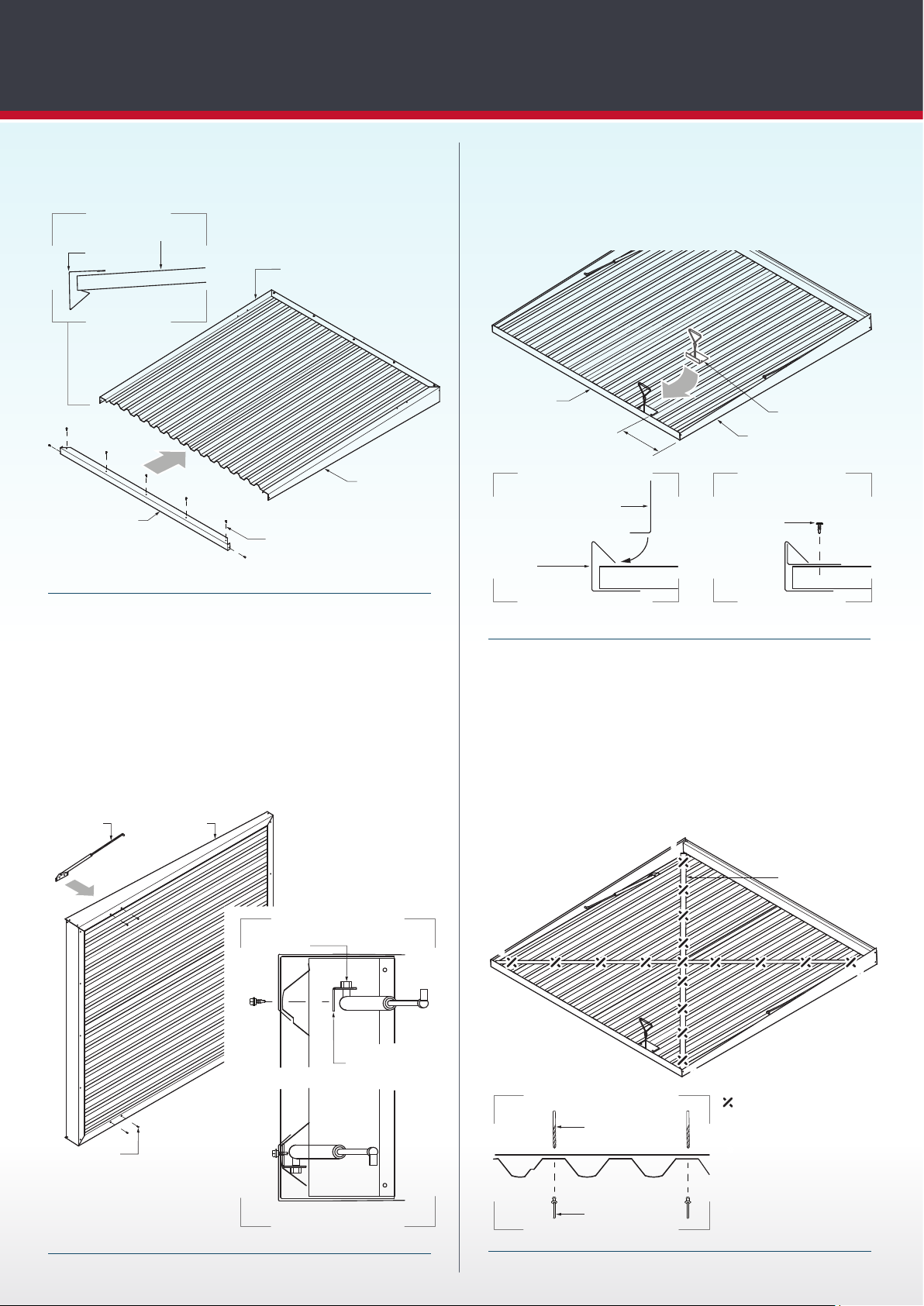

Fit the Roof Sheets into the Rear Flashing. Fasten three 10x16
self-drilling screws with washer through the Rear Flashing
and into the Roof Sheets.
Fit the Left and Right Flashings onto the Roof Sheets. Fasten
three 10x16 self-drilling screws with washer through each of
the Side Flashings and into the Rear Flashing.
Hint: Use trestles or a table to ease with
assembly of the Roof, Walls and Door.
Figure 1.0
10x16 self-drilling screw
with washer
Rear Flashing
Right Flashing
Left Flashing
Gas Strut
Front Flashing
Roof Sheet
Pull Cord Bracket
10x16 self-drilling screw
with washer
Rear Flashing
Roof Sheet
Sheet Layout
Roof Sheet
Roof Sheet
Roof Sheet
Rear Flashing
10x16 self-drilling screw
with washer
Rear Flashing
Right Flashing
Left Flashing
Roof Sheet
Figure 1.2
Figure 1.1
ROOF ASSEMBLY

Fit the Front Flashing onto the Roof Sheets. Fasten seven
10x16 self-drilling screws with washer through the Front
Flashings and into the Side Flashings and Roof Sheets.
Fit the two Roof Braces diagonally across the Roof. Drill
3.5mm holes through the Roof Braces and into every second
rib of the Roof Sheets, as indicated by the ‘X’ marks below.
Rivet through the Roof Sheets into the Roof Braces.
! - To help keep the Roof Brace in position, drill and rivet the
four end holes first. Then drill and rivet the remaining holes.
Flip over the Roof, so that the underside is facing up. Fit the
Pull Cord Latch into the Front Flashing. Ensure a 250mm
spacing from the Pull Cord Latch end to the Side Flashing.
Fasten two 10x16 Wafer-Head Screws through the Pull Cord
Latch and into the Roof Sheet.
Pull Cord Latch
Pull Cord Latch
Front
Flashing
Wafer-head
Tek Screw
Front
Flashing
1. 2.
250mm
Side Flashing
For easy assembly of the Gas Struts, lay the Roof on it’s side.
Fasten two 10x16 self-drilling screws with washers through
the Side Flashing and into the Roof Sheet on both sides.
Fit the slotted holes of the Gas Strut Bracket against the
10x16 self-drilling screws, ensuring the Gas Strut Bracket is
aligned to the middle of the Roof Sheet pan.
Fasten the 10x16 self-drilling screws to the Gas Strut Bracket.
POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE
Figure 1.3
10x16 self-drilling screw
with washer
Right Flashing
Left Flashing
Front Flashing
Front
Flashing
Roof Sheet
Strut Bracket
10x16 self-drilling
screw with washer
Side Flashing
Gas Strut
Nut facing outwards
Roof Brace
Drill holes and rivet
through every second rib
Coloured Rivet
3.5mm Drill
!
!
!
!
!
!
!
!
!
!Drill and rivet first
Figure 1.6
Figure 1.5
Figure 1.4

Hint: Use trestles or a table to ease with
assembly of the Roof, Walls and Door.
Slide the Wall Channels onto the Wall Sheets. Assemble two more Walls in the same manner, so that there
are three Wall Assemblies.
Figure 2.1
Figure 2.0
10x16 self-drilling screw
Wall Channel
Wall Channel
Wall Sheet
Corner Wall Sheet
Wall Channel
Wall Sheet
Sheet Layout
Wall Channel
Figure 2.3
Fasten 10x16 self-drilling screws through all holes in the wall
channels, except the two end holes of both ends.
Ignore
10x16 self-drilling screw
Figure 2.2
WALL ASSEMBLY

POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE
Fit the Short and Long Door Channels onto the Door Sheet.
Fasten two 10x16 wafer-head tek screws through all four
corners.
Figure 3.2
Figure 3.1
Figure 3.0
Door Channel - Short
10x16 wafer-head tek screw
Door Channel - Short
Padbolt Mount Plate
Door Jamb
Door Brace
Door Sheet
Door Channel - Long
Padbolt
Hinge
Door Channel - Long
Door Channel - Short
10x16 wafer-head tek screw
Door Channel - Short
Door Sheet
Door Channel - Long
Door Channel - Long
Sheet Layout
Door Channel - Long
Inline
10x16 wafer-head
tek screw
Hinge
Ensure coloured side of Sheet
is facing upwards.
Ensure underlap side
of Sheet is this end
Fasten three 10x16 wafer-head tek screws through the Hinge
and into the Door Channel at both ends. Ensure the bottom
of the Hinge is in line with the bottom face of the Door
Channel.
DOOR ASSEMBLY

Fasten two 10x16 wafer-head tek screws through the
Padbolt Mount Plate and into the Door Sheet. Fasten four
10x16 wafer-head tek screws through the Padbolt and into
the Padbolt Mount Plate.
Figure 3.5
Figure 3.4
Flip over the Door, so that the underside is facing up. Fit the
two Door Braces diagonally across the Door. Drill 3.5mm
holes through the Door Braces and into every second rib of
the Door Sheet, as indicated by the ‘X’ marks below. Rivet
through the Door Sheet into the Door Braces.
Padbolt Mount Plate
Padbolt
Padbolt
Padbolt
mount plate
10x16 wafer-head
tek screw
Fasten three 10x16 wafer-head tek screws through the Hinge
and into the Door Jamb at both ends. Ensure the end of the
Door Jamb is spaced approximately 40mm from the bottom
of the Door Channel.
Figure 3.3
Door Jamb
Hinge
10x16 wafer-head
tek screw
Door Jamb
Hinge
10x16 wafer-head tek screw
40mm
Door Channel
Door Jamb
- Drill holes and rivet
through every second rib
Coloured Rivet
3.5mm Drill
Door Brace

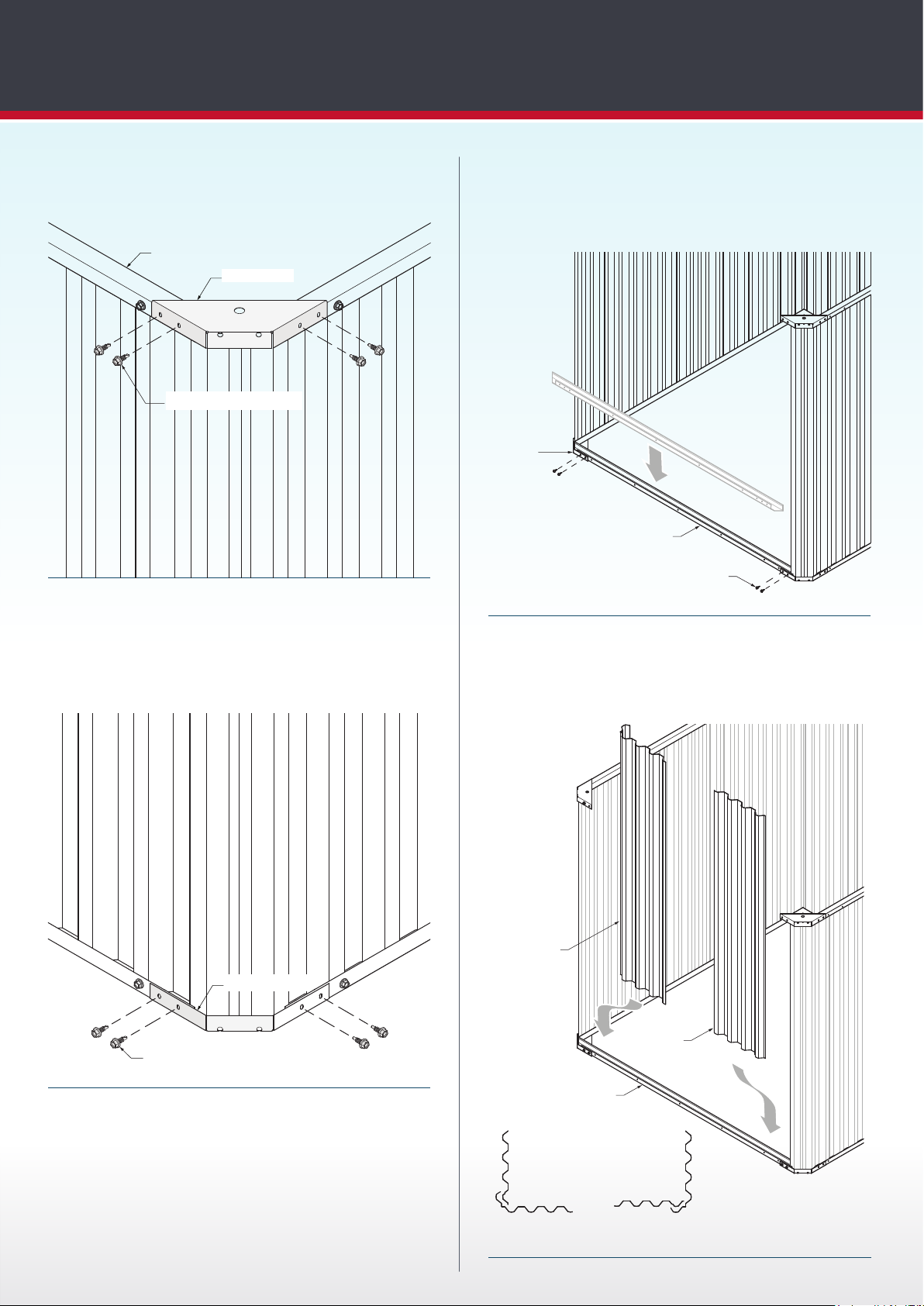

Lap the Left wall into the Rear Wall.
Figure 4.2
Figure 4.1
Fit the Corner Bracket over the Wall Channels. Ensure the
pilot holes of the Corner Bracket and Wall Channels line up.
Figure 4.0
Right Wall
Rear Wall
Left Wall
1
2
Rear Wall
Left Wall
Corner Bracket
Top Channel
WALL JOINING

POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE
Fasten through the Corner Bracket pilot holes and into the
Wall Channels using 10x16 self-drilling screws.
Figure 4.5
Figure 4.3
Fit the remaining Wall Channel into the Corner Brackets at
the front of the shed. Fasten through the Corner Bracket
pilot holes and into the Wall Channel using 10x16 self-
drilling screws.
10x16 self-drilling screw
Corner Bracket
Top Channel
10x16 self-drilling screw
Corner Bracket
Fit the Corner Bracket over the bottom Wall Channels.
Fasten through the Corner Bracket pilot holes and into the
Door Channel using 10x16 self-drilling screws.
Figure 4.4
Wall Channel
Corner
Bracket
10x16 self-drilling screw
Wall Channel
Sheet Layout
Front wall - Left Front wall - Right
Side wall
- Left
Side wall
- Right
Front wall
- Left
Front wall
- Right
Figure 4.6
Fit the Left and Right Front Wall Sheets into the Corner
Brackets.
Repeat steps in figures 4.1 to 4.4 to join the Rear and Right
Wall Assemblies.

Fit the Front Wall Channels over the Front Wall Sheets and
into the Corner Brackets. Line up the pilot holes and fasten
two 10x16 self-drilling screws through the Corner Brackets
and into the Front Wall Channels.
Figure 4.10
Figure 4.7
Fasten four 10x16 wafer-head tek screws through the Strut
Bracket and into the top of the Wall Channel. Ensure a
spacing of 830mm from the Strut Bracket end to the front
Corner Bracket. Complete for both sides.
Confirm the Corners are Square before fastening the screws.
Fasten four 10x16 wafer-head tek screws through the top of
the Corner Brackets of the Front Wall. Fasten two 10x16
wafer-head tek screws through the top of the Corner
Brackets of the Rear Wall.
Figure 4.8
Front wall
Channel
10x16 self-drilling
screw
Corner
Bracket
Two screws through these holes
10x16 wafer-head
tek screw
Check Square
830mm
10x16 wafer-head
tek screw
Strut Bracket
Confirm the Corners are Square before fastening the screws.
Fasten a Hinge to the top face of both rear Corner Brackets.
Fasten the Hinge to the Corner Bracket using three 10x16
wafer-head tek screws in both ends.
Figure 4.9
Hinge
10x16 wafer-head
tek screw
Rear Corner Bracket

POOL PUMP FILTER STORAGE SHED INSTALLATION GUIDE
Figure 4.11
Fit the individual Door Jamb into the Wall Channels on the
left side. Fit the door Jamb attached to the Door Assembly
into the Wall Channels on the right side.
Door Jamb
Door
Door Jamb
Wall Channel
Line up the Door Jambs, ensuring even spacing between
the Door Assembly and left Door Jamb.
Fasten one 10x16 self-drilling screw through the Door
Jamb and into the Wall Channels at the top and bottom of
both Door Jambs.
Figure 4.14
Figure 4.12

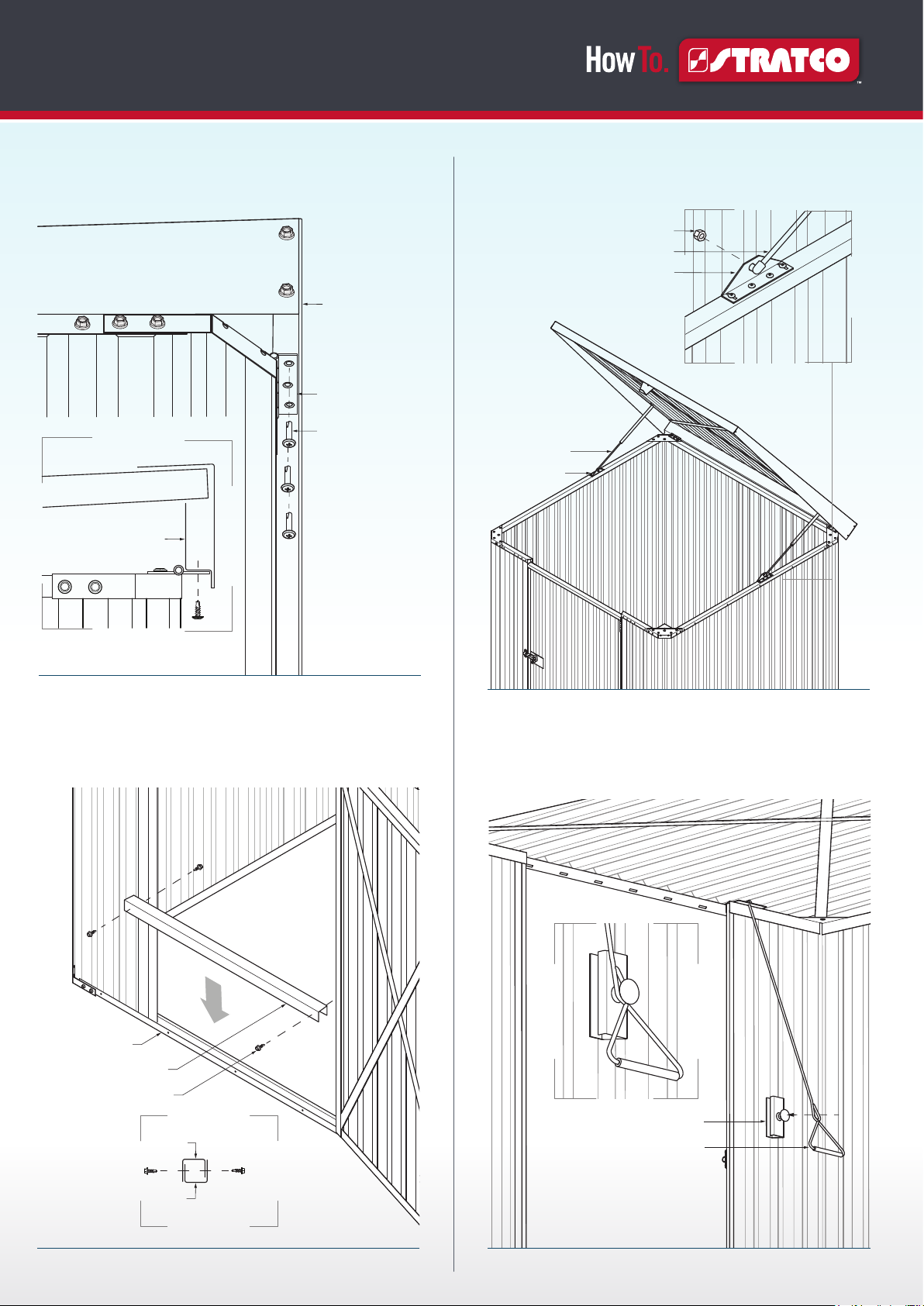

Lay the Roof Assembly on top of the Wall Assemblies.
Fasten two 10x16 self-drilling screws through the Wall
Channels and into the Wall Sheets in all four corners. Line up
the Door Latch and Door Latch Spacers against the Padbolt.
Fasten in place with two 10x22 wafer-head tek screws.
Figure 4.13
Door Latch
Spacer
Door Latch
10x22 wafer-head
tek screw
10x16 wafer-head
tek screw
10x16 self-drilling screw
10x16 self-drilling screw

Gas Strut
Strut Bracket
Gas Strut
Strut Bracket
Nut
Pull Cord Latch
Pull Cord
Door Shroud
Wall Channel
10x16 self-drilling screw
Wall Channel
Door Shroud
Rear Flashing
10x16 wafer-
head tek screw
Hinge
Rear Flashing
Fit the Gas Strut into the Strut Bracket. Fasten in place with
the supplied nut.
Figure 4.17
Close the Roof. From inside the shed, fit the Pull Cord over
the Pull Cord Latch.
Figure 4.18
Fit the Door Shroud into the Bottom Wall Channel. Fasten in
Place with four 10x16 self-drilling screws.
Figure 4.16
Figure 4.15
Fasten three 10x16 wafer-head tek screws through the Hinge
and into the Rear Flashing at both ends.

10x16 wafer-head
tek screw
Pull Cord Latch Mark from
previous step
Door Jamb
From the outside of the shed, align the Pull Cord Latch with
the mark from the previous step. Fasten two 10x16 wafer-
head tek screws through the Door Jamb and into the Pull
Cord Latch.
Figure 4.20
Piping
Wall Channel
Measure and Cut
Figure 4.22
Rivet the Supplied Hole Cover Sheets to the Wall Sheets to
cover up the remaining gaps for a neat finish. Reinstall the
Wall Channel
You may have piping that extends out from the Pool Pump
Filter Shed. If so, follow the steps in figures 4.21 to 4.22.
Measure and mark the location of the piping on the Wall
Sheet. Use Tin Snips to cut out the required hole.
Remove the Bottom Wall Channel and lower the Shed in
position over the piping.
Figure 4.21
Hole Cover Sheet
Wall Channel
Figure 4.19
Fit the Pull Cord Latch up against the Wall Sheet and Door
Jamb. Pull the Pull Cord Latch tight (downwards) and mark
the Pull Cord Latch position on the Door Jamb.
Mark this point
Pull Cord Latch
Wall Sheet
Door Jamb

PL-5715/ 5716
«SCAN THIS QR CODE TO FIND A STRATCO NEAR YOU
1300 155 155
stratco.com.au
All brands and logos/images accompanied by ® or ™ are trade marks of Stratco (Australia) Pty Limited. ® Copyright SEPTEMBER 2021
Figure 4.23
Check the walls are square. Check the diagonal
measurements from corner to corner, as per figure 4.23
below. The diagonal measurements should be equal for the
walls to be square.
Fit the Hold Down Lug over the bottom Wall Channel and
fasten in place with a 10x16 Self-drilling screw. Drill a hole
with a 10mm masonry drill bit. Secure the Hold Down Lug to
the concrete base with an M8x47 Masonry Anchor.
Hold Down Lug
Masonry Anchor
Self-drilling screw
Bottom Channel
Hold Down Lug
Hold Down Lug
Hold Down Lug
Hold Down Lug
Using the Corner Bracket pilot holes as a guide, drill holes in
all four corners with a 10mm masonry drill bit. Secure all
four bottom Corner Brackets to the concrete base with
M8x47 Masonry Anchors.
Figure 4.24
For added Strength, it is recommended to use a Hold Down
Lug on each Wall as per the below spacing.
Figure 4.25
Hold Down Lug
Masonry Anchor
Self-drilling screw
Bottom Channel
Hold Down Lug
Hold Down Lug
Hold Down Lug
Hold Down Lug
Masonry Anchor
Corner Bracket
Figure 4.26
Your Stratco Pool Pump Filter Shed will maintain its good
looks for longer with a simple wash and wipe down. Cleaning
should be performed as often as is required to remove any
dirt, salt and pollutants.
