STRAXGAS Theme 22 User guide

Theme 22 Issue 2.1 09/07/01 Page 1 of 12
Appliance data:
Type of gas : Natural gas (G20) Cat. I2H Propane gas (G31) Cat. I3P
Injector size : 7 x 0.80 (2 off) 7 x 0.62
Injector marking : 80 62
Gross heat input (high setting) : 10.2kW (34,800Btu/h) 10.0kW (34,200Btu/h)
Gross heat input (low setting) : 4.4kW (15,000Btu/h) 3.5kW (12,000Btu/h)
Supply pressure : 20mbar (8in.w.g.) 37mbar (14.8in.w.g.)
Appliance test point pressure (cold) : 18.0mbar (± 1.0mbar) 36.0mbar
Minimum flue diameter : 175mm (7in.) 175mm (7in.)
Minimum effective height of chimney : 3m (10ft.) 3m (10ft.)

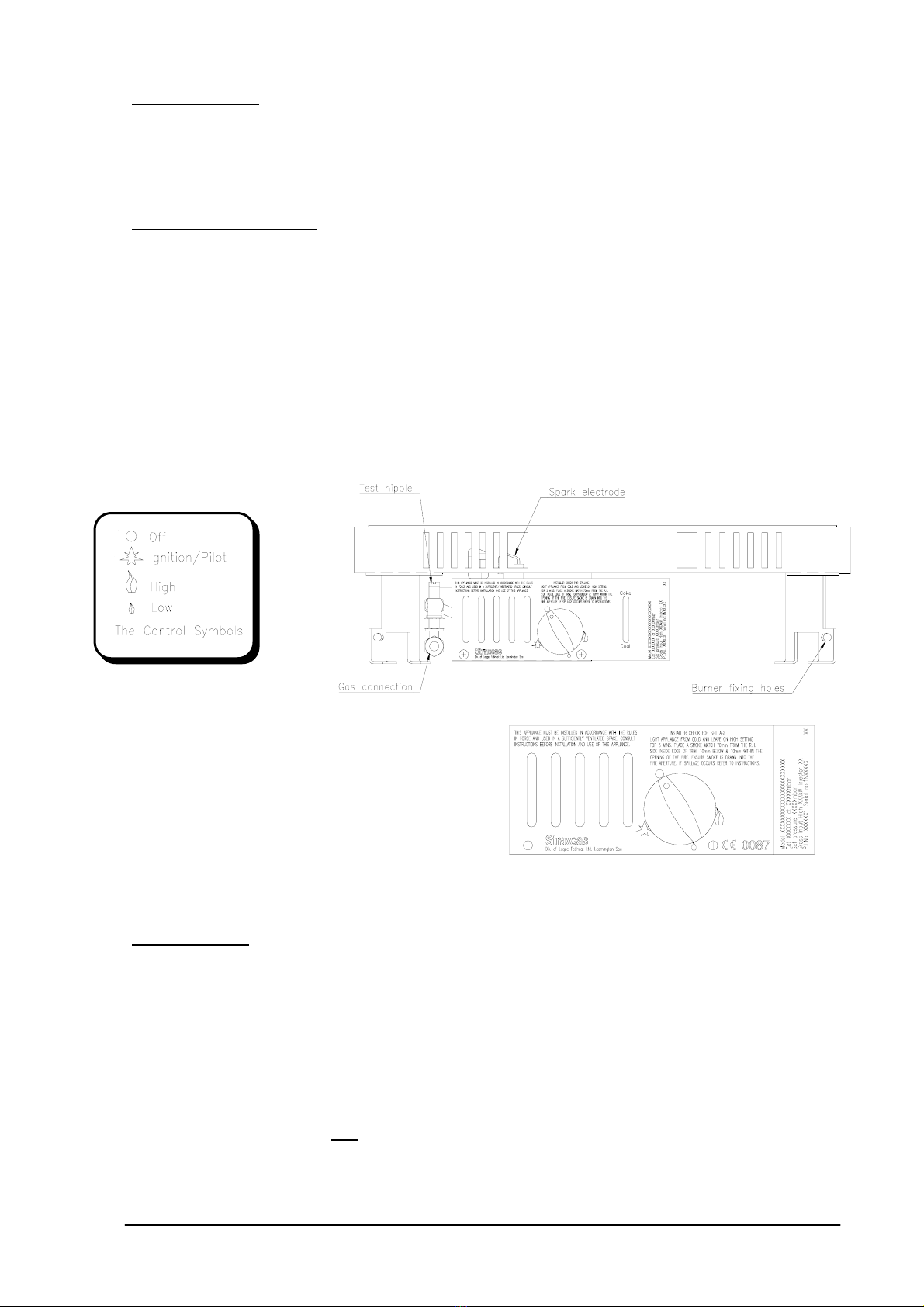

Ignition : Piezo Piezo
Spark gap : 3.0mm min., 4.5mm max. 3.0mm min., 4.5mm max.

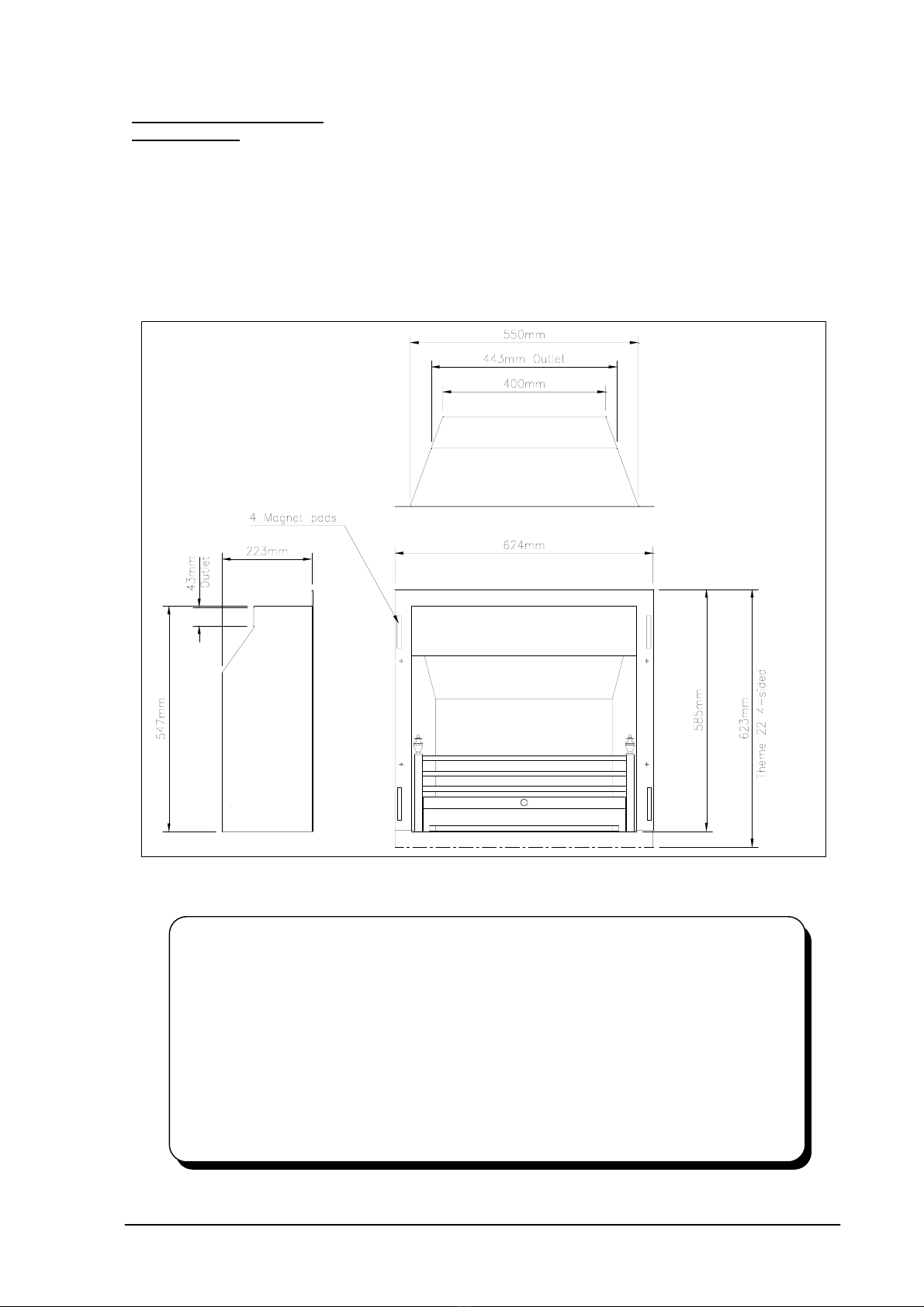

Dimensions:
Width over frame excluding trims : 624mm
Height including frame : 585mm (534mm Lowline Version)
Depth : 223mm
Shipping weight : 42kg
Country of destination : United Kingdom & Irish Republic
This appliance has been assessed by a Government appointed Notified Body and shown to meet the
'Essential Requirements' of the European Gas Appliance Directive.
The Directive lays down requirements for the safety of the appliance, together with its design,
construction, and use of materials. It also requires the production process to be covered by an
approved and monitored system of quality assurance.
Mandatory requirements
Straxgas fires must be installed with due regard to the following mandatory regulations:
The relevant British Standard installation specifications and codes of practice, and Building Regulations
issued by the Department of the Environment, and Building Standards (Scotland) Consolidated
Regulations issued by the Scottish Development Board.
Gas Safety (Installation and Use) Regulations.
Failure to install this appliance correctly could lead to prosecution and render the guarantee
invalid.
Attention is drawn to the latest edition of the following standards:
BS1251, Specifications of open-fireplace components.
BS5440, Part 1 Specification for installation of flues.
BS5440, Part 2 Specification for installation of ventilation for gas appliances.
BS5482, Part 2 LPG, installations in permanent dwellings.
BS5871, Part 2 Installation of decorative fuel effect gas appliances.
BS6891, Specification of low pressure gas pipework
BS8303, Replacing CP403.
This Straxgas appliance is an inset live fuel effect gas fire and must only be installed by a
competent person (e.g. a C.O.R.G.I. member) in accordance with these installation instructions.
This appliance must be installed in accordance with the rules in force, and used only in a
sufficiently ventilated space. Consult these instructions before installation and use of this
appliance.
An airbrick or similar fresh air inlet must be fitted in the room in which the fire is
installed, and must have an area not less than 18 sq.cm. (2.8 sq.in.). This fresh air inlet
must not be blocked or restricted in any way.
The air vent must be either direct to outside air or to an adjacent room which itself has a vent
direct to outside air of at least the same area.
Additional purpose made air ventilation is not normally required.
Ventilation must be provided in accordance with the rules in force.
Division of Legge Fabheat Ltd.
Longfield Road, Leamington Spa, Warks. CV31 1XB
Tel. [phone] Fax. [phone] Email: [e-mail]
Re
g
istered in En
g
land No 500091
INSTALLATION AND SERVICING INSTRUCTIONS FOR THE STRAXGAS
THEME 22" WITH 22" ECOTECH BURNER
(To be left with the appliance)
IE & Northern Ireland
GB

Theme 22 Issue 2.1 09/07/01 Page 2 of 12
Preparation
Before installation
Ensure that the local distribution conditions (identification of the type of gas and pressure) and
the adjustment of the appliance are compatible. Refer to burner data badge plate.
Inspect the chimney
Ensure that:
•It only serves one fireplace
•Any terminal or cowl fitted is approved for use with this type of appliance.
•It is clear of any obstruction and any damper or restrictor is removed or fixed
permanently in the fully open position.
•Any chimney used for an appliance burning a fuel other than gas must be thoroughly
swept before installing any gas appliances.
•With an L.P.G. (propane) fire, any air supply entering the fireplace below floor level is
completely sealed off.
•The chimney is properly sealed so that the combustion products do not come into
contact with combustible materials outside the chimney.
•The base of the chimney is clear of loose debris, bricking up, etc.
Check with a smoke match that there is a positive updraught present. If a terminal is fitted check
that it is free from obstruction and does not restrict the exit and safe dispersal of combustion
products.
Location
This appliance is not suitable for installation in a room containing a bath or shower. The Theme
22 may be installed to a masonry chimney with a minimum cross sectional area of 24,000
sq.mm, lined flue with a minimum dimension of 100mm or a minimum diameter of 175mm and a
minimum effective height of 3m. A builder's opening with sufficient volume for debris collection
conforming to Fig. 2 must be provided.
The installation is fully described in the next section.
The appliance must only be installed into an opening against a non-combustible wall.
Clearances
If a shelf is to be fitted above the fire, perhaps as part of a surround, it must be positioned a
minimum of 1m (39in.) above the top of the hearth, and project no more than 200mm (8in.) from
the front plane of the opening. Combustible material such as wood may be fitted to within
100mm (4in.) of either side of the opening so long as it projects no more than 100mm (4in.) from
the front plane of the opening. Soft furnishings, decorations and some wall coverings may
discolour or scorch if positioned too close to the fire
Installing the fire
Site preparation
The Straxgas Theme 22 must be installed on a level, non-combustible hearth in accordance
with BS5871, Part 2. See also approved document J 1/2/3 "Heat Producing Appliances" issued
by the Department of the Environment. Clear the working area of all debris before removing the
Straxgas appliance from the packaging.
Items supplied
The following items will be found within the carton:
1. Convection box.
2. For model S146H, a separate flange for securing to the base of the fire.
3. Separate flat trim or optional canopy trim.
4. Burner complete with controls
5. Restrictor plate.
6. Optional fret.
7. 8 shaped ceramic fibre blocks.
8. 19 large, 2 small coals.
9. Foam sealing strip

Theme 22 Issue 2.1 09/07/01 Page 3 of 12
10. Screws and wall plugs to complete the installation.
11. These installation instructions, guarantee card and end user operating instructions.
Warning: Only Straxgas approved ceramic blocks and coals, designed for this appliance, must
be used with this burner. Use of ceramic components from any other supplier will invalidate the
guarantee or may be dangerous.
When unpacking the appliance, avoid touching the visible, painted parts as the paint requires
curing (this will take approximately 2 hours under fire. In some cases there may be a slight
odour given off for a short period).
Fret options
The following Straxgas frets are suitable for use with this appliance:
•Black Broughton Classic
•Silver Classic
•Black finger
•Brass finger
•Gainsborough
•Delta
If a fret from another manufacturer is being used, it must comply with the minimum free area
requirements shown in Fig. 1.

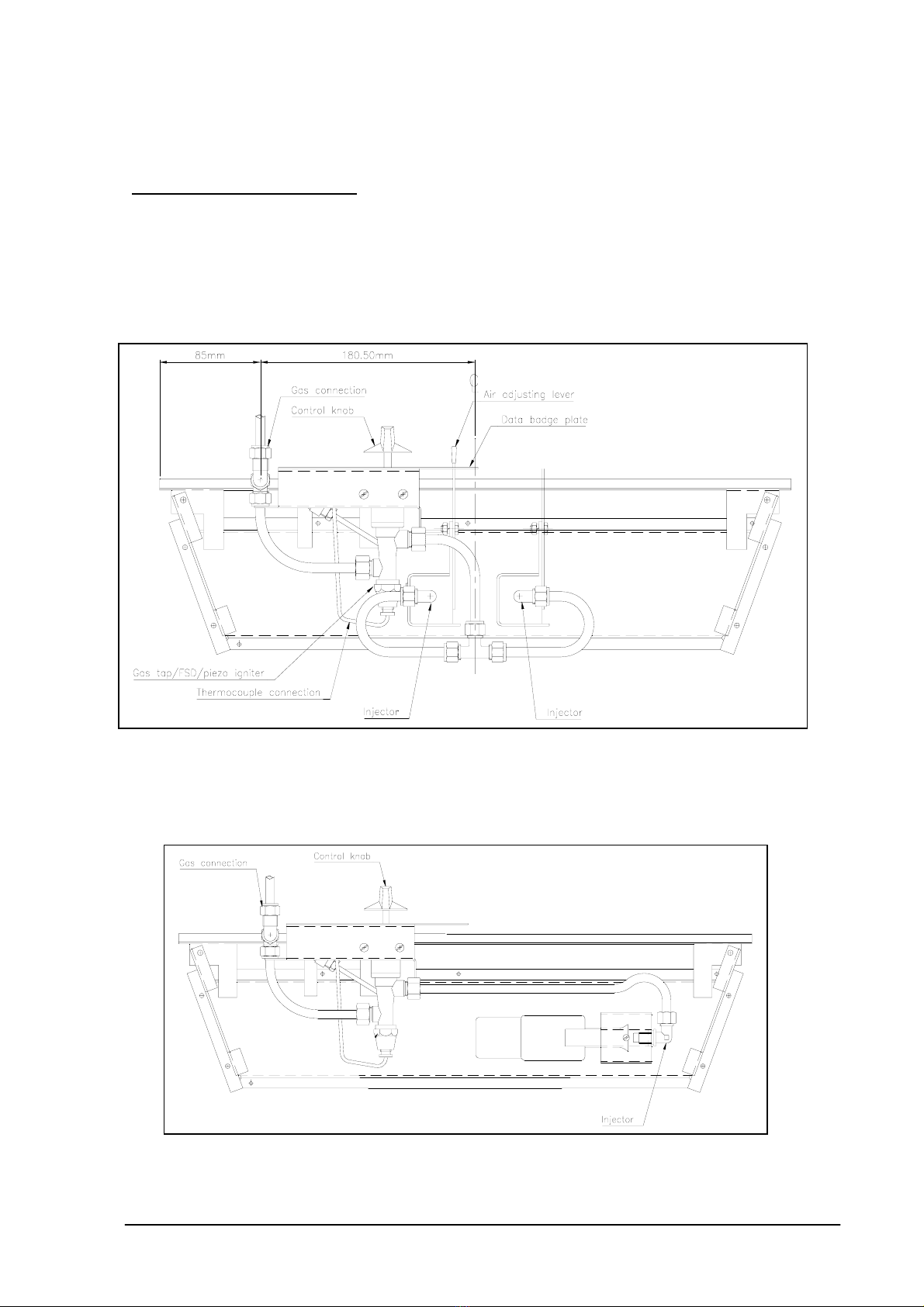

Gas connection
Note: Gas connection shall be with rigid or semi-rigid pipe, by concealed connection only. A
15mm (10mm for propane) gas supply pipe with isolation cock should be brought to within
1M of the fireplace opening. The connection to the burner can be made from the right or left
hand side by a concealed pipe from behind the burner to the elbow on the left-hand side of
the burner. Use a pre-punched hole in the convection box to allow the gas supply pipe to be
installed. 8mm pipe is required for this purpose.
Assembly sequence
1. Fit the restrictor plate with its bottom edge inside the flue outlet, using 3 screws
provided, as shown in Fig. 3.
2. For model S146H (4-sided version) secure the separate bottom flange to the base of
the convection box using the screws supplied (Fig. 4).
3. Secure the self-adhesive foam-sealing strip to the back of the convection box flange
(Fig. 5).
4. Slide the firebox into position, making sure that the sealing strip is compressed and
forms an effective seal around the complete frame.
5. Drill the front face of the opening to match the 4 holes in the convection box flange and
insert the plugs provided.
6. Secure the convection box using the screws provided or alternatively use optional wire
fixing kit.

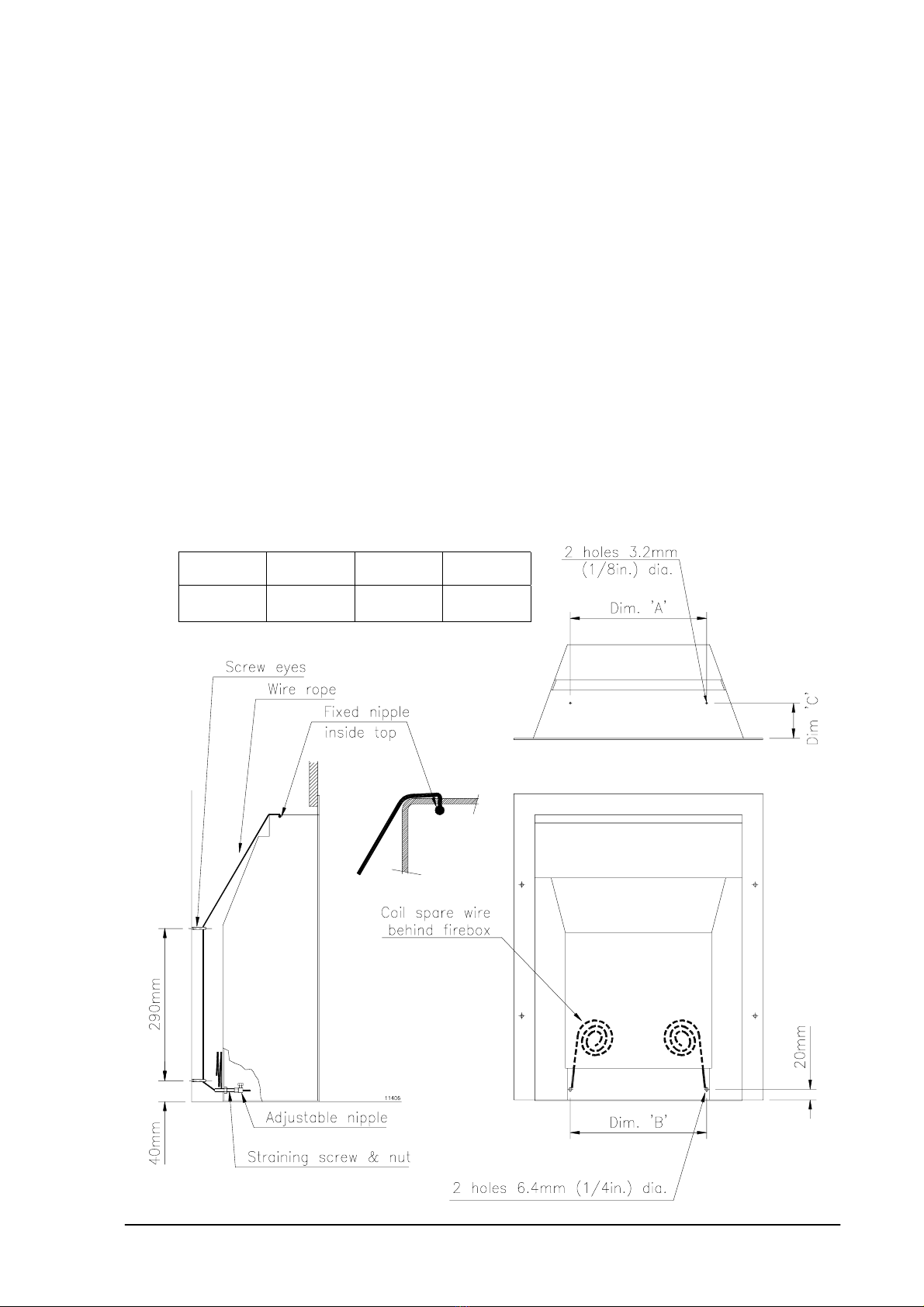

Wire Fixing Kit (Optional)
The kit supplied enables the convection box to be secured to the opening without drilling any
holes in the surround.
Items supplied:
1. 2 wire ropes with fixed nipple
2. 2 Sleeve bolts and backnuts
3. 2 Adjustable nipples with clamp screws
4. 4 Screweyes and wall plugs
When passing
the pipe through
brickwork or
plaster, cap the
end to prevent
entry of debris.
Fig. 1 Optional fret min. ventilation requirement

Theme 22 Issue 2.1 09/07/01 Page 4 of 12
1. Mark out and drill 4 holes in the back of the opening to
suit wall plugs supplied. See the drawing for dimensions.
Insert the screweyes and align to allow the wires to pass
through vertically.
2. If the convector box has not been pre-punched for the wire ropes, drill the top and
back shown in the drawing, removing burrs from the drilled holes.
3. Pass one wire rope through each top hole, from the inside out, and pull through until
the fixed nipple rests against the inside of the top plate.
4. Place the convector box near the opening and pass each wire rope through the top
and bottom screweyes, and back through the holes in the back of the convector box.
5. Push the convector box into the opening up to the surround, pulling the wire ropes
through to take up all slack.
6. Run the backnuts up to the heads of the sleeve bolts, and thread a sleeve bolt over
each wire rope, threaded end first.
7. Push the sleeve bolts into the holes in the back of the convector box as far as the
backnuts.
8. Thread an adjustable nipple on to each wire rope up to the heads of the sleeve bolts.
Pull any slack wire through the nipple and tighten the clamp screws.
9. Make sure that the foam seal behind the fire flange is compressed all round and then,
using two spanners, screw the backnuts down the sleeve bolts in order to tension the
wire ropes and hold the convector box against the surround.
10. Coil up surplus wire rope and store inside convection channel (see drawing). Do not
cut off surplus; possible future removal and refitting of convector box requires the full
length of wire supplied.
Fire type Dim. ‘A’ Dim. ‘B’ Dim. ‘C’
Theme
22”
270mm 270mm 65mm

Theme 22 Issue 2.1 09/07/01 Page 5 of 12
Lowline Version
499mm min
524mm max
Lowline Version
499mm min
524mm max
Lowline Version
569mm
Lowline Version
569mm

Theme 22 Issue 2.1 09/07/01 Page 6 of 12
Fig. 6 Optional canopy trim
Final assembly
Following satisfactory installation of the convection
box into the opening, proceed as follows:
1. Secure the burner to the convection box
using the two screws provided, through the
holes in the front of the legs.
2. Connect the gas supply pipe to the inlet
elbow.
3. The ceramic components are fragile and
should be handled with care. Refer to Figs. 7
and 8 for positioning of ceramic fibre blocks
and coals.
4. Place the chair shaped back ceramic on the
burner, pushing it back against the upturned
edge of the burner plate.
5. Place the centre ceramics on the back
ceramic, pushing them back to sit comfortably
between the tapered sides.
6. Spring forward the slotted front plate and
slide the three front ceramics down as far as
the stops.
7. If a flat trim has been supplied it is attached to
the fire by means of four magnets. First
attach the magnets to the special raised pads
around the flange of the fire, and then attach the
trim to the magnets. If the optional canopy trim
has been supplied, first remove the existing front cover by undoing the two screws in its
bottom edge, and remove the small deflector by undoing the two M5 nuts. Neither item
is required. Secure the canopy trim using the screws which held the cover. (See Fig. 6)
WARNING: Always
blow pipework
through before
connecting to
appliance -
contamination will
permanently damage
the burner.
Fig.8 Placing the loose coals
Centre ceramic (L.H.)
Front ceramic (L.H.)
Note: R.H. front ceramic
not shown for clarity
Front ceramic infill
Back ceramic
Centre cerami
c
(R.H.)
Fig. 7 Assembling the ceramic blocks

Theme 22 Issue 2.1 09/07/01 Page 7 of 12
Placing the coals
Refer to Figs. 8
1. Place 7 large coals on the rear shelf to make row 1.
2. Place 7 large coals across the front of the fire to form row 4.
3. Place the remaining 5 large coals above and behind row 4 to make row 3.
4. Take the 2 small coals and place one at each end of row 3.
Leak test & pressure test
1. Turn on the main gas supply and check for gas soundness.
2. Remove pressure test screw, and fit pressure gauge to pressure test point.
3. Light the fire (see next section).
4. Turn control knob anti-clockwise to High position.
5. When the control knob is in the High position, you should have a gas pressure of
18.0mbar ± 1.0mbar when using natural gas and 36.0mbar for propane.
6. Extinguish the fire by turning the control knob clockwise to the Off position.
7. Remove the pressure gauge and replace the pressure test screw. Check again for gas
soundness.
8. Fit the front fret by hooking the support lugs at each end over the slotted front plate on
the burner (if using a Straxgas fret), or place an alternative front fret in front of the
burner.
Note: If a fret from another manufacturer is being used, it must comply with the minimum free
area requirements of Fig. 1.
Lighting the fire
The appliance Data Badge is positioned in front of the burner behind the fret and carries the
control knob positions (Fig. 9 or 10 depending on gas type). The full lighting procedure is as
follows:
1. Push control knob in as far as possible on gas control.
2. Turn knob anti-clockwise until a click is heard. The knob will stop at the ignition position
and a spark should be seen at the tip of the ignition probe. At the same time the pilot
flame should light. KEEP THE KNOB PRESSED IN FOR 10 SECONDS. If the pilot
should fail to light, turn the control knob clockwise to the 'off' position, wait 3 minutes
and repeat the procedure.
3. When the pilot flame is alight the control knob should be allowed to spring out slightly.
Turn the knob fully anti-clockwise to the high position. The pilot flame should then ignite
the main fire.
Fig. 9 The data badge plate & test nipple
Fig.10 Data badge plate - propane version

Theme 22 Issue 2.1 09/07/01 Page 8 of 12
4. The height of the flames can be adjusted by turning the control knob between the low
and high positions. Note that the knob 'latches'
in position at either end of this movement and
must be pushed in slightly before it can be
turned.
5. The appearance of the flames can be altered by
means of the air adjustment lever positioned to
the right of the control knob (natural gas version
only). Moving the lever up will admit more air
and produce a 'coke fire' effect. Moving it down
will close off some of the air and simulate a
'coal fire' with flickering flames.
6. To turn the fire off, depress the knob slightly
and turn it to the pilot position.
7. To completely extinguish the fire depress the
knob slightly and turn to the 'Off' position.
Check for clearance of
products of combustion
1. Light the fire.
2. Close all windows and
doors.
3. After approximately 5
minutes place a shrouded
smoke match 70mm from
the right hand side, inside
edge of the trim, 10mm
below and 10mm within
the opening of the fire as
shown in Fig. 11, 11a &
11b. Ensure that the
smoke is drawn into the
fire aperture. If spillage is
detected, operate the fire
for a further 10 minutes
and repeat the test. If
spillage is still detected the cause must be discovered and the fault corrected. If the fault
cannot be corrected, disconnect the gas supply to the appliance and seek expert
advice. Possible causes of spillage are chimney restrictions, or an incorrect cowl or
terminal.
4. If there is an extraction fan in a nearby room then the spillage test must be repeated
with the fan turned on and any interconnecting doors between the fire and the fan
location left open.
Instruct the user
1. Hand over these Installation Instructions and the User Instructions to the person who is
going to use the fire and explain how to light and operate the appliance. Explain how the
fire may be lit, if necessary, by means of a long spill or taper.
2. Make certain that the user is aware that the ceramic blocks and coals must be located
in accordance with the instructions, and that the appliance should be serviced at regular
intervals by a competent person to ensure continued safe operation.
3. Explain that this appliance is fitted with an oxygen depletion sensor incorporated into
the pilot body. Should the fire repeatedly extinguish itself, the cause should be sought
and remedied as this may indicate spillage into the room of combustion products.
4. Indicate the tie-on warning label, which the customer must remove and read.
5. Advise the user that any smell given off by the appliance will clear away after a little
use.
6. Point out that these instructions must be retained in a safe place for future use.

Theme 22 Issue 2.1 09/07/01 Page 9 of 12
Maintenance
Servicing should be carried out regularly by a competent person in accordance with these
instructions and the relevant regulations, to ensure the safe and correct operation of the
appliance.
At least once a year check for debris in the flueway. If soot has accumulated ensure that the
chimney is swept clean.
Before commencing any service or replacement of parts, turn off the main gas supply and
ensure that the fire is cold.
When ordering spare parts please quote appliance serial number which can be found on the
data badge plate.
Ceramics
Remove the coals and keep in their separate rows. Examine the coals and ceramic blocks for
signs of cracking and replace if necessary. Handle the ceramic components with care. Dust off
any soot or deposits with a soft brush; do not vacuum clean.
Removal of burner & convection box
1. Turn off the gas supply by the isolation cock.
2. Disconnect the 8mm pipe from the elbow at the left-hand side of the burner.
3. Remove the flat trim, box trim, or optional canopy trim.
4. Remove the 2 screws holding the burner to the convection box and lift the burner out of
the opening.
5. Remove the 4 screws in the flange of the convection box, and lift the box out of the
opening.
6. Examine the flue for debris and clean if necessary.
7. Reassemble in the reverse order.
8. After servicing check for gas soundness.
Following a service, a check should be made for clearance of combustion products. Follow the
procedure detailed in these instructions.
Cleaning the fire
Black paint: Use only a clean damp cloth. Do not use any cleaning agents.
Brass parts:
Fret - Use Brasso or Duraglit ensuring that it does not come into contact with the black paint
finish.
Brass frame - This has a lacquered finish and should be wiped over with a damp cloth when the
fire is cold. Do not use a metal polish.
IMPORTANT - The paint finish is durable and heat resistant, however it will be damaged if
plaster, cement or wallpaper paste is allowed to come into contact with it. Protect the
appliance during re-building or decorating work.
Replacement of parts
Before commencing any servicing always ensure that the fire is isolated from the gas supply
and that the fire is cold. After servicing always check for gas soundness.
Replacement of gas tap/FSD/piezo igniter
1. Turn off the gas supply by isolation cock.
2. Lift off the front fret and remove the coals and ceramic blocks.
3. Remove 2 screws holding burner to box.
4. Undo multidirectional gas connection.
5. Remove burner from the appliance.
6. Pull off control knob.
7. Remove the 2 screws securing the Data Badge plate and remove the plate.
8. Disconnect ignition lead to the igniter unit.
9. Disconnect all 3 gas connections to gas valve as well as the connection to the
thermocouple.
10. Remove 2 screws securing the valve to the mounting bracket, and discard old
tap/FSD/piezo igniter complete.
11. Assemble the new tap/FSD/piezo igniter on the mounting bracket. Ensure that the filter
is in position in the pilot outlet orifice on the tap body.

Theme 22 Issue 2.1 09/07/01 Page 10 of 12
12. Reassemble the appliance in reverse order.
13. Replace the ceramic blocks and coals (see Figs. 6 and 7).
14. Turn on the gas supply and check for soundness.
Note: The igniter is not replaceable separately.
Replacement of main injectors
1. Repeat operations 1 - 5, as described for 'Replacement of gas tap/FSD/piezo igniter'.
2. Remove gas pipes from tee piece to injectors.
3. Unscrew injectors and replace, making certain that the jet size stamping corresponds to
the specification on the Data Badge plate.
4. Screw injectors right in, then unscrew 1-2mm and line up with pipe connections.
5. Reassemble in reverse order.
6. Turn on the gas supply and check for soundness.
Fig.12 Underside of burner
(natural gas version)
Fig.13 Underside of burner (propane gas version)

Theme 22 Issue 2.1 09/07/01 Page 11 of 12
Replacement of ignition &
pilot assembly
1. Repeat operations 1 - 7, as described for 'Replacement of gas tap/FSD/piezo igniter'.
2. Disconnect thermocouple connection to the gas tap/FSD/piezo igniter.
3. Disconnect pipe from base of pilot burner tube.
4. Pull off connector on the base of the igniter probe.
5. Remove 2 screws on gas burner and remove ignition unit complete.
6. Fit new pilot assembly and reassemble in reverse order.
7. Turn on the gas supply and check for soundness.
8. Check operation of ignition system.
Fig. 14 Theme 22 outline drawing without trim
SPARE PARTS
When ordering spare parts please quote part numbers as listed below:
NATURAL GAS L.P.G. (Propane)
Gas tap / FSD / piezo igniter BV50023 BV50147
Oxypilot assembly BA50004 BA50041
Injector BI70800 BI70620
3 - Back ceramics (left, right, centre) BC11610 BC11610
2 - Centre ceramics (left & right) BC11394 BC11394
3 - Front ceramics (left, right, centre) BC11520 BC11520
Set of 21 coals BC50084 BC50084
495mm Lowline Version
534mm Lowline Version

Theme 22 Issue 2.1 09/07/01 Page 12 of 12
NOTE: No liability can be accepted unless this product has been installed and operated
strictly in accordance with these manufacturer's instructions
U.K. Registered Design 2040268. British Patent Application 9414887.1
Design right reserved © Legge Fabheat Ltd.
565mm Lowline Version
495mm Lowline Version
545mm Lowline Version
597mm Lowline Version
