Installation,
Operation and
Maintenance
Manual
DV 38 ST
Direct Vent
See-through
Gas Fireplace
Check local codes and read all
instructions prior to installation.

Page 2
DV 38 ST See-through Gas Fireplace
rev.110106
Warning:
Read this manual before installing, operating or troubleshooting this appliance. Please
retain this owner's manual for future reference.
Congratulations
Congratulations on selecting a European Home gas replace, an elegant and
well designed gas replace built with you in mind. The gas replace you have
selected is designed to provide the utmost in safety and reliability.
As the owner of this new replace, you'll want to read and carefully follow all
the instructions contained in this Installation, Operations and Maintenance
manual. Pay special attention to all cautions, warnings, and important warn-
ings.
This owner's manual should be retained for future reference. We suggest that
you keep it with all your other important documents and product manuals.
The information contained in this owner's manual, unless noted otherwise,
applies to all models, and gas control systems.
Your new gas replace will give you years of reliable use. Welcome to the
European Home family of gas replace products.
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
• Important: Used to address practices not related to personal injury.
Congratulations
Safety Alert Key
Introduction ................................................................................................3
Installation
Installing and Framing the Fireplace ..............................................4
Installing the Gas Line ....................................................................5
Vent Installation ............................................................................. 5
Installation Requirements ................................................ 5
Installing the Remote Switch .................................................... 5
Vent Terminations ............................................................ 6
Installing the Nailing Flange ............................................6
Top Vent Runs ............................................................................7 - 9
Side Vent Runs .........................................................................9 - 11
About the Power Vent ............................................................ 11 - 12
Finishing around the replace
Fireplace Facing ............................................................. 12
Mantels and Surrounds ..................................................12
Table Of Contents
Wiring ...................................................................................... 13
Wiring for the Optional Fan Kit .................................................................... 13
Removing and Installing the Door ........................................................ 13 - 14
Operation ...........................................................................................15 - 18
Maintenance ......................................................................................18 - 19
Troubleshooting .........................................................................19 - 20
Spare Parts ...................................................................................20
Warranty ................................................................................................... 21
Appendix
A. Termination Locations ..............................................................22
B State of Massachusetts / Amendment ...................................... 23

Page 3
DV 38 ST See-through Gas Fireplace
rev.110106
Introduction
Thank you for choosing a European Home Gas Fireplace.
About this Fireplace:
The DV 38 ST (see-through) is a replace with a linear-style burner. This replace
can be converted to both a top vent or rear vent application, and is available in the
models below.
The DV 38 ST is rated for natural gas or propane at 27,000 BTU/Hr. (7.91 kilowatts) input.
The DV 38 ST; Millivolt Pilot
The DV 38 ST E; Electronic Ignition
This manual covers installation, operation and maintenance. Lighting, operation
and care of this replace can be easily performed by the homeowner. However, all
installation and service work should be performed by a qualied or licensed installer,
plumber, or gas tter who is qualied or licensed by the state, province, region, or
governing body in which the appliance is being installed.
This manual covers all models and unless otherwise specied, the designation DV 38
ST refers to all variations of the model above. Sections which are specic to a particular
variation are marked with a symbol, plus the appropriate model number.
Warranty and Installation Information:
The European Home warranty will be voided by, and European Home disclaims any
responsibility for, the following actions:
• Modication of the replace and/or components including Direct Vent assembly or
glass doors.
• Use of any component part not manufactured or approved by European Home in
combination with this European Home replace system.
• Installation other than as instructed in this manual.
Consult your local Gas Inspection Branch on installation requirements for factory-
built gas replaces. Installation and repairs should be done by a qualied contractor.
Installations in Canada must conform to the current CAN/CGA B-149.1 and .2 Gas
Installation Code and local regulations. If the optional air-circulating fan kit is installed,
it must be electrically grounded in accordance with CSA C22.1 Canadian Electrical
Code Part 1 and/or Local Codes.
Installations in the USA must conform to local codes, or in the absence of local codes
to the National Fuel Gas Code, ANSI Z223.1-1988. If the optional air-circulating fan
is installed, it must be grounded in accordance with local codes or, in the absence of
local codes, with the National Electrical Code, ANSI/NFPA 70-1987. Within the State
of Massachusetts this replace must comply with NFPA-54 Chapter 10.
CAUTION!
Due to its high operating temperatures, the appliance should be located
out of trac and away from furniture and draperies.
 Children and adults should be alerted to the hazards of the
high surface temperature, which could cause burns or clothing
ignition.
 Young children should be carefully supervised when they are in
the same room as the appliance.
 Clothing or other ammable materials should not be placed on
or near the appliance.
WARNING!
When this appliance is installed directly on carpeting, tile or any combustible
material other than wood ooring, it must be installed on a metal or wood
panel extending the full width and depth of the appliance.
What is Combustible?
Materials that can catch re and burn are considered combustible. Any material that
is made of, or faced with, wood, wood pulp, paper, plastic or any other material that
can catch re and burn is considered combustible. Even though these materials may
have been 'ame-proofed', made 're-resistant' or are 're-rated' they are considered
combustible.
The combustibility of a material can be tested per "ASTM E136 Standard Test Method
for Behavior of Materials in a Vertical Tube Furnace at 750 Degrees C". Note that 're-
resistant' does NOT mean non-combustible.
Note: If a certain material has a core considered to be non-combustible (in accordance
with ASTM E136) but is faced with a combustible material then the material is
considered to be combustible.
When in doubt, ask for an ASTM E136 compliance statement.
What is Non-combustible?
A given material is said to be non-combustible when it cannot catch re and burn.
For example, materials made entirely, or in combinations, of, stone, brick, concrete,
tile, steel, plaster or glass are considered non-combustible.
For the purposes of the installations described in this Manual, those materials that
have passed the ASTM E136 tests are considered to be non-combustible.
As of this writing, the materials listed below are reported by their manufacturers to
be non-combustible (in accordance with ASTM E136):
• James Hardie Building Products, Inc.:
HardieBacker™ ¼” Cement Board
• U.S. Architectural Products, Inc.:
Versaroc® Cement Bonded Particle Board
Cem-Clad® Cement Panel

Page 4
DV 38 ST See-through Gas Fireplace
rev.110106
Installation
Installing the Fireplace Shell
The DV 38 ST replace may be installed in any location that maintains proper clear-
ances to air conditioning ducts, electrical wiring and plumbing. Safety, as well as
eciency of operation, must be considered when selecting the replace location. Try
to select a location that does not interfere with room trac, has adequate ventilation,
and oers an accessible pathway for Direct Vent installation. Refer to page 5 - Vent
Installation for more information.

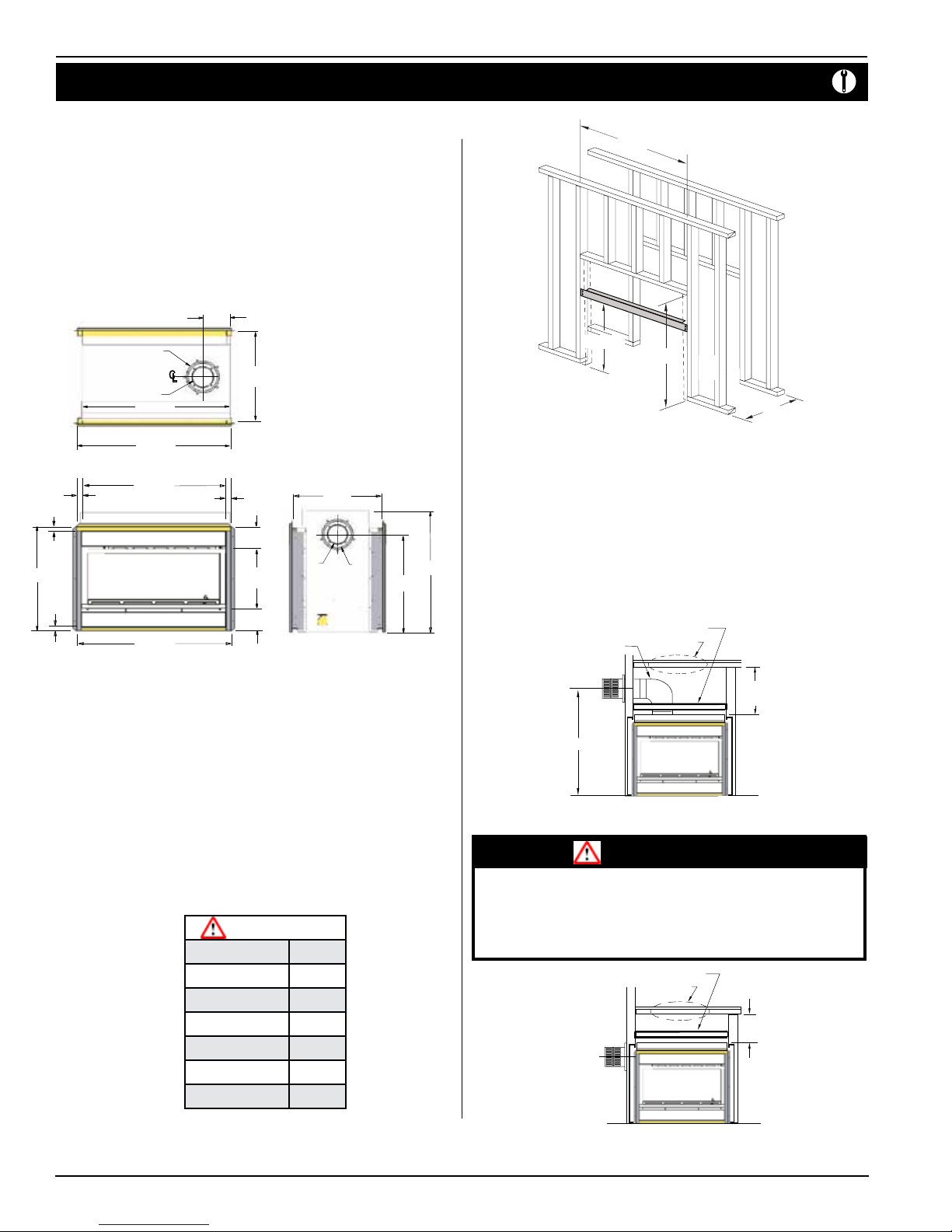

The replace dimensions are shown below:
When installing a shelf over the top of the replace, the following clearances apply:
For rear vent applications, the minimum clearance from the top of the DV 38 ST
replace to a shelf is 10". For top vent applications, the minimum clearance is 17½".
Minimum 2" clearance must still be maintained around the vent pipes.
Figure 2. Framing dimensions.
Framing
Top View
Front View Side View
Clearances
These clearances apply to all dimensions except the framed opening, where the
clearance to combustibles is 0". The DV 38 ST clearance to unprotected combustible
walls which are perpendicular to the replace opening, must not project beyond the
shaded area shown in Figure 25.
For protection against freezing temperatures, it is recommended that outer walls of
the chase be insulated with a vapor barrier. This will reduce the possibility of a cold-air
convection current on the replace.
Figure 1. Fireplace dimensions.
* Clearance from top of the Fireplace to a combustible ceiling within the replace enclosure.
** Refer to Pages, 10 and 11.
10
min.
shelf
supplied shield
RHS101
39 1/2 min
17 1/2
min
PEL Short
90 elbow
shelf
supplied shield
RHS101
Figure 2a. Framing dimensions, top vent
Figure 2b. Framing dimensions. (rear vent)
WARNING!
When this appliance is installed directly on carpeting, tile or any combustible
material other than wood ooring, it must be installed on a metal or wood
panel extending the full width and depth of the appliance.
24"
26¾"
34"
8"
37¾"
29½" 18"
1¼"
35¼"
37¾"
36⁄"
5¼"
1¼"
1¼"
6¼"
opening
opening
7"
5"
24"
8"
5"
1"
DV 38 ST
Top (top vent) 17½"*
Top (rear vent) 10"*
Sides 1"
Floor 0"
Mantle** 4"
Back 3"
Vent Ring 2"
24" or 25"
41"
39½" minimum
17½"
minimum
Both walls typical. May not be
exactly as shown.
40”
Notes:
- When facing with the Overlay Method the depth
is increased by 1". See Planning Guide for more
information.
- Install supplied metal header (P/N L38ST060)
above replace after unit is in place. Use supplied
hardware to fasten to framing.
40"
34½"

Page 5
DV 38 ST See-through Gas Fireplace
rev.110106
Installation
Installing the Gas Line
The gas line must be installed before completing the installation of the DV 38 ST
Fireplace. Natural Gas requires a minimum inlet gas supply pressure of 5.5" w.c.
and a manifold pressure of 3.5" w.c. Propane Gas requires a minimum inlet gas
supply pressure of 11" w.c. and a manifold pressure of 10" w.c. Provision must also
be made for a ⁄" N.P.T. plugged tapping and be accessible for test gauge connection
immediately upstream of the gas supply controls to the appliance. The replace gas
connection and the main operating gas valve is located behind the removable trim
at the bottom of the unit and need only be attached to the gas line with an approved
tting, as required by the applicable installation codes.
• Only use gas shut-o valves approved for use by the state, province, region, or
governing body, in which the appliance is being installed, or as required by the
applicable installation codes.
• Flexible gas connectors must not exceed 3 feet in length, unless it is allowable within
applicable installation codes.
The appliance and its individual shut-o valve must be disconnected from the gas
supply piping system during any pressure testing of that system at test pressures in
excess of ½ psig (3.5 kPa).
The appliance must be isolated from the gas supply piping system by closing its
individual manual shut-o valve during any pressure testing of the gas supply piping
system at test pressures equal to or less than ½ psig (3.5 kPa).
Note: After the gas line is connected, each appliance connection, valve and
valve train must be checked while under normal operating pressure
with either a liquid solution, or leak detection device, to locate any
source of leak. Tighten any areas where bubbling appears or leak is
detected until bubbling stops completely or leak is no longer detected.
DO NOT use a ame of any kind to test for leaks.
Figure 5a. Gas line access.
Vent Installation
This section covers the installation of direct venting and terminations.
Installation Requirements
QDV 38 ST model replaces are certied for use with European Home venting components
(5"/8").
QMinimum clearance to combustible construction around the vent pipe is 1" on all
sides, except on horizontal venting where the top of the pipe must have a clear-
ance of at least 2".
QUse only certied European Home vent components. The use of other parts will void the
European Home warranty, and may impede the operation of the replace.
QAll joints must be secured with a minimum of three screws per joint.
QVent terminations must not be recessed in walls or siding.
QHorizontal runs must be supported by a minimum of two supports per horizontal run. A
minimum of one screw on each side of support is also required.
QFlex vent sections may be stretched up to 50% of their total length, e.g. a 24" section
may be stretched to 36".
QFlex vent sections over 6 feet must fall within the limits set by the venting graph and must
have a minimum vertical rise of 3 inches per foot of ex.
QSolid vent sections may be cut less than half way from the female end.
QVenting components can be used in any combination of solid/rigid pipe or ex pipe and
in any orientation, i.e. male connectors can face in any direction.
Installing the Remote Switch

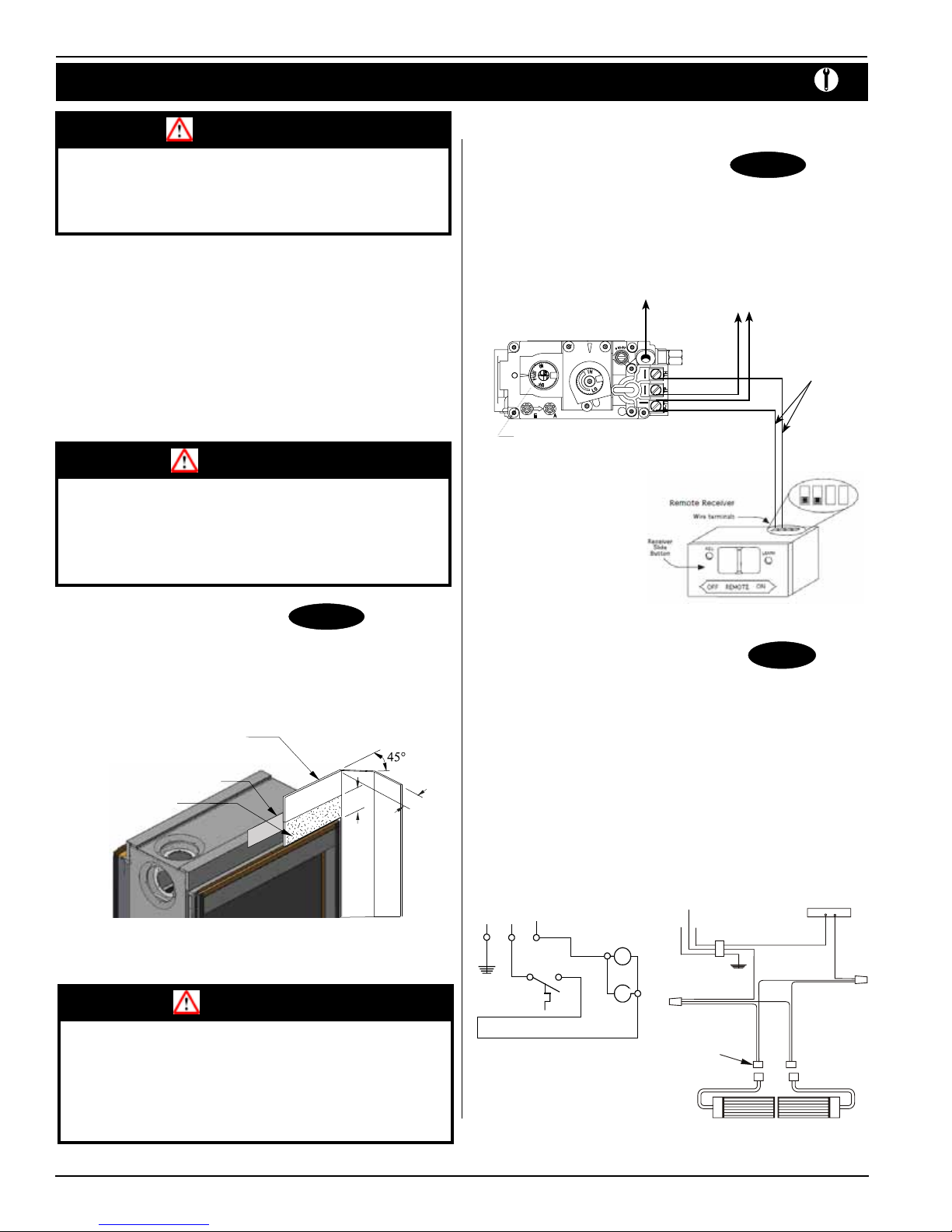

The DV 38 ST gas valve is located behind the lower trim and may be connected to a
wall switch. The valve generates its own power on a millivolt circuit. Use only low
voltage wire and DO NOT connect any external power to it.
Note: The low voltage wire must not exceed 30' from the replace.
Figure 2. Back frame dimensions.
Backframe Min. 37 3/4”
CAUTION:
 Do not obstruct, or attempt to conceal, the vent termination. These actions
will aect the operation of the replace, and may be hazardous.
 In heavy snow areas, take extra care to prevent snow buildup from obstructing
the vent termination.
CAUTION!
Due to its high operating temperatures, the appliance should be
located out of trac and away from furniture and draperies.
 Children and adults should be alerted to the hazards of the
high surface temperature, which could cause burns or clothing
ignition.
 Young children should be carefully supervised when they are in
the same room as the appliance.
 Clothing or other ammable materials should not be placed on
or near the appliance.
Back frame minimum 29½"
2⁄"
7"
1¾"
1¾"

Page 6
DV 38 ST See-through Gas Fireplace
rev.110106
Installation
Installing Terminations with Built-In Frames
Installing Terminations with MSR Frames
12
12
1. Frame the termination opening to 12" x 12".
2. Fasten the termination to the studs using a minimum of 4 screws.
11
11
1. Frame the termination opening to 11" x 11".
2. Fasten the termination to the studs using a minimum of 4 screws.
Installing Terminations with MOSR Frames
1212
12
MOSR
1. Frame the termination opening to 12" x 12".
2. Fasten the MOSR frame to the interior side of the studs using a minimum of 4
screws.
3. Insert the termination into the MOSR frame as shown here, and attach by
screwing through the four pilot holes in the termination.
MSR
PTO-4 (5"/8")
PTO-4F (5"/8")
PTO-4 (5"/8")
PTKOG (5"/8")
1. Ensure that the two long mounting brackets are facing the bottom of the
termination. See inset. This will provide more heat protection at the top of the
termination, where temperatures are highest.
2. Attach to the faceplate of the termination using four sheet metal screws.
3. If installing the termination over vinyl siding, use the VSS Termination Shield.
Installing Heat Guards over Terminations
Figure 6c. Installing the Nailing Flange Extension.
Figure 6. Installing the VSS Vinyl Shield.

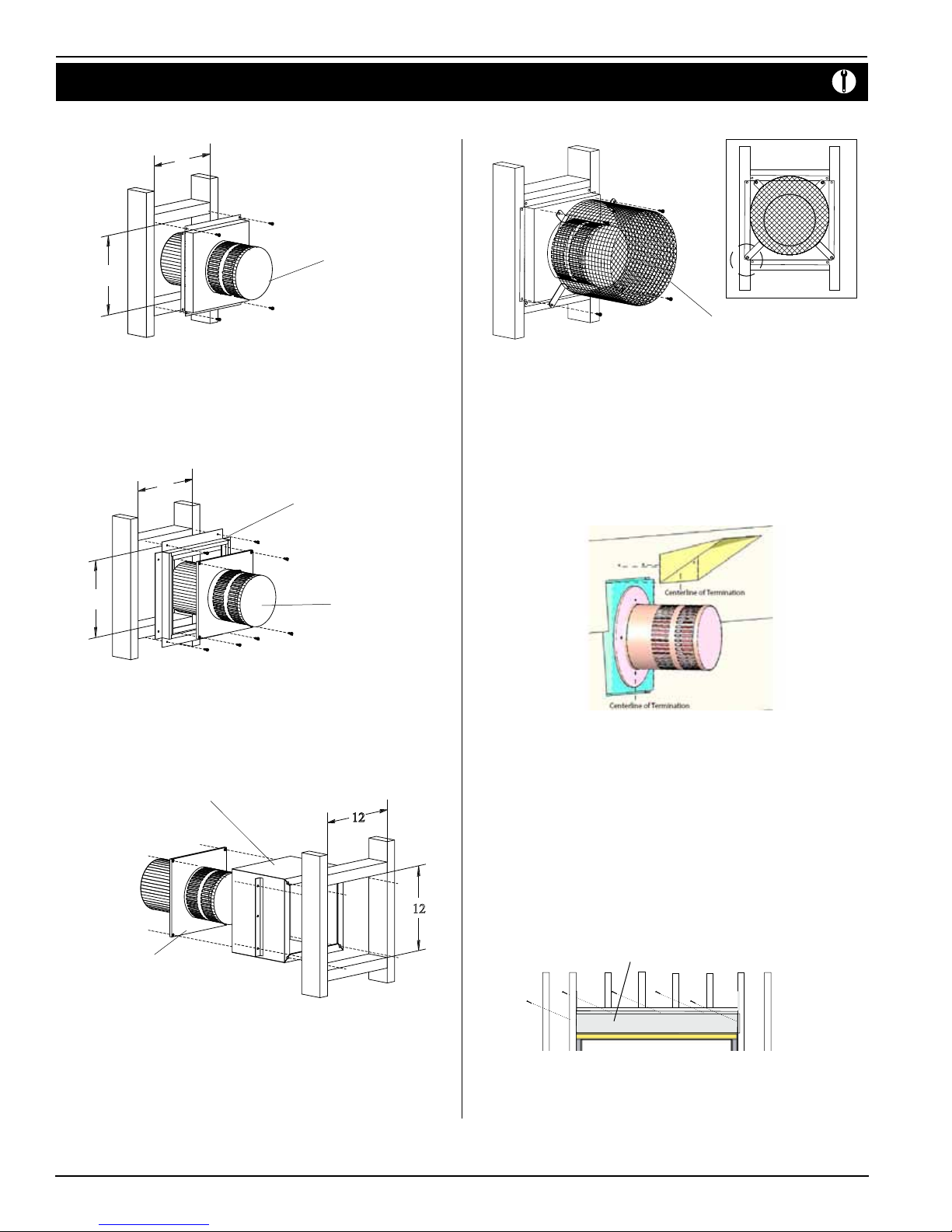

Figure 5a. Installing a PTO termination.
Figure 5b. Installing a PTO termination with the MSR frame.
Figure 5c. Installing a PTO termination with the MOSR frame.
Figure 5d. Installing a PTO termination heat guard.
Installing the Nailing
Flange Extension
Once the replace is placed into the rough framed opening and the supplied steel
lintel is in place, (Part No. L38087) (see Figure 6c), the supplied nailing extension
must be placed along the top edge of the replace and securely fastened in place
to the metal lintel, and combustible wood framing. Note: The nailing ange exten-
sion can be substituted with a piece of NON-COMBUSTIBLE material of the same
size and thermal characteristics, i.e. cement board or equivalent.
Part No. L38087

Page 7
DV 38 ST See-through Gas Fireplace
rev.110106
Installation

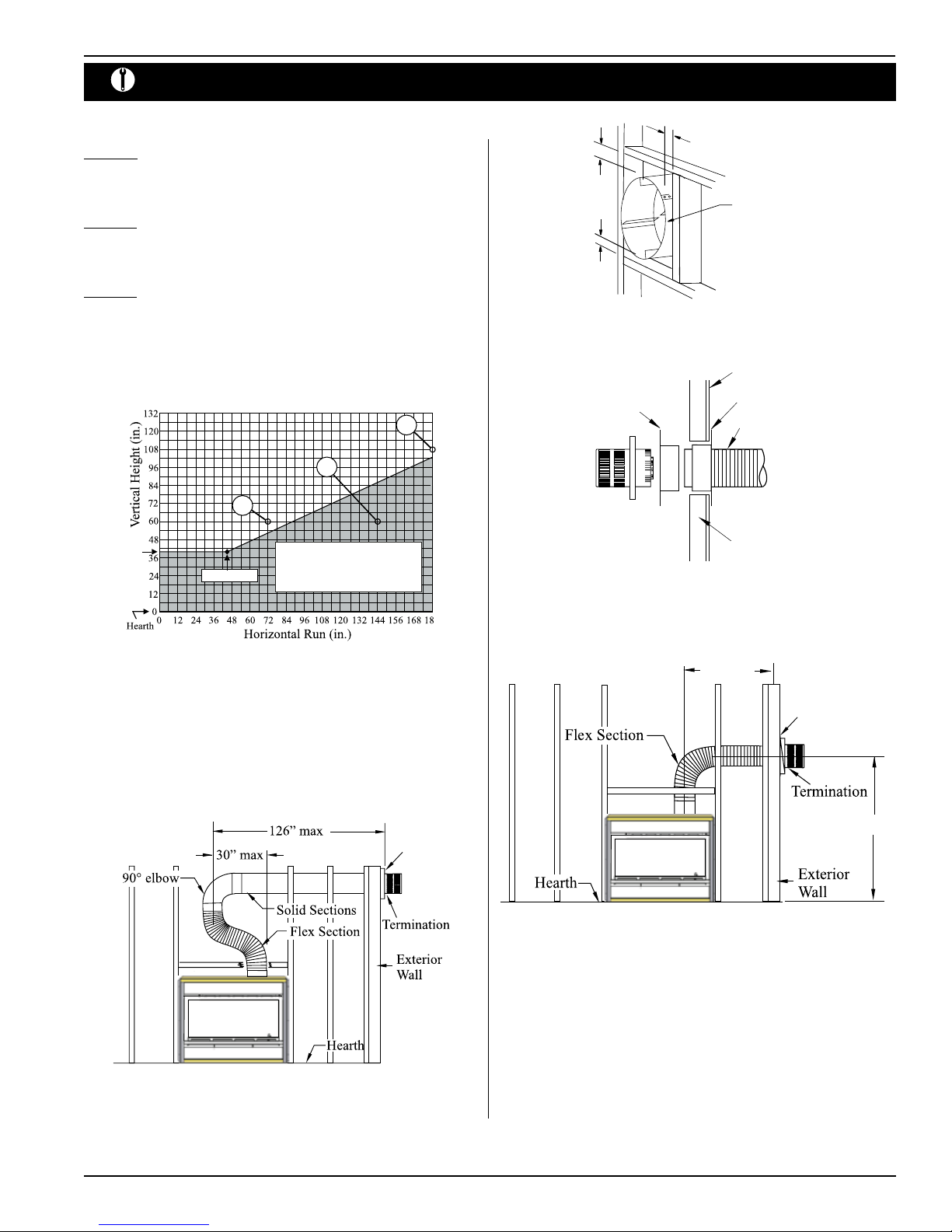

Top Vent Venting Runs
Example A: Acceptable Installation
If the vertical dimension from the hearth is 108" and the horizontal run to the wall
ange of the vent termination is 180" then the vent conguration is acceptable.
Example B: Acceptable Installation
If the vertical dimension from the hearth is 48" and the horizontal run to the wall
ange of the vent termination is 72"then the vent conguration is acceptable.
Example C: Unacceptable Installation
If the vertical dimension from the oor of the replace is 60" and the horizontal
run to the wall ange of the vent termination is 144"then the vent conguration
is NOT acceptable.

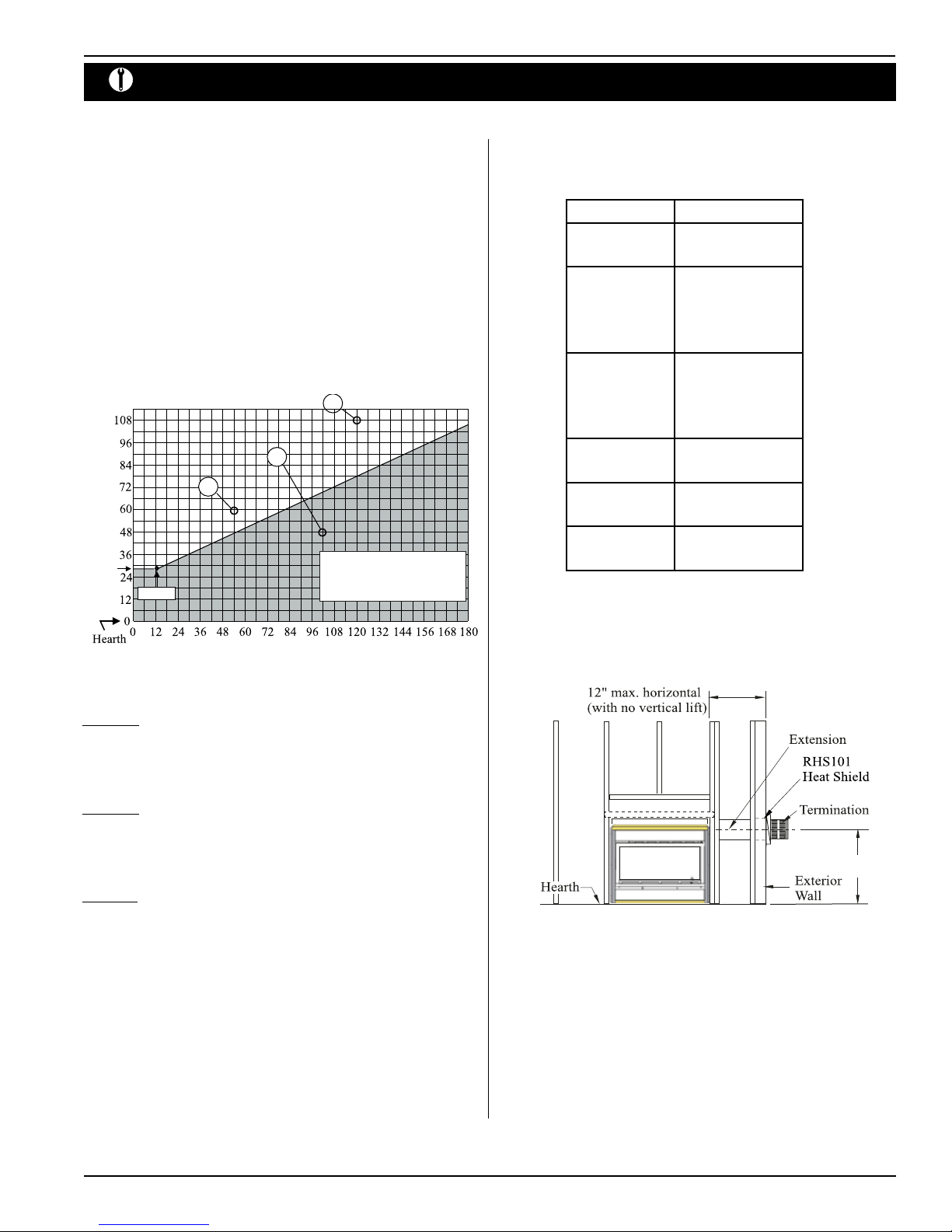

Figure 7. DV 38 ST Top Vent Venting Graph
NOTES: All dimension lengths for vertical or horizontal runs are measured
from center of the vent pipe.
Venting runs must fall within the limits set by the venting graph,
see Figure 7.
Figure 8. Retracted installation using a combination of solid and ex venting. Use
the vent graph to determine your allowable run then select appropriate
components.
RHS8
Figure 8a. RHS8 Installation. Install by sliding over vent pipe where it passes through
the combustible construction.
Figure 8b. RHS101 Installation. Install by sliding over vent pipe where it passes through
the combustible construction.
Framing
Drywall
RHS101 Heat Shield,
Inner Section.
Vent from fireplace
RHS101 Heat Shield,
Outer Section.
Termination
Figure 9. Horizontal ex installation with minimum vertical rise.
B. Vertical (Through-The-Roof) Installations
Vertical rise >12' can be reduced on applicable models.
Vertical terminations must be installed:
• minimum 2' (two feet) above the highest point where
vent passes through the roof.
• minimum 6' (six feet) from a mechanical air inlet
• minimum 18" (1½ feet) from a parapet wall.
RHS8
36” max.
42” min.
A
C
B
42” NG & LP
Power Vent models, LDVPV47
EDVRSPV58, and EDVWSPV58
to be used within the shaded area
of graph.
39½"
1" minimum
1" minimum
1" minimum.
Both sides
typical.
RHS8 Heat
Shield

Page 8
DV 38 ST See-through Gas Fireplace
rev.110106
Installation
Figure 10. Straight, vertical venting showing required PXT-10 adaptor (supplied
with the PVTK-1 termination).
* For venting minimum 1" clearance to all vertical combustibles, minimum 2" to all
horizontal combustibles.
5"/8" Venting
A - Termination PVTK-1
B - Flex Sections PFL-1 (12" Section)
PFL-2 (24" Section)
PFL-3 (36" Section)
PFL-4 (48" Section)
C - Rigid Sections PEXT-1 (12" m/f Section)
PEXT-2 (24" m/f Section)
PEXT-3 (36" m/f Section)
PEXT-4 (48" m/f Section)
D - Support Ring
& Plate
PSPXT-8
E - Firestop PS-8
F - Roof Flashing PRF-7 (1/12 - 7/12 pt.)
PRF-7 (7/12 - 12/12 pt.)
G - Adaptor / Vent
Reducer
PVA5487 (5"/8" to 4"/7")
 Maximum vent height is 32 feet above replace. Note that the ame characteristics
will change if the maximum vent height is used.
 Minimum clearances 2" from vent to all combustible materials must be maintained.
A maximum of two osets (each oset has two 90° bends) may be made and
shall not exceed total length of 25% of the vertical vent height when measured
center to center of venting.
Example: Typical vent installation.
20' vertical vent
2 - 2' osets required
25% of 20' = 5' max. oset allowed
This venting conguration meets requirements.
PEXT
Figure 11. Vertical venting with 1 oset (1 oset= two 90° bends).
Figure 12. Vertical venting with 2 osets (1 oset= two 90° bends).
* For venting with four 90° a restrictor may need to be used. (PEXT 5/8 Vent).
NOTES: All dimension lengths for vertical or horizontal runs are measured
from center of the vent pipe.
Venting runs must fall within the limits set by the venting graph,
see Figure 7b.

Page 9
DV 38 ST See-through Gas Fireplace
rev.110106
Side Vent Venting Requirements
If your installation requires more than 12" of horizontal venting, some vertical lift
is required. Use the vent graph below to determine an acceptable vent run. Unac-
ceptable venting can aect the replace performance.
 The maximum horizontal vent run is 16 feet
The Venting Graph
Measure the vertical height from the replace hearth to the center of the termina-
tion and the horizontal run from the from the replace ue collar to the wall ange
of the termination. Plot on the Venting Graph (Figure 13) with an 'X'.
If the 'X' falls on or above the top boundary of the shaded area, the installation is
acceptable.
Example A: (Acceptable Installation)
If the vertical dimension from the hearth is 60", and the horizontal run to
the wall ange of the vent termination is 52" then the vent conguration is
acceptable.
Example B: (Acceptable Installation)
If the vertical dimension from the hearth is 108" and the horizontal run to
the wall ange of the vent termination is 120" then the vent conguration is
acceptable.
Example C: (Unacceptable Installation)
If the vertical dimension from the oor of the replace is 48" and the hori-
zontal run to the wall ange of the vent termination is 102" then the vent
conguration is NOT acceptable.
Figure 13. DV 38 ST Side Vent Venting Graph
Installation
Horizontal Vent Installation
Vent systems that terminate through a wall may be comprised of up to seven dif-
ferent component types:
Short Congurations:
For installations straight through the wall, use an PTO-4/4F termination and PXT-5
or PXT-10 to achieve the desired length. The maximum horizontal vent run with no
vertical lift is 12". See Figures 14 and 15.
Figure 14. Short horizontal installation.
Heat Shields
Due to high ue temperatures, the heat shield (RHS101) must be used on all in-
stallations straight through the wall, at the point where the vent pipe connects
to the termination. With the heat shield, vent clearances can be maintained at 1".
The heat shield is not included with the replace.
To install the heat shield, slide one section over the vent pipe on the inside of the
wall opening, with the circular portion inside the wall cavity. Screw the shield in
place over the wall opening. Install the second section on the outside of the wall
opening sliding the circular portion into the wall opening. Refer to Figure 15.
26 3/4”
A
B
C
Vertical Run (In.)
Horizontal Run (in.)
12” Max
Power Vent models LDVPV47
EDVRSPV58, and EDVWSPV58
to be used within the shaded area
of graph.
26½"
A - Termination PTO-4
B - Stucco Kits MSR (stucco frame)
MOSR (stucco can)
C - Flex sections PFL-1 (12" section)
PFL-2 (24" section)
PFL-3 (36" section)
PFL-4 (48" section)
D - Rigid sections PEXT-1 (12" section)
PEXT-2 (24" section)
PEXT-3 (36" section)
PEXT-4 (48" section)
E - Extensions PXT- 5 (5" section)
PXT-10 (10" section)
F - 90° elbow PEL-90F/F
PEL-90M/M
G - Heat Shield RHS101 ( for 5"/8" venting)
RHS 8 (for top venting)

Page 10
DV 38 ST See-through Gas Fireplace
rev.110106
Example:
A 10' section of rigid pipe and a 90° elbow may be used in conjunction with a 3 ft.
ex section (PFL-3) will, when extended in a chase, allow for a maximum horizon-
tal run of twelve and one-half feet from the center of the replace to outside wall
and a minimum of 7'6" when retracted in opposite direction. (See Figure 16.)
"D" ex sections and "E" solid sections may be used in conjunction with one an-
other to obtain dierent possible horizontal length installations. NOTE: Flex section
must not exceed maximum horizontal length of 3 feet and for this application the
top clearance is to the ceiling.
Long Vent Runs
For longer or more complex vent runs, vertical lift is required. First ensure that the
planned run is acceptable using the Vent Graph. Plan out the required components
using the chart above. You may be able to use fewer components using the chart,
Figure 13.

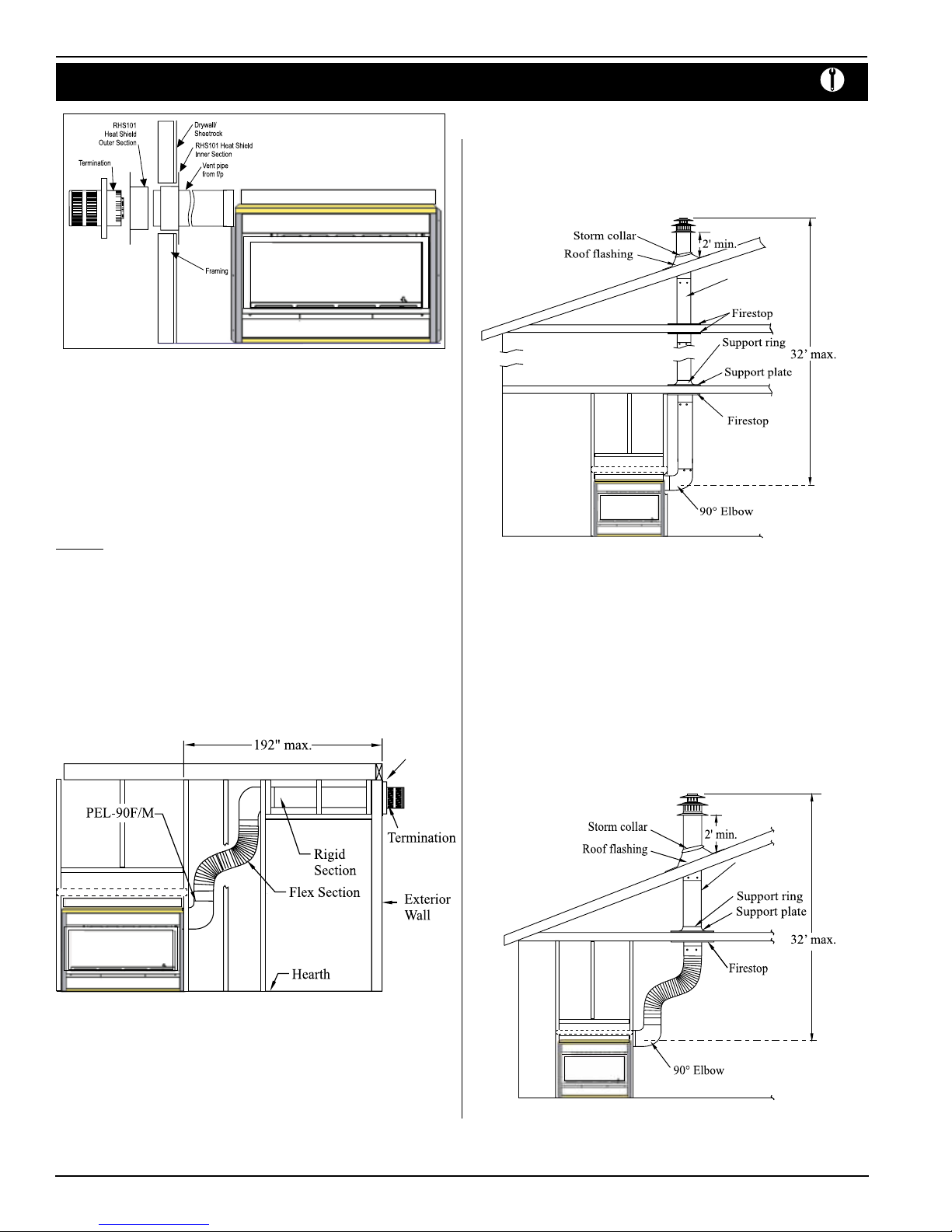

Figure 16. Extended horizontal installation using a combination of rigid and ex
venting.
Figure 15. RHS101 Heat Shield for short horizontal installation. Install by sliding over
the vent pipe where it connects to the termination.
Installation
RHS8
Figure 17a. Vertical venting with 1 oset (1 oset= two 90° bends).
 Minimum clearance to combustible construction around the vent pipe is
1" on all sides must be maintained, except on horizontal venting where the
top of the pipe must have a clearance of at least 2".
2. Oset Vertical Installations
A maximum of two osets (each oset has two 90° bends) may be made if
the length of the osets does not exceed 25% of the vertical vent height, when
measured center to center of piping.
Example: Typical vent installation.
30' vertical vent
2 - 2' osets required
25% of 30' = 7½' max. oset allowed
This venting conguration meets requirements.

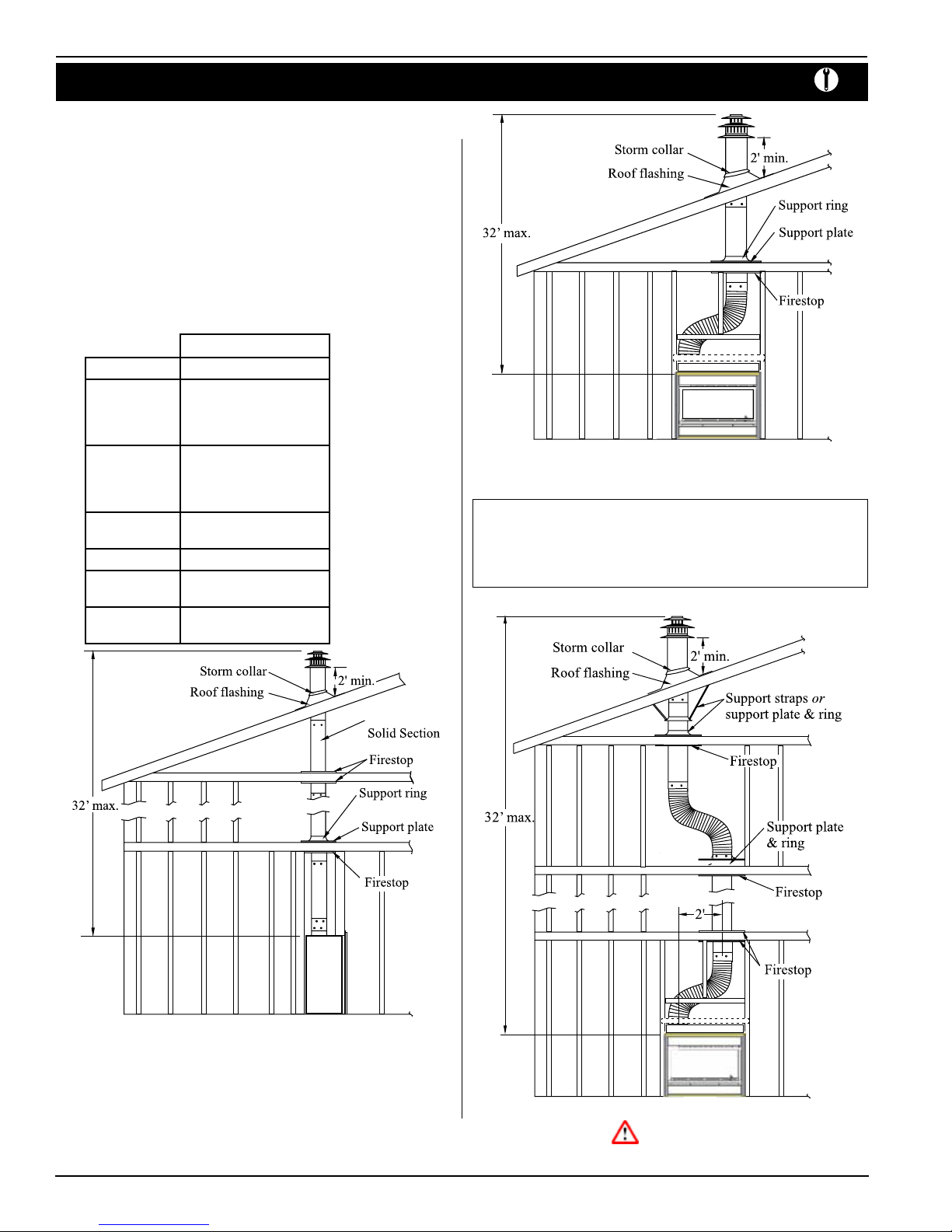

1. Straight Vertical Installation
Figure 17. Straight, vertical venting.
PEXT
Solid Sectio
n
PEXT
Solid
Section
Vertical Vent Installations
 Maximum vent height is 30 feet above replace. Note that ame characteris-
tics will change if the maximum vent height is used.

Page 11
DV 38 ST See-through Gas Fireplace
rev.110106

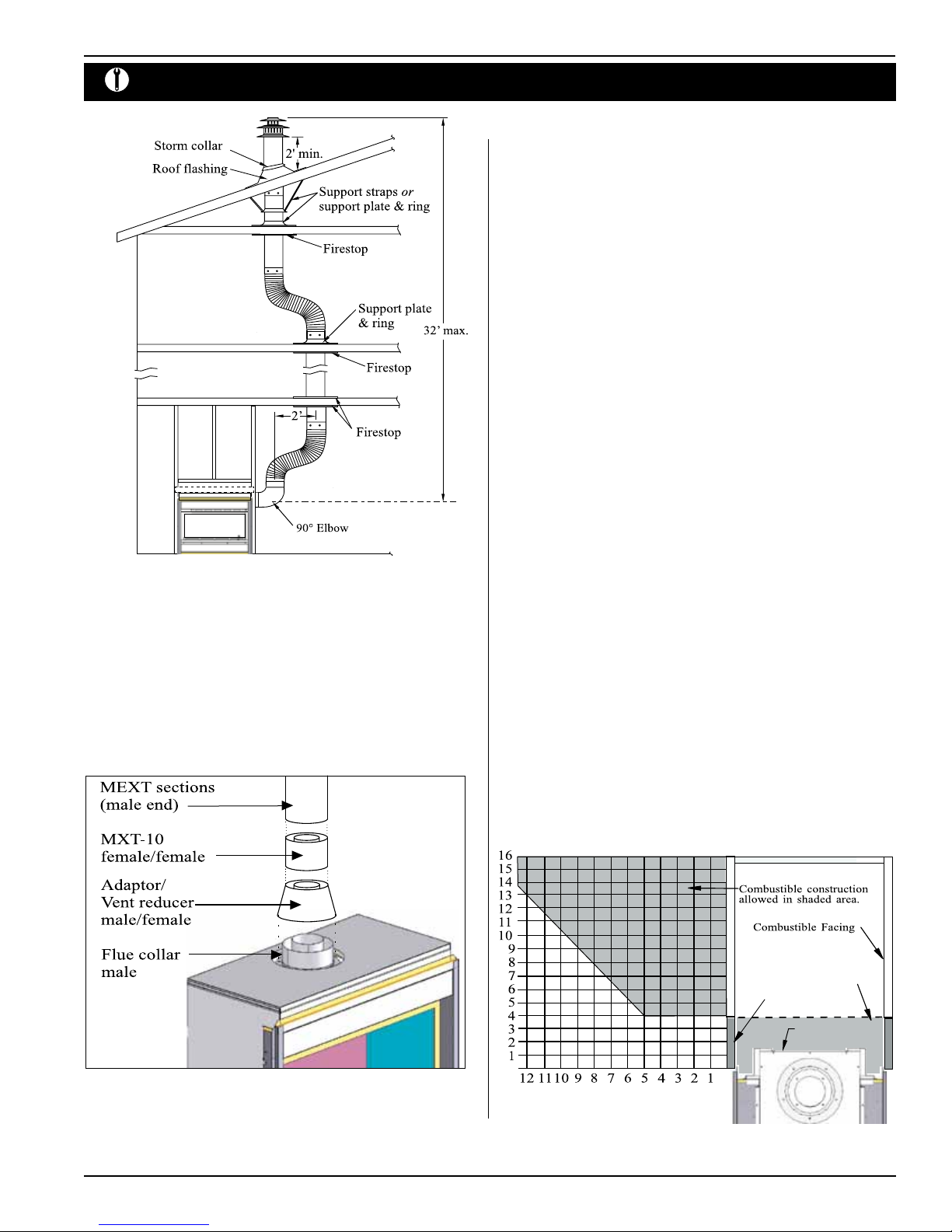

Figure 17b. Vertical venting with 2 osets (1 oset= two 90° bends).
Installation
Figure 18. Reducing Vertical Vent from 5/8" to 4/7".
Reduced Vertical Installation
(Available with Linear LDVPV47 Power Vent ONLY)
It is possible to reduce vertical vent runs from 5"/8" venting to 4"/7" venting. Reduced
vertical venting may only be used when the Linear (In-line) Power Vent is required.
This is commonly due to longer than normal vent runs, or unusually long horizontal
Vent runs.
Installing the Horizontal and
Vertical Exterior Power Vent
A power vent is required where the termination is located too far away from the gas
replace and/or if the vent run is beyond the scope of this document, or the speci-
cations recommend vent augmentation. There are four 4/7 power vent models
available. These power vents are designed for superior venting, safe operation and
years of trouble free operation. The available power vent models are:
LDVPV47, linear, interior in-line power vent.
EDVPV47, external power vent module.
EDVRSPV47, exterior vertical roof mount 4/7 stainless steel power vent system.
EDVWSPV47, exterior horizontal wall mount 4/7 stainless steel power vent system.
Figure 24. Combustible mantles and facings, (Both Sides Typical).
Horizontal Run (in)
Fireplace Facing
When selecting the nish material for your replace, it is important to remember
the following: THE OPENING MUST NOT BE OBSTRUCTED IN ANY WAY - to do so
restricts the air supply for the control compartments and heat exchanger it also
prevents access for servicing controls.
The face of the replace may be painted to match the room decor, provided you use
a heat-resistant paint. Decorative facing must not extend past the replace opening
at all, because it will interfere with the access to retainers for removal of glass door.
Finishing Around the Fireplace
Combustible mantels and moldings may be safely installed over the top and on the
front of the replace provided that they do not project beyond shaded area shown in
Figure 24. Side wall clearances are 3". Combustible surrounds may be installed with
3" clearance to the side of the replace as shown in Figure 25.
Non-Combustible
Facing Material
Steel Stud construction
allowable within this area
Top of
fireplace

Page 12
DV 38 ST See-through Gas Fireplace
rev.110106
Installation
6”
6”
3”
Mantels and Surrounds
NOTE: National Canadian Gas Association mantel test requirements are for re hazard
prevention to combustible materials.
New technology, to meet consumer and government demands for the wise use of
energy, has prompted us to manufacture many models of replaces which are hot,
fuel and energy ecient.
Please be aware that temperatures over the mantel will rise above normal room
temperature and walls above replace may be hot to the touch.
Figure 25. Combustible surrounds, both sides typical.
Wiring for the optional Fan Kit
All DV 38 ST replaces may be equipped with optional fan kits for circulating heat
into the living space.
Installations in Canada which employ the fans must be electrically grounded in
accordance with CSA C22.1 Canadian Electrical Code Part 1 and/or Local Codes.
Installations in the USA which employ the fans must be grounded in accordance
with local codes or, in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70-1987.
For more information see the Fan Kit Installation Guide included with the fan kit.
NOTE: If any of the original wire supplied with the appliance is replaced, it must be
replaced with the same type, or its equivalent.
Figure 27. Wiring schematic for optional fans.
G
L2-WH
L1-BLK
p g
Quick Connect
lu to motor
WARNING!
We recommend careful consideration be given to the eects of elevated
mantel temperatures which may be in excess of product design, for example:
candles, plastic or pictures. This can cause melting, deformation, discoloration
or premature failure of T.V. and radio components.
Painting
The Master Painters and Decorators Association recommend special care when painting
the replace surrounds. A quality alkyd sealer should be applied prior to the application
of latex paints. This is to prevent leaching of water from evaporation and causing a
brownish staining eect to paint over coats.
5/1/60 Supply
G L1 L2
DV 38 ST
DV 38 ST
WARNING!
When covering the upper metal portion of the replace, up to 6" (as shown,
Figures 24 and 25) with a non-combustible material the decorative facing
materials may be subject to temperatures in excess of 250° F. This should be
considered when selecting facing materials.
Wiring
Gas Control and Pilot Wiring
Figure 26. Wiring the DV 38 ST remote receiver.
DV 38 ST
WARNING!
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass etching may cause
premature glass failure.
Do not operate this replace without the glass door, or with a broken glass
door.
The DV 38 ST ships ready for manual operation. The remote receiver must be
connected for remote operation. Cut the white splice cap o of the end of the
thermostat wire, strip the ends and connect them to the remote receiver as shown
in Figure 26. Install the four AA batteries and set the switch to the 'REMOTE', or
center, position.
Thermostat Wire
(supplied)
to thermocouple
to thermopile
Drywall/Sheetrock
Non-combustible Header
Non-combustible
Facing Material

Page 13
DV 38 ST See-through Gas Fireplace
rev.110106
Removing and Installing the Doors
The doors are removed in a few simple steps. Follow these steps below to remove
the horizontal access panel, unlatch the door buckles and remove the door. Replace
in reverse order.
Installation

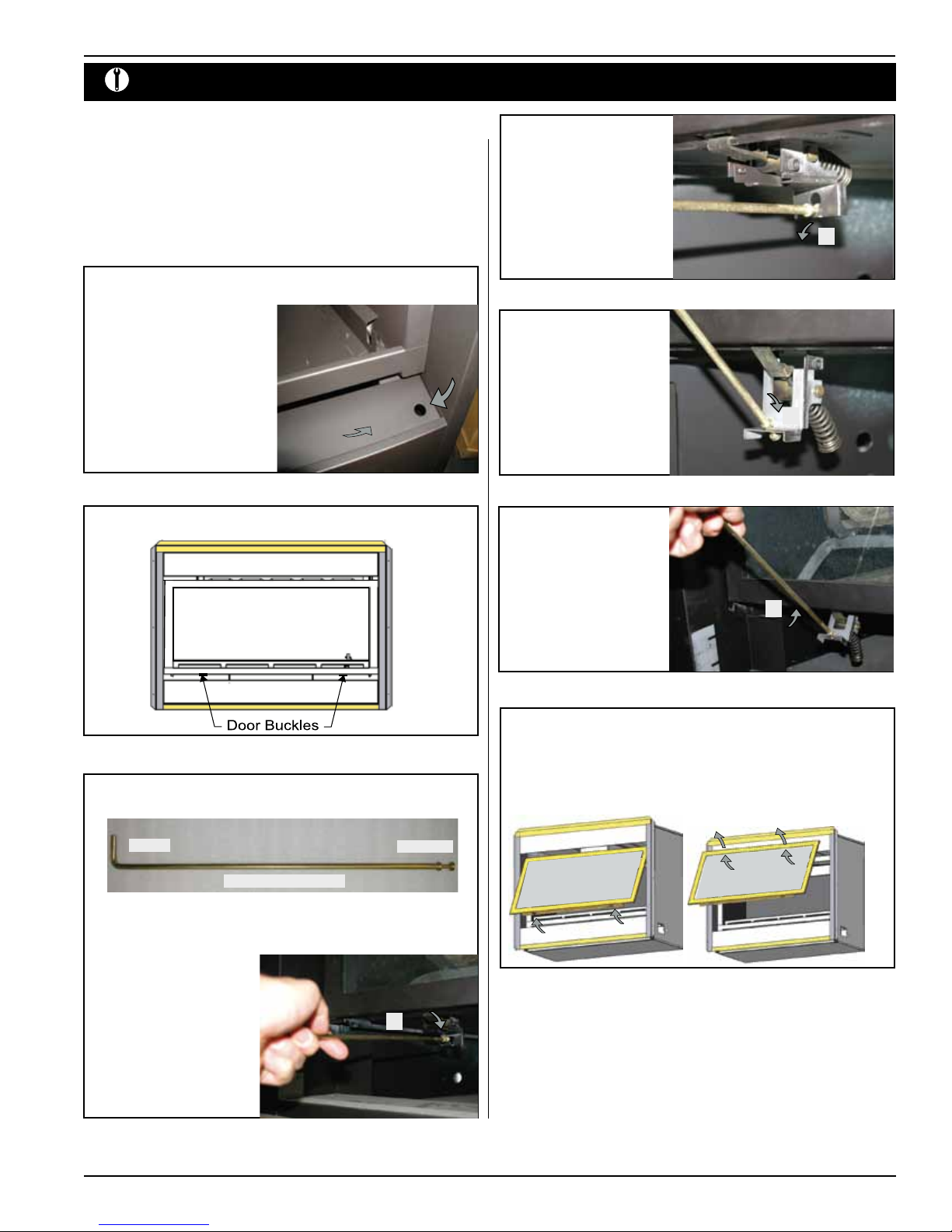

Figure 28a. Locate the door buckles, both sides typical.
Door Latch Hook
Door Latch Slot
Hand-hold
Release the Door Buckles
Figure 28. Removing and installing the Horizontal Access Panel
Locate the Door Buckles
Figure 28b. Door Buckle Tool
1
Step 4:
Firmly grasp hand-hold end
of door buckle tool and place
the machined end in the slot
under door frame as shown.
Figure 28c.
Step 2:
Step 3:
Step 1:
Remove the horizontal cover by
placing ngers in both nger holes,
then pushng away from you and
lifting out. Place it aside during
maintenance or cleaning.
Install in reverse order.
Finger Holes
Remove the Horizontal Access Panel
To install the door, hook the top edge of the door frame into place. Lower the door
into position and follow the previous steps shown in reverse order.
Installing the Doors
2
Step 5:
Ensure the tool is rmly in the
lower end of the slot, as shown.
Then pull toward you.
CAUTION: hold the tool securely.
3
Step 6:
Pull hard if necessary to release
the spring tension. (CAUTION:
The latch springs back with
force, hold the tool securely).
4
Step 7:
Remove the tool from the latch
slot. Ensure the latches are
hanging freely, the hook end is
released from the bottom of the
door. (Repeat all four steps for
the remaining latches).
Figure 28d.
Figure 28e.
Figure 28f.
Step 8:
Grasp the door on either side, usually midway and lifting upward, lift the door
carefully up and away from the front of the replace. See Figure 28g. Place the
door aside in a safe place while maintenance and/or cleaning is being performed.
Figure 28g. Removing and installing the glass doors, both sides typical.
Removing the Doors
Gas Valve Cover
(installed)

Page 14
DV 38 ST See-through Gas Fireplace
rev.110106
Operation - Model DV 38 ST
DV 38 ST
with Continuous Pilot
WARNING: If you do not follow these instructions exactly, a re or explosion may result causing property
damage, personal injury or loss of life.
QIf you cannot reach your gas supplier, call the Fire Department.
C. Use only your hand to push in or turn the gas control knob. Never use
tools. If the knob will not push in or turn by hand, don't try to repair it,
call a qualied service technician. Force or attempt to repair may result
in a re or explosion.
D. Do not use this appliance if any part has been under water. Immediately
call a qualied service technician to inspect the appliance and to replace
any part of the control system, and any gas control which has been under
water.
A. This appliance has a pilot which must be lighted by hand. When lighting
the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure
to smell next to the oor because some gas is heavier than air and will
settle on the oor.
What To Do If You Smell Gas:
QDo not try to light any appliance.
QDo not touch any electrical switch; do not use any phone in your
building.
QImmediately call your gas supplier from a neighbor's phone. Follow
the gas supplier's instructions.
To Turn O Gas To Appliance:
3. Push in gas control knob slightly and turn clockwise to "O". Do
not force.
4. Replace the lower horizontal access panel.
1. Turn o remote switch.
2. Lift out the lower horizontal access panel.
1. STOP! Read the safety information above on this label.
2. Lift out the lower horizontal access panel.
3. Push in gas control knob and turn clockwise to "OFF."
4. Wait ve (5) minutes to clear out any gas. Smell for gas, including near
the oor. If you then smell gas, STOP! Follow "B" in the safety information
above on this label. If you don't smell gas, go to the next step.

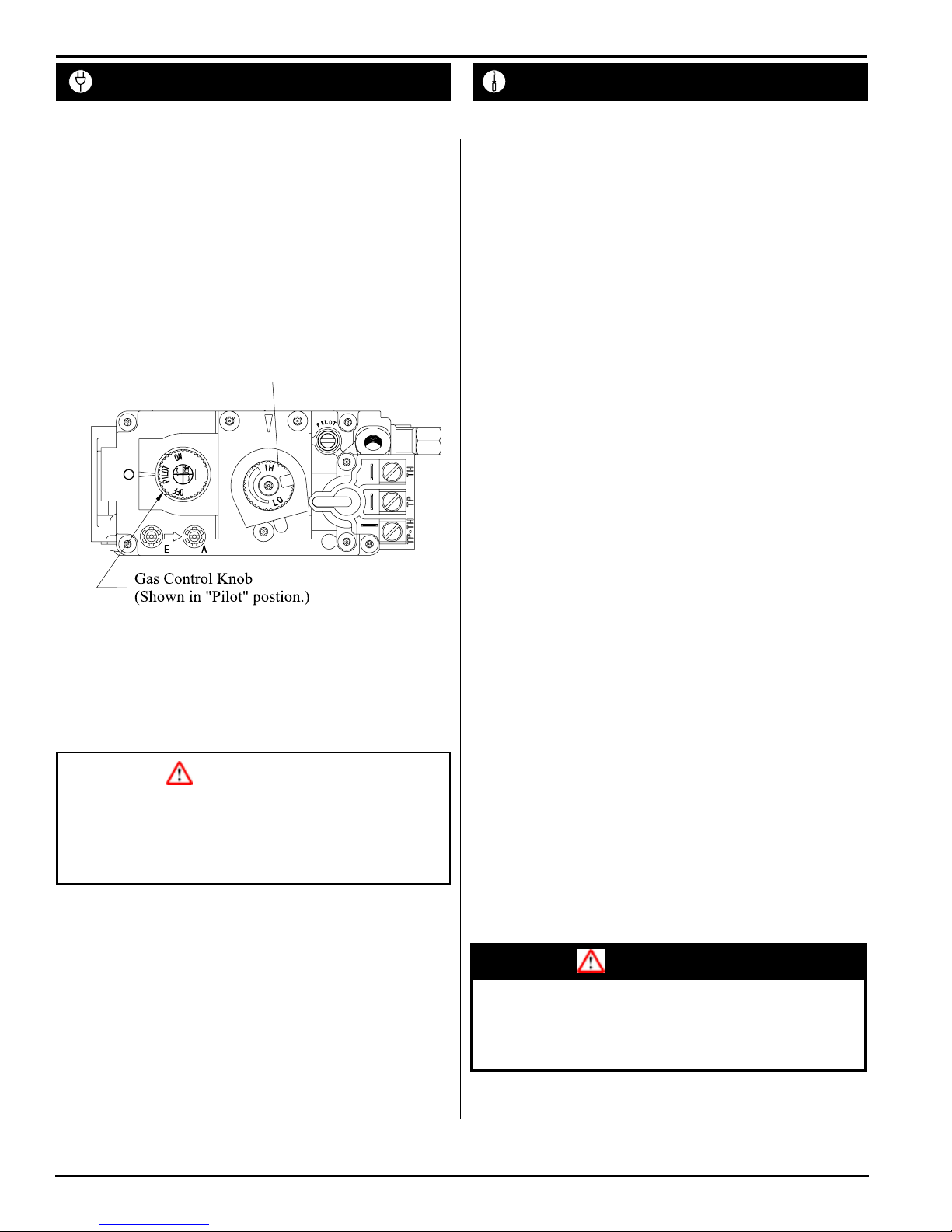

5. Locate pilot burner (See illustration at right.) and follow steps below.
6. Turn knob on gas control counter clockwise to "PILOT."
7. Push in gas control knob completely and hold. Light with Piezo Igniter
button. Continue to hold the control knob in for about (1) minute after the
pilot is lit. Release the knob and it will pop back up. Pilot should remain
lit. If it goes out repeat steps 3 through 8.
QIf knob does not pop up when released. Stop and immediately call
your service technician or gas supplier.
QIf the pilot will not stay lit after several tries, turn the gas control
knob to "OFF" and call your service technician or gas supplier.
8. Push in gas control knob and turn counter-clockwise to "ON."
9. Replacethe lower Horizontal access panel.
10. Turn on remote switch to ignite re.
Lighting Instructions:
For Your Safety - READ BEFORE LIGHTING:
NOTE: Gas control knob cannot be turned from
"PILOT" to "OFF" unless knob is pushed
in slightly. Do not force.

Page 15
DV 38 ST See-through Gas Fireplace
rev.110106
B-Series BF-A
L-Series DF-I Operation - Model DV 38 ST E DV 38 ST E
To Turn O Gas To Appliance:
1. Turn o remote switch.
2. Remove the lower horizontal access panel.
3. Turn the incoming gas control valve to "O".
4. Replace the lower horizontal access panel.
with American Flame Electronic Ignition
For Your Safety - READ BEFORE LIGHTING:
with Proame SIT Electronic Ignition
Lighting Instructions:
tools. If the knob will not push in or turn by hand, don't try to repair it,
call a qualied service technician. Force or attempt to repair may result
in a re or explosion.
D. Do not use this appliance if any part has been under water. Immedi-
ately call a qualied service technician to inspect the appliance and to
replace any part of the control system, and any gas control which has
been under water.
A. This appliance is equipped with an ignition system that lights the pilot
burner automatically. Do not attempt to light the pilot by hand.
B. BEFORE LIGHTING smell all around the appliance area for gas. Be sure
to smell next to the oor because some gas is heavier than air and will
settle on the oor.
What To Do If You Smell Gas:
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your
building.
 Immediately call your gas supplier from a neighbor's phone. Fol-
low the gas supplier's instructions.
 If you cannot reach your gas supplier, call the Fire Department.
C. Use only your hand to push in or turn the gas control knob. Never use
1. STOP! Read the safety information above on this label.
2. Remove the lower horizontal access panel.
3. Turn Incoming gas valve to the ON" position.
4. Wait 5 minutes to clear out any gas. If you smell gas, STOP! Follow "B"
in the safety information above on this label. If you don't smell gas, go
to the next step.
5. Turn wall switch "ON".
6. If the replace does not light, the System will cycle through two trials,
(one minute audible clicking, thirty seconds of silence, and then
another one minute of audible clicking). If the system locks out due to
inadequate gas ow, refer to "Troubleshooting", Page 20.
7. After completion of the information in the Troubleshooting section,
Repeat step 5.
8. If the system will not function correctly, follow the instructions "To Turn
O Gas To Appliance" and call your service technician or gas supplier.
EV1 (Pilot
burner)
EV2 (Main
burner)
Pilot Adjust Screw
Lockout Reset Key
Diagnostic Terminal
Power
Command (Wall
switch)
Pilot Sensor
Igniter
Ground
EV1 (Pilot burner)
EV2 (Main burner)
Gas "Out"
Gas "In"
Incoming Gas
Line, Shut-off
Valve
To fireplace
Main burner
WARNING: If you do not follow these instructions exactly, a re or explosion may result causing property
damage, personal injury or loss of life.

Page 16
DV 38 ST See-through Gas Fireplace
rev.110106
Maintenance
General
QHave the replace and installation inspected yearly. The inspection must
include, but is not limited to, the following:
• A visual check of the entire vent system and termination.
• An inspection of the explosion relief appers and the door gasketing to
ensure a proper seal.
• An inspection of the burner, venturi, and primary air openings.
• An inspection of the gas valve, gas components, and pilot ame. For your
convenience a ⁄" manifold pressure tap is supplied on the gas valve for a
test gauge connection. See Figure 32.
• Inspection of all optional equipment; fans, thermostats, etc.
QFor Natural Gas this appliance requires a minimum inlet pressure of 5.5" w.c.
and a manifold pressure of 3.5" w.c.
QFor Propane Gas this appliance requires a minimum inlet pressure of 11" w.c.
and a manifold pressure of 10" w.c.
QAlways keep the replace area clear and free of combustible materials, as well
as gasoline and other ammable vapors and liquids.
QDo not use this appliance if any part has been under water. Immediately call a
qualied service technician to inspect the appliance and to replace any part of
the control system and any gas control which has been under water.
Operation
Lighting Instructions
See pages 14 and15.
Burner Adjustment
The DV 38 ST is equipped with an adjustable burner, allowing you to raise or lower
the ames. To adjust the ames, locate the black knob marked 'Hi-Lo', in the center
of the gas control valve (See Figure 32).
QTo raise the ame height, turn the black knob (located behind the lower trim)
counter-clockwise.
QTo lower the ame height, turn clockwise.
Figure 32. 'Hi-Lo' Adjustment on the DV 38 ST gas valve.
Cleaning
When the replace is rst activated, there may be some smoking and a visible lm
may be left on the glass. This is a normal condition, and is the result of burning of
protective coatings on new metal.
QGlass must be cleaned periodically to remove any lm (which is a normal by-
product of combustion) which may be visible. Film can easily be removed by
removing the door, as shown on page 12. Handle the door carefully, and clean it
with non-abrasive glass cleaners. One of the most eective products is Kel Kem.
QSilicone seals on inner door during initial ring will "o gas", leaving a visual
deposit of a white substance on combustion chamber walls. This can easily be
removed using normal household products.
QUse a vacuum cleaner or whisk broom to keep the control compartment, burner,
and rebox free from dust and lint.
QLinear Burners may be cleaned periodically with a vacuum to remove soot or
other contaminates.
'Hi-Lo' Adjustment Knob
WARNING!
Do not attempt to clean glass when hot.
Do not clean glass with abrasive materials as any glass etching may
cause premature glass failure.
CAUTION!
 Fireplace gas control must be in the “OFF” position and pilot and main
burners extinguished when cleaning appliance with a vacuum.
 Doors can get very hot. Handle only when cool.

Page 17
DV 38 ST See-through Gas Fireplace
rev.110106
Maintenance
Gas Control Valve
Manifold Pressure
Test Connection
Pilot Adjustment Screw
Inlet
Pressure
Power
Generator
Wall Switch
Figure 33. Sit Nova 820 gas valve.
Pilot Burner Adjustment
1. Locate Pilot Adjustment Screw. (See Figure 33.)
2. Adjust pilot screw to provide properly sized ame as shown in
Figure 34).
3. After installing or servicing, leak test with a soap solution with main burner
on. Coat pipe and tubing joints, gasket etc. with soap solution. Bubbles
indicate leaks. Tighten any areas where the bubbles appear until the bubbling
stops completely.
Figure 34. Pilot Burner.
Troubleshooting
The following is a troubleshooting chart of possible problems:
PROBLEM CORRECTIVE ACTION
Noisy Pilot Flame Locate pilot adjustement screw on
gas control valve. Flame is decreased by turn-
ing adjustment screw clockwise.
Pilot won’t ignite Disconnect remote wires and try to light
pilot. If pilot now works, remote connections
are faulty. Check wiring diagram gure 33.
Main burner will 1. Check wiring (see gure 33).
not light 2. Check wall switch for proper connection.
If your replace still does not operate correctly, consult your dealer or the manu-
facturer.
All service and repairs should be performed by a qualied agency.
All spare parts, optional fans, and optional trim nishes are available from your
local dealer or the manufacturer.
DV 38 ST
Troubleshooting
Follow this information to reset the SIT System:
1. Locate the lead to the battery backup, (remove)
(Refer to schematic, below)
2. Locate the wall transformer, unplug connector
(Refer to schematic, below)
If your replace still does not operate correctly, consult your dealer or the manu-
facturer.
1.
2.
DV 38 ST E

Page 18
DV 38 ST See-through Gas Fireplace
rev.110106
Maintenance
DV 38 ST Spare Parts
DV 38 ST DV 38 ST E
NG Gas Valve RGC1006 RGC1004
NG Pilot RPA020 RPA003
NG Burner RBL38501 RGC1003
LP Gas Valve RGC1005
LP Pilot RPA021 RPA004
LP Burner RBL38502
Orice ROR1153 ROR1153
Door RDTL42 RDTL42
Base RLG550 RLG550

Page 19
DV 38 ST See-through Gas Fireplace
rev.110106
Warranty
The Warranty
The Company warrants the European Home Gas Appliance to be free from defects in materials and workmanship at the time of manufacture. On the European Home Gas Appliance, there is a
ten-year warranty on the rebox and its components, a ve-year warranty on the main burner and pilot burner, and a one-year warranty on the gas control valve and bre logs. Glass, plated/
painted nishes, and refractory lining are exempt.
Remedy And Exclusions
The coverage of this Warranty is limited to all components of the Gas Appliance manufactured by The Company.
This Warranty only covers European Home Gas Appliances installed in the United States or Canada.
If the components of the Gas Appliance covered by this Warranty are found to be defective within the time frame stated (see The Company's right of investigation outlined below). The Company
will, at its option, replace or repair defective components of the Gas Appliance manufactured by The Company at no charge, and will also pay for reasonable labor costs incurred in replacing or
repairing components. If repair or replacement is not commercially practical, The Company will, at its option, refund the purchase price of the European Home Gas Appliance.
This Warranty covers only parts and labor as provided above. In no case shall The Company be responsible for materials, components, or construction which are not manufactured or supplied by The
Company, or for the labor necessary to install, repair or remove such materials, components or construction. All replacement or repair components will be shipped F.O.B. the nearest Company factory.
Qualications To The Warranty
The Gas Appliance Warranty outlined above is further subject to the following qualications:
(1) The Gas Appliance must be installed in accordance with The Company installation instructions and local building codes. The Warranty on this European Home Gas Appliance covers only
the component parts manufactured by The Company. The use of components manufactured by others with this European Home Gas Appliance could create serious safety hazards, may
result in the denial of certication by recognized national safety agencies, and could be in violation of local building codes. This warranty does not cover any damages occurring from the
use of any components not manufactured or supplied by The Company
(2) The European Home Gas Appliance must be subjected to normal use. The Gas Appliances are designed to burn gas only. Burning conventional replace fuels such as wood, coal or any
other solid fuel will cause damage to the Gas Appliance, will produce excessive temperatures and will result in a re hazard.
Limitations On Liability
It is expressly agreed and understood that The Company sole obligation, and purchaser's exclusive remedy under this Warranty, under any other warranty, expressed or implied, or in contract,
tort or otherwise, shall be limited to replacement, repair, or refund, as specied above.
In no event shall The Company be responsible for any incidental or consequential damages caused by defects in its products, whether such damage occurs or is discovered before or after
replacement or repair, and whether or not such damage is caused by Company negligence. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to you. The duration of any implied warranty with respect to this European Home Gas Appliance is limited to the duration of the foregoing warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above may not apply to you.
Investigation Of Claims Against Warranty
The Company reserves the right to investigate any and all claims against this Warranty and to decide upon method of settlement.
The Company Is Not Responsible For Work Done Without Written Consent
The Company shall in no event be responsible for any warranty work done without rst obtaining The Company's written consent.
Dealers Have No Authority To Alter This Warranty
The Company employees and dealers have no authority to make any warranties nor to authorize any remedies in addition to or inconsistent with those stated above.
How To Register A Claim Against Warranty
In order for any claim under this Warranty to be valid, The Company must be notied of the claimed defect in writing or by telephone, as soon as reasonably possible after the defect is discovered.
Claims against this Warranty in writing should include the date of installation, and a description of the defect.
Other Rights
This Warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
NOTE: The Company, as stated above, refers to European Home, a division of Europa Ja, Inc.
The Company reserves the right to make changes at any time, without notice, in design, materials, specications, prices and also to discontinue colors, styles and products.

Page 20
DV 38 ST See-through Gas Fireplace
rev.110106

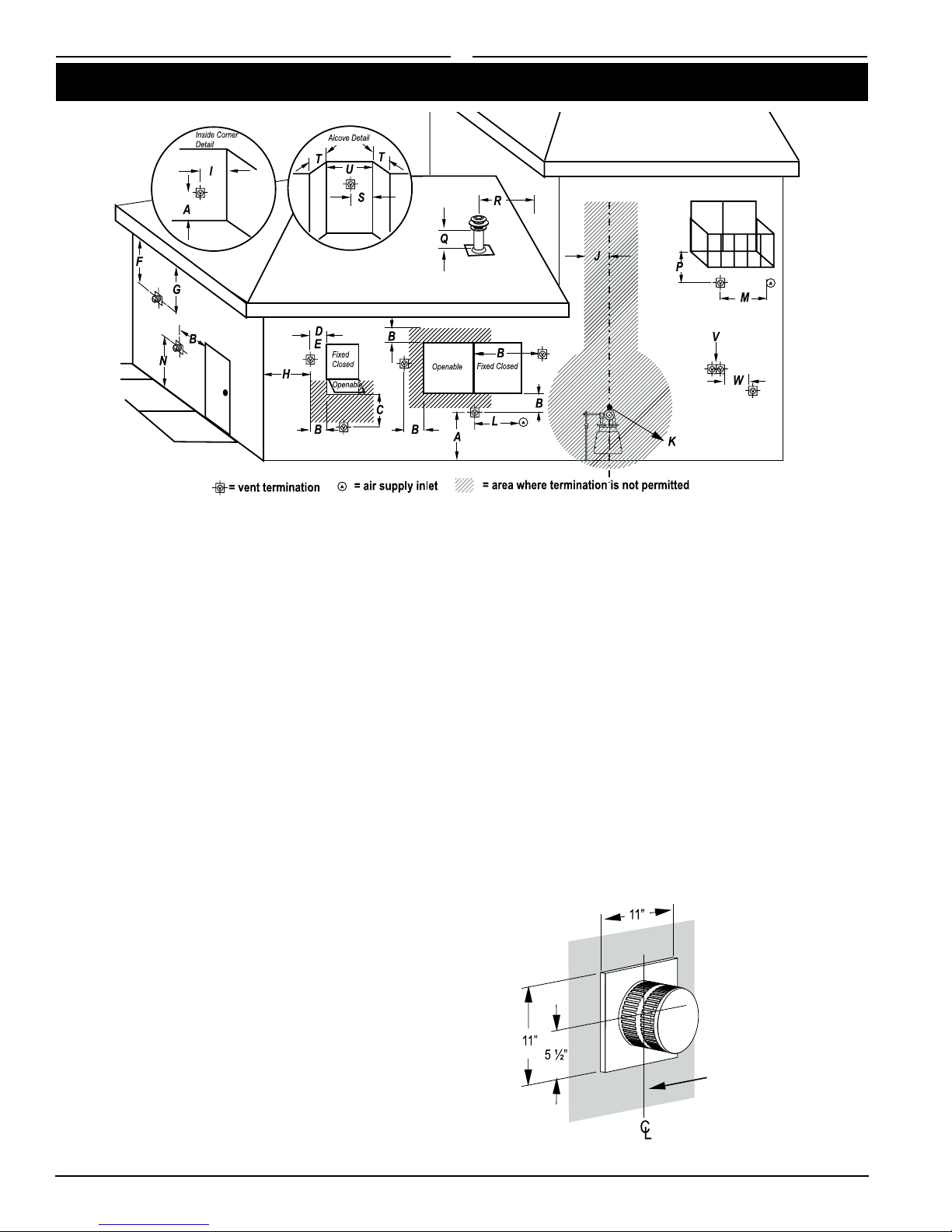

Appendix A - Termination Locations
A = clearance to the termination frame above grade, veranda, porch, deck, or balcony [16
inches (41 cm) minimum]
B = clearance to door, or sides and top of window, that may be opened [16 inches (41 cm)
minimum for appliances ≤100 000 BTU/H (30kW)]
C = clearance to bottom of window that may be opened horizontally [36 inches (92 cm)
minimum for appliances ≤100 000 BTU/H (30kW)]
D = no clearance to permanently closed window when installed with approved glass penetration
termination
E = clearance to permanently closed window [16 inches 41 cm recommended to prevent
condensation on window]
F = vertical clearance to ventilated sot located above the termination within a horizontal
distance of 2 feet (61 cm) from the centerline of the termination [22 inches (56 cm)
minimum]
G = clearance to unventilated soffit [16 inches (41 cm) minimum to non-combustibles]
[22 inches (56 cm) minimum to combustibles]
H = clearance to outside corner [9 inches (23 cm) minimum]
I = clearance to inside corner [12 inches (31 cm) minimum]
J = * not to be installed above a meter/regulator assembly within
40" (103 cm) horizontally from the centerline of the regulator
K = clearance to service regulator vent outlet [3 feet minimum in the United States] [*6 feet
(1.8 m) minimum in Canada]
L = clearance to non-mechanical air supply inlet to building or the combustion air inlet to any
other appliance [16 inches (41 cm) minimum for appliances ≤100 000 BTU/H (30kW)]
M = clearance to mechanical air supply inlet [*6 feet (1.8 m) minimum]
N = † clearance above paved sidewalk or a paved driveway located on public property [*7 feet
(2.1 m) minimum]
P = clearance under veranda, porch, deck, or balcony
[16 inches (41 cm) minimum‡ to non-combustibles]
[22 inches (56 cm) minimum‡ to combustibles]
Q = clearance above a roof [24 inches (61 cm) minimum]
R = clearance to adjacent walls and neighboring buildings
[18 inches (46 cm) minimum]
S = clearance from corner in recessed location
[12 inches (31 cm) minimum]
T = maximum depth in recessed location
[48 inches (122 cm) minimum]
U = minimum width for back wall of recessed location
[24 inches (61 cm) minimum]
V = no horizontal clearance between the frames of two terminations that are level.
W = horizontal clearance between the frames of two terminations that are not level. [36
inches (92 cm) minimum]
† a vent shall not terminate directly above a sidewalk or paved driveway which is located
between two single family dwellings and serves both dwellings
‡ only permitted if veranda, porch, deck, or balcony has an open side that is equal to or
greater than the depth of the enclosed area
* as specied in CGA B149 Installation Codes. Note: local Codes or Regulations may require
dierent clearance. All measurements
given are to the
center of the
termination, not
the frame.
