Napoleon Bayfield GDS25P User manual

1
W415-0547 / C / 07.25.06
W415-0547 / C / 07.25.06

2
W415-0547 / C / 07.25.06
WHAT TO DO IF YOU SMELL GAS
Do not touch any electrical switch. If you cannot reach your gas supplier,
call the fire department.
Do not try to light any appliance.
Do not use any phone in your building.
Immediately call your gas supplier
from a neighbour's phone. Follow the
gas supplier's instructions.
Installation and service must be
performed by a qualified installer,
service agency or the gas supplier.
Follow the installation directions.
1.
2.
3.
4.
5.
6.
Do not store gasoline or other
flammable vapours and liquids in the
vicinity of this or any other appliance.
If this fireplace is not properly
installed, a house fire may result.
WARNINGS & SAFETY PRECAUTIONS

3
W415-0547 / C / 07.25.06
WARNING
• The stove is a vented gas-fired heater. Do not burn wood or other materials in this stove.
• Adults and especially children should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition. Keep young children and animals away when the stove is
hot.
• Due to high temperatures, the stove should be located out of traffic and away from furniture and draperies.
• Clothing or other flammable material should not be placed on or near the stove.
• Any safety screen or guard removed for servicing must be replaced prior to operating the stove.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the
stove and venting system are kept clean. The stove and its venting system should be inspected before use
and at least annually by a qualified service person. More frequent cleaning may be required due to excessive
lint from carpeting, bedding material, etc. The stove area must be kept clear and free from combustible
materials, gasoline and other flammable vapours and liquids.
• Under no circumstances should this stove be modified.
• This stove must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this stove if any part has been under water. Immediately call a qualified service technician to
inspect the stove and to replace any part of the control system and any gas control which has been under
water.
• Do not operate the stove with the glass door opened, cracked or broken. Replacement of the glass should
be done by a licensed or qualified service person.
• Do not strike or slam shut the stove glass door.
NOTE: changes, other than editorial, are denoted by a vertical line in the margin.
TABLE of CONTENTS
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
2. Warnings and Safety Precautions
What to do if you smell gas
4. Warranty
5. General Instructions
General Information
Care of Glass and Plated Parts

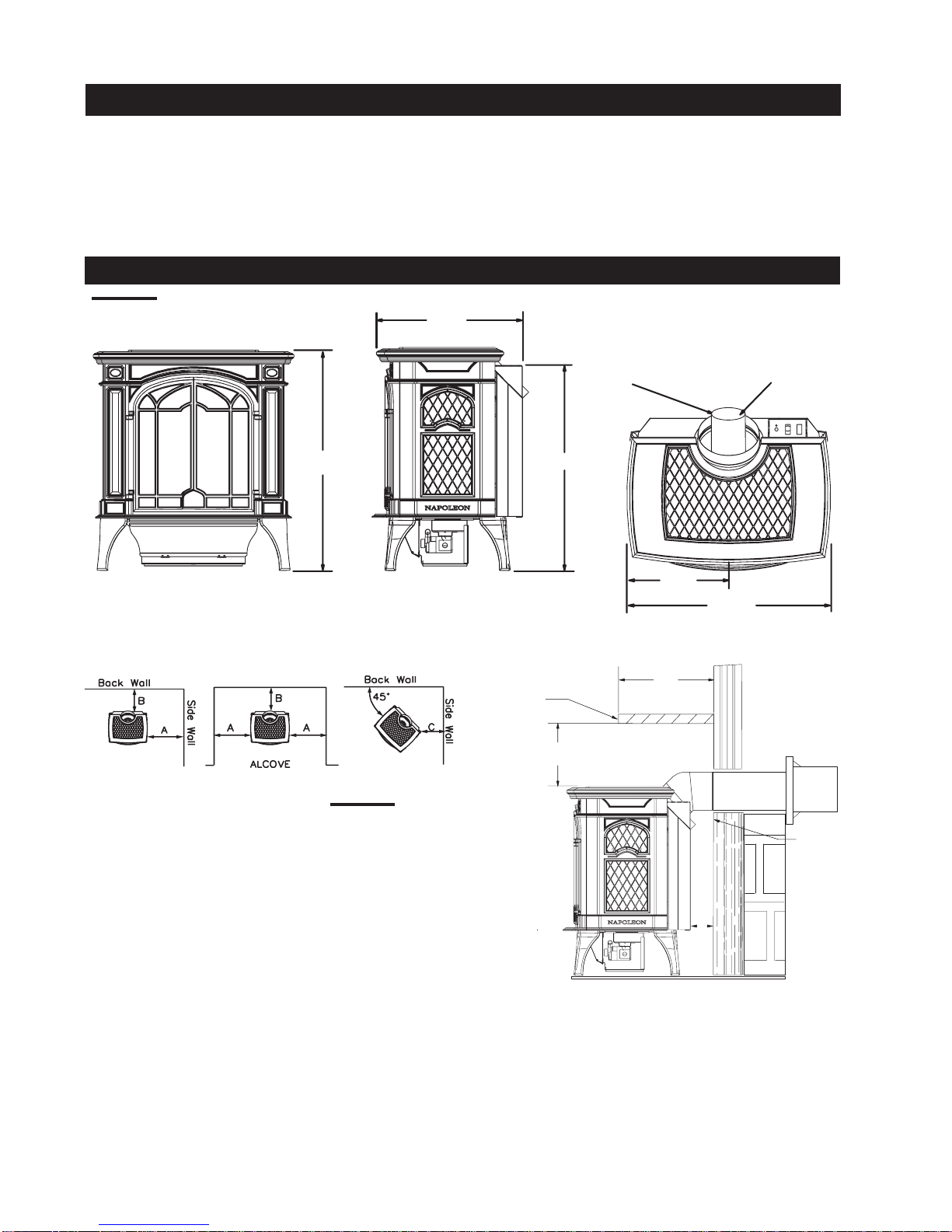

6. Location and Clearances
Stove Dimensions
Clearances to Combustibles
Mantel or Shelf Clearances

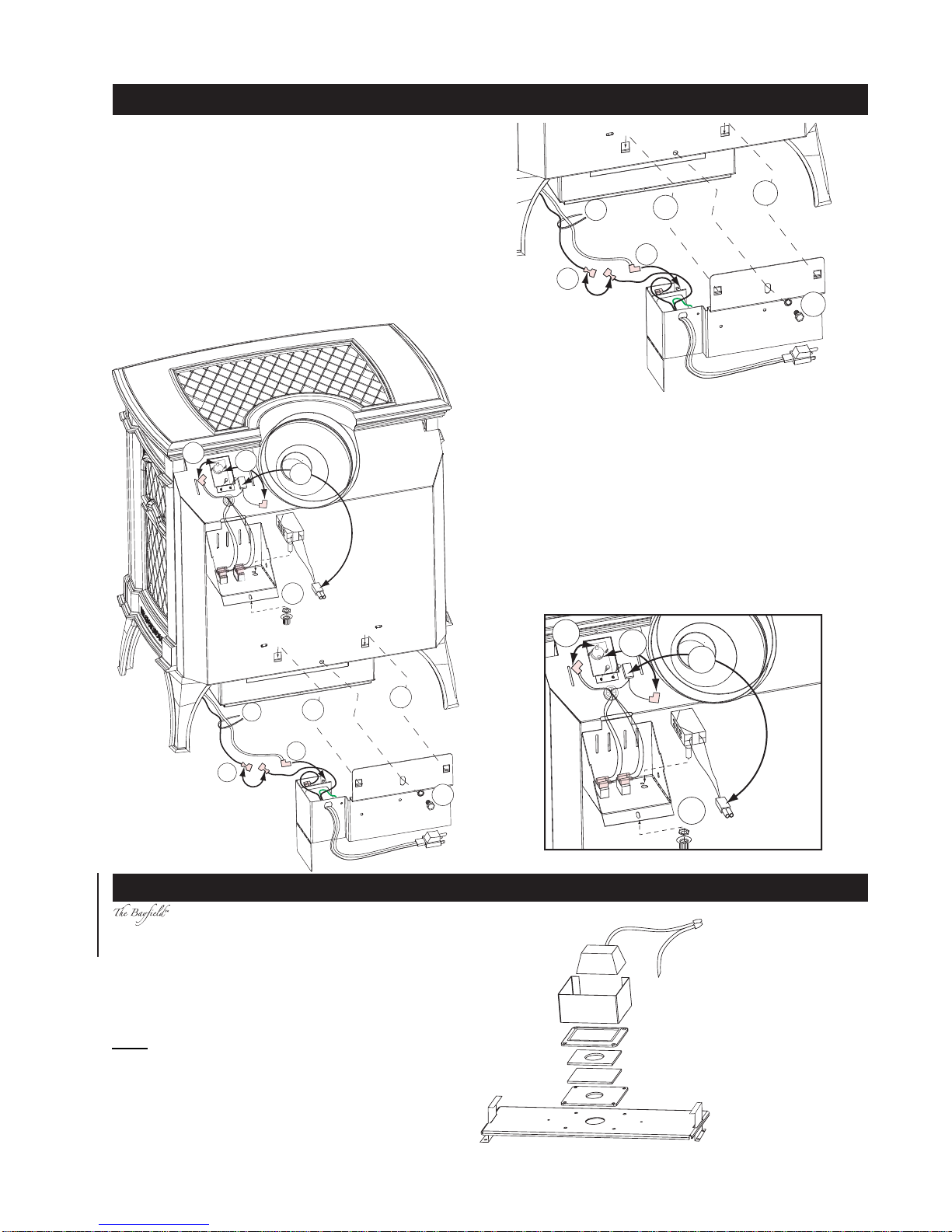

7. Blower Installation
8. Terminal Installation
9. Venting

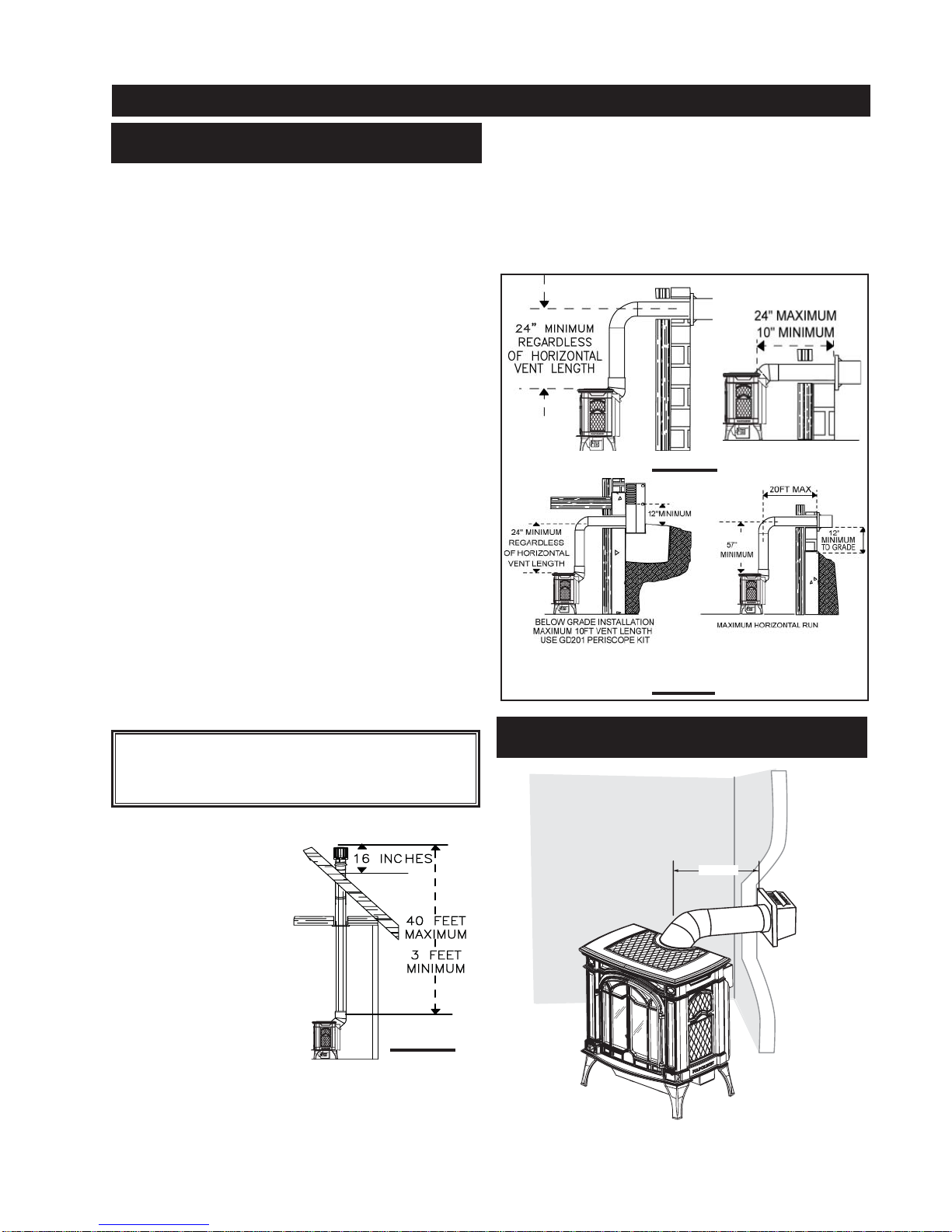

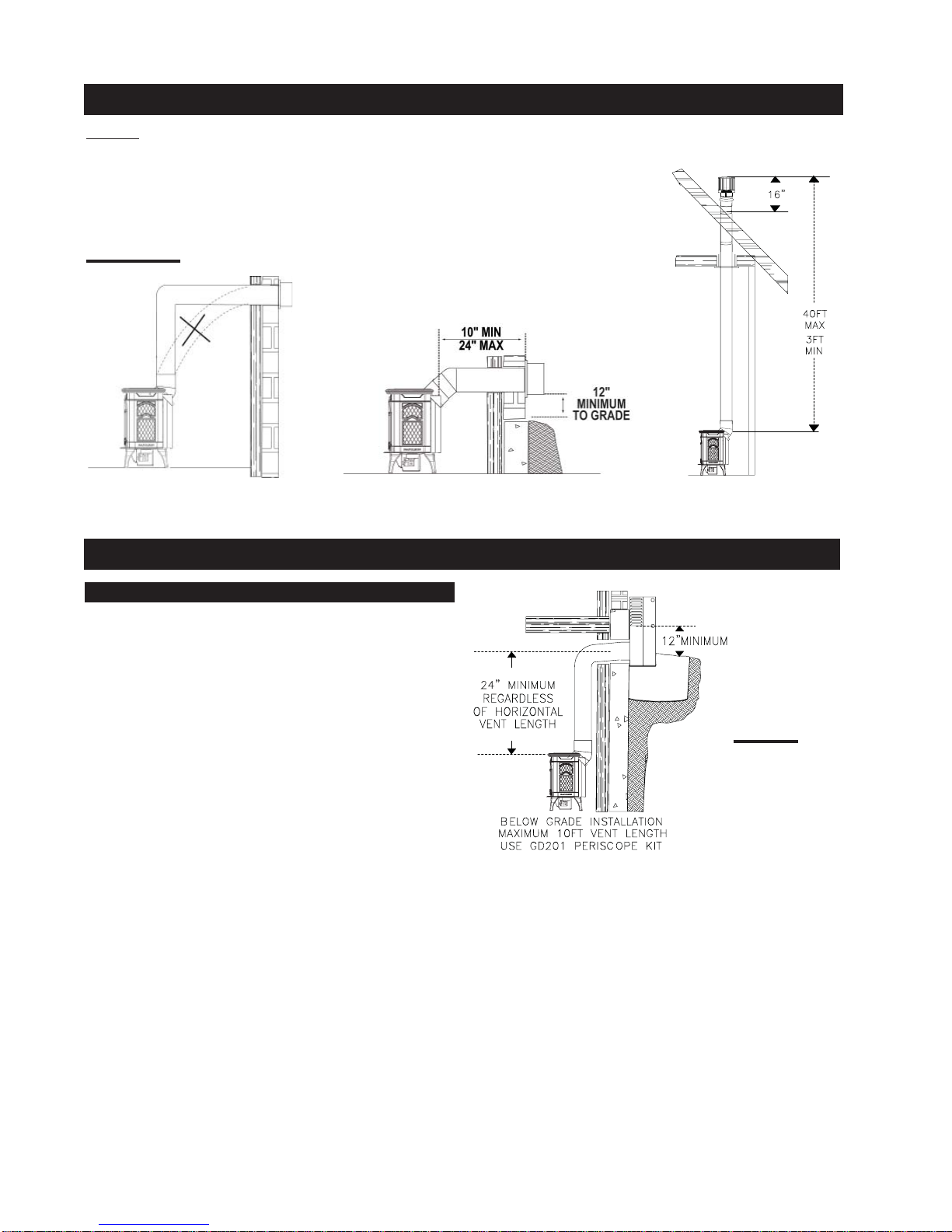

Venting Lengths and Air Terminal Locations
10. Typical and Special Vent Installations
11. Venting Termination
16. Wall and Ceiling Protection
17. Horizontal and Vertical Venting
18. Stove Vent Connection
Mobile Home Installation
Restricting Vertical Vents
Gas Installation
19. Finishing

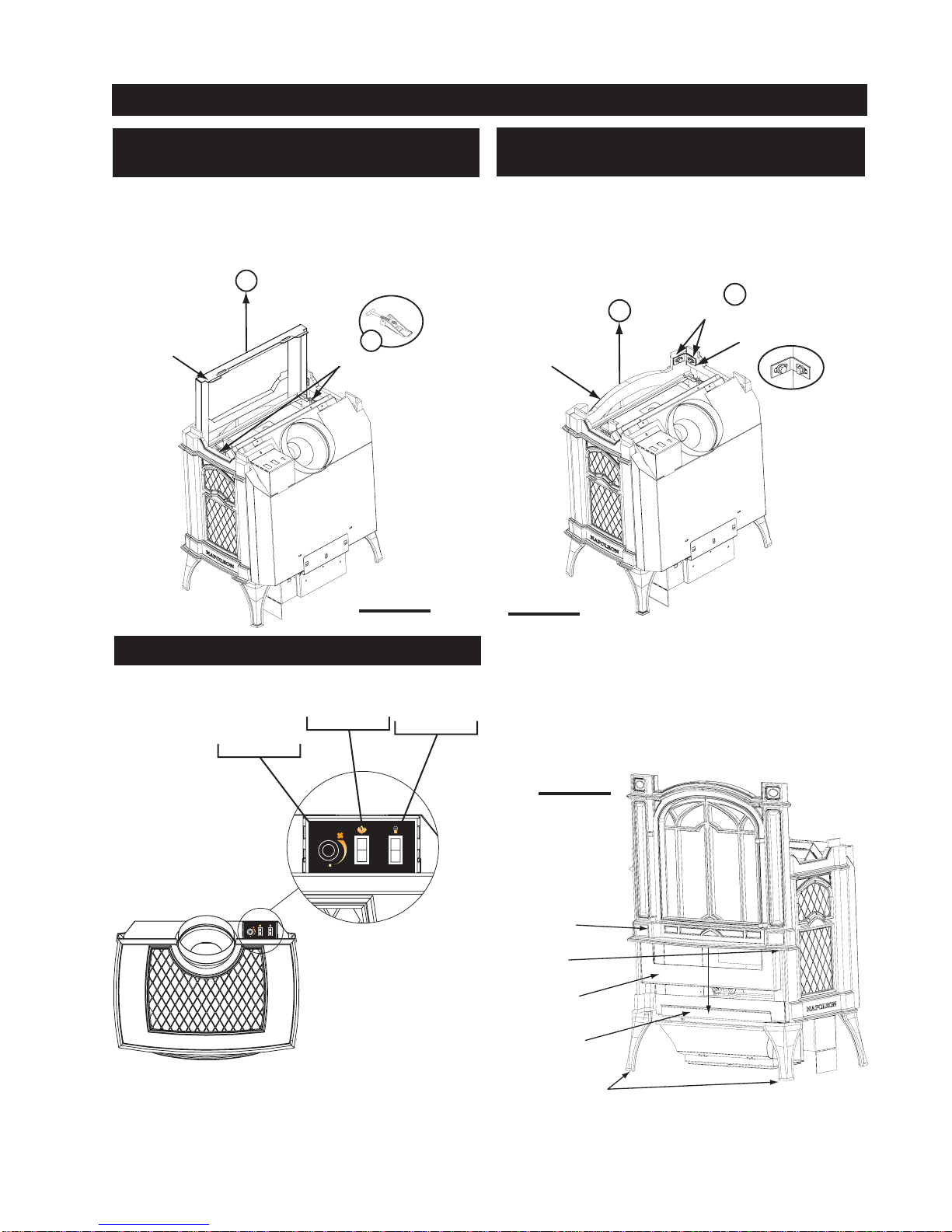

Glass door install and removal
Cast Front Installation and removal
20. Logo Placement
Log Placement
21. Optional Switch / Wiring Diagram
22. Lighting / Operation Instructions
23. Adjustments
Maintenance
Pilot Injector Replacement
Venturi Adjustment
Orifice Replacement
24. Replacements
Replacement Parts
Accessories
26. Trouble Shooting
28. Service History

4
W415-0547 / C / 07.25.06
NAPOLEON products are manufactured under the strict Standard of the world recognized
ISO 9001 : 2000 Quality Assurance Certificate.
NAPOLEON products are designed with superior components and materials, assembled by trained craftsmen
who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test
station. The complete fireplace is test-fired and thoroughly inspected by a qualified technician before packag-
ing to ensure that you, the customer, receives the quality product that you expect from NAPOLEON.
NAPOLEON GAS FIREPLACE PRESIDENT'S LIFETIME LIMITED WARRANTY
The following materials and workmanship in your new NAPOLEON gas fireplace are warranted against
defects for as long as you own the fireplace. This covers: combustion chamber, heat exchanger, stainless steel
burner, phazer™ logs and embers, ceramic glass (thermal breakage only), gold plated parts against tarnishing,
porcelainized enamelled components and aluminium extrusion trims.
Electrical (110V and millivolt) components and wearable parts such as catalytic tiles, blowers, gas valves, ther-
mal switch, switches, wiring, remote controls, ignitor, gasketing, and pilot assembly are covered and NAPOLEON
will provide replacement parts free of charge during the first year of the limited warranty. Light bulbs are not
covered by this warranty.
Labour related to warranty repair is covered free of charge during the first year. Repair work however, requires
the prior approval of an authorized company official. Labour costs to the accout of NAPOLEON are based on a
predetermined rate schedule and any repair work must be done through an authorized NAPOLEON dealer.
CONDITIONS AND LIMITATIONS
NAPOLEON warrants its products against manufacturing defects to the original purchaser only -- i.e., the individual or legal entity
(registered customer) whose name appears on the warranty registration card filed with NAPOLEON -- provided that the purchase was
made through an authorized NAPOLEON dealer and is subject to the following conditions and limitations:
This factory warranty is nontransferable and may not be extended whatsoever by any of our representatives.
The gas fireplace must be installed by a licenced, authorized service technician or contractor. Installation must be done in accordance
with the installation instructions included with the product and all local and national building and fire codes.
This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect and
parts installed from other manufacturers will nullify this warranty.
This limited warranty further does not cover any scratches, dents, corrosion or discolouring caused by excessive heat, abrasive and
chemical cleaners nor chipping on porcelain enamel parts, mechanical breakage of PHAZER™ logs and embers, nor any venting com-
ponents used in the installation of the fireplace.
NAPOLEON warrants its stainless steel burners against defects in workmanship and material for life, subject to the following condi-
tions: During the first 10 years NAPOLEON will replace or repair the defective parts at our option free of charge. From 10 years to life,
NAPOLEON will provide replacement burners at 50% of the current retail price.
In the first year only, this warranty extends to the repair or replacement of warranted parts which are defective in material or workman-
ship provided that the product has been operated in accordance with the operation instructions and under normal conditions.
After the first year, with respect to this President's Limited Lifetime Warranty, NAPOLEON may, at its discretion, fully discharge all
obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but
defective part(s).
After the first year, NAPOLEON will not be responsible for installation, labour or any other costs or expenses related to the reinstallation
of a warranted part, and such expenses are not covered by this warranty.
NotwithstandinganyprovisionscontainedinthisPresident'sLimitedLifetimeWarranty,NAPOLEON’Sresponsibilityunderthiswarranty
is defined as above and it shall not in any event extend to any incidental, consequential or indirect damages.
This warranty defines the obligations and liability of NAPOLEON with respect to the NAPOLEON gas fireplace and any other warran-
ties expressed or implied with respect to this product, its components or accessories are excluded.
NAPOLEON neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this
product. NAPOLEON will not be responsible for: over-firing, downdrafts, spillage caused by environmental conditions such as rooftops,
buildings, nearby trees, hills, mountains, inadequate vents or ventilation, excessive venting configurations, insufficient makeup air, or
negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc.
Any damages to fireplace, combustion chamber, heat exchanger, brass trim or other component due to water, weather damage, long
periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of NAPOLEON.
The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your
authorized dealer. The warranty registration card must be returned within fourteen days to register the warranty.
NAPOLEON reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim.
ALL SPECIFICATIONS AND DESIGNSARE SUBJECT TO CHANGE WITHOUTPRIOR NOTICE DUE TO ON-GOING PRODUCT IMPROVEMENTS. NAPOLEON® ISAREGISTERED
TRADEMARK OF WOLF STEEL LTD. PATENTS U.S. 5.303.693.801 - CAN. 2.073.411, 2.082.915. © WOLF STEEL LTD.

5
W415-0547 / C / 07.25.06
The blower power cord must be connected into a properly
grounded receptacle. The grounding prong must not be
removed from the cord plug.
FORYOURSATISFACTION,THISSTOVEHASBEENTEST-
FIRED TO ASSURE ITS OPERATION AND QUALITY!
Minimum inlet gas supply pressure is 4.5 inches water col-
umnfor naturalgasand 11 incheswater column for propane.
Maximum inlet gas pressure is 7 inches water column for
natural gas and 13 inches water column for propane. When
the valve is set to "HI", the manifold pressure under flow
conditions is 3.5 inches water column for natural gas and
10 inches water column for propane. When the fireplace is
installed at elevations above 4,500ft, and in the absence of
specific recommendations from the local authority having
jurisdiction, the certified high altitude input rating shall be
reduced at the rate of 4% for each additional 1,000ft.
Expansion / contraction noises during heating up and cooling
down cycles are normal and to be expected.
This appliance is only for use with the type of gas indicated
on the rating plate.This appliance is not convertible for use
with other gases, unless a certified kit is used.
Donot use abrasivecleaners to clean theseparts. Bufflightly
with a clean dry cloth.
Theglass is 3/16" ceramicglass available from your Napoleon
/WolfSteel Ltd.dealer.DO NOTSUBSTITUTE MATERIALS.
Clean the glass after the first 10 hours of operation with a
recommended gas fireplace glass cleaner. Thereafter clean
as required. DO NOT CLEAN GLASS WHEN HOT! If the
glass is not kept clean permanent discolouration and / or
blemishes may result.
GDS25: Maximum input is 24,500 BTU/hr for natural
gas. Maximum output for natural gas is 19,600 BTU/hr at
an efficiency of 80%. Maximum input is 23,000 BTU/hr for
propane. Maximum output for propane gas is 18,400 BTU/hr
at an efficiency of 80%.
Thisstove isapproved for closet or recessed installations,as
well as for bathroom, bedroom and bed-sitting room installa-
tionsand issuitable formobile home installations.Thenatural
gas model can be installed in a mobile home that is perma-
nently positioned on its site and fueled with natural gas.
THISGASSTOVESHOULDBEINSTALLEDANDSERVICED
BY A QUALIFIED INSTALLER to conform with local codes.
Installation practices vary from region to region and it is im-
portant to know the specifics that apply to your area,
for example: in Massachusetts State:
• The fireplace damper must be removed or welded in the open
position prior to installation of a fireplace insert or gas log.
• A carbon monoxide detector is required in all rooms containing
gas fired appliances.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• The appliance is not approved for installation in a bedroom or
bathroom unless the unit is a direct vent sealed combustion
product.
• WARNING: This product must be installed by a licensed plumber
or gas fitter when installed within the commonwealth of
Massachusetts.
In absence of local codes, install to the current CAN1-B149
Installation Code in Canada or to the National Fuel Gas
Code, ANSI Z223.1, and NFPA 54 in the United States. Mo-
bile home installation must conform with local codes. In the
absence of local codes, install to the current standard for
gas equipped mobile housing CAN/CSA Z240 MH Series in
Canada or the manufactured home construction and safety
standard, Title 24 CFR, part 3280, or the Fire Safety Criteria
for manufactured home installations, Sites and Community
Standard ANSI/NFPA 501A in the United States.
Purge all gas lines with the glass door of the stove re-
moved.Assure that a continuous gas flow is at the burner
before re-installing the door.
Underextreme vent configurations, allow several minutes
(5-15) for the flame to stabilize after ignition.
It is recommended that all horizontal runs have a ¼ inch
rise per foot.
Objects placed in front of the stove must be kept a mini-
mum of 48" away from the front face of the unit.
Thestoveand itsindividual shutoffvalvemustbe disconnected
from the gas supply piping system during any pressure test-
ing of that system at test pressures in excess of 1/2 psig (3.5
kPa). The stove must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psig (3.5 kPa).
The stove, when installed with a blower, must be electrically
connected and grounded in accordance with local codes. In
the absence of local codes, use the current CSA C22.1 CA-
NADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA
70 NATIONAL ELECTRICAL CODE in the United States.
GENERAL INSTRUCTIONS GENERAL INFORMATION
CARE OF GLASS, AND PLATED PARTS

6
W415-0547 / C / 07.25.06
MAINTAIN THESE MINIMUM CLEARANCES
TO COMBUSTIBLES:
A. 4" B. 2"*C. 2"
STOVE SHOULD NOT BE INSTALLED DIRECTLY ON CARPETING.
TO CEILING FROM STOVE TOP..................................................48"
HORIZONTAL VENT
SIDES AND BOTTOM ................................................................1"
TOP......................................................................................2"
VERTICAL VENT
ALL SIDES.............. ...............................................................1"
*AT ADISTANCE OF 2"FROM THE WALL,INSTALLATION OR SERVICE
TO THE BLOWER MAY NOT BE PRACTICAL. AMINIMUM OF 5" WILL
BE REQUIRED IN ORDER TO INSTALL THE BLOWER.
If less than 5" clearance is maintained between the back
of the stove and the back wall, it will be necessary to
disconnect the venting and gas pipe to move the stove
out for installation or service of the blower.
Provide adequate accessibility clearance for
servicing and operating the stove.
Never obstruct the front opening of the stove.
FIGURE 2
LOCATION & CLEARANCES
STOVE DIMENSIONS
FIGURE 1
7" DIA.
23 1/2"
12 3/4"
23 5/8"
25 5/8"
17 1/2"
4" DIA.
As long as clearance to combustibles is kept within the re-
quired distances, the most desirable and beneficial location
for a Napoleon stove is in the centre of a building, thereby
allowing the most efficient use of the heat created. The loca-
tion of windows, doors and the traffic flow in the room where
the stove is to be located should be considered. If possible,
youshould choose alocation where thevent will passthrough
the house without cutting a floor or roof joist.
8”
MIN.
12”
MAX. MANTEL WIDTH
COMBUSTIBLE
MATERIALS
COMBUSTIBLE
MANTEL OR TRIM
MATERIAL
2”
When the
fireplace is rear
vented, a mantel
or shelf may be
installed above
the GDS25 at a
minimum
distance of 8".
MANTEL OR SHELF CLEARANCES:

7
W415-0547 / C / 07.25.06
BLOWER INSTALLATION
4
5
8
2
3
1
9
77
4
Blower (SEE LOCATION AND CLEARANCES)
1. Cut and remove the tie securing the blower switch wires
to the heat shield.
2. Connect the white wire coming from below the unit to the
terminal on the blower.
3. Connect the black blower wire to the black wire coming
from below the unit.
4. Insertthe clips on theblowerhousing into the cutoutsin the
rear shield. Push down to lock the clips into position.
5. Secure the blower using the screw and lock washer sup-
plied.
Note: Ensure that all the wires are tucked into the blower
switch housing.
Switches
6. Open the switch housing by removing the top screw.
7. Install the thermodisc bracket as shown, using 2 of the
screws supplied. Connect the flagged leads to the terminals
of the thermodisc.
Remove the knock out from the housing label.
8. Installthe variable speed switch (rheostat)into the housing
with the wires facing up. Secure the switch to the housing
using the pal nut and the knob supplied.
9. Connect the male connector on the switch to the female
connector coming from the unit.
10. Tuck all of the wires into the housing and close. Secure
using the screw removed in step 6.
4
5
2
3
1
4
8
9
77
comes equipped with our “Night Light”.
If in the event the lamp or lens needs to be replaced,
follow these instructions.
Disconnect the two wire leads at the wire nut. Remove
the four screws securing the accent lite assembly from
the relief door. Disassemble the lite and the lamp now
can be accessed
Note: Do not handle the lamp (bulb) with bare
fingers, protect with a clean dry cloth.
The lamp will pull straight out of the socket. Replace with
Wolf Steel parts only, as lamp and lens are special “high
temperature” products.
When re-installing, ensure integrity of gasket seal.
THE FIREBOX
MUST BE SEALED.
When re-assembling
the light assembly,
care must be taken
with all gaskets.
“Light Leakage”
from above the
cast doors may be
noticed. The holes
in the lamp housing
are necessary for
ventilation and must
not be covered.
NIGHT LIGHT REPLACEMENT
GASKET
RELIEF
DOOR
GLASS LENS
GASKET
COVER PLATE
SHEILD
RAIL
RAIL
WIRE NUT

8
W415-0547 / C / 07.25.06
**
**
* Recommended to prevent condensation on windows and thermal breakage
****
****
** It is recommended to use a heat shield and to maximize the distance to vinyl clad soffits.
******
******
*** The periscope GD-201 requires a minimum 18 inches clearance from an inside corner.
********
********
**** This is a recommended distance. For additional requirements check local codes.
††
††
† Three feet above if within 10 feet horizontally.
‡‡
‡‡
‡ A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family
dwellings and serves both dwellings.
††††
††††
†† Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the floor.
†*†*
†*†*
†* Recommenced to prevent recirculation of exhaust products. For additional requirements check local codes.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
12 INCHES
9 INCHES
12 INCHES*
18 INCHES**
12 INCHES**
0 INCHES
0 INCHES***
2 INCHES***
3 FEET****
3 FEET****
9 INCHES
3 FEET†
7 FEET****
12 INCHES****
16 INCHES
2 FEET†*
Clearanceabove grade,verandaporch, deckorbalcony.
Clearanceto windows or doors that open.
Clearanceto permanentlyclosed windows.
Verticalclearancetoventilatedsoffitlocatedabove the terminal within
a horizontal distance of 2 feet from the centerline of the terminal.
Clearanceto unventilatedsoffit.
Clearanceto anoutside cornerwall.
Clearance to an inside non-combustible corner wall or protruding
non-combustible obstructions (chimney, etc.).
Clearance to an inside combustible corner wall or protruding com-
bustible obstructions ( vent chase, etc.).
Clearanceto eachside ofthe centerlineextended above the meter
/ regulator assembly to a maximum vertical distance of 15ft.
Clearanceto aservice regulatorvent outlet.
Clearance to a non-mechanical air supply inlet to the building or a
combustion air inlet to any other appliance.
Clearance to a mechanical air supply inlet.
Clearance above a paved sidewalk or paved driveway located on
public property unless fitted with a heat shield kit GD-301.
Clearanceunder averanda, porch,deck or balcony.
Clearanceabove the roof.
Clearancefrom anadjacent wall includingneighbouring buildings.
CANADIAN U.S.A.
12 INCHES
12 INCHES
12 INCHES*
18 INCHES**
12 INCHES**
0 INCHES
0 INCHES***
2 INCHES***
3 FEET
3 FEET
12 INCHES
6 FEET
7 FEET‡
12 INCHES††
16 INCHES
2 FEET†*
INSTALLATIONS
AIR TERMINAL LOCATIONS

9
W415-0547 / C / 07.25.06
Useonly WolfSteel, Simpson Dura-Vent, Selkirk DirectTemp
or American Metal Amerivent venting components.
For Simpson Dura-Vent, Selkirk Direct Temp and American
Metal Amerivent, follow the installation procedure provided
with the venting components.
All outer pipe joints of these venting systems must be sealed
using Red RTV High Temperature Sealant.
Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp and
American Metal Amerivent venting systems must not be
combined.
A starter adaptor must be used and may be purchased from
the corresponding supplier:
PART 4"/7" SUPPLIER
Duravent GDS924N Wolf Steel
Amerivent 4DSCB-N1 American Metal
Direct Temp 4DT-AAN Selkirk
Forvent systems that provideseals on the innerexhaust flue,
onlythe outer airintake joints must besealed using ared high
temperature silicone (RTV). This same sealant maybe used
on both the inner exhaust and outer intake vent pipe joints
of all other approved vent systems except for the exhaust
vent pipe connection to the fireplace flue collar which must
be sealed using the black high temperature sealant Mill Pac.
High temperature sealant must be ordered separately.
When using Wolf Steel venting components, use only the
following vent kits: WALL TERMINAL KIT GD175 (7-1/2'
of venting included), WALL TERMINAL KIT GD176 (24" of
ventingincluded), or 1/12 TO 7/12 PITCH ROOF TERMINAL
KIT GD110, 8/12 TO 12/12 ROOF TERMINAL KIT GD111,
FLAT ROOF TERMINAL KIT GD112 or STOVE PERISCOPE
KIT GD180 (for wall penetration below grade) in conjunction
with the appropriate venting components.
• These vent kits allow for
either horizontal or vertical
venting of the stove.
• The maximum number of
4" flexible connections
is 3 horizontally or three
vertically (excluding the
stove and the air terminal
connections).
• When terminating
vertically, the minimum
vertical rise is 3 feet
above the stove and the
maximum vertical rise is
40 feet. FIGURE 4.
Deviation from the minimum vertical vent length can
create difficulty in burner start-up and/or carboning.
Use an adjustable pipe as the final length of rigid
piping to the stove for ease of installation.
FIGS 6a-b
FIGURE 5
HORIZONTAL RUN NOT TO
EXCEED VERTICAL RISE
• For optimum flame appearance and stove performance,
keep the vent length and number of elbows to a
minimum.
• The air terminal must remain unobstructed at all times.
Examine the air terminal at least once a year to verify
that it is unobstructed and undamaged.
The maximum horizontal run with a 57 inch vertical rise im-
mediately above the stove is 20 feet . FIGURES 6a-b.
VENTING
VENTING LENGTHS &
AIR TERMINAL LOCATIONS
For optimum performance, it is recom-
mended that all horizontal runs have a
minimum ¼ inch rise per foot.
16 INCHES
3 FEET
MINIMUM
40 FEET
MAXIMUM
FIGURE 4
24” MAX
TYPICAL CORNER INSTALL
WITH ZERO RISE

10
W415-0547 / C / 07.25.06
USE GD201 PERISCOPE KIT
BELOW GRADE INSTALLATION
MAXIMUM 10FT VENT LENGTH
OF HORIZONTAL
REGARDLESS
VENT LENGTH
24" MINIMUM
12"MINIMUM
Use the GD201 periscope kit to locate the air termination
above grade. The periscope must be installed so that when
final grading is completed, the bottom air slot is located a
minimum of 12 inches above grade. The maximum allowable
vent length depends on the fireplace, as illustrated.
FIGURES 3 a-c
FIGURE 4
TYPICAL VENT INSTALLATIONS
SPECIAL VENT INSTALLATIONS
40FT
MAX
3FT
MIN
16"
NOTE:
When terminating vertically above 15', the
restrictor plate must be in the fully closed po-
sition. Refer to Restricting Vertical Vents.
PERISCOPE TERMINATION

11
W415-0547 / C / 07.25.06
ELBOW VENT LENGTH VALUES
DEFINITIONS
HORIZONTAL TERMINATION
0
2.5 5 7.5 10 12.5 15
40
10
20
30
17.5 20
39
REQUIRED
VERTICAL
RISE IN
FEET (VT)
CALCULATED HORIZONTAL VENT RUN
PLUS OFFSETS IN FEET (HT)
FIGURE 5
45º
FIGURE 6
90°
H1
H2
when (HT) < (VT)
for the following symbols used in the venting calculations
and examples are:
>- greater than
>- equal to or greater than
<- less than
<- equal to or less than
HT- total of both horizontal vent lengths (HR) and offsets
(HO) in feet
HR- combined horizontal vent lengths in feet
HO- offset factor: .03(total degrees of offset - 135°*) in
feet
VT- combined vertical vent lengths in feet
feet inches
1° 0.03 0.5
15° 0.45 6.0
30° 0.9 11.0
45°*1.35 16.0
90°*2.7 32.0
* the first 45º and 90° offset has a zero value and is
shown in the formula as -45° and -90º respectively or
-135º when combined.
For vent configurations requiring more than one 45º and 90°
elbow, the following formulas apply:
Formula 1: HT < VT
Formula 2: HT + VT< 40 feet
Example 1:
V1 = 8 ft
VT = V1 = 8 ft
H1= 2.5 ft
H2= 2 ft
HR= H1+ H2 = 2.5 + 2 = 4.5 ft
HO= . 03(one 45º elbow + two 90º elbows - 135º)
=0.3(225-135º) = 2.7ft
HT= HR+ HO = 4.5 + 2.7 = 7.2 ft
HT + VT = 7.2 +8 =15.2ft
Formula 1: H
T < VT
7.2 < 8
Formula 2: H
T + VT< 40 feet
15.2 < 40
45º
90°
Since both formulas are met, this vent configuration is
acceptable.
V1
90°
The shaded area within the lines represents acceptable
values for HTand VT .
Simple venting configuration (only one 45º and 90° elbow)

12
W415-0547 / C / 07.25.06
V1
HORIZONTAL TERMINATION
20
10
0 5 10 15
90
100
120
110
30
40
50
60
70
80
130
140
150
20
See graph to determine
the required vertical rise VT
for the required horizontal
run HT.
For vent configurations requiring more than one 45º and 90°
elbow the following formulas apply:
Formula 1: HT < 4.2 VT
Formula 2: HT + VT< 24.75 feet
FIGURE 7
REQUIRED
VERTICAL
RISE IN
INCHES (VT)
HORIZONTAL VENT RUN PLUS OFFSETS IN FEET
when (HT)> (VT)
Simple venting configuration (only one 45º and 90° elbow)
Example 2:
V1 = 4 ft
V2 = 1.5 ft
VT= V1 + V2 = 4 ft + 1.5 ft = 5.5 ft
H1= 2 ft
H2= 1 ft
H3= 1 ft
H4= 1.5 ft
HR= H1+ H2 + H3+ H4 = 2 + 1 + 1 + 1. 5 = 5.5 ft
HO = .03(one 45º elbow + three 90º elbow -135º)
=.03(315-135)=5.4ft
HT= HR+ HO = 5.5 +5.4 = 10.9 ft
HT + VT = 10.9 + 5.5 = 16.4 ft
Formula 1: HT < 4.2 VT
4.2 VT = 4.2 x 5.5 = 23.1 ft
10.9 < 23.1
Formula 2: HT + VT< 24.75 feet
16.4 < 24.75
Since both formulas are met, this vent configuration is
acceptable.
H4
90°
H3
H1
90° H2
90°
FIGURE 8
45°
The shaded area within the lines represents acceptable
values for HTand VT .
V2

13
W415-0547 / C / 07.25.06
VERTICAL TERMINATION
Example 3:
V1 =5 ft
V2 =10 ft
VT = V1 + V2 = 5 + 10 = 15 ft
H1=3 ft
H2=2.5 ft
HR=H1+ H2= 3 + 2.5 = 5.5 ft
HO=.03(one 45º elbow + three 90º elbows - 135º)
=.03(45+90+90+90-135)=5.4
HT=HR+ HO = 5.5 + 5.4 = 10.9 ft
HT + VT = 10.9 + 15 = 25.9 ft
Formula 1: H
T < VT
10.9 < 15
Formula 2: H
T + VT< 40 feet
25.9 < 40
Since both formulas are met, this vent configuration is
acceptable.
when (HT) < (VT)
FIGURE 9
REQUIRED VERTICAL RISE
IN FEET (VT)
HORIZONTAL VENT RUN
PLUS OFFSETS IN FEET
FIGURE10
For vent configurations requiring more than one 45º and one
90° elbow , the following formulas apply:
Formula 1: HT < VT
Formula 2: HT + VT< 40 feet
See graph to determine the required vertical rise VTfor the
required horizontal run HT.
90°
90°
V1
H1
H2
V2
45°
45°
90°
20
10
0 5 10 15
90
100
120
110
30
40
50
60
70
80
130
140
150
20
The shaded area within the lines represents acceptable
values for HTand VT.

14
W415-0547 / C / 07.25.06
H1
VERTICAL TERMINATION
0
5101520
10
20
3
25 30
19
Formula 1: HT < 3VT
Formula 2: HT + VT< 40 feet
Example 4:
V1 =1 ft
when (HT) > (VT)
Simple venting configurations
See graph to determine the required vertical rise VTfor the
required horizontal run HT.
For vent configurations requiring more than one 45º and one
90° elbow , the following formulas apply:
V2 =1.5 ft
VT = V1 + V2 = 1 + 1.5 = 2.5 ft
H1=6 ft
H2=2 ft
HR=H1+ H2= 6 + 2 = 8 ft
HO=.03(one 45º elbow + three 90º elbow - 135º)
=.03(45 + 90 + 90 + 90 - 135) = 5.4 ft
HT=HR+ HO = 8 + 5.4 = 13.4 ft
HT + VT = 13.4 + 2.5 = 15.9 ft
Formula 1: H
T < 3VT
3VT = 3 x 2.5 = 7.5 ft
13.4 > 7.5
Since this formula is not met, this vent configuration is
unacceptable.
REQUIRED
VERTICAL
RISE IN
FEET (VT)
HORIZONTAL VENT RUN PLUS OFFSET IN FEET
FIGURE 11
The shaded area within the lines represents acceptable
values for HTand VT.
90°
FIGURE 12
45°
V1
90° V2
90°
H2
FIGURE 13
45° 45°
90°
90°
H1
H290°
H3
V2
V1
Formula 2: H
T + VT< 40 feet
15.9 < 40
Since only formula 2 is met, this vent configuration
is unacceptable and a new fireplace location or vent
configuration will need to be established to satisfy both
formulas.
Example 5:
V1 =1.5 ft
V2 =8 ft
VT = V1 + V2 = 1.5 + 8= 9.5 ft
H1=1 ft
H2=1 ft
H3=10.75 ft
HR=H1+ H2+ H3= 1 + 1 + 10.75 = 12.75 ft
HO=.03(three 90° elbows + two 45° elbow - 135°)
=.03(90 + 90 + 90 + 45 + 45 - 135) = 6.75 ft
HT=HR+ HO = 12.75 + 6.75 = 19.5 ft
HT + VT = 19.5 + 9.5= 29 ft
Formula 1: H
T < 3VT
3VT = 3 x 9.5 = 28.5 ft
19.5 < 28.5
Formula 2: H
T + VT< 40 feet
29 < 40
Since both formulas are met, this vent configuration is
acceptable.

15
W415-0547 / C / 07.25.06
VERTICAL THROUGH EXISTING CHIMNEY
This appliance is designed to be attached to a 3" co-lin-
ear aluminum flex vent system running the full length of a
masonry chimney.
The flexliner accommdates any contours of a masonry
chimney, however, it is necessary to keep the flexible liner
as straight as possible. The inlet air collar of the termina-
tion cap must be connected to the air intake pipe.
Use Simpson Duravent Chimney Liner Termination Kit
- 923GK (Baseplate and Co-Linear to Co-Axial Adaptor.
Follow manufacturers (Simpson Dura-Vent) installation
instructions.
When installing the unit to this system, Duravent vent
components must be used. You must start with a Duravent
adaptor, GDS924N, directly off the unit. The GDS924N is
only available at your Napoleon dealer.
INSTALLATION

16
W415-0547 / C / 07.25.06
Thisapplication occurs whenventing throughanexterior wall.
Having determined the air terminal location, cut and frame
a hole in an exterior wall with a minimum rectangle opening
of 10" x 9".
IMPORTANT: FOR OPTIMUM PERFORMANCE, THE
STOVE PIPE SHOULD RISE ¼" PER FOOT OF RUN.
1. Assemble the shield to the spacer as shown, using the
3 shorter screws supplied.
The shield is meant to protect combustible materials within
the wall. If the shield is deeper than the combustible portion
of the wall, cut to fit.
2.Applya bead ofcaulking all aroundand place thefirestop
spacerover theframework torestrict coldair frombeing drawn
into the room or around the stove. Ensure that both spacer
and shield maintain the required clearance to combustibles.
Secure the spacer in place using the 4 longer screws sup-
plied.Once the vent pipe is installed in itsfinalposition, apply
sealant between the pipe and the firestop spacer.
FIGURE 16
HORIZONTAL INSTALLATION
This application occurs
when venting through a
roof.
Installation kits for vari-
ous roof pitches are
available from your Na-
poleon dealer. See Ac-
cessories to order the
specific kit required.
1. Determinethe air terminal locationandmove the stove into
position. Cut and frame 9" x 10" openings in the ceiling and
the roof to provide the minimum 1 inch clearance between
thestove pipe and anycombustible material.Trytocenterthe
exhaust pipe location midway between two joist to prevent
having to cut them. Use a plumb bob to line up the center of
the openings.
DONOTFILLTHIS SPACEWITHANYTYPEOF MATERIAL.
A vent pipe shield will
prevent any materials
such as insulation, from
filling up the 1" air space
around the pipe. Nail
headers between the
joist for extra support.
2. Apply a bead of
caulking (not supplied) to the framework or to the Wolf Steel
vent pipe shield plate or equivalent (in the case of a finished
ceiling), and secure over the opening in the ceiling.A firestop
must be placed on the bottom of each framed opening in a
roof or ceiling that the venting system passes through.Apply
abead of caulking allaroundand place a firestopspacer over
the vent shield to restrict cold air from being drawn into the
roomor around the stove. Ensurethat both spacer and shield
maintain the required clearance to combustibles. Once the
ventpipe isinstalled inits finalposition, applysealant between
the pipe and the firestop spacer.
3. In the attic, after the pipe has been installed, slide the
vent pipe collar down to cover
up the open end of the shield
and tighten. This will prevent any
materials, such as insulation,
from filling up the 1" air space
around the pipe.
FOR SAFE AND PROPER
OPERATION OF THE STOVE,
FIGURE 18
VENT PIPE
SHIELD
VENT
PIPE
COLLAR
O
FIGURE 19
VERTICAL INSTALLATION
WALL AND CEILING PROTECTION
9
9
"
"
1
1
0
0
"
"
U
U
N
N
D
D
E
E
R
R
S
S
I
I
D
D
E
E
O
O
F
F
J
J
O
O
I
I
S
S
T
T
F
F
I
I
R
R
E
E
S
S
T
T
O
O
P
P
FIGURE 17

17
W415-0547 / C / 07.25.06
1. Fasten the roof support
to the roof using the screws
provided. The roof support
is optional. In this case the
venting is to be adequately
supported using either an
alternate method suitable to
the authority having jurisdiction
or the optional roof support.
2. Stretch the inner aluminum flex
liner to the required length. Slip the
liner a minimum of 2” over the inner
sleeve of the air terminal connector
and secure with 3 #8 screws. Seal
using a heavy bead of the high
temperature sealant.
3.Repeat using the outer aluminum
flex liner.
4. Thread the air terminal connector
/ liner assembly down through
the roof. The air terminal must be
located vertically and plumb. Attach
the air terminal connector to the roof
support, ensuring that the top of the
air terminal is 16” above the highest
point that it penetrates the roof.
5. Remove nails from the shingles, above and to the
sides of the chimney. Place the
flashing over the air terminal
connector leaving a min. 3/4”
of the air terminal connector
showing above the top of the
flashing. Slide the flashing
underneath the sides and upper
edge of the shingles. Ensure
that the air terminal connector
is properly centred within the
flashing, giving a 3/4” margin
all around. Fasten to the roof.
Do not nail through the lower
portion of the flashing. Make
weather-tight by sealing with
caulking. Where possible, cover
the sides and top edges of the
flashing with roofing material.
6. Aligning the seams of
the terminal and air terminal
connector, place the terminal
over the air terminal connector
making sure the liner goes into the hole in the terminal.
Secure with the three screws provided.
7. Apply a heavy bead of weatherproof caulking 2
inches above the flashing. Note: Maintain a minimum
2” space between the air inlet base and the storm collar.
Install the storm collar around the air terminal and slide
down to the caulking. Tighten to ensure that a weather-
tight seal between the air terminal and the collar is
achieved.
VERTICAL VENTING INSTALLATION
FOLLOW THE VENTING INSTRUCTIONS EXACTLY.
ALL HORIZONTAL VENT RUNS MAY HAVE A 0" RISE
PER FOOT.
FOR OPTIMUM PERFORMANCE IT IS RECOMMENDED
THAT ALL HORIZONTAL RUNS HAVE A MINIMUM
¼ INCH RISE PER FOOT.
ALL INNER EXHAUST AND OUTER INTAKE VENT PIPE
JOINTS MAY BE SEALED USING EITHER RED RTV
HIGH TEMP SILICONE SEALANT OR BLACK HIGH
TEMP MILL PAC WITH THE EXCEPTION OF THE FIRE-
PLACE EXHAUST FLUE COLLAR WHICH MUST BE
SEALED USING MILL PAC (NOT SUPPLIED).
1. Stretch the 4" diameter aluminium flexible liner to the re-
quiredlength taking intoaccountthe additional lengthneeded
for the finished wall surface.
Spacersare attachedto the4" innerflexliner atpredetermined
intervalsto maintain a1-1/4" air gapto the 7"outer stove pipe.
These spacers must not be removed.
Slip a4" diameterlength ofaluminium flexibleliner aminimum
of 2" over the inner sleeve of the air terminal. Secure to the
sleeve using 3 screws. Seal the joint and screw heads using
the high temperature sealant.
2. Slipthe first sectionof 7" diameter stovepipea minimum
of 2" over the outer sleeve of the air terminal. Secure to the
sleeve using 3 screws. Seal the joint and screw heads using
high temperature sealant.
3. Insert the liners through the firestop / vent pipe shield.
Holding the air terminal (lettering in an upright, readable
position), secure to the exterior wall. Make weather tight by
sealingwith caulking (notsupplied).The air terminalmounting
plate may be recessed (up to 1½" maximum) into the exterior
wall or siding.
4. Ifmore than one lengthof liner needs tobe used to reach
the stove, couple them together as illustrated in FIGURE 21.
Seal the joints using the same procedure as described
above.
The vent system must be supported approximately every
10 feet along a horizontal run. Use supports or equivalent
non-combustible strapping to maintain the 1" clearance from
combustibles.
HORIZONTAL VENTING INSTALLATION
FIGURE 20
FIGURE 21
ROOF SUPPORT
DO NOT CLAMP
THE FLEXIBLE
ALUMINIUM
LINER.
AIR
TERMINAL
CONNECTOR
INNER FLEX
LINER
OUTER FLEX
LINER
INNER
SLEEVE
HIGH
TEMPERATURE
SEALANT
Spacers are attached to
the inner flex liner at
predetermined intervals to
maintain a 1-1/4” air gap to
the outer flex liner. These
spacers must not be
removed.
STORM COLLAR
FLASHING
CAULKING
WEATHER
SEALANT
2”
AIR INLET
BASE

18
W415-0547 / C / 07.25.06
1.Attach the adjustable pipe to the last section of rigid pip-
ing. Secure with screws and seal.
2. Install the 4" aluminium flexible liner
to the stove. Secure with 3 screws
and flat washers. Seal the joint
and screw holes using high
temperature sealant.
3. Run a bead of high tem-
perature sealant Mill Pac
around the inside of the air
intake collar. Pull the adjust-
able pipe a minimum 2" into
the air intake collar.
ENSURE THAT THE SEAL-
ANT IS NOT VISIBLE ON THE EXTERIOR PIPES ONCE
INSTALLATION IS COMPLETED. AN OPTIONAL DECO-
RATIVE BRASS BAND IS AVAILABLE FOR THIS USE.
(STANDARD WITH A GD175 KIT AND GD-176). IN THE
EVENT THAT THE VENTING MUST BE DISASSEMBLED,
CARE MUST BE TAKEN TO RESEAL THE VENTING.
In Canada, mobile home installation may be vented horizon-
tally or vertically. In the United States, it may only be installed
vertically. See "Vertical Venting" or "Horizontal Air Terminal
Installation" for installation.
For mobile home installations, the fireplace must be fastened
in place. It is recommended that the fireplace be secured in
all installations. Use the levelling/securing kit, GDSLL-KT for
this purpose.
SEALANT
2" OVERLAP
SELF DRILLING
#8x1/2"
SCREWS
HI-TEMP
STOVE VENT CONNECTION
MOBILE HOME INSTALLATION
1. Install rigid black pipe, or 1/2" type L copper tubing with a
shut-off valve to the stove.
2. Seal and tighten the gas line securely to a flex connec-
tor.
DO NOT KINK FLEXIBLE CONNECTOR.
3. Check for gas leaks by brushing on a soap and water solu-
tion. DO NOT USE OPEN FLAME.
FIGURE 28
GAS INSTALLATION
RESTRICTOR
SHOWN IN A FULLY
CLOSED POSITION
RESTRICTING VERTICAL VENTS
Vertical installations may display a very active flame. Loosen
the two screws and slide the restrictor plate blocking the ex-
haust path. This reduces the velocity of the exhaust gases,
slowingdown theflamepattern and creatinga moretraditional
flameappearance. Forverticalvents greater than15 feet, this
restrictor must be fully closed.
FIGURE 27
RESTRICTOR
SHOWN IN A FULLY
OPEN POSITION

19
W415-0547 / C / 07.25.06
FINISHING
GLASS DOOR INSTALLATION
AND REMOVAL CAST FRONT INSTALLATION
AND REMOVAL
FRONT
SCREWS
BRACKET
32
Follow the above steps in reverse in order to reinstall
the door. Ensure that the bottom of the door meets the
door retainer before closing the latches.
Follow the above steps in reverse in order to reinstall
the cast front. Ensure that the tabs on the underside of
the front fit behind the front legs.
Note: It is not necessary to remove the cast front, in order
to remove the door.
DOOR
RETAINER
FRONT
LEGS
TAB
FRONT
FIGURE 31
LATCHES
DOOR
3
2
FIGURE 30
FIGURE 32
SWITCH FUNCTIONS
MAIN
BURNER
SWITCH ACCENT
LIGHT
SWITCH
FAN
CONTROL
1. Lift the top cast piece off of the unit.
2. Unlatch the door latches from the door.
3. Slide the door straight up to remove.
1. Lift the top cast piece off of the unit.
2. Detach the front cast piece from the side pieces by re-
moving the screws from the brackets located in the upper
inside corners.
3. Slide the front straight up to remove.

20
W415-0547 / C / 07.25.06
LOG PLACEMENT
LOGO PLACEMENT
LOGO
1.27cm
1.27cm
Remove the backing from the the logo and position onto the
control door as shown.
It is not necessary to remove the cast front, however, this
will make for a more simple log installation.
In order to assemble the log set, the glass door must be
removed, see Cast Front / Glass Door Removal in the
FINISHING section of this manual.
1. Place the rear log, as shown, onto the rear log support
brackets. Ensure the cutout on the left underside of the log,
fits over the pilot assembly. Bend the bracket on the left side
to help retain the rear log.
2. Place the hole in the underside of log #2 onto the locating
screw, onthe left sideof the burner.The fibreburner is formed
to cradle the centre of the log.
3. Place the hole in the underside of log #3 onto the locating
screw, on the right side of the burner. The bottom branch of
log #3 sits infront of, and against, the right end of log #2.
4. Reinstall the glass door & front.
LOG LOCATING SCREWS
FIGURE 33a-d
BRACKET
