STRICH SC-1 User manual

User Manual
REVERB
GAIN
GAIN
EFFECT
MONITOR
VOICE DODGE EFFECT MODE
PRESENCE
TREBLEBASS
BT POWER
Class-A
One Knob Control Preamp
SC-1
PODCAST PRODUCTION STUDIO

Thanks for your purchasing SC-1, we appreciate your trust to our
product! The quality performance on tone and portable is benefit by
our innovation and highly care of your user experience. For your better
experience of usage, we highly recommend you to read through this
user manual before use.
■ Before you get started
■ Introduction
■ Features
（1）
●"WHQL Microsoft Certification" compliance to ensure the stability
and compatibility of connection between the product and the
Microsoft system;
●USB2.0 transmission standard on the USB connection, provided a
high-speed transmission, ultra-low latency;
●24bit/96KHz high-precision sampling to provide you premium
sound quality;
●Powerful external playback and internal recording functions,
supporting connected live podcast (featured by streaming plat
form), multi-person chat live broadcast;
●Included combo input(XLR+6.35 Jack) and Hi-Z instrument input
(6.35 input), capable to connect to various instruments and
microphone in the market.
●Extended connection including 3.5mm headphones and speaker
output, microphone and line input with featured volume control
access;
●Premium selected preamp for microphone featuring one knob
control on gaining and volume , HI-Z input for instrument with
Presence control for the best tone you have in mind but
effortless adjust.
The SC-1 is a professional audio production solution. The
supporting of ASIO drivers and premium selected analog preamp
circuit and ADDA solution, it provide you ultra-low latency audio
processing system flow with high precision sampling rate up to
24bit/96k. Its compact size and high performance capacity provided
the perfect use for content creators, including streamers, podcasters
and musicians.
PODCAST PRODUCTION STUDIO
SC-1

■ Dimension:
Product size: 140mm * 105mm * 52mm
Net weight of product: 302g
Gross weight of product: 502g
Product material: Plastic ABS and Aluminum control panel;
■ Packing list
…………………… 1
…………………………………
………………………… 1
……………………………… 1
………………………………… 1
……………………
1
1
SC-1 Audio Interface : 140*105*52MM
Recording line:Φ3m m *1.5m
TYPEC-OTG cable(charge):Φ3m m *1.5m
TYPEC TO IOS(charge):26*12*7MM
TYPEC TO USB:23*13.7*6.3MM
User Maunel: 1 3 0 * 8 8 M M
■ System Requirement:
Portable device with IOS/Andoid OS;
The USB digital interface is compatible with Windows XP/Vista
/7/8/10;
（2）
●Stereo 3.5mm unbalance output for external active monitor speaker
system.
●Included a type-C portable device connection supporting computer
and portable device(pad and mobile phones) for recording and
streaming purpose;
PODCAST PRODUCTION STUDIO
SC-1

■ Functional Parameter:
Signal-to-noise ratio
(A/D):81db
Total harmonic distortion
(D/A): 0.1%
Ance ：10K
Line input 1/2 (balanced)
Large input level: +2.2dbu
Input resistance: 10K
Gain range: 0db- +30db
Instrument input (unbalanced)
Frequency response: 20HZ-20KHZ
Dynamic range: 76db
Maximum input level: -20dbu
Input resistance: 100K
Preamp Gain range: 0db- +36db
Main output
Maximum output level: +6dbu
Output resistance: 100Ω
Gain range: 0db- +36db
2600 mAh battery power consumption:
Discharge current: 500mA
Play music for about 5 hours when fully charge
Charging time: about 3 hours
Combo Input(XLR/6.35 Jack)
48V microphone input (balanced)
Frequency response: 20HZ-20KHZ
Dynamic range: 76db
Maximum input level:-18dbu
Input resistance: 5.1K
Preamp gain range ：0db- +30db
Microphone (balanced)
Frequency response:
20HZ-20KHZ
dynamic range: 76db
Large input level:-18dbu
Input resistance: 5.1K
Gain range: 0db - +30db
（3）
PODCAST PRODUCTION STUDIO
SC-1

■ Function indication

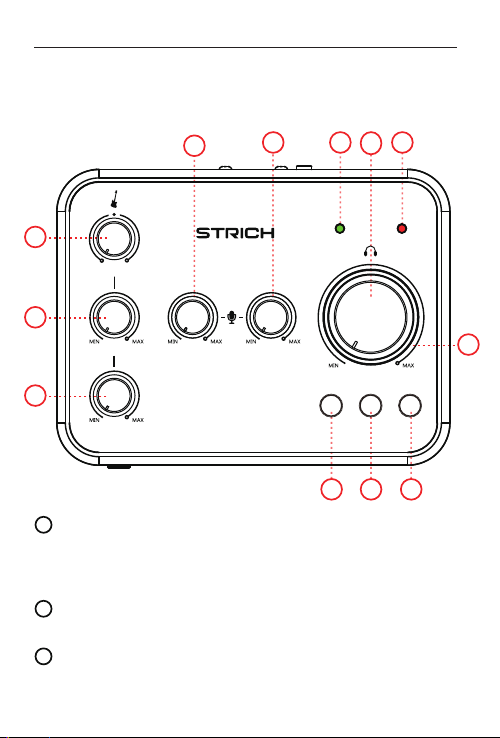

Main panel
9
2
3
1
45
1112 10
8
7
6
Instrument Presence: One knob control for your instrument
tone, low end will bring you warmer tone with higher bass
requency, hi end will bring you more clarification on high
frequency;
1
Instrument Gain/Volume control: One knob control for analog
gain and volume of your instrument input;
2
Instrument Effect Level: Featured effect level bring for your
instrument input;
3
（4）
REVERB
GAIN
GAIN
EFFECT
MONITOR
VOICE DODGE EFFECT MODE
PRESENCE
TREBLEBASS
BT POWER
PODCAST PRODUCTION STUDIO
SC-1
Class-A
One Knob Control Preamp

Microphone Gain: One knob control for analog gain and volume
of your microphone input;
4
Reverb volume: Level control of the reverb effect for your
microphone input;
5
Monitor Volume Control: Volume control for headphone volume;
7
Atmosphere light: the light for your quick response while you
want to adjust the volume and knob indication purpose;
9
Power lamp: Battery condition status indication, while the lamp is
on continuously, means the battery power is enough for long time
usage. When the lamp is flashing slowly, means it’s under risk of
battery condition, while the lamp is flashing quickly, you need to
charge the device as soon as possible;
8
Dodge: Instant volume control, when you turn on the dodge
function, your background music will automatically turn down
and keeping your vocal at the more noticeable level;
11
Voice(vocal cancelation of the back ground music): when you
press the vocal bottom, the playback music will be voice
cancelled and generated a MMO background music, perfect for
singing performance purpose against the music you have on your
mobile phone device.
12
Instrument Effect mode buttom: effect selection including
Chorus/Reverb/Delay/Flanger/Auto-Wah;
10
Bluetooth status light(for Bluetooth playback device):
Bluetooth working status indication, flashing while blue tooth
is not connected, light on while Bluetooth device is connected;
6
（5）
PODCAST PRODUCTION STUDIO
SC-1

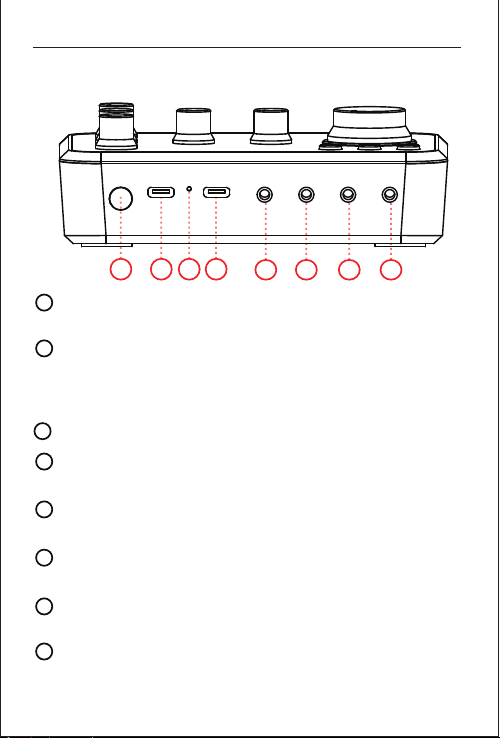

Front panel
7 865
4321
Power switch: Press and hold the power button for 2 seconds,
device will be on;
1
Charging lights: Red light will be on when charging;
3
Charging interface: connect the power adapter to power the
device, please use the standard power adapter, and pay
attention to the power specifications: DC 5V 1A with the
correct polarity;
2
OTC interface: TYPE-C OTG computer/mobile phone
recording live broadcast.
4
5.Headphone socket: Headphone output, (internal of the jack
socket is the reset bottom)
5
Output: Audio line output for external speaker and monitor
system;
6
Music input: Aux input for other playback device supporting
3.5mm unbalance output;
7
Recording interface: simulate mobile phone recording and mobile
phone live broadcast interface.
8
（6）
ON/OFF
5V DC OTG
Pow
EARPHONE OUTPUT RECORDMUSIC
PODCAST PRODUCTION STUDIO
SC-1

Rear Panel
①
②
③
①
②
③
2 31
Combo Microphone Input(XLR/6.35jack): Combo input for
balance and unbalance microphone connection, supporting
phantom power support;
1
Phantom Power Switch: 48V phantom power switch with
light indication;
2
Hi-Z microphone and instrument input: Unbalance input for
microphones and instrument device supporting analog output;
Analog Connections:
Shielding (grounding)Pin, (2) hot(+) pin, (3) cold(-) pin
3
（7）
MIC 48V 0N/OFF MIC/GUITAR
PODCAST PRODUCTION STUDIO
SC-1

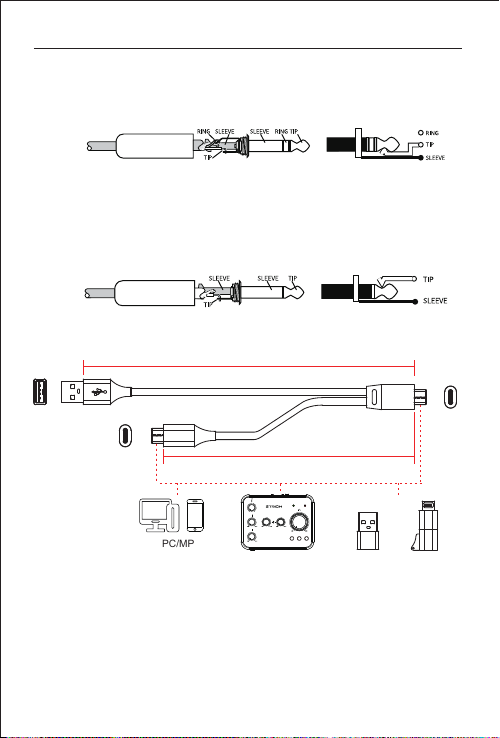

BalancedTRS(Φ6.35mm)
Hot (+) tip, cold ring, cover (grounded) sleeve
UnbalancedTS (Φ6.35mm)
Thermal (+) tip, shielded sleeve
（8）
1.5M
1M
PC/MP
(5V/1A)
TYPEC-OTG cable charge (Φ3m m *1.5m)
TYPEC TO USB/IOS
REVERBGAIN
GAIN
EFFECT
MONITOR
VOICE DODGE EFFECTMODE
PRESENCE
TREBLEBASS
BT POWER
KX-S01Audio
Interface
PODCAST PRODUCTION STUDIO
SC-1
Class-A
OneKnob Control Preamp

（9）
■ Connection indication
OTG
MIC 48V 0N/OFF MIC/GUITAR
ON/OFF
5V DC OTG
Pow
EARPHONE OUTPUT RECORDMUSIC
5V DC PC/MP
MIC MIC GUITAR
EARPHONE OUTPUT PC MP
PODCAST PRODUCTION STUDIO
SC-1

（10）
■ I0S compatibility mode
■ Live streaming app
■ Bluetooth connectivity
The SC-1 can be used directly from USB to iPad 、iPhone
link to achieve recording, live broadcasting, music appreciation and
other operations. The Hardware Listener knob allows you to control
the sound mixing ratio.If the IOS system version is too low, there
may be incompatibilities, depending on the IOS system version.
We strongly recommend purchasing the original Apple Camera Kit.
In compatibility mode of operation, the SC-1 requires an external
standard power supply, and a standard power adapter is
recommended. If the iPad back panel is equipped with a protective
case, the plug of the camera connection kit, it may be possible to
plug tightly or poorly contact, if this problem occurs, remove the
protective case.If the sound card is incompatible with the connected
iPad or iPhone device, the iPad, the iPhone detects an incompatible
USB device and displays a message "Unusable Device -- Connecting
USB devices are not supported". In newer versions of IOS devices,
the device name will be displayed after connection, or due to different
IOS versions, there may be some APP it does not work or the
recording is recorded only to one-sided channels.
After the reference link diagram is installed and connected to
the device, the hardware monitoring knob is adjusted to the middle
area, and the playback software is opened, such as "Cool Dog
Music" selects "Accompaniment Sound Source" as the output
audio device, and then opens the corresponding live broadcast
platform on the computer and mobile phone side to carry out the
computer and mobile phone synchronous live broadcast.
After starting up, Bluetooth is in the standby link state, and the
green light flashes. When the mobile phone turns on Bluetooth and
searches for available devices, it will pop up "kx-s01" and click
pairing. After pairing is successful, the green light stays on for a long
time, and Bluetooth enters the link state.
PODCAST PRODUCTION STUDIO
SC-1

First, Cannot power on:
Make sure the device has power or is connected to a power
source via an adapter.
Second, the computer can not recognize:
1. Confirm whether the USB cable is used correctly, check
whether the USB cable is broken or damaged, and try to
use normal USB Data cable replacement, should not use
more than 3 meters of data cable connection.
2.The USB port is not activated in the system (please check
the "Device Manager" of the Windows system)
3.The USB cable is not connected to the jack, or is not
properly connected to the jack.
4.The sound card is not connected to a power source.
Third, no sound:
1. Check if the device volume control knob is too small and try
adjusting the volume knob to normal level.
2. Check if the playback software is playing normally, try to quit
and reopen to see if it returns to normal.
3. Check if the audio device is disabled.
4. The software or hardware sound is not, check whether the
hardware monitor knob is in the MIN minimum position, try
to adjust to the middle position, and then check whether the
sound is restored.
5. Check whether the microphone and speaker are properly
linked to the device, please refer to the connection example
to confirm.
6. If using a condenser microphone powered by 48V, check
"48V " Whether the switch LED is lit.
7. Check that the headset is connected to the bit, try plugging
it back in and try again.
8. Check whether the audio device has been selected as this
device, please refer to the computer audio setting instructions
and playback software audio device selection to confirm.
（11）
■ Fault handling
PODCAST PRODUCTION STUDIO
SC-1

9. If there are other USB devices connected to the computer at the
same time, try to unplug after checking whether the sound
returns to normal.
10. If there are other programs running at the same time conflict,
try to close the other programs after checking if the sound
returns to normal.
In order to avoid personal injury or property damage that may be
caused by electric shock, high temperature, fire, radiation, explosion,
mechanical hazard, and improper use, please read carefully and
observe the following before using this product:
1. When using the product, please confirm whether the connected
device matches the power of the product and adjust the volume size
reasonably, and do not use it for a long time under the power and
volume of the product, so as not to cause product abnormalities and
hearing damage;
2. If you find abnormalities (such as smoke, odor, etc.) during use,
please immediately turn off the powerswitch and unplug the power
plug, and then send the product to the dealer for maintenance;
3. This product and accessories should be placed in a dry and
ventilated place indoors, do not store in a humid and dusty
environment for a long time, avoid being close to the fire source,
rain, water ingress, excessive collision, throwing, vibration and
covering ventilation holes during use, so as not to damage its
function;
Fourth,Abnormal sounds (noise, broken tone, distortion):
1. Whether long continuous audio is being recorded or played, the
computer's audio data processing ability depends on many
factors, including CPU speed access to external devices, try to
reduce the audio track after checking the sound.
2. Known issues such as insufficient power to the computer CPU
or insufficient USB bus transfer rate, pop or dry sound will occur.
（12）
■ Fault handling
PODCAST PRODUCTION STUDIO
SC-1

（13）
4. This product shall not be subject to water droplets or splashes,
and no liquid-filled items such as vases shall be placed on the
product;
5. When cleaning this device, be sure to unplug the power plug from
the power outlet, and use a soft dry cloth when cleaning the device.
Do not use paint thinners, solvents, cleaning fluids or wipes soaked
in chemicals;
6. During a thunderstorm or when it is not used for a long time,
please unplug the device;
7. Do not use wall outlets or extension cords to overload, otherwise
it may cause a risky fire or electric shock;
8. Protect the power cord from being stepped on or squeezed,
especially plugs, sockets and where they are connected to the
power cord;
9. When using the product, you must comply with the relevant safety
regulations, laws and regulations clearly prohibit the use of the
machine, so as not to cause accidents;
10. Please use the accessories specified by the manufacturer;
11. Please do not disassemble or repair the machine to prevent
personal injury, if there is a problem or service needs, please
contact the local distributor to follow up,without consent to the
equipment to dismantle the machine modification or repair, may be
lost Warranty service provided by Strich Electronics Co., Ltd.;
12. If you use a power adapter to power this product, please use
the power adapter shipped; If you need to use other adapters, you
should purchase a power adapter that is CCC certified and meets
the requirements of the standard;
13. The altitude and climatic conditions of this product are
determined by the optional adapter, and the icon on the adapter
represents the following meaning:
2000 m
Meters below the use
of climate conditions
Applies only to altitudes
of 2000 and is only suitable
for non-tropical use
PODCAST PRODUCTION STUDIO
SC-1
