OWNER’S MANUAL
United States & European Models
CAUTION: Having more than one GFCI used on the electrical circuit will
render the spa inoperable. The spa must be on a dedicated circuit.
To be covered under the
Strong Spas Warranty you must
register your product within 30
calendar days of delivery.
Acrylic Spas
Monaco 20 & 31, Seville 22, El Dorado 22, Barcelona 33 & 55, Vienna 66 and Madrid 77
P.O. BOX 108, ROUTE 11 NORTHUMBERLAND, PA 17857
1-800-STRONG-9
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS

2
CONTENTS
Introduction / Knowing Your Spa ............................................................................. 3
Safety Instructions ....................................................................................................... 4
Installation Instructions .............................................................................................. 5
Filling Your Spa, Removing the Filter ..................................................................... 6
General Wiring for 110V Use ......................................................................................8
110V to 220V Conversion .................................................................................10
General Wiring for 220V Use............................................................................13
General Wiring (European)...............................................................................14

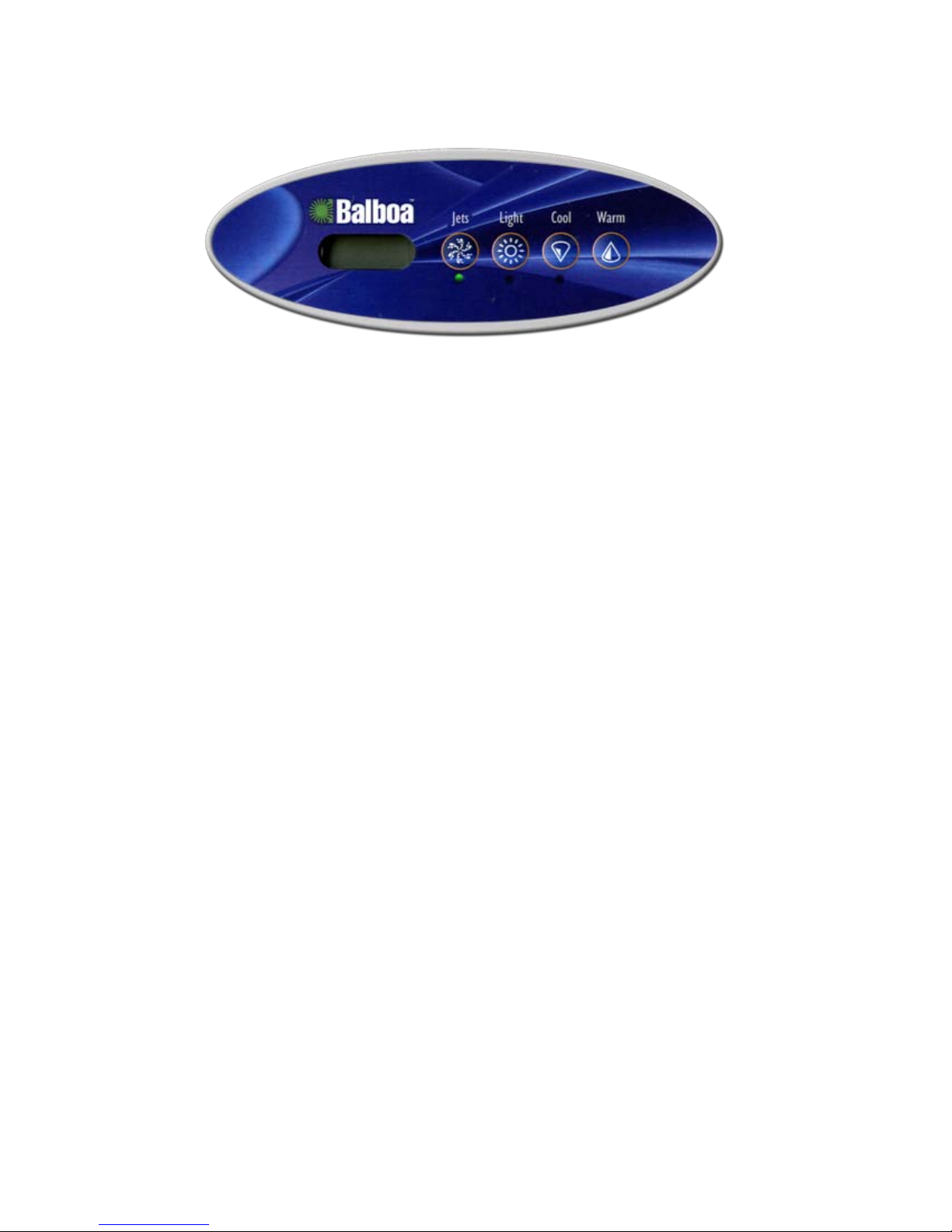

Control Panel Ident. (Monaco 20 & 31, Seville 22, El Dorado 22 and Barcelona 33) ......... 15
Unlocking Modes...............................................................................................16

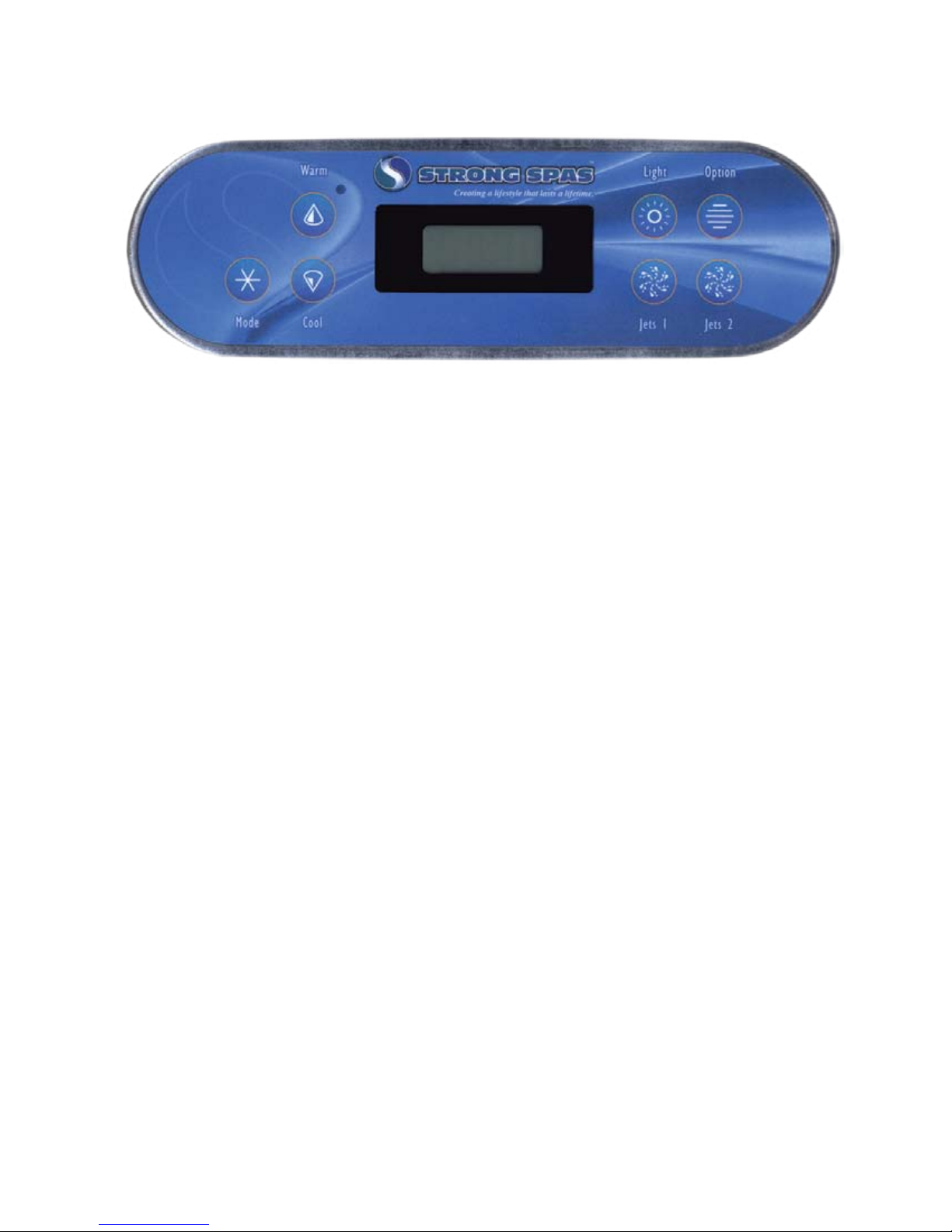

Control Panel Ident. (Barcelona 55, Vienna 66 and Madrid 77)....................................... 17

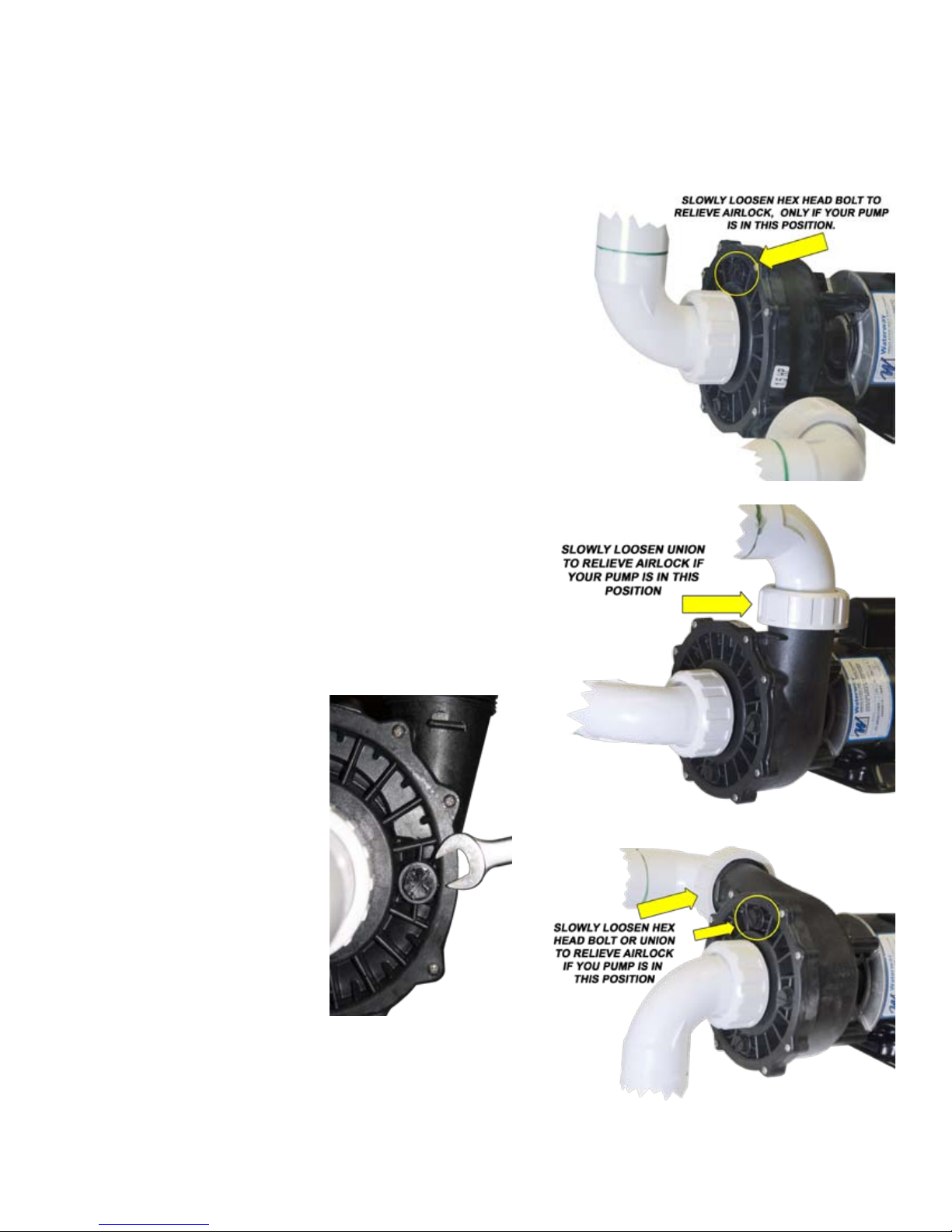

Removing an Airlock.................................................................................................. 18
Spa Controls, Jet Types............................................................................................ 19
Winterizing Your Spa ................................................................................................. 20
Control Pack Codes (Monaco 20 & 31, Seville 22, El Dorado 22 and Barcelona 33) ..........22
Control Pack Codes (Barcelona 55, Vienna 66 and Madrid 77)....................................... 24
Spa Maintenance......................................................................................................... 26
Surface and Pillow Care and Cleaning .................................................................27
Hardcover .....................................................................................................................28
Troubleshooting ........................................................................................................... 29
Stereo .............................................................................................................................30
Frequently Asked Questions ....................................................................................32
Warranty .........................................................................................................................34
Registration ...................................................................................................................35
Warnings ........................................................................................................Back Cover

3
Congratulations
on your purchase of an acrylic spa!
With proper care, operation and maintenance, your spa will provide your family many years of comfort
and pleasure. Please take time to read all the instructions before you install or operate your spa. This
manual explains safety precautions, installation instructions, operating directions and maintenance pro-
cedures.
Please read and understand all safety instructions, operating instructions and all warnings and cautions
before adding water or attaching electrical power.
Knowing your spa
Get to know these few simple parts of your spa before calling your dealer
with a problem. This will help us help you solve problems faster.
or

4
CHILDREN SHOULD BE SUPERVISED IN OR NEAR THE SPA AT ALL TIMES
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Children should not use spas or hot tubs without adult supervision.
AVERTISSEMENT: Ne pas laisser les enfants utiliser une cuve de relaxation sans surveillance
WARNING: Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment.
AVERTISSEMENT: Pour éviter que les cheveux ou une partie du corps puissent étre aspirés, ne pas utiliser une cuve de relaxation si les
grilles de prise d’aspiration ne sont pas poutes en place.
WARNING: People using medications and/or having an adverse medical history should consult a physician before using spa or hot tub.
AVERTISSEMENT: Les personnes qui prennet des medicaments ou ont des problemes de sante devraient consulter un medicin avant d’
utiliser une cuve de relaxation.
WARNING: People with infectious diseases should not use a spa or hot tub.
AVERTISSEMENT: les personnes atteintes de maladies infectieuses ne devraient pas utiliser une cuve de relaxation.
WARNING: To avoid injury, exercise care when entering or exiting the spa or hot tub.
AVERTISSEMENT: Pour éviter des blessures, user de prudence en entrant dans une cuve de relaxation en sortant.
WARNING: Do not use drugs or alcohol before or during the use of a spa or hot tub, to avoid unconsciousness and possible drowning.
AVERTISSEMENT: Pour éviter l’évanouissement et la noyade éventuelle, ne prendre ni drogue ni alcool avant d’utiliser une cuve de
relaxation ni quand on s’y trouve.
WARNING: Pregnant or possibly pregnant women should consult a physician before using a spa or hot tub.
AVERTISSEMENT: Les femmes enceintes, que leur grossesse soit conrmée ou non, devraient consulter un médecin avant d’utiliser
une.
WARNING: Water temperature in excess of 38°C may be injurious to your health
AVERTISSEMENT: Il peut etre dangereux pour la sante de se plonger dans de l’eau a plus de 38°C.
WARNING: Before entering the spa or hot tub, measure the water temperature with an accurate thermometer.
AVERTISSEMENT: Avant d’utiliser une cuve de relaxation mesurer la température de l’eau á l’aide d’un thermométre précis.
WARNING: Do not use a spa or hot tub immediately folowing strenuous exercise.
AVERTISSEMENT: Ne pas utiliser une cuve de relaxation immédiatement aprés un exercise fatigant.
WARNING: Prolonged immersion in a spa or hot tub may be injurious to your health.
AVERTISSEMENT: L’utilisation prolongee d’ une cuve de relaxation peut etre dangereuse pour la sante.
WARNING: Do not permit or use electric appliances (such as a light, telephone, radio or television) within 1.5 meters of spa or hot tub.
AVERTISSEMENT: Ne pas placer d’appareil électrique (luminaire, téléphone, radio, téléviseur, etc.) á moins de 1.5 meters de cette
cuve de relaxation.
CAUTION: Maintain water chemistry in accordance with the manufacturer’s instructions.
ATTENTION: La teneur de l’eau en matiéres dissoutes doit étre conforme aux directives du fabricant.
HYPERTHERMIA
Hyperthermia occurs when the internal temperature of the body reaches a
level several degrees above the normal body temperature of 37°C.
The symptoms of hyperthermia include:
1) Unawareness of impending hazard;
2) Failure to perceive heat;
3) Failure to recognize the need to exit the spa or hot tub;
4) Physical inability to exit the spa or hot tub;
5) Fetal damage in pregnant women; and
6) Unconsciousness and resulting in the danger of drowning.
WARNING: The use of alcohol or drugs can greatly increase the risk of fatal hyperthermia in hot tubs or spas.
AVERTISSEMENT: La consommation d’ alcool ou de drogue augmente considerablement.
EFFETS DE L'HYPERTHERMIE:
1) Non-reconnaissance du danger.
2) Insensibilité à la chaleur.
3) Ne pas se rendre compte qu'il faut sortir du spa.
4) Impossibilité physique de sortir du spa.
5) Risques pour le fétus chez les femmes enceintes.
6) Perte de connaissance pouvant entraîner la noyade.

5
INSTALLATION INSTRUCTIONS
Spa Location:
Improper installation may result in equipment damage and will void the warranty. Your spa must be
placed on a solid, flat, level surface.
The space you choose to install your spa is a very important decision, you should consider all of the list-
ed suggestions.
Check your local code office for understanding of building, fencing, gates, electrical, plumbing
and enclosure required codes.
A location should be selected to compliment your lifestyle, the view from your house and the
ability to supervise the spa.
Position the spa in relation to the surroundings of trees, sunlight exposure, wind, bathroom
location, landscaping and evening lighting.
A spa filled with water is very heavy, if the spa is placed on flooring or decking, be sure the
structure is strong enough to support the weight. The necessary support should be at least 75
pounds per square foot.
Install your spa, in a way that will allow easy access to the equipment door.
Storage area for maintenance equipment and chemicals (storing chemicals inside your spa
cabinet will void the warranty).
Indoor Considerations:
The interior of your home where the spa is located must be able to withstand high humidity. The spa
chemicals may have some corrosive effect.
Floor drain is needed to carry off splashed water from the spa.
It is strongly advised NOT to locate a spa on second story location that may be above finished living
space.

6

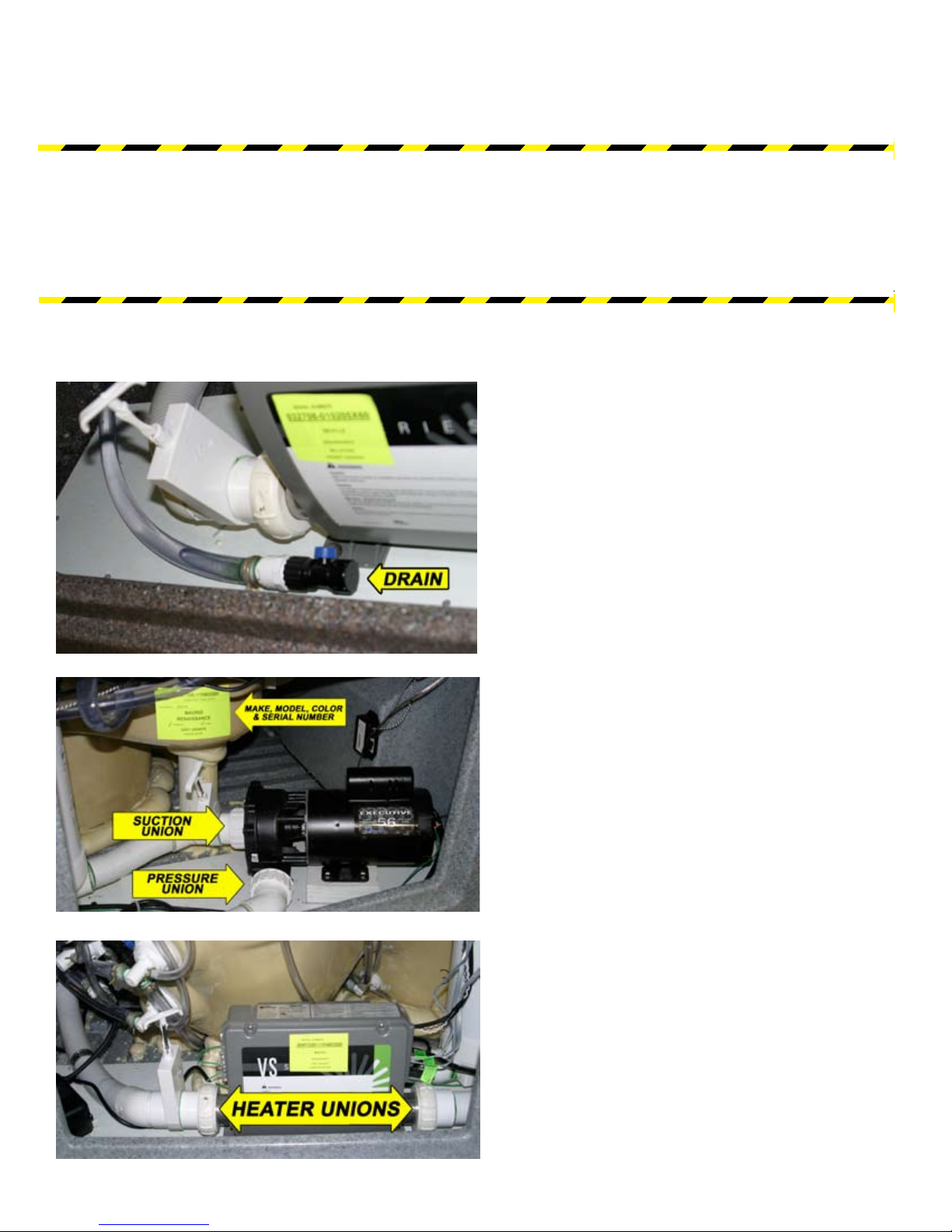

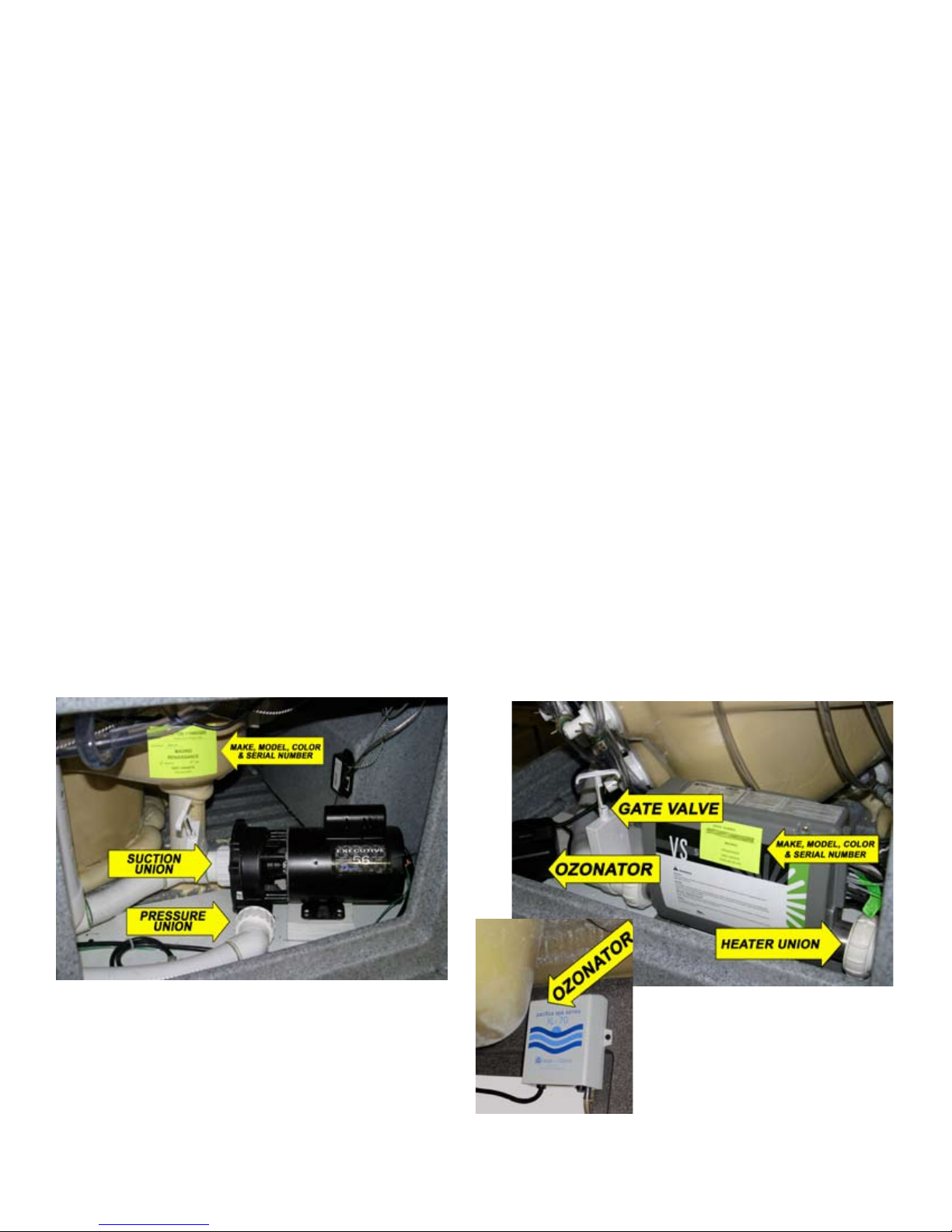

Spa unions may loosen during shipping. Prior to spa operation, make sure plumbing fittings on
pump & control pack are tight. There are FOUR unions that may require hand tightening prior
to operation of your spa. When filling the spa with water, keep observing these fittings for any
slight water drips. If a drip is observed, just hand tighten until dripping ceases.
FILLING YOUR SPA WITH WATER
THROUGH THE FILTER

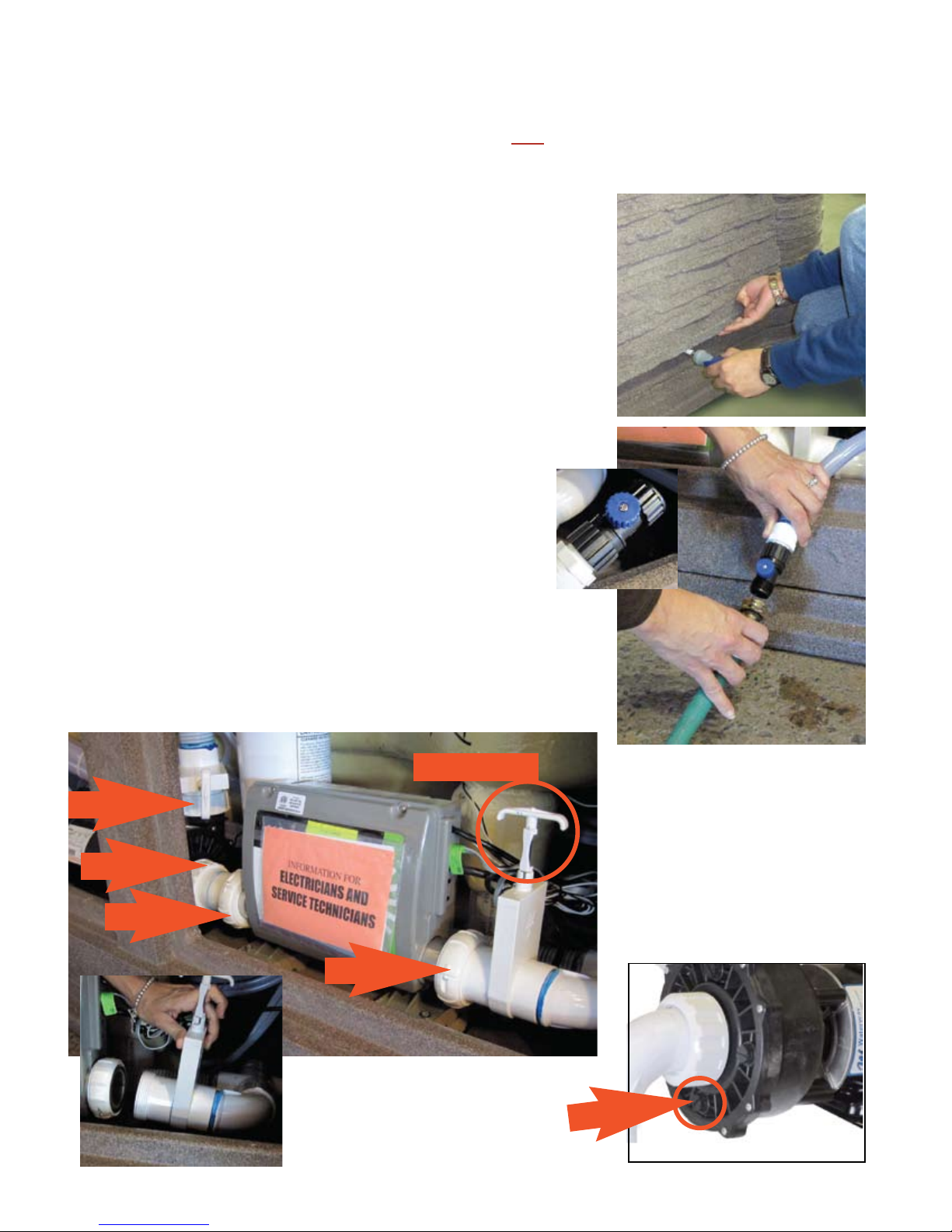

Make sure all gate valves are in the UP position (and
white plastic clips are inserted), also make sure all
pump & heater unions and black drain cap are tight. Be
sure to check that blue ball valve on drain is turned to
the off position (counter-clockwise) with cap installed.

7
Place the hose into the lter chamber as shown. This will
ensure the water goes through the lter and removes the air
bubbles out of the lines while you ll the system.
FILLING YOUR SPA THROUGH THE FILTER
(MONACO, EL DORADO, AND SEVILLE ONLY)
Place the hose into the lter chamber as shown. This will ensure the
water goes through the lter and removes the air bubbles out of the
lines while you ll the system.
It is important that you ll your spa with water to the proper
level. The water level must be between 1- 2” above the highest jet.
FILLING YOUR SPA THROUGH THE FILTER
(ALL OTHER ACRYLIC SPAS EXCEPT MONACO, EL DORADO, AND SEVILLE)

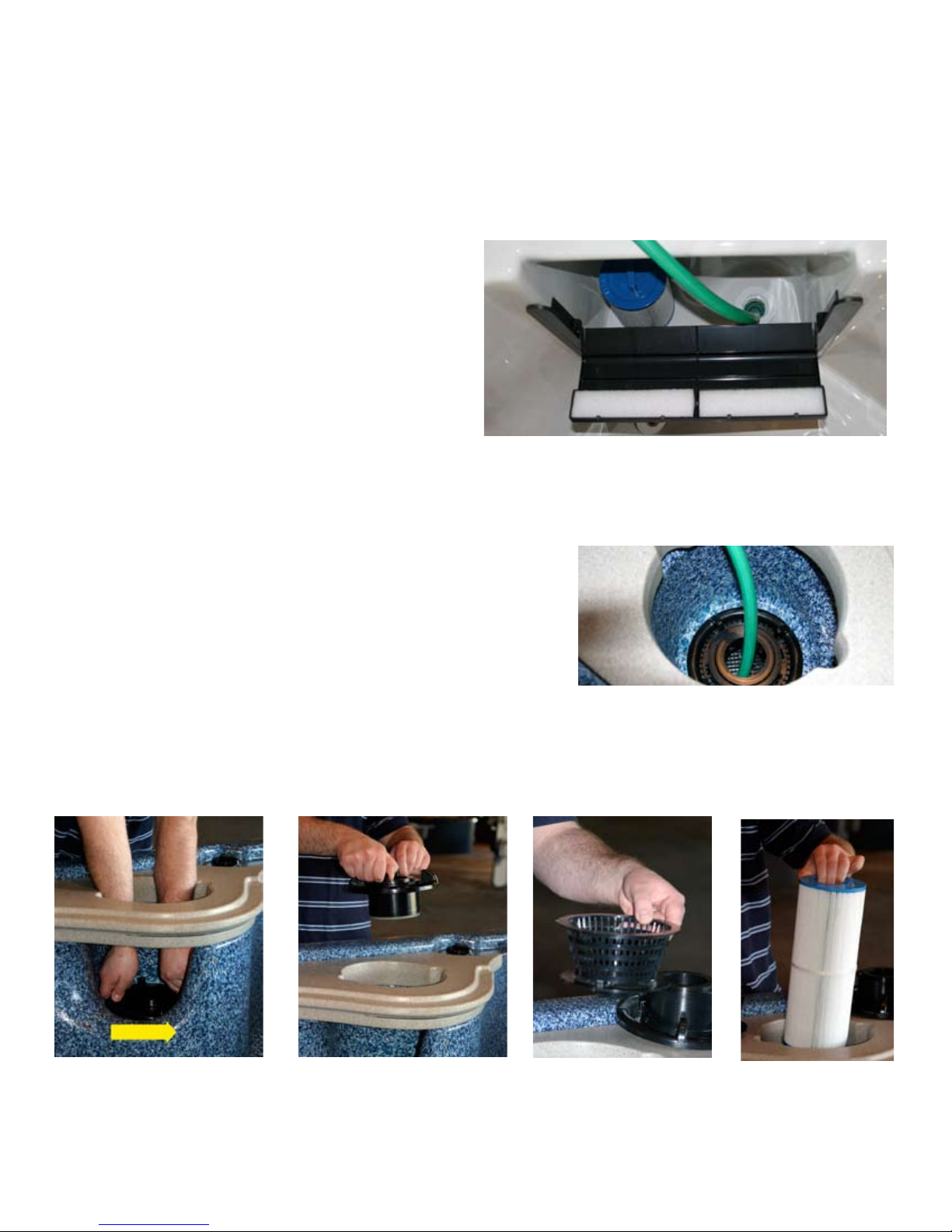

To remove the lter in your spa you must rst reach into the lter chamber, then turn the weir counterclockwise until you
hear the cover unlock (FIGURE 1). Lift out the weir (FIGURE 2) and remove the lter basket (FIGURE 3). Then lift out
the lter (FIGURE 4).
Reverse the order to replace with a new lter.
FIGURE 1 FIGURE 2 FIGURE 3 FIGURE 4
REMOVING AND REPLACING THE FILTER
(ALL OTHER ACRYLIC SPAS EXCEPT MONACO, EL DORADO & SEVILLE)
REMOVING AND REPLACING THE FILTER
(MONACO, EL DORADO, AND SEVILLE SPAS)
Push the lter gate forward. Unscrew, remove and replace the lter.

8
A GFCI CORD IS SUPPLIED WITH YOUR SPA.
Use only a line with a dedicated 15 Amp breaker.
This line cannot be shared with any other appliances while the spa is running or the breaker
will trip immediately.
Do not use extension cords between the wall outlet and the spa or the breaker will trip imme-
diately and can be a potential fire hazard.
The plug should be easily accessible to users.
The receptacle should be protected from the weather.
Metal surfaces within 5 feet of the spa must be grounded to the spa.
Standard Outlet with GFCI Spa cord.

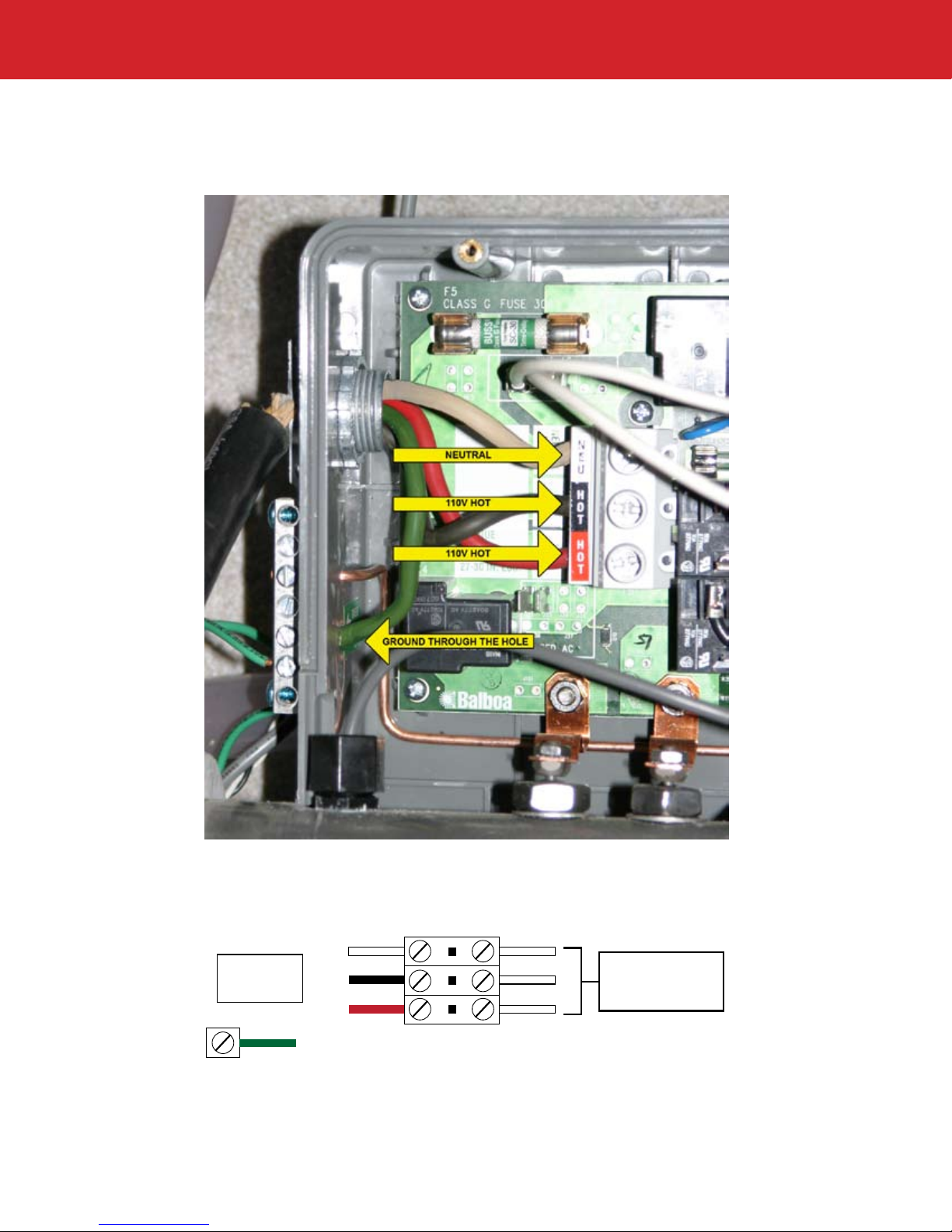

ELECTRICAL - GENERAL INSTRUCTIONS FOR 110V USE ONLY.

9

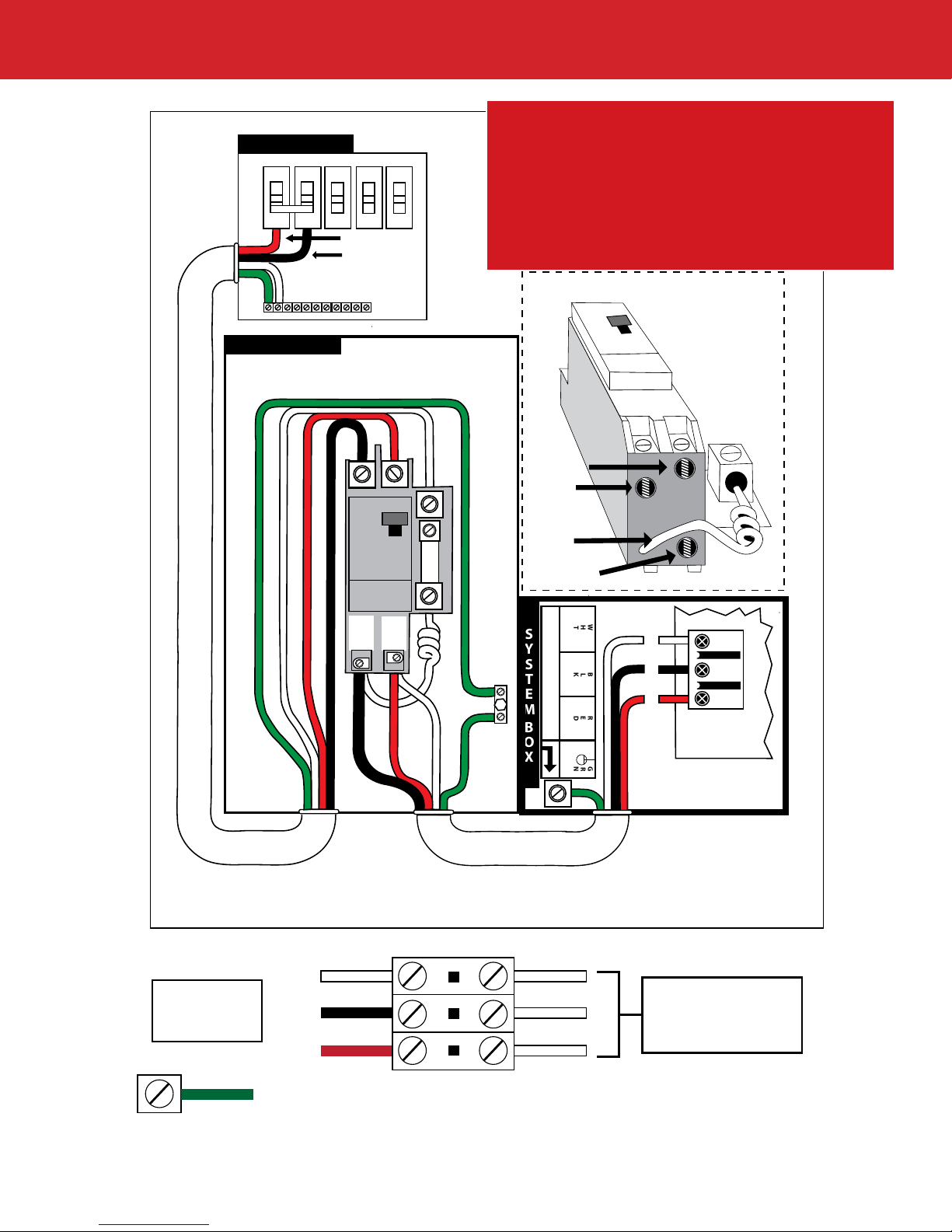

L1
L2
N
GRND
THREE WIRE
& GROUND
THESE WIRES GO
TO THE PC BOARD
CONTROL CIRCUIT
HOT BLACK
NEUTRAL
110V
IF USING THE STANDARD 110V SERVICE, YOU MUST USE A DEDICATED LINE, WHICH
MEANS THAT THERE CAN NOT BE ANY OTHER HOUSEHOLD ITEMS CONNECTED TO
THE CIRCUIT OR OUTLET AT ALL! HAVING ANY OTHER ELECTRICAL APPLIANCES AT
ALL ON THIS CIRCUIT WHILE THE SPA IS RUNNING WILL TRIP THE BREAKER
IMMEDIATELY. DO NOT USE ANY TYPE OF EXTENSION CORDS BETWEEN THE SPA
AND THE WALL OUTLET, THIS WILL ALSO CAUSE THE BREAKER TO TRIP AND CAN
BE A POTENTIAL FIRE HAZARD.
ELECTRICAL - GENERAL INSTRUCTIONS FOR 110V USE ONLY
(MONACO 20, SEVILLE 22 & EL DORADO 22)
It is recommended that a licensed electrician install the power to your spa, in accordance with the National Electric Code
and/or any local electrical codes in effect at the time of installation.
Power supply installation must include a properly rated GFCI circuit breaker. The circuit must be dedicated and should
not be shared with any other appliances. It should be labeled and easily accessible to users. The power supply must be
hard wired into the power pack.

10

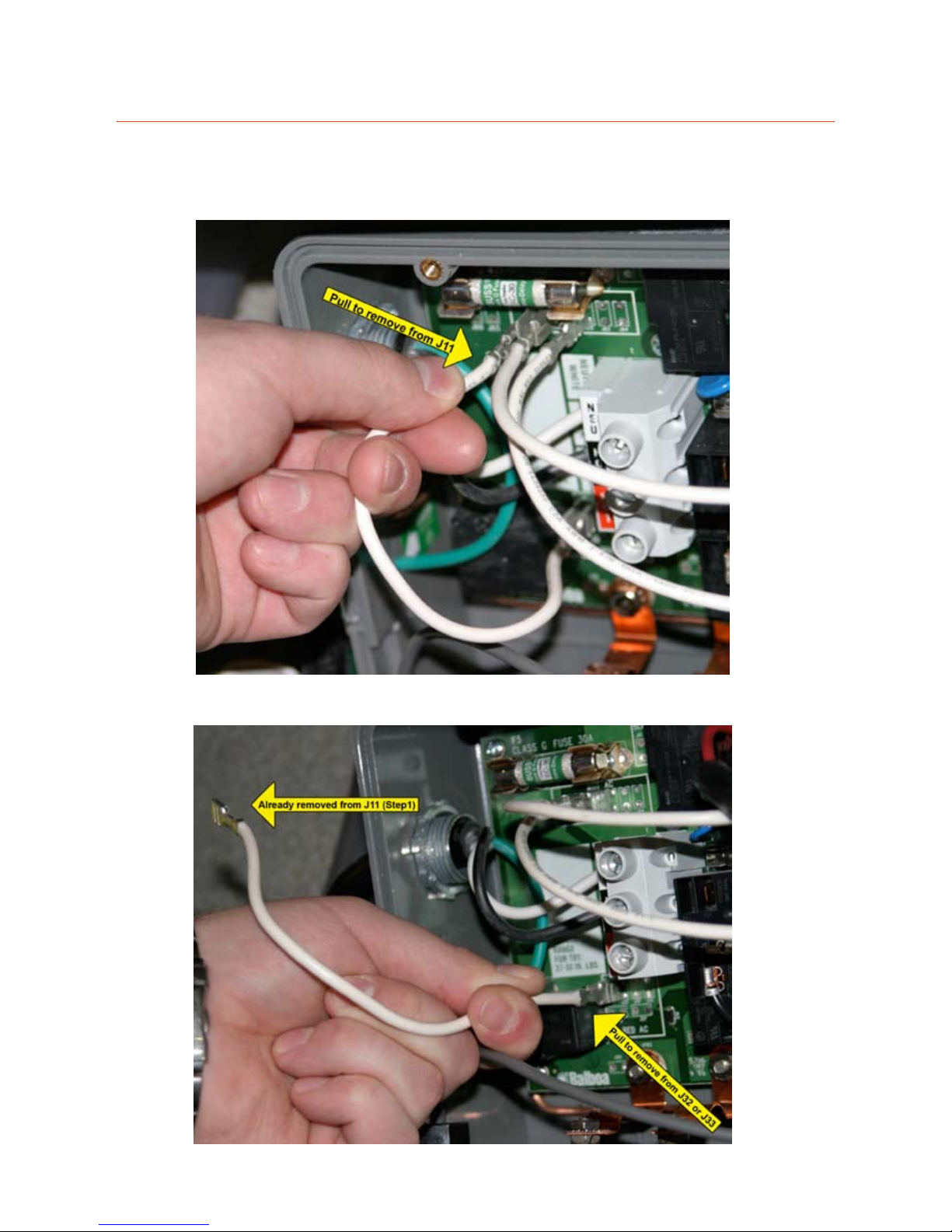

STEP 1
STEP 2
110V TO 220V CONVERSION
(MONACO 20, SEVILLE 22 & EL DORADO 22 ONLY)
The four steps to convert your spa from 110 volts to 220 volts.

11
STEP 3
STEP 4

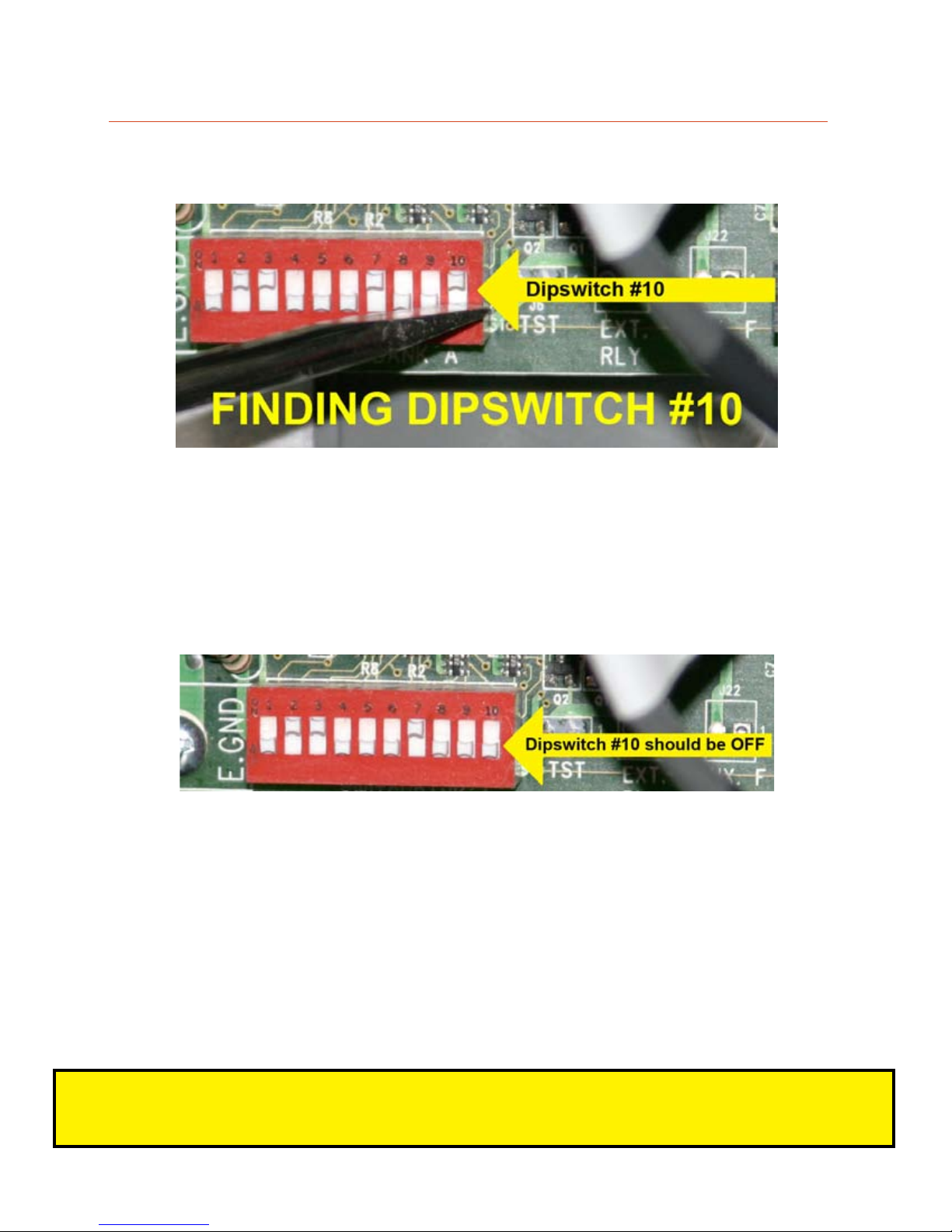

Turn dip switch #10 to the OFF position.
You are nished!
ONLY DIP SWITCHES #2, #3 and #7 SHOULD BE IN THE ON POSITION
WHEN 220V CONVERSION IS COMPLETE!

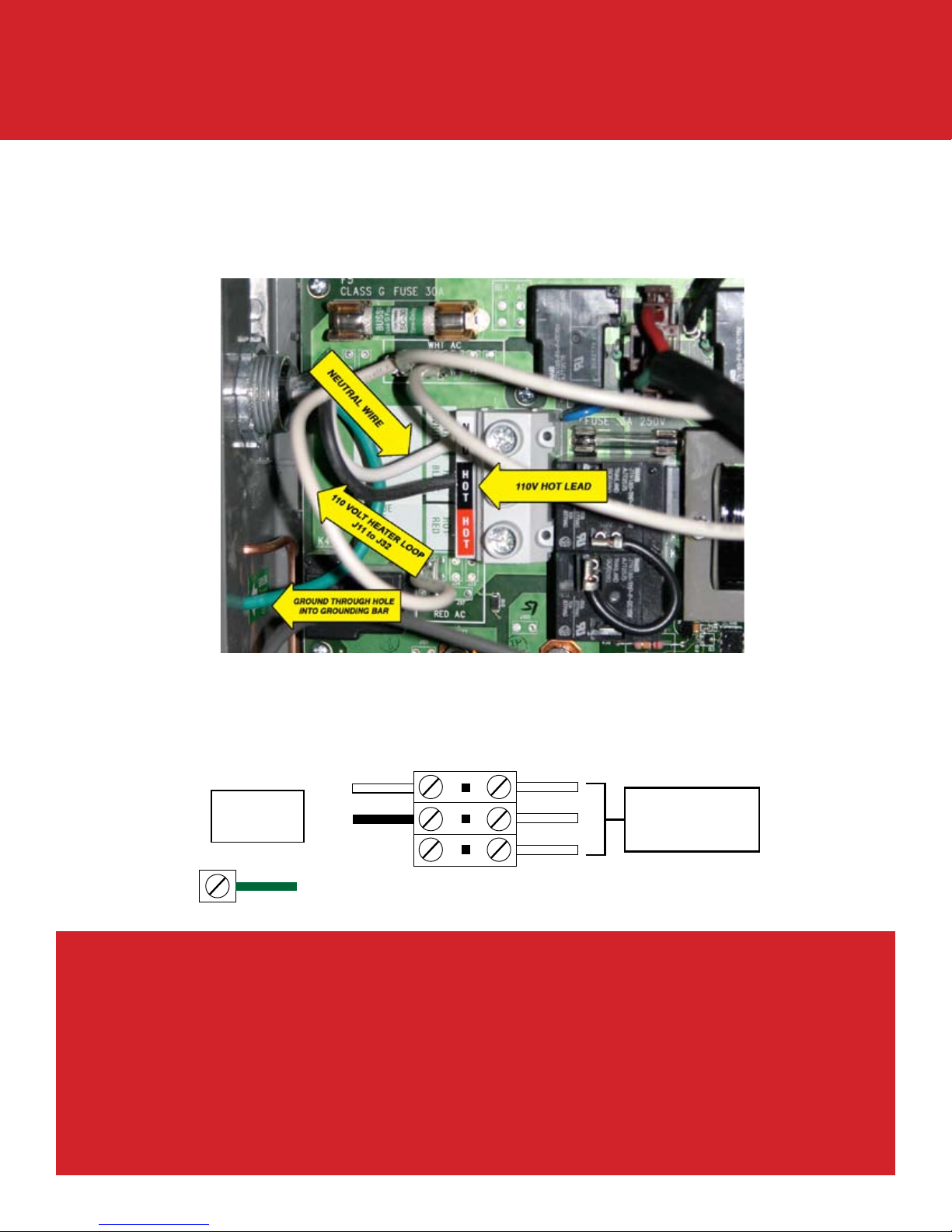

CHECK STEP 5 ON PAGE 12 TO BE SURE YOUR WIRING LOOKS
EXACTLY LIKE THE PHOTO IN STEP 5.
NOTE: DIP SWITCHES #2, #3, #7, and #10 ARE THE ONLY DIP SWITCHES
THAT ARE IN THE ON POSITION TO RUN AT 110 VOLTS. ADJUSTING ANY
OTHER DIP SWITCH WILL RENDER THE SPA INOPERABLE AND MAY
CAUSE PERMANENT DAMAGE. THIS ALSO VOIDS ALL WARRANTIES.
110V TO 220V CONVERSION
(MONACO 20, SEVILLE 22 & EL DORADO 22 ONLY)
PLEASE CHECK YOU LOCAL BUILDING CODES AND ONLY USE A CERTIFIED ELECTRICIAN
TO INSTALL ANY ELECTRICAL COMPONENTS TO YOUR SPA.

12
L1
L2
N
GRND
THREE WIRE
& GROUND
THESE WIRES GO
TO THE PC BOARD
CONTROL CIRCUIT
220V
STEP 5
Your wiring should look like this. If wiring appears differently,
DO NOT power your spa and contact our tech support for assistance.
THIS SECTION FOR 220V SETUP.

13
ILLUSTRATIONS COURTESY OF BALBOA INSTRUMENTS
ELECTRICAL - WIRING DIAGRAM FOR 220V USE.
4:45&.
#09
ON ON ON ON ON
OFF OFF OFF OFF OFF
RED (HOT)
BLACK (HOT)
WHT
GRN
Front View of G.F.C.I. (Square D)
G.F.C.I. Breaker Box
House Breaker Box
GRN (GROUND)
GRN (GROUND)
GRN (GROUND)
WHT (NEUTRAL)
RED (HOT)
RED (HOT)
BLK (HOT)
BLK (HOT)
WHT
WHT
ON
OFF
LOAD
OUT
(BLK)
LOAD
OUT
(RED)
(3/
8)5
3&%
#-,
Neutral Hot Hot Ground
USE COPPER 240V
WIRE MIN 8 AWG 40A 60Hz
RED (HOT)
FROM SPA
BLK (HOT)
FROM SPA
WHT
FROM SPA
WHT
BOTTOM VIEW OF G.F.C.I.
(SQUARE D)
ON
OFF
1 Pump Spa 220 Volt Wiring Diagram
RECOMMENDED
8 Guage, 4 wire
40 AMP GFI Rated Breaker
SPA CIRCUIT BOARD
L1
L2
N
GRND
THREE WIRE
& GROUND
THESE WIRES GO
TO THE PC BOARD
CONTROL CIRCUIT
220V
Peak electrical demands:
Monaco 20, Seville 22, El Dorado 22
(110V) - 14 AMPS
(220V) - 30 AMPS
Monaco 31 & Barcelona 33 (220V) - 28 AMPS
Barcelona 55 (220V) - 30 AMPS
Vienna 66 & Madrid 77 (220V) - 48 AMPS

14
4:45&.
#09
ON ON ON ON ON
OFF OFF OFF OFF OFF
House Breaker Box
(3/
#-6
#3/
Neutral Hot Ground
USE COPPER 230V
WIRE MIN. 8 AWG - 20A 50Hz
SPA CIRCUIT BOARD
N
N
1
2
0 OFF
TEST
BROWN (HOT)
BROWN (HOT)
BROWN (HOT)
BLUE (NEUTRAL)
BLUE (NEUTRAL)
BLUE
(NEUTRAL)
GREEN/
YELLOW
(GROUND)
GREEN/
YELLOW
(GROUND)
GREEN/
YELLOW
(GROUND)
L1
L2
GRND
Two Wire & Earth
(Also known as Ground)
These wires go to
the PC Board Control
Circuit.
Earth/Ground = Green & Yellow wire
L1 = Positive/Live = Brown wire
L2 = Negative/Neutral = Blue wire
230 Volt - Single service 1x16 - 20 AMP Breaker
230 Volt - Double service 1x32 - 40 AMP Breaker
Electrical Connections
Substitute these common HOT, NEUTRAL, EARTH GROUND colors for your countries standard.
PLEASE CHECK YOUR LOCAL BUILDING CODES AND ONLY USE A CERTIFIED ELECTRICIAN TO
INSTALL ANY ELECTRICAL COMPONANTS TO YOUR SPA.
EUROPEAN WIRING DIAGRAM
ILLUSTRATIONS COURTESY OF BALBOA INSTRUMENTS
THIS SECTION IS FOR EUROPEAN USERS ONLY

15
System Settings
When your spa is rst actuated, it will go into Priming mode, indicated by “Pr.” The Priming mode will last for less than
5 minutes (press “Warm” or “Cool” to skip Priming Mode) and then the spa will begin to take temperature readings, fol-
lowed by the heater test cycle. After completed, the heater will turn on, heat the spa and maintain the water temperature in
the Standard mode.
The start-up temperature is set at 100°F/37°C. The last measured temperature is constantly displayed on the LCD. Note
that the last measured spa temperature displayed is current only when the pump has been running for at least 2 minutes.
To display the set temperature, press the “Warm” or “Cool” pad once.
To change the set temperature, press the pad a second time before the LCD stops ashing. Each press of the “Warm” or
“Cool” pad will continue to either raise or lower the set temperature.
After three seconds, the LCD will stop ashing and display the current spa temperature.
Jets
Touch the “Jets” button once to turn the pump on or off, and to shift between low and high speeds. If left running, the low
speed of the pump will automatically turn off after 2 hours, and the high speed will automatically turn off after 15 min-
utes.
Light
Press the “Light” button to turn the light on and off. If left on, the light automatically turns off after 4 hours unless manu-
ally turned off prior to 4 hours.
Preset Filter Cycles
The rst lter cycle begins 6 minutes after the spa is energized. The second lter cycle begins 12 hours later. Filter dura-
tion is programmable for 1-8 per 12 hours. The default lter time is 2 hours.
To program, press “Warm” then “Jets”.
Press “Warm” to adjust. Press “Jets” to exit programming.
During the lter cycle, the low speed on the pump never turns off until lter cycle is completed, and in Economy and
Sleep Mode, heating only occurs during the lter cycle.
CONTROL PANEL IDENTIFICATION
(MONACO 20 & 31, SEVILLE 22, EL DORADO 22 & BARCELONA 33)

16
MODE (OPTIONAL)
All MONACO 20 & 31, SEVILLE 22, EL DORADO 22 & BARCELONA 33
spas are factory locked in STANDARD MODE.
Mode is changed by pressing the “Warm” or “Cool” button, then pressing the “Light” button.
Standard Mode is programmed to maintain the desired temperature. Note that the last measured spa temperature dis-
played is current only when the pump has been running for at least 2 minutes. “St” will be displayed momentarily when
you switch into Standard Mode.
Economy Mode heats the spa to the set temperature only during lter cycles. “Ec” will display solid when temperature is
not current, and will alternate with temperature when temperature is current.
Sleep Mode also heats the spa to the set temperature only during ltration cycles. “Sl” will display solid when tempera-
ture is not current, and will alternate with temperature when temperature is current, but only within 20 degrees of your set
temperature. If you would like to use Economy or Sleep Mode you must ip dip switch #7 to the OFF position.
SEE FIGURE 5 BELOW.
Freeze Protection
If the temperature sensors detect a drop to below 44°F/6.7°C within the heater, the pumps will automatically activate to
provide freeze protection. The equipment stays on until 4 minutes after the sensors detect that the spa temperature has
risen to 45°F/7.2°C or higher.
PLEASE CHECK YOUR LOCAL BUILDING CODES AND ONLY USE A CERTIFIED ELECTRICIAN
TO INSTALL ANY ELECTRICAL COMPONENTS TO YOUR SPA.
(Figure 5)

17
System Settings
When your spa is rst actuated, it will go into Priming mode,
indicated by “Pr.” The Priming mode will last for less than 5
minutes (press “Warm” or “Cool” to skip Priming Mode) and
then the spa will begin to take temperature readings, followed
by the heater test cycle. After completed, the heater will turn
on, heat the spa and maintain the water temperature in the
Standard mode.
The start-up temperature is set at 100°F/37°C. The
last measured temperature is constantly displayed on the LCD.
Note that the last measured spa temperature displayed is current
only when the pump has been running for at least 2 minutes.
To display the set temperature, press the “Warm” or
“Cool” pad once. Each press of the “Warm” or “Cool” pad will
continue to either raise or lower the set temperature. After three
seconds, the LCD will display the current spa temperature.
Jets 1
Touch the “Jets 1” button once to turn pump 1 on or off, and
to shift between low and high speeds. If left running, the low
speed of the pump will automatically turn off after 2 hours, and
the high speed will automatically turn off after 15 minutes.
Jets 2
Touch the “Jets 2” button once to turn pump 2 on or off and to
shift between low and high speeds. If left running, pump 2 will
automatically turn off after 15 minutes.
Light
Press the “Light” button to turn the light on and off. If left on,
the light automatically turns off after 4 hours unless manually
turned off prior to 4 hours
Mode
Mode is changed by pressing the “Warm” or “Cool” button,
then pressing the “Mode” button.
Standard Mode is programmed to maintain the desired tem-
perature. Note that the last measured spa temperature displayed
is current only when the circulation pump has been running for
at least 2 minutes. “Std” will be displayed momentarily when
you switch into Standard Mode.
Economy Mode heats the spa to the set temperature only dur-
ing lter cycles. “Ecn” will display solid when temperature is
not current, and will alternate with temperature when tempera-
ture is current.
Sleep Mode heats the spa to the set temperature only during
ltration cycles. “Slp” will display solid when temperature is
not current, and will alternate with temperature when tempera-
ture is current and will only heat to within 20 degrees of set
temperature.
Option
The Option button is not used in any of our spas.
Preset Filter Cycles
The rst lter cycle begins 6 minutes after the spa is energized.
The second lter cycle begins 12 hours later. Filter duration is
programmable for 2, 4, 6, 8 hours or for continuous ltration
(indicated by “Filc”). The default lter time is 2 hours.
To program, press “Warm” or “Cool”, then “Jets 1”. Press
“Warm” or “Cool” to adjust. Press “Jets 1” to exit program-
ming. At the beginning of each lter cycle the pumps purge for
5 minutes. The only effect lter duration has is: 1) During the
lter cycle, the pump never turns off, and 2) In Economy and
Sleep Mode, heating only occurs during the lter cycle.
Freeze Protection
If the temperature sensors detect a drop to below 44°F/6.7°C
within the heater, the pumps will automatically activate to pro-
vide freeze protection. The equipment stays on until 4 minutes
after the sensors detect that the spa temperature has risen to
45°F/7.2°C or higher.
CONTROL PANEL IDENTIFICATION
(BARCELONA 55, VIENNA 66 & MADRID 77)

18
NOTE: See Union Adjustment Information before operating spa.
Before starting up your spa, make sure you have read and under-
stand all of the previous instructions. Make sure the spa has been
installed correctly, including the electrical wiring connections as
specied.
• Spa’s water is at the correct level
• Ensure all gate valves are opened with clip installed. See page 6.
• The circuit breaker on the control panel has automatic func-
tions that operate upon start up and normal operation to protect
the system. Upon power up, “PR” will appear for 2 minutes while
system is in purge mode and then normal operation will resume.
Approximately six minutes after the system has been powered up
the rst ltration cycle will begin to operate. Any time after the
start up, you will be able to change the lter cycle and reset your
temperature set point.
Upon startup, the pump may sound sluggish and the ow from
the jets will be minimal, this indicates you have an air lock in the
pump. To release the air from the pump, simply open the highest
union (or upper union) to release the air trapped in the water lines,
or gently, using a 17mm or 18mm wrench (varies on pump size)
slowly loosen the black plastic hex head bolt in front of pump. You
will hear air being pushed out the union or bolt, once the air stops
and water starts to come out, the pump will pick up speed and the
jets’ ow will increase. Carefully
tighten the union or bolt until the
water does not leak from the union or
bolt. Be careful not to overtighten the
black hex head bolt this may cause
the bolt to strip or you may pinch the
gasket. Strong recommends that you
loosen the upper union to relieve the
air from the lines since this method
lessens the chance of stripping the
hex bolts.
REMOVING AN AIR LOCK

19

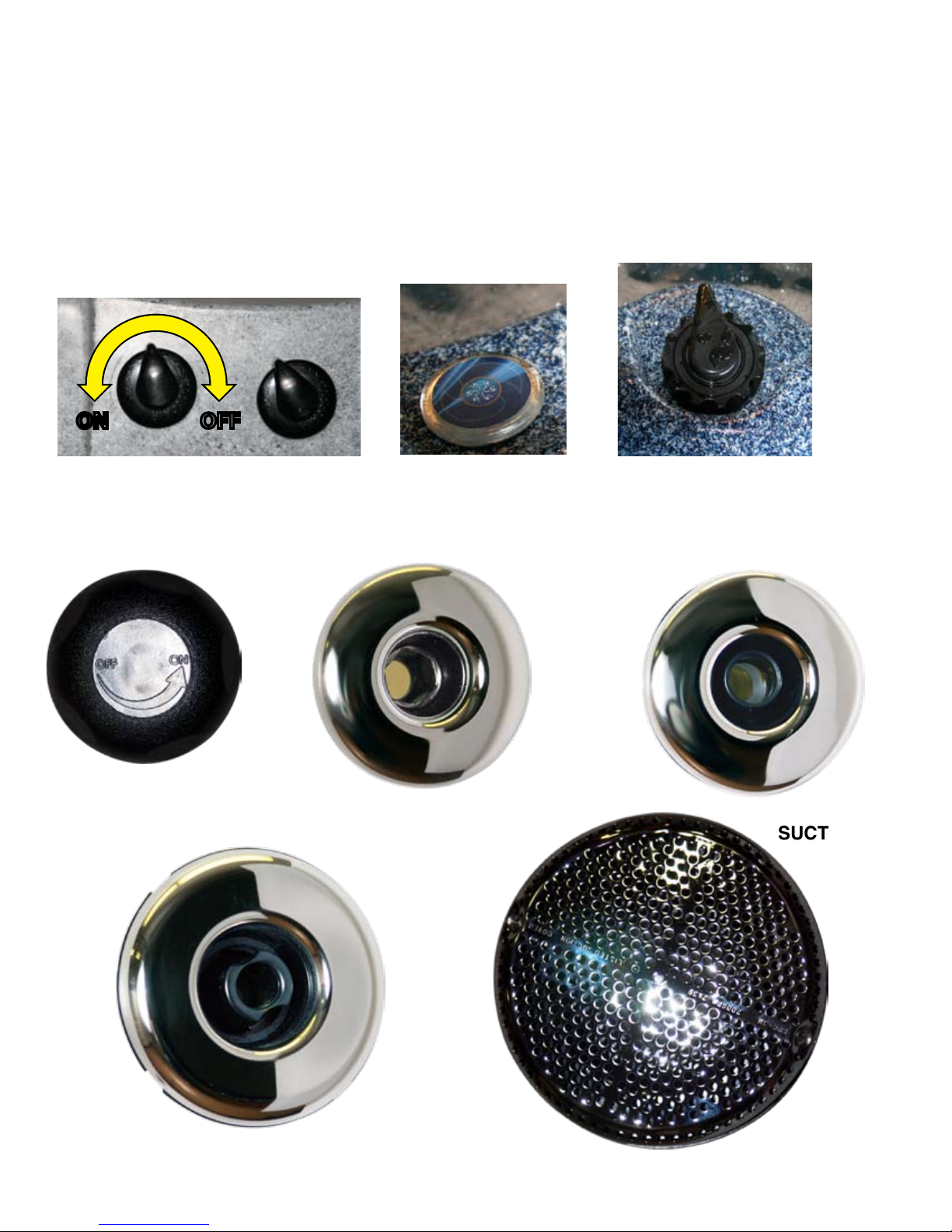

AIR CONTROLS
WATERFALL FLOW
ADJUSTMENT
ON OFF
Adjust the amount of air ow coming
out of the jets from MINIMAL to FULL
power. Turn off air when not in use to
prevent evaporation and heat loss.
SPA CONTROLS
SPA FITTING (JET) TYPES
3” STAINLESS ADJUSTABLE DIRECTIONAL SUCTION
2” STAINLESS FIXED 2” STAINLESS
ADJUSTABLE DIRECTIONAL
WATER DIVERTERS
Turning the water diverter knobs
from left to right will divert the
water pressure from seat to seat.
Switch pumps from
HI to LO by pressing
these remote buttons.
REMOTE PUMP
CONTROLS

20


  
  
 

 
 
  



   
  








 

 
 


 
 
   
  
 
