STSLITE M SPOT 200 User manual

M SPOT 200
User Manual
Ver1.0

1
Table of contents
INTRODUCTION ……………………………………………….…………………………..2
SAFETY INSTRUCTIONS…………………………………………………………………2
OPERATING DETERMINATIONS…………………………………………….…………..3
DESCRIPTION OF THE DEVICE…………………………………………………………4
INSTALLATION………………………………………………………………….…………..3
OPERATION……………………………………………………………………….………...4
Stand alone operation…………………………………………………………….…………4
Master slave operation…………………………………………………………….……..…4
DMX controlled operation………………………………………………………….…….…4
Addressing…………………………………………………………………………….…..…4
Control board………………………………………………………………………….…..…4
DMX protocol………………………………………………………………………….…..…5
TECHNICAL SPECIFICATIONS…………………………………………………….….…8

2
Every person involved with installation. operation and maintenance of this fixture has to
- be qualified
- follow the instruction of this manual
- consider this manual to be part of the total product
- Keep this manual for the entire service life of the product
- pass this manual to every future owner or use of the product
INTRODUCTION
Thank you for choosing our fixture, if you follow up the instruction given in this manual we be sure that
you will enjoy this product for a long period of time
SAFETY INSTRUCTION
This device has left our premises in absolutely perfect condition .In order to maintain this condition and
to ensure a safe operation, it is absolutely necessary for the user to follow the safety instruction and
warning notes written in this user manual.
Important: Damages caused by the disregard of this user manual are not subject o warranty, the dealer
will not accept liability for any resulting defects of problem. If the device had been exposed to drastic
temperature fluctuation (e.g. after transportation),do not switch it on immediately. The arising
condensation water might damage your device. Leave the device switched off until it had reached room
temperature. Please make sure that there are no obvious transport damages, should you notice any
damages on the AC connection cable or on the casing, do not take the device into operation and
immediately consult your local dealer.
OPERATING DETERMINATIONS
This device is designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects. Do not shake the device. Avoid brute force when
installing or operation the device. Never lift the fixture by holding it at the projector-head. As the
mechanics may be damaged. When choosing the installation-spot, please make sure that the device is
not exposed to extreme heat, moisture or dust. There should not be any cable lying around. Please
make sure that the fixture can not be touched or bumped. Your endanger your own and the safety of
others.
DESCRIPTION OF THE DEVICE
CAUTION!
Be careful with your operations, With a dangerous voltage you can suffer a dangerous electric
shock when touching the wires.
CAUTION !
Keep this device away from rain and moisture
Unplug mains lead before opening the housing
For your own safety, please read this user manual carefully before you initially start-up

3
Features
> High power 200w white led
>50000 hours lifetime and lower power consumption
> 18 DMX channel in optional
> Beam angle 14/24 degree
>540 degree Pan and 270 degree Tilt movement
>1 Color wheel with 7 diachronic colors plus white
> 1 Rotated gobo wheel with 7 rotated interchangeable gobos plus open.
> 1 Fixed gobo wheel with 9 gobos plus open
> Rotated prism and Rotated shadom prism effect
> Zoom and Iris effect
> Infinite electric focus with 2m range, and linear Iris, and shutter with variable speed
> 0~100% linear dimmer and 1-18 times/sec high speed electronic strobe
> DMX512, master-slave and sound activated controllable and auto with 8 built-in programs
INSTALLATION
Rigging
The installation of the projector has to be built and constructed in a way that it can hold 10 times the
weight for 1 hour without any harming deformation.
IMPORTANT!OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including calculating
working load limits, installation material being used, and periodic safety inspection of all installation
material and the projector. If you lack these qualifications, do not attempt the installation yourself, but
instead use a professional structural rigger. Improper installation can result in bodily injury and or
damage to property. The projector had to be installed out of the reach of people
DANGER OF FIRE! When installing the device, make sure there is no highly-inflammable
material(decoration articles, etc.)within a distance of min.0.5m.

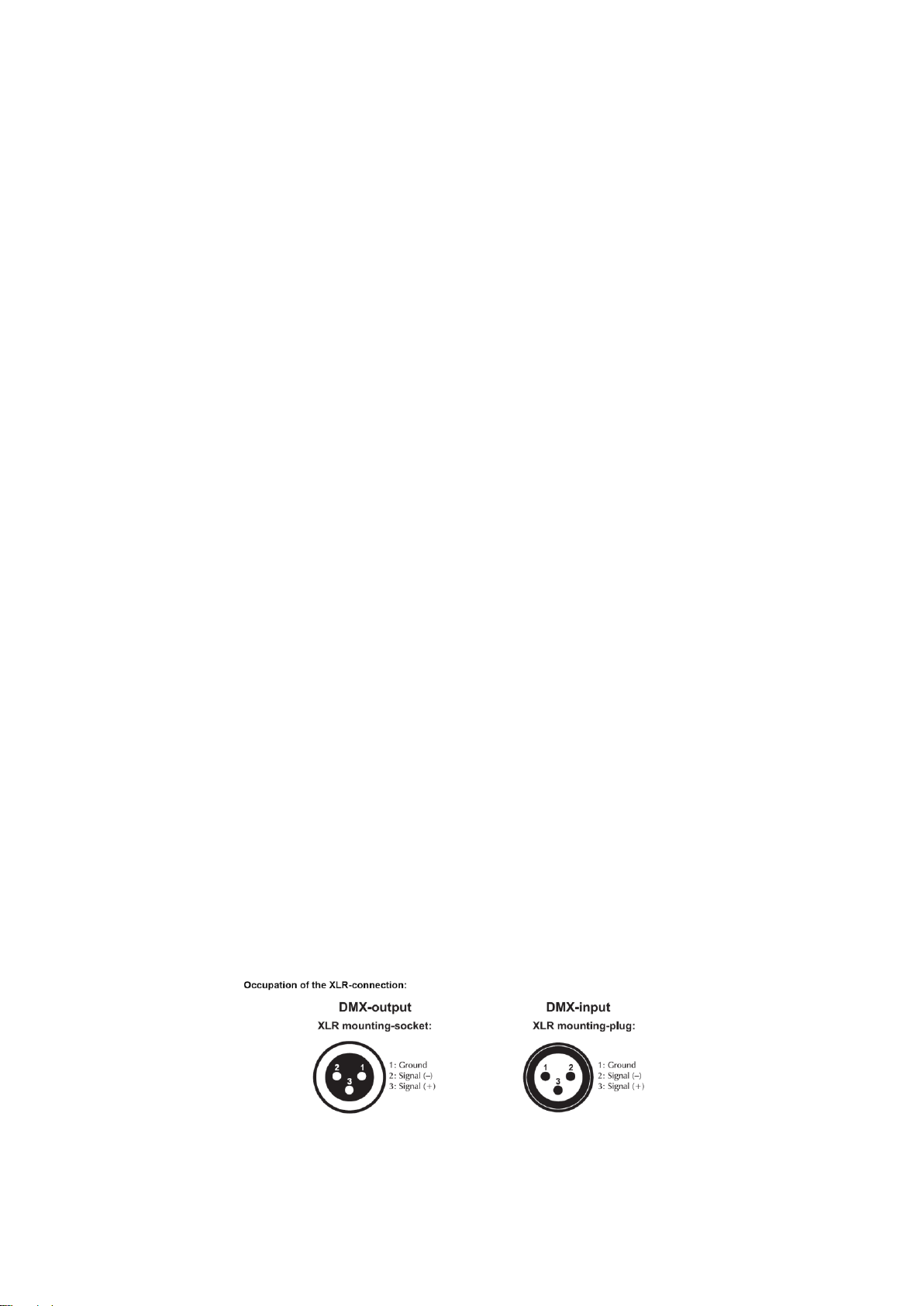

DMX 512 connection/ connection between fixture
The wires must not come into contact with each other, otherwise the fixture will not work at all or
properly. Please note the starting address depends upon which controller is being used. Only use a
DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one
fixture to another
Connection with the mains.

4
The earth has to be connected. The device must only be connected with an electric installation carried
out in compliance with IEC standards.
OPERATION
After you connected the effect to the mains, The fixture starts running
Stand Alone operation
In the stand alone mode, the fixture can be use without controller
Master/slave-operation
The master/slave-operation enables that several devices can be synchronized and controlled by one
master-device
DMX controlled operation
You can control the projectors individually via your DMX-controller
Addressing
The control board allows you to assign the DMX starting address,
Note;it’s necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order
to ensure proper transmission on the DMX data link.
CONTROL BOARD
The control board offer several features :you can simple set the starting address, run the
pre-programmed program or make a reset
the main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by
pressing Up or Down .Press the Enter-button in order to select the desired menu. You can change the
selection by pressing Up or Down, Confirm every selection by pressing the Enter-button. You can leave
every mode by pressing the Mode/Esc-button .The functions provided are described in the following
setting.
MENU MAP
The device has two operation modes, It can be operated in Stand Alone or in DMX controlled
SET ( Setting )
Run Mode
DMX
Auto 1
Auto 2
Auto 3
Auto 4
XY effect 1
XY effect 2
XY effect 3
XY effect 4
Random effect
Sound
Sound Sensitivity
001-100
DMX-Address
001-512

5
Channel Mode
18CH
Invert Pan
ON/OFF
Invert Tilt
ON/OFF
Pan-Tilt Swap
ON/OFF
Pan-Tilt Encoder
ON/OFF
No DMX Signal
KEEP/CLEAR
Display Power Save
ON/OFF
Linear change of color wheel
ON/OFF
Load Default
OK/Cancel
Manual
Pan
0-255
Pan Fine
0-255
Tilt
0-255
Tilt Fine
0-255
Pan/Tilt
0-255
Shutter / Strobe
0-255
Dimmer
0-255
Color Wheel
0-255
Gobo Wheel
0-255
Effect Gobo Change
0-255
Effect Gobo Rotation
0-255
Prism
0-255
Prism rotation
0-255
Zoom In
0-255
Focus
0-255
Iris
0-255
Reset
OK/Cancel
Macro Function
0-255
Sys ( System )
VER.
Show Temperature
DMX Monitor
System Errors
Total Fixture Hours
Partial Fixture Hours
Total Lamp Hours
Partial Lamp Hours
Advance
Input Password
DMX-protocol
18 DMX channel mode
channel
value
function
1
0-255
Pan movement
Pan movement
2
Pan Fine

6
0-255
Pan fine movement
3
0-255
Tilt movement
Tilt movement
4
0-255
Tilt Fine
Tilt fine movement
5
0-255
Pan/Tilt Speed
Pan/Tilt movement with decreasing speed
6
0-3
4-251
252-255
Shutter/Strobe
Shutter close
Strobe with increasing speed
Shutter open
7
0-255
Dimmer
0~100% linear dimmer
8
0-9
10-19
20-29
30-39
40-49
50-59
60-69
70-79
80-89
90-99
100-109
110-119
120-129
130-139
140-149
150-159
160-199
200-255
Color wheel
White
Red
Orange
Green
Purple
Yellow
Blue
Pink
White+Red
Red+Orange
Orange+Green
Green+Purple
Purple+Yellow
Yellow+Blue
Blue+Pink
Pink+White
Anti-clockewise rainbow effect with decreasing speed
Clockewise rainbow effect with increasing speed
9
0-7
8-15
16-23
24-31
32-39
40-47
48-55
56-63
64-71
72-79
80-129
130-134
135-210
Gobo Wheel
Open/White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Gobo 8
Gobo 9
Anti-clockwise gobo change with decreasing speed
White
Clockwise gobo change with increasing speed

7
211-215
216-220
221-225
226-230
231-235
236-240
241-245
246-250
251-255
Gobo 1 shaking
Gobo 2 shaking
Gobo 3 shaking
Gobo 4 shaking
Gobo 5 shaking
Gobo 6 shaking
Gobo 7 shaking
Gobo 8 shaking
Gobo 9 shaking
10
0-7
8-15
16-23
24-31
32-39
40-47
48-55
56-63
64-127
128-132
133-220
221-225
226-230
231-235
236-240
241-245
246-250
251-255
Effect Gobo Change
White
Gobo 1
Gobo 2
Gobo 3
Gobo 4
Gobo 5
Gobo 6
Gobo 7
Anti-clockwise gobo change with decreasing speed
White
Clockwise gobo change with increasing speed
Gobo 1 shaking
Gobo 2 shaking
Gobo 3 shaking
Gobo 4 shaking
Gobo 5 shaking
Gobo 6 shaking
Gobo 7 shaking
11
0-127
128-191
192-255
Effect Gobo Rotation
Gobo angle adjustment
Anti-clockwise gobo rotation with decreasing speed
Clockwise gobo rotation with increasing speed
12
0
1-127
128-255
Prism
No function
Shadom 3-face Prism effect
3-face Prism effect
13
0-127
128-190
191-192
193-255
Prism rotation
Prism angle adjustment
Rotated prism with decreasing speed in anti-clockwise
No function
Rotated prism with increasing speed in clockwise
14
0-255
Zoom In
Zoom in/out
15
0-255
Focus
0~100% from far to near adjustment
16
Iris

8
0-150
151-250
251-255
Iris narrowing
Iris in and out with increasing speed
Iris off
17
0-25
26-76
77-127
128-240
241-255
Reset
No function
Reset for
Gobo/color/prism/rotated gobo/rotated prism/
focus/zoom/iris
Reset for X/Y
All reset
No function
18
0-15
16-55
56-95
96-135
136-175
176-215
216-240
241-255
Macro function
No function
Automatic movement 1
Automatic movement 2
Automatic movement 3
Automatic movement 4
Sound-active movement
Random effect
No function
TECHNICIAL SPECIFICATIONS
Model
M SPOT 200
Voltage
110V- 250V / 50-60Hz
Power consumption:
300W
LED
200w high power white led
Net Weight
16.95Kgs
Dimensions
57cmx43cmx31cm
