Subaru H001SSG800 User manual

Sold by: Fuji Heavy Industries Ltd.
Smart Engine Start
INSTALLATION MANUAL Genuine Part # : H001SSG800
Vehicle Model : Forester
Tools Required
Phillips Screwdriver
Flat Blade Screwdriver
10mm Socket Wrench
Torque Wrench
Pliers
Volt Meter (Or Circuit Tester)
Side Cutters
Scissors
Utility Knife
Masking Tape
Electrical Tape
Trim Removal Tool
Isopropyl Alcohol
Cleaning Towel
: Remove : Tighten Torque
: Install : Loosen
: Disconnect : Discard
: Connect
: Location of Clip or Screw : Re-use
Meaning of Characters
Kit Contents
SES ECU Double-Sided tape Foam tape Hood Switch Bracket Hood Switch Bolt (M6x16) (Black)
Quantity:1 Quantity:1 Quantity:1 Quantity:1 Quantity:1 Quantity:1
Main Harness Sub-Harness Tie Wrap Foam tape Harness Clamp Bolt (M6x20)
Quantity:1 Quantity:1 Quantity:10 Quantity:1 Quantity:1 Quantity:1
Key Tag Engine Room Label
Wiper Lever Tag Key Ring Tag Owner’s Guide
Quantity:1 Quantity:1 Quantity:1 Quantity:1 Quantity:1
NOTE: Laws in some communities require that the
vehicle be within view of anyone using the Smart
Engine Start. In some areas, use of the Smart
Engine Start may violate state, provincial or local
laws. Before using the Smart Engine Start, check
your state, provincial and local laws
Service P/N: H001SSG810 Service P/N: H001SSG830
Service P/N: H001SSG820

Removal of Vehicle Components
Wiring Outline
5
1
2
7
8
11
10
9
Z
A
W
B
C
F
6
G
3
4

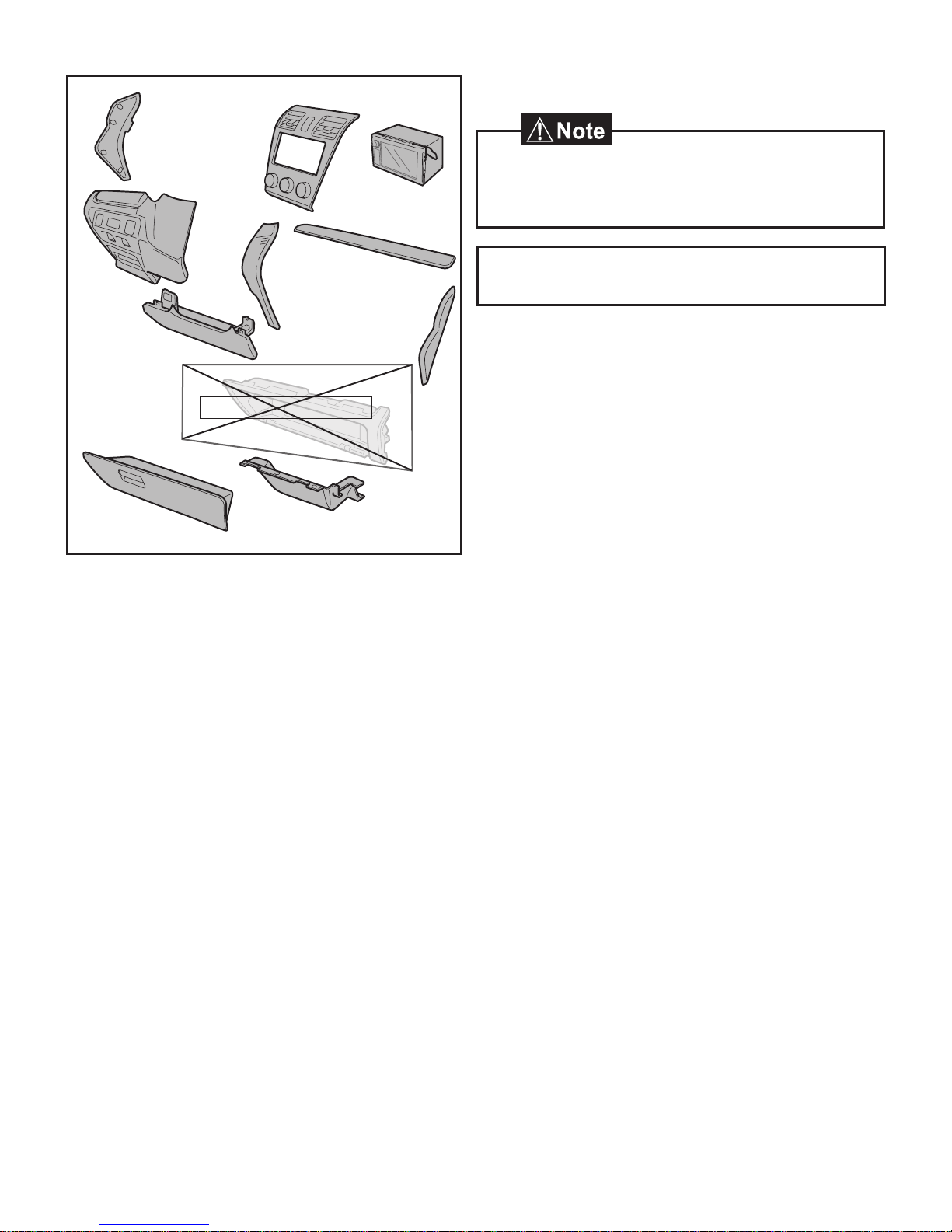

1 DS Dash Cover
2 Lower Dash Cover No.1
3 Lower Dash Cover No.2
4 DS Knee Airbag
5 Center Cluster Panel
6 Audio Unit
7 PS Dash Cover
8 Ornament Panel
9 Glove Box
10 Under Cover
11 Glove Box Inner Cover
A 24P White
B 1P White
C 1P White
F 8P White
G 2P White
Z SES ECU
WWhite Tape Marker
- 2 -

Vehicle Disassembly
4. Remove the Lower Dash Cover No.1.
• Remove 1 Screw.
• Disengage 8 Clips.
• Disconnect Vehicle connectors.
5. Remove the Lower Dash Cover No.2.
• Remove 1 Screw.
• Disengage 8 Clips by pulling both the top and
bottom of the panel simultaneously.
1. Place the Vehicle in Park with the Parking Brake set.
2. Disconnect the Negative Battery Terminal.
• Do not touch the Positive Battery Terminal with the
Negative Terminal.
• Note the Battery Cable Position as it will be reinstalled
in the same position.
• Wait at least 30 seconds after disconnecting the
Negative Battery Terminal before disconnecting the
Airbag Connector.
6. Remove the Driver’s Side Knee Airbag carefully.
• Remove 2 Nuts.
• Hold Airbag as to prevent tension on the Harness.
• Disengage the Yellow Connector Lock by using a
pick tool to lift upward.
• Use a Panel removal tool to carefully lift upward to
unplug the Airbag Connector.
3. Remove the Driver’s Side Dash Cover.
• Disengage 4 Clips.
• Wait at least 30 seconds after disconnecting the
Negative Battery Terminal before disconnecting the
Airbag Connector.
- 3 -

10. Remove the Ornament Panel.
• Disengage 5 Clips.
9. Remove the Passenger’s Side Dash Cover.
• Disengage 4 Clips.
8. Remove the Audio Unit.
• Remove 4 Screws.
• Disconnect Vehicle connectors.
7. Remove the Center Cluster Panel.
• Disengage 13 Clips.
• Disconnect Vehicle connectors.
- 4 -

13. Remove the Under Cover.
• Remove 3 Clips.
11. Open the Glove Box.
12. Dislodge the Glove Box.
14. Remove the Glove Box Inner Cover.
• Remove 7 Screws.
• Disengage 7 Clips.
• Disengage 2 vehicle harness Clips.
- 5 -

Installation Procedure
SES ECU Preparation and Installation

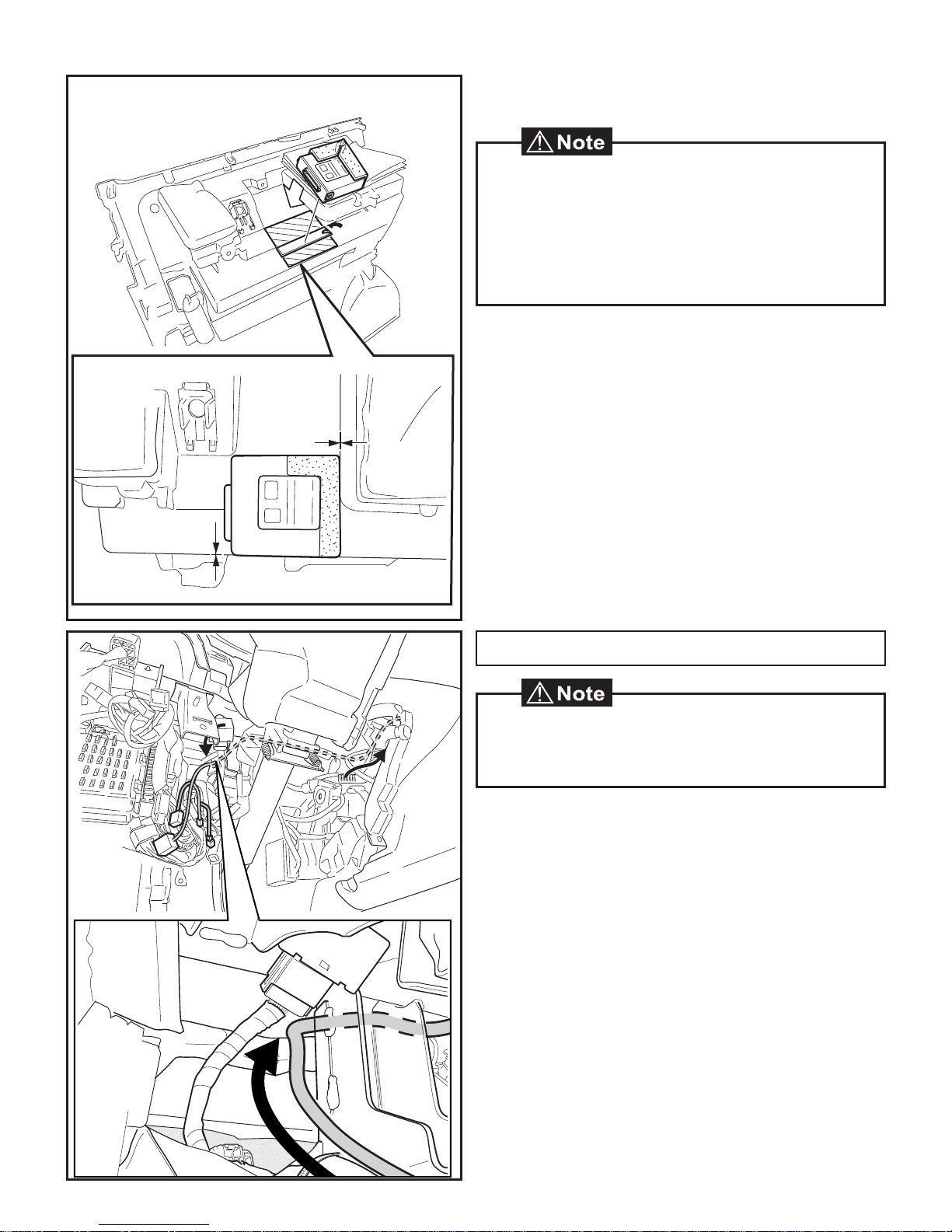

1. Clean the area indicated on the topside of the Glove
Box Inner Cover.
2. Attach the Double-Sided tape to the Glove Box
Inner Cover as shown.
• Clean attachment surface using isopropyl alcohol and
cleaning towel.
• To achieve maximum bond strength of Tape, the
attachment surface temperature must be between
68°F-110°F (20°C-43°C) upon application.
• Verify that the Double-sided tape is firmly attached.
3. Attach the Foam Tape to the SES ECU as shown.
0mm
0mm
• Clean attachment surface using isopropyl alcohol and
cleaning towel.
OO
OO
- 6 -

4. Attach the SES ECU to the topside of the Glove Box
Inner Cover as shown.
• Clean attachment surface using isopropyl alcohol and
cleaning towel.
• To achieve maximum bond strength of Tape, the
attachment surface temperature must be between
68°F-110°F (20°C-43°C) upon application.
• Verify that the SES ECU is firmly attached.
1. Route the Main Harness's 24P Connector toward
the Glove Box area.
2. Route the Main Harness's 8P and 2P Connectors
toward the J/B area.
Main Harness Installation
• Use caution when installing the Main Harness. Be
sure to route and attach harness away from sharp
metal surfaces.
OO
OO
- 7 -

3. Route the Main Harness'24P Connector along the
front or rear side of the Vehicle Harness and behind
the metal brackets. Do not position the Main Harness
on top of the Vehicle Harness. Duct position must not
be disturbed.
5. Secure the Main Harness White Marker to the
Vehicle Harness using 1 Tie Wrap.
6. Secure the Main Harness to the Vehicle Harness
using 1 Tie Wrap.
7. Secure the Main Harness to the Vehicle Harness
using 1 Tie Wrap.
- 8 -

8. Secure the Main Harness to the Vehicle Harness
using 1 Tie Wrap.
9. Remove the Tape securing the Vehicle’s 8P and 2P
Pre-Connectors.
10. Disconnect the Wire Jumper connector from the
Vehicle's 2P Pre-Connector.
11. Connect the Main Harness's 8P Connector to the
Vehicle's 8P Pre-Connector.
12. Connect the Main Harness's 2P Connector to the
Vehicle's 2P Pre-Connector.
• Discard the Wire Jumper connector. (This is used for
the power window interrupt circuit.)
- 9 -

13. Secure the Main Harness to the Vehicle Harness
using 2 Tie Wraps.
14. Secure the 8P and 2P Connector to the Vehicle
Harness using 1 Tie Wrap.
15. Connect the Main Harness’s 24P White Connector
to the SES ECU.
16. Reinstall the Glove Box Inner Cover.
FM5-RES052
• The Smart Engine Start ID must be registered first, so
do not secure the 1P Connectors yet.
- 10 -

Vehicles With Turbo ECU

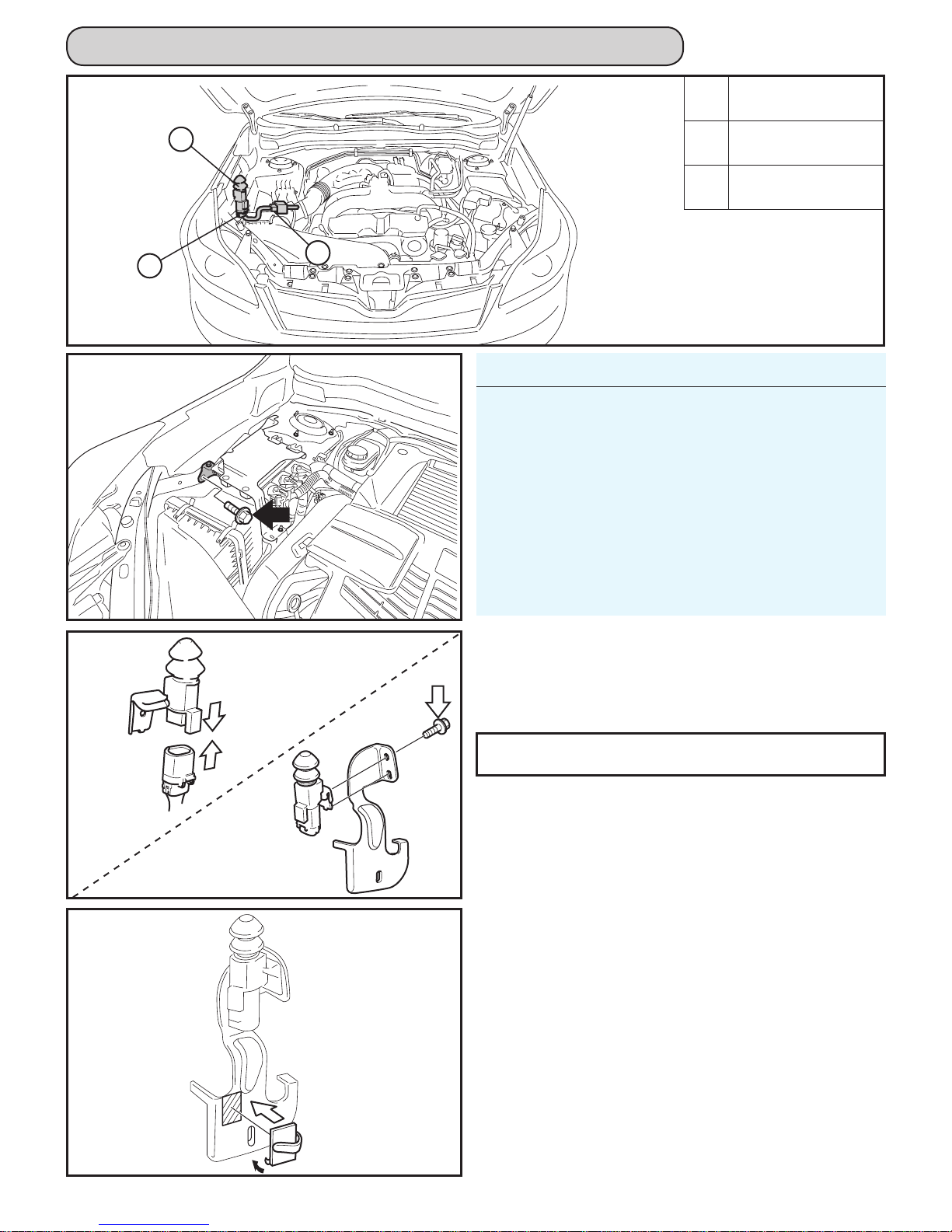

1. Remove and discard the Vehicle Bolt.
Hood Switch Installation and Wiring Procedure
2. Connect the Sub-Harness 2P Connector to the
Hood Switch.
3. Attach the Hood Switch Bracket to the Hood Switch
with the Black Bolt (M6×16).
Y
H I
T
• Tighten the Bolt to 5.6 N·m (0.57 kgf·m, 4.13 ft-lb)
4. Attach the Harness Clamp to the Hood Switch
Bracket as shown.
Y Hood Switch
H 2P Gray
I 2P Black
- 11 -

Vehicles Without Turbo ECU

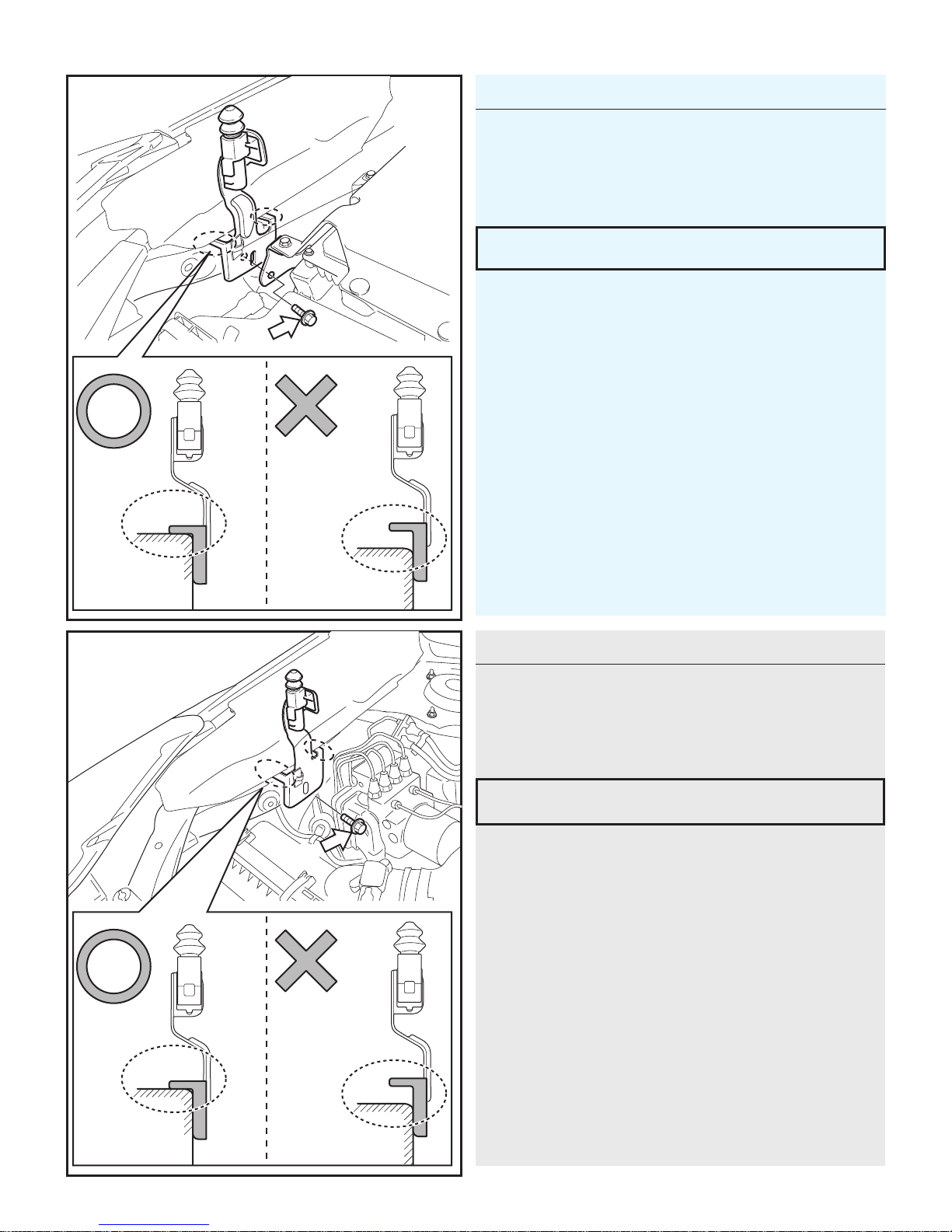

7. Make sure the stabilizer legs of the bracket are
seated correctly underneath the Fender Cover.
8. Secure the Hood Switch to the Vehicle with the
supplied Bolt (M6×20).
Vehicles With Turbo ECU
5. Make sure the stabilizer legs of the bracket are
seated correctly underneath the Fender Cover.
6. Secure the Hood Switch to the Vehicle with the
supplied Bolt (M6×20).
T
T
• Tighten the Bolt to 13 N·m (1.33kgf·m, 9.6ft-lb)
• Tighten the Bolt to 13 N·m (1.33kgf·m, 9.6ft-lb)
- 12 -

Vehicles Without Turbo ECU
15. Secure the Sub-Harness to the Harness Clamp.
16. Secure the Sub-Harness to the Vehicle Harness
using 3 Tie Wraps.
• Route the Sub-harness so that it is clear from the
opening range of the Air Cleaner Box cover.

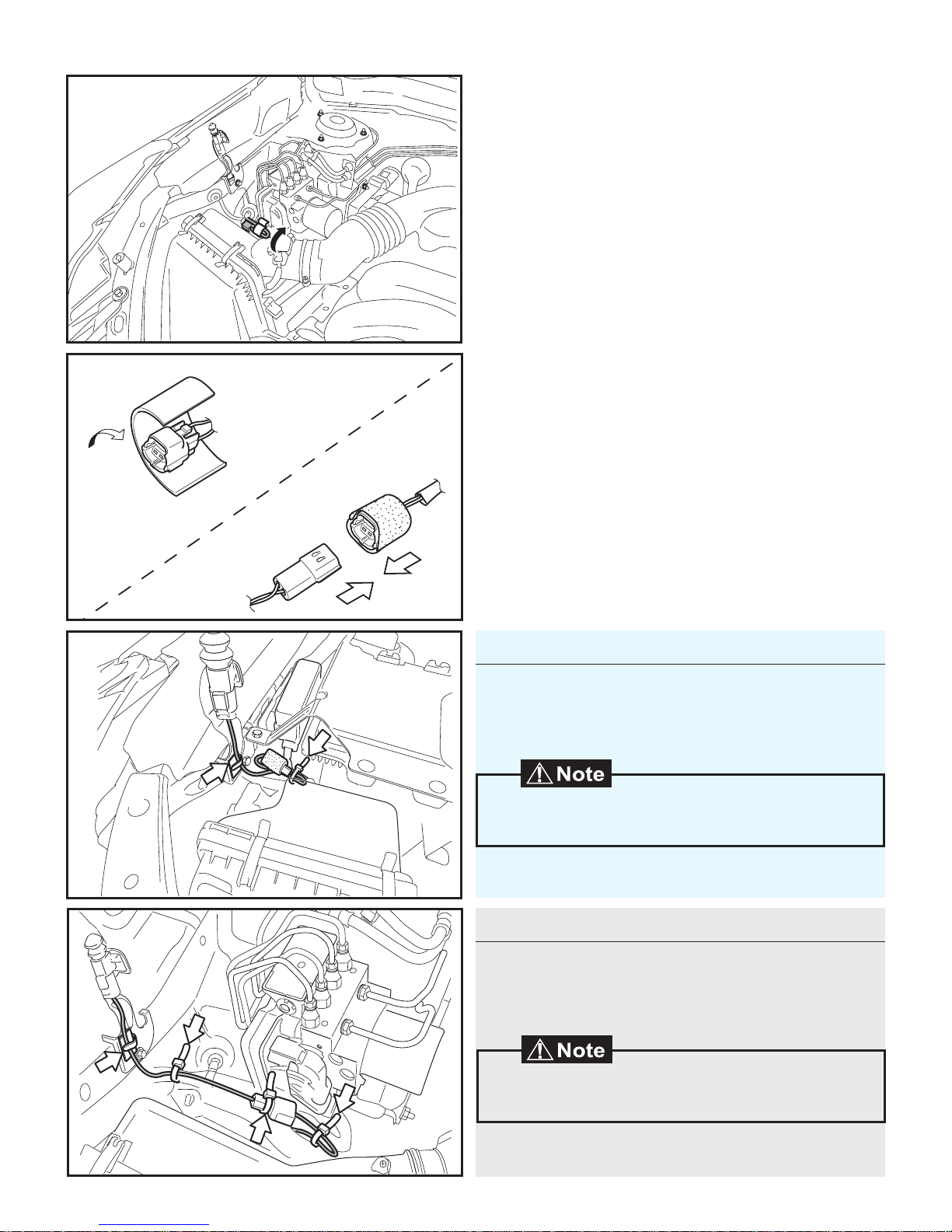

9. Pull out the Vehicle’s 2P Pre-Connector which is at
the back of the ABS Unit.
10. Cut the Foam Tape to the suitable size.
11. Attach the Foam Tape to the Vehicle's 2P Pre-
Connector.
12. Connect the Sub-Harness 2P Black Connector to
the Vehicle’s 2P Pre-Connector.
Vehicles With Turbo ECU
13. Secure the Sub-Harness to the Harness Clamp.
14. Secure the Sub-Harness to the Vehicle Harness
using 1 Tie Wrap.
• Route the Sub-harness so that it is clear from the
opening range of the Air Cleaner Box cover.
- 13 -

17. Finish reassembling the Vehicle.
• Verify that panels fit together properly, with no
uneven gaps.
• Verify that all Connectors are plugged in.
ALREADY INSTALLED
• Tighten the Knee Airbag Nuts to 7.5 N·m
(0.76 kgf·m, 5.5 ft-lb)
- 14 -

Registration Procedure
3. With foot off the brake pedal, Press the "ENGINE
START STOP" button twice to switch the ignition on.
4. Remove the Tape securing the Main Harness’s 1P
SES Diagnostic Connectors.
1. Open the Hood and leave it open throughout the
registration procedure.
• Doors can remain open during registration.
2. Temporarily reconnect the Negative Battery Cable.
5. Connect the 1P SES Diagnostic Connectors.
6. Register the SES ECU using the procedure on
the next page.
• Do not touch the Positive Battery Terminal with the
Negative Battery Terminal.
- 15 -

SYSTEM REGISTRATION for SDI
For registration by DST-i SSM, reference immobilizer registration Manual.
SDI SETUP
REGISTRATION SETUP
Press and hold the SDI “Menu” and “C” buttons simultaneously
for approximately 5 seconds to enter stand alone mode.
Plug the SDI
diagnostic plug into
the vehicle's
diagnostic
connector.
Proceed to
“Registration
Setup”
Using the arrows on
the SDI select:
“SUBARU Vehicle”
Using the arrows on
the SDI select:
“All other model”
Using the arrows on
the SDI select:
“IMM Regist”
The SDI screen will
display:
"Select Reg Sys"
Press Enter to select
"Immobi Sys: ENT"
ENTERENTER ENTER
ENTER
The SDI screen will
display:
"Smart system: ENT
Otherwise: C"
The SDI screen will
display:
"IMMOBILIZER"
Using the arrows on
the SDI select:
"R/C E/G ST Reg"
The SDI screen will display:
"Execute regist.
Remo.con.eng.st
YES: ENT/NO:C"
ENTER ENTER
ENTER
The SDI screen will
display:
"Remo.con.eng.st
regist.success"
The SDI screen will
display:
"Registering...Please
wait"
Registration
Complete.
- 16 -

10. Disconnect the 1P SES Diagnostic Connectors.
11. Switch the "ENGINE START STOP" Button to OFF.
8. Close the Hood.
9. Look for the hazard lights to flash once and horn
sound once simultaneously.
7. Once Registration is complete, Look for the
hazard light to flash once and horn sound once
simultaneously.
• If not, ID registration has failed. Please see Check A
in Troubleshooting. (Page 22)
• If not, please see Check B in Troubleshooting.
(Page 22)
- 17 -

Operation Check
1.ConrmationoftheInstallation.
Before operation confirmation, review the Installation Instructions and make sure that all connections are
correct. To make sure t hat everything in the vehicle is working proper ly, you can check by connecting the
SubaruSSM.Ifithasproblems,youwillneedtoxthemrst.
2.OperationConrmation
Close the hood, place shift lever in park [P] with parking brake set, turn off lighting switch, turn "ENGINE
START STOP" Button to OFF get out of the car, and close all of the doors.
Operation Conrmationpoint Checking point if operation failed
1
Press the LOCK button of the
vehicle’s remote twice within two
seconds, then press and hold the LOCK
button for more than three seconds.
·The horn sounds once.
·The Engine starts.
·After the engine starts, the horn
sounds once at the same time as all
thefrontpositionlights,taillightsash
once.
·All marker lights, tail lights turn on
afterwards.
Check C (Page 25)
2
Press and hold the LOCK button of
the vehicle’s remote for more than two
seconds.
·Engine stops.
·All marker lights, tail lights turn off. Check E (Page 30)
3
Sit inside the vehicle and close the
door, then perform step 1 again to
Smart Engine Start.
·Refer to Step 1. -
4 Push the automatic window switch. ·The window does not open.
Check wiring diagram for connection of
connectorGwithsignalspecicationfor
PWI on pages 33-34.
5Pull the hood release lever and IXOO\
open hood while the engine is running. ·Engine stops. ChecksignalspecicationforHOODon
page 34.
6
Close the hood, press the "ENGINE
START STOP" Button to IG-ON, and
push the automatic window switch.
·The window opens.
Check wiring diagram for connection of
connectorGwithsignalspecicationfor
PWI on pages 33-34.
7
After reassembly of the vehicle,
perform function checks on all electrical
components that were disconnected
during the installation of this accessory.
·It works correctly. Conrmthatallconnectorsareplugged
in properly.
- 18 -

12. Secure the 1P SES ECU Diagnostic Connectors
using Electrical Tape.
13. Position the Negative Battery Cable at the original
factory position.
• Do not touch the Positive Battery Terminal.
- 19 -

Tags and Labels
1. Attach the Engine Room Label as shown.
NOTE: Laws in some communities require that the
vehicle be within view of anyone using the Smart
Engine Start. In some areas, use of the Smart
Engine Start may violate state, provincial or local
laws. Before using the Smart Engine Start, check
your state, provincial and local laws
FM5-RES036_US
2. Attach the Key Tag and the Key Ring Tag.
3. Attach the Wiper lever Tag as shown.
• Clean attachment surface using isopropyl alcohol and
cleaning towel.
• To achieve maximum bond strength of Tape, the
attachment surface temperature must be between
68°F-110°F (20°C-43°C) upon application.
- 20 -
