Subaru BRZ2017 User manual

2017 Quick Reference Guide

2
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Remote keyless entry system
Remote
transmitter key
(if equipped)
Access key
(if equipped)
Lock/Unlock doors
BASIC OPERATION
All doors and trunk will be locked/unlocked by the following procedures carrying the access
key on your person. (The driver should always carry the access key.)
For detailed operating and safety information, please refer to
your Owner’s Manual.

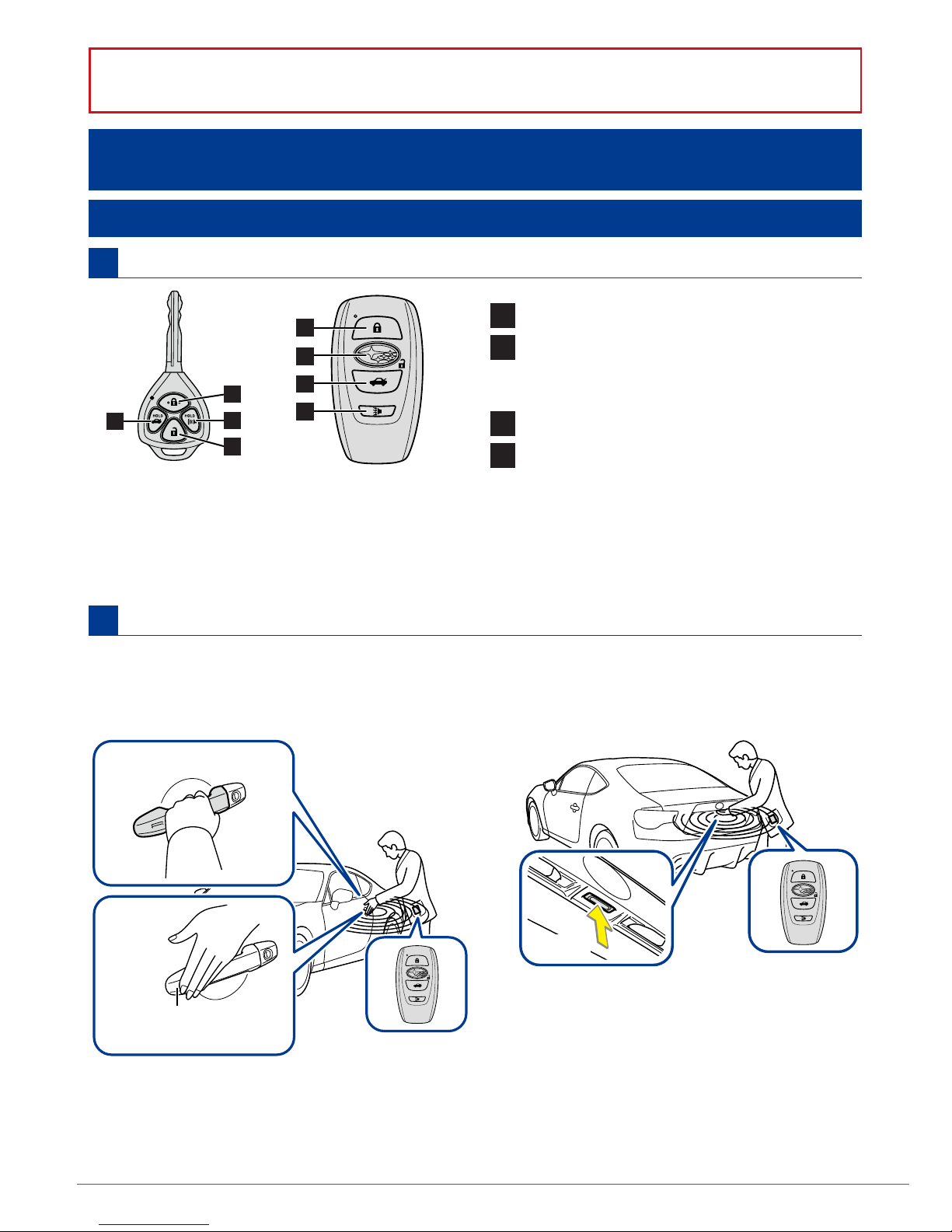

Keyless access function (if equipped)
1Locks both side doors
2The driver’s door will be unlocked.
(To unlock other doors, briey press the
button a second time within 3 seconds.)
3Unlocks the trunk lid (press and hold)
4Sounds the alarm (press and hold)
*Grip the driver’s door handle to unlock the
driver’s door. Grip the passenger’s door
handle to unlock all doors.
Side door: Unlocking the trunk lid:
34
2
1
1
2
3
4
Lock
Unlock*
Grip
Touch
Press
Lock sensor
(the indentation on the side
of the door handle)

3
Ignition switch must be in ACC or ON.
1Turn the control switch to the side that you want
to adjust. Lis for the left mirror, Ris for the right
mirror.
2Move the control switch in the direction you want
to adjust the mirror.
Adjust each component
1Seat position adjustment
2Seatback angle adjustment
3Vertical height adjustment (driver’s side only)
4Seatback fold strap
Front seat
Tilt/telescopic steering wheel
Outside rear view mirror switch
1Hold the steering wheel and push the lever down.
2Adjust to the ideal position by moving the steering
wheel horizontally and vertically.
3After adjustment, pull the lever up to secure the
steering wheel.
1
2
3
1 2
1
24
3
2
4
Getting in the rear seats:
Lift the seatback angle adjustment
lever.
Getting out the rear seats:
Pull the seatback fold strap.
The seat can be slid forward and backward. (Front passenger seat only)

4
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Start/Stop engine
Push-button ignition switch (if equipped)
Engine (ignition) switch (if equipped)
Performing the following operations when carrying the access key on your person starts the
engine or changes push-button ignition switch modes.
Starting the engine;
STEP1: Check that the parking brake is set.
STEP2: Check that the select lever is set in P(AT models).
Check that the shift lever is set in neutral (MT models).
STEP3: Firmly depress the brake pedal (AT models).
Firmly depress the clutch pedal (MT models).
The push button start system indicator light (green) will
turn on.
STEP4: Press the push-button ignition switch.
Stopping the engine;
STEP1: Stop the vehicle (AT models). While depressing the
clutch pedal, stop the vehicle (MT models).
STEP2: Shift the select lever to P(AT models). Shift the shift lever to neutral (MT models).
STEP3: Set the parking brake.
STEP4: Release the brake pedal (AT models). Release the clutch pedal (MT models).
STEP5: Press the push-button ignition switch.
STEP6: Check that the keyless access with push button start system indicator light (green) is off.
Off (Turned off) ACC (Green) ON (Green)
Modes can be changed by pressing the push-button ignition switch with the brake
pedal (vehicles with an automatic transmission) or clutch pedal (vehicles with a manual
transmission) released. (The mode changes each time the switch is pressed)
Changing push-button ignition switch mode
LOCK : The steering wheel is locked and the key can be
removed. (Vehicles with an automatic transmission:
The key can be removed only when the select lever
is in P.)
ACC : Some electrical components such as the power
outlet can be used.
ON : All electrical components can be used.
START : The engine can be started.
Flashes slowly Flashes slowly

5

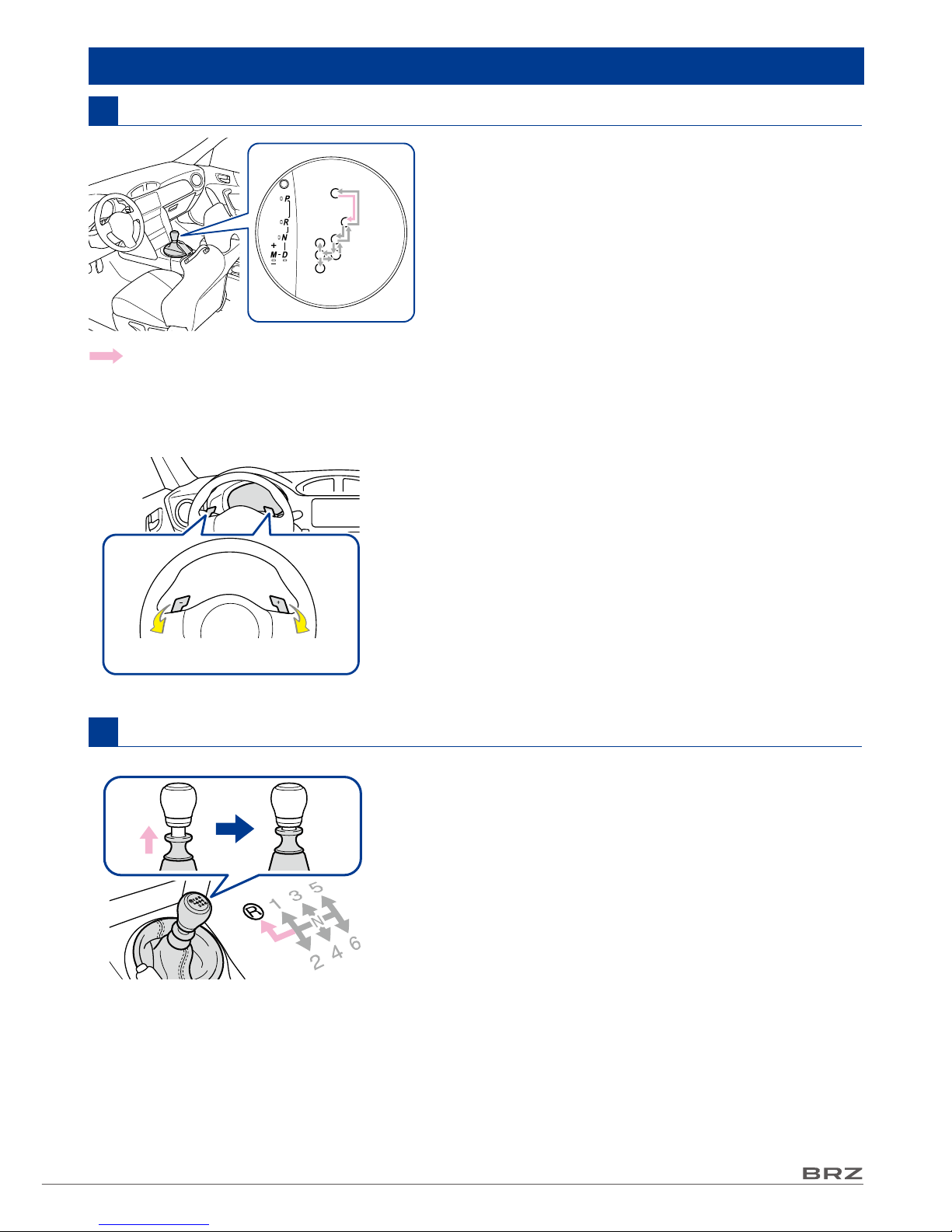

Operate Select lever/Shift lever
Automatic transmission (if equipped)
Manual transmission (if equipped)
P = Parking/Starting the engine
R = Reversing
N = Neutral
D = Drive:
For normal driving/Temporary manual mode
driving
M = Manual mode
Manual mode driving:
To enter manual mode, shift the select lever to the Mposition.
While the engine switch is in the ON position or the push-button ignition switch is in
ON mode, move the select lever with the brake pedal depressed.
Temporary manual mode driving (vehicles with
paddle shift levers):
Temporary manual mode driving can be changed to by
operating the paddle shift levers while the select lever is
in the Dposition.
Shifting the shift lever to R
Shift the shift lever to Rwhile lifting up the ring section.
Downshift (-) Upshift (+)

6
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
MAIN PARTS AND OPERATION

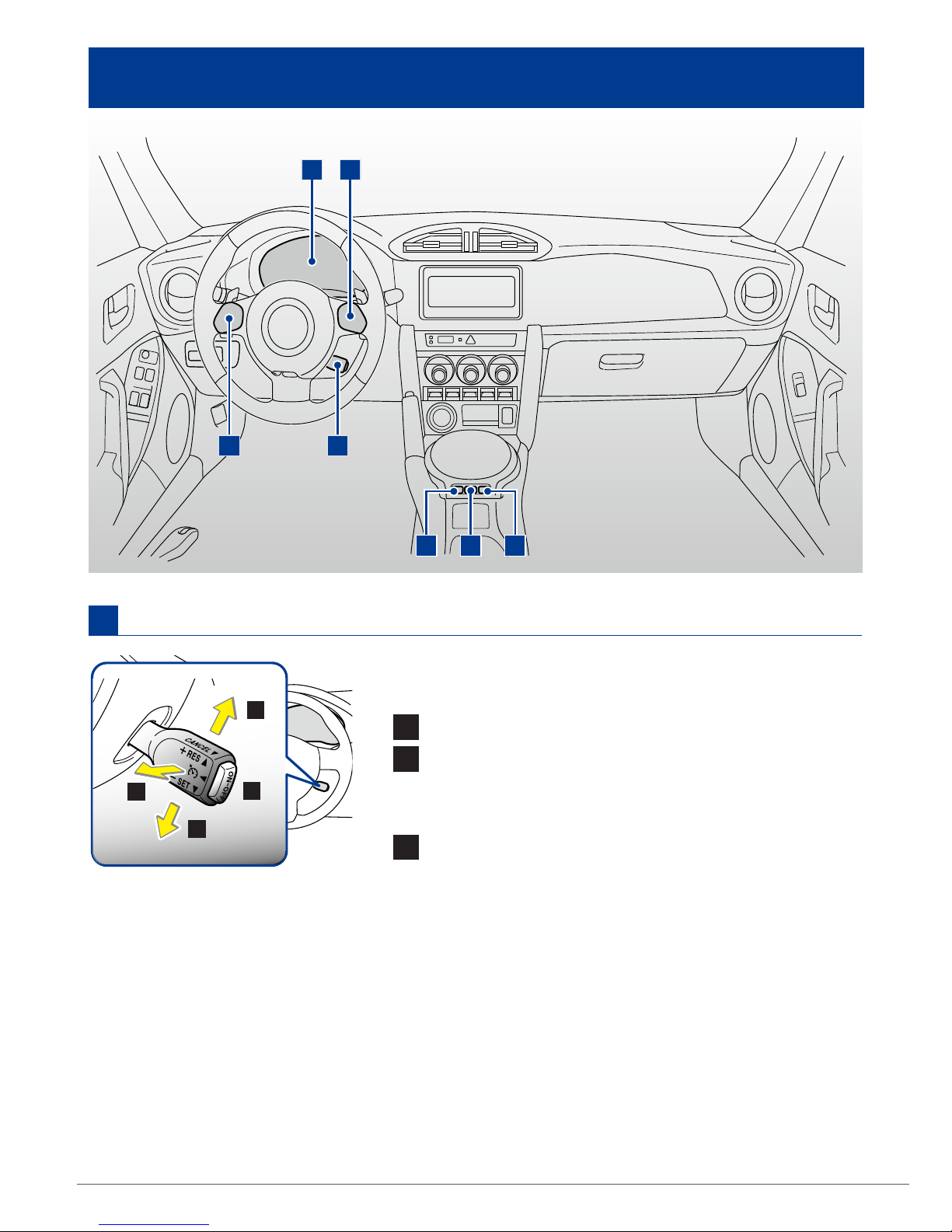

1Headlights
2 High/lowbeamchange,Highbeamash
3Turn signal
4Front fog lights (if equipped)
Headlight switch/Turn signal lever/Front fog light switch (if equipped)
A
1Wiper:
To operate, push lever down/up to the following positions:
: Temporary
: Off
: Intermittent
: Low speed
: High speed
2Intermittent interval
3Washer/wiper dual operation
Windshield wiper and washer switch
B
43
3
1
2
1
2
3
A
H
G
D
I
F
J
E
B
C

7

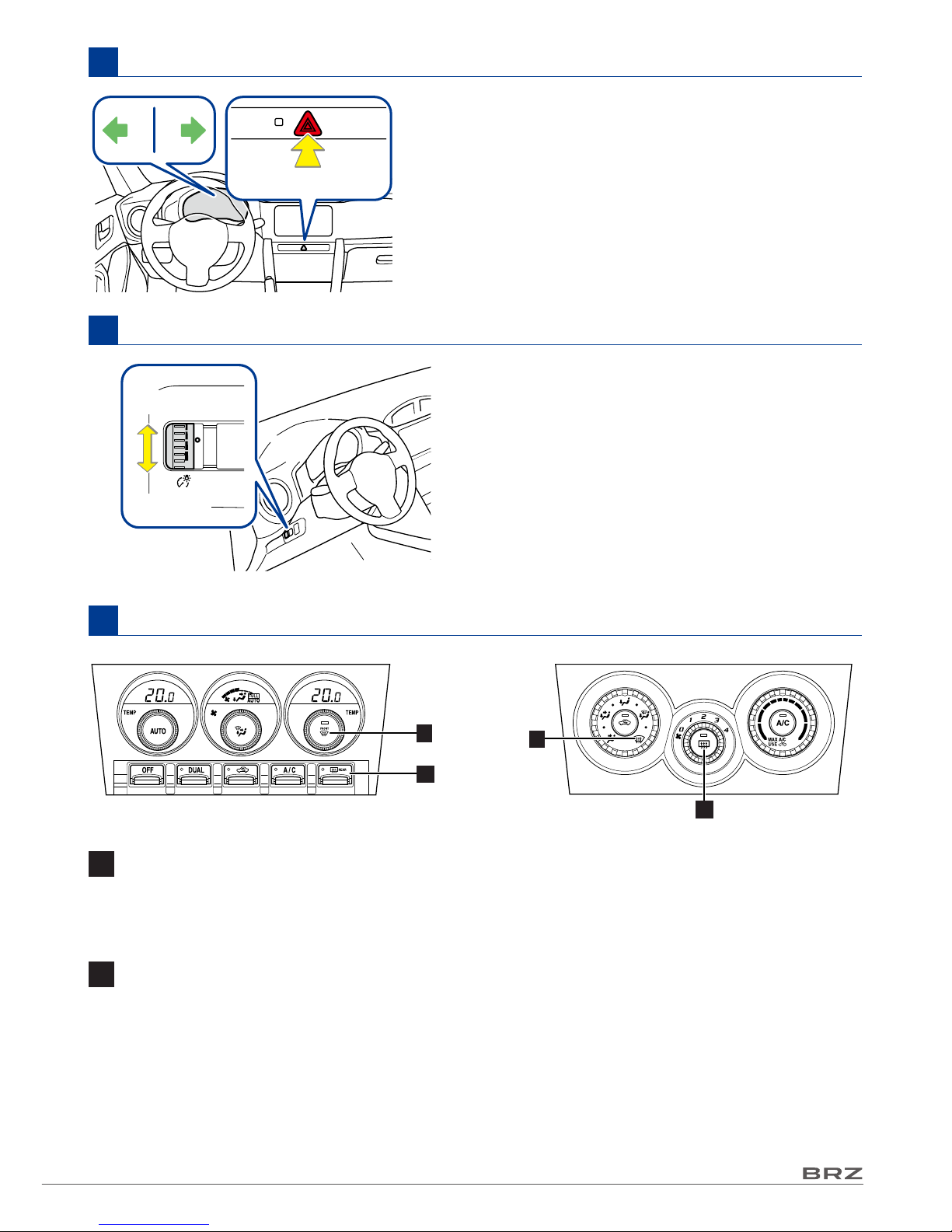

 Hazardwarningasherswitch
C
Instrument panel light control dial
D
All the turn signal lights will ash.
Use the switch to warn other drivers.
Windshield defogger/Rear window defogger switch
E
Type A Type B
1Windshield defogger:
The dehumidication function operates and fan speed increases.
Set the outside/recirculated air mode button to outside air mode if the recirculated air
mode is used. (It may switch automatically.)
2Rear window defogger switch:
The rear window defogger and the outside rear view mirror defogger (if equipped) turns
on. The function will automatically turn off after approximately 15 min.
Press
Brighter
Darker
1
2
1
2

8
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.

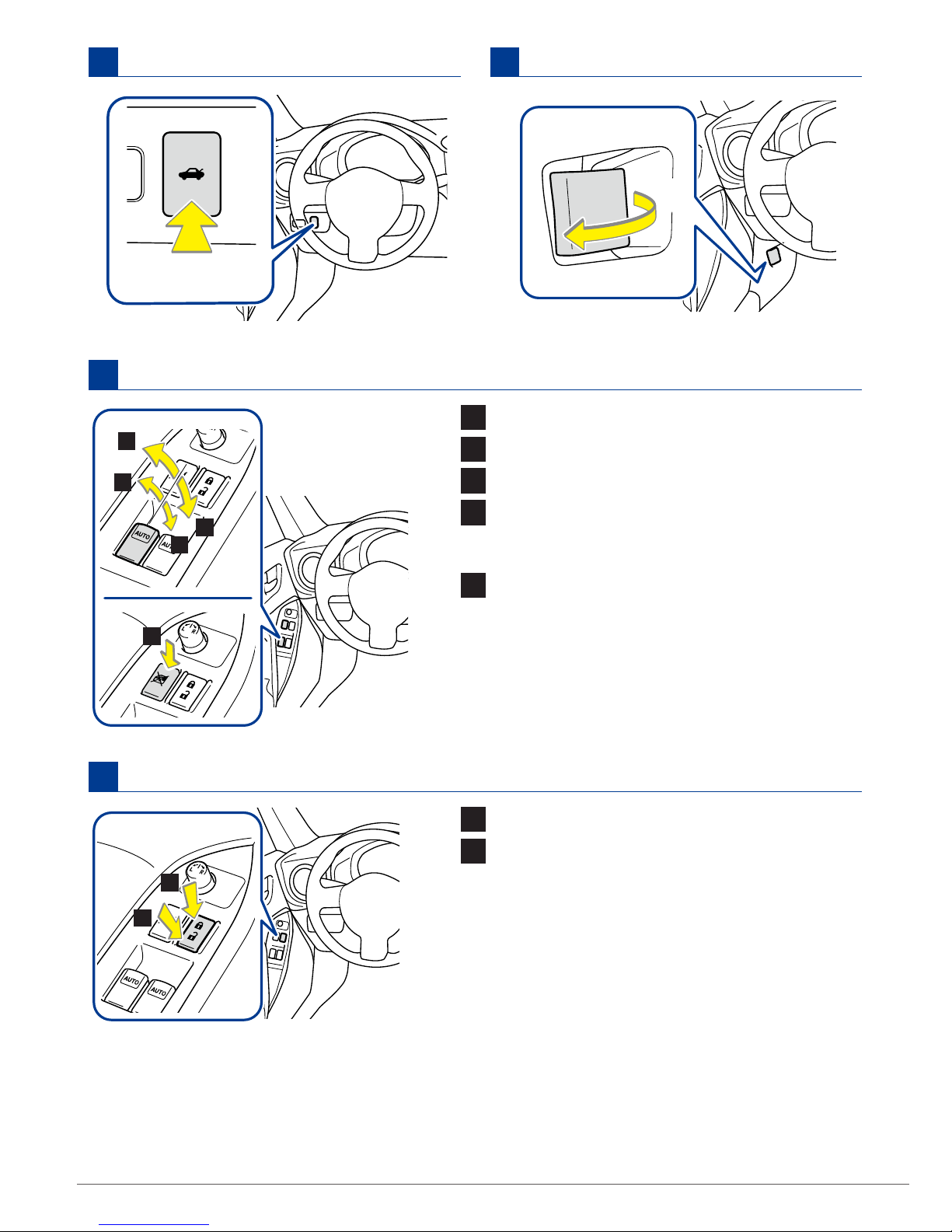

1Closing
2One-touch closing*
3Opening
4One-touch opening*
* : Pushing the switch in the opposite direction will stop
window travel partway.
5Window lock switch
1Locks both side doors
2Unlocks both side doors
Power windows switches
H
Power door lock switch
I
Trunk lid opener switch
FEngine hood lock release lever G
1
2
4
5
3
1
2
Pull
Press and hold

9
 Fuelllerlidopener
J
Front seatbelt guide
To enable the seatbelt to be easily extended, pass the
seatbelt through the guide.
When getting in or out of the rear seats, release the
seatbelt from the guide.
Seat heater switches (if equipped)
Pull up
Rapid heating
Normal heating

10
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
FUNCTION FOR MORE COMFORTABLE DRIVE
Cruise control switch
A
1ON-OFF button: To activate and deactivate
2 + R E S▲/- S E T▼:
+RES▲ side: To increase the speed/To resume
-SET▼ side : To set speed/To decrease the speed
3CANCEL: To cancel
Use the cruise control to maintain a set speed without
depressing the accelerator pedal.
1
2
3
2
E F
AG
C DB

11
Driving pattern selector switch (if equipped)
C
Vehicle stability control (VSC)/TRAC off switch
B

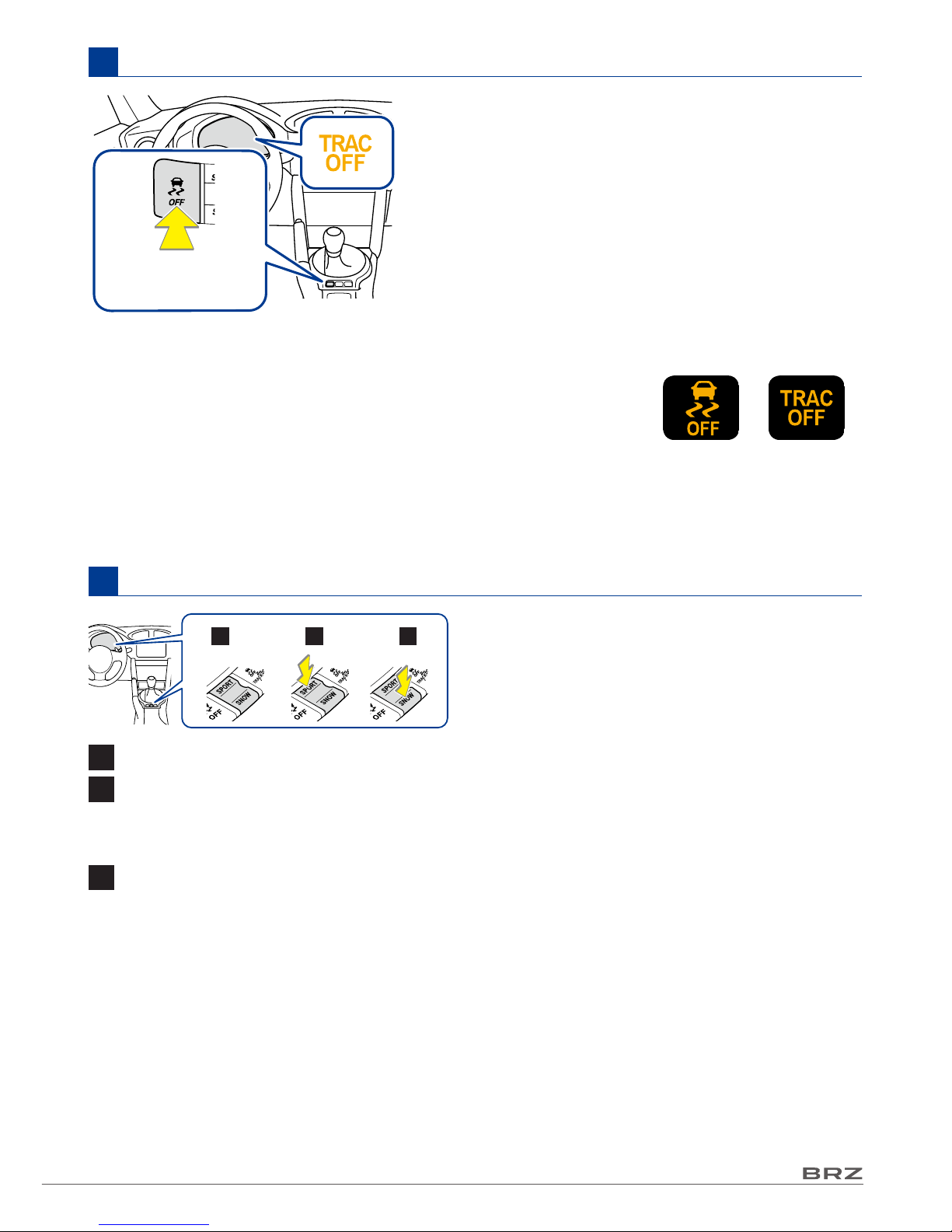

Turning off Traction Control System:
To turn the TRAC system off, quickly press and
release the button.
The Traction Control System OFF indicator light will
come on.
Press the button again to turn the system back on.
Turning off both Traction Control System and Vehicle Stability Control (VSC) systems:
To turn the TRAC and Vehicle Stability Control (VSC) systems
off, press and hold the Vehicle stability control (VSC)/TRAC
off switch for more than 3 seconds while the vehicle is stopped.
However, on vehicles with an automatic transmission, the brake
LSD function will remain on. Press the button again to turn the
systems back on.
Selecting a driving mode
By pressing the driving pattern selector switch,
the following modes can be selected to suit
driving and usage conditions:
1Normal mode
2Sport mode:
The SPORT indicator comes on. Use sport mode for sporty driving or when driving in
mountainous regions with lots of curves.
3Snow mode:
The SNOW indicator comes on. Use snow mode for accelerating and driving on slippery
road surfaces such as snow.
To cancel sport mode or snow mode, press the same side of the switch again.
Quickly press
and release
1 2 3

12
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
TRACK switch
D
Press the switch to activate the TRACK mode.
The TRACK indicator and Vehicle stability control (VSC)
off indicator come on when in TRACK mode.
To change back to normal mode while in TRACK mode,
press or .
Your vehicle is equipped with two types of control modes to accommodate various driving
preferences. The control modes can be selected with the TRACK switch.
Normal mode allows secure and smooth normal driving.
When the switch is pressed and held for 1 second or more, TRACK mode is activated.
Control characteristics such as the Vehicle stability control (VSC) and TRAC are adjusted
to afford maneuverability closer to what a driver may desire, while a sense of security is
retained.
Modes can be selected to suit your driving conditions as follows:
Driving conditions Indicator lights Switch operation
Rough roads The Vehicle stability control (VSC)/TRAC
off switch is pressed.
Sport driving
The TRACK switch is pressed and held
for more than 1 second.
The Vehicle stability control (VSC)/TRAC
off switch is pressed and held for more than
3 seconds.
Press

13
Multi-information display (monochrome display)
E
1km/h MPH switch:
press: The display inside the meter changes between km/h and MPH.
2ODO TRIP switch:
press: Change displayed item.
press and hold: Reset the trip meter that is currently displayed.
3DISP switch:
press: Change displayed item.
1
2
3
Outside temperature Current fuel consumption Average fuel consumption
Setting screen for the shift position indicator
and shift-up indicator (MT models).
Odometer Trip meter A Trip meter B Setting screen for tachometer
indicator needle movement function
when starting the vehicle.
Setting screen for the REV indicator

14
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.

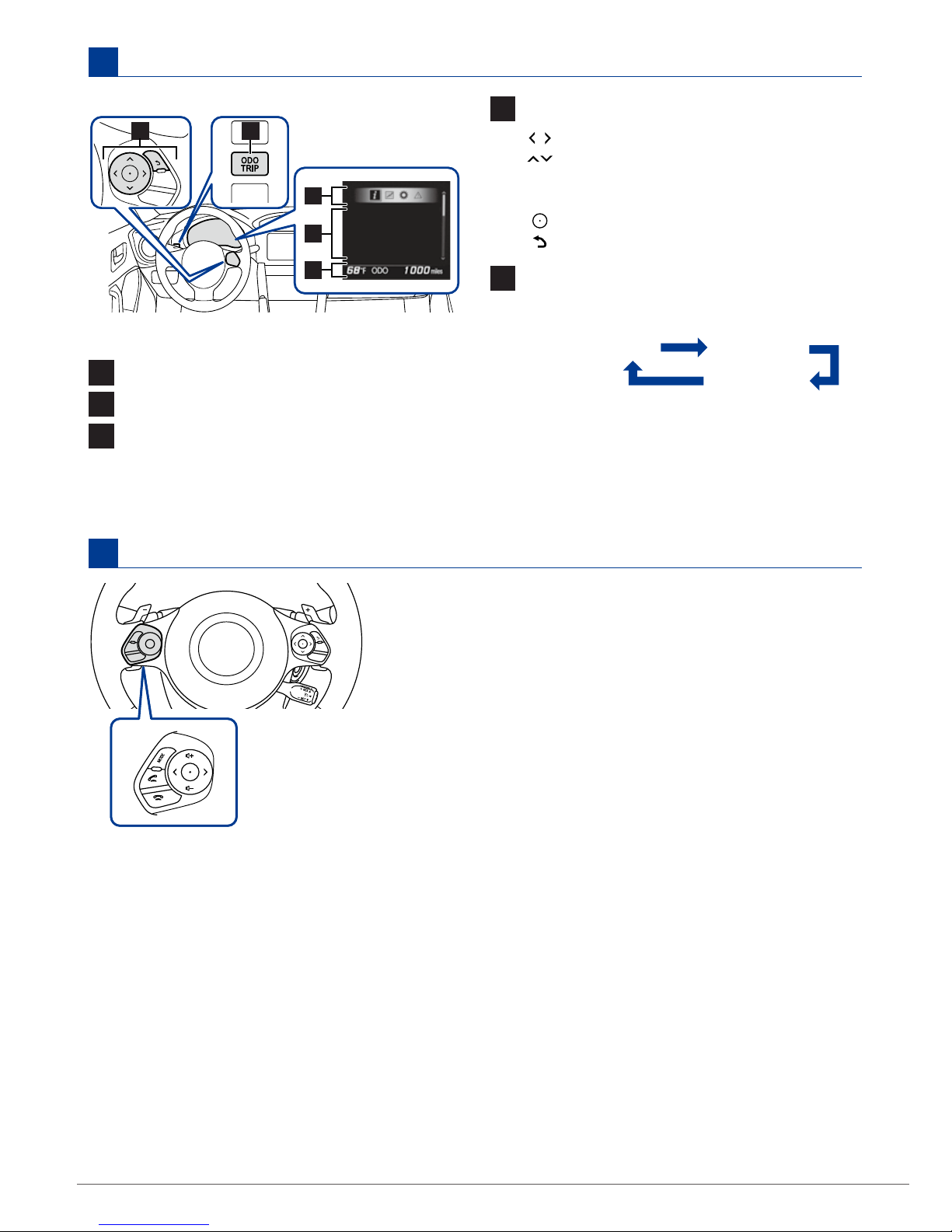

Multi-information display (color display)
F
Audio remote control switches
G
1Meter control switches:
: Select menu icons
: Change displayed content, scroll
up/down the screen and move the
cursor
: Enter
: Return to the previous screen
2ODO/TRIP switch:
press: Change displayed item
press and hold: Reset the trip meter that
is currently displayed.
3Menu icon
4Content display area
5Odometer/trip meter display area
These buttons allow the driver to control audio
functions without taking his/her hands off the
steering wheel.
21
3
5
4
Odometer Trip meter A
Trip meter B

15

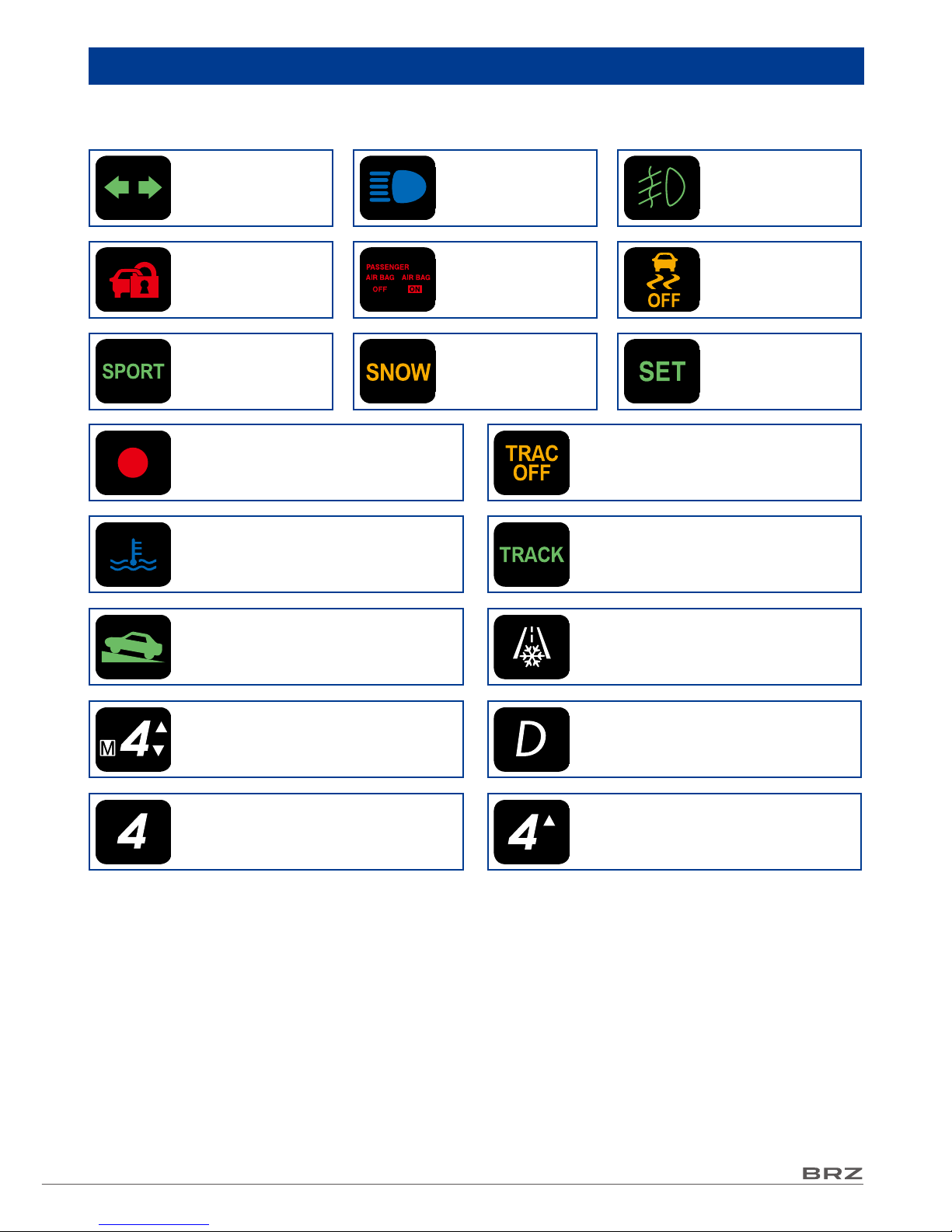

Some warning/indicator lights illuminate for a few seconds in order to check themselves
when the ignition switch is turned ON.
MAIN WARNING AND INDICATOR LIGHTS
Warning lights
Refer to your Owner’s Manual for countermeasures when each warning light comes on.
If necessary, consult your authorized SUBARU dealer.
Malfunction indicator
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• The electronic automatic transmission control system.
Brake system warning
• Low brake uid
• Malfunction in the brake system
• The parking brake is not released.
Charging system warning
Indicates a malfunction in the
vehicle’s charging system.
ABS warning
Indicates a malfunction in:
• The ABS;
• The brake assist system.
Low engine oil pressure warning
Indicates that the engine oil
pressure is too low.
Electric power steering warning
Indicates a malfunction in the
electric power steering system.
Driver’s seatbelt reminder
Warns the driver to fasten his/
her seatbelt.
Front passenger’s seatbelt reminder
Warns the front passenger
to fasten his or her seatbelt.
Location : On the center panel.
Open door warning
Indicates that a door or the trunk
lid is not fully closed.
Low fuel level warning
Fuel level is low.

16
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
SRS airbag system warning
• Indicates a malfunction in:
• The SRS airbag system;
• The seatbelt pretensioner system;
• The front passenger occupant detection system.
Automatictransmissionuidtemperaturewarning(ifequipped)
Indicates that the automatic transmission uid temperature is too high.
Keyless access with push button start system indicator (if equipped)
Flashing in YELLOW : Indicates a malfunction in the keyless
access with push button start system.
Illumination in GREEN : The keyless access with push button start
system is activated.
Please see the Owner’s Manual for details.
Cruise Control indicator
lllumination in YELLOW : Indicates a malfunction in the cruise
control system.
Illumination in GREEN : The cruise control system is activated.
Please see the Owner’s Manual for details.
Slip indicator
Illumination : Indicates a malfunction in the TRAC/Vehicle stability control (VSC)
system or the hill start assist system.
Flashing : The TRAC/Vehicle stability control (VSC) system are operating.
Automatic headlight leveling system warning
Indicates a malfunction in the automatic headlight leveling system.
High engine coolant temperature warning
Indicates that the engine is almost overheating.
As the engine coolant temperature increases,this warning light will change from
ashing to constantly illuminated.
Master warning
The master warning light also comes on or ashes in order to indicate that a
message is currently being displayed on the multi-information display.

17
Indicator lights
The following indicators show the current status of your car. Refer to the Owner’s Manual for
more information.
Turn signal
indicator
Headlight high
beam indicator
Front fog light
indicator
(if equipped)
Security
indicator
Airbag on-off
indicator
Vehicle stability
control (VSC)
off indicator
SPORT
indicator
(AT models)
SNOW indicator
(AT models) SET indicator
Upshift/downshift indicator
(AT models)
Shift position and shift range
indicator (AT models)
REV indicator Traction Control System OFF
indicator
Shift position indicator
(MT models)
Shift-up indicator
(MT models)
Low engine coolant
temperature indicator TRACK indicator
Hill start assist ON indicator Low outside temperature
indicator (color display only)

18
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Notes

19
Notes

All illustrations, specications, features and photographs contained in this brochure are based on product information available at the time of
its printing, and may not be completely accurate following its publication. Colours shown may vary due to reproduction variations in the printing
process, and some vehicle parts cannot be shown in certain photographs. Subaru Canada, Inc. reserves the right to discontinue or make changes
at any time, without notice or incurring obligations, to colours, materials, equipment, accessories, features, specications and models, or to change
their prices. Please visit our Web site for the latest information and specications. For detailed operating and safety information, please consult
your Owner’s Manual. For complete details on product updates, warranties or the Subaru C.A.R.E. program, please contact your Subaru dealer.
BRZ and Subaru are registered trademarks. Printed in Canada. © 2016 Subaru Canada, Inc. 2017 model year.
subaru.ca
Environmental Management System (EMS)
ISO14001:2004certiedbySGS
www.subaru-earth.com
SUBARU CANADA, INC. / FUJI HEAVY INDUSTRIES LTD.
SBQRGBRZ17E06.16
