Subaru CROSSTREK 2020 User manual

2020 Quick Reference Guide

2
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Remote keyless entry system
Remote
transmitter key
(if equipped)
Access key
(if equipped)
Lock/Unlock doors
PANIC
*Grip the driver’s door handle to unlock the
driver’s door. Grip the front passenger’s door
handle to unlock all doors and the rear gate.
All doors and the rear gate will be locked/unlocked by the following procedures carrying the
access key on your person. (The driver should always carry the access key.)
Keyless access function (if equipped)
Side door (front door handles only):
1All doors and the rear gate will be locked.
2The driver’s door will be unlocked.
(To unlock all doors and the rear gate, briey
press the button a second time within 5
seconds.)
3Press the button to open the rear gate.
4The horn will sound and the hazard warning
ashes will ash.
BASIC OPERATION
For detailed operating and safety information, please refer to
your Owner’s Manual.
23
4
1
1
2
3
4
Lock
Unlock*
Door lock sensor
Grip
Touch
Rear gate:
Press
Unlock
Lock
Press

3
Ignition switch must be in ACC or ON position.
1Select side to adjust.
2To adjust the mirror, move the switch in the
direction of your desired position.
Adjust each component
1Forward and backward adjustment
2Seat height adjustment
3Seatback reclining adjustment
Tilt/telescopic steering wheel
Remote control mirror switch
1Adjust the seat position and pull the tilt/
telescopic lock lever down.
2Move the steering wheel to the desired level.
3Pull the lever up to lock the steering wheel in
place.
Make sure that the steering wheel is securely
locked by moving it up and down, and forward and
backward.
Driver’s seat
1Forward and backward adjustment
2Seat height adjustment
3Seatback reclining adjustment
1
3
2
Power seat (if equipped)
Manual seat (if equipped)
1
2
3
2
1
2
3
2
1
2

4
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Start/Stop engine
To start engine:
STEP1: Carry the access key, and sit in the driver’s
seat.
STEP2: Apply the parking brake.
STEP3: Shift the select lever into the Pposition.
STEP4: Depress the brake pedal until the indicator on
the push-button ignition switch turns green.
STEP5: While depressing the brake pedal, press the
push-button ignition switch.
To stop engine:
STEP1: Stop the vehicle completely.
STEP2: Move the select lever to the Pposition.
STEP3: Press the push-button ignition switch.
OFF ( Turned off ) ACC (Orange) ON (Orange)
Change of the power supply (Without starting engine)
The key can be turned from ACC to LOCK only when
the key is pushed in while turning it (all models) and the
select lever is in the Pposition (CVT models).
Push-button ignition switch (if equipped)
Ignition switch (if equipped)
Every time the button is pressed without depressing the brake pedal, the power is switched
in the sequence of OFF➞ACC➞ON➞OFF.
Operation
indicator

5
Operate Select lever/Shift lever
Continuously variable transmission (if equipped)
Models with
L position
Models with
manual mode
Shift paddle:
Gearshifts can be performed using the shift paddle
behind the steering wheel.
With the brake pedal depressed,
shift while pressing the Select
lever button in.
Shift while pressing the Select
lever button in.
Shift without pressing the Select
lever button.
L = L position:
Lis for using engine braking when going down a hill, etc. To select this mode, move the
select lever from the Dposition to the Lposition.
M = Manual mode:
With the vehicle either moving or stationary, move the select lever from the Dposition to the
Mposition to select the manual mode.
You must raise the slider and hold it in that position
before you can move the shift lever to the Rposition.
To change gears, fully depress the clutch pedal,
move the shift lever, and gradually let up on the
clutch pedal.
Manual transmission (if equipped)
Select lever
button
Downshift Upshift

6
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
MAIN PARTS AND OPERATION
1Headlights
2 Headlightasher,High/Lowbeamchange
3Turn signal
Headlight switch/Turn signal lever/Front fog light switch (if equipped)
A
The high beam assist function automatically
changes the headlight from high beam to low beam
(or vice versa).
The high beam assist function is activated
when:
1. The light control switch is in the AUTO position
and the low beam headlights are on automatically.
2.The turn signal lever is pushed forward.
When the high beam assist function is activated, the
indicator on the combination meter will illuminate.
High beam assist function (if equipped)
High beam assist indicator
* For models equipped with AUTO position.
GHD
I
F
E
3
3
1
2
B
C
*
A

7

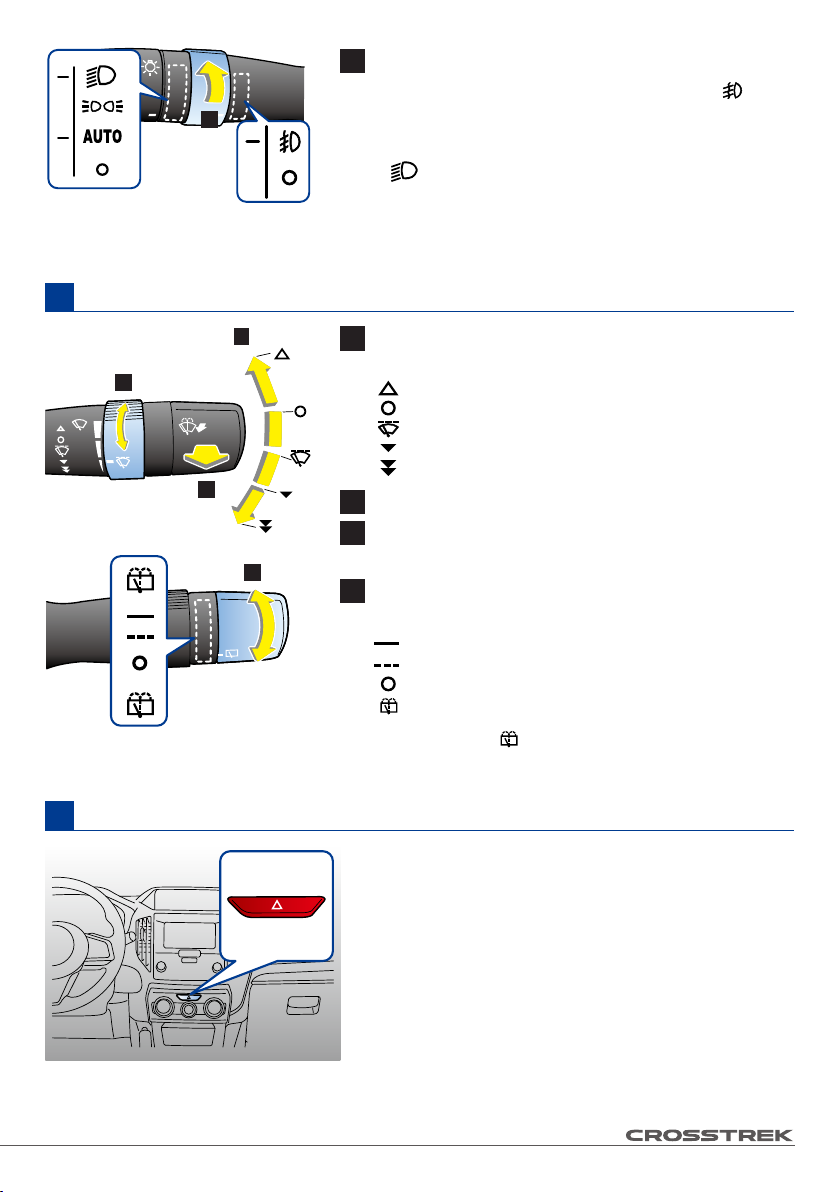

1Windshield wiper
To operate the wiper, rotate knob to;
: Mist (for a single wipe)
: Off
: Intermittent
: Low speed
: High speed
2Wiper intermittent time control
3Windshield washer
4Rear window wiper and washer
To operate the wiper, rotate knob to;
: Continuous
: Intermittent
: Off
: Washer
Rotate knob to . The washer uid sprays and the
wiper operates.
Wiper and washer switch
B
To turn on the hazard warning asher, push the
button.
Use the hazard warning asher when you have to
park under emergency conditions.
 Hazardwarningasherswitch
C
4Front fog lights (if equipped)
To turn on the front fog lights, rotate dial to .
Front fog lights operate only when headlight switch
is in...
- position.
- AUTO position and the headlights are on.
* For models equipped with AUTO position.
1
2
3
4
4
*

8
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Turn the dial to adjust the illumination brightness of the
instrument panel.
To brighten, turn the control dial upward.
To darken, turn the control dial downward.
When the control dial is turned fully upward, the
illumination brightness becomes the maximum and the
automatic dimming function does not work at all.
Illumination brightness control dial
D
1Defrosting:
Press the defroster button to defrost the windshield.
2Defogger and deicer:
Press the button to turn on rear window defogger,
outside mirror defogger and windshield wiper
deicer. The function will automatically shut off after
approximately 15 minutes.
*The design may be slightly different from the
illustration depending on the models.
Defroster button/Rear window defogger button
E
Hood release knob
F
Pull
1
2

9

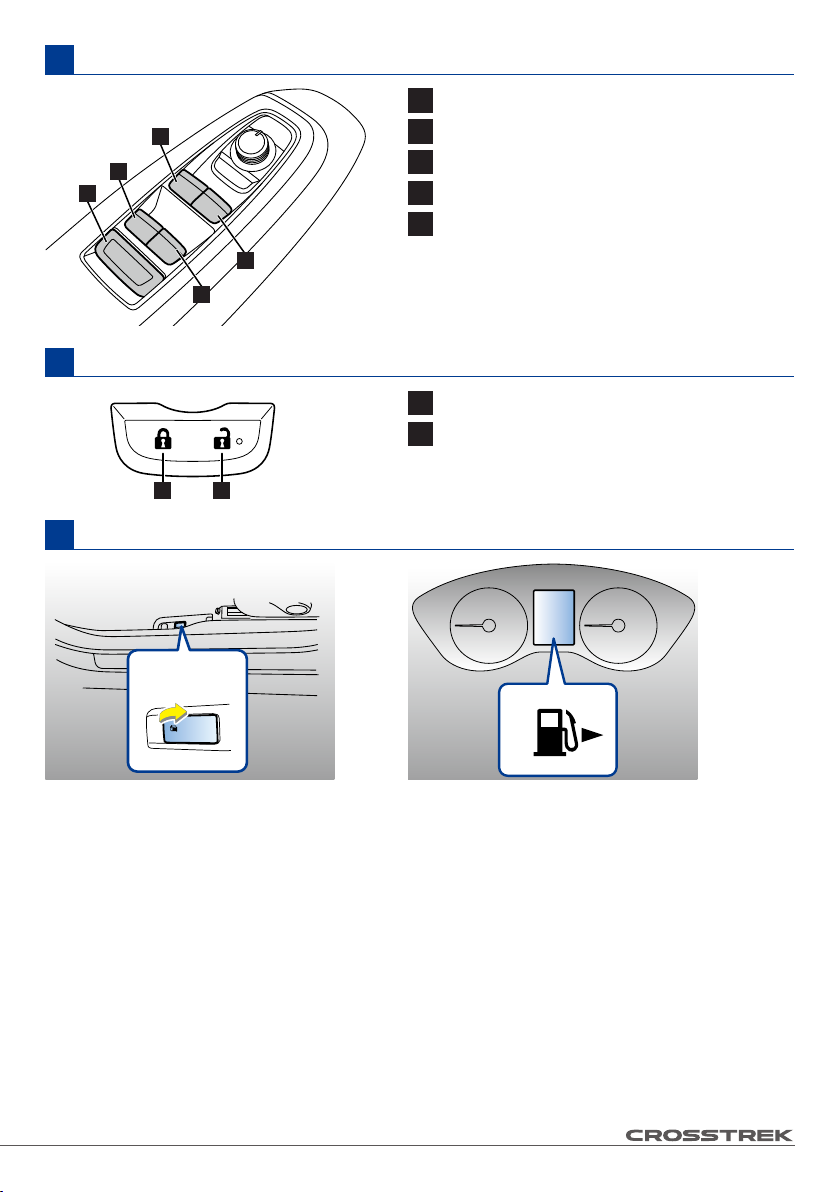

1For front left window
2For front right window
3For rear left window
4For rear right window
5Lock switch
Power window switches
G
Power door locking switch
H
1To lock all doors and the rear gate
2To unlock all doors and the rear gate
 Fuelllerlidreleaselever
I
This indicates that the fuel ller door (lid) is
located on the right side of the vehicle.
1
3
5
4
2
1 2
Pull

10
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Located on the edge of each rear door.
When the lever is in the LOCK position, the rear door
cannot be opened from the inside.
Pull the release knob
and slide the anchor
down.
Child safety locks
Front seat shoulder belt anchor height
To lower To raise
Pull the release knob
and slide the anchor
up.

11
Press the switch to deactivate the Vehicle Dynamics Control system. It may be helpful to
temporarily deactivate the Vehicle Dynamics Control system to escape from the following
situations.
- a standing start on a steeply sloping road with a snowy, gravel-covered, or otherwise
slippery surface
- extrication of the vehicle when its wheels are stuck in mud or deep snow
Do not deactivate the system except when absolutely necessary.
Vehicle Dynamics Control OFF
indicator
Vehicle Dynamics Control OFF switch
A
FUNCTION FOR MORE COMFORTABLE DRIVE
If the switch is pressed, the Vehicle Dynamics
Control OFF indicator is displayed on the
combination meter to deactivate the Vehicle
Dynamics Control system.
F
EB C D
A
GD H
I
J

12
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Cruise control switches (if equipped)
B
1Cruise control main button: To activate and
deactivate
2RES/SET switch
▲ RES/+ side : To increase the speed
▼ SET/- side : To set speed/To decrease the
speed
3CANCEL button: To temporarily cancel
Cruise control enables you to maintain a constant vehicle speed without holding your foot on
the accelerator pedal and it is operative when the vehicle speed is 30 km/h (20 mph) or more.
1(Lane Keep Assist) switch
2(Following distance setting) switch
3RES/+ switch
4SET/- switch
5(CRUISE) switch
EyeSight is a driving support system that uses a range of functions to assist the driver in
making decisions to provide a more safe and comfortable driving as well as to reduce driver
fatigue.
Models without EyeSight system
Models with EyeSight system
1
2
3
1
3
2
2
4
5

13
Multi-function display (black and white) (if equipped)
C
1Outside temperature indicator
2Driving information display
3Clock
4Climate control screen
INFO button: To change the information display,
press the INFO button.
Multi-function display (color LCD) (if equipped)
D
1Clock
2Climate control
3Outside temperature
4Information screen
Control switch: By operating ▲or ▼of the control
switch, the screens and selection
items can be switched. When the
/SET switch is pulled toward you,
the item can be selected and set.
INFO button: To change the information display
(4), press the INFO button.
1 2 3
Control
switch
INFO
button
1 2 3
4
4

14
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.

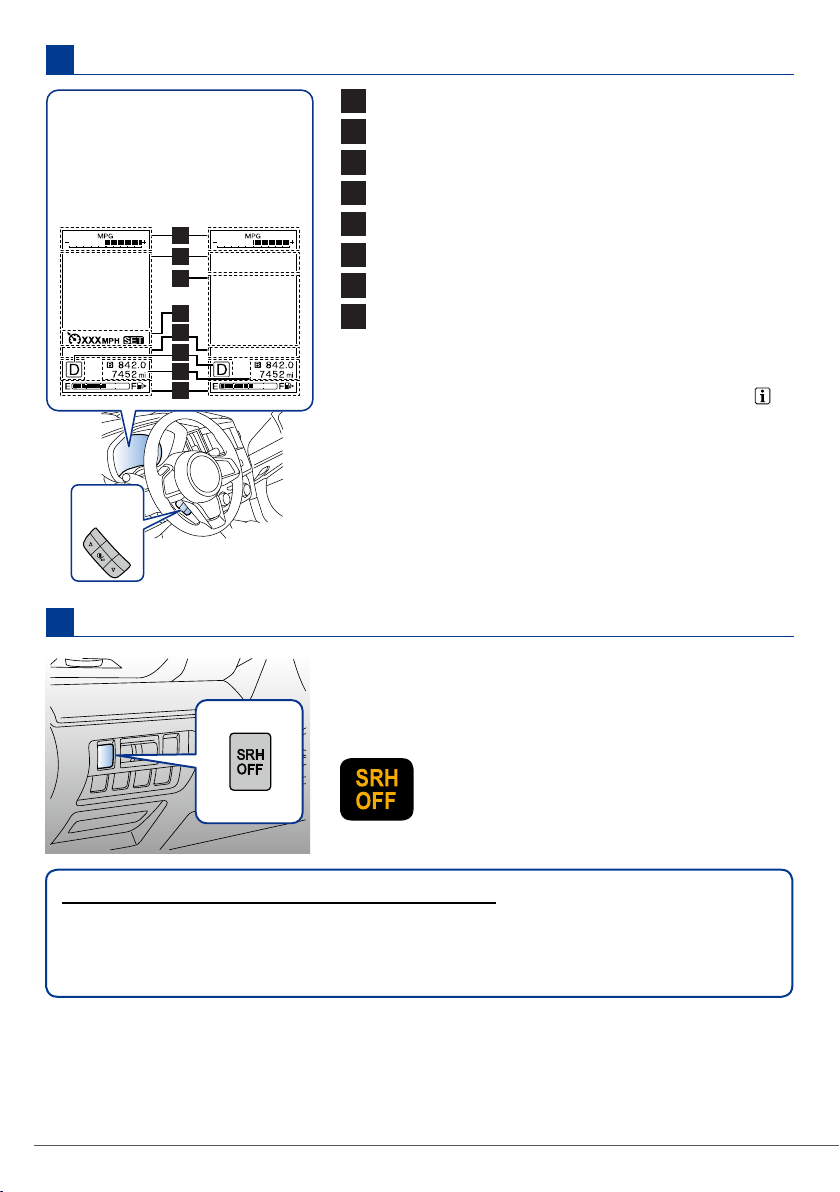

1Eco gauge
2Warning screen/Basic screen
3EyeSight screen
4Cruise control information display
5Telltale screen
6Select lever/gear position indicator
7Odometer/double trip meter
8Fuel gauge
Control switch: By operating ▲or ▼of the control
switch, the screens and selection
items can be switched. When the /
SET switch is pulled toward you, the
item can be selected and set.
Combination meter display (color LCD) (if equipped)
E
SRH OFF switch (if equipped)
F
If the switch is pressed, the SRH OFF indicator is
displayed on the multi information display of the
combination meter, and the steering responsive
headlight system is deactivated.
SRH is a function that automatically moves the headlight beam to the left or right in
accordance with the steering angle. This function helps to improve the visibility at night
by illuminating the road ahead at corners and intersections.
Steering Responsive Headlight (SRH) system
Steering Responsive Headlight
OFF indicator
1
2
3
4
6
7
8
5
Control
switch
Deactivating
the Eyesight
system or
models without
the EyeSight
system
Activating
the EyeSight
system

15

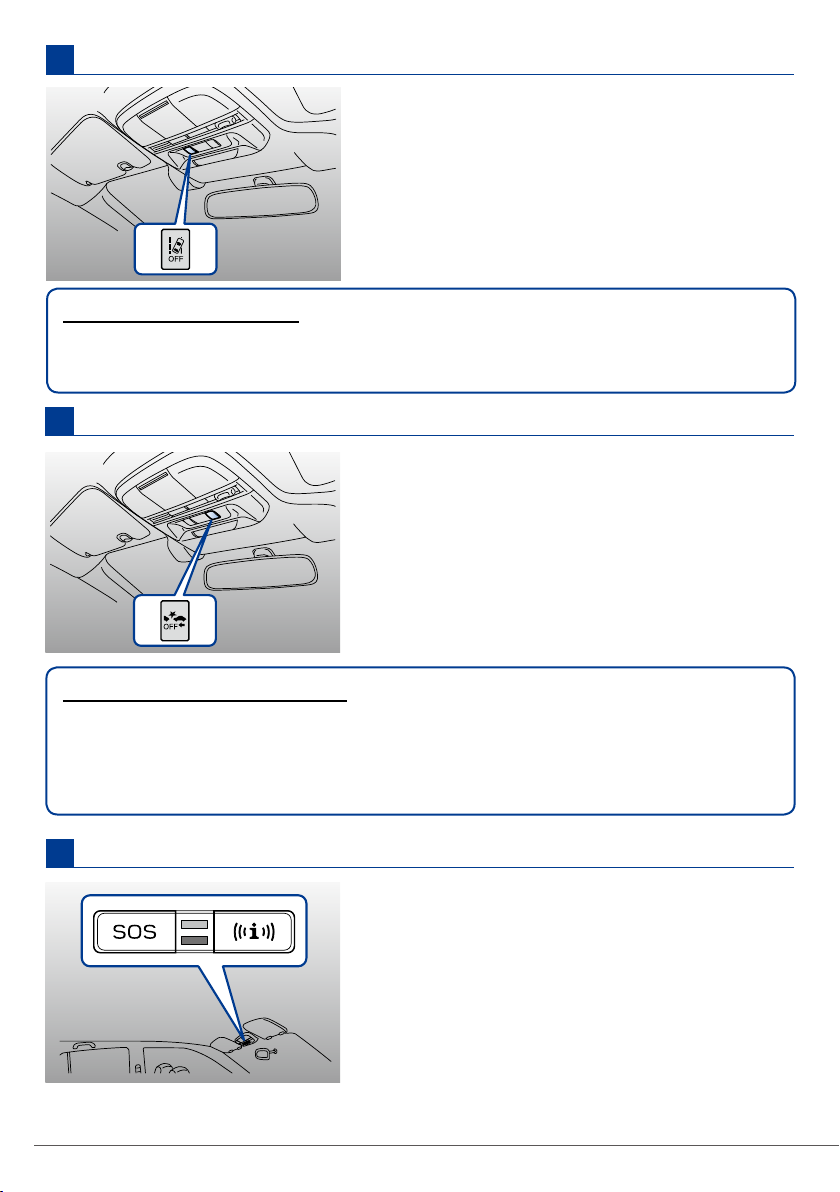

If the switch is pressed, the BSD/RCTA OFF indicator
appears on the combination meter and the BSD/RCTA
is deactivated.
The BSD/RCTA consists of rear corner radars with
Blind Spot Detection and Rear Cross Trafc Alert.
These functions enable the system to detect objects
or vehicles to the rear, drawing attention to the driver
when changing a lane or when driving in reverse.
BSD/RCTA
BSD/RCTA OFF switch (if equipped)
G
Intelligent (I) mode : Press the Iswitch.
Sport (S) mode : Press the Sswitch.
BSD/RCTA OFF indicator
BSD/RCTA approach
indicator light
The Heated Steering Wheel system warms the surface
of the steering wheel at a constant temperature.
Heated Steering Wheel system (if equipped)
H
Pull
This system consists of two modes: Intelligent (I), Sport (S).
By operating the SI-DRIVE switches, the character of the
power unit changes.
SI-DRIVE switches (if equipped)
I

16
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.

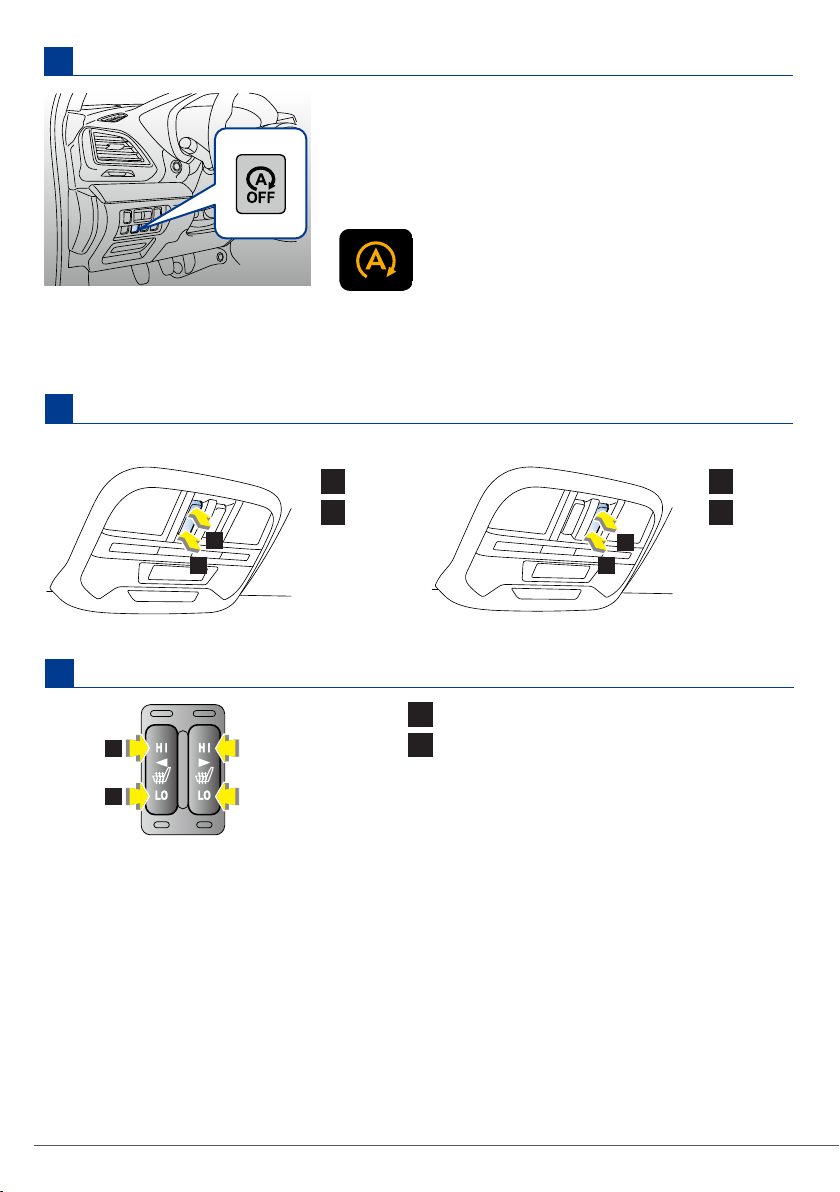

Seat heater (if equipped)
1HI : Rapid heating
2LO : Normal heating
Moonroof switches (if equipped)
Tilting Sliding
1Up
2Down
1Open
2Close
If the switch is pressed, operation of the Auto Start
Stop system will be disabled. The Auto Start Stop
OFF indicator light on the combination meter will then
illuminate.
If the switch is pressed once more, the Auto Start Stop
system will turn on again.
Auto Start Stop OFF switch (if equipped)
J
Auto Start Stop OFF indicator
1
2
2
1
2
1

17

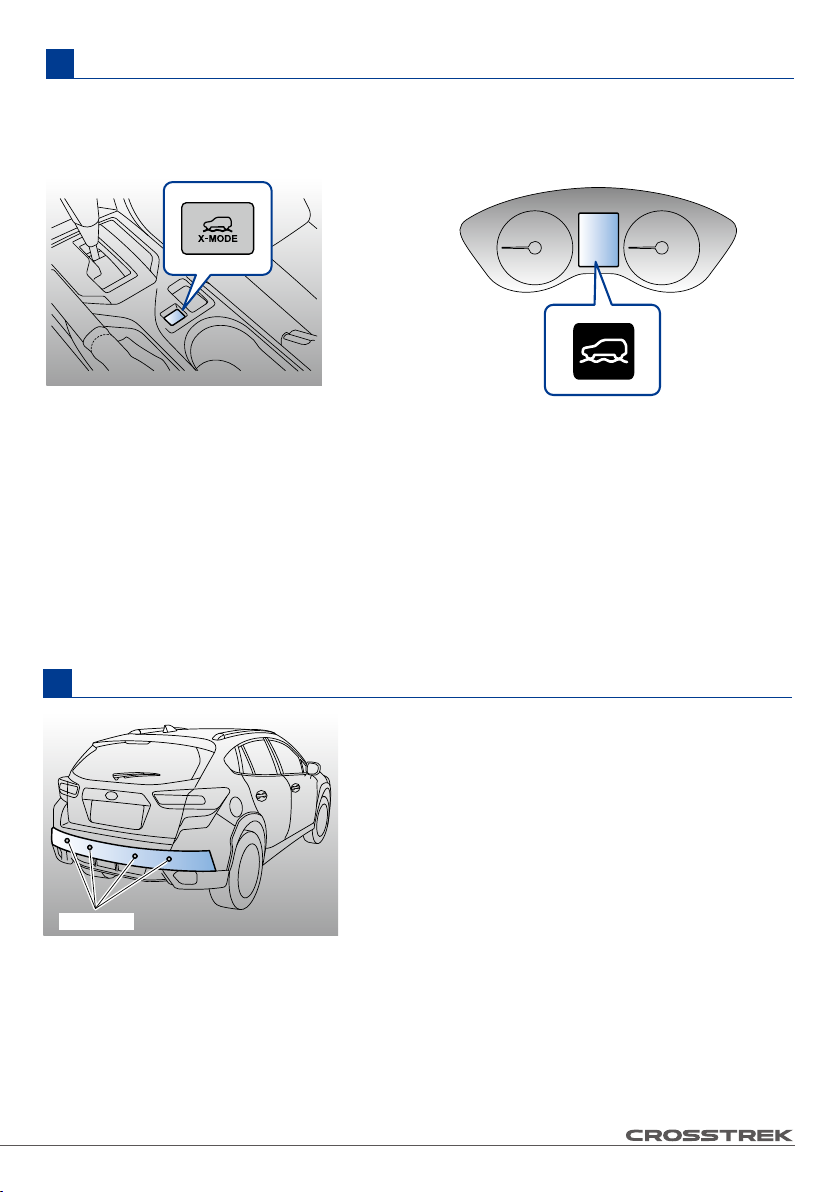

X-MODE has the following functions.
Hill descent control function: Using this function, you can keep the vehicle at a
consistent speed driving downhill. If the vehicle speed
is likely to increase, the brake control system will be
activated to adjust the vehicle speed.
Driving ability control: This mode increases the hill-climbing ability and driving
ability as well as enabling smooth application of torque for
easier control of the steering wheel.
X-MODE switch (if equipped)
X-MODE assists driving more comfortably even in slippery road conditions including uphill
and downhill. Press the switch, while the X-MODE is activated, the X-MODE indicator
appears.
X-MODE indicator
Reverse Automatic Braking System (if equipped)
Reverse Automatic Braking is a system designed
to help avoid collisions or reduce collision damage
when reversing the vehicle.
If a wall or an obstacle is detected in the reversing
direction, the system will notify the driver with a
warning sound and may activate the vehicle’s brakes
automatically.
The system detects objects
using sonar sensors installed in
the rear bumper.
Sensors

18
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
The Pre-Collision Braking System activates when the system determines that there is a
high risk of collision with an obstacle in front.
When there is the risk of a rear-end collision with an obstacle in front, the Pre-Collision
Braking system helps to prevent or minimize a collision by warning the driver.
Pre-Collision Braking System
Pre-Collision Braking System OFF switch (Models with EyeSight system)
Press and hold this switch for approximately 2
seconds or longer to turn off the Pre-Collision
Braking System (including Pre-Collision Braking
Assist).
SUBARU STARLINK safety and security (if equipped)
The SUBARU STARLINK system features using
just two buttons to provide 24/7/365 access to
STARLINK advisors who can provide help in an
emergency or summon roadside assistance.
Lane Departure Warning OFF switch (Models with EyeSight system)
Press and hold this switch for approximately 2
seconds or longer to turn off the Lane Departure
Warning and Lane Sway Warning functions.
This function when the vehicle speed 50 km/h (30 MPH) or more, warns the driver if the
system detects that the vehicle is likely to depart the trafc lane.
Lane Departure Warning

19
Some warning/indicator lights illuminate for a few seconds in order to check themselves
when the ignition switch is turned ON.
Warning lights
Refer to your Owner’s Manual for countermeasures when each warning light comes on.
If necessary, consult your authorized SUBARU dealer.
Oil pressure warning
The engine oil pressure is too
low.
Engine low oil level warning
The engine oil level decreases to
the lower limit.
All-wheel Drive warning (CVT models)
Tires of different diameter tted/
air pressure excessively low.
SRS airbag system warning
SRS airbag system and/
or seatbelt pretensioners
malfunction.
Power steering warning
The electric power steering
system malfunction.
AT OIL TEMP warning (CVT models)
Transmission uid temperature
is too hot./Transmission control
system malfunction.
Seatbelt warning
Remind the driver to fasten
seatbelt.
Charge warning
Charging system malfunction.
Front passenger’s seatbelt warning
PASS
Remind the front passenger to
fasten seatbelt.
CHECK ENGINE warning/Malfunction indicator
Engine/Emission control system
malfunction.
Door open warning
Any door or the rear gate is not
fully closed.
Low fuel warning
Fuel tank is nearly empty. Rell
fuel immediately.
Windshieldwasheruidwarning
The uid level in the windshield
washer uid tank decreases to
the lower limit.
Access key warning
The access key is not inside the
vehicle. For other situations,
refer to your Owner’s Manual.
MAIN WARNING AND INDICATOR LIGHTS

20
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Brake system warning
Parking brake on/Low brake uid level/EBD System malfunction.
(Anti-lock Brake System warning light illuminates simultaneously)
ABS warning
Anti-lock Brake System malfunction/EBD System malfunction (Brake System
warning light illuminates simultaneously).
Hill start assist warning/Hill start assist OFF indicator
Warning : Hill start assist system malfunction.
Indicator : Hill start assist system OFF.
Vehicle Dynamics Control warning/Vehicle Dynamics Control operation indicator
Warning : Vehicle Dynamics Control system malfunction.
Indicator : Flashes during activation of the skid suppression function and the
traction control function.
Steering Responsive Headlight warning/
Steering Responsive Headlight OFF indicator
Warning : The steering responsive headlight system malfunction.
Indicator : The steering responsive headlight system is deactivated.
Coolant temperature low indicator/Coolant temperature high warning
Illuminates in BLUE : Insufcient warming up of the engine.
Illuminates/Blinks in RED : Engine overheating/almost overheating.
Blinks in RED and BLUE alternately : Electrical system malfunction.
LED headlight warning
The LED headlights malfunction.
Automatic headlight beam leveler warning
Automatic headlight beam leveler
malfunction.
BSD/RCTA warning
Blind Spot Detection/Rear
Cross Trafc Alert (BSD/RCTA)
malfunction.
EyeSight warning
The EyeSight systems
malfunction.
RAB warning
Reverse Automatic Braking
System malfunctions.
