Lock/Unlock doors
BASIC OPERATION
For detailed operating and safety information, please refer to
your Owner’s Manual.
Remote keyless entry system
All doors and the rear gate will be locked/unlocked by the following procedures carrying the
access key on your person. (The driver should always carry the access key.)
Keyless access function (if equipped)
Side door (front door handles only): Rear gate:
Remote
transmitter key
(if equipped)
Access key
(if equipped)
PANIC
1All doors will be locked.
2The driver’s door will be unlocked.
(To unlock all doors, briey press the button
a second time within 5 seconds.)
3Press the button to open the rear gate.
4The horn will sound and the hazard warning
ashes will ash.
Lock
Unlock*
Door lock sensor
Grip
Touch
Press
Lock
Open
Press
23
4
1
1
2
3
4
*Grip the driver’s door handle to unlock the
driver’s door. Grip the front passenger’s
door handle to unlock all doors and the rear
gate.

3
Ignition switch must be in ACC or ON position.
1Select side to adjust.
2To adjust the mirror, move the switch in the
direction of your desired position.
Adjust each component
1Forward and backward adjustment
2Seat cushion angle adjustment
3Seat height adjustment
4Seatback reclining adjustment
5Lumbar support control
1Forward and backward adjustment
2Seat height adjustment (driver’s seat only)
3Seatback reclining adjustment
Power seat (driver’s seat - if equipped):
Manual seat (if equipped):
Front seat
Tilt/telescopic steering wheel
Remote control mirror switch
1Pull the tilt/telescopic lock lever down.
2Move the steering wheel to the desired level.
3Pull the lever up to lock the steering wheel in
place.
Make sure that the steering wheel is securely
locked by moving it up and down, and forward and
backward.
1
2
3
1
2
3
2
1 2
1
2
4
35

4
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Start/Stop engine
To start engine:
STEP1: Carry the access key, and sit in the driver’s seat.
STEP2: Apply the parking brake.
STEP3: Shift the select lever in the Pposition.
STEP4: Depress the brake pedal until the indicator on
the push-button ignition switch turns green.
STEP5: While depressing the brake pedal, press the
push-button ignition switch.
To stop engine:
STEP1: Stop the vehicle completely.
STEP2: Move the select lever to the Pposition.
STEP3: Apply the parking brake.
STEP4: Press the push-button ignition switch.
Every time the button is pressed without depressing the brake pedal, the power is
switched in the sequence of OFF➞ACC➞ON➞OFF.
OFF ( Turned off ) ACC (Orange) ON (Orange)
Change of the power supply (Without starting engine)
The key can be turned from ACC to LOCK only
when the select lever is in the Pposition and the key
is pushed in while turning it.
Push-button ignition switch (if equipped)
Ignition switch (if equipped)
Operation
indicator

5

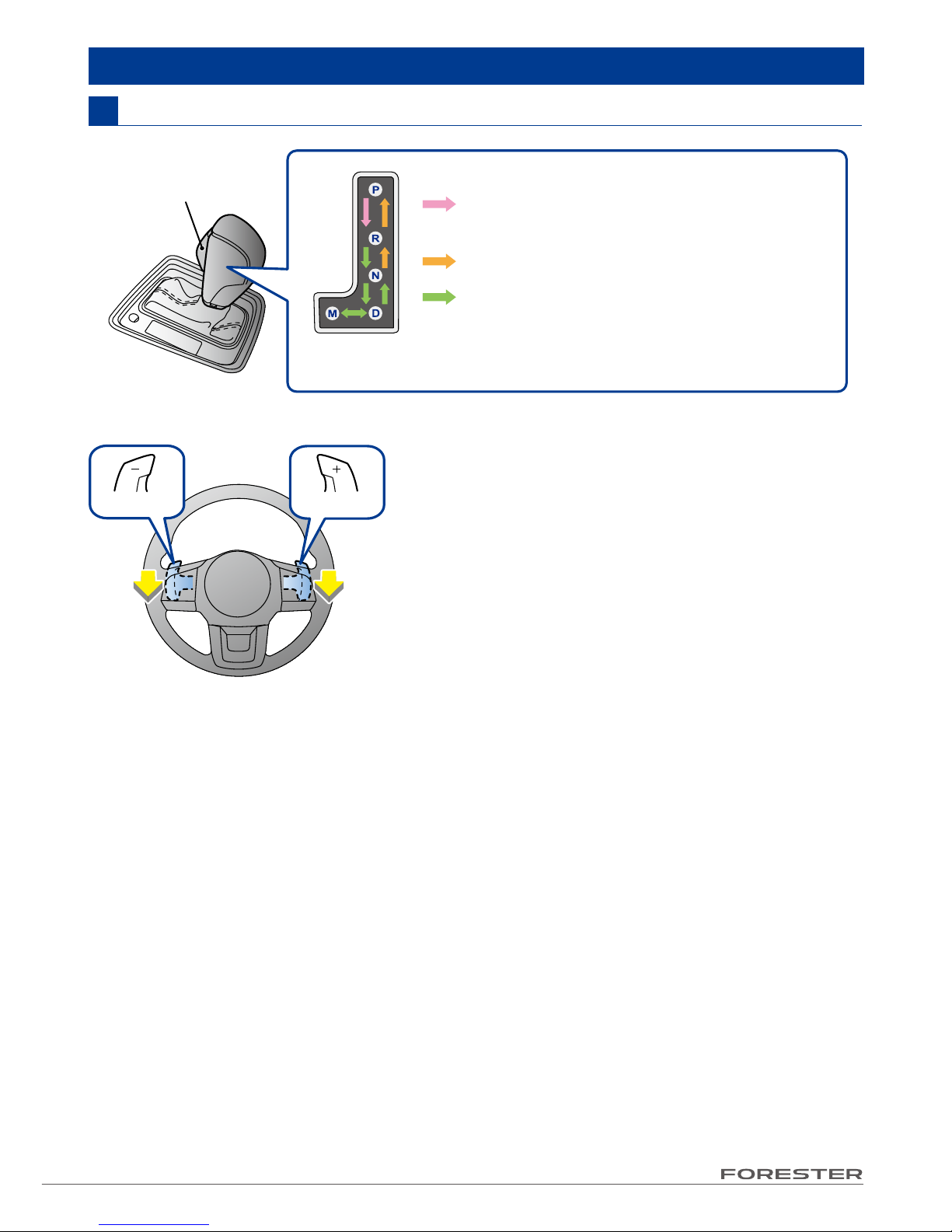

Shift paddle:
Gearshifts can be performed using the shift paddle
behind the steering wheel.
Operate Select lever/Shift lever
M = Manual mode:
With the vehicle either moving or stationary, move
the select lever from the D position to the M position
to select the manual mode.
Continuously variable transmission (if equipped)
With the brake pedal depressed, shift while
pressing the button in
Shift while pressing the button in
Shift without pressing the button
Select lever button
Downshift Upshift
Models with
Manual mode

6
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
MAIN PARTS AND OPERATION
1Headlights
2 Headlightasher,High/Lowbeamchange
(dimmer)
3Turn signal
4Front fog lights (if equipped)
Headlight switch/Turn signal lever/Fog light switch
A
AM
J
F
DG
L
H
E
4
3
3
1
2
BC
K
I

7
1Windshield wiper:
To operate the wiper, rotate knob to;
: Mist (for a single wipe)
: Off
: Intermittent
: Low speed
: High speed
2Wiper intermittent time control
3Windshield washer:
Pull the wiper control lever toward you.
4Rear window wiper and washer:
To operate the wiper, rotate knob to;
: Continuous
: Intermittent
: Off
: Washer (accompanied by wiper operation)
Wiper and washer switch
B
To turn on the hazard warning asher, press the
button.
Use the hazard warning asher when you have to
park in emergency conditions.
 Hazardwarningasherswitch
C
Turn the dial to adjust the illumination brightness of
the instrument panel.
When the control dial is turned fully upward to
position, the illumination brightness becomes the
maximum and the automatic dimming function does
not work at all.
Illumination brightness control dial
D
4
21
3
To brighten
To darken

8
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
1Defroster button:
Press the button or turn the dial to defrost the
windshield.
2Rear window defogger button:
Press the button to turn on rear window defogger,
outside mirror defogger and windshield wiper
deicer (if equipped). The function will automatically
shut off after approximately 15 minutes.
Defroster button/Rear window defogger button
E
Hood lock release knob
H
Power rear gate switch (if equipped)
F
Memory switch (if equipped)
G
Your desired rear gate height can be registered.
1
2
2
1
Press and hold
Pull

9
1Lock switch
2For driver’s window
3For front passenger’s window
4For rear left passenger’s window
5For rear right passenger’s window
Power window switches
I
To unlock all doors and the rear gate
To lock all doors and the rear gate
Power door locking switch
J
Seat heater switches (if equipped)
K
HIGH
HIGH
LOW
LOW
HIGH
HIGH
LOW
LOW
HIGH: Rapid heating
LOW: Normal heating
 Fuelllerlidreleaselever
L
1
2
4
5
3
Pull
This indicates that the fuel ller door (lid) is
located on the right side of the vehicle.
Right side

10
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Audio control buttons
M
These buttons allow the driver to control audio
functions without taking his/her hands off the
steering wheel.
1To lower:
Pull the release lever and slide the anchor down.
2To raise:
Slide the anchor up.
Front seat shoulder belt anchor height
Moonroof switch
1Open
2Close
Located on the edge of each rear door.
When the lever is in the LOCK position, the rear
door cannot be opened from the inside.
Child safety locks
1
2
21

11
FUNCTION FOR MORE COMFORTABLE DRIVE
Press the switch to deactivate the Vehicle Dynamics Control system. It may be useful to
briey deactivate the Vehicle Dynamics Control system to facilitate the following operations.
- a standing start on a steeply sloping road with a snowy, gravel-covered, or otherwise
slippery surface
- extrication of the vehicle when its wheels are stuck in mud or deep snow
Do not deactivate the system except when absolutely necessary.
Vehicle Dynamics Control OFF switch
A
models with power rear gate models without power rear gate
Vehicle Dynamics
Control mode
Vehicle Dynamics
Control OFF mode
Indicator lights on the combination meter
HI
ABD
D
E
C
F
G

12
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.

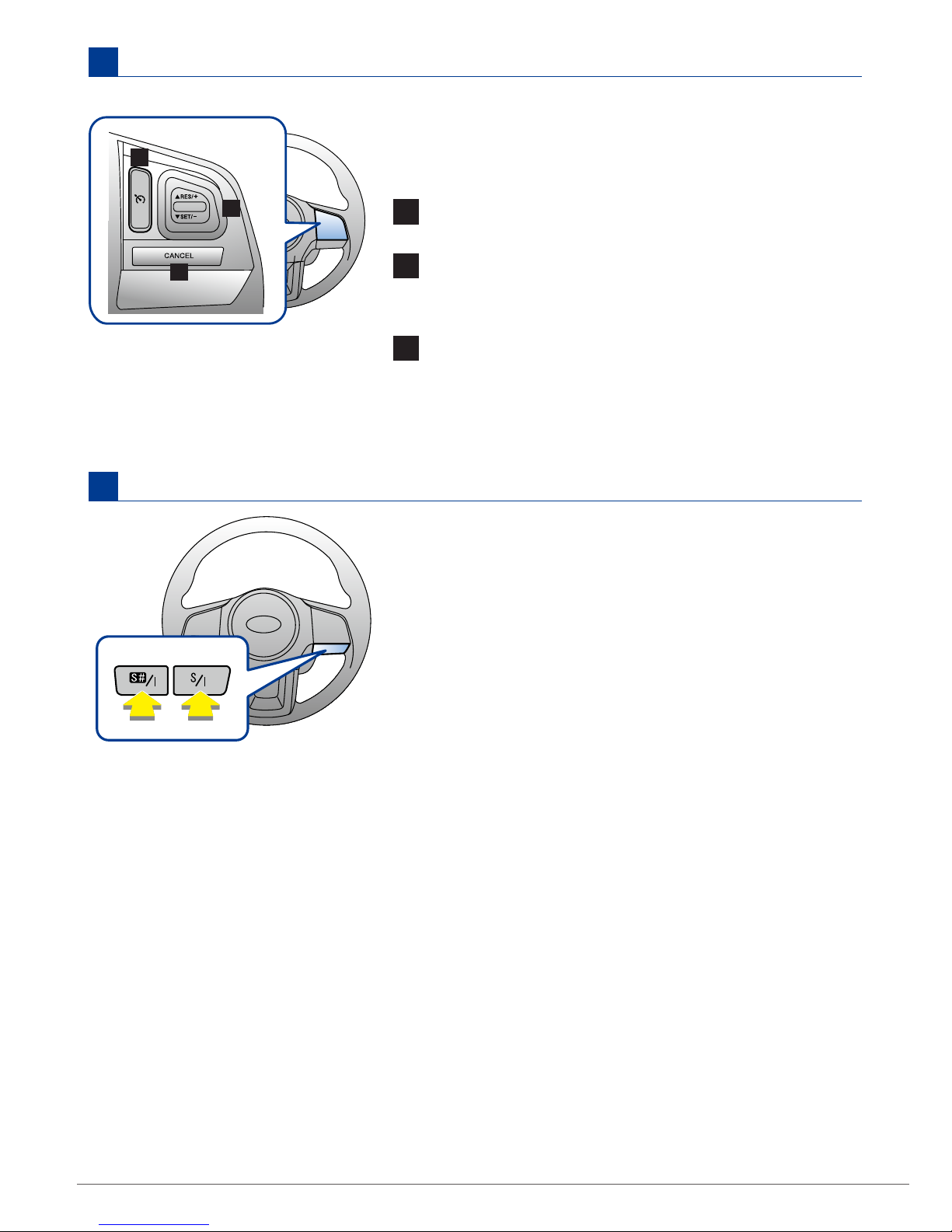

1Cruise control main button: To activate and
deactivate
2RES/SET switch:
▲RES/+ side: To increase the speed/To resume
▼SET/- side : To set speed/To decrease the speed
3CANCEL button: To temporarily cancel
Cruise control enables you to maintain a constant
vehicle speed without holding your foot on the
accelerator pedal and it is operative when the vehicle
speed is 40 km/h (25 mph) or more.
Cruise control buttons (if equipped)
B
This system consists of two or three modes: Intelligent (I),
Sport (S), and Sport Sharp (S#).
By operating the SI-DRIVE switches, the character of
the power unit changes.
SI-DRIVE switches
C
Intelligent (I) mode: Perform either of the following procedures.
- Press the S/I switch when the Sport (S) mode is selected.
- Press the S#/I switch when the Sport Sharp (S#) mode is selected.
Sport (S) mode:
Press the S/I switch when any mode other than Sport (S) mode is selected.
Sport Sharp (S#) mode:
Press the S#/I switch when any mode other than Sport Sharp (S#) mode is selected.
1
2
3

13

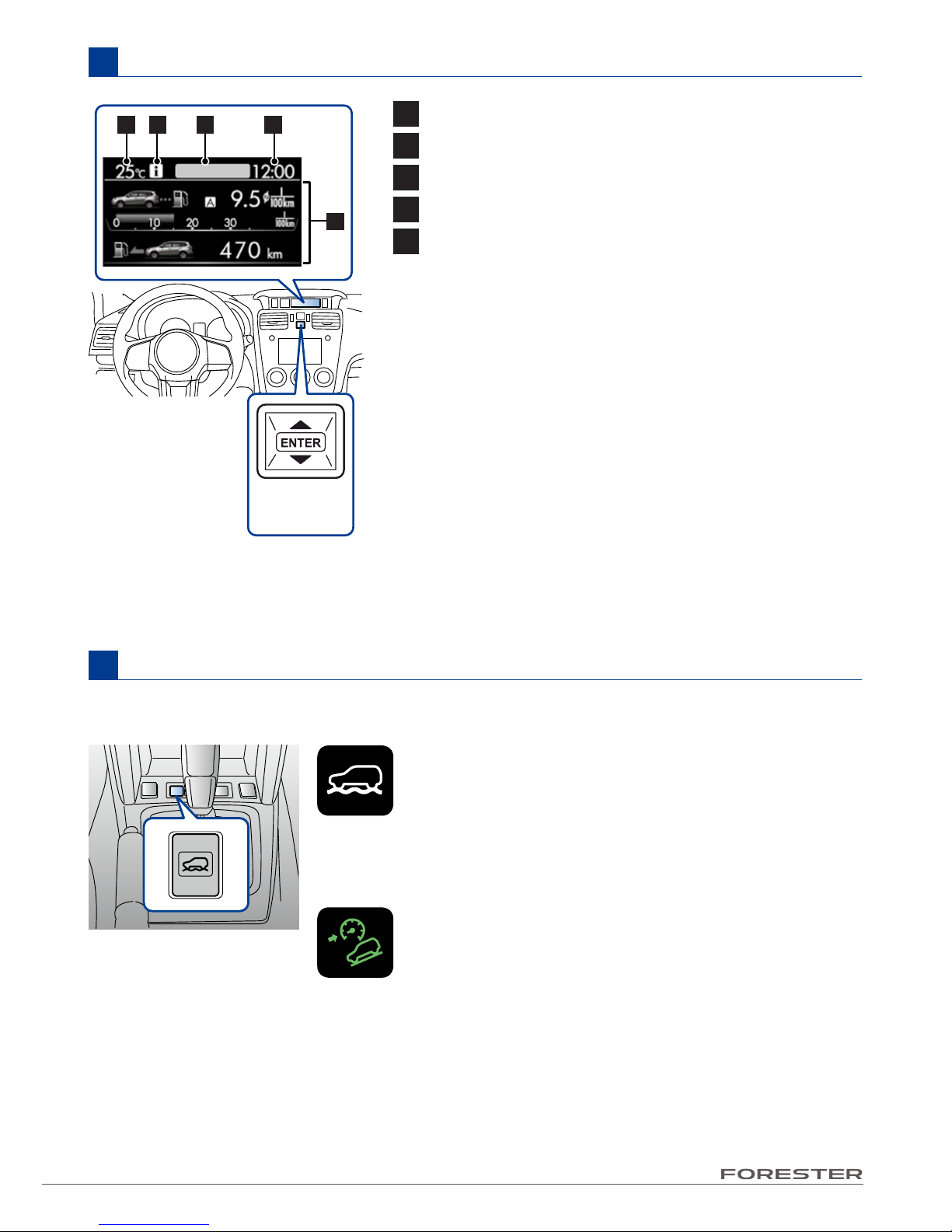

1Outside temperature indicator
2Information reminder
3Top display
4Clock
5Driving information display:
By operating ▲or ▼of the control switch, the
screens and selection items can be switched.
Control switch: By operating ▲or ▼of the control
switch, the screens and selection items
can be switched. When the ENTER
switch is pulled toward you, the item
can be selected and set.
Multi function display
D
X mode switch
E
X mode assists driving more comfortably even in slippery road conditions including uphill and
downhill.
To activate:
Press the X mode switch. While the X mode is
activated, the X mode indicator light illuminates.
To deactivate:
Press the X mode switch again. The X mode
indicator light will turn off.
X mode
indicator
Hill descent control function:
Using the hill descent control function, you can
operate the vehicle keeping to a consistent speed
downhill.
If the vehicle speed is likely to increase, the brake
control system will be activated to adjust the vehicle
speed.
Hill descent
control
indicator
1 2 3 4
5
Control
switch

14
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Memory function (driver’s seat - if equipped)
G
Some of your desired seat positions can be registered.
Register the seat position with button 1or 2or each
of the access keys (if equipped) and retrieve the seat
position.
1
2
The Heated Steering Wheel system warms the surface
of the steering wheel at a constant temperature.
Heated Steering Wheel system (if equipped)
H
Pull
If the SRH OFF switch is pressed, the SRH OFF
indicator is displayed on the Multi information display
of the combination meter, and the steering responsive
headlight system is deactivated.

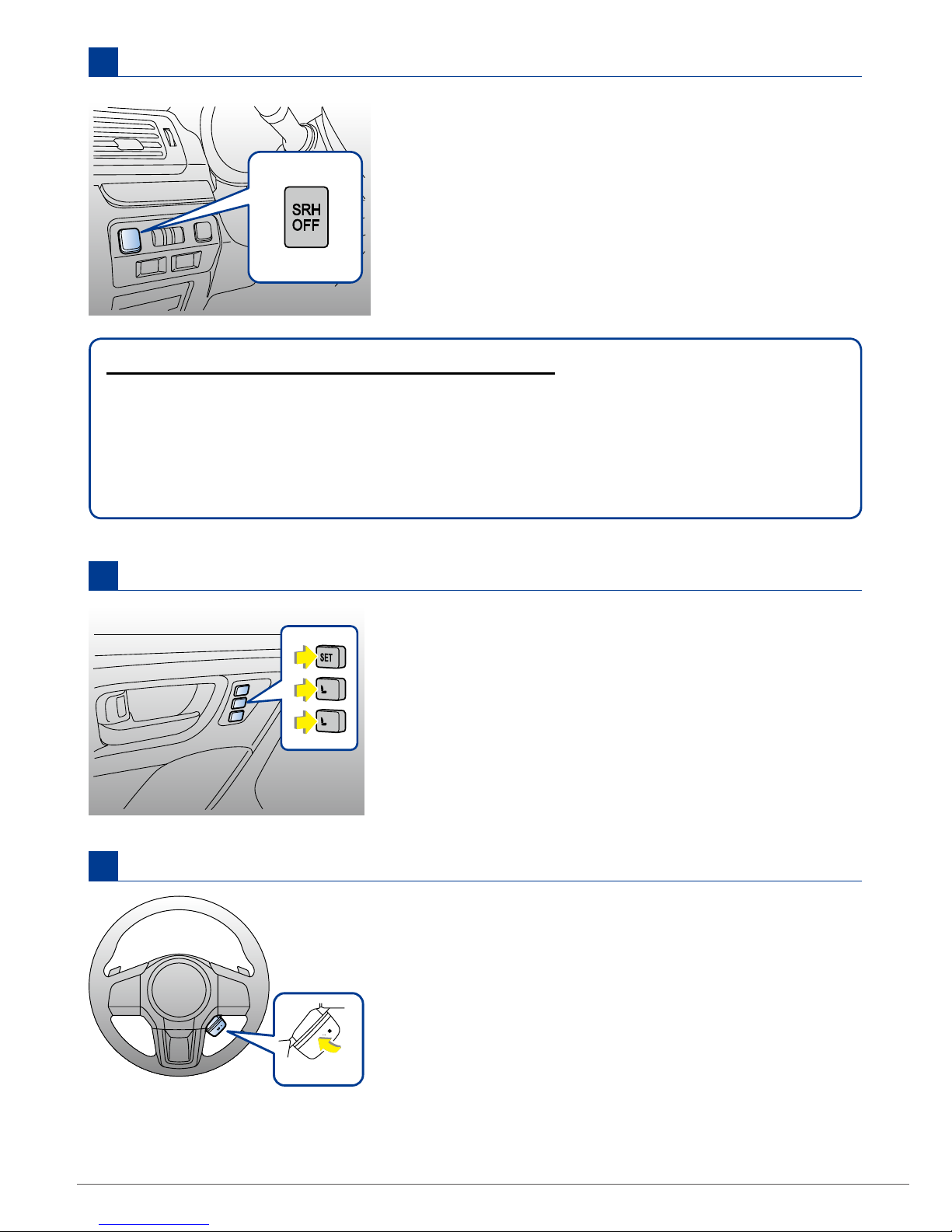

SRH is a function that automatically moves the headlight beam to the left or right in
accordance with the steering angle. This function helps to improve the visibility at night
by illuminating the road ahead at corners and intersections.
Steering Responsive Headlight (SRH) system
SRH OFF switch (if equipped)
BF

15
If the BSD/RCTA OFF switch is pressed, the BSD/
RCTA warning indicator and BSD/RCTA OFF indicator
are displayed on the Multi information display of the
combination meter, and the BSD/RCTA is deactivated.
The BSD/RCTA consists of rear radar with Blind Spot
Detection, Lane Change Assist and Rear Cross Trafc
Alert.
The system noties the driver when vehicles in
the blind area are approaching from behind in the
neighboring lanes.
BSD/RCTA
BSD/RCTA OFF switch (if equipped)
I

16
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.

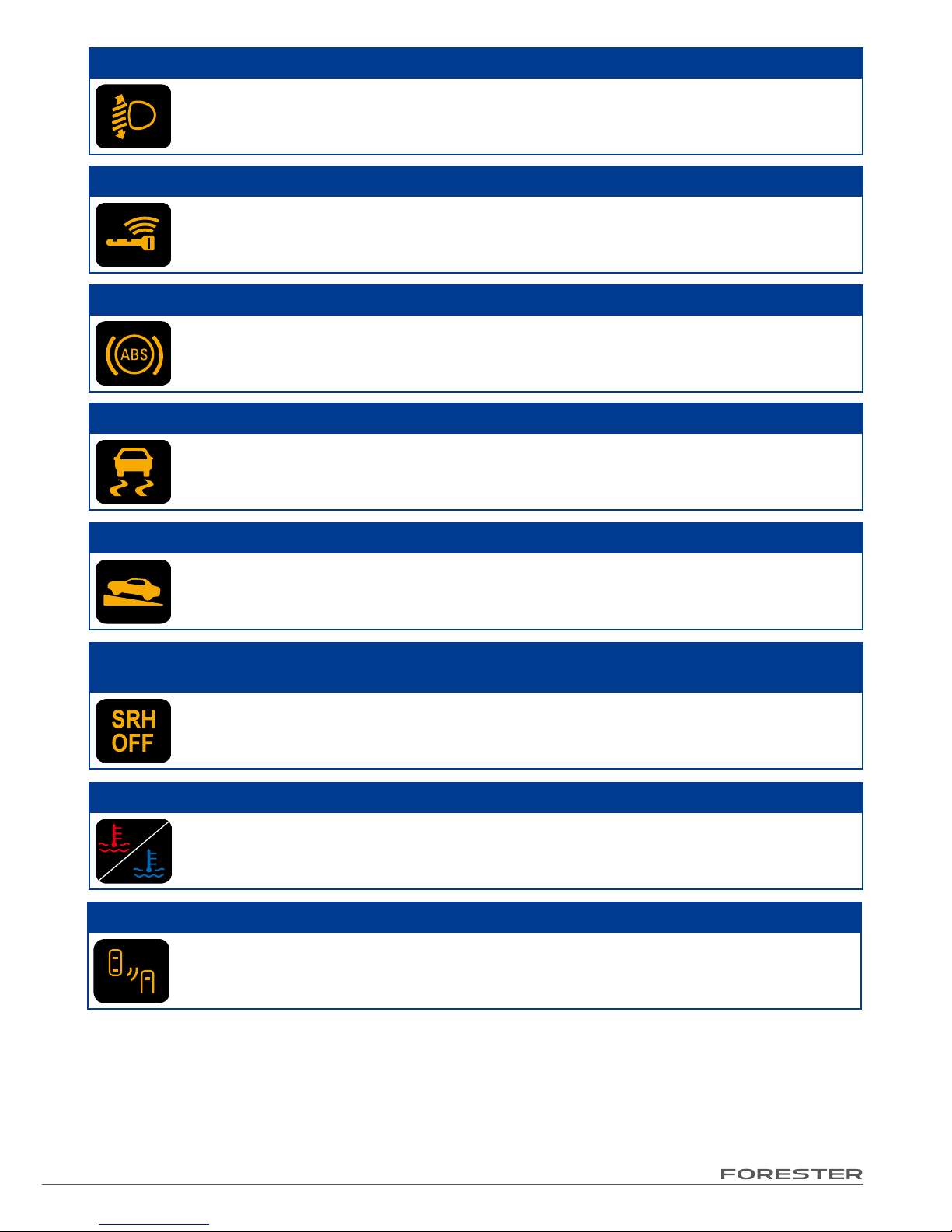

Some warning/indicator lights illuminate for a few seconds in order to check themselves
when the ignition switch is turned ON.
MAIN WARNING AND INDICATOR LIGHTS
Warning lights
Refer to your Owner’s Manual for countermeasures when each warning light comes on.
If necessary, consult your authorized SUBARU dealer.
Seatbelt warning
Remind the driver to fasten
seatbelt.
Front passenger’s seatbelt warning
PASSENGER
Remind the front passenger to
fasten seatbelt. Location: next to
the information display.
CHECK ENGINE warning/Malfunction
indicator
Engine/Emission control system
malfunction.
Charge warning
Charging system malfunction.
Oil pressure warning
The engine oil pressure is too
low.
Engine low oil level warning
The engine oil level decreases to
the lower limit.
All-Wheel Drive warning
Tires of different diameter tted/
air pressure excessively low.
SRS airbag system warning
SRS airbag system and/
or seatbelt pretensioners
malfunction.
Power steering warning
The electric power steering
system malfunction.
AT OIL TEMP warning
Transmission uid temperature
is too hot./Transmission control
system malfunction.
Vacuum pump system warning (turbo
petrol engine models)
The vacuum pump system
malfunction.
Brake system warning
Low uid level/EBD system
malfunction
(ABS warning light illuminates
simultaneously)
Low fuel warning
Fuel tank is nearly empty. Rell
fuel immediately.
Windshieldwasheruidwarning
The uid level in the windshield
washer uid tank decreases to
the lower limit.

17
Automatic headlight beam leveler warning
Automatic headlight beam leveler malfunction.
Access key warning
The access key is not inside the vehicle. For other situations, refer to your
Owner’s Manual.
ABS warning
Anti-lock Brake System malfunction/EBD system malfunction (Brake system
warning light illuminates simultaneously).
Vehicle Dynamics Control warning/Vehicle Dynamics Control operation indicator
Warning : Vehicle Dynamics Control system malfunction.
Indicator : Flashes during activation of the skid suppression function and the
traction control function.
Hill start assist warning/Hill start assist OFF indicator
Warning : Hill start assist system malfunction.
Indicator : Hill start assist system OFF.
Steering responsive headlight warning/
Steering responsive headlight OFF indicator
Warning : The steering responsive headlight system malfunction.
Indicator : The steering responsive headlight system is deactivated.
Coolant temperature low indicator/Coolant temperature high warning
Illumination in BLUE : Insufcient warming up of the engine.
Illumination/blinking in RED : Engine overheating/almost overheating.
Blinking in RED and BLUE alternately : Electrical system malfunction.
BSD/RCTA warning
Blind Spot Detection/Rear Cross Trafc Alert (BSD/RCTA) malfunction.

18
◆Some functions are available on certain models. ◆ For detailed operating and safety information, please refer to your Owner’s Manual.
Cruise control indicator Cruise control set indicator

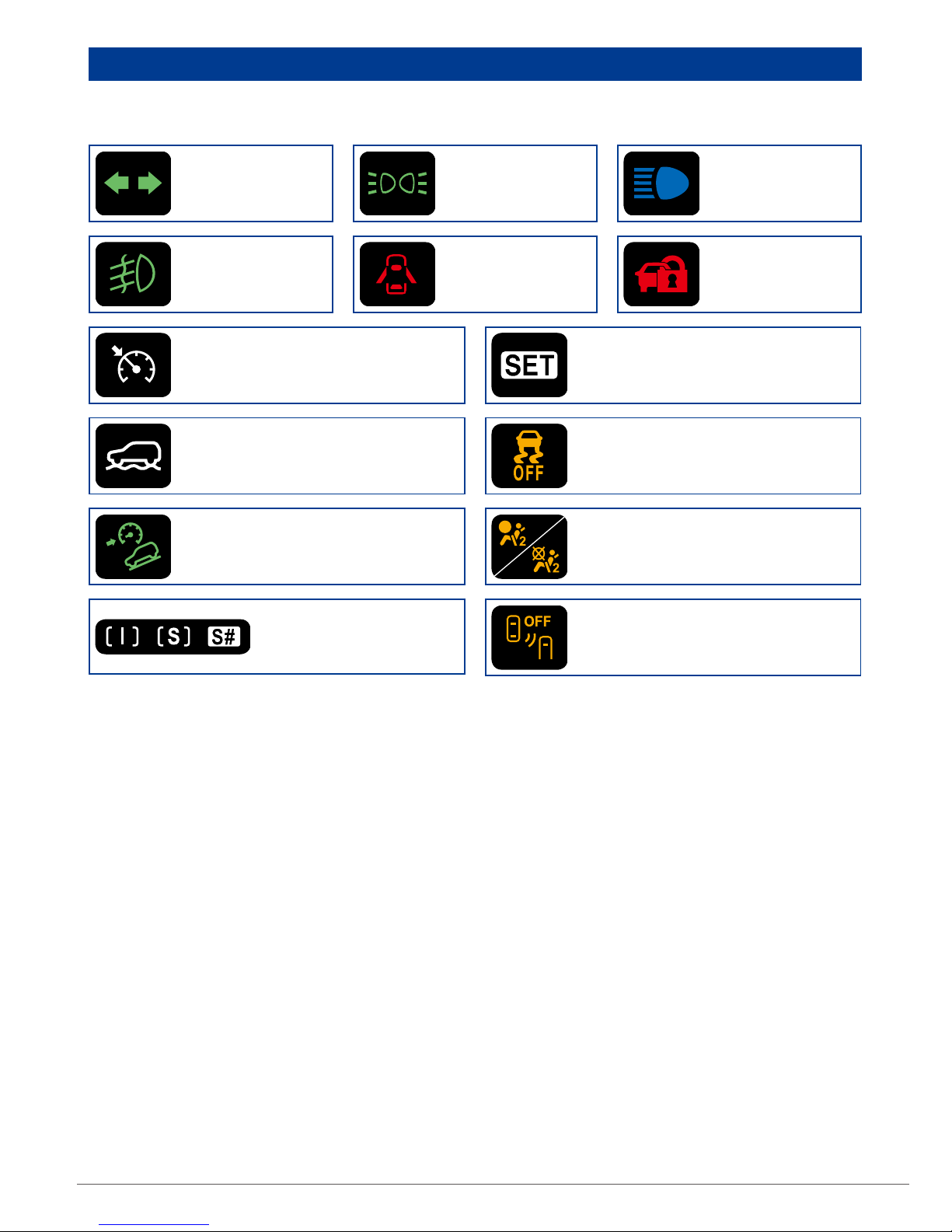

Indicator lights
The following indicators show the current status of your car. Refer to your Owner’s Manual
for more information.
Turn signal
indicator
Headlight
indicator
High beam
indicator
Front fog light
indicator
Door open
warning
Security
indicator
Hill descent control indicator Front passenger’s frontal
airbag ON/OFF indicator
SI-DRIVE indicator BSD/RCTA OFF indicator
X mode indicator Vehicle Dynamics Control OFF
indicator

19

All illustrations, specications, features and photographs contained in this brochure are based on product information available at the time of
its printing, and may not be completely accurate following its publication. Colours shown may vary due to reproduction variations in the printing
process, and some vehicle parts cannot be shown in certain photographs. Subaru Canada, Inc. reserves the right to discontinue or make changes
at any time, without notice or incurring obligations, to colours, materials, equipment, accessories, features, specications and models, or to change
their prices. Please visit our Web site for the latest information and specications. For detailed operating and safety information, please consult
your Owner’s Manual. For complete details on product updates, warranties or the Subaru C.A.R.E. program, please contact your Subaru dealer.
Forester and Subaru are registered trademarks. Printed in Canada. © 2016 Subaru Canada, Inc. 2017 model year.
subaru.ca
Environmental Management System (EMS)
ISO14001:2004certiedbySGS
www.subaru-earth.com
SUBARU CANADA, INC. /FUJI HEAVY INDUSTRIES LTD.
SBQRGFOR17E05.16
