2005 SUBARU FORESTER2005 SUBARU FORESTER

A BALANCE OF COMFORT, UTILITY AND CAPABILITY.
Beware the beaten path. It is the path of
followers, not leaders. Of tourists, not
explorers. It is the road traveled by those
more trusting of convention than invention.
And it is not the path of Subaru. Because
for over three decades we have blazed
our own trail, building the kind of cars
people depend on every day. Capable
cars. Rational cars. Intelligent cars.
We introduced America to the beauty of
All-Wheel Drive. We proved ourselves on
rally courses around the world, but our
journey never truly ends, it merely evolves.
As do we, with cars that offer more than
mere capability. Much more. They are
stylish. Powerful. Exhilarating. They
ignite passion. In this way, we constantly
push the boundaries. Continually
redefining what a Subaru can be.

The truest measure of an SUV isn't size.
It's substance. A point of view exemplified
by the intelligently proportioned 2005
Subaru Forester. As capable on the
highway as they are in the high
desert, all Forester models indulge
occupants with a wealth of thoughtful
conveniences. They provide a sense of
security, with a rugged exterior and an
abundance of active and passive safety
features. Most importantly, they inspire
true driving confidence, thanks to
a powerful Subaru Boxer engine
with Symmetrical All-Wheel Drive for
self-assured handling in virtually every
environment. All of which result in a driving
experience that can be defined by that most
substantive quality of all: Peace of mind.
AND CONFIDENCE.
Forester 2.5 XT with Premium Package shown in Platinum Silver Metallic with accessory heavy-duty cargo basket
THE 2005 FORESTER

4 | Forester 2.5 XT4 | Forester 2.5 XT
FORESTER 2.5 XT.WHO NEEDS ESPRESSO WHEN YOU CAN START YOUR DAY
BEHIND THE WHEEL OF THE INVIGORATING FORESTER 2.5 XT. ENGINEERED
FOR REAL-WORLD CAPABILITY AND
PERFORMANCE, IT FEATURES OUR
INTERCOOLED AND TURBOCHARGED
210-HP SUBARU BOXER ENGINE WITH
ACTIVE VALVE CONTROL SYSTEM (AVCS)
VARIABLE VALVE TIMING AND SYMMETRICAL ALL-WHEEL DRIVE (AWD). RESULTING
IN A DRIVING EXPERIENCE THAT PUTS THE SPORT BACK INTO SPORT UTILITY.

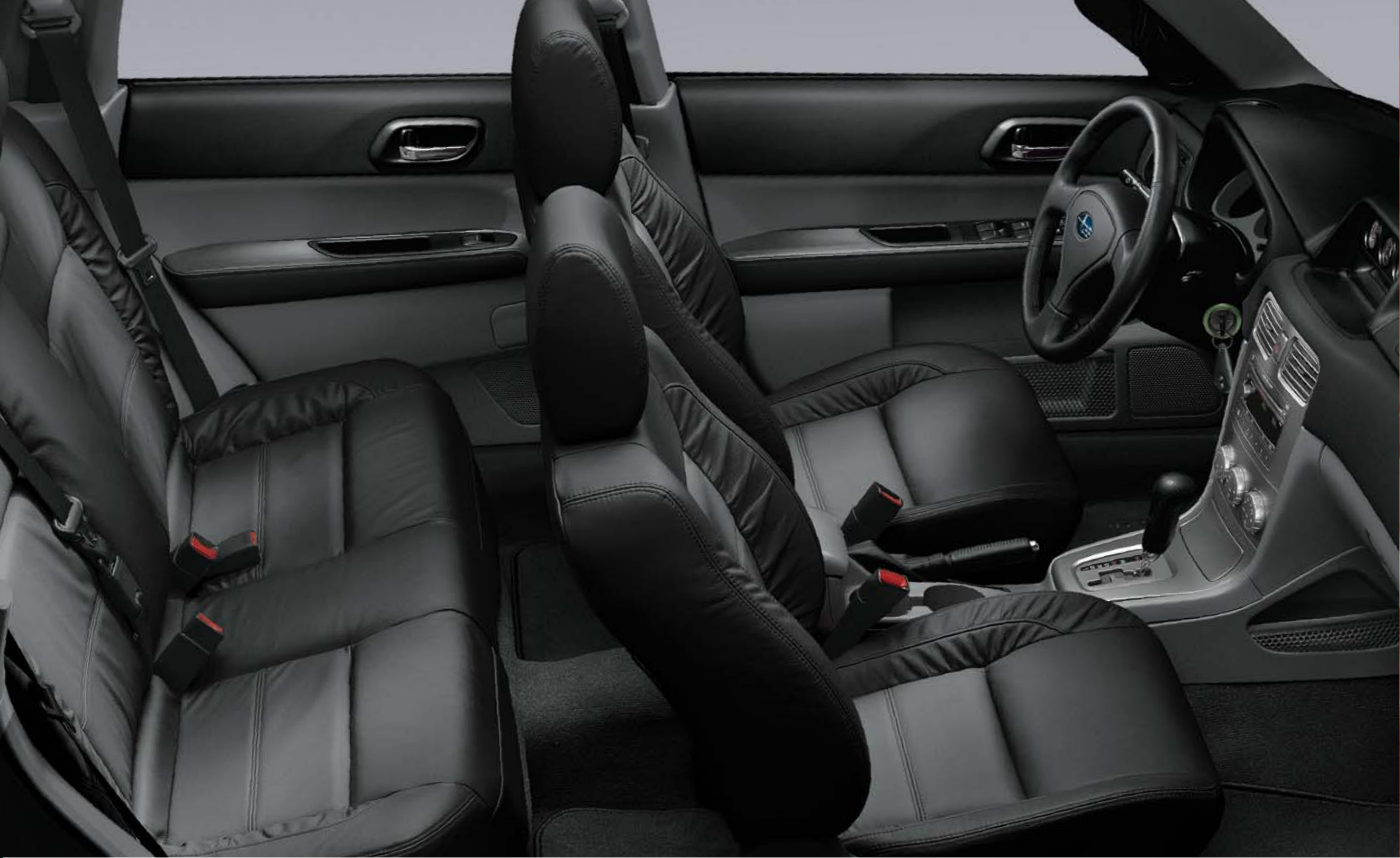

Forester 2.5 XT with Premium Package shown with Black leather, optional automatic transmission and accessory performance gauge pack

SUBARU, 2004
|
The Forester 2.5 XT is picked as one of Car and Driver
magazine’s 2004 5Best Trucks in the Small SUV category.
INJECTING A DOSE OF ADRENALINE into the SUV experience, the powerful Forester 2.5 XT caters to enthusiasts of every
sort with a well-proportioned cabin that’s equal parts luxury, utility and driver-focused functionality. Up front, silver metallic
trim gives the cockpit a sleek, stylish look. An 8-way power driver’s seat ensures a comfortable, easily adjusted driving
position. An automatic climate control system works to maintain a preset temperature. All supplemented by a rear cargo area
offering over 62 cubic feet of carrying capacity with the rear seats folded down. Or for an even more luxurious experience, the
2.5 XT Premium Package delivers added benefits like rich, Black leather-trimmed upholstery and a panoramic power moonroof.
INJECTING A DOSE OF ADRENALINE into the SUV experience, the powerful Forester 2.5 XT caters to enthusiasts of every
sort with a well-proportioned cabin that’s equal parts luxury, utility and driver-focused functionality. Up front, silver metallic
trim gives the cockpit a sleek, stylish look. An 8-way power driver’s seat ensures a comfortable, easily adjusted driving
position. An automatic climate control system works to maintain a preset temperature. All supplemented by a rear cargo area
offering over 62 cubic feet of carrying capacity with the rear seats folded down. Or for an even more luxurious experience, the
2.5 XT Premium Package delivers added benefits like rich, Black leather-trimmed upholstery and a panoramic power moonroof.
Sport-design instrumentation gives the Forester 2.5 XT
a performance-infused flair.
A sporty, leather-wrapped shift knob practically begs
you to put the standard 5-speed manual transmission of
the 2.5 XT through its paces every chance you get.
A road trip without music is like a campfire without
s’mores. So the 2.5 XT is equipped with an AM/FM/
Weatherband stereo with an in-dash 6-disc CD player
for hours of uninterrupted entertainment.
3
2
1
123
16" 6-spoke wheels
Raised suspension
Fog lights
Roof rails with cross bars
Windshield wipers de-icer
Sport-design front seats
Heated front seats
In-dash CD player
Automatic climate
control system
12-volt power outlets

FORESTER 2.5 XS L.L.BEAN®EDITION. NEW FOR 2005, THE FORESTER 2.5 XS L.L.BEAN
EDITION OFFERS ALL-WHEEL DRIVE CAPABILITY, LUXURIOUS REFINEMENT, PLUS
A LIST OF STANDARD FEATURES THAT’S AS BIG AS ITS NAMESAKE’S CATALOG.
RUGGED YET UNQUESTIONABLY STYLISH, the well-appointed interior of the 165-hp 2.5 XS L.L.Bean Edition is defined by
distinctive L.L.Bean-embossed leather-trimmed upholstery and embroidered floor mats. A security system with remote
access. Silver metallic accents. Heated front seats that help take the chill out of cold winter mornings. And so much more.
16" 5-twin-spoke wheels
Raised suspension
Self-leveling rear suspension
Roof rails with cross bars
Automatic climate
control system
Auto-dimming rearview
mirror with compass
Panoramic moonroof
Security system
12-volt power outlets
Durable hard-surface
cargo area
7 | Forester 2.5 XS
1 2
For those who find the idea of packing light to be some-
thing of an oxymoron, the 2.5 XS L.L.Bean Edition offers up
to 62 cubic feet of maximum cargo space with the rear seats
folded down, plus a durable hard lining for easy clean up
when your gear returns home wet and muddy.
In keeping with its exceptional breeding, the 2.5 XS
L.L.Bean Edition pampers occupants with leather-
trimmed seats and an ergonomically designed dashboard,
featuring a convenient automatic climate control system.
2
1

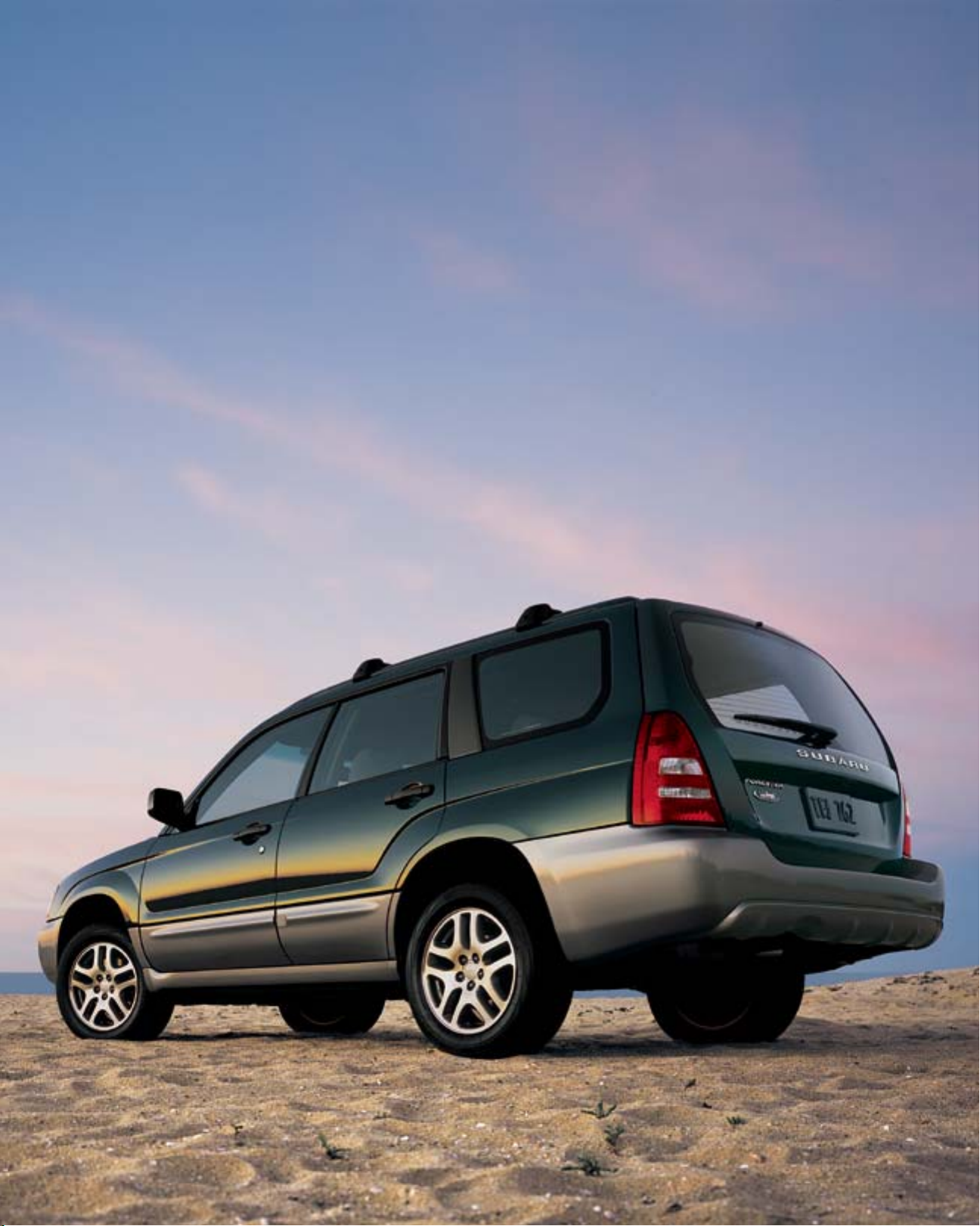

7 | Forester 2.5 XS Forester 2.5 XS L.L.Bean Edition shown in Woodland Green Pearl/Steel Gray Metallic

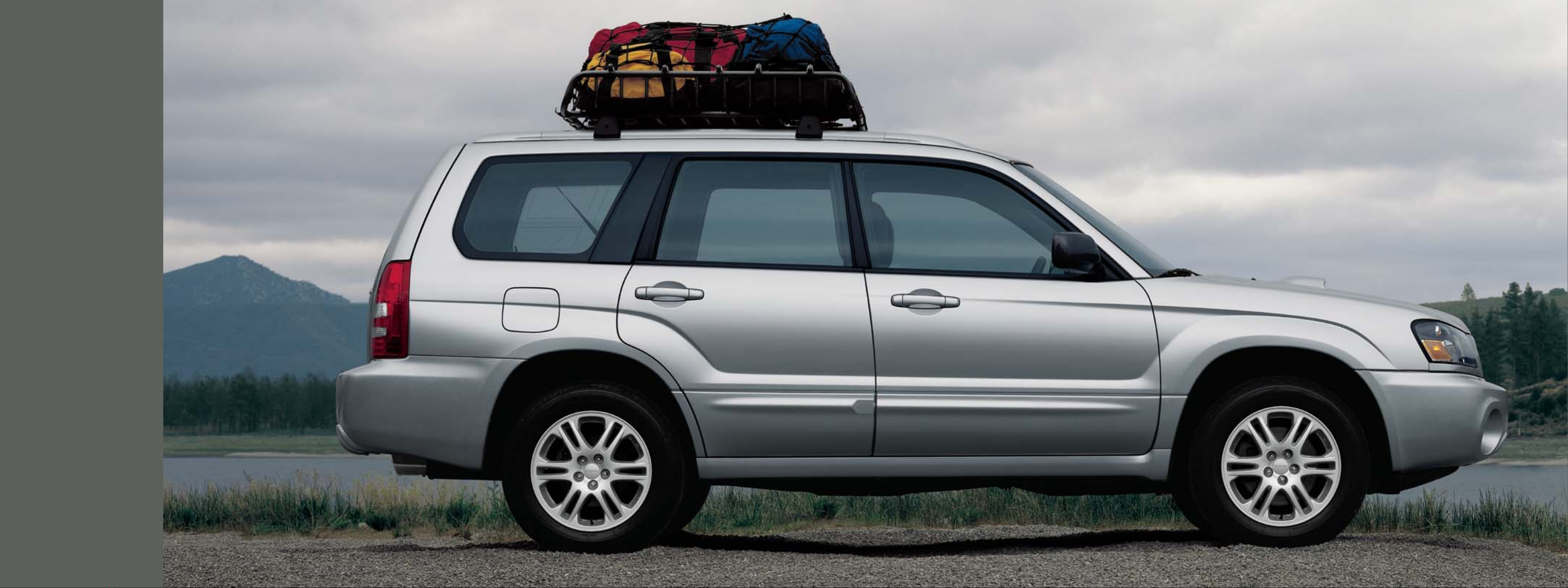

9 | Forester 2.5 XS Forester 2.5 XS shown in Platinum Silver Metallic with optional moonroof and accessory fork-mounted bicycle carriers

SUBARU, 2004
|
The Forester receives the R.L. Polk Loyalty Award for the
Highest Model Loyalty in the Compact Sport Utility Vehicle Segment.
1
1According to Polk statistics for the Compact SUV Category in the 2003 model year, Subaru Forester ranked the highest by having the greatest percentage of households return to purchase or lease another Forester vehicle.
16" 8-spoke wheels
Raised suspension
Power driver’s seat
Heated front seats
Leather-wrapped
shifter handle
SURE-FOOTED in even the most challenging of conditions, the All-Wheel Drive, 165-hp 2.5 XS offers a reassuring blend of
capability and refinement. Its spacious, well-equipped interior includes everything from an AM/FM/Weatherband stereo with a
6-disc in-dash CD changer, to a new 8-way power driver’s seat, to an optional power moonroof that’s as big as the great outdoors.
Automatic climate
control system
Air filtration system
In-dash CD changer
Keyless entry system
12-volt power outlets
FORESTER 2.5 XS. DESIGNED TO NAVIGATE RAIN STORMS, POTHOLES AND
CROWDED PARKING LOTS WITH UNFLAPPABLE STYLE AND CONFIDENCE, THE
FORESTER 2.5 XS BRINGS A LEVEL OF CIVILITY TO AN OFTEN UNCIVILIZED WORLD.
12
Inside the spacious 2.5 XS, you’ll find elegant yet
durable Gray Moquette upholstery, seating for five, plus
room for their luggage.
Slip into the driver’s seat and you’ll find a new leather-
wrapped 3-spoke steering wheel, a silver metallic-
trimmed instrument panel and a multitude of controls
within easy reach.
2
1

11 | Forester 2.5 X
FORESTER 2.5 X. INTELLIGENTLY SIZED YET SPACIOUS ENOUGH FOR THE ENTIRE
FAMILY, THE FORESTER 2.5 X DELIVERS ALL-WHEEL DRIVE CONFIDENCE, REMARK-
ABLE UTILITY, AND A VALUE THAT’S AS ACCOMMODATING AS THE VEHICLE ITSELF.
1
11 | Forester 2.5 X
The well-designed interior of the Forester 2.5 X is available
with resilient Beige or Gray Tricot upholstery, and has room
for five. Or six, if you count the family pet.
Fold down the rear seat and you’ll enjoy over 62 cubic feet
of available cargo space. That’s enough room for all your gear,
plus a week’s worth of groceries.
Under the cargo-area floor, you’ll find even more storage room
in a compartment that’s great for gloves, dog toys or anything
else that’s coming along for the ride.
3
2
1
WHILE UTILITARIAN IN MINDSET, the affordable 2.5 X is extravagant where it matters most, providing outstanding capability,
style and comfort. Powered by a 165-hp Subaru Boxer engine with road-grabbing Symmetrical AWD, it comes equipped with
such thoughtful standard features as dual 12-volt power outlets, convenient 60/40-split fold-down rear seats, and much more.
2 3

1With manual transmission.
16" 5-spoke wheels
Raised suspension
Hill Holder clutch1
Roof rails with cross bars
Rear wiper de-icer
In-dash CD player
Air filtration system
Keyless entry system
12-volt power outlets
Under-floor storage compartment SUBARU, 1974
|
The Subaru 4WD Wagon is introduced, the first
mass-market four-wheel drive passenger car in the United States.
Forester 2.5 X shown in Regal Blue Pearl/Textured Gray with accessory splash guards

13 | Subaru Boxer Engine13 | Subaru Boxer Engine
SUBARU, 1966
|
Subaru introduces the company’s trademark Subaru Boxer engine.
Turbocharging the Subaru Boxer engine featured in the
Forester 2.5 XT allows the benefit of increased horsepower and
torque without having to increase engine size or displacement.
3
Forester Engines
2.5-liter Turbocharged 4-cylinder 210 hp, 235 lb.-ft. of torque
2.5-liter 4-cylinder 165 hp, 166 lb.-ft. of torque
TECHNOLOGICALLY SPEAKING, what places Subaru in a class by itself is the
distinctively innovative, horizontally opposed Subaru Boxer engine, which is
available in Forester models as either a powerful 210-hp intercooled,
turbocharged 4-cylinder or an energetic 165-hp naturally aspirated
4-cylinder. Rally-proven for exceptional reliability, it is unlike the more
conventional engine layouts of other manufacturers in that its cylinders are
Our Active Valve Control System (AVCS) found in the
Forester 2.5 XT helps to deliver increased low-end power
while allowing for greater breathing at higher engine speeds.
Aluminum-alloy block and cylinder heads help to reduce
engine weight without sacrificing strength or durability,
thereby improving overall vehicle balance.
2
1
1
2
aligned on a single, horizontal plane. This remarkably efficient configuration
results in a powerplant that is compact, lightweight and extraordinarily well
balanced. Now equipped with our Electronic Throttle-Control (ETC)
drive-by-
wire technology for more accurate and precise response, t
he Subaru Boxer
engine delivers outstanding power and performance across a wide
variety of driving conditions and environments.
3

FOR OVER 30 YEARS, the Subaru name has been synonymous with All-Wheel Drive
(AWD). It is our passion, our heritage, and an integral part of the Subaru experience.
So it should come as no surprise that every vehicle we build comes equipped
with our advanced Symmetrical All-Wheel Drive system. It features drivetrain
components positioned along a longitudinal axis and between the axles for optimum
balance. In turn, power is constantly delivered to all four wheels and automatically
14 | Symmetrical All-Wheel Drive 1Not available on 2.5 XS L.L.Bean Edition
14
| Symmetrical All-Wheel Drive
12
Our new 4-speed electronic direct-control automatic
transmission offers even smoother and more precise
shifting under a variety of driving conditions. It is
optional on the Forester 2.5 XS and 2.5 XT, and standard
on the 2.5 XS L.L.Bean®Edition.
Standard on most Forester models,1our 5-speed manual
transmission delivers smooth, direct and exceptionally
precise shifts.
2
1
SUBARU, 1997
|
Subaru becomes the only manufacturer in the world
to feature standard All-Wheel Drive in its entire vehicle line.
Forester AWD How It
Models System Works
2.5 X, 2.5 XS and Continuous Utilizing a viscous-center
2.5 XT models locking differential, under
with 5-speed normal conditions power
manual is split 50/50 between the
front and rear wheels. If
wheel slippage occurs, the
center differential helps
transfer power to the wheels
with the best traction.
2.5 X, 2.5 XS and Active Featuring an electronically
2.5 XT models managed continuously
with 4-speed variable multi-plate trans-
automatic fer clutch, this AWD system
monitors parameters such as
wheel slippage and vehicle
speed, transferring power to
the front or rear wheels with
the best traction.
The new 2.5 XS L.L.Bean
Edition offers an exclusive,
self-leveling rear suspension
that helps keep the vehicle
level regardless of load.
3
3
distributed to where traction is needed most. Every vehicle and driving
style has its own specific AWD requirements, however. So Subaru engineers
have thoughtfully developed multiple systems, each with its own distinct
advantages and capabilities. When integrated with our Subaru Boxer engine and
our 4-wheel fully independent suspension, these advanced All-Wheel drive sys-
tems deliver the performance, handling and agility that make a Subaru, a Subaru.

FORM FOLLOWS FUNCTION. IT IS THIS SIMPLE
YET POWERFUL CREED THAT LIES AT THE CORE
OF EVERYTHING WE DO. IT IS WHAT DRIVES US
TO CONSTANTLY PURSUE MORE ADVANCED
TECHNOLOGIES, AND MORE INNOVATIVE
SOLUTIONS. ALL OF WHICH ARE PUT TO THE
TEST EVERY DAY. BECAUSE A SUBARU IS MORE
THAN A VEHICLE YOU CAN DEPEND ON. FAR MORE.
A SUBARU IS A VEHICLE YOU CAN BELIEVE IN.
15 | Performance /Capability
BENEATH THE SKIN, the Subaru Boxer engine and Symmetrical All-Wheel Drive
work in unison to deliver exceptional performance in virtually every environment.
They are in turn complemented by precise, engine-speed-sensing variable
rack-and-pinion steering, an incredibly rigid yet lightweight body
structure, and a 4-wheel independent suspension for dynamic,
balanced handling across a wide variety of driving conditions.
Forester 2.5 XT with Premium Package shown in Platinum Silver Metallic
A heavy-duty raised fully independent
suspension absorbs bumps, potholes and
just about whatever the road has in store.
A MacPherson-type strut front and rear
suspension provides enhanced handling and
a smooth, balanced ride on the most winding
of roads.
2
1
2
1

16 | Safety

THE SUBARU DRIVING EXPERIENCE evokes many emotions. Confidence should always be one of them. Which is why every
Subaru is engineered according to the principles of ”Active Driving/Active Safety“.Proactive safety components such as
full-time Symmetrical AWD and 4-wheel anti-lock disc brakes (ABS) with Electronic Brake-force Distribution (EBD) provide
the driver with outstanding vehicle control during evasive maneuvering. And when the unexpected becomes the unavoidable,
a cocoon of passive safety features, which includes a Ring-Shaped Reinforcement Frame body structure, front and rear
crumple zones, side-impact air bags, and more, work together to help insure all occupants are as safe and sound as possible.
1 2
Standard side head/chest air bags help protect both
driver and front passenger from side-impact collisions.
Advanced front air bags with dual-stage deployment
vary their inflation rate based on impact severity, to help
provide optimal protection for the driver and front passenger.
Active front seat head restraints help protect against
potential whiplash in a collision.
A Ring-Shaped Reinforcement Frame helps dissipate
crash-impact energy away from occupants.
4
3
2
1
SUBARU, 2003
|
Since tested, the Forester maintains the highest rating in frontal
offset crash test results from the Insurance Institute for Highway Safety (IIHS).
1
1For more information, contact the Insurance Institute for Highway Safety or visit their Web site at www.iihs.org.
2Always wear seatbelts. Children should be properly restrained in the rear seat. 3LATCH system: Lower Anchors and Tethers for CHildren.
Symmetrical AWD
Dual-stage front
air bags (SRS)2
Side-impact front
head/chest air bags (SRS)2
Seatbelt pre-tensioners
Seatbelt force limiters
Collapsible steering
column
Safety brake
pedal system
Side-impact
door beams
Daytime Running
Lights (DRL)
LATCH system3
3
4

BECAUSE EVERYONE'S IDEA of a perfect driving experience is unique, a wide variety of Genuine Subaru Accessories
is available to make your Forester as distinctive as you are. Crafted with the same quality, durability, fit and finish
as the vehicle itself, these specially designed accessories offer a means to accentuate every aspect of your Forester
with personalized style, functionality and luxury. Moreover, all Genuine Subaru Accessories are backed by our basic
vehicle 3-year/36,000-mile warranty when installed at the time of vehicle purchase. For complete warranty details, or
to learn more about the full range of available Forester accessories, see your Subaru dealer or visit www.subaru.com.
4
2
1
3
18 | Accessories18 | Accessories
Roof-mounted Bicycle Carrier: Securely transports
one bicycle with a 1" to 3" downtube.
Hitch-mounted Bicycle Carrier: Slides into trailer
hitch to carry up to 2 bikes. Designed for easy dismount-
ing of bikes without lifting.
1
Hood Protector: Acrylic plastic and wrap-around
design help protect your Forester hood from stone
chips and bugs.
Rear Spoiler: Color-matched rear-deck spoiler adds
a sporty touch to the Forester.
Moonroof Air Deflector: Helps reduce wind noise
and cuts sun glare.
5
4
3
2
1
5
1To avoid blocking rear taillights, use only roof-mounted bike attachment to transport solid wheel bicycles.

108
1111 1112
1 2 3 4
56 7
9
13
Rear Bumper Cover: Helps protect upper surface of
painted rear bumper from scratches and dings.
Splash Guards: Durable vinyl helps protect paint
finish. Set of four. Color matched for side cladding or
body color.
Cargo Net (Sides and Rear of Seat Back): Additional
cargo-net storage helps keep the cargo area organized.
Cargo Net (Rear): Keep things in place in your
Forester cargo area.
Auto-dimming Rearview Mirror with Compass:
Includes electronic compass. Mirror darkens when
headlights are detected from the rear of vehicle.
Turbo-boost Gauge: Illuminated turbo-boost gauge
mounts conveniently to side of steering column.
Rear Differential Protector: Helps protect rear differ-
ential from rocks and logs.
Subwoofer/Amplifier: Mounts under front passenger’s
seat. Delivers deep, rich bass sound you not only hear
but feel.
Center Armrest Extension: Out-of-sight storage for
your phone plus added comfort on long trips.
6-disc In-dash CD Changer: Allows selection and play
for up to 6 CDs.
All-weather Mats: Custom-fitted, heavy-gauge protec-
tive mats patterned to match cargo bin and cargo tray.
Upgraded Speakers: Includes 4 upgraded speakers
for crisper sound with minimal distortion.
Trailer Hitch: Heavy-duty rated at 200 lbs. tongue
weight, 2,400 lbs. towing capacity.
2
13
12
11
10
9
8
7
6
5
4
3
2
1
Square cross bar kit
Ski attachment
Roof cargo carrier
Compartment separator/
dog guard
Cargo tray
Security system
Front-end cover
(full and hood)
Brush guard
Engine-block heater
Car cover
2Trailer brakes may be needed. Ball not included.

SUBARU.COM YOU CAN BEGIN YOUR
SUBARU EXPERIENCE RIGHT NOW, IN
YOUR VERY OWN LIVING ROOM. GO TO
SUBARU.COM, WHERE YOU’LL DISCOVER
AN ONLINE ENVIRONMENT RICH WITH
IN-DEPTH INFORMATION, REVIEWS,
SPECIFICATIONS AND PHOTOGRAPHS
ENCOMPASSING THE FULL LINE OF
SUBARU VEHICLES. HERE YOU CAN
TAKE A 360° TOUR OF ANY MODEL,
BUILD YOUR OWN SUBARU, LOCATE
VEHICLES, EVEN SCHEDULE A TEST
DRIVE. AND AT MY.SUBARU.COM,
SUBARU OWNERS CAN ACCESS THEIR
VEHICLE’S SERVICE AND WARRANTY
HISTORY, SCHEDULE APPOINTMENTS
AND MUCH MORE. IT’S ALL QUICK, EASY
AND JUST A MOUSE-CLICK AWAY.
2005 SUBARU WARRANTIES, CUSTOMER SERVICE AND SUPPORT
Basic Warranty: 3 years or 36,000 miles, whichever comes first.
Powertrain Warranty: 5 years or 60,000 miles, whichever comes first.
Rust Perforation Warranty: 5 years, unlimited mileage.
Subaru Added Security®could be the most important option you choose.
Protect your investment with a Subaru Added Security extended service
contract—the only one backed by Subaru of America, Inc. Ask your
salesperson for coverage details and assistance in selecting the plan
that’s best for you, up to 7 years or 100,000 miles.
The Subaru Roadside Assistance Program covers all 2005 Subaru vehicles
during the first three years or 36,000 miles, whichever comes first.
By calling the toll-free number in the Owner’s Information Kit, Subaru
owners can take advantage of any of the following benefits:
•24-hour Roadside Assistance, seven days a week, 365 days a year,
throughout the United States.
•Emergency Towing Service to the nearest authorized Subaru dealer.
•Emergency Roadside Assistance, for jump starts, gasoline (up to two
gallons), flat tire change, emergency lockout service (lost key or key
is locked in the vehicle) and emergency fluid replacement.
See your Subaru dealer for details.
For complete warranty information, including coverage and exclusions, see your Subaru dealer.
