INSTRUCTION MANUAL
ITEM NO.: VC38L1, VC38M1
VC38L2, VC38M2
38L VACUUM CLEANER
VC38L(M)-I-2311B-KD

01
1
The meaning
of symbol sign
This symbol is used to mark
prohibition and please do not
do it.
This symbol is used to mark
instruction and must follow it.
Safety Rules
For using safely,please read and understand “Safety Rules”carefully before using.
Please follow this “Safety Rules of the Operation lnstruction”
to ensure a safe and accident- free operation.
※After reading this instruction, please keep it in an obviously place for reference.
Caution
lt will cause death or serious injury.
●Please disassemble,repair or
reconstruct this machine by
qualified technical personnel
to prevent any unusual work
and injury.
●Do not wipe or pour oil or
water into the machine.
Moisture entering the product
will cause electric shock or
wire short.
●Please disconnect the power
source before safety checking
or cleaning to prevent electric
shock or injury.
●Never use damaged power
plug,Damaged plug would
result electric shock,wire
short and fire.
●Please don’t pick up the below
materials by the machine to
avoid fire, explosion or injury.
Explosive powder: Aluminum (AI),
Magnesium (Mg), Titanium (Ti)
and Zinc(Zn) etc.
●Keep children away form
the product to avoid injury.
◎
◎
◎
Flamable material: Gasoline,
organic solvent, benzene, lamp- oil
and paint etc; Chemistry material;
Oil and medicine etc.
Hot material: campfire ashes and
cigarette butt etc; the power with
spark: High-speed cutting machine,
grinding wheel and welding machine
etc.
CAUTION
●Never operate the product near
the explosive, flammable
materials such as lamp-oil,
gasoline, organic solvent,
benzene and paint to avoild fire,
explosion or injury.
Notice
●This appliance is not intended for users with insufficient sensory or mental capabilities,
or lack of experience and knowledge, unless they are given supervision or instruction
concerning safety use of the appliance under a person who are responsible for their
safety.
●Children should be supervised to ensure that they don’t play with the appliance.
●lt will cause injury for improper operations.

●
02
NOTICE
●Do not use the machine in high
temperature environment.
●Stop operating when the inlet and
exhaust hole are blocked.
Otherwise the machine will be
deformed by overheat.
●Please turn off the power and
disconnect the piug while
installation or maintenance to
avoid electric shock and injury.
●Please take off the plug form the
socket when the machine doesn’t
operate to prevent electric leakage,
electric shock or fire.
Place the filter and paper bag before
operation to prevent form the motor
breaking down.
Please install the filtration system
and filter before using. Otherwise, it
will cause the motor breakdown.
●
●
Please keep the machine away
from fire and heat to reduce the
risk of fire and wire short.
●
●Please do not use the machine in
high temperature environment. It will
cause damage, electric shock and fire.
Please use this machine under 80%
humidity.
Please do not keep the sewage
and debris in the tank for long time
to prevent the odour.
●
●Please do not pick up too much dust
to cause block of the dust box or
motor breakdown.
●
Place the micro-filter in operation to
prevent from motor breaking down.
Please install wet filter for use with wet
pick-up. After wet pick-up, please
pouring the residul water and clean
the tank. Dry the tank completely.
Do not pull the wire to loosen the plug
from the outlet. Otherwise, it may cause
fire due to short circuit.
●
Please do not bend, trample on the
wire. Also, do not pull it suddenly to
cause damage.
Do not touch the plug, power or wire
with wet hands to prevent electric
shock.
●
●
●
●
The life time of the filter depends on
its frequency and condition.
Change the filter regularly for
maintenance.
Hot air will exhaust from the cooling system
which at the top of the machine for normal
operation.
●
●When operate the machine under dry
environment (especially in winter), static
electricity may be occurred at the frame and
part of the machine. Please notice.
Please do not bend or pull the plastic
tube. Also, do not trample on and put
heavy objects on it to prevent damage
and deforation.
※ Attention : only for the water sucking
vacuum cleaner

03
2
Additional Safety Rules
To use the Dry Vacuum Cleaner safely, besides of the Safety rules of
the Operation Instruction, please pay attention to the following:
Please do not use the same socket
with OA machine. The generated
attack voltage during switching on/ off
will cause OA machines damage.
Avoid to twist, bend, trample on, pull, forced
the hose and unusual storage to make it
out of shape and cause damage.
During using the vacuum cleaner , there may be dust inhalation
with static electricity, or static electricity is generated due to the
friction between the inhaled object and the dust collecting pipe,
please stop the operation immediately and remove the static
electricity, and remove the dust and waste in the tank
and then restart. Please do not close to the precision
instruments or machine to
avoid damage.

Model: VC38L(M)-2
Voltage: 220V~240V 50/60Hz
Max Vacuum: 2450mmH2O±10%
Air Flow: 2.9m3/min±10%
VC38L(M)
04
4
Use Dispose
3

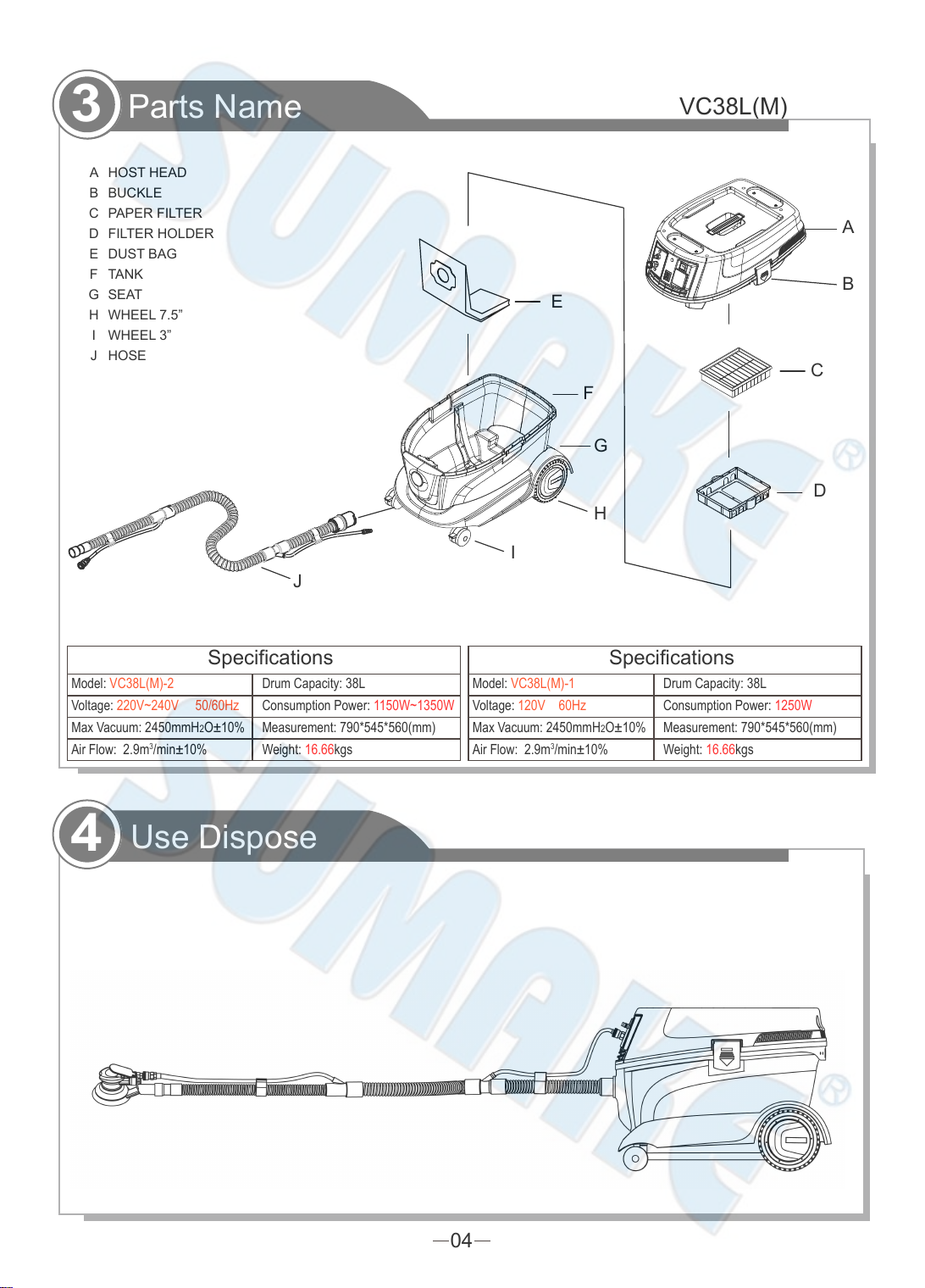

Parts Name
HOST HEAD
BUCKLE
PAPER FILTER
FILTER HOLDER
DUST BAG
TANK
SEAT
WHEEL 7.5”
WHEEL 3”
HOSE
A
B
C
D
E
F
G
H
I
J
3
Specifications
Drum Capacity: 38L
Consumption Power: 1150W~1350W
Measurement: 790*545*560(mm)
Weight: 16.66kgs
Model: VC38L(M)-1
Voltage: 120V 60Hz
Max Vacuum: 2450mmH2O±10%
Air Flow: 2.9m3/min±10%
Specifications
Drum Capacity: 38L
Consumption Power: 1250W
Measurement: 790*545*560(mm)
Weight: 16.66kgs
A
C
B
D
E
F
G
H
I
J

05
B
D
EA
C
1
2
PREPARATION
OPERATION INTERFACE INSTRUCTION
Operation Instruction
5
Open the host head before using. Install the dust bag into the dust tank, then put back the host
head and clip side buckles tightly.
Insert 2 in 1 Suction hose into the pneumatic tool, ensure not coming off, and turn on the machine.
1
2
A
C
POWER SWITCH:
BSUCTION POWER CONTROL:
OPERATION INDICATION LAMP:
D
220V~240V: Note: the power of power tool can’t be over 1000W, it will be overload and cause fire.
120V: Note: the power of power tool can’t be over 500W, it will be overload and cause fire.
When turn the switch to “AUTO” position, the power tool using the plug can control
the ON/OFF of vacuum.
THE SOCKET OF POWER TOOL:
EPNEUMATIC TOOL- TRIGGER MODULE CONNECTOR:
The quick coupling attached to the compressor and the other attached to the pneumatic hose.
When the power switch is set at AUTO, suction force can't be adjusted to run at full speed.
Suction force is adjustable when the power switch is set at MANU.
Press the switch right will speed up, press it for 3 seconds to get the highest speed.
Press the switch left will slow down, press it for 3 seconds to get the lowest speed.
Memory for speed regulation is limited to power-on state.
Once power cut, original factory settings is restored.
●
●
The red light indicator is on when the motor is running.
The red light indicator is off when the motor stops running.
Switch at “AUTO” position, the vacuum to start control of the pneumatic tool or power tool.
When turn the switch to “ AUTO” position, the vacuum cleaner will delay start about 3 seconds,
then will run for 1.5 seconds and then stop. It means the vacuum cleaner is on.
If the tool stops, the Vacuum cleaner will stop after running 5-10 sec.
●
●
●
Switch at “MANU” position can turn on the vacuum.
When turn the switch to “ MANU” position, the Vacuum cleaner will delay start about 3 seconds
and then run continuously.
Turn the switch to “ OFF” position,the vacuum cleaner will stop.
When finish working with vacuum cleaner, please turn the AUTO- MANU switch
at the OFF position.
※Please check the suction power is normal.
※Check : If the content of the dust bucket or dust bag has reached 2/3, please clean the dust bucket
or replace the dust bag.

06
Notice
DUST BAG EMBEDDED:
FILTER REPLACEMENT :
Please turn off and
disconnect the plug
and release the
side clips.
Remove the head
unit and store in a
proper place to
prevent cotaminations
and damage.
※Clean up and replace the dust bags regularly for maintenance.
● Available to use soft brush or high pressure air gun for periodically cleaning.
● Replace the filter regularly for maintenance.
6
Clean and Maintenance
1 2 3
12
34
※Recommend replacing the parts every three months in normal maintenance procedure.

07
●
●
●
7
Check: Please check the parts or accessories
(Hose, wire, dust bag, filter rack and filter)
if need to be replaced.
lf the power cord is damage, please requests profession and
technical personnel to replace it.
General Error Solution and Maintenance
PROBLEM
Motor does
not operate
CHECK SUGGESION
Cleaner fails
to pick up
Carbon brush
exhausted
Plug
Temperature
Control
Hose
Inside of tank
Filter
The plug maybe loosen, please connect the socket again.
The carbon brush exhausted for 400 hours. Please contact our service center.
The Electronic Thermal Protection Device worked automatically when the motor
was overheated up to 125 degree.
After a complete 10~20 minute cool down period has passed, the Electronic
Thermal Protection Device will RE- SET automatically.
Maybe the hose or extension wands didn’t fit completely.
please refit.
Please check the filter and filtration system and clean it.
Please check if the tank is full and empty it.
Maintenance and Lubrication:
1. Do not lubricate the motor.
2. Clean the machine outside regularly.

08
● DUST BAG ● HOSE ● MOTOR ● WHEEL 7.5” ● WHEEL 3”
8
Expendables
9
Option
● Tool Rack Set
(Attached Tool Rack*1set、Pad Hook*5pcs、Tool Hook*1pc、
Multipurpose Hook*1pc)
Pad Hook
Tool Hook
Multipurpose Hook
Hose Hook
●Hose Hook
Tool Rack
● Compartment Tray (Small)
● Compartment Tray (Big)
● PAPER FILTER (H Dust class)● PAPER FILTER (L Dust class)

VC38L2 38L VACUUM CLEANER
(
FOR AIR & ELECTRIC TOOL
)
, FILTER CLASS L
VC38M2 38L VACUUM CLEANER
(
FOR AIR & ELECTRIC TOOL
)
, FILTER CLASS H
VC38L
(
M
)
2-P-2311C-KD

VC38L2 38L VACUUM CLEANER
(
FOR AIR & ELECTRIC TOOL
)
, FILTER CLASS L
VC38M2 38L VACUUM CLEANER
(
FOR AIR & ELECTRIC TOOL
)
, FILTER CLASS H

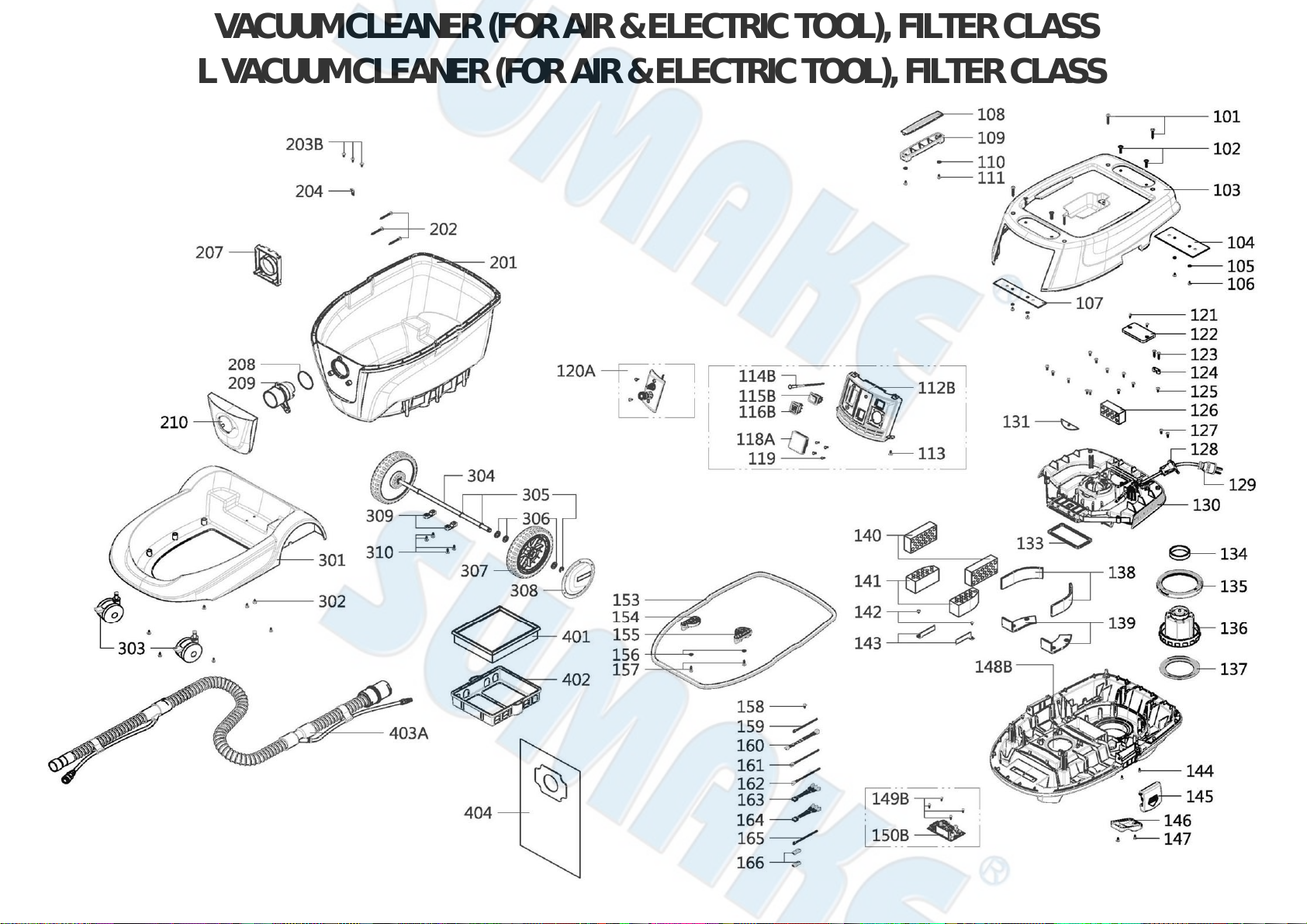

PARTS LIST
No. Parts No. Descri
p
tion Q't
y
No. Parts No. Descri
p
tion Q't
y
101 VC-LSAB6012 Screw SUS 3/16x1/2 4 147 VC-LSAB6004 Screw SUS 5/32x3/8 2
102 VC-LSAA6A01 Screw M6x25 4 148B VC-V111A10192 Main Cove
r
1
103 VC-V111C110F5 Motor To
p
Cove
r
1 149B VC-LSAA6D06 Screw 1/8x1/2
(
RoHS
)
4
104 VC-V11D211099 Su
pp
ort Plate-Back 1 150B VC-V141320540 Control IC 1
105 VC-LSBA0A02 Washer 5x10x1
(
RoHS
)
4 153 VC-V11933009R Plastic Sealin
g
1
106 VC-LSAA6D16 Screw 5/32x3/8
(
RoHS
)
4 154 VC-V11D331097 Fixed Cli
p
1
107 VC-V11D212099 Su
pp
ort Plate-Front 1 155 VC-V11D332097 Fixed Cli
p
1
108 VC-V116B20097 Handle Cove
r
1 156 VC-LSBA0A03 Washer 5x12
(
RoHS
)
2
109 VC-V116B10097 Handle 1 157 VC-LSAB6003 Screw SUS 5/32x1/2
(
RoHS
)
2
110 VC-LSBA0A03 Washer 5x12
(
RoHS
)
2 158 VC-LSAB6003 Screw SUS 5/32x1/2
(
RoHS
)
1
111 VC-LSAB6003 Screw Sus 5/32x1/2
(
RoHS
)
2 159 VC-V139710048 Motor Earth Wire 1
112B VC-V11D112095 Panel Cove
r
1 160 VC-V139200028 Wire 1
113 VC-LSAA6D03 Screw 4x14
(
RoHS
)
4 161 VC-V139142028 Twin-End Terminals 1
114B VC-V131750008 Power Li
g
ht 1 162 VC-V139141028 Twin-End Terminals 1
115B VC-V131253098 Switch 1 163 VC-V139100008 Control Ic Switch Cord 1
116B VC-V131221098 Switch 1 164 VC-V139151028 Control Ic Switch Cord 1
118
A
VC-V133GE3098 Socket With Cove
r
1 165 VC-V139711048 Motor Earth Wire 1
119 VC-LSAA5A05 Screw 4x12
(
RoHS
)
4 166 VC-V139870008 Insulatin
g
Sleeves 2
120
A
VC-PV4D1120 Monitor Bottom Seat 1 201 VC-V2111700K5 Tank 1
121 VC-LSAA6C01 Screw 3.5x12
(
RoHS
)
4 202 VC-LSAB6012 Screw SUS 3/16x1-1/2 3
122 VC-V11D220092 Cove
r
1 203B VC-LSAA6D03 Screw 4x14 3
123 VC-LSAA8E01 Screw 3.5x25 2 204 VC-V262000003 Iron Sheets SUS 304 1
124 VC-V134220095 Cord Holde
r
1 207 VC-V2142F1092 Inlet Seat 1
125 VC-LSAA6D03 Screw 4x14
(
RoHS
)
12 208 VC-V2142F309P Inlet Plastic Senlin
g
1
126 VC-V11911800L Outlet Sealin
g
1 209 VC-V2142F2092 Inlet 1
127 VC-LSAA6D03 Screw 4x14
(
RoHS
)
2 210 VC-V2142F0095 Inlet Cove
r
1
128 VC-V134120095 Wire Hood 1 301 VC-V3321F00K5 Trolle
y
Seat 1
129 VC-V132GE2B98 Cord 1 302 VC-LSAB6003 Screw Sus 5/32x1/2
(
RoHS
)
7
130 VC-V111B70092 Motor Exhaust Hood 1 302 VC-V311160097 Wheel 3" 2
131 VC-V12943209E Gasket 1 304 VC-V313800009 Stick Φ12.7x463mm 1
133 VC-V11943109R Gasket 1 305 VC-LSEA0B01 E9 Rin
g
6
134 VC-PV1AZA21 Gasket 1 306 VC-LSBA0A09 Washer 1/2x23x2.0
(
RoHS
)
6
135 VC-V11928109P Motor To
p
Cover Gasket 1 307 VC-V312610090 Wheel 7.5" 2
136 VC-V121C50000 Motor
(
220-240V
)
1 308 VC-V3141000K2 Wheel Cove
r
2
137 VC-V11928209P Motor To
p
Down Gasket 1 309 VC-V333710092 Connecto
r
2
138 VC-V11911830L Silencer Cotton 2 310 VC-LSAA6D10 Screw 3/16x5/8
(
RoHS
)
4
139 VC-V11911840L Silencer Cotton 2 VC38-401 Pa
p
er Filter
(
Class L
)
1
140 VC-V11911810L Silencer Cotton 2 VC38-401B Pa
p
er Filter
(
Class H/HEPA
)
1
141 VC-V11911820L Silencer Cotton 2 402 VC-V11A330095 Filter Frame 1
142 VC-LSAA6D16 Screw 5/32x3/8
(
RoHS
)
4 VC38-403E 5M Vacuum Hose -Orion T
yp
e1
143 VC-V11D300003 Barrier Plate 2 VC38-403M 5M Vacuum Hose -Milton T
yp
e1
144 VC-LSAB3006 Screw SUS 1/8x1/2 4 VC38-403N 5M Vacuum Hose -Nitto T
yp
e1
145 VC-V11D310097 Hook 2 VC38-403E 5M Vacuum Hose -Aro T
yp
e1
146 VC-V11D320092 Cove
r
1 404 VC38-404 Dis
p
osable Pa
p
er Ba
g
(
830x350mm
)
1
VC38L
(
M
)
2-P-2311C-KD
401
403A

EU Declaration of Conformity (DOC)
We: SUMAKE INDUSTRIAL CO., LTD.
4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan
declare in sole responsibility that the equipment
Equipment： VACUUM CLEANER
Model/ Serial No.： VC38L2, VC38L2-A, VC38L2-AE, VC38L2-E
VC38M2, VC38M2-A, VC38M2-AE, VC38M2-E
VC38L2-AW, VC38L2-AEW, VC38M2-AW, VC38M2-AEW
The object of the declaration described above is in conformity with the relevant union
harmonization legislation:
Machinery Directive: 2006/42/EC
Low Voltage Directive: 2014/35/EU
Electromagnetic Compatibility 2014/30/EU
RoHS 2011/65/EU
The following harmonised standards and technical specifications have been applied:
EN ISO 12100:2010
EN ISO 4414:2010
EN 60204-1:2018
EN 60335-1:2012+A15:2021
EN 60335-2-21:2021+A1:2021
EN IEC 61000-6-2:2019
EN IEC 61000-6-4:2019
Name and Signature/Position Date and Place
2022/12/20
Mike Su – Managing Director Taipei, Taiwan
VC38-D-2307C-KDF
