Summit FS22L User manual

COMPACT ALL-FREEZER
Model No. FS22L
Instruction Manual
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES
AND OPERATING INSTRUCTIONS. KEEP THIS MANUAL IN A SECURE LOCATION.
Felix Storch, Inc.
770 Garrison Avenue
Bronx, New York 10474
www.summitappliance.com
Write Serial Number (on back of unit) here:
_______________________________

TABLE OF CONTENTS
Technical Information ........................................................................................1
Important Safeguards ...................................................................................2 - 3
Location of Parts ................................................................................................4
Installation .....................................................................................................4 - 5
Placement ........................................................................................... 4 - 5
Electrical Connection ................................................................................5
Before the First Use ..................................................................................5
Operation ...................................................................................................... 6 - 7
Temperature Adjustment ...........................................................................6
Defrosting ..................................................................................................6
Food Storage ............................................................................................6
Normal Phenomena ..................................................................................7
Cleaning and Maintenance ...........................................................................7 - 9
Cleaning Your Freezer ..............................................................................7
Vacation Time ...........................................................................................7
Moving Your Freezer .................................................................................7
Energy-Saving Tips ...................................................................................8
Locking the Freezer ..................................................................................8
Reversing the Door Swing of Your Freezer ...............................................9
Troubleshooting .............................................................................................. 10
Limited Warranty ............................................................................................. 11
TECHNICAL INFORMATION
Model Number: FS22L
Capacity: 1.13 cubic feet
Electrical Rating: 115V AC / 60Hz / 1.2A
Input Power: 85 watts
Energy Consumption: 277 kWh/year
Refrigerant: R134a, 1.67 oz
Weight: 39.7 lbs
Unit Dimensions: 17.3"W x 19.3"D x 20.7"H
1

IMPORTANT SAFEGUARDS
Before the freezer is used, it must be properly positioned and
installed as described in this manual, so read the manual carefully.
To reduce the risk of fire, electrical shock or injury when using the
freezer, follow basic precautions, including the following:
Plug into a grounded 3-prong outlet, do not remove grounding prong, do not use an
adapter, and do not use an extension cord.
It is recommended that a separate circuit, serving only your freezer be provided. Use
receptacles that cannot be turned off by a switch or pull chain.
If the power cord is damaged, it must be replaced by the manufacturer, its service agent
or a similarly-qualified person in order to avoid an electrical hazard.
The power supply to the freezer must match the indicated power supply on the
nameplate. Otherwise the freezer will be damaged and the manufacturer's warranty will
be invalidated.
Do not place or use anything flammable, such as gasoline, gas cylinders, solvent-based
cleaning fluids, near the freezer due to the risk of fire. Substances with a high
percentage of alcohol must be stored in tightly sealed bottles or other containers and
should always be placed in an upright position.
Do not locate the freezer in a damp or wet environment or in a position where it is likely
to get splashed. Such an environment would weaken the electrical insulation or expose
live wires, possibly causing an electric shock or fire.
The freezer must be disconnected from its power source if it stops working or when it is
being cleaned or repaired.
To remove the plug from the socket, grasp the plug firmly and pull it out. Do not pull on
the cable. Do not connect the machine to electrical outlets while your hands are wet or
damp.
If a gas leak is discovered in the same room as the freezer, turn off the gas supply. Do
not open the freezer door and do not remove the plug from the main electrical supply. A
small spark resulting from such actions could cause a gas explosion. Open all of the
doors and windows in the room to disperse the gas.
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Junked or abandoned
refrigerators and freezers are still dangerous, even if they will "just sit in the garage a few
days."
Before you throw away your old appliance: Take off the doors. Leave the shelves
in place so that children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the freezer.
2

This unit is not designed to operate in enclosed spaces. When placing your unit,
make sure you allow at least 4” of clearance on all sides.
Use two or more people to move and install the freezer. Failure to do so can result in
back or other injury.
To ensure proper ventilation for your freezer, the front of the unit must be completely
unobstructed. Choose a well-ventilated area with temperatures above 60°F (16°C) and
below 90°F (32°C). This unit must be installed in an area protected from the elements,
such as wind, rain, water spray or drips, and away from direct sunlight.
The freezer should not be located next to ovens, grills or other sources of high heat.
The freezer must be installed with its electrical connection in accordance with state and
local codes. A standard electrical supply (115 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances is required.
Do not kink, pinch or coil the power supply cord of the freezer. Keep cord away from the
compressor at the back of the appliance; heat from the compressor could damage the
insulation of the cord and cause electrical leakage.
The fuse (or circuit breaker) size should be 15 amperes.
It is important for the freezer to be leveled in order to work properly. You may need to
make several adjustments to level it.
In order to ensure normal operation of the freezer, after moving it a considerable
distance, you must wait for ½ to 1 hour before turning the unit on.
After an electrical failure, wait at least 5 minutes before turning on the freezer again
or the compressor may be damaged.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
IMPORTANT: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
IMPORTANT: Do not damage the refrigerant circuit.
IMPORTANT: Do not use electrical appliances inside the food storage compartment of
the appliance, unless they are of the type recommended by the manufacturer.
Do not use solvent-based cleaning agents or abrasives on the interior. These cleaners
may damage or discolor the interior.
Do not use this apparatus for other than its intended purpose.
SAVE THESE INSTRUCTIONS
3

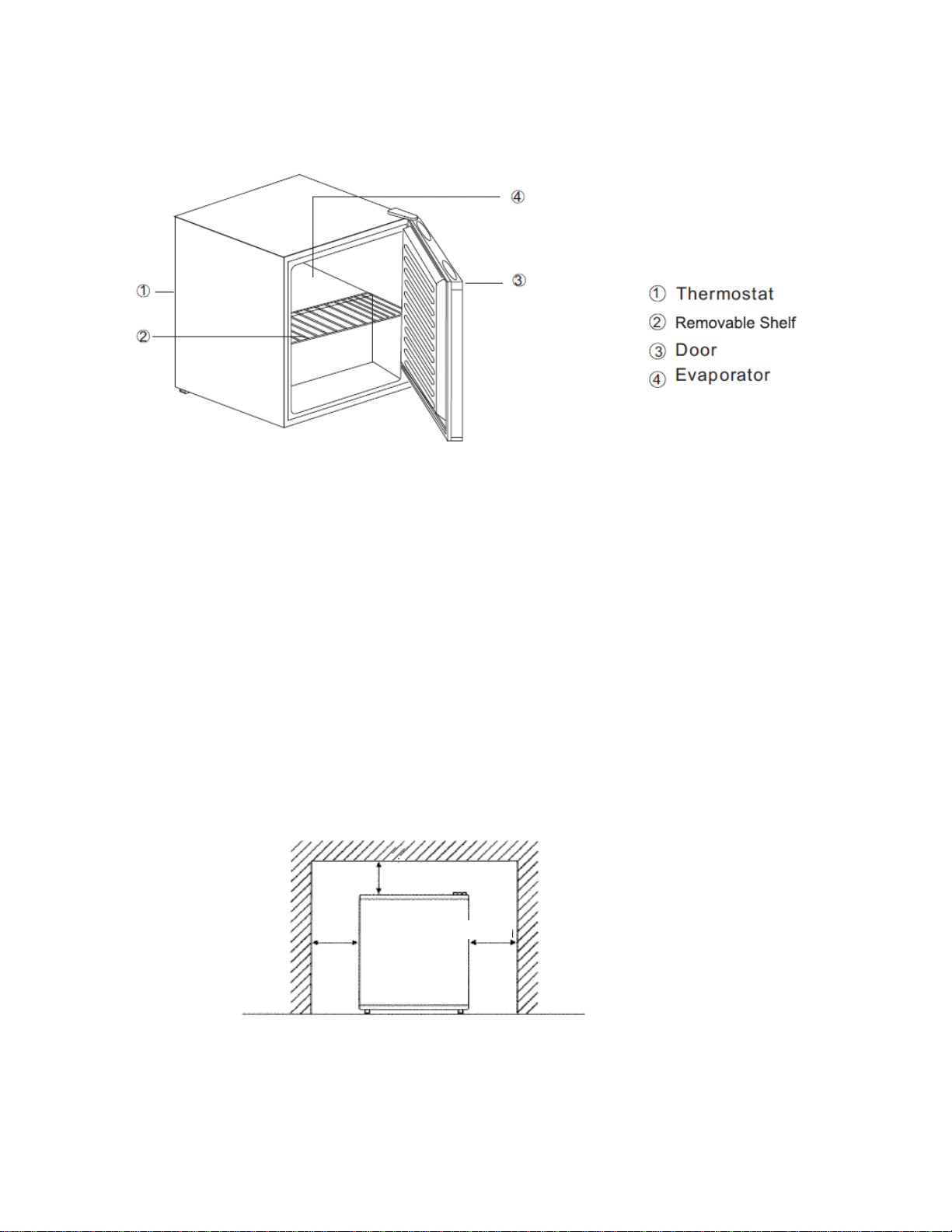

LOCATION OF PARTS
INSTALLATION
PLACEMENT
The freezer should not be placed in direct sunlight or close to heat sources such as
oven, grill, radiator, etc. Also avoid locations where the unit will be exposed to
moisture or can be easily splashed.
Place the unit on a firm flat surface. An uneven floor will cause vibration and noise.
Adjust leveling legs in front until freezer is level.
Good ventilation around the freezer allows heat to escape smoothly, improving
cooling efficiency and saving energy. To maintain high operating efficiency, do not
place anything on top of the freezer.
Allow at least 4 inches of space at the back and sides of the freezer, which allows
the proper air circulation to cool the compressor. This improves cooling efficiency
and saves energy. Leave at least 1¼" of space above the freezer.
1¼"
Minimum clearances for sides and top
4"
4"
Position the appliance in such a way that the plug is accessible
After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3
hours before placing food into the freezer.
4

When installing the unit on a table or countertop, keep the following in mind:
Surface (countertop) is flat, level, and strong enough to support the unit once it is
fully loaded.
Surface is wide enough to accommodate the unit without any overhang.
Surface is deep enough to accommodate the unit when the door is opened to 90º.
ELECTRICAL CONNECTION
Warning
Improper use of the grounded plug can result in the risk of electrical shock. If the power
cord is damaged, have it replaced by an authorized service center.
Plug the freezer into an exclusive, properly installed, grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) prong from the power
cord. Any questions concerning power and/or grounding should be directed toward a
certified electrician or an authorized service center.
This freezer should be properly grounded for your safety. The power cord of this unit
is equipped with a three-prong plug that mates with standard three-prong wall outlets
to minimize the possibility of electrical shock.
This freezer requires a standard 115/120-volt, 60Hz electrical outlet with three-prong
ground.
To prevent accidental injury, the cord should be secured behind the freezer and not
left exposed or dangling.
Never unplug the freezer by pulling on the power cord. Always grip the plug firmly
and pull straight out from the receptacle.
The use of an extension cord is strongly discouraged.
BEFORE THE FIRST USE
All the accessories have been installed. Remove all packing materials and tape.
Clean the interior surface with lukewarm water using a soft cloth. Any plastic odor
that you notice when you first open the door will dissipate once the appliance is
operating.
Put food into freezer after the cabinet temperature has had time to reach its lowest
point. For initial operation, it will be about 3 hours.
5

OPERATION
TEMPERATURE ADJUSTMENT

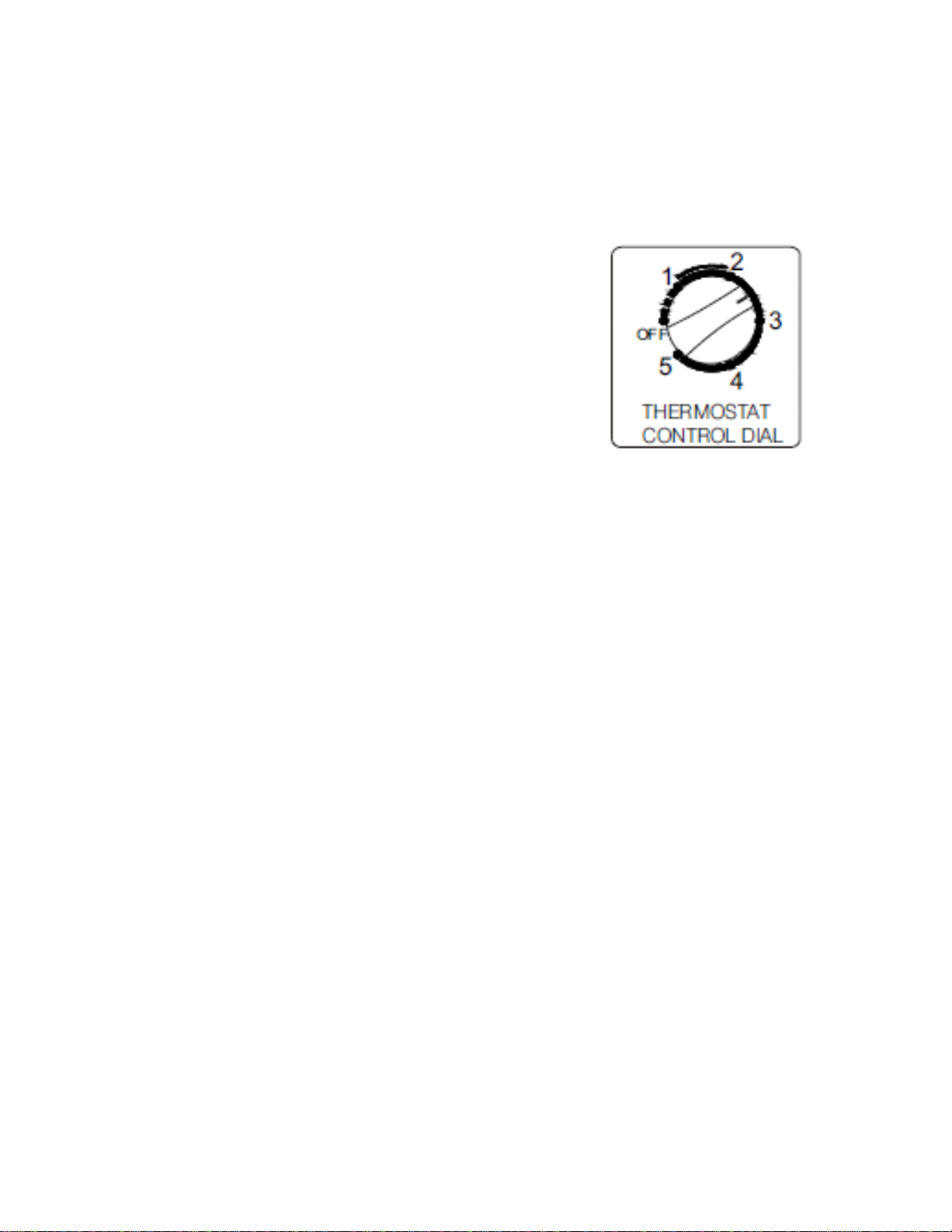

The cabinet temperature is controlled by the thermostat at the back of the freezer.
Rotate the dial to adjust the cabinet temperature.
The setting OFF indicates that the device is turned off.
Turning the thermostat clockwise from this setting
turns the freezer on automatically.
The settings 1through 5regulate the inside
temperature. Setting 1 (MIN) results in the warmest
inside temperature, while setting 5 (MAX) results in
the coldest inside temperature.
During initial operation, turn the temperature control to
the highest setting first, until the device has reached
the desired operating temperature. Afterwards, turn
the control back to a medium setting.
The optimum position of the temperature control depends on the temperature you
prefer. Cabinet temperature is affected by the ambient temperature, frequency of
door opening, the amount of stored food and the location of the freezer. You should
adjust the control according to current conditions.
Generally, the thermostat is set at the midpoint of the dial. When room temperature
is lower than usual, turn the thermostat to a lower setting. Conversely, if the room
temperature is higher than normal, adjust the thermostat to a higher setting.
DEFROSTING
This appliance requires manual defrosting. Before defrosting the unit, remove the
contents of the freezer, then set the thermostat to OFF (the compressor will stop
working). Leave the door open until ice and frost are completely melted. To speed up
defrosting, you can place a container of warm water (about 125°F) into the cabinet.
Soak up the melt water with clean toweling or a sponge and be sure the interior is dry
before turning the thermostat back to its normal setting.
NOTE: It is not advisable to heat the interior of the freezer directly with hot water or a
hair dryer while defrosting since this can deform the cabinet interior.
Never use a sharp or metallic object to help remove the ice from the walls of the
freezer as this can damage the evaporator coils and invalidate your warranty.
FOOD STORAGE
Warm food should not be stored in the freezer until it has cooled completely.
For proper air circulation, when placing food in the freezer, allow sufficient spacing
between food items. To prevent drying out and to keep odors from mixing, pack
stored foods carefully.
6

NORMAL PHENOMENA
It is normal that both side panels and the top of the freezer be warm because of the
built-in condenser.
There may be condensation on the surface of the appliance when it is placed in an
area of high humidity or when the weather is hot. It resembles the moisture that
condenses on a glass of cold liquid during summer. Dry it with a clean, soft cloth.
Occasionally the sound of a gurgling liquid can be heard. This is the refrigerant
flowing through the condensing tubes. The sound can also be heard when the
freezer stops working.
CLEANING AND MAINTENANCE
CLEANING YOUR FREEZER
Turn the temperature control to OFF, unplug the freezer, and remove the food, shelf
and any trays.
Wash the inside surfaces with a solution of a warm water and baking soda. The
solution should consist of about 2 tablespoons of baking soda to a quart of water. If
you use a spray bottle, do not spray in the area of the temperature control, vents or
any electrical connections.
Clean the door gasket with a soft cloth dampened in warm water or mild detergent
solution.
Wash the shelf and trays with a mild detergent solution.
The outside of the freezer should be cleaned with mild detergent and warm water.
Rinse well and wipe dry with a clean, soft cloth.
Wring excess water out of the sponge or cloth when cleaning the area of the
controls, or any electrical parts.
Dust on the compressor and condensing coils (at the back of the appliance) will
affect the diffusion of heat. Clean them periodically with a soft brush or dusting
utensil.
VACATION TIME
Short vacations: Leave the freezer operating during vacations of less than three
weeks.
Long vacations: If the appliance will not be used for several months, remove all
food and unplug the power cord. Clean and dry the interior thoroughly. To prevent
odor and mold growth, leave the door open slightly, blocking it open if necessary.
7

MOVING YOUR FREEZER
1. Remove all the food.
2. Securely tape down all loose items inside your freezer.
3. Tape the door shut.
4. Be sure the freezer stays secure in the upright position during transportation.
Do not lay it on its side or even incline it more than 45°. Protect the outside of the
freezer with a blanket or similar item.
ENERGY-SAVING TIPS
The freezer should be located in the coolest area of the room, away from heat-
producing appliances and out of direct sunlight.
Let warm foods cool to room temperature before placing in the freezer. Overloading
the freezer forces the compressor to run longer.
Be sure to wrap foods properly, and wipe containers dry before placing them in the
freezer. This cuts down on frost build-up inside the freezer.
To allow proper air circulation, keep a space between stored foodstuffs. To inhibit
drying and to cut down on odors, be sure food is packed well.
Freezer shelves should not be lined with aluminum foil, wax paper, or paper
toweling. Liners interfere with cold air circulation, making the freezer less efficient.
Organize and label food to reduce door openings and extended searches. Remove
as many items as needed at one time, and close the door as soon as possible.
LOCKING THE FREEZER
Your freezer comes with two keys and a lock at the bottom center of the door. Turn the
key a quarter-turn to the left to lock the door, and a quarter-turn to the right to unlock it.
Keep keys in a secure place.
8

REVERSING THE DOOR SWING OF YOUR FREEZER
This appliance has the capability of the door opening from either the left or the right side.
The unit is delivered to you with the door opening from the left side. Should you desire
to reverse the opening direction, follow the diagram and directions below. If you have a
problem, call SUMMIT Customer Service at 1-800-932-4267.
NOTE: All parts removed must be saved for reinstalling the door.

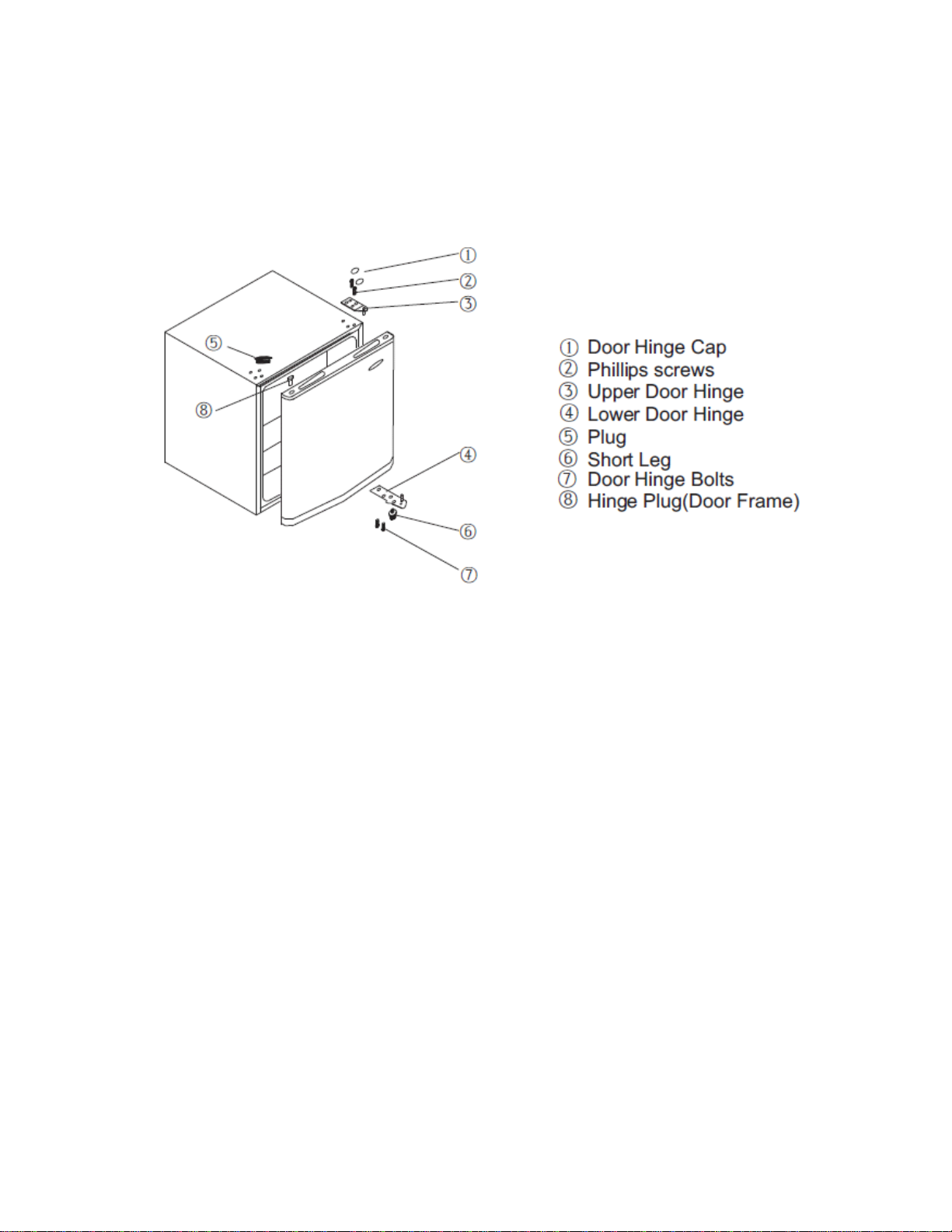

1. Remove the upper door hinge cap (1).
2. Using a sharp object, pry out the plug buttons (5).
3. Remove the two Phillips screws (2) that connect the upper door hinge (3) on the right
side of the cabinet top.
4. Carefully lift the door and place it on a padded surface to prevent it from being
scratched.
5. Remove the hinge plug (8) and transfer it to the uncovered hole on the right side. Be
sure to press the button firmly into the hole.
6. Remove the two door hinge bolts (7) that hold the lower door hinge (4) on the right
side.
7. Remove the screw-type leveling door hinge bolts (7) and transfer them to the right
side as shown in the figure.
8. Set the door into its new position, making sure the pin enters the bushing (hole) on
the lower section of the door frame.
9. Secure the upper door hinge (3) previously removed in step 3 on the left side. Make
sure the pin enters the bushing (hole) on the upper section of the door frame.
10. Loosely secure the lower door hinge (4) and do not tighten the bolts until the door is
in the closed position and leveled.
11. Insert the plug buttons (5) into the uncovered holes (right side).
12. Replace the upper hinge cap (1).
9

TROUBLESHOOTING
You can solve many freezer problems easily, saving you the cost of a possible service call. Try
the suggestions below to see if you can solve the problem before calling a service technician.
Problem Possible Cause
Freezer does not operate. Unit is not plugged in, or there is a power failure.
The circuit breaker has tripped or fuse has blown.
The temperature control is turned off.
Turns on and off frequently. The room temperature is warmer than normal.
A large amount of food has been added to the freezer.
The door is opened too often.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
The freezer does not have the correct clearances.
Freezer gets too cold. The temperature control dial may be set too high.
Freezer is not cooling
sufficiently. Temperature control may be improperly set.
Food may be packed too tightly together, blocking the flow of
cool air.
Warm food, or an excessive quantity of food, has been put into
the freezer.
The door may not have closed properly, or door gasket may be
damaged.
There may be insufficient air space around the unit, or air vents
may be blocked.
Vibrations Check to be sure that the freezer is level.
Freezer seems to make too
much noise. The rattling noise may come from the flow of the refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds caused by
the flow of refrigerant in your freezer.
Contraction and expansion of the inside walls may cause
popping and crackling noises.
The freezer is not level.
Door will not close properly. The freezer is not level.
The door was reversed and not properly re-installed.
The gasket is dirty.
The shelf is out of position.
Water collects on the floor of
the cabinet. The drain hole at the back of the cabinet floor my be clogged. Clear it with a pipe cleaner or straw.
The side panels feel warm. The door has been opened and closed frequently.
The unit is operating in a high ambient temperature.
Under these conditions, side-panel heating is normal; heat is
being dissipated from inside the cabinet.
If your freezer shows other symptoms than those described above, or if you have checked all
items listed as the cause and the problem still exists, then call SUMMIT® Customer Service at
1-800-932-4267
10

LIMITED WARRANTY
11
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor will
pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service must
be provided by a designated service company. Outside the 48 states, all parts are warranted for one year
from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be manufactured to
commercially acceptable standards, and are not covered from damage during handling or breakage.
5-YEAR COMPRESSOR WARRANTY
1. The compressor is covered for 5 years.
2. Replacement does not include labor.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. Expenses for travel and transportation for product service in remote locations.
7. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES –LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY
GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY
FROM STATE TO STATE.
WARNING! This product may contain chemicals known to the state of
California to cause cancer or birth defects or other reproductive harm. For
more information, visit: www.summitappliance.com/prop65
Chemicals known by the manufacturer to be present in this product in
concentrations hi
g
her than threshold limits: NONE.
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: [phone]
Fax: [phone]
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
