Summit CM420ES User manual

Compact Refrigerator
Refrigerateur Compact
Refrigerador Compacto
User Manual
Model # CM420ES CM420ESBL
Guide de l’Utilisateur
Modèle # CM420ES CM420ESBL
Manual del Usuario
Para Modelo de # CM420ES CM420ESBL

English
1
SAFETY PRECAUTIONS
Read all of the instructions before using this appliance. When using
this appliance, always exercise basic safety precautions, including
the following:
1) Use this appliance only for its intended purpose as described in this use and
care guide.
2) This refrigerator must be properly installed in accordance with the installation
instructions before it is used. See grounding instructions in the installation
section.
3) This refrigerator should not be recessed or built into an enclosed cabinet. It is
designed for freestanding installation only.
4) Never unplug your refrigerator by pulling on the power cord. Always grasp
the plug firmly and pull straight out from the outlet.
5) Repair or replace immediately, all electric service cords that have become
frayed or otherwise damaged. Do not use a cord that shows cracks or
abrasion damage along its length, the plug or the connector end.
6) If your old refrigerator is not being used, we recommend that you remove the
doors. This will reduce the possibility of danger to children.
7) After your refrigerator is in operation, do not touch the cold surfaces in the
freezer compartment, particularly when hands are damp or wet. Skin may
adhere to these extremely cold surfaces.
8) Do not refreeze foods which have been thawed completely. The United States
Department of Agriculture in Home and Garden Bulletin No. 69 reads: “…
You may safely refreeze frozen foods that have thawed if they still contain ice
crystals or if they are still cold–below 40˚F”
“…Thawed ground meats, poultry, or fish that have any off-odor or off-color
should not be refrozen and should not be eaten. Thawed ice cream should
be discarded. If the odor or color of any food is poor or questionable,
discard it. The food may be dangerous to eat.”
“…Even partial thawing and re-freezing reduce the eating quality of foods,
particularly fruits, vegetables, and prepared foods. The eating quality of red
meats is affected less than that of many other foods. Use refrozen foods as
soon as possible, to save as much of their eating quality as you can.”
9) Do not use any electrical device or any sharp instrument in defrosting your
refrigerator.

English
2
Thank you for using our Summit
product. This easy-to-use manual will
guide you in getting the best use of
your refrigerator.
Remember to record the model and
serial number. They are on a label in
the refrigerator.
Model number
Serial number
Date of purchase
Staple your receipt to your manual.
You will need it to obtain warranty service.
10) Unplug your refrigerator before cleaning or before making any repairs.
11) Do not operate your refrigerator in the presence of explosive fumes.
SAVE THESE INSTRUCTIONS
DANGER
Risk of child entrapment. Before you throw away
your old refrigerator or freezer, take off the doors.
Leave the shelves in place so that children may not
easily climb inside.

English
3
Table Of Contents
PAGE
Safety Precautions......................................................................................1
Parts And Features .....................................................................................4
Unpacking Your Refrigerator .......................................................................5
Proper Air Circulation.................................................................................5
Electrical Requirements ...............................................................................5
Use of Extension Cords...............................................................................5
Install Limitations........................................................................................5
Leveling Your Refrigerator ...........................................................................6
Door Alignment .........................................................................................6
Reversing the Door.....................................................................................7
Adjusting Temperature Control ....................................................................8
Freezer Compartment.................................................................................8
Interior Shelves ..........................................................................................8
Crisper .....................................................................................................9
Dispense-A-Can™ ......................................................................................9
Using the Lock ...........................................................................................9
Defrosting Your Refrigerator ......................................................................10
Normal Operating Sounds You May Hear..................................................10
Proper Refrigerator Care and Cleaning ......................................................11
Power Interruptions...................................................................................11
Vacation and Moving Care.......................................................................11
Troubleshooting .......................................................................................12
Warranty Information...............................................................................13

English
4
Parts and Features
3
1
1. Freezer Compartment
2. Adjustable temperature control
3. Dual Can Dispensers
4. Tall Bottle Storage
5. Leveling Legs (not shown)
6. Lock & Key
7. Clear Crisper
8. Glass Shelf
9. Full-width Wire Shelves
10. Drip Tray
11. Ice Cube Tray
2
4
5
6
11
8
7
10
9

English
5
Installing Your Refrigerator
Unpacking Your Refrigerator
1. Remove all packaging material. This includes the foam base and all
adhesive tape holding the refrigerator accessories inside and
outside.
2. Inspect and remove any remains of packing, tape or printed
materials before powering on the refrigerator.
Proper Air Circulation
• Toassureyourrefrigeratorworksatthemaximumefficiencyitwas
designed for, you should install it in a location where there is proper air
circulation, plumbing and electrical connections.
• Thefollowingarerecommendedclearancesaroundtherefrigerator:
Sides……………3/4” (19mm)
Top....................2” (50mm)
Back..................2” (50mm)
Electrical Requirement
• Makesurethereisasuitablepoweroutlet(115volts,15ampsoutlet)
with proper grounding to power the refrigerator.
• Avoidtheuseofthreeplugadaptersorcuttingoffthethirdgrounding
in order to accommodate a two plug outlet. This is a dangerous practice
since it provides no effective grounding for the refrigerator and may
result in shock hazard.
Use of Extension Cords
• Avoidtheuseofanextensioncordbecauseofpotentialsafetyhazards
under certain conditions. If it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounding plug
and a 3-slot outlet that will accept the plug. The marked rating of the
extension cord must be equal to or greater than the electrical rating of
the appliance.
Install Limitations
• Donotinstallyourrefrigeratorinanylocationnotproperlyinsulatedor
heated e.g. garage etc. Your refrigerator was not designed to operate
in temperature settings below 55˚ Fahrenheit.
• Selectasuitablelocationfortherefrigeratoronahardevensurface
away from direct sunlight or heat source, e.g. radiators, baseboard
heaters, cooking appliances etc. Any floor unevenness should be
corrected with the leveling legs located at the bottom.
• Iftherefrigeratorisnotleveled,adjustthefrontlevelinglegsbyturning
counterclockwise to raise the refrigerator and clockwise to lower it.

English
Leveling Your Refrigerator
•Yourrefrigeratorhastwolevelinglegswhicharelocatedinthefrontcornersof
your refrigerator. After properly placing your refrigerator in its final position,
you can level your refrigerator.
•Levelingslegscanbeadjustedbyturningthemcounterclockwisetoraise
your refrigerator or by turning them clockwise to lower your refrigerator. The
refrigerator door will close easier when the leveling legs are raised.
Door Alignment
1. Remove the top hinge cover screw and then remove the top hinge cover.
(see fig. # 1)
2. Remove the top hinge cover using a flat head screw driver. Gently lift
from the rear of the hinge and slide forward.
3. Loosen the top hinge screws using a phillips head screwdriver.
4. Adjust the door or put a spacer in between and then tighten the screws.
5. Replace the top hinge cover by aligning the rear of the cover with the
rear of the hinge. Press firmly on the front of the cover until it snaps in
place.
6
fig.1
screw hole plugs
door pin
lower hinge bracket
screw hole plug

screw hole plugs
door pin
lower hinge bracket
screw hole plug
screw hole plugs
door pin
lower hinge bracket
screw hole plug
English
7
Reversing the Door
1. Remove the top hinge cover screw and then remove the top hinge cover. (see
fig. # 1)
2. Using a Phillips Head Screwdriver, loosen and remove the screws holding the
top hinge in place. (see fig. # 1)
3. Remove the top hinge and carefully lift off the door.
4. Remove the screw hole plug from the opposite side and insert the plug in the
screw hole openings of the just removed screws. (see fig. # 2)
5. Remove the door pin from the bracket of the lower hinge by turning counter
clockwise. Move the pin to the opposite hole and tighten. (see fig. # 3)
6. Loosen the screws holding the lower hinge bracket and remove the hinge.
(see fig. # 3)
7. Align the holes in the lower hinge bracket to the corresponding holes in the
opposite side of the cabinet. Insert and tighten the screws.(see fig. # 3)
8. Align the bottom hole on the left side of the door.
9. Align the pin of the top hinge with top hole on the left side of the door and
push into place. Replace the screws in the upper hinge bracket but do not
tighten all the way. (see fig. # 2)
10. Make sure the door closes easily but forms a tight seal. Adjust the door as
needed. Once you are satisfied with the door alignment, completely tighten
the upper door hinge screws.
11. Replace the hinge cover, insert the screw and tighten completely.
(see fig. # 2)
12. If the door does not close properly, refer to the section titled “Door
Alignment”.
fig.2
fig.3

English
8
Refrigerator Features and Uses
General Features
Temperature Control Dial
The temperature control dial has settings from
•“1”to7plus“OFF”.
•“1”isthewarmest
•“7”isthecoldest
Initially, set the temperature control dial to “4”. After using the refrigerator for 24
hours, adjust the temperature control dial to the setting that best suits your needs.
Turning the temperature control dial ‘OFF’ stops the cooling cycle; however, it
will not shut off power to the refrigerator.
NOTE: If the refrigerator has been placed in a horizontal or tilted position for
any period of time, wait 24 hours before plugging the unit in.
IMPORTANT: If you unplug or turn off the refrigerator, allow 4 minutes before
restarting it or re-plugging it in.
FREEZER COMPARTMENT & USE OF THE ICE CUBE TRAYS
This compartment is designed for making ice cubes and for short-term food
storage (a few days at most). This compartment is not cold enough to freeze
foods safely for extended periods of time.
•Ificecubetrayfreezestothefloor,pouralittlewarmwateraroundittoloosen
it. Do not use boiling water, which can damage plastic parts, or sharp metal
objects such as a knife or screwdriver, which can damage the cooling system
tubing. Wash tray in lukewarm water only. Do not wash in the dishwasher.
Interior Shelves

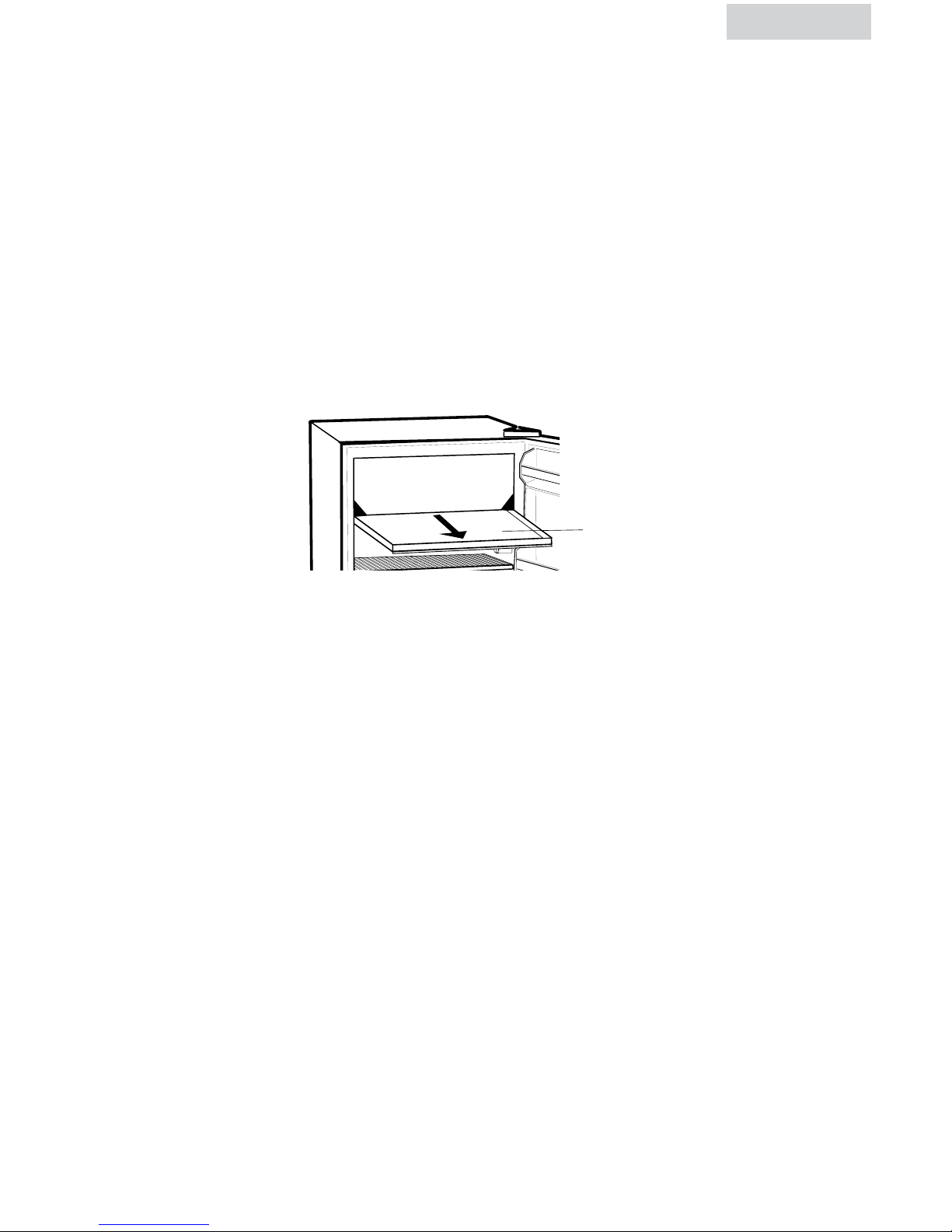

To remove or replace a full-width slide-out shelf: (see fig. #4)
1. Gently tilt the shelf up and slide
forward until the shelf has been completely removed.
2. To replace the shelf, gently slide the shelf back.
fig. 4

English
9
•Yourrefrigeratorhasaclearcrisper.Graspthetopofthecrisperandgently
slide out. Push back to replace.
Crisper

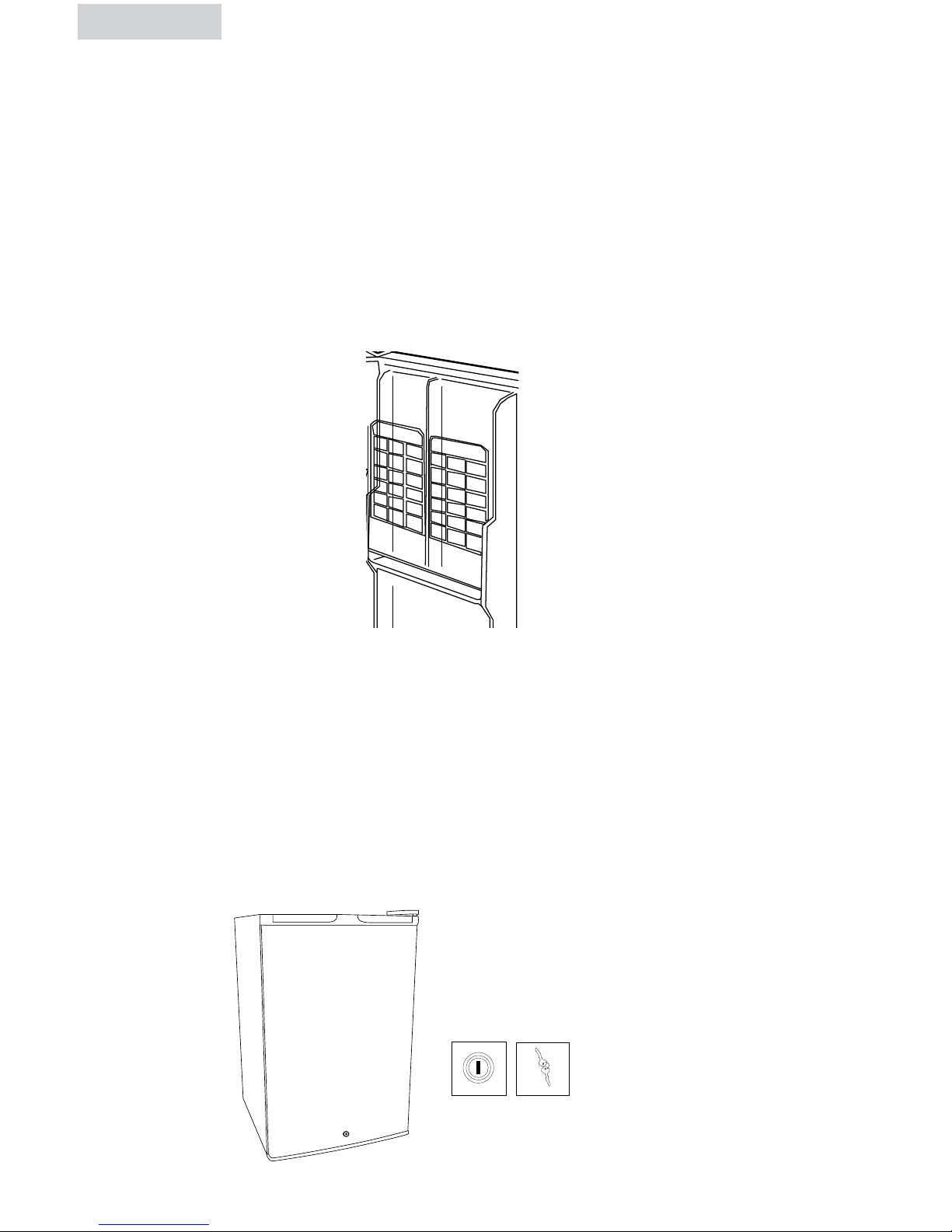

Using the Dispense-A-Can™ (see fig. # 5)
•Yourrefrigeratorisequippedwiththeconvenient
“Dispense-A-Can™” compartment. Each compartment will hold up
to four cans. Simply load the cans from the top. To dispense a can,
simply draw one out from the bottom. It is that easy.
fig. # 5
Using the Lock (see fig. # 6)
•Yourrefrigeratorisequippedwithalockandkey(locatedatthe
bottom center of the door) for optional security, should you choose.
Simply close the refrigerator door, insert the key, push in and turn. To
open, insert the key, push in and turn in the opposite direction.
NOTE: Keep keys away from children.
fig. # 6
lock and key

English
10
Defrosting Your Refrigerator
•Formaximumenergyefficiency,defrostfreezersectionwheneverfrost
accumulates to a thickness of 1/4” or more on freezer walls. Note that
frost tends to accumulate more during the summer months.
•Todefrost,removethefoodandicecubetrayfromthefreezersection.
Make sure the drip tray is under the freezer section and turn off the
thermostat. Defrosting may take a few hours.
•Whiledefrosting,waterwillaccumulateinthedriptray.Thedriptray
may also need to be emptied during the defrost process. Do not leave
unattended. (see Fig. 7)
•Afterdefrosting,emptyandwipedownthedriptray,aswellasthe
interior of the refrigerator.
Normal Operating Sounds You May Hear
•Boilingwater,gurglingsoundsorslightvibrationsthataretheresultofthe
refrigerant circulating through the cooling coils.
•Thethermostatcontrolwillclickwhenitcyclesonandoff.
fig. 7
drip tray

English
11
Proper Refrigerator Care
and Cleaning
Warning: To avoid electric shock always unplug your refrigerator before
cleaning. Ignoring this warning may result in death or injury.
Caution: Before using cleaning products, always read and follow manufacturer’s
instructions and warnings to avoid personal injury or product damage.
General: •Prepareacleaningsolutionof3-4tablespoonsofbakingsoda
mixed with warm water. Use sponge or soft cloth, dampened with
the cleaning solution, to wipe down your refrigerator.
 •Rinsewithcleanwarmwateranddrywithasoftcloth.
 •Donotuseharshchemicals,abrasives,ammonia,chlorinebleach,
concentrated detergents, solvents or metal scouring pads. Some
of these chemicals may dissolve, damage and/or discolor your
refrigerator.
Door Gaskets:
 •Cleandoorgasketseverythreemonthsaccordingtogeneral
instructions. Gaskets must be kept clean and pliable to assure a
proper seal.
 •Petroleumjellyappliedlightlyonthehingesideofgasketswillkeep
the gasket pliable and assure a good seal.
Power Interruptions
• Occasionallytheremaybepowerinterruptionsduetothunderstormsorother
causes. Remove the power cord from AC outlet when a power outage occurs.
When power has been restored, replug power cord to AC outlet. If outage is
for a prolonged period, inspect and discard spoiled food in the refrigerator.
Clean inside the refrigerator before reusing.
Vacation and Moving Care
•Forlongvacationsorabsences,emptyfoodfromrefrigerator,movethe
temperature DIAL to the OFF position and clean the refrigerator and door
gaskets according to “General cleaning” section. Prop doors open, so
air may circulate inside. When moving, always move the refrigerator
vertically. Do not move with the unit lying down. Possible damage to the
sealed system could occur.

12
English
Trouble Shooting
Refrigerator Does Not Operate
•Checkifthermostatcontrolisnotinthe“OFF”position.
•Checkifrefrigeratorispluggedin.
•CheckifthereispowerattheACoutlet,bycheckingthecircuitbreaker.
Food temperature appears too warm
•Frequentdooropenings.
•Allowtimeforrecentlyaddedwarmfoodtoreachfreshfoodor
freezer temperature.
•Checkgasketsforproperseal.
•Cleancondensercoilsinthebackoftheunit.
•Adjusttemperaturecontroltocoldersetting.
Food temperature is too cold
•Iftemperaturecontrolsettingistoocold,adjusttoawarmersetting
and allow several hours for temperature to adjust.
Refrigerator runs too frequently
•Thismaybenormaltomaintainconstanttemperatureduringhigh
temperature and humid days.
•Doorsmayhavebeenopenedfrequentlyorforanextended
period of time.
•Checkgasketforproperseal.
•Checktoseeifdoorsarecompletelyclosed.
Moisture build up on interior or exterior of the refrigerator:
•Thisisnormalduringhighhumidityperiods.
•Prolongedorfrequentdooropenings.
•Checkdoorgasketsforproperseal.
Refrigerator has an odor:
•Interiorneedscleaning.
•Foodsimproperlywrappedorsealedaregivingoffodors.
Refrigerator door does not shut properly:
•Leveltherefrigerator.
•Re-alignrefrigeratordoor.
•Checkforblockagese.g.foodcontainers,shelves,binsetc.

Summit Model Number Serial
Customer’s Name Date of Delivery
Address Apt. No.
City State Zip
Dealer’s Name City State
Is this unit for: Private Home Apartment Office Other
Reasons for selecting this unit: Dealer Recommendation
Size Price Other
SUMMIT LIMITED WARRANTY
Summit Appliances warrants this product to be free from defects in materials
and workmanship for a period of one year from the date of original purchase
or delivery. Any parts determined to be defective will be replaced by SUMMIT
at no charge to you. Plastic parts, liners and outer cabinets are warranted to be
manufactured to commercially acceptable standards and free from defects at the
time of delivery. In addition, the compressor is covered for 5 years, but replacement
does not include labor.
This limited warranty does not apply to:
1. Improper installation
2. Customer misuse, negligence or damage
3. Incorrect electrical current
4. Products with the serial number altered or removed
5. Products sold or used outside the fifty United States or the District of
Columbia
6. Commercial or Industrial Users
7. Damage to this product from accidents, alterations, failure to follow
instructions, fire, floods, earthquakes, war, civil disturbance or Acts of
God.
SUMMIT is not liable for consequential or incidental damage.
FELIX STORCH, INC.
770 GARRISON AVENUE BRONX, NY 10474
SUMMIT APPLIANCE DIV.
FELIX STORCH, INC.
770 GARRISON AVENUE
BRONX, NY 10474
FACTORY REGISTRATION CARD
THANK YOU FOR PURCHASING A QUALITY SUMMIT® APPLIANCE
English
13

Français
14
PRECAUTIONS DE SURETE
Lisez toutes les instructions avant d’utiliser cet appareil. Exercez
toujours les precautions de surete fondamentales avant d’utiliser
cet appareil, y compris les suivants:
1) N’utiliser cet appareil que pour l’usage prévu, tel que décrit dans ce guide
d’utilisation et d’entretien.
2) Ce réfrigérateur doit être correctement installé, conformément aux instructions
d’installation avant d’être utilisé. Voir les instructions de mise à la terre dans la
section Installation.
3) Ce réfrigérateur ne doit être ni encastré, ni enclos dans un placard. Il est
uniquement conçu pour être installé tel qu’il se présente.
4) Ne jamais tirer sur le cordon d’alimentation pour débrancher le réfrigérateur.
Toujours saisir fermement la fiche et la tirer tout droit hors de la prise.
5) Réparer ou remplacer immédiatement tout cordon électrique effiloché ou
autrement endommagé. Ne pas utiliser un cordon fissuré, abrasé ou dont la
prise ou le connecteur est endommagé.
6) Si un ancien réfrigérateur n’est pas utilisé, nous recommandons d’en retirer les
portes afin de réduire le danger qu’il peut représenter pour les enfants.
7) Une fois le réfrigérateur en fonctionnement, ne pas toucher les surfaces froides
du congélateur, particulièrement avec des mains mouillées ou humides. La
peau peut adhérer à ces surfaces extrêmement froides.
8) Ne pas recongeler les aliments qui ont été complètement décongelés. Le
bulletin maisons et jardins du ministère de l’agriculture des États-Unis no. 69
stipule: « ..Les aliments congelés peuvent être recongelés en toute sécurité s’ils
contiennent toujours des cristaux de glace ou si leur température est toujours
inférieure à 4,5 ˚C (40 ˚F) ».
« …Les viandes hachées, la volaille et le poison présentant une odeur ou
une couleur suspecte ne doivent être ni recongelés, ni mangés. La crème
glacée dégelée doit être jetée. Tout aliment présentant une odeur ou couleur
douteuse doit être jeté cas son ingestion pourrait être dangereuse.»
« …La décongélation ou la recongélation, même partielle réduit la qualité
gustative des aliments, en particulier des fruits, légumes et plats préparés.
La qualité gustative des viandes rouge est beaucoup moins affectée que
celle de nombreux autres aliments. Utiliser les aliments recongelés dès que
possible, afin de conserver un maximum de leur qualité gustative. »
9) Ne pas utiliser d’appareils électriques ou d’objets acérés pour dégivrer le
réfrigérateur.

Français
15
Nous vous remercions d’avoir achete un
produit Summit. Ce manuel facile a consulter
vous guidera a obtenir la meilleure utilisation
de votre refrigerateur.
N’oubliez pas d’enregistrer les numeros du
model et de serie. Ils sont affiches sur une
etiquette dans le refrigerateur.
Agrafez votre recu d’achat a votre manuel.
Vous en aurez besoin pour obtenir le service de la garantie.
Numero du model
Numero de serie
Date d’achat
10) Débranchez votre réfrigérateur avant de le nettoyer ou de faire des
réparations.
11) Ne faites pas fonctionner votre réfrigérateur en présence de fumées
explosives.
CONSERVEZ CES
INSTRUCTIONS
DANGER
Risque d’entrapement des enfants. Avant de disposer
de votre refrigerateur ou congelateur, enlevez les
portes. Laissez les etageres en place afin que les
enfants ne puissent pas grimper a l’interieur.

Français
16
Table des Matieres
Page
Precautions de Surete ...............................................................................14
Parties et Caracteristiques .........................................................................17
Installation de Votre Refrigerateur .............................................................18
Deballage du refrigerateur........................................................................18
Circulation propre de l’air.........................................................................18
Conditions electriques ..............................................................................18
Utilisations des rallonges...........................................................................18
Limitations d’installation ............................................................................18
Mise à niveau de votre réfrigérateur ..........................................................19
Alignement de la porte.............................................................................19
Changement de l’orientation de la porte.....................................................20
Caracteristiques et usage du refrigerateur.............................................. 21-23
Reglage de la temperature........................................................................21
Compartiment congélateur ........................................................................21
Les Etageres Interieures.............................................................................21
Bac à legumes.........................................................................................22
Distributeur de Boîtes Dispense-A-Can™ .....................................................22
Utilisation du Verrou de Sécurité................................................................22
Decongelez votre refrigerateur ..................................................................23
Bruits d’operation normals dont vous entendrez ..........................................23
Entretiens et nettoyage du refrigerateur.................................................. 23-24
Coupures de courant................................................................................24
Entretiens durant les vacances ou demenagement........................................24
Depannage.............................................................................................25
Information pour la garantie......................................................................26

Français
17
Parties et Caracteristiques
3
1
1. Compartiment congélateur
2. Commande de la température
ajustable
3. Double distributeur de cannettes
4. Compartiment pour grandes
bouteilles
5. Pieds réglables (non montrés)
6. Serrure et clé
7. Bac à légumes transparent
8. Clayette en verre
9. Large clayettes métalliques
10. Plateau de récupération
11. Bac à glaçons
2
4
5
6
11
8
7
10
9

Installation de Votre Refrigerateur
Deballage de Votre Refrigerateur
1. Retirez tous les materiaux d’emballage. Ceci inclus le socle en mousse
et tous les rubans adhesifs retenant les accessoires du refrigerateur a
l’interieur et exterieur.
2. Inspectez et retirez le reste de l’emballage, le ruban adhesif et la
documentation avant de mettre en marche votre refrigerateur.
Circulation Propre de L’air
•Afindevousassurezquevotrerefrigerateurfonctionneamaximum
efficacite vous devrez l’installer dans un endroit ou la ventilation , le
raccordement electrique et la connection de plomberie soient absolument
correctes.
•Onvousrecommandedelaisserlesespacessuivantestoutautourdu
refrigerateur. Cotes......3/4” (19mm)
Au -dessus..................2” ( 50mm)
Derriere......................2” (50mm)
Conditons Electriques
•Assurezvousqu’ilyaunepriseelectriqueadequate(115volts,15
amperes prise) avec mise a terre correcte pour mettre le refrigerateur en
marche
•Nepasutiliserl’adaptateura3brochesounepascouperlatroisieme
broche pour obtenir un adaptateur a 2 broches . Ceci est une pratique
dangereuse car elle n’offre pas de mise a terre au refrigerateur et peut
resulter d’un shoc electrique.
Utilisation des Rallonges
•Evitezl’usagedesrallongescardanscertainscascelapeutentrainerdes
risques pour la sante. S’i c’est necessaire d’utiliser une cordon d’extension,
utilisez une rallonge a 3 conducteurs disposant d’une fiche a 3 lames
et une sortie a 3 fentes qui accepteront la prise. Le calibre defini des
rallonges doit etre egal ou superieur a celui de l’equipement.
Limitations d’installation
•N’installezjamaisvotrerefrigerateurdansunendroitinsuffisammentisole
ou chauffe.. par exemple, le garage etc... Votre refrigerateur n’a pas ete
concu pour operer a une temperature inferieure a 55degres Fahrenheit.
•Choisissezunendroitapproprieavotrerefrigerateursurunesurface
ferme et plane, loin des rayons directs du soleil ou des sources de
chaleur comme les radiateurs, les radiateurs de plinthes , les appareils
de cuisine,etc,,,,, N’importe quelle inegalite du sol doit etre corrigee en
reglant les pieds du refrigerateur, situes au bas.
•Sileréfrigérateurn’estpasmisàniveau,ajustezlespiedsréglablesà
l’avant en les tournant dans le sens inverse des aiguilles d’une montre
pour élever le réfrigérateur et dans le sens des aiguilles d’une
montre pour l’abaisser.
Français
18

Mise à niveau de votre réfrigérateur
•Votreréfrigérateurpossèdedeuxpiedsréglablesquisetrouventdansles
coins avant de votre réfrigérateur. Après avoir correctement installé votre
réfrigérateur en position, vous pouvez ajuster les pieds réglables et le mettre à
niveau.
•Lespiedsréglablespeuventêtreajustésenlestournantdanslesensdes
aiguilles d’une montre pour élever le réfrigérateur ou dans le sens contraire des
aiguilles d’une montre pour le descendre. La porte du réfrigérateur se fermera
plus facilement quand les pieds réglables sont levés.
Alignement de la Porte
1. Retirez la vis du cache-charnière supérieure et retirez ensuite le cache-
charnière supérieure. (voir fig. 1)
2. Enlevez le couvercle du gond superieur en utilisant un tournevis plat.
Gentiment soulevez le du fond du gond et glissez le vers le devant.
3. Desserez les vis du gond superieur en utilisant un tournevis Phillips.
4. Ajustez la porte ou mettez un joint d’espacement au milieu serrez les vis.
5. Replacez le couvercle du gond superieur en alignant le fond du
couvercle au fond du gond . Pressez fermement sur le devant du
couvercle jusqua ce que ce dernier soit en place.
Français
19
fig.1
screw hole plugs
door pin
lower hinge bracket
screw hole plug
