Sumo TRIO User manual

C U L T I V A T O R
Operator Manual
2021 Range
Sumo UK LTD, Redgates,
Melbourne, York YO42 4RG.
Copyright 2021

2 | P a g e
Introduction
Thank you for purchasing your new Sumo machine. We at Sumo pride ourselves in our ability
to produce compact, heavy duty and quality machinery. We hope you enjoy our products and
that it helps improve your productivity in every way. For any further enquiries about
additional products, optional extras or spares, please contact your local
dealership/representative, or alternatively contact us directly using the contact details given
on the cover page.
This Operators Manual is a comprehensive formulation of the directives and obligations
necessary to be undertaken before and after any operation is performed, including
maintenance and storage. It is important that each operator reads and understands this
manual completely before trying to use the associated machine. This will reduce the chance
of injury to both the user and persons around the machine, as well as reducing the likelihood
of machine misuse which could result in part failure and/or significantly reduce the service
life of the machine. Sumo will not accept liability for any injuries or damage caused from
negligence, use in extreme conditions, or failing to comply with the instructions within this
manual.
These machines have been designed to take Sumo manufactured spares; non-genuine
parts/accessories/modifications may damage the machine as they are untested and not
recommended for use with the Sumo machine. Sumo will not honour warranty claims if
deemed to be caused using non-genuine parts or accessories. Conversions of/ or
modifications to the machine may only be carried out after consultation with Sumo.
As well as reading the instructions of operation contained within this manual, a trained technician
or dealer should also instruct you on the correct and safe use of the machine and maintenance of
the machine to ensure a long service life.
Training by Sumo is required for the following operations; loading for truck transportation,
commissioning of new machines, advanced troubleshooting and repair. Any repair work to
structural components of the machine must be carried out by Sumo or a workshop approved
by Sumo, otherwise the warranty will be invalidated.
Please note, specifications, descriptions and illustrations in this manual are accurate, at the
time of publication but may be subject to change. If you notice any discrepancy and are in
need of clarification, please contact us using the details given previously.

3 | P a g e
Contents
1. Safety Page 5
1.1 Qualification & Training - Page 5
1.2 General Safety - Page 6
1.3 Personal Protective Equipment (PPE) - Page 7
1.4 Warning Symbols - Page 7
2. Product Summary & Machine Identification Page 10
2.1 Summary Description - Page 10
2.2 Intended Use - Page 11

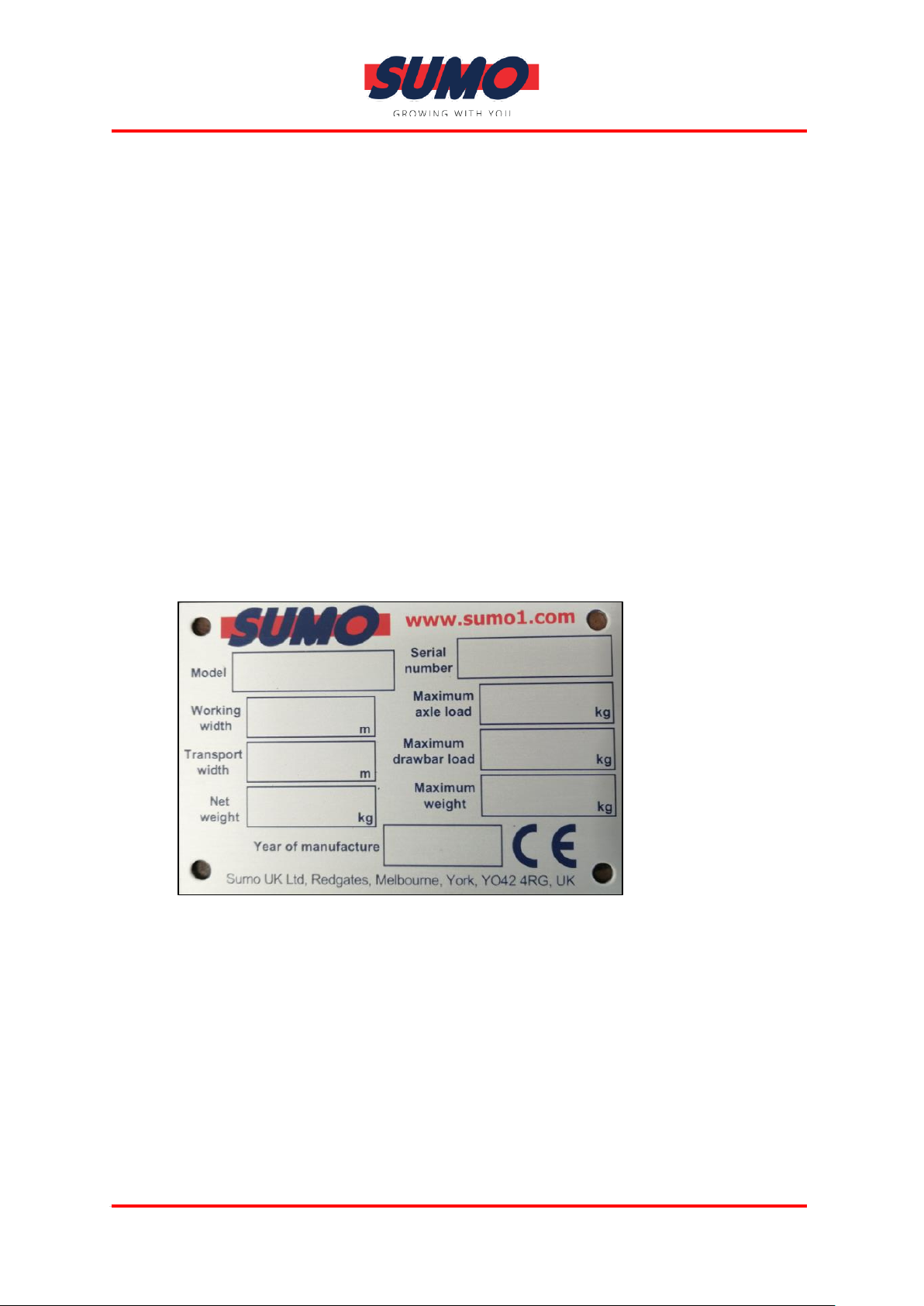

2.3 Machine Identification - Page 11
2.4 Technical Data - Page 11
3. Preparation & Set Up Page 15
3.1 Pre-Check & System Overview - Page 15
3.2 Hitching & Tractor Connection - Page 15
3.2.1 Mounted Machines - Page 17
3.2.2 Trailed Machines - Page 17
3.3 Electronics Connection & Testing - Page 18
3.4 Hydraulics Testing - Page 18
3.5 Uncoupling of Tractor - Page 18
4. Transportation Page 19
4.1 Transport Preparation & Positions - Page 19
4.2 Transport Guidelines & Route Planning - Page 20
4.3 Parking - Page 20
4.3.1 Stands - Page 20
4.3.2 Handbrake - Page 22
4.3.3 Pneumatic Brakes - Page 23
4.3.4 Hydraulic Brakes - Page 23
5. Operation & Adjustment Page 24
5.1 Operations - Page 24
5.1.1 Straights - Page 24
5.1.2 Turning - Page 24
5.1.3 Hydraulics - Page 25
5.2 Adjustments - Page 25
5.2.1 Packer Depth - Page 25
5.2.2 Leg Depth - Page 26
5.2.3 Shear Pin - Page 26
5.2.4 Auto Reset Legs - Page 26
5.2.5 Discs - Page 27
5.2.6 Paddles - Page 28
5.2.7 Scrapers - Page 29
5.2.8 Shim Holders - Page 29
5.2.9 Depth Wheel - Page 29
5.2.10 Soil Retention Disc - Page 30
5.2.11 4-Way Control Box - Page 30
5.3 Parts Replacement - Page 30

4 | P a g e
6. Maintenance & Storage Program Page 32
6.1 Lubrication & Greasing - Page 32
6.2 Cleaning - Page 33
6.3 Storage - Page 33
7. Optional Extras/Attachments Page 34
7.1 Point Variations - Page 34
7.2 Packer Options - Page 34
7.3 Sumo Seeder & Seeder Fitting Kit (SFK) - Page 35
7.4 Trailing Kit - Page 36
7.5 Front Discs - Page 36
7.6 Rear Drawbar - Page 36
7.7 Air Brake - Page 36
7.8 Wheel Eradicators - Page 37
7.9 Following Harrow - Page 37
7.10 Straight Leading Disc - Page 38
7.11 Hydraulic Parking Stand - Page 38
7.12 Gull Wings - Page 39
7.13 Single Disc Opener’s (SDO’s) - Page 39
7.14 Homologation - Page 40
8. Troubleshooting Page 41
8.1 Mechanical Assemblies - Page 41
8.2 Hydraulics - Page 41
8.3 Electrical Faults - Page 41
9. External Documentation Page 42
9.1 List of Machine Manuals & Parts Book - Page 42
9.2 Associated Legislation & Compliances - Page 42

5 | P a g e
1. Safety
The following warnings and safety instructions apply to all sections of these operating manual
and should be read/considered in conjunction. The machine has been designed and
manufactured to meet all the relevant safety regulations. These regulations along with the
instructions provided within this manual are designed to help minimise the risk of injury to
yourself and others around the machine at all times. Failure to comply with the safety
obligations herein can result in any claims for failed machines/components, warranty, or
damages being made void.
Please read ALL these safety instructions prior to the use of the machine to prevent safety
issues or potential machine damage through incorrect use.
The designations “left”, “right”, “front” and “rear” refer to the direction of travel, as seen in the
direction of travel, as the operator is sat in the driving seat looking forward.
1.1 Qualification & Training
Use of the machine by untrained operators can lead to injury or even death. To prevent
accidents occurring ensure that operators have been trained by a Sumo dealer or
technician. The following requirements must be met:
-Personnel must be of statutory minimum age in the country of operation.
-Ensure only reliable, authorised persons operate or work on the maintenance of
the machine.
-Employ only trained or instructed staff; the individual responsibilities of the
personnel concerning operation, setting up, maintenance and repair must be
clearly established.
-Persons undergoing training or instruction or taking part in a general training
course should not be allowed to work on or with the machine unless they are
under the constant supervision of an experienced person.
-The person has read and understood these instructions in full.
-The person is fully competent/legally licensed in operating the machine towing
the equipment.
-All Local traffic laws are understood and abided by.
-A person being instructed on the use of the machine must be done so under the
instruction of a trained individual.
It is the sole responsibility of the owner of the machine to ensure all requirements are
met by any individual intended to use/maintain/repair/transport the machine,
including official training by an authorised trainer, having read and understood this
manual in full, their area of responsibility, and Local Laws, Legislation & Regulations
Standards.
Training by Sumo is required for the following operations; loading for truck
transportation, commissioning of new machines, advanced troubleshooting and repair.

6 | P a g e
Any repair work to structural components of the machine must be carried out by a
workshop approved by Sumo, otherwise the warranty will be invalidated.

7 | P a g e
1.2 General Safety
It is the responsibility of the owner/user to ensure a safe working environment, not only
for themselves, but those around them. The following instructions are advised to help
ensure this is made possible.
Due to the nature of Sumo machines, the entire machine and surrounding area is
classified as a Danger Zone, and the following instructions must be followed:
-Warning signs and other notices on the machine provide important information
for safe operation. Observing and following them will serve your safety. Ensure
they are clean, undamaged and clearly visible at all times.
-To avoid serious injury, ensure tractor keys are removed before making any
adjustments or maintenance.
-With the drive still running/turned off, machine parts may fall, rotate or swing
out. Ensure to stay clear of any risk area.
-Never allow anyone to stand, beside or behind the stationary machine, or whilst
attached to a tractor, unless it is fully secured against rolling away by means of
parking brake and/or wheel chocks. Even then all safety precautions herein must
be followed.
-Before starting work, make yourself familiar with all the equipment and controls
as well as their functions.
-The user should wear all necessary PPE as described in the PPE section of this
manual.
-Adhere to all maintenance instructions given within this manual.
-Avoid any finger traps.
-Keep the machine and the bearings clean to avoid risk of fire.
-Maintain the upkeep of any electronics. Defective, incorrectly fastened electric
lines, exposed wires can cause electric shocks.
-Remain vigilant around the machine at all times, hydraulically raised machine
parts can lower slowly and unnoticed.
-It is expressly Forbidden for anyone to ride on our machines at any time.
-Never stand under the machine or lifted loads. Lower to the ground first.
-Machines should never be parked, folded or unfolded, or accessed in the
presence of overhead power lines or pylons to ensure no flashover is possible.
Special care should also be taken when manoeuvring nearby, folding or
unfolding to ensure no contact is made.
-Instruct persons to leave the danger zone around the machine and tractor.
-Before working in the danger zone of the machine or between machine and
tractor: Shut down the tractor! This also applies for short-term inspection work.
Many accidents happen because of carelessness and running machines!
-Accidental operation of the hydraulic system can trigger dangerous movements
of the machine.

8 | P a g e
-Failing to pay attention to the danger zone can result in severe or even fatal
physical injuries.
-Check around the machine before moving off or starting up (Watch out for
children or animals!). Make sure you have adequate all-round visibility.
-Always match your speed to the local conditions. Avoid any sudden acceleration
or turning manoeuvres when driving uphill or downhill or when travelling across
a slope.
-Consider the length, the wide overhang, the folded height and the sideways force
acting on the machine when turning or negotiating curves.
-Ensure all transportation guidelines are followed within this manual.
-Ensure Sumo machines are only used for their intended use as outlined in this
manual.
Young persons are less able to react to danger and are unlikely to have enough
experience to react to situations and therefore should be kept well clear of the operating
zone of the machine. Children should Not be left in/on the tractor/machine even when
the machine has been shut down as hydraulics can still be operated if they are a
mechanical spool. The minimum age of children riding on agricultural equipment locally
in the country of operation must be adhered to. Sumo does not permit Anyone to ride
its machines at any point, trained or untrained.
1.3 Personal Protective Equipment (PPE)
To protect the user and persons surrounding the machine during
operation/maintenance suitable PPE must be worn:
-Tight fitting clothes or overalls, ensuring no loose clothing is able to get caught
in the machine while it is in operation, this includes long hair, which should be
tied up or placed in a hair net.
-Suitable footwear, steel toe capped shoes/boots, especially during the lowering,
detachment or adjustment of any machine/feature.
-Eye protection such as safety glasses or goggles during general usage and
especially when changing wearing components as these may be under pressure
and can release suddenly, and when working with hydraulic components as the
pressure may not have been released properly and could release suddenly.
-Jewellery such as rings, necklaces, bracelets and watches should not be worn
while operating/maintaining this machine as it can get caught and cause further
injury.
-Suitable hand protection, specifically during adjustment, maintenance, and when
attaching the machine to a tractor as hydraulic oil can cause injury if it is under
pressure as it can pierce the skin and cause serious health problems if it enters
the blood stream.
As a general rule, Sumo advise all PPE to be worn at all times, just to be safe.

9 | P a g e
1.4 Warning Symbols
Warning/Safety stickers have been positioned on the machine to warn of dangerous
points and are an important part of the safety equipment of the machine. Missing safety
stickers increase the risk of severe or even fatal physical injuries. It is crucial that all
operators and spectators abide and understand them.
Before any operation, and a standard maintenance regime, ensure all warning/sticks are
clean, undamaged and clearly visible.
The following is a general pictorial and description key for each warning/sticker typically
used by Sumo. If there are any warning/stickers you are unsure of, or you think maybe
be missing, either on the machine or in this manual, make sure to contact Sumo or a
local dealership before taking any further action.
Warning/Safety Labels:
Stop Engine!
Consult Operation
Manual Before
Continuing.
Risk of falling.
No riding on
machines
Risk of crush.
Stay clear of
unfolding and/or
swinging elements
Warning!
Ensure rear discs
are in down and
clear of tyres
position before
folding and
unfolding
(Applies to Disc
Machines Only)
Never reach in to
working parts.
Risk of crush
injury.
Grease Daily.
Failure to do so may
diminish the life service of
the machine or cause
faults.

10 | P a g e
Never reach in to
working parts.
Risk of crush
injury.
Closed top link only.
Do not use Open Top Link.
Keep Fingers Clear!
Change leg depth from underneath.
Stay clear of machine while
manoeuvring, stationary but
unsupported, and/or working.
Caution!
Read manual carefully.
Shear Pin Machines Only!
Advance new replacement shear pin
through two extra positions on this
leg

11 | P a g e
Warning!
Ensure stands are raised and safety
link is removed before unfolding.
Failure to do so will result in damage
to the wings.

12 | P a g e
2. Product Summary & Machine Identification
This section of the manual is designed to outline the basic machine range summary’s,
intend use outline, and machine variants/identification. This information is accurate, as
known, at the point of publication but is also subject to change at Sumo’s discretion.
For a more detailed descriptions, specifications & technical details - see www.sumo1.com,
or consult the correlating Machine Manual & Parts Book.
2.1 Summary Description
The following are brief summaries for each machine type, outlining the design concept
and intended use.
Trio - The Trio is a one pass seed bed preparation machine, designed to alleviate
sub-surface compaction and mix stubble and soil, leaving a level surface ready
for seeding.
Quatro - The Quatro is a versatile, one pass, minimum tillage cultivator with four
elements that can be fine-tuned to adapt to a variety of conditions.
Vaxio - The Vaxio is a versatile high-speed cultivator which combines surface
cultivation and loosening to a depth with even levelling and consolidation in
one pass.
Multipress - The Multipress is a versatile machine designed for tilling, levelling and
pressing on a wide variety of conditions.
Mixidisk - The Mixidisk is a high-speed multipurpose cultivator designed for tilling,
levelling and incorporating large volumes of crop and residue.
LDS - The Low Disturbance Subsoiler (LDS) alleviates compaction with minimal
surface disturbance.
GLS - The Grassland Subsoiler (GLS) improves and revitalises compacted grassland
that is suffering from the effects of continual heavy machinery, livestock and
rainfall.
Subsoiler - The Subsoiler is a heavy-duty, robust machine which enables the
loosening and consolidation of compact soil conditions.
Rippa - The Rippa is a heavy-duty deep cultivation tool designed to rip up the land,
aiding aeration of the soil.
Strake - The Strake is a high-speed straw rake used for creating a stale seed bed. An
essential machine for effective use of minimum tilling and direct drilling.

13 | P a g e
Front Multipacka - The Front Multipacka is a heavy-duty machine that breaks up the
soil and creates an even consolidation, as well as having the
benefit of acting like a front weight.

14 | P a g e
2.2 Intended Use
Based off the Summary Descriptions previous, Sumo machines are intended to be used
for normal soil cultivation in agricultural practices associated with those requirements
only.
Any use outside of the intended use/summary description of the machine can lead to
injury to persons operating or within the area of the machine and can also lead to the
warranty being invalidating. Sumo accepts no liability for the actions or use of any
operative not employed by Sumo UK Ltd.
Any faults with the machine should be rectified prior to use. Faults can cause safety
issues and can also cause the machine to work in an unsatisfactory manner.
Only qualified persons, as outlined in the Qualifications and Training section of the
manual, may operate this machine.
2.3 Machine Identification
The following is a blank picture of the serial plate attached to the front of every
machine:
To identify your machine, find your serial plate and cross-reference the details with
the Technical Data that follows.
Note: It is important when talking to a Sumo representative that you provide the year
of manufacture in order to ensure clarity of the machine being discussed, as different
years may have slight or major design variations.
2.4 Technical Data
The following collection of tables denote the different machines available in each
range of Sumo products, and include the basic collection of technical data applicable
to those machines. For a more detailed technical data, see the correlating Machine
Manual & Parts Book.

15 | P a g e
Note: All dimensions hereafter are approximate and in metric. Length, width and
height dimensions refer specifically to the machine whilst in its required transport
positions, see Machine Manual & Part Books. All weights are based on standard
machines without any additions, modifications or loads. All machines are subject to
fabrication and assembly tolerances and could vary slightly from values given. Lengths
and Height have been omitted from all Mounted machines as the value is entirely
dependent on the connected tractor.
Machine Type Key:
Mounted = Machine mounted directly to a Tractor.
Rigid = Trailed Machine that does not fold.
Folding = Trailed/Mounted Machine that hydraulically folds.
Trio Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
TR2.5SP
Mounted
2.4
-
2.55
-
2468
TR2.5AR
Mounted
2.4
-
2.55
-
2515
TR3SP
Mounted
2.9
-
3
-
2795
TR3AR
Mounted
2.9
-
3
-
2855
TR3.5AR
Mounted
3.4
-
3.5
-
3070
TTR3AR
Rigid
3
7.6
3.25
2.2
4220
TTR3.5AR
Rigid
3.5
7.6
3.75
2.2
4706
TRF4.5AR
Folding
4.5
8
2.9
2.64
8631
TRF5.5AR
Folding
5.5
8
2.9
3.14
9101
TRF6.5AR
Folding
6.5
8
2.9
3.64
10025
Quatro Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
Q3
Rigid
3
9.05
3.25
2.17
5930
Q4
Folding
4
10.4
3
3.56
10210
Q5
Folding
5
10.4
3
3.94
11965
Q6
Folding
6
10.4
3
3.96
12958
Vaxio Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
V4
Folding
4
8.76
3
3.27
7380
V5
Folding
5
8.76
3
3.77
8352
V6
Folding
6
8.76
3
3.94
9224

16 | P a g e
Multipress Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
MUL3
Mounted
3
-
3
-
2440
MUL5
Folding
5
7.91
3
3.35
6950
MUL6
Folding
6
7.91
3
3.59
7770
Mixidisc Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
MIX3
Mounted
3
-
3
-
2010
MIX4
Folding
4
-
2.8
-
3220
TMIX5
Folding
5
7.7
3
3.36
6860
TMIX6
Folding
6
7.7
3
3.86
7985
TMIX7
Folding
7
7.7
3
4
9005
LDS Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
LDS3FAR
Mounted
3
-
3.1
-
2170
LDS3RAR
Mounted
3
-
3.1
-
2450
LDS3MAR
Mounted
3
-
3.1
-
2450
LDS4FAR
Folding
4
-
2.9
-
3085
LDS4RAR
Folding
4
-
2.9
-
3315
LDS4MAR
Folding
4
-
2.9
-
3315
LDS5FAR
Folding
5
-
2.9
-
3645
LDS5RAR
Folding
5
-
2.9
-
3990
LDS5MAR
Folding
5
-
2.9
-
3990
LDS5TM
Folding
5
7.47
3
2.9
10300
LDS6TM
Folding
6
7.47
3
3.3
11150
Note: Based on the packer bought: FAR = Flat, RAR = Rings, MAR = Multipacka. TM =
Trailed Multipacka. See Packer section of this manual for more details.
GLS Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
GLS3AR
Mounted
2.3
-
2.5
-
1490
GLS4AR
Folding
2.3
-
2.5
-
1625
GLS5AR
Folding
2.3
-
2.9
-
1875
Subsoiler Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
S3SP
Mounted
2.7
-
3
-
2200
S3AR
Mounted
2.7
-
3
-
2480

17 | P a g e
S4SP
Folding
2.8
-
3
-
2360
S4AR
Folding
2.8
-
3
-
2575
S5SP
Folding
3.4
-
3.6
-
3000
S5AR
Folding
3.4
-
3.6
-
3250
SF7SP
Folding
4.7
8.7
2.9
2.9
7204
SF7AR
Folding
4.7
8.7
2.9
2.9
8014
SF9SP
Folding
5.9
9.1
2.9
3.3
8248
SF9AR
Folding
5.9
9.1
2.9
3.3
8818
Note: SP = Shear Pin, AR = Auto Reset. See adjustments section of this manual for
more details.
Rippa Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
R3
Mounted
3
-
3
-
1425
R4F
Folding
4
-
3
-
2820
R6F
Folding
6
-
3
-
3240
Strake Range
Code
Machine
Type
Working
Width (m)
Length
(m)
Width
(m)
Height
(m)
Weight
(kg)
S6
Folding
6.1
-
2.8
-
2435
S8
Folding
8.1
-
2.8
-
3100
S12
Folding
12.1
3
7950

18 | P a g e
3. Preparation & Set Up
The following statements apply to the full range of Sumo cultivators. For an overview of
your specific machine, see associated Machine Manual and Parts Book in conjunction with
these instructions.
3.1 Pre-Check & System Overview
Before performing any other action on a Sumo machine, always check the following:
-Check the machine for worn or loose parts, mechanical and structural integrity,
hydraulic leaks, exposed or corroded wires, warning label cleanliness and clarity.
-Maintenance programme carried out in line with schedule.
Faulty equipment can lead to damage to the machine or injury to persons. Always be
diligent and ensure the machine is in perfect condition before use.
3.2 Hitching & Tractor Connection
Faulty hitching up of the machine to the tractor causes dangers, which could result in
severe accidents. Hitching and unhitching of the machine should only take place on a
secure and level surface with chocks placed under the wheels of trailed machines to
prevent the machine from rolling away.
General Safety
Familiarise yourself with the machine and all safety guidelines/regulations given in this
manual, industrial standards, and safe work practices, before attempting any hitching
of Sumo Machines.
Never allow anyone to stand between the tractor and the Sumo machine whilst the
tractor is manoeuvring into position. Only once the tractor is in position and secured
against rolling away, by means of parking brake and/or wheel chocks, can the
operator/third party secure the machine to the tractor.
Ensure the wings are either in the fully up ‘transport’ position or fully down in the “work”
position before uncoupling from the tractor. The machine should always remain secured
to the tractor when the wings are anywhere between fully up and fully down.
Always ensure tractor hydraulics are depressurised before attempting hydraulic
connection.
Types of Hitch
Sumo machines come with a variety of hitch types; fixed, adjustable, bolted. The tractor’s
hitch must be suited/adapted to match the machines requirements.
Fixed hitches generally refer to either a fixed position drawbar for trailed machines, or
three-point linkage for mounted machines.

19 | P a g e
Adjustable hitches are single point connections that allow the hitch height to be adjusted
to suit tractor requirements.
Bolted hitches generally refer to an externally supplied, pre-rated and approved hitches
which can be purchased separately or selected during the consultancy period (Note:
These may not be available on all machines). For more information contact your local
dealership or Sumo representative directly.
Fixed (1) Fixed (3) Adjustable Bolted
Standard Hydraulic Connections –Colour Code
Sumo’s colour coding is done through a
sequence of cable ties attached to the
individual hydraulic hoses, as seen in
this picture. Before connection, ensure
all connections are cleaned to reduce
the risk of contamination.
One cable tie = Return
Two cable ties = Pressure
Yellow
Orange
Blue
Pink
Red
Purple
Green
Air Brake Connections
The air brake hoses are colour coded as follows:
Yellow
Red
=
=
=
=
=
=
=
Drawbar
Fan –Front Hopper Only
Folding Axle
Legs
Rear Discs
Wings
Auxiliary
Front Discs
Paddles
=
=
Service Line
Emergency Line

20 | P a g e
Hydraulic Brake Connections
Hydraulic Brake hose connections are not colour coded, however the connection
socket is shaped so that it cannot be mistaken or interchanged with any other
connection. Ensure hose is depressurised before coupling/uncoupling.
3.2.1 Mounted Machines
Due to the physical nature and weight distribution of some Sumo machines a
category three enclosed ball top link is highly recommended. Due to the
exaggerated loads experienced during normal working conditions, the top link
pin is considered as a consumable part and should be checked for wear on a
regular basis.

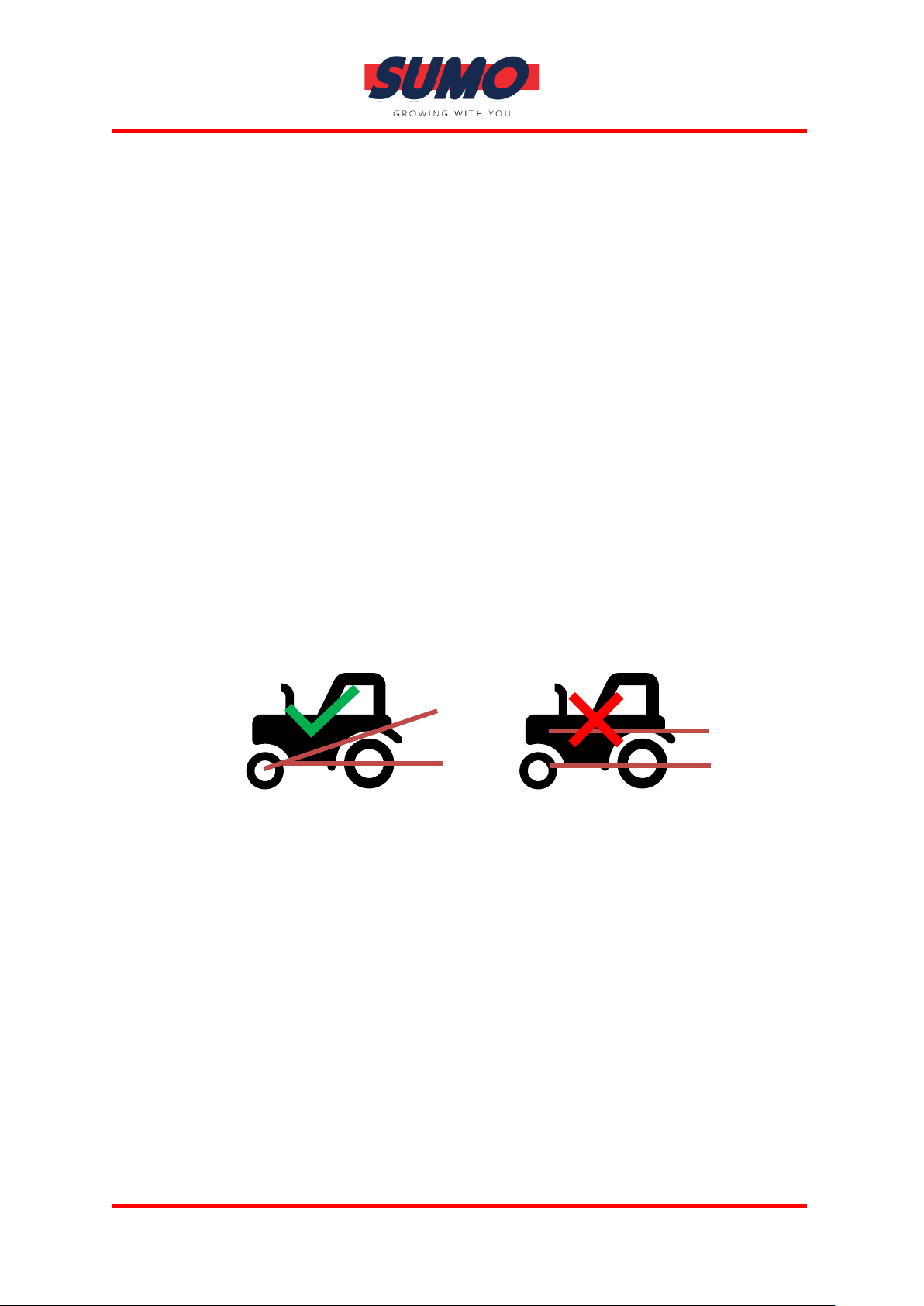

When hitching the Sumo machines three-point linkage to the tractor, ensure the
linkage arms are correctly angled so that the lower arm is horizontal and top
arm linkage is diagonally aligned with the tractor’s front axle. This will ensure a
strong, stable weight distribution and connection. Top & Bottom linkage arms
should never be parallel. Having them parallel will reduce the tractors drive
wheel grip and may cause damage to both the tractor and the linkages.
Steps:
•Attach lower linkage points first, then attach the top linkage, ensuring a
permanent and secure fix.
•Turn tractor off, float hydraulic systems, then safely connect hydraulic &
electric connections.
•Lift machine just enough to clear the ground of any parking
feature/working instruments.
•Remove parking features/position them in the transport/working
positions.
•Perform all necessary tests as outline within this manual.
•Turn tractor back on.
3.2.2 Trailed Machines
Trailed machines come in two variants, rigid & hydraulic drawbar, depending on
the design. Both follow the same hitching process, although hydraulic drawbars
can be positioned to better suit the tractor hitch point, if necessary.
