Netra™ft 1800
Hardware Installation
Manual
Part No.: 806-2689-10
Revision A, December 1999
Sun Microsystems, Inc.
Send comments about this document to: [email protected]
Install.book Page 1 Wednesday, December 8, 1999 12:18 PM

Please
Recycle
Copyright 1999 Sun Microsystems, Inc., 901 San Antonio Road • Palo Alto, CA 94303 USA. All rights reserved.
This product or document is protected by copyright and distributed under licenses restricting its use, copying, distribution, and
decompilation. No part of this product or document may be reproduced in any form by any means without prior written authorization
of Sun and its licensors, if any. Third-party software, including font technology, is copyrighted and licensed from Sun suppliers.
Parts of the product may be derived from Berkeley BSD systems, licensed from the University of California. UNIX is a registered trademark in
the U.S. and other countries, exclusively licensed through X/Open Company, Ltd.
Sun, Sun Microsystems, the Sun logo, AnswerBook, Java, the Java Coffee Cup, Netra and Solaris are trademarks, registered trademarks, or
service marks of Sun Microsystems, Inc. in the U.S. and other countries. All SPARC trademarks are used under license and are trademarks or
registered trademarks of SPARC International, Inc. in the U.S. and other countries. Products bearing SPARC trademarks are based upon an
architecture developed by Sun Microsystems, Inc. Registered Excellence (and Design) is a certification mark of Bellcore.
The OPEN LOOK and Sun™ Graphical User Interface was developed by Sun Microsystems, Inc. for its users and licensees. Sun acknowledges
the pioneering efforts of Xerox in researching and developing the concept of visual or graphical user interfaces for the computer industry. Sun
holds a non-exclusive license from Xerox to the Xerox Graphical User Interface, which license also covers Sun’s licensees who implement OPEN
LOOK GUIs and otherwise comply with Sun’s written license agreements.
RESTRICTEDRIGHTS: Use, duplication, or disclosure by the U.S. Government is subject to restrictions of FAR 52.227-14(g)(2)(6/87) and
FAR 52.227-19(6/87), or DFAR 252.227-7015(b)(6/95) and DFAR 227.7202-3(a).
DOCUMENTATION IS PROVIDED “AS IS” AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES,
INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-
INFRINGEMENT, ARE DISCLAIMED, EXCEPT TO THE EXTENT THAT SUCH DISCLAIMERS ARE HELD TO BE LEGALLY INVALID.
Copyright 1999 Sun Microsystems, Inc., 901 San Antonio Road • Palo Alto, CA 94303 Etats-Unis. Tous droits réservés.
Ce produit ou document est protégé par un copyright et distribué avec des licences qui en restreignent l’utilisation, la copie, la distribution, et la
décompilation. Aucune partie de ce produit ou document ne peut être reproduite sous aucune forme, par quelque moyen que ce soit, sans
l’autorisation préalable et écrite de Sun et de ses bailleurs de licence, s’il y en a. Le logiciel détenu par des tiers, et qui comprend la technologie
relative aux polices de caractères, est protégé par un copyright et licencié par des fournisseurs de Sun.
Des parties de ce produit pourront être dérivées des systèmes Berkeley BSD licenciés par l’Université de Californie. UNIX est une marque
déposée aux Etats-Unis et dans d’autres pays et licenciée exclusivement par X/Open Company, Ltd.
Sun, Sun Microsystems, le logo Sun, AnswerBook, Java, le logo Jave Coffee Cup, Netra et Solaris sont des marques de fabrique ou des marques
déposées, ou marques de service, de Sun Microsystems, Inc. aux Etats-Unis et dans d’autres pays. Toutes les marques SPARC sont utilisées sous
licence et sont des marques de fabrique ou des marques déposées de SPARC International, Inc. aux Etats-Unis et dans d’autres pays. Les
produits portant les marques SPARC sont basés sur une architecture développée par Sun Microsystems, Inc.
L’interface d’utilisation graphique OPEN LOOK et Sun™ a été développée par Sun Microsystems, Inc. pour ses utilisateurs et licenciés. Sun
reconnaît les efforts de pionniers de Xerox pour la recherche et le développement du concept des interfaces d’utilisation visuelle ou graphique
pour l’industrie de l’informatique. Sun détient une licence non exclusive de Xerox sur l’interface d’utilisation graphique Xerox, cette licence
couvrant également les licenciés de Sun qui mettent en place l’interface d’utilisation graphique OPEN LOOK et qui en outre se conforment aux
licences écrites de Sun.
CETTE PUBLICATION EST FOURNIE "EN L’ETAT" ET AUCUNE GARANTIE, EXPRESSE OU IMPLICITE, N’EST ACCORDEE, Y
COMPRIS DES GARANTIES CONCERNANT LA VALEUR MARCHANDE, L’APTITUDE DE LA PUBLICATION A REPONDRE A UNE
UTILISATION PARTICULIERE, OU LE FAIT QU’ELLE NE SOIT PAS CONTREFAISANTE DE PRODUIT DE TIERS. CE DENI DE
GARANTIE NE S’APPLIQUERAIT PAS, DANS LA MESURE OU IL SERAIT TENU JURIDIQUEMENT NUL ET NON AVENU.
Install.book Page ii Wednesday, December 8, 1999 12:18 PM

iii
Contents
1. Before Installation 1
Electrical Supply Considerations 1
Environmental Considerations 1
Dimensions 2
Airflow Consideration when Mounting in the Equipment Frame 2
Mechanical Considerations when Mounting in the Equipment Frame 6
Mounting Requirements 6
2. Hardware Installation 11
Unshipping the System 11
Cable Bracket Assemblies 15
Removing and Installing Modules 16
Configuration Limitations 16
Module Injector/Ejector Mechanisms 16
Replacing an RMM 23
Replacing a Disk Chassis 25
Flexible Module Cabling 28
Installing the Filter Trays 29
CAF External I/O Connections 31
System Console Terminal Connections 32
Install.book Page iii Wednesday, December 8, 1999 12:18 PM

iv Netra ft 1800 Hardware Installation Manual • December 1999
Modem Port Connections 33
Alarms Port Connections 34
RCP Port 34
3. Electrical Supply Installation 35
System Switch 35
DC Source Site Requirements 36
Overcurrent Protection Requirements 36
Required Connection Materials 44
DC Supply and Ground Conductor 44
Dual Grounding Environment 45
Connecting the Power Leads 47
4. Powering on the System 51
Index 53
Install.book Page iv Wednesday, December 8, 1999 12:18 PM

v
Figures

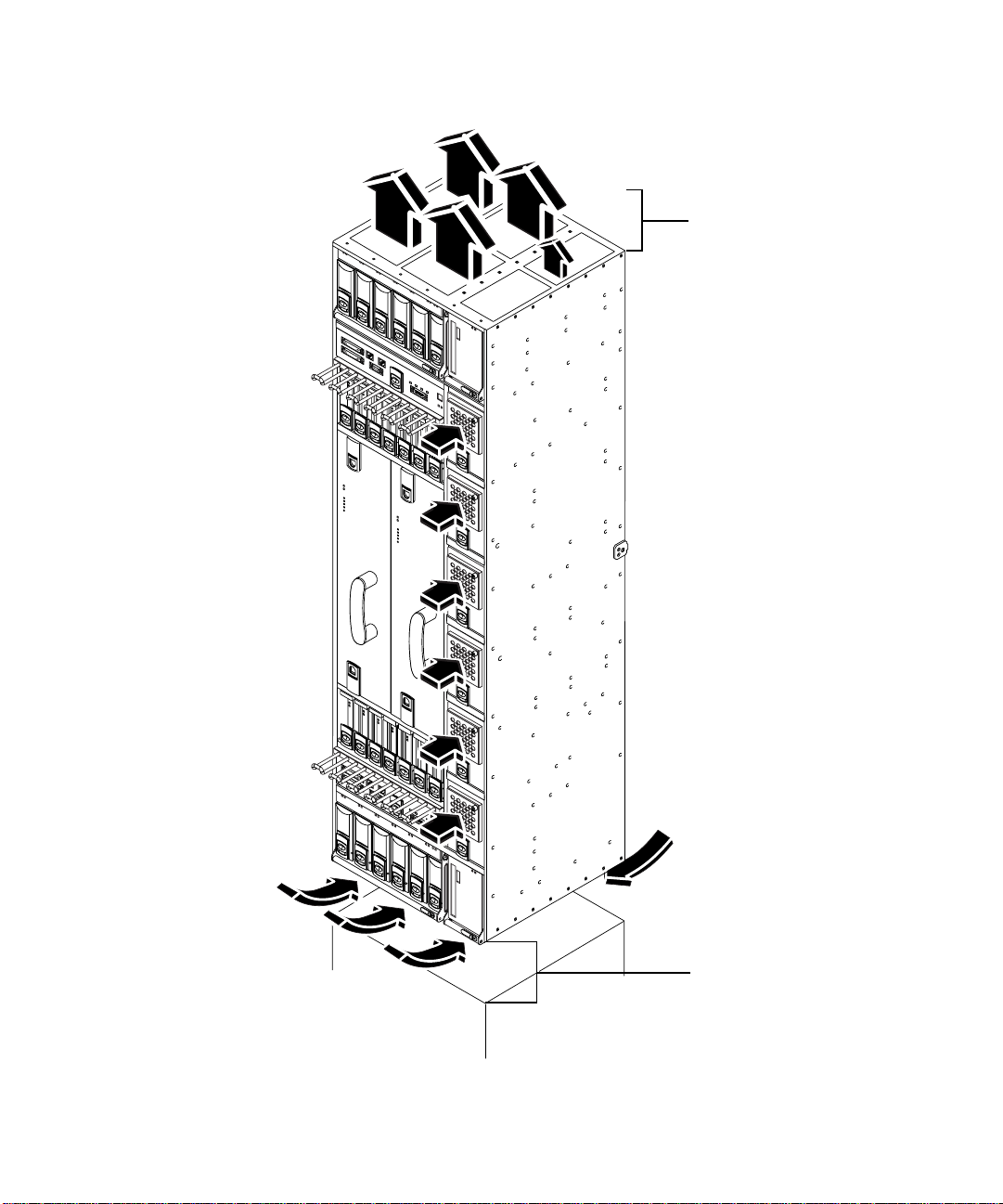

FIGURE 1-1 Netra ft 1800 Airflow Requirements (External) 4

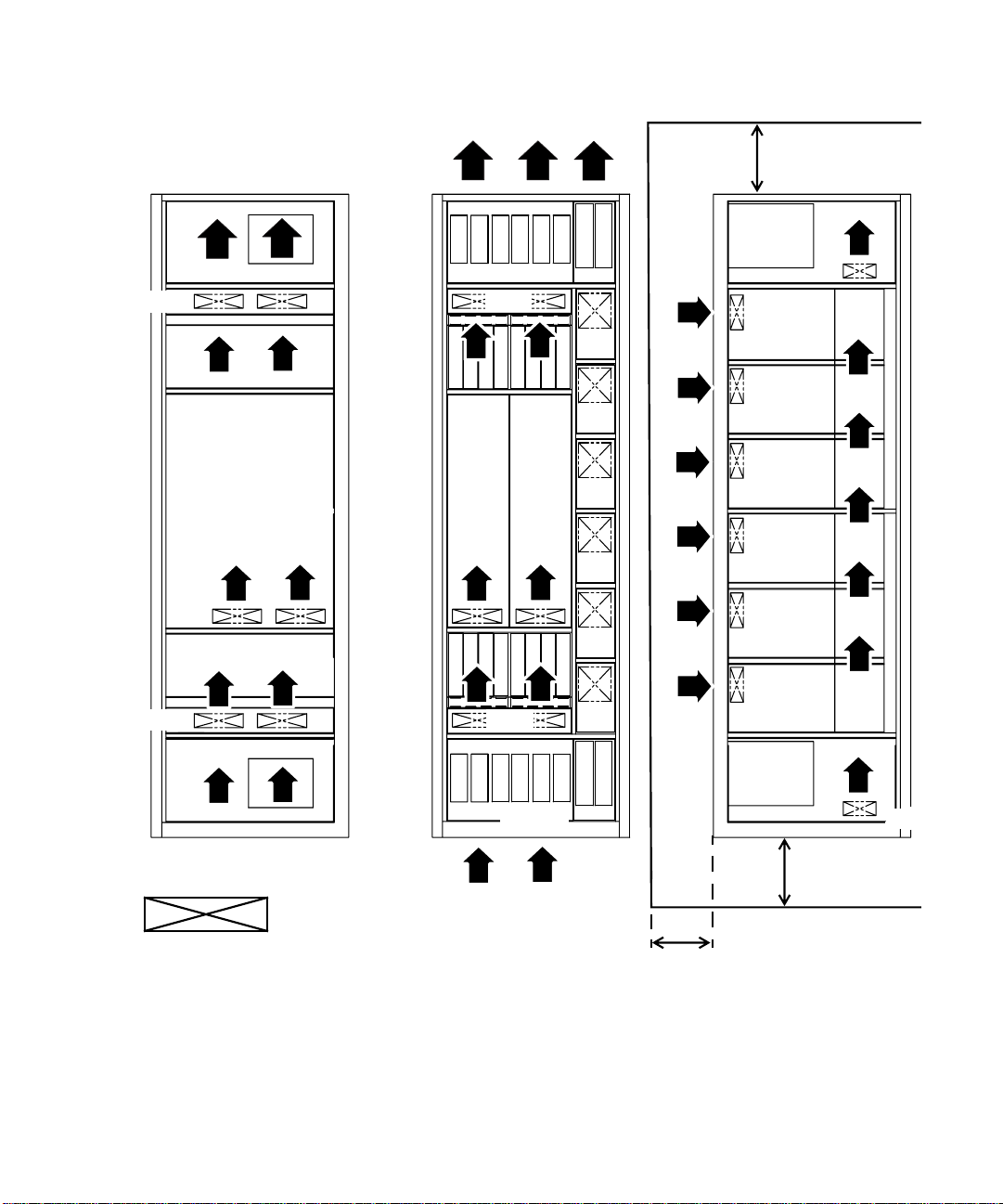

FIGURE 1-2 Netra ft 1800 Airflow Requirements (Internal) 5

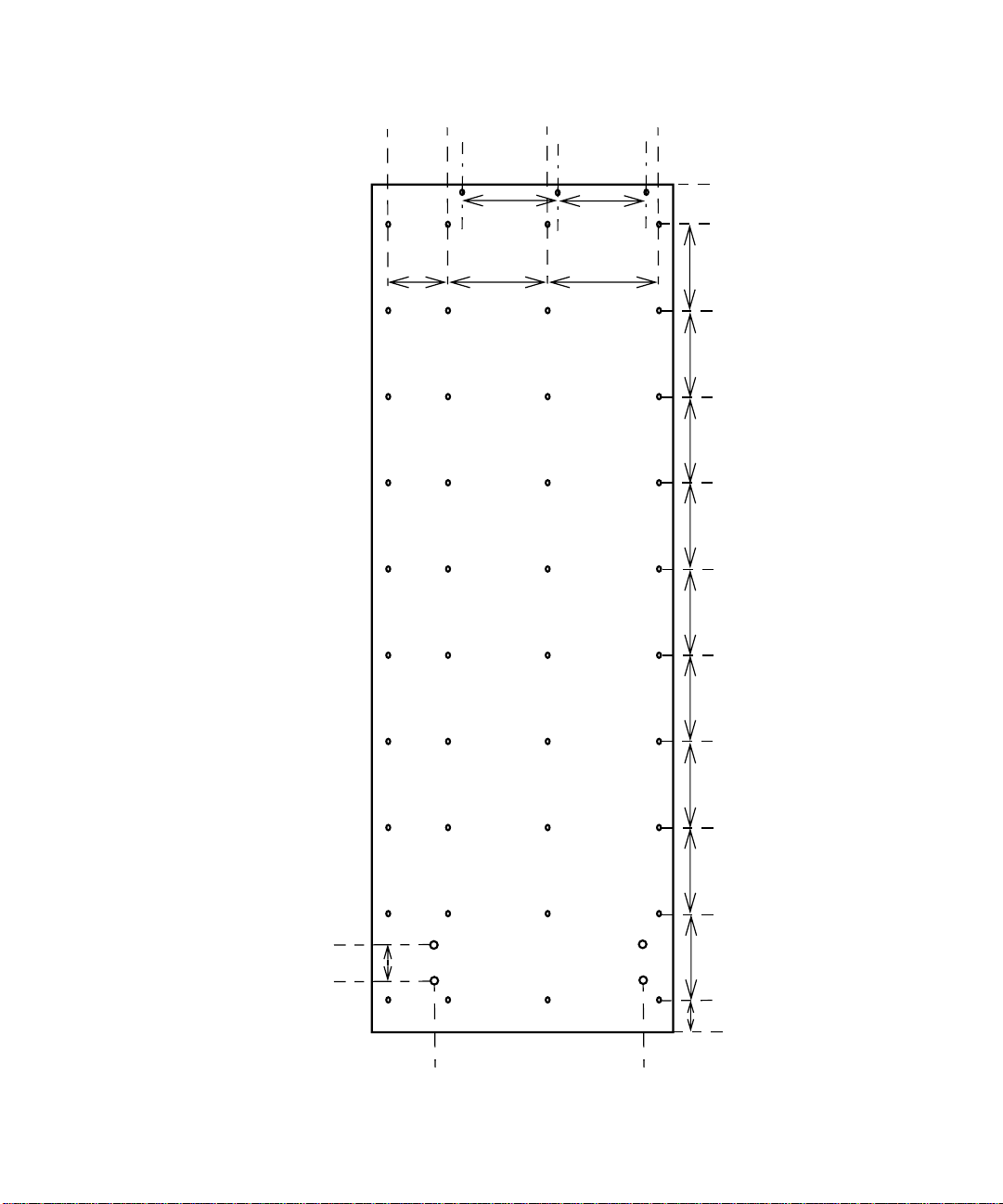

FIGURE 1-3 Chassis Mounting Hole Arrangement (all measurements in millimeters) 8
FIGURE 2-1 Shipping Brackets and Sacrificial Plinth 13
FIGURE 2-2 Cable Bracket Assembly 15
FIGURE 2-3 Module Injector/ejector Lever 17
FIGURE 2-4 Removing a CPUset Module 19
FIGURE 2-5 Removing a CAF 20
FIGURE 2-6 Removing a PCI Card Carrier 21
FIGURE 2-7 Removing a Power Supply 22
FIGURE 2-8 Removing an RMM Module 24
FIGURE 2-9 Removing a Disk Drive 26
FIGURE 2-10 Removing a DSK Module 27
FIGURE 2-11 Cable Management Shelf 28
FIGURE 2-12 Large Filter Tray 29
FIGURE 2-13 Small Filter Tray 29
FIGURE 2-14 Inserting the Environmental Filters 30
FIGURE 2-15 External I/O Connections on CAF Module 31
FIGURE 3-1 PSU Fault Situation 37
Install.book Page v Wednesday, December 8, 1999 12:18 PM

vi Netra ft 1800 Hardware Installation Manual • December 1999
FIGURE 3-2 Circuit Breakers for Single Power Rails 39
FIGURE 3-3 Circuit Breakers for Dual Power Rails 40
FIGURE 3-4 Sided Independent Feeds with Single Pole Circuit Breakers 41
FIGURE 3-5 Side-independent Feeds to Each PSU with Single Pole Circuit Breakers (double pole can be
used) 42
FIGURE 3-6 Dual Feeds with Local Common Return – Single Pole Circuit Breakers (double pole can be
used) 43
FIGURE 3-7 Location of Chassis-to-Logic-0V Link and Grounding Points, and Wrist Strap Connection
Point 46
FIGURE 3-8 Power Inlet Connector 47
FIGURE 3-9 Power Connector Wiring Polarity and Securing Screws 48
FIGURE 3-10 Power Lead Receptacles 49
FIGURE 3-11 Power Lead Securing Screws 49
FIGURE 3-12 Power Cable Arrangement for Strain Relief 50
FIGURE 4-1 System Switches (Front Panel) 52
Install.book Page vi Wednesday, December 8, 1999 12:18 PM

vii
Tables
TABLE 1-1 Mounting Hole Pattern Dimensions 7
TABLE 2-1 Console Connector Pinout 32
TABLE 2-2 Console and Modem Port Parameters 32
TABLE 2-3 Modem Port Pinout 33
TABLE 2-4 Alarms Port Pinout 34
TABLE 2-5 Remote Control Processor Port Pinout 34
TABLE 3-1 Overcurrent Protection Requirements 36
Install.book Page vii Wednesday, December 8, 1999 12:18 PM

viii Netra ft 1800 Hardware Installation Manual • December 1999
Install.book Page viii Wednesday, December 8, 1999 12:18 PM

ix
Preface
This document describes the installation procedures for the core hardware used in
the Netra™ft 1800.
Who Should Use This Book
This guide is intended to be read by installation engineers and service personnel. It
is not intended for the end user of the system.
How This Book Is Organized
This guide is arranged as follows:
Chapter 1 “Before Installation” gives guidelines on site preparation and
environmental considerations.
Chapter 2 “Hardware Installation” describes how to unpack the system and install
the chassis in a rack.
Chapter 3 “Electrical Supply Installation” provides the information required to
install the electrical supply.
Chapter 4 “Powering on the System” tells you how apply power to the Netra ft 1800.
Install.book Page ix Wednesday, December 8, 1999 12:18 PM

xNetra ft 1800 Hardware Installation Manual • December 1999
Related Books
■Netra ft 1800 Hardware Reference Manual (Part No. 805-4531-11)
■Netra ft 1800 Safety and Compliance Manual (Part No. 805-7019-10)
Symbols
The following symbols mean:
Note – A note provides information which should be considered by the reader.
Caution – Cautions accompanied by this Attention icon carry information about
procedures or events which if not considered may cause damage to the data or
hardware of your system.
Caution – Cautions accompanied by this Hazard icon carry information about
procedures which must be followed to reduce the risk of electric shock and danger
to personal health. Follow all instructions carefully.
Sun Welcomes Your Comments
We are interested in improving our documentation and welcome your comments
and suggestions. You can email your comments to us at:
[email protected]
Please include the part number of your document in the subject line of your email.
!
Install.book Page x Wednesday, December 8, 1999 12:18 PM

1
CHAPTER 1
Before Installation
This section provides information on what should be considered when choosing a
location for a Netra ft 1800 system.
Note – This equipment is only intended for installation in a Restricted Access
Location as defined by UL1950, 3rd Edition, and EN60950: 1992 / A11: 1997.
Electrical Supply Considerations
Before you install the system, verify that the correct power supply is available. Refer
to “DC Source Site Requirements” on page 36 for further information.
Environmental Considerations
The system can be installed in an environment with the following specific parameter
ranges:
■Ambient temperature
■Operating: 0 to 40 degrees Celsius (short term operation up to a temperature of
50 degrees Celsius is possible; however, the operation of removable media
devices cannot be guaranteed.)
■Storage: –40 to 70 degrees Celsius
Install.book Page 1 Wednesday, December 8, 1999 12:18 PM

2Netra ft 1800 Hardware Installation Manual • December 1999
■Relative humidity
■Operating: 5 to 85% noncondensing1
■Storage: 10 to 90% noncondensing1
■Elevation
■Operating: 0 to 3000 meters
■Storage: 0 to 12000 meters
Dimensions
■Height: 1466.85 mm (57.75 inches) 33U NOM
■Width: 437.60 mm (17.22 inches)
■Depth: 392.8 mm (15.4 inches)
■Weight: Maximum 190.5 kg (420 lb) (excluding rack or AC converter items)
■Maximum rate of heat release for fully configured system: 3000W
(10,200 Btu/hour)
■GR 63 CORE heat release calculation result: 425.4 W per square foot
[3000 W / (3.25 ft x 2.17 ft)] (4579 W per square meter).
These dimensions are for the product without rack-mount flange adapters; the
overall width of the flanges varies according to the equipment mounting
requirements.
The depth given does not include any I/O or power connectors. The power
connectors add 50 mm (2 inches) to the depth.
Airflow Consideration when Mounting in the
Equipment Frame
The Netra ft 1800 system has been designed to function while mounted in a natural
convection airflow, but to meet the declared environmental specification the
following rules apply. Refer to FIGURE 1-1 on page 1-4 and FIGURE 1-2 on page 1-5.
1. Adequate airflow through the equipment frame must be ensured. The
Netra ft 1800 system utilizes internal fans that can achieve a maximum airflow of
840 cfm in free air.
2. The inlet air must enter at the bottom of the Netra ft 1800 cabinet and in front of
the Power Supply Units (PSUs); the airflow exhausts vertically from the top of the
cabinet.
3. Inlet and exhaust ventilation require a minimum open area of 400 cm2(62 in2)
each.
1. Subject to a maximum absolute humidity of 0.024Kg of water per Kg of dry air.
Install.book Page 2 Wednesday, December 8, 1999 12:18 PM

Chapter 1 Before Installation 3
4. A minimum of 2U (88.9 mm/3.5 inches) clearance must be allowed at both top
and bottom of the Netra ft 1800 cabinet when mounted unless unobstructed
vertical airflow can be ensured. Refer also to “Mounting Requirements” on
page 6.
5. The Netra ft 1800 system must not be mounted above any heat-generating sources
within the same frame unless a heat deflector is used to provide fresh inlet air at
ambient temperature.
6. To maintain adequate airflow, replace the environmental filters every six months
(contact your local support organization for further information). The
environmental filter replacement kit (X-Option No.X6952A) contains six PSU
filters and three base filters.
Install.book Page 3 Wednesday, December 8, 1999 12:18 PM

4Netra ft 1800 Hardware Installation Manual • December 1999
FIGURE 1-1 Netra ft 1800 Airflow Requirements (External)
Minimum 2U
(90 mm) gap
Minimum 2U
(90 mm) gap
Install.book Page 4 Wednesday, December 8, 1999 12:18 PM

Chapter 1 Before Installation 5
FIGURE 1-2 Netra ft 1800 Airflow Requirements (Internal)
FrontRear Front Rear
Front
Fan unit
CPU
PSU
PSU
PSU
PSU
PSU
PSU
CPU CPU
CAF
CAF CAF
CAF
Min. 75 mm between
front of system and
rack door (if fitted)
Min. 2RU (90 mm)
gap at top of system
Min.2RU(90mm)
gap at base of
system
Install.book Page 5 Wednesday, December 8, 1999 12:18 PM

6Netra ft 1800 Hardware Installation Manual • December 1999
Mechanical Considerations when Mounting in the
Equipment Frame
Caution – Mechanical assistance is required if installing a loaded chassis.
If you intend not to use a lifting device for installation, all modules other than the
motherboards must be removed from the system prior to lifting. The empty chassis
weighs approximately 49 kg (108 lb), or 68 kg (150 lb) with the motherboards, plus
the adaptors. The weight of any removable module depends on its configuration.
Weight warning labels are for guidance only.
See “Removing and Installing Modules” on page 16 for information about adding
modules to the motherboard.
The Netra ft 1800 chassis has been designed to accommodate most mounting
configurations. Adaptor flanges to suit 19-inch, 23-inch, 24-inch and 600-mm (ETSI)
rack sizes are available as required.
The Netra ft 1800 system is shipped with a plinth, which protects the bottom of the
chassis during transit and handling, and also ensures that the correct airflow inlet
plenum is provided during installation. The plinth must be removed once the
Netra ft 1800 is installed in a rack, then stored in a safe place.
The Netra ft 1800 chassis must be mounted using screws suitable for the equipment
frame. The screws should be M5, M6 or 10-32 UNF. All screws must be fitted. The
recommended tightening torque value for either M5 or 10-32 UNF recess head
screws is 3.8 Nm (2.8 lbf/ft), and that for M6 screws is 6 Nm (4.4 lbf/ft).
Mounting Requirements
The Netra ft 1800 is available with the following removable mounting flanges:
■19 inch EIA pattern
■23 inch EIA pattern
■24 inch EIA pattern
■600 mm IEC917 (ETSI) pattern
Any of these flanges can be fitted in the following positions:
■Flush with the front of the system
■65 mm (2.56 inches) from front of system
■196.1 mm (7.72 inches) from front of system
The second and third positions are intended for use with 5-inch web open frames
(relay racks).
Install.book Page 6 Wednesday, December 8, 1999 12:18 PM

Chapter 1 Before Installation 7
Adjustable rear flanges can be fitted. They provide a mounting face anywhere
between 400 mm and 500 mm (15.75 inches and 19.7 inches) from the front of the
system.
The vertical mounting hole pattern should conform to the standard dimensions
given in TABLE 1-1.
The tapped mounting holes on the Netra ft 1800 chassis are arranged as shown in
FIGURE 1-3.
TABLE 1-1 Mounting Hole Pattern Dimensions
Standard Pattern
EIA/RETMA (RU) Repeating pattern of 5/8 inch, 5/8 inch, 1/2 inch
IEC917/ETSI (SU) Constant pitch of 25 mm
Install.book Page 7 Wednesday, December 8, 1999 12:18 PM

8Netra ft 1800 Hardware Installation Manual • December 1999
FIGURE 1-3 Chassis Mounting Hole Arrangement (all measurements in millimeters)
Front of system Rear of system
65 131 167
16
91.5
33
81 212 379
236.5
381.5
526.5
671.5
816.5
983.5
1133.5
1283.5
1433.5
145
145
145
145
145
167
150
150
150
54 350
1406.85
1331.85 75
109 234 359
125 125
0.0
These four holes
(marked*)aretapped
M6 x 5.5 and are
used to secure the
shipping brackets
All holes are
tapped M5 x 3.5
unless otherwise
indicated.
*
**
*
Install.book Page 8 Wednesday, December 8, 1999 12:18 PM

Chapter 1 Before Installation 9
Loading
The rack must be capable of supporting 230 kg (500 lbs) for a fully configured and
cabled Netra ft 1800.
In Seismic (Earthquake) Risk Zones 3 and 4, it is recommended that the Netra ft 1800
is installed in an appropriate secured seismic rack or cabinet.
Vertical space
The Netra ft 1800 chassis occupies 33RU (146.7 cm / 57.75 inches) of vertical height.
To allow adequate airflow, the rack must provide either:
■Unobstructed vertical airflow via vents of adequate size in the top and/or bottom
panels. In this case the vertical height required is 35RU (155.6 cm / 61.25 inches).
The chassis should be mounted cengrally, providing a 1RU-high plenum adjacent
to each vent grille.
or:
■A minimum of 37RU (164.5 cm / 74.75 inches) of rackable height, with the
provision of 2RU vertical space (8.9 cm / 3.5 inches) for front and/or rear vents at
both top and bottom.
If you intend to fit the Netra ft 1800 into a rack with its red transit plinth in place,
4RU (17.8 cm / 7 inches) of clearance must be provided beneath the chassis. This
space permits removal of the plinth after installation.
Note – The plinth must be removed to allow fitment of the chassis environmental
filters.
Depth
The front door (if fitted) must provide a minimum of 75 mm (3 inches) of clearance
across the entire front surface of the Netra ft 1800 to allow for routing of I/O cables.
As all I/O cables must be routed from the front of the Netra ft 1800 system, due
consideration should be made of the space required within the rack for these cables,
as well as the power cables at the rear of the system.
There must be a minimum of 545 mm (21.5 inches) usable internal depth in the rack/
cabinet. This dimension includes space for connector housings, cabling and the
power inlet filters.
Install.book Page 9 Wednesday, December 8, 1999 12:18 PM

10 Netra ft 1800 Hardware Installation Manual • December 1999
Safety
All racks must be bolted to the floor, to adjacent frames or to both. This must be
done in accordance with the rack manufacturer’s instructions, using the
recommended hardware and fixings.
Free-standing racks with a footprint of less than 600 mm x 600 mm (23.6 inches x
23.6 inches) are likely to be unstable and should be treated with caution.
Install.book Page 10 Wednesday, December 8, 1999 12:18 PM
