Sun Nuclear Radon 1028 User manual

Title
Radon Monitor User’s Guide
Accurate, Reliable, Economical
Models 1028, 1029

ii
User’s Guide, Radon Monitor
© Copyright 2016 by Sun Nuclear Corporation. All rights reserved.
The information contained in this guide and the accompanying software program
are copyrighted and all rights are reserved by Sun Nuclear Corporation. No part
of this guide may be translated, reproduced, sold, or otherwise distributed
without the prior written consent of Sun Nuclear Corporation.
Sun Nuclear Corporation reserves the right to make periodic modifications of this
guide without obligation to notify any person or entity of such revision.
This guide is written for:
PC software: version 2.2.0
Embedded firmware: version 1.0.9
Document 1028011, Rev H, 26 October 2016
Corporate Headquarters
3275 Suntree Boulevard
Melbourne, FL 32940 USA
[phone]
www.sunnuclear.com

iii
Preface
Application
In a typical test, the radon monitor is set up in a building or structure to be
monitored, and the device is left unattended for the required test period. Ambient
room air diffuses into the radon monitor’s detection chambers. Radon decay by-
products emit alpha particles which are detected by the photo diodes and then
counted. During a test, the number of counts produced by the alpha particles is
stored in memory and converted into radon concentration (pCi/l) using the stored
calibration factor. At the end of the test period, the results can be viewed on the
radon monitor display, on the computer screen, or in a printed report.
Health and Safety Instructions
To protect Radon Monitor performance and cable insulation, never pull on a cable
to disconnect it. Always grasp the plug or connector.
Inspect all cables periodically for damage. Do not use any cable that is damaged
or has broken insulation. Replace the cable immediately. If any mechanical or
electrical degradation is suspected, contact Sun Nuclear Corporation for repair or
replacement.
Check for physical damage prior to and after each use.
Do not permit water or any other liquids to spill onto the device.
Inspect the device periodically for damage. If measurement errors or device
damage are suspected, contact Sun Nuclear Corporation.
CAUTION: The Continuous Radon Monitor Model 1028 is intended to be used
only for indoor applications of radon gas sampling. Using in an outdoor
environment may cause errors due to humidity and extreme temperatures.
WARNING: To avoid risk of electric shock, this device must only be
connected to a supply mains with protective earth (ground).
WARNING: Never use the device in an area that could contain
explosive gases. A spark from inside the device could ignite an
explosion.
This equipment must be used in accordance with the instructions in
this manual. Read all instructions and safety labels before use.

iv
For instructions to report health or safety related concerns, see Reporting Health
or Safety Related Issues or Concerns on page 56.
Regulatory Information
For a definition of the symbols used throughout this document and additional
information related to user and device safety, see Regulatory Supplement on
page 55. Review this information thoroughly before setting up and using the
device.
Finding Additional Information
User’s Guide: This guide is available as a PDF file on the Sun Nuclear website:
https://support.sunnuclear.com/radon/.
Online Help: Online help is available by selecting Help > Contents from the
Radon Monitor software application menu.
Radon Reference: The U.S. Environmental Protection Agency (EPA) maintains a
comprehensive radon website at http://www.epa.gov/radon/index.html where
you can find EPA documents, brochures, and publications relating to radon,
including:
•A Citizen's Guide to Radon: The Guide to Protecting Yourself and Your Family
from Radon. This guidance offers strategies for testing your home for radon
and discussions of what steps to take after you have tested, as well as
discussions about the risk of radon and radon myths.
•Consumer's Guide to Radon Reduction: How to Fix Your Home. This booklet
is for people who have tested their home for radon and confirmed that they
have elevated radon levels. This booklet can help with selecting a qualified
contractor to reduce the radon levels in the home, determining an appropri-
ate radon reduction method, and maintaining a radon reduction system.
•Home Buyer's and Seller's Guide to Radon. This booklet is intended for any-
one who is buying or selling a home, real estate and relocation professionals,
home inspectors and others.
Document Conventions
•Bold typeface indicates a button name or something that the user must type.
•Italicized typeface indicates the title of a manual, a cross-referenced
subsection in this manual, or introduces a new term or phrase.
•Bold italicized typeface indicates a menu option.
• “Text in double quotes” indicates a message that is displayed to the user.
• ‘Text in single quotes’ indicates the name of a window or dialog box.
• The Z suffix in a part number indicates a RoHS2 compliant part.

v
Preface . . . . . . . . . . . . . . . . . . . . . . iii
Application . . . . . . . . . . . . . . . . . . . . . iii
Health and Safety Instructions . . . . . iii
Regulatory Information . . . . . . . . . . . iv
Finding Additional Information . . . . . iv
Document Conventions . . . . . . . . . . . iv
Introduction . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . . . . .1
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Connections . . . . . . . . . . . . . . . . . . . . .2
Controls . . . . . . . . . . . . . . . . . . . . . . . .3
Standalone Operation . . . . . . . . . . 5
Position the Monitor . . . . . . . . . . . . . .5
Install a Fresh Battery . . . . . . . . . . . . .5
Replacing the 9V Battery . . . . . . . . .6
Connecting the AC Adapter . . . . . . .7
Turn on the Display . . . . . . . . . . . . . . .7
Starting a Test . . . . . . . . . . . . . . . . . . .9
Interrupting a Test . . . . . . . . . . . . . . . .9
Displaying Average and Current . . . .10
AVG or CUR During a Test . . . . . . .10
AVG or CUR After Test . . . . . . . . .10
Clearing Memory . . . . . . . . . . . . . . . .11
Checking Unit Status . . . . . . . . . . . . .11
Setting Up Parameters . . . . . . . . . . .12
Character Set . . . . . . . . . . . . . . . . . . .14
Display Turns Off Automatically . . . .14
Clearing a Reset . . . . . . . . . . . . . . . . .15
Low Battery Messages . . . . . . . . . . .15
Low Battery with AC Power
Connected . . . . . . . . . . . . . . . . . . .15
Low Battery Without AC Power
Connected . . . . . . . . . . . . . . . . . . .16
Storage Under Power . . . . . . . . . . . .16
Portable Printer (Optional) . . . . . 17
Printer - Parts . . . . . . . . . . . . . . . . . . .17
Printer - Description . . . . . . . . . . . . . .17
Printer Connection and Controls . . . .18
Loading the Paper . . . . . . . . . . . . . . .19
Printing a Report . . . . . . . . . . . . . . . .20
Typical Printer Report . . . . . . . . . . . .21
Movement . . . . . . . . . . . . . . . . . . .22
Printer Battery Pack . . . . . . . . . . . . . .22
Inserting the Battery Pack . . . . . . .22
Removing the Battery Pack . . . . . .22
Charging the Battery Pack . . . . . . .23
Low Printer Battery Indication . . . 23
Efficient Use of Printer Battery . . . 23
Printer Switch Settings . . . . . . . . . . . 24
Computer Operation . . . . . . . . . . 26
About the Software . . . . . . . . . . . . . 26
Set Up Software . . . . . . . . . . . . . . . . 26
Prerequisites . . . . . . . . . . . . . . . . . 26
Install Software . . . . . . . . . . . . . . . 26
Connecting to Computer . . . . . . . . . 27
Launch Software . . . . . . . . . . . . . . . 27
Using Software to Retrieve Data . 28
Closing Software . . . . . . . . . . . . . . . 28
About the Main Screen . . . . . . . . . . . 29
Main Screen - Inspection Tab . . . . . . 29
Main Screen - Chart Tab . . . . . . . . . . 32
Zooming In and Out . . . . . . . . . . . 33
Moving the Chart . . . . . . . . . . . . . 33
Main Screen - Pictures Tab . . . . . . . 34
Main Screen - Checklist Tab . . . . . . . 35
Menu Bar and Toolbar Functions . . . 36
Data to/from Text File . . . . . . . . . . 37
Monitor Settings Preferences . . . . . 38
Preferences Screen - Monitor
Settings Tab Details . . . . . . . . 39
Report Printing Preferences . . . . . . . 40
Preferences Screen – Print Tab
Details . . . . . . . . . . . . . . . . . . . 42
Printing Reports . . . . . . . . . . . . . . . . 44
Specifications . . . . . . . . . . . . . . . . 46
Recommended System
Requirements . . . . . . . . . . . . . . . 46
Models 1028 and 1029
Specifications . . . . . . . . . . . . . . . 46
Support and Maintenance . . . . . 48
Maintaining Hardware . . . . . . . . . . . 48
Parts and Repairs . . . . . . . . . . . . . 48
Accessories . . . . . . . . . . . . . . . . . 48
Storage . . . . . . . . . . . . . . . . . . . . . 49
Cleaning . . . . . . . . . . . . . . . . . . . . 49
Disposing and Recycling . . . . . . . 49
Battery Life . . . . . . . . . . . . . . . . . . 49
Maintaining Software . . . . . . . . . . . . 49
Verifying Software Version . . . . . . 50
Removing Software . . . . . . . . . . . 50
Multiple Software Installations . . . 50
Optional Serial Connection . . . . . . . . 50
Contents

vi
Serial Port Setup . . . . . . . . . . . . . .50
Connecting with a Serial Cable . . .50
Port Selection . . . . . . . . . . . . . . . .51
Radon Monitor Troubleshooting . . . .52
System Errors . . . . . . . . . . . . . . . .53
Service and Calibration . . . . . . . . . . .53
Contacting Sun Nuclear Support . . . .54
Support Website . . . . . . . . . . . . . .54
Warranty . . . . . . . . . . . . . . . . . . . . . .54
Regulatory Supplement . . . . . . . 55
Sun Nuclear Corporation Symbols . . 55
Operator Responsibility . . . . . . . . . . 56
Reporting Health or Safety Related
Issues or Concerns . . . . . . . . . . . 56
Modifications to Equipment . . . . . . . 56
Interaction with Other Electrical
Equipment . . . . . . . . . . . . . . . . . . 56
Index . . . . . . . . . . . . . . . . . . . . . . . 57

1
Introduction
Description
The Continuous Radon Monitor is a detection device used to measure the
concentration of radon gas. The unit is designed for professional inspectors to
use in homes and buildings. The device is EPA verified and radon proficiency
programs approved.
Parts
Unpack the radon monitor and identify the parts described below.

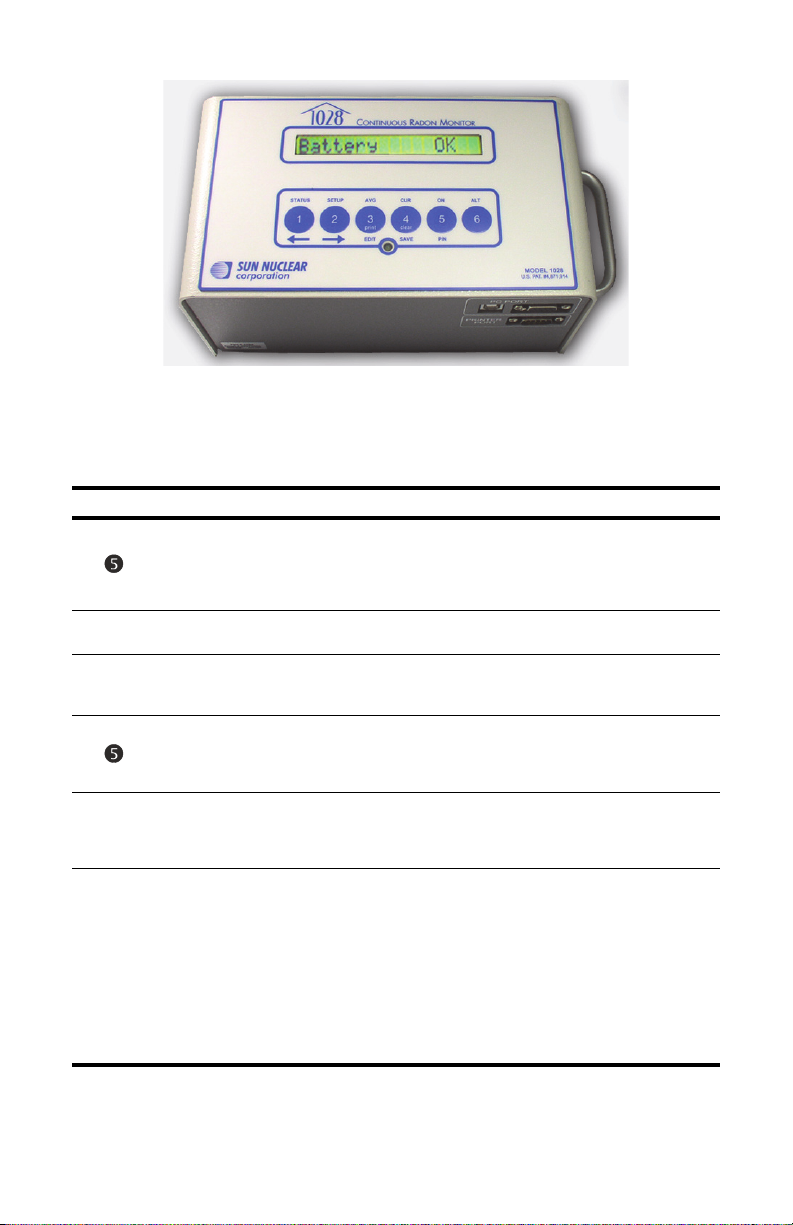

Figure 1. Parts Furnished with 1028 Radon Monitor
Note: Save the packing material so it can be used when sending the
radon monitor to Sun Nuclear Corporation for annual re-calibration.
No. Part Number Description
11028300 Model 1028 Radon Monitor*
2801041Z** Cable, USB A-B M, 2 m
3741011*** Power supply, 18 VDC, 100-240 VAC, 0.3A
—0200014 Radon Customer Support Site letter (not shown)
—1028012 Getting Started Guide (not shown)
* Model 1029 Radon Monitor is obsolete.
**Z indicates a RoHS2 compliant part.
***Power supply P/N 741011 is only included with Model 1028 Radon Monitors shipped
within the United States.
1
2
3

2
Connections
No Description Function
1USB PC PORT (front) USB port (USB 1.1 or 2.0); for connection to a
computer
2Serial PC PORT (front) Serial port (RS-232); for connection to a computer
3PRINTER PORT (front) Serial port (RS-232); for connection to the optional
printer.
4Power connection (back) Power connector; connects to the power supply
when using AC power.
5Battery compartment (back) Insert and connect a fresh 9V battery for either
backup or primary power. A fresh alkaline battery will
operate the radon monitor for approximately 100
hours while a fresh lithium battery will provide about
300 hours of operation. See Replacing the 9V Battery
on page 6.
Figure 2. Connections
WARNING: Always install a fresh 9V battery before test or storage
to prevent the internal 3V battery (required for operation) from
discharging.
1
2
3
5
4

3
Controls
Description Function
Display 16-digit LCD display shows messages to guide the operation.
Buttons Six push buttons have different functions, depending on mode. Press
keys to operate. Top row of labels lists main functions. Bottom row of
labels are for Setup. Print and Clear functions are used after measure-
ment. Numbers are for PIN entry and Setup.
STATUS Selects the Status mode, which scrolls through the Status settings.
SETUP Selects the Setup mode, which is used to enter setup values from the
keypad.
AVG Displays the measured cumulative average radon gas concentration in
pCi/l or Bq/m3since the memory was last cleared.
CUR Displays the measured short-term radon gas concentration, a rolling
average of the most recent 12 hours.
ON Press to turn on the display. There is no OFF switch. To save power, the
display turns off automatically after a few minutes of inactivity.
ALT For future use.
PIN Press to enter PIN (personal identification number), if used.
SAVE Saves the Setup mode values that were entered.
EDIT Allows editing of the Setup mode entries.
Right arrow Scrolls ahead during Setup or Status.
Left arrow Scrolls backward during Setup or Status.
Clear Clears the test memory in Print/Clear mode. Memory must be cleared
before starting a new test.
Figure 3. Controls

4
Print Sends report data to optional printer in Print/Clear mode.
Mode light The green light between EDIT and SAVE has the following meaning:
• Blinks once during power up, indicating that the startup test is in prog-
ress.
• Blinks when radon is detected.
Description Function
Figure 3. Controls (Continued)

5
Standalone Operation
Position the Monitor
1 Place the radon monitor in the desired position in the area to be monitored
for radon gas. The radon monitor does not need to be level.
2 To use a tripod, thread the standard tripod screw (1/4-20UNC) into the
threaded fitting on the bottom of the case (Figure 4).
Figure 4. Using a Tripod
Install a Fresh Battery
The radon monitor can be operated on battery power or AC power. When
connected to AC power, the battery provides back-up power. However, even
when operating on AC power, a battery must be installed to provide backup
power.
With the radon monitor disconnected from AC power, a fresh alkaline battery will
operate the device for about 100 hours, or a fresh lithium-ion battery for about
300 hours.
WARNING: Always install a fresh 9V battery before test or storage,
even when the unit is connected to AC power, to prevent the internal
3V battery from discharging. The 3V battery will discharge in 15 min-
utes; the battery is not user-serviceable and if discharged, the unit
must be returned to Sun Nuclear for replacement.

6
The battery is located in a small compartment on the back of the radon monitor
(Figure 5). To install a new battery, Replacing the 9V Battery, below. A replacement
9V battery can be purchased from Sun Nuclear or any retail source.
Figure 5. Inserting a Battery
Replacing the 9V Battery
The internal 3V battery will discharge in 15 minutes and if discharged, the unit
must be returned to Sun Nuclear for replacement. Additionally, if the 3V internal
battery is discharged, the time and date may be reset and the “Current” values
may be permanently erased.
1 If a test is in progress, wait for the test to complete.
2 Connect the radon monitor to AC power using the AC adapter. See
Connecting the AC Adapter on page 7.
3 Open the battery compartment door (Figure 5) on the rear panel of the unit.
4 Remove the old battery and unsnap the connector.
CAUTION: High humidity may shorten battery life. Connect the AC
power adapter when using the radon monitor in areas with high
humidity.
WARNING: Always connect to AC power before replacing the 9V
battery, to prevent the internal 3V battery (required for operation)
from discharging.
CAUTION: Never replace the battery during a test.

7
5 Connect a fresh 9V battery to the connector, insert the battery into the
battery compartment, and close the battery compartment door.
Connecting the AC Adapter
1 After verifying a battery is installed (see Figure 5 on page 6), connect the
power cable to the power connector on the rear panel of the radon monitor.
Figure 6. Connecting Power to the Radon Monitor
2 Plug one end of the power cord into the adapter and the other end into a 100
to 240 VAC, 1-phase, 50-60 Hz mains power source.
Turn on the Display
To conserve power, the 16-digit display is always off until the ON button is
pressed. If no buttons are pressed for 2 – 3 minutes, the display turns off
automatically.
To turn the display on:
1 Press the ON button (5). After a few seconds, the display turns on and shows
the message “Battery OK” (Figure 7).
2 If a Personal Identification Number (PIN) is set up, the display prompts the
user to enter it. The company name is displayed momentarily (if set up)
followed by the message “Checking Memory.” If there is data in memory, the
message “Data in Memory!” appears. The data can be printed before
clearing the memory.

8
Figure 7. Turning on the Display
3 When the display shows “Start Test = 5,” the user may start a new test,
check AVG, check CUR, check STATUS, or change SETUP. The table below
summarizes the steps to turn on the display.
Press…* Display Shows… Comment
Battery OK
Display is always off until ON key (5) is pressed. “Bat-
tery OK” means there is enough power for 60 hours of
operation (delay plus test). “Low/No Battery!” means
that the battery has less than 60 hours operating life, or
there is no battery installed.
–Enter PIN Only appears if a Personal Identification Number has
been set up.
nnnn NNNN Enter PIN using digits 1 – 4 (5 and 6 not supported;
there are no buttons for 7 – 9). Numbers entered are
displayed. Enter “5' after entering PIN.
Company Name
Press PIN button (5). If correct PIN was entered, com-
pany name (if set up) displays. If wrong PIN was
entered, message “Shutting down...” appears briefly
and then display turns off.
–Checking
Memory
If data is in memory, the messages “Data in Memory!”
and “Print and Clear” are displayed. Print and Clear the
memory before starting a new test. See Clearing Mem-
ory on page 11.
–Start Test = 5
With the display reading “Start Test = 5,” the user can
press a button to:
• Start a test. See Starting a Test on page 9.
• Check AVG or CUR. See Displaying Average and Cur-
rent on page 10.
• Check STATUS. See Checking Unit Status on
page 11.
• SETUP the unit. See Setting Up Parameters on
page 12.
After a few minutes of inactivity, the display turns off
automatically to save power.

9
Starting a Test
When the “Start Test = 5” prompt appears, press the 5 button to start a new test.
Interrupting a Test
A test in progress can be interrupted to view the average or current readings.
After the interruption, the test can be terminated or continued.
Press… Display Shows… Comment
–Start Test = 5 A new test can be started.
Checking Memory Memory is rechecked. If data is found, memory
must be cleared before starting a new test. See
Clearing Memory on page 11.
–Delay 0 hr Displays the time delay defined in Setup.
–Interval 1 hr Displays the measurement interval defined in
Setup.
–Duration 12 hr Displays the test duration defined in Setup.
–Test in Progress
The test has started and will be finished after the
duration defined in Setup (plus delay). The display
turns off after a few minutes and remains off until
the test is interrupted or the display is turned on.
Press… Display Shows… Comment
Battery OK Display turns on and battery is checked.
–Enter PIN This prompt only appears if a Personal Identification
Number was set up.
nnnn NNNN Enter the PIN using only digits 1 through 4.
NNNN PIN number is displayed. Press PIN button (5) to
check PIN. If the wrong PIN is entered, the mes-
sage “Shutting down...” is displayed.
–End Test Y=5 N=2
Press 5 to end a test prematurely or 2 to continue.
Pressing 2 will turn off the display and continue the
test.
Note, when this message is displayed, the user
also has the option to press AVG (3) or CUR (4) to
display the average or current readings. See AVG or
CUR During a Test, below.
Confirm Y=5 N=2 Press 5 to confirm or 2 to cancel.
Test Complete The test is terminated.
–Start Test = 5 A new test may be started. If there is partial test
data in memory, it must be cleared before starting
a new test. See Clearing Memory on page 11.

10
Displaying Average and Current
AVG or CUR During a Test
The average (AVG) or current (CUR) radon values can be displayed during a test.
Turn ON the display (see Interrupting a Test on page 9), and note the button press
options in the table below.
AVG or CUR After Test
The average (AVG) and current (CUR) radon values can also be displayed after a
test is completed. Turn ON the display (see Turn on the Display on page 7), and
note the button press options in the table below.
Note: A completed test cannot be interrupted. After a test is
completed, pressing ON displays the normal start sequence.
Note: AVG is the average radon concentration over the total
monitoring period; CUR is the average radon concentration over the
last 12-hour period.
Press… Display Shows… Comment
–End Test Y=5 N=2 When the display shows this message, press
AVG (3) or CUR (4) to access those functions.
or Hold 3&4 Prt/Clr This message only appears for a moment after
pressing 3 or 4. If the test was just started, the
message “Not Enough Data” is displayed.
–Average 1.2 If AVG (3) was pressed, radon monitor displays
the average radon concentration over the total
monitoring period.
–Current 1.2 If CUR (4) was pressed, radon monitor displays
the radon concentration in the current 12-hour
period.
–Shutting down... After displaying AVG or CUR, monitor shuts
down to resume test.
Press… Display Shows… Comment
Start Test = 5 Press AVG (3) or CUR (4).
Hold 3&4 Prt/Clr This message only appears for a moment after
pressing AVG (3).
–Average 1.2 Displays the average radon concentration over
the total monitoring period.
Hold 3&4 Prt/Clr This message only appears for a moment after
pressing CUR (4).

11
Clearing Memory
After printing the report, clear the memory using the key press options in the
table below.
Checking Unit Status
Before starting a new test, it is recommended to scroll through the status items
to confirm they are correct.
–Current 1.2 Displays the radon concentration in the current
12-hour period.
–Start Test = 5
AVG or CUR reading is complete. The data for the
test remains in memory and must be cleared
before starting a new test. See Starting a Test on
page 9.
Press… Display Shows… Comment
–Start Test = 5 It is recommended to print a report before clear-
ing data.
+Prt=3 Cl=4 Ex=5
When the “Start Test = 5” message appears,
press and hold 3 and 4. Keep holding until the
“Prt=3 Cl=4 Ex=5” message appears. Press 4 to
clear (or 5 to exit).
Confirm Y=5 N=2 Press 5 to confirm the clear memory command.
Clearing Memory The memory is cleared in a few seconds.
Press… Display Shows… Comment
–Start Test = 5 The status menu can be selected when the display
shows “Start Test = 5.”
Status Menu Press the (1) button to select the status menu. The
status of each item will scroll through automati-
cally. Each item displays for about 2 seconds.
–DELAY nn hr The delay time selected.
–INTERVAL nn hr The measurement interval selected.
–DURATION nnn hr The duration of the test.
–BATTERY Ok Battery status.
–TIME nn:nn PM Current time.
–DATE MM DD YY Current date
–CAL MM/DD/YYYY Date of last calibration.
–SNC MODEL 1028 Model number.
Press… Display Shows… Comment

12
Status items can also be displayed during a test by pressing the (1) button while
the display shows “End Test Y=5 N=2.”
Setting Up Parameters
Parameter data can be entered using a computer or by entering the characters
with the front panel keys on the radon monitor. Using a computer is the faster of
the two methods. For instructions to enter parameter data using a computer, see
Monitor Settings Preferences on page 38. The table below shows the parameter
key press options.
–CODE VER nnnn Embedded code (firmware) version number.
–S/N nnnnnnnnnnn Serial number.
–Status Menu Done End of the menu. Display returns to “Start Test =
5”.
Note: If there is any test data in the radon monitor, parameters cannot
be entered. Clear test data before changing parameters.
Press… Display Shows… Comment
–Start Test = 5 Parameters can be changed at any time before
starting a test.
Setup Menu Entering setup menu.
–Checking Memory Checking memory for data.
–Delay 0.0 hr Shows current delay settings.
or Delay 12 hr
Press arrow buttons to change value.
• If the monitor firmware version is 106 or higher,
the delay options are 0.0 hours,12 hours, 24
hours, or 48 hours.
• If the monitor firmware version is 105 or lower,
the delay options are 0.0 hours or 12 hours.
For the steps to check firmware version on a
standalone monitor (not connected to a com-
puter), see Checking Unit Status on page 11. For
the steps to check the firmware version from the
computer, see Monitor Settings Preferences on
page 38. The serial number and firmware version
of the unit are displayed on the right side of the
Monitor Settings screen.
Interval 1.0 hr Press SAVE; saves the Delay setting and
advances to Interval.
or Interval 4.0 hr Press arrow keys to scroll through selection of
intervals, 0.5 (model 1029 only), 11.0, 2.0, 4.0, 8.0,
12,16, 20, or 24 hours.
Press… Display Shows… Comment

13
Duration 1.0 hr Press SAVE; saves the setting and advances to
the next item.
or Duration 48 hr
Press arrow keys to scroll through test duration
times: 1.0, 12, 24, 36, 48, 60, 72, 84, 96, 100, or
999 hours.
If 999 is selected, measures until memory is full or
to 720 data points, whichever occurs first.
COMPANY Company Press SAVE; saves the setting and advances to
the next.
COMPANY Company The EDIT key (3) lets you begin to edit the first
character.
or COMPANY Mompany Press the arrow keys to scroll through the avail-
able characters. See Character Set on page 14 for
a list of characters. Press and hold for rapid scroll.
COMPANY My Comp
Press EDIT key (3) and scroll to the next and sub-
sequent characters. Press EDIT (3) again to enter
the next character. Continue character by charac-
ter until the company name is entered (up to 30
characters).
ADDRESS1 none Press SAVE (4); saves the setting and advances to
the next item.
ADDRESS1 9one
The EDIT key (3) allows editing beginning with the
first character. Enter up to 30 characters for the
first address line using the same procedure as for
Company name.
ADDRESS2 none Press SAVE (4); saves the setting and advances to
the next item.
ADDRESS2 none
If a second address line is not needed, leave it
blank. The EDIT key (3) will allow editing begin-
ning with the first character. Enter up to 30
characters for the second address line using the
same procedure as for Company name.
City none Press SAVE (4); saves the setting and advances to
the next item.
and City none Enter city (20 characters) and SAVE (4) (same as
above).
and STATE none Enter state (10 characters) and SAVE (4) (same as
above).
and ZIPCODE Enter zip code (10 characters) and SAVE (4) (same
as above).
and PHONE Enter phone number (20 characters) and SAVE (4)
(same as above).
and LICENSE Enter license number (10 characters) and SAVE (4)
(same as above).
and TIME Enter current time (4 numbers plus AM or PM)
and SAVE (4) (same as above).
and DATE Enter current date in the format MMDDYY (6
numbers) and SAVE (4) (same as above).
Press… Display Shows… Comment

14
To enter parameter data using the front panel keys on the radon monitor:
1 Turn on unit.
2 Press “Setup” (button 2).
3 Advance through the list by pressing “Save” (4).
4 Stop on an item to change it.
5 Press “Edit” (3) to edit the item.
6 Press the arrow keys to scroll through a list of available characters and stop
when the desired character appears. Press and hold arrow key for fast scroll.
7 When a desired character to change appears, press “Edit” (3) again to
change it.
8 When all the characters are changed, press “Edit” to complete the item.
9 Press “Save” and advance to the next item.
Character Set
The available character set includes the following in the sequence shown:
(space) ! “ # $ % & ‘ ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 : ; < = > ? @ A B C D E
F G H I J K L M N O P Q R S T U V W X Y Z [ \ ] ^ _ ‘ a b c d e f g h i j k l m n
o p q r s t u b w x y z
Display Turns Off Automatically
The display turns off automatically after a period of inactivity of about 2-3
minutes. There is no OFF switch or key sequence.
and UNITS pC/l Select units, pCi/l or Bq/m3(edit, select with
arrows, and SAVE (4)).
and PIN NUM 1111 Enter a PIN number if desired in the range of 1111
to 4444 and SAVE. The number 1111 is equivalent
to no PIN. To clear a PIN, enter 1111.
Setup Menu Done End of setup menu.
Press… Display Shows… Comment
