Sun-Tech SPA030 User manual

Focus on customized architectural lighting
[email protected] www.suntechleds.com
SPA030 Pixel light
Description
Application environment: indoor, outdoor
1、Base installation flat cover measurement
Measurement (Unit:mm)
The SPA030 pixel light is a low power LED string product
designed for outdoor landscape lighting. It adopts engineering grade
flame-retardant plastic PC shell, which is sealed and waterproof by high
thermal conductivity and weather-resistant PU glue; the lamp point is
small in size and exquisite in appearance; the light string is connected
by the national standard flexible cable, which can be bent and deformed
at will, and supports the installation of special-shaped façade; The
product spacing and color can be customized; it is suitable for
large-area display or lighting of building facades, bridges and skylights.
Features:
★A new generation of TTL serial technology design
★Standard DMX512 Control Protocol
★Industry-leading wireless button-type anti-smash connection design
★High thermal conductivity glue full potting waterproof design
★Outdoor lightning protection and Electrostatic (ESD) special protection
design
★Flexible, flexible application, multiple mounting methods
★Steel cable installation light transmittance up to 90%
★Support RGB/W current separately adjustable (low light and high gray)

Focus on customized architectural lighting
[email protected] www.suntechleds.com

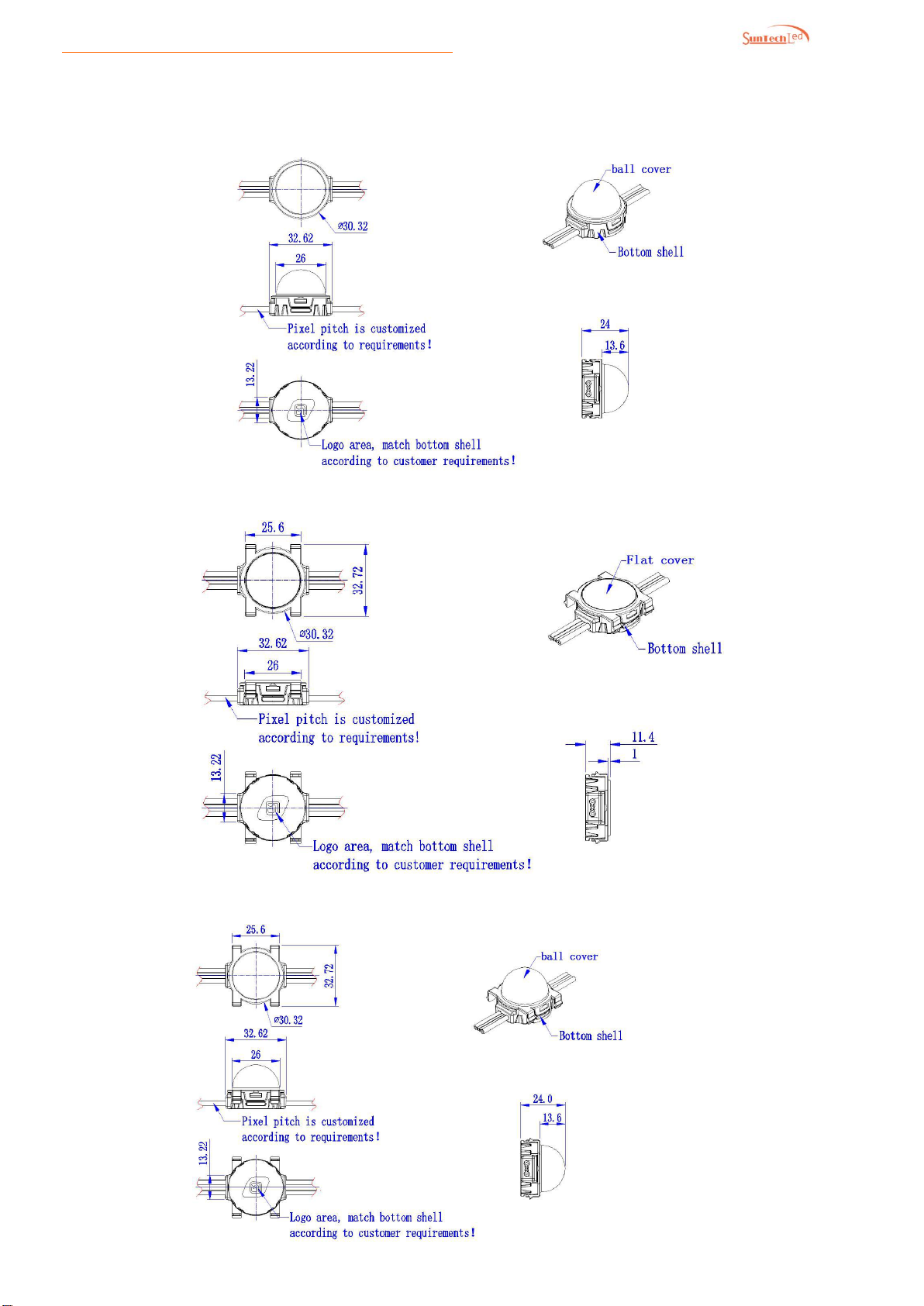

2、Base installation ball cover measurement
3、Frame installation flat cover measurement
4、Frame installation ball cover measurement

[email protected] www.suntechleds.com
Technical Parameters:
Product selection table
Basic parameters
Color/gray
RGB/W each 4096 grayscale; RGB/W each 65536 grayscale;RGB/W each 256 grayscale
Light source
3535 / 5050 / 2835
LED quantities
1pcs /3pcs /4pcs
Material
Flame retardant PC
Cover material
Flame retardant PC
Lifespan
50,000h
Weight
10g
Optical parameters
Operating
Voltage
DC5V / 12V / 15V
Maximum power
0.3W / 0.4W / 0.72W / 0.9W / 1.0W
RGB Light
intensity
10cd
White light
20cd
Beam angle
Flat cover120°/ Ball cover 160°
Electric grade
Class III
Other parameters
Operating
temperature
-20°C to 50°C
Storage
temperature
-40°C to 70°C
Protection level
IP66
Light distribution curve
Model
Light
source
quantities
Light
source
Color
Control
DC
Operating
Voltage
Power
White
light light
intensity
SPA030-01AU-01
1PCS
3535
RGB/W
Dual channel
Real-time
backup TTL
12V
0.3W
2.5cd
SPA030-01AU-02
1PCS
3535
RGB/W
Dual channel
Real-time
backup TTL
5V
0.3W
2.5cd
SPA030-01AE-01
1PCS
3535
RGB/W
DMX512
12V
0.3W
2.5cd
SPA030-01AE-02
1PCS
3535
RGB/W
DMX512
5V
0.3W
2.5cd
SPA030-01XD
1PCS
5050
RGBW
DMX512
5V
0.4W
4cd
SPA030-01XT
1PCS
5050
RGBW
Single line serial
TTL
5V
0.4W
4cd
SPA030-03AU
3PCS
3535
RGB/W
Dual channel
Real-time
backup TTL
12V
0.72W
7.5cd

[email protected] www.suntechleds.com
SPA030-03AE
3PCS
3535
RGB/W
DMX512
12V
0.72W
7.5cd
SPA030-03XT
3PCS
5050
RGBW
Single line serial
TTL
12V
1.0W
12cd
SPA030-04AU
4PCS
3535
RGB/W
Dual channel
Real-time
backup TTL
15V
0.9W
10cd
SPA030-04AE
4PCS
3535
RGB/W
DMX512
15V
0.9W
10cd

[email protected] www.suntechleds.com
Mounting parts dimensions
Support single mounting parts by screw fixing, wire fixing, support frame installation.
Commonly used wire accessories:
Frame installation measurement drawing(unit:mm)
PC single mounting base size drawing (unit: mm)
(two installation methods)
吊码
Hanging hook
Clip head
Steel wire loop
Hanging head
1
Hanging head 2
Hanging head 3
Cover
Base

[email protected] www.suntechleds.com

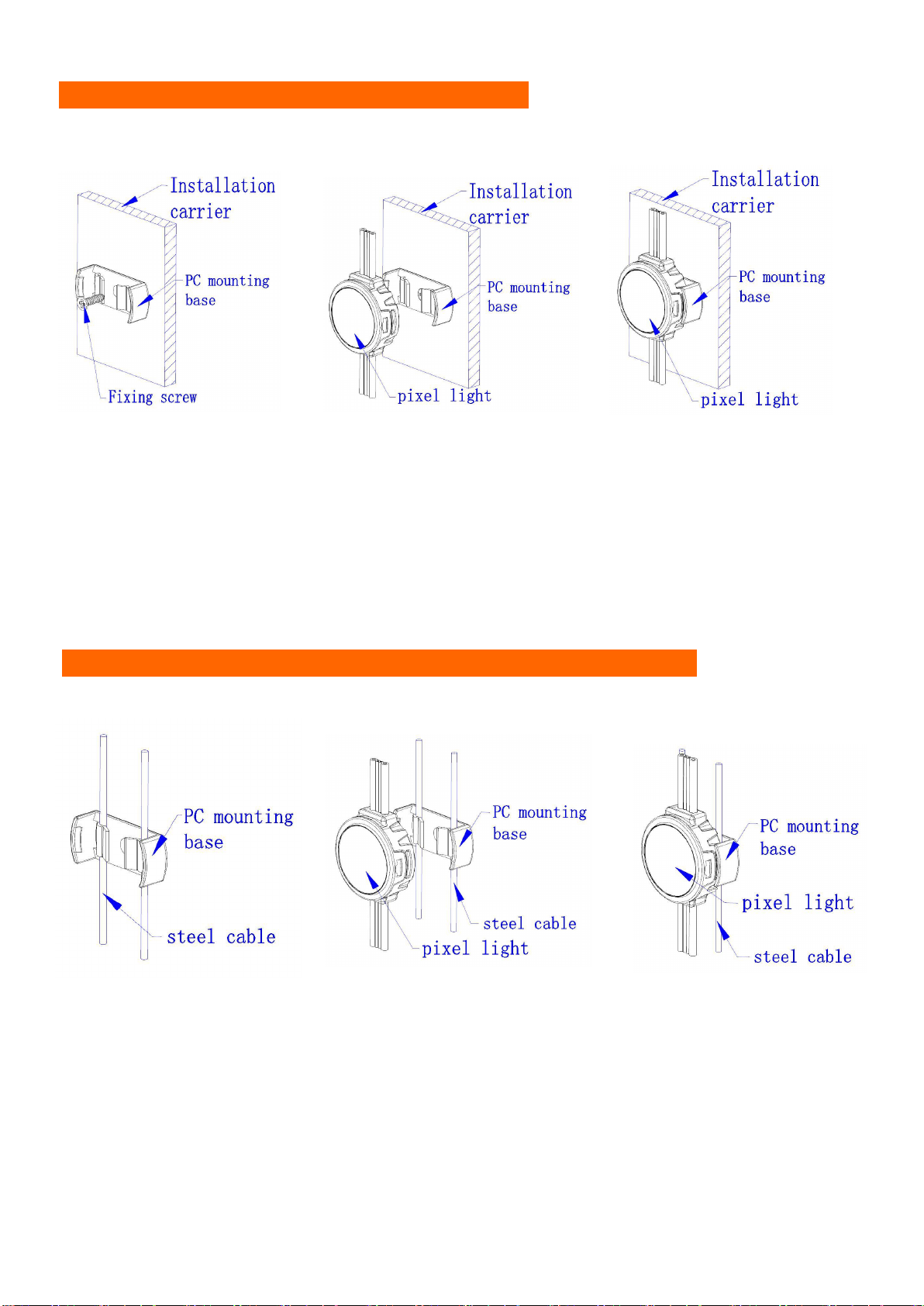

PC single base installation method 1:
PC single base + steel cable installation method 2:
①PC installation base installation:
Use a suitable self-tapping screw to
secure the PC mounting base to the
desired position, with the spacing
required by the string spacing of the
project order.
②pixel light installation:
After the PC mounting base
is firmly installed, the point
light source is stuck into the
PC mounting base;
③installation is completed:
Schematic diagram after
installation is complete.
③adjustment pitch :
A f t e r t h e i n s t a l l a t i o n i s
comp leted, the pixel lig h t
pitch can be fine-tuned to
ensure that the point source
is installed neatly! (schematic
diagram after installation)
①wire fixing and PC base
installation:
Fix the two ends of the wire to
the mounting base, and then fix
the PC mounting base to the
wire. The spacing is required
according to the order spacing of
the project order lights!
②Pixel light installation:
After the PC mounting base is
fixed, the point light source is
stuck into the PC mounting
base;

[email protected] www.suntechleds.com
Frame installation :
⑥mounting profile reinforcement screws:
After installing the upper cover of the profile,
use two self-tapping screws from the lower
side to fix the profile upper cover and the
profile mounting base to prevent the profile
cover from falling.
①installation carrier drilling:
Drill a hole in the position where the
carrier is required to be drilled by
selecting a suitable drill bit;
②Install the expansion screw:
Use a suitable expansion screw to
knock the expansion screw into the
hole drilled in the mounting carrier;
③mounting frame mounting base:
Remove the nut and gasket of the
installed expansion screw, and align
the hole of the frame base with the
expansion screw and attach it to the
installation carrier;
④fixed frame mounting base:
After installing the upper frame base,
install and tighten the gasket and nut
of the expansion screw, and do not
loosen it;
⑤mounting profile cover:
The top cover of the frame with the
light source installed is aligned with
the mounting base and fastened to
the profile mounting base;

[email protected] www.suntechleds.com

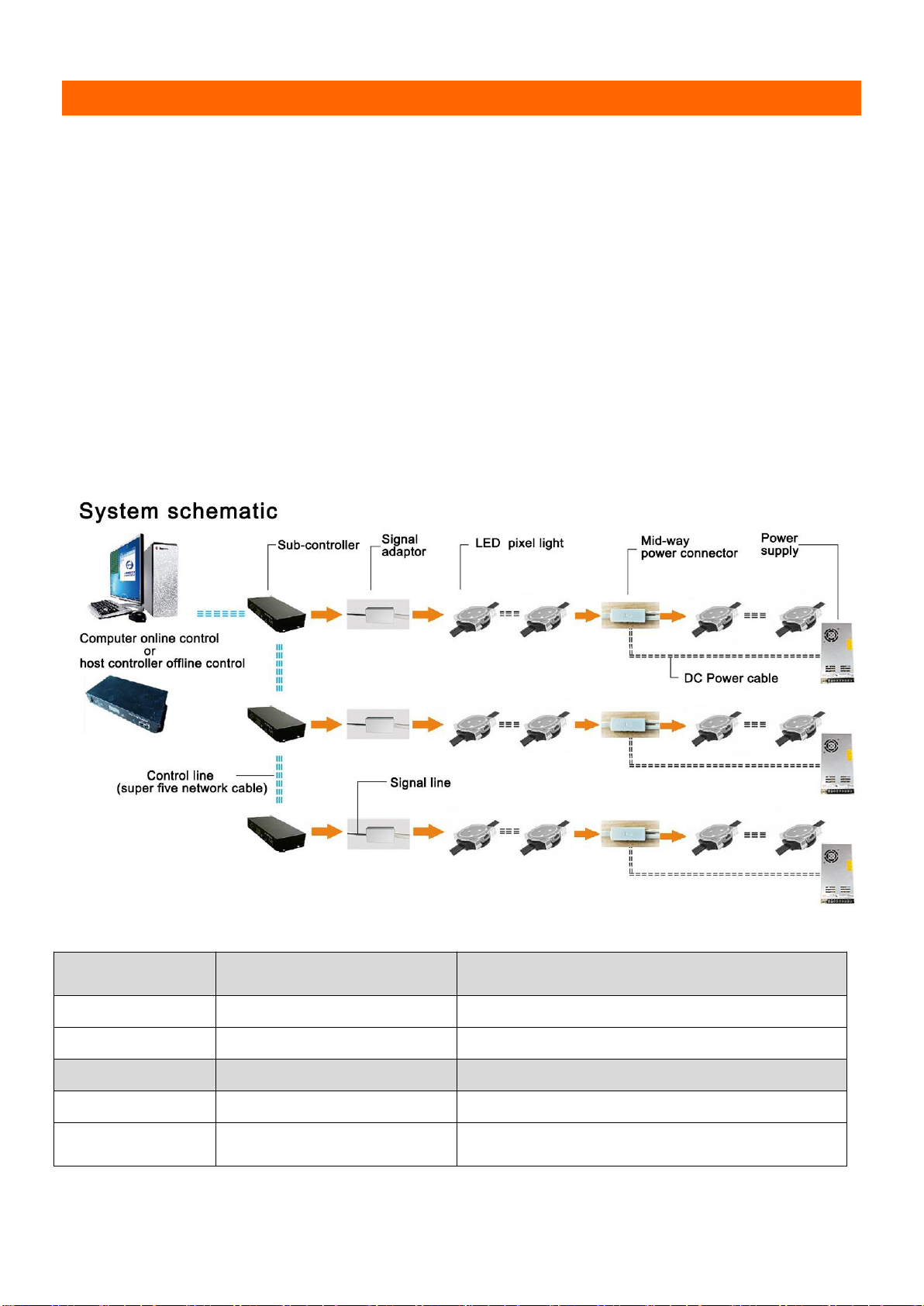

System connection
1、The main controller is equipped with sub-controller and signal adaptor. The main control and sub-control
working voltage is AC220V. The working voltage of the signal adaptor is the same as the working voltage of
the pixel light.
2、Each sub-controller has 8 ports. The TTL sub-controller can carry 512 (RGB) pixels per port. The DMX
sub-controller can carry 170 (RGB) pixels per port. It is used with the signal adaptor and supports 200
meters long distance transmission.
3、The main control and sub-control, sub-control and sub-control are connected by CAT5 twisted cables, the
maximum distance of each section is less than 120 meters; the maximum transmission distance between
the sub-controller and the signal adaptor is less than 120 meters. In this case, the maximum distance from
the signal adaptor to the first pixel light is no more than 2 meters.
4、It is recommended that the maximum point spacing should not exceed 2.5 meters, and each intermediate
power supply can support the power supply distance of 6 meters left and right (can be adjusted according to
the project conditions).
Control system
TTL Dual channel real-time
back up
DMX512
Main controller
Sub controller
MR-218A
MR-218DW
Signal adaptor
Signal adaptor
Signal cable
Two-core shielded wire
Two-core shielded wire,
Three-core shielded wire

[email protected] www.suntechleds.com
Notes:
1. Please read the installation manual carefully before using the product.
2. The product is handled gently and gently to avoid damage to the product. Installation, maintenance and
maintenance must be handled by professionals;
3. The external power supply must be cut off during wiring to prevent people from getting an electric shock or
damaging the lamp;
4. When the external power cord is connected, the corresponding measures of waterproofing and water
leakage must be taken;
5. The male and female waterproof protective covers for the products shall not be removed before the
products are installed and connected;
6. Quality Assurance: Under normal conditions of use, quality assurance is based on the proper storage,
installation, use and maintenance of the product.
