Sun-Tech ATLAS User manual

7
sunstech”
User Manual
ATLAS
DIGITAL MEDIA PLAYER
Function Overview
1.8 inch 128*160 TFT screen
Flash memory:4GB
Support MP3/WMA/WAV format audio
Support AMV format video
Support Micro SD card up to 32GB
Support FM Radio and record.
Support FM Radio with 40 presets.
Multi EQ modes and repeat modes
Built-in microphone for long time recording
Support txt E-book reading
Support JPG,BMPGIF.
Support Multi-languages

Appearance of the player
i \
|
+—_—— Display
GO<— menu
VOL+ ——~—> + MAIN ——>3
PRE
——>™*
»a—
Next
{|
Micro
SD
card
Headphone Ly o “R a 7 USB Jack
Jack ~ ~
vols RESET
Button Definition
“MAIN”: Play/Pause/Power On-Off(hold)
“MENU”: press “MENU” to confirm; long press to exit to main menu
“PRE”: Previous menu/file& hold to fast backward
“NEXT”: Next menu/file& hold to fast forward,
“VOL+": Increase volume
“VOL-": Decrease volume and key lock function.
“RESET” switch: reboot the player
Micro SD Slot “Supports up to 32GB” ® NM o u À YN =
Turn on/off
To turn off the player, press and HOLD the MAIN button until the display shuts off.
Key lock function.
Push the key VOL - for 3 seconds to enable this function ( a closed padlock will appear) ià . If you want
disable this function again push the key VOL- for 3 seconds ( an open padlock will appear). "i

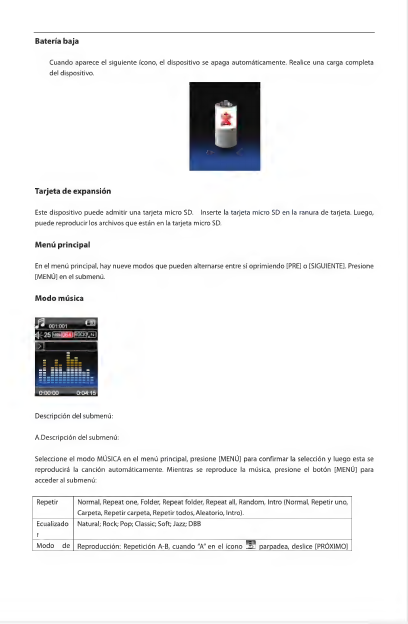

Low Battery
When the below icon appears the device may automatically turn off, please fully charge the device.

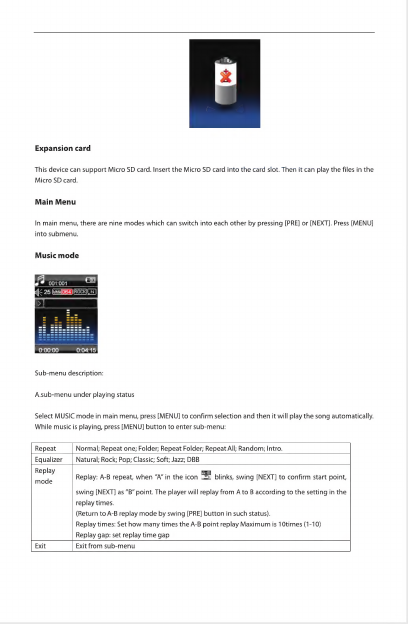

Expansion card
This device can support Micro SD card. Insert the Micro SD card into the card slot. Then it can play the files in the
Micro SD card.
Main Menu
In main menu, there are nine modes which can switch into each other by pressing [PRE] or [NEXT]. Press [MENU]
into submenu.
Music mode
001:001
E): 25 funn)
Sub-menu description:
A.sub-menu under playing status
Select MUSIC mode in main menu, press [MENU] to confirm selection and then it will play the song automatically.
While music is playing, press [MENU] button to enter sub-menu:
Repeat Normal; Repeat one; Folder; Repeat Folder; Repeat All; Random; Intro.
Equalizer Natural; Rock; Pop; Classic; Soft; Jazz; DBB
Replay
made Replay: A-B repeat, when “A” in the icon a blinks, swing [NEXT] to confirm start point,
swing [NEXT] as ”B” point. The player will replay from A to B according to the setting in the
replay times.
(Return to A-B replay mode by swing [PRE] button in such status).
Replay times: Set how many times the A-B point replay Maximum is 10times (1-10)
Replay gap: set replay time gap
Exit Exit from sub-menu

B.Sub-menu under stop status: (Under playing audio status, press [MAIN] to stop playing, then press [MENU]
button)
Local folder Indicate the folder of present playing file
Delete file Delete the present playing song
Delete all Delete all music files
Exit Exit from sub-menu
Delete file:
Sub-menu interface, select “Delete file”, choose the file you want to delete, press “Menu” and choose “Yes” to
delete.
Movie Mode
A).Press [MENU] button to go to the playing interface then press [Main] to play movie file.
B).Sub-menu under stop status:(Under video playing status, press [MAIN] to stop playing, then press [MENU]
button.
Local folder Indicate the folder of present playing file
Delete file Delete the present playing movie
Delete All Delete all movie files
Repeat Normal, Repeat one, Folder, Repeat folder, Repeat All, Radom, intro.
Exit Exit from the sub-menu
Record Mode
Press [MENU] button to select Record mode in main menu, then press [MENU] again enter into recording
sub-menu.
Local folder | Indicate the folder of present recording file
REC type 32K BPS,64K BPS,128K BPS
Exit Exit from sub-menu

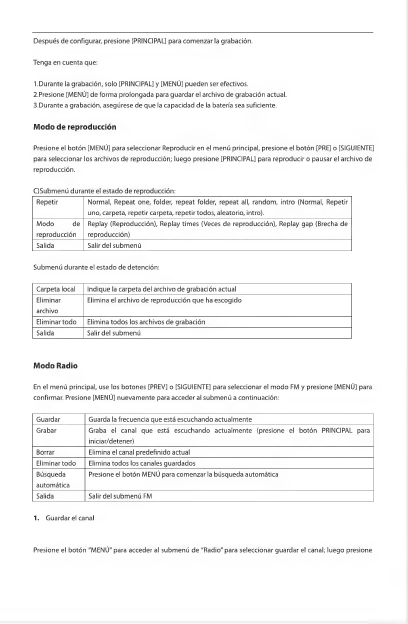

After setting, press [MAIN] to start recording.
Please note:
1.During recording, only [MAIN] and [MENU] can be effective.
2.Long press [MENU] to save present recording file.
3.Ensure sufficient battery capacity during recording.
Play Mode
Press [MENU] button to select Play in main menu, press [PRE] or [NEXT] button to select recording files, then
press [MAIN] to play or pause the recording file.
C)Sub-menu while playing status:

Repeat Normal, Repeat one, Folder, Repeat folder, Repeat all, Random, intro.
Replay mode Replay, Replay times, Replay gap
Exit Exit from sub-menu
Sub-menu while stop status:
Local folder Indicate the folder of present recording file
Delete file Delete the recording file you have chosen
Delete all Delete all recording files
Exit Exit from sub-menu

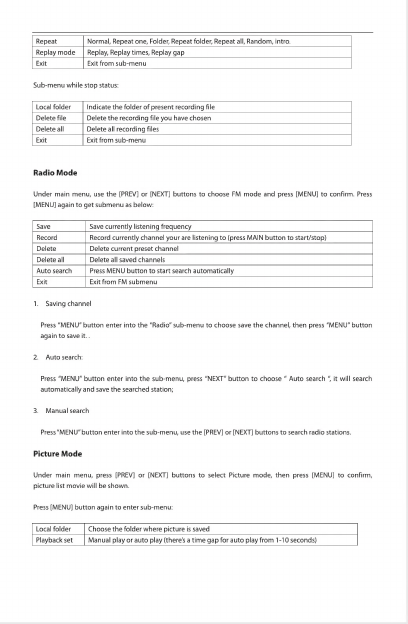

Radio Mode
Under main menu, use the [PREV] or [NEXT] buttons to choose FM mode and press [MENU] to confirm. Press
[MENU] again to get submenu as below:
Save Save currently listening frequency
Record Record currently channel your are listening to (press MAIN button to start/stop)
Delete Delete current preset channel
Delete all Delete all saved channels
Auto search Press MENU button to start search automatically
Exit Exit from FM submenu
1. Saving channel
Press “MENU” button enter into the “Radio” sub-menu to choose save the channel, then press “MENU” button
again to save it..
2. Auto search:
Press “MENU” button enter into the sub-menu, press “NEXT” button to choose ” Auto search “, it will search
automatically and save the searched station;

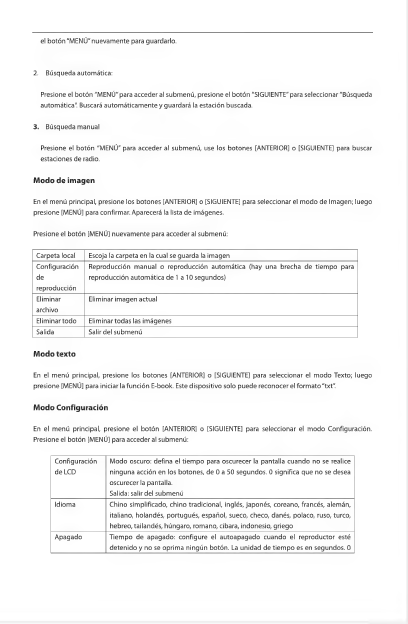

3. Manual search
Press “MENU” button enter into the sub-menu, use the [PREV] or [NEXT] buttons to search radio stations.
Picture Mode
Under main menu, press [PREV] or [NEXT] buttons to select Picture mode, then press [MENU] to confirm,
picture list movie will be shown.
Press [MENU] button again to enter sub-menu:
Local folder Choose the folder where picture is saved
Playback set Manual play or auto play (there's a time gap for auto play from 1-10 seconds)

Delete file Delete current picture
Delete all Delete all pictures
Exit Exit from sub-menu

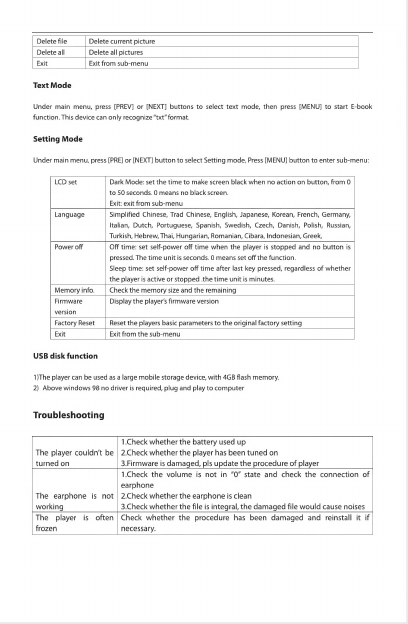

Text Mode
Under main menu, press [PREV] or [NEXT] buttons to select text mode, then press [MENU] to start E-book
function. This device can only recognize “txt” format.
Setting Mode
Under main menu, press [PRE] or [NEXT] button to select Setting mode, Press [MENU] button to enter sub-menu:
LCD set Dark Mode: set the time to make screen black when no action on button, from 0
to 50 seconds. O means no black screen.
Exit: exit from sub-menu
Language Simplified Chinese, Trad Chinese, English, Japanese, Korean, French, Germany,
Italian, Dutch, Portuguese, Spanish, Swedish, Czech, Danish, Polish, Russian,
Turkish, Hebrew, Thai, Hungarian, Romanian, Cibara, Indonesian, Greek,
Power off Off time: set self-power off time when the player is stopped and no button is
pressed. The time unit is seconds. 0 means set off the function.
Sleep time: set self-power off time after last key pressed, regardless of whether
the player is active or stopped .the time unit is minutes.
Memory info. Check the memory size and the remaining
Firmware Display the player's firmware version
version
Factory Reset Reset the players basic parameters to the original factory setting
Exit Exit from the sub-menu
USB disk function
1)The player can be used as a large mobile storage device, with 4GB flash memory.
2) Above windows 98 no driver is required, plug and play to computer
Troubleshooting
1.Check whether the battery used up
The player couldn't be | 2.Check whether the player has been tuned on
turned on 3.Firmware is damaged, pls update the procedure of player
1.Check the volume is not in “0” state and check the connection of
earphone
The earphone is not | 2.Check whether the earphone is clean
working 3.Check whether the file is integral, the damaged file would cause noises
The player is often | Check whether the procedure has been damaged and reinstall it if
frozen necessary.

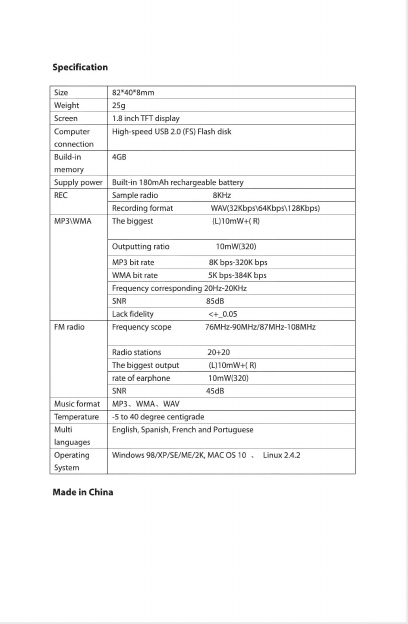

Specification
Size 82*40*8mm
Weight 25g
Screen 1.8 inch TFT display
Computer High-speed USB 2.0 (FS) Flash disk
connection
Build-in 4GB
memory
Supply power | Built-in 180mAh rechargeable battery
REC Sample radio 8KHz
Recording format WAV(32Kbps\64Kbps\128Kbps)
MP3\WMA The biggest (L)10mW-( R)
Outputting ratio 10mW(320)
MP3 bit rate 8K bps-320K bps
WMA bit rate 5K bps-384K bps
Frequency corresponding 20Hz-20KHz
SNR 85dB
Lack fidelity <+_0.05
FM radio Frequency scope 76MHz-90MHz/87MHz-108MHz
Radio stations 20+20
The biggest output (L)10mW-( R)
rate of earphone 10mW(320)
SNR 45dB
Music format MP3, WMA, WAV
Temperature | -5 to 40 degree centigrade
Multi English, Spanish, French and Portuguese
languages
Operating Windows 98/XP/SE/ME/2K, MAC OS 10 + Linux 2.4.2
System
Made in China

1. DO NOT place objects on top of the
X Y device, as objects may scratch the
device.
X 2. DO NOT expose the device to dirty
: xy or
aos
e — dusty environments.
xX Ny 3. DO NOT place the device on an
=
a
uneven
| or unstable surface.
4. DO NOT insert any foreign objects
into the device.
X 7%, 5. DO NOT expose the device to strong
magnetic or electrical field.
XxX YE 6. DO NOT expose the device to direct

sunlight as it can damage the device. Keep it away from
heat sources.
das db 7. DO NOT store your device in
AN temperatures higher than 40°C(104°F).
The internal operating temperature for
NL this device is from 20°C(68°F) to
20°C(68°F) 60°C(140°F).
ae
fu, 8. DO NOT use the device in the rain.
9. Please check with your Local
Authority or retailer for proper
disposal of electronic products.
10. The device and adaptor may
X va |
(a product some heat during normal
operation of charging. To prevent
discomfort or injury from heat exposure, DO NOT leave

the device on your lap.
- 11. POWER INPUT RATING:
sunstech*
POWER SUPPLY : Refer to the rating label on the
POWER (IN STANDBY):
(IN USE):
C € [a] ff | device and be sure that the
power adaptor complies with
the rating. Only use accessories specified by the
manufacturer.

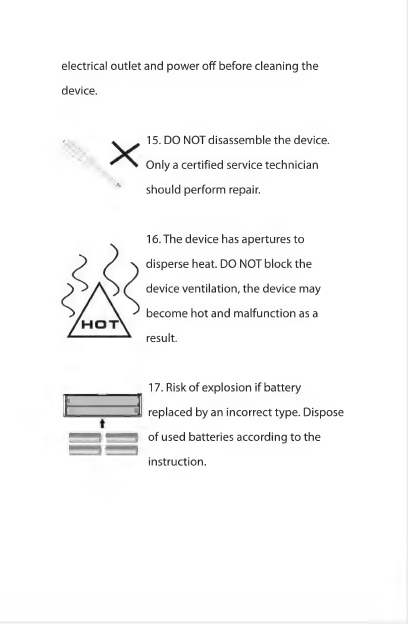

XK Ax 12. Clean the device with a soft cloth.
If needed, dampen the cloth slightly
before cleaning. Never use abrasives or cleaning
solutions.
13. Always power off the device to install
or remove external devices that do not
support hot-plug.
e 2»
SE
