LENCO DVP-350 User manual

DVD PERSONAL MEDIA PLAYERDVD PERSONAL MEDIA PLAYER
ENGLISH
UNIVERSAL SERIAL BUS
UNIVERSAL SERIAL BUS
SD/MMC/MS
CARD
OWNER`S MANUALOWNER`S MANUAL
OWNER`S MANUALOWNER`S MANUALOWNER`S MANUAL
Please read thismanual before operating
DVD PERSONAL MEDIA PLAYERDVD PERSONAL MEDIA PLAYERDVD PERSONAL MEDIA PLAYER

Table of Contents
1
Table of Contents..............................................................................................................................................1
Safety Information.............................................................................................................................................2
Remote Control.................................................................................................................................................3
Description.......................................................................................................................................................4
Using the Remote Control..................................................................................................................................5
Connecting Earphones to the DVD Player............................................................................................................6
Connecting to a TV ...........................................................................................................................................7
............................................................................................................................................8
.................................................................................................................................................9
Using the AC Adaptor.......................................................................................................................................10
Using the Battery Pack.....................................................................................................................................11
the ....................................................................................................................................12
Cautions in Using Battery Pack.........................................................................................................................14
Playing a Disc............................................................................................................................................15-19
Playing MP3 and Regular Audio CD.................................................................................................................20
Playing Picture CD...........................................................................................................................................21
Setting TV system,Screen Saver, TV type (4:3/16:9), Password, Rating, Default.............................................22-23
Setting Language for OSD, Voice, Subtitle, Menu...............................................................................................24
Setting Video's Brightness, Contrast, Hue, Saturation........................................................................................25
Troubleshooting.........................................................................................................................................26-27
Specifications................................................................................................................................................28
Using Card Reader
Using USB Port
Using Battery Cover
Charging the batterypack ................................................................................................................................13

Safety Information
2
CLASS 1 LASERPRODUCT / KLASSE1 LASER PRODUKT/ LUOKAN 1LASER LAITE /KLASS 1 LASERAPPARAT /
PRODUCTO LASER CLASE.
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURETO BEAM.
1.Toprevent fire orelectrical shock, donot expose thisPlayer to rain or moisture.
2.Toavoid electrical shock,do not openthe cabinet, nouser-serviceable parts inside, refer servicing to qualified
personnel only.
3.Certain countries mayregulate the disposalof the batteryused to powerthis product. Please consult with your local
authority.
4.Listening with earphonesfor many hours at maximum volume may damage yourhearing.
5.The Player shouldbe connected toa power supplyonly of thetype described in the operating instructions or as
marked on thePlayer.
Please read allof the safetyand operating instructionsbefore operating this Player, follow all warnings placed
on the Playerand in theuser's manual. Thesesafety and operating instructions should be retained for future
reference.
WARNING
SAFETY WARNING
Safety Information
Do not exposethe system toexcessive moisture, rain,sand, or heatsources.
Place the DVDPlayer on afirm, flat surface.
Keep the DVDPlayer away fromdomestic heating equipmentand direct sunlight.
When placing theDVD Player ina cabinet, allowabout one inchof space allaround the DVD Player for ventilation.

Remote Control
P/N
TITLE
DISPLAY
ANGLE LANGUAGE SUBTITLE
MUTE
L/R
1234
5678
ENTER
SLOW
ZOOM
REPEAT MARK GOTO
STANDBY
90
MENU/PBC
SETUP
10+
Remote Control
2
3
4
5
6
7
8
9
10
11
12
15
16
17
18
19
20
21
22
23
24
14
13
25
1
REMOTE CONTROL
14.STANDBY Button
15.DISPLAYButton
16.MUTE Button
17.ANGLE Button
18.LANGUAGE Button
19.SLOW Button
20.PLAY/PAUSE ( )Button
21.STOP Button
22.FAST REVERSE( ) Button
23.FAST FORWARD ( )Button
24.REPEAT Button
25.MARK Button
Togglesbetween putting the
Player on standbyand power
on.
Displays the currentdisc
playback information.
Selects the voicelanguage in
a DVD.
Press once tostart play,
press again topause.
Stops disc play.
Use to marka point wherethe
playback starts eachtime when
the MARK buttonis pressed
later on.
Use to accessvarious
camera angles ona DVD.
Allows you torepeat play
a title, chapter, track, ordisc.
1.MENU/PBC Button
2.L/R Button
3.P/N Button
4.TITLE Button
5.SUBTITLE Button
6.Number Buttons (0,1,...,9)
7.10+ Button
8.
9.SETUP Button
10.SKIP FORWARD ( )Button
11.SKIP BACKWARD ( ) Button
12.ZOOM Button
13.GOTO Button
Brings up thedisc menu.
Selects left, rightand stereo
sound tracks.
Selects PAL/NTSCTV systems.
Selects the subtitle'slanguage.
Uses to input10 to 999(
combining this buttonand other
digit number buttons).
Brings up thesetup MENU
to set upthe system's
language, audio, display,
password etc.
Use to enterthe specific chapter,
track or timeto playback.
ENTER/DIRECTION Buttons
Use to skipto next title,chapter
or track.
Use to skipto previous title,
chapter or track.
3

Description
Front View
1.LCD
2.LCD on/off switch
3.OPEN
4.M: Menu/PBC
5.PLAYBACK BUTTONS
PLAY/PAUSE ORPOWER ON( )
FAST REVERSE( )
1
2
3
5
4
7
6
FAST FORWARD( )
STOP/POWER OFF( )
6.CURSOR(UP/DOWN/LEFT/
RIGHT),ENTER( )
7.OK (same as ENTER on the
Remote Control Use itto
confirm selection)
7
6
5
4
3
2
1
1.Remote control sensor
2.AV out
3.Earphone jack
4.USB port
5.Power LED light
6.Card LED light
7.MS/SD/MMC card slot
Right View
Left View
Bottom View
1
2
3
1.DC IN12V
2.Power on/off
3.Open
1
2
1.Release latch(Battery
pack separation switch)
2.Battery pack
4

Using the Remote Control
Installing the battery
1. Press thelocking tab inthe arrow
direction.
Using the remotecontrol
(1)
(2)
(3)
(4)
Point the remotecontrol directly atthe remote sensor
on the frontof the DVDPlayer.
Remote Control Sensor
P/N
TITLE
DISPLAY
ANGLE LANGUAGESUBTITLE
MUTE
L/R
1234
5678
SETUP
ENTER
SLOW
ZOOM
REPEAT
MARK
GOTO
STANDBY
90
MENU/PBC
REMOTECONTROL
MODELNo.:RMC-220
10+
2. Pull outthe battery tray.
3. Insert a3V lithium batteryinto
the tray withthe polarity (+ )
facing up asmarked.
4. Replace thebattery tray by
pushing it untilit clicks into
place.
5

Connecting Earphones to the DVD Player
You listen to theaudio through theprovided earphone.
Conect the suppliedearphone to thephone jack ( ). Use thein-line volume control on the earphone to control the
volume. You can alsoconnect a secondearphone to theAVOUT jack
6

Connecting to a TV
Video out: Yellow
Audio(left):White
Audio(right):Red
AV adaptorcable (provided)
(Mini-jack to RCA)
Audio/Video out(black)
AV CABLE (Notprovided)
Audio(left):White
Audio(right):Red
Video in: Yellow
AV OUT
7
AUDIO
IN
VIDEO
IN
LR
1. Turnoff DVD playerand other components.
2. Connect theaudio and videocables as illustratedbelow.
4.Turn on power.
5.Repeatedly pressTV/Video button on your TVto select theinput from theDVD player.
You can enjoy DVD quality video on TV screen.
Connect to aTV equipped with
external connection jacks

Using Card Reader
The player hasa 3-in-1 cardreader, acceptingMMC(Multimedia card), SD(Secure digital card) and MS (Memory
stick).
Inserting a memorycard
1.Make surethat no discis placed onthe Player.
2.Insert thecard into theslot with thegold contacts facingup. Gently push the card
in all theway until thecard is fixedin place.
WARNING: Be careful notto insert thecard in thewrong direction, orit is forced in, the
card may bedamaged, or dataon the cardmay be lostor corrupted. If the
player is notrecognizing the card,or if itdoes not fitcorrectly, re-orientate
the card andtry reinserting it.
Removing a memorycard
You can remove thecard anytime evenit is playing.Toremove a card, grasp the end of
the card andremove the cardfrom the slot.
Playing a memorycard
1.Insert thecard and thescreen will displaythe MP3 playback(default). Use direction
key ( and ) to selectthe file andpress ENTER on the remotecontrol or OK
on the Player toplay.
2.To access otherfile format, suchas JPEG andDivX, press or twice to movethe
cursor to the“Media Selection” at the lowerright of thescreen and pressENTER
on the remotecontrol or OK on the Playerto make theselection.
3.Press tomove the cursorto the file-listand use toselect file toplay.
[MP3_01]TRACK01.MP3
01.MP3_01
02.MP3_02
03.MP3_03
04.MP3_04
05.MP3_05
001.TRACK01
002.TRACK02
003.TRACK03
004.TRACK04
005.TRACK05
006.TRACK06
007.TRACK07
008.TRACK08
009.TRACK09
010.TRACK10
Media Selection
Card slot
8

Using USB Port
The player accepts mostUSB devices such asMP3, DSC, USB- drive,Digital Camcorder etc. TheUSB in this
player is version 2.0.
Pluging a USBdevice
1.Remove thedisc from theplayer.
2.Plug inthe USB deviceto the USBport on theplayer.
Removing a USBdevice
You can remove the USB device anytimeeven it isplaying. To remove theUSB device, simplygrasp the end of the USB
and remove itfrom the slot.
Playing a USBdevice
1.Insert theUSB device andthe screen willdisplay the MP3playback (default). Usedirection key ( and ) to
select the fileand press ENTER on the remotecontrol or OK on the Player to play.
2.To access otherfile format, suchas JPEG andDivX, press or twice to movethe curser tothe “Media Selection”
at the lowerright of thescreen and pressENTER on the remotecontrol or OK on the Playerto make theselection.
3.Press tomove the cursorto the filelist and use to select fileto play.
USB slot
9

Using the AC Adaptor
This portable DVDplayer can bepowered byAC through thesupplied switching power AC adaptor. It can also use the
supplied battery packto power.
When theAC adaptor isconnected to theunit and powered,the unit will be automatically powered by the AC power.
AC adaptor
To home power outlet
Power cord
To DC12V IN on the DVD player
Important !
Always turnoff the DVDPlayer before connecting or disconnecting the AC cord.
. Using adifferent type ofadaptor may cause malfunction or
damage to theproduct.
Only use theAC adaptorsupplied with thisPlayer
When theAC adaptor isused for prolongedperiod of time,the adaptor may heat up, thisis normal andis not a
cause for concern.
When not usingthe adaptor,unplug it fromthe outlet.
10

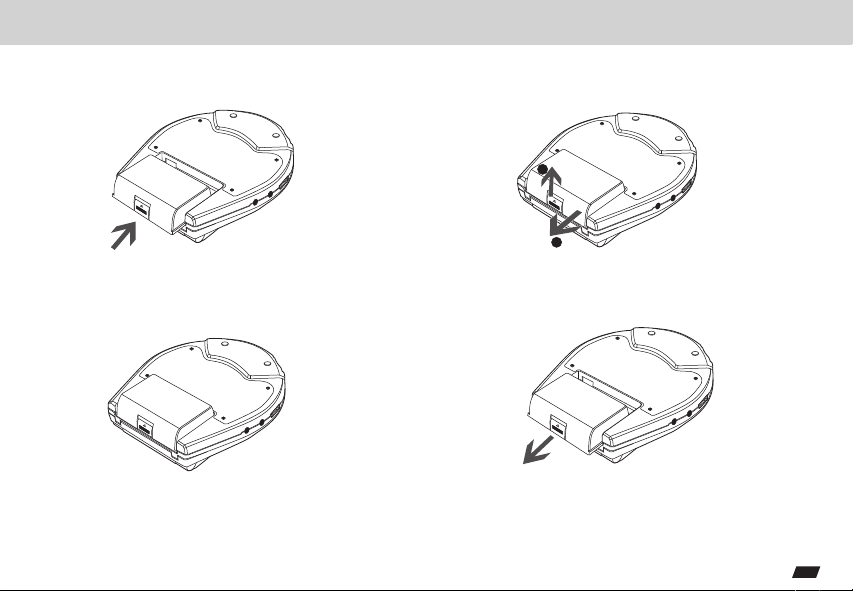

Using the Battery Pack
Installing the batterypack Removing the batterypack
1
2
Slide the batterypack into thebattery compartment slot.
Push in thebattery until itclicks into place.
(1)Push up thelock and.
(2) Slide outthe battery pack.
Slide out thebattery pack completelyout and removeit.
11

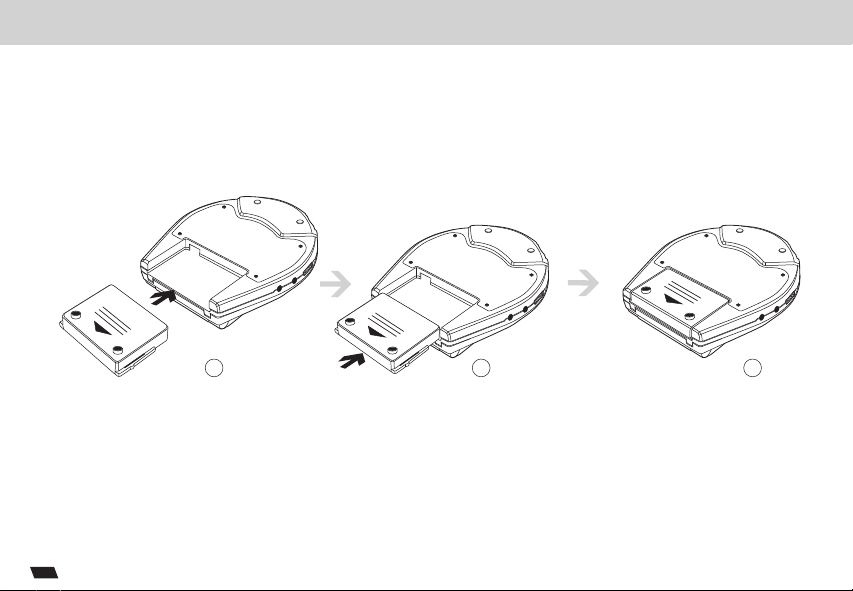

Using Battery Cover
123
12
When you useAC forpower, youcan replace thebattery pack witha "Battery Cover."
1. Place theBattery Cover onthe battery compartment.
2. Slide inthe Cover.
3. Push theCover until itclicks to place.

Charging the battery pack
Charging the batterypack
1. Attachthe battery packto the Player.
2. Use theAC adapterto charge thebattery pack. Makethe connection as illustrated below.
3.Slide POWER to ON. ( ThePlayer must be turned on to charge the battery).
AC adaptor
To home power outlet
Power cord
To DC12V IN on the DVD player
LED Indicator
During charging, thered and greenLEDs blink alternatively.
When the batteryis fully charged,the orange LEDstays lit .
When the Playeruses battery forpower, steadyred LED lights.
If the batterypower is low, the redLED blinks. LED INDICATOR
13

Cautions in Using Battery Pack
Danger!
Strictly follow thesesafety information whenusing the batterypack, otherwise, a short circuit, overheating, smoke,
fire, or damageto the productmay result.
Never disassemble ormodify the batterypack in anyway. Donot touch theterminal of thebattery pack witha metal
object.
Do not placethe battery packin direct sunlight,dashboard of avehicle, or high temperature place. It can cause
explosion or fire.
Do not exposethe battery packto water,fire, or heat.
Always usethe includedAC adaptor whencharging the batterypack.
This battery packis designed exclusively for your portable DVD player. Do not useit with otherdevices.
Warning!
1. Do notdrop or subjectto strong vibration.
2. Keep outof reach ofchildren.
3. The batterypack may leak fluid that is harmful to your eyes.
If this fluidgets in youreyes, wash eyesimmediately with largeamounts of running water and get medical attention
immediately.
If the fluidgets on yourskin or clothing,wash immediately withwater.
Caution!
1. When notusing the batterypack, remove itand store ina cool place.
2. Keep thebattery pack freefrom smoke, steam,moisture, and dust.
3. Using thebattery pack under0 C (32 F) or over 40 C(104 F) can
cause reduced batterylife.
x
14

Playing a Disc
1.Make surethe unit hasthe power eitherfrom the batterypack or the AC adaptor.
2.Loading adisc, following thesesteps:
Press the buttonbelow the screento open theLCD screen.
Slide OPEN latchin the directionof arrow toopen the disccompartment cover.
Place a discinto the traywith the labelside facing up.
Close the disccover.
3.Turn on the Power
Slide POWER to ON.
Press STANDBY on the remotecontrol to turnon the Player. You can alsopress PLAY/PAUSE ( ) on the Player to
turn on.
Preparation for Playback
PLAY/PAUSE
Turning ON /OFF theplayer
To Turn On The Player
1.Slide POWER on the Player to ON, this will put the Player on standby mode.
2.Press on the Player to turn on the power.
3.You can also press STANDBY on the remote control to turn on the power.
To put the Player on standby mode
Press STANDBY on the remote control.
To Turn Off The Power
Slide POWER on the Player to OFF.
Press PLAY/ PAUSE (on the Playeror on the remote control ) to start play.
STOP
Press once tostop playback.
15

Playing a Disc
Skip
You can skip chapters on DVD-Video, trackson CDs, andVideo CDs.
1.To skip forward,press during playor while paused;it skips tothe next chapteror track. Eachpress increases
the numbers ofskips.
2.To skip toprevious chapter ortrack, press .
Fast Forward and Reverse
1.During playback,to fast forward,repeatedly press toincrease the fast forward speed 2x, 4x, 8x, 20x.
2.During playback,to fast rewind,repeatedly press toincrease the fastreverse speed 2x ,4x ,8x ,20x.
3.To resume normalplayback, press .
Slow Motion
1.During playback,repeatedly press SLOW to play at1/2, 1/3, 1/4,1/5, 1/6, 1/7speeds.
2.To resume normalplayback, press .
You can only perform slow motion playin the forwarddirection.
Resume
This Player providesa unique resumefunction for makingviewing movie moreconvenient. Follow these steps
1.When youwant to interruptthe playback andcome back laterto play where you interrupted it, you can press OPEN
on the Playerto open thedisc compartment cover.
2.You can now turn off thepower, putit on standby, or even remove the disc from the Player, and whenyou play the
same disc nexttime, the discwill play fromwhere it wasinterrupted.
16

Playing a Disc
Mark (Bookmark)
The Mark function lets you select parts of a DVD so that you can quickly find the section at a later time.
Follow these steps to set up marker playback:
1.During playback, press MARK on the remote control.
2.Use to select the desired underscore.
3.When you reach the scene you want to mark, pressENTER to confirm; and the underscore changes to a number
(1, 2, 3, 4 or 5 ).
4.Repeat the above procedure for a new scene. You can have up to 5bookmarks.
You can perform marker playback at any time by pressing MARK, and using to select one of the marks, then
pressing (on the Player or on the remote control )to start playing the bookmarked scene. The playback
continues until the end of the disc. Repeat the above to play the other marked scenes.
GOTO
You can go directly to a desired chapter and play, or play at a desired point of time. Follow these steps:
(A)To play a specific chapter
1. Press GOTO, use to select title (TT) and chapter
(CH) and enter the desired number.
2. Press ENTER to confirm and start play.
(B)To play from a specific point of time.
1. Press GOTO, repeatedly press to move to the time
display and it changes 00:00:00.
2. Fill in the time (hour: minute: second).
3. Press ENTER to confirm and start play.
Repeat Playback
""
You can play achapter, atrack, a title,a file orthe entire discrepeatedly.
1.During playback,repeatedly press REPEAT to choose aRepeat option. Dependingon the typeof disc,the Repeat
options may bedifferent.
2.To cancel repeatplayback, repeatedly pressREPEAT until REP:[ OFF ] appears on thescreen.
17

Playing a Disc
MUTE
1. Repeatedly pressMUTE until MUTE appears on thedisplay to silencethe audio. PressMUTE again to turnon
audio.
""
ZOOM
1.Press ZOOM repeatedly during playbackor pause toenlarge (2X, 3x,4x, ) orreduce (1/2, 1/3,1/4) the image.
2.Use directionkeys ( and ) to movearound (pan andscan) the enlargedimage.
MENU/PBC
Press MENU/PBC to return to the disc's Start Menu if it has the Start menu, if not, appears.
Use TITLE to return to the beginning of the disc if there is no Start Menu.
" INVALID KEY"
" "
LANGUAGE
To switch voice language, press LANGUAGE, the currently selected language is displayed on the screen.
Repeatedly press LANGUAGE to select other language if the disc has multiple languages.
You can also switch the voice language in disc menu screen by pressing MENU.
SUBTITLE
Repeatedly press SUBTITLE during playback tochange the subtitle'slanguage if thedisc has multiple language
substitle. You can turnoff subtitle when OFF is selected.""
ANGLE
With DVDs featuring recordings of pictures shot from different angles, you can choose any desired viewing angle
during playback.
Toswitch to differentview angle, press ANGLE, the currently selected angle isdisplayed on thescreen, repeatedly
press ANGLE to select yourdesired angle.
18
