IMPORTANT NOTE
Congratulations! You are the owner of a carefully designed and manufactured
piece of equipment. We thank you for trusting in us and choosing our stereo
audio player: eSAS-BT. In order to get the optimum operation and efficiency
from this unit, it is VERY IMPORTANT - before you plug anything in - to read
this document very carefully and bear in mind all considerations specified
within. We strongly recommend that maintenance be carried out by our
Authorized Technical services. Keep this document for future references.
PRECAUTIONS
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•Clean only with dry cloth.
•Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
•Do not defeat the safety purpose of the polarized or grounding type plug.
•Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer.
•Unplug the apparatus during lightening sorts or when unused for long periods of
time.
•Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
•Disconnecting from mains: Switching off the POWER switch all the functions and
light indicators of the device will be stopped, but fully disconnecting the device from
mains is done unplugging the power cord from the mains input socket. For this
reason, it always shall remain readily operable.
Warning: an inappropriate usage of the device could cause
injury, death or damage the apparatus.

3
INTRODUCTION

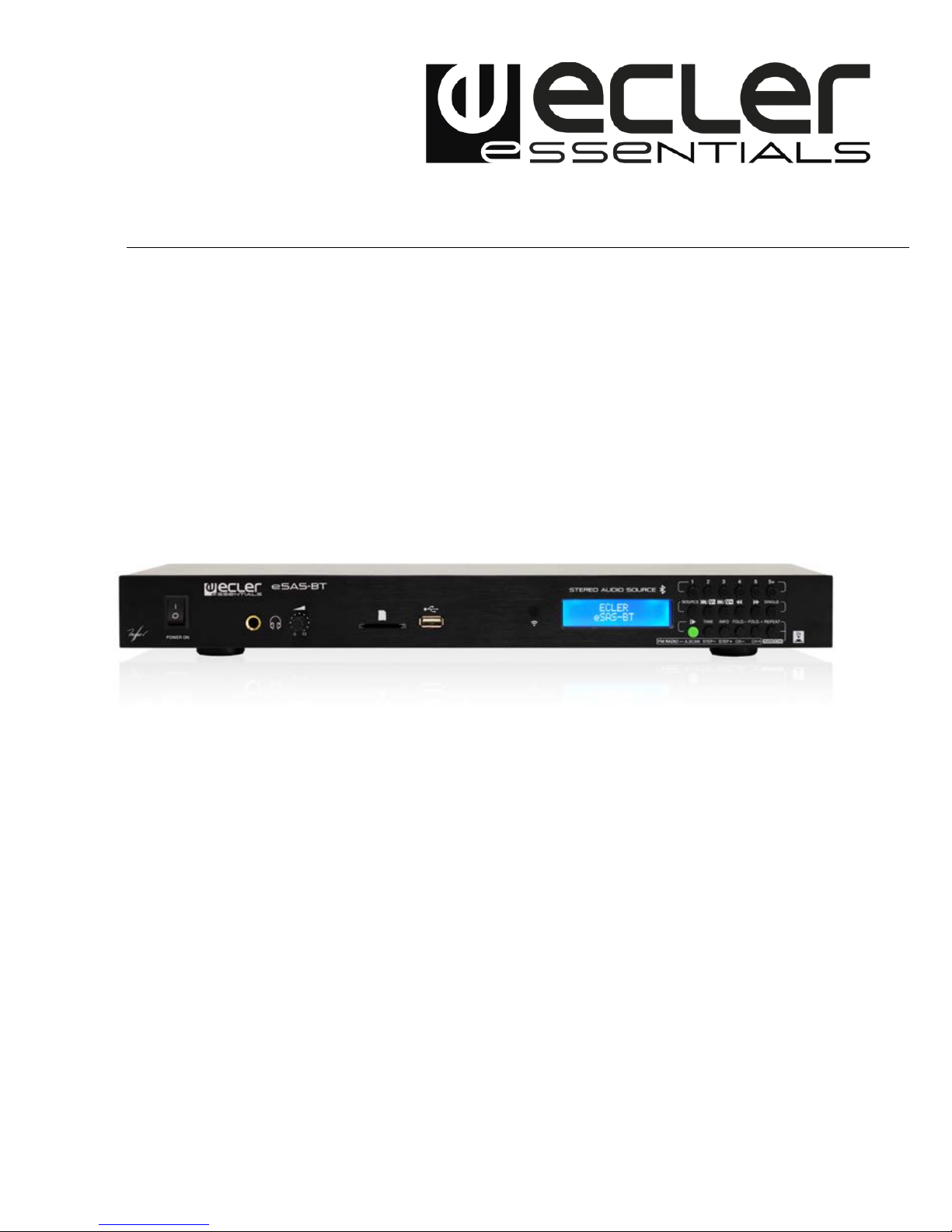

eSAS-BT is a stereo audio source including FM tuner, USB port, SD slot and Bluetooth
connection. It features balanced and unbalanced stereo audio outputs and
headphones output (stereo jack) with volume control in frontal panel. IR remote
control, FM antenna, stereo RCA cable and rack-mount bracket included.
KEY FEATURES
•1 stereo balanced audio output, XLR connectors.
•1 stereo balanced audio output, RCA connectors.
•1 stereo headphones output in front panel, stereo Jack connector.
•FM antenna connector in rear panel.
•1 USB port & 1 SD card slot for local content storage.
•Bluetooth audio receiver.
•Compatible audio formats: mp3, AAC, WAV, AIFF y FLAC.
•Mains AC Voltage input: 90~264VAC, 47/63Hz
•Indicators and controls in front panel:
oLCD screen.
o18 keys for navigation and control.
oIR receiver.
oVolume control for headphones audio output.
•Accessories included: FM antenna, IR remote control, 2xRCA cable (1,3m) and
rack mount accessory.
REAR PANEL
1. FM antenna connector.
2. Stereo balanced audio output, XLR connectors.
3. Stereo unbalanced audio output, RCA connectors.
4. Mains socket

4

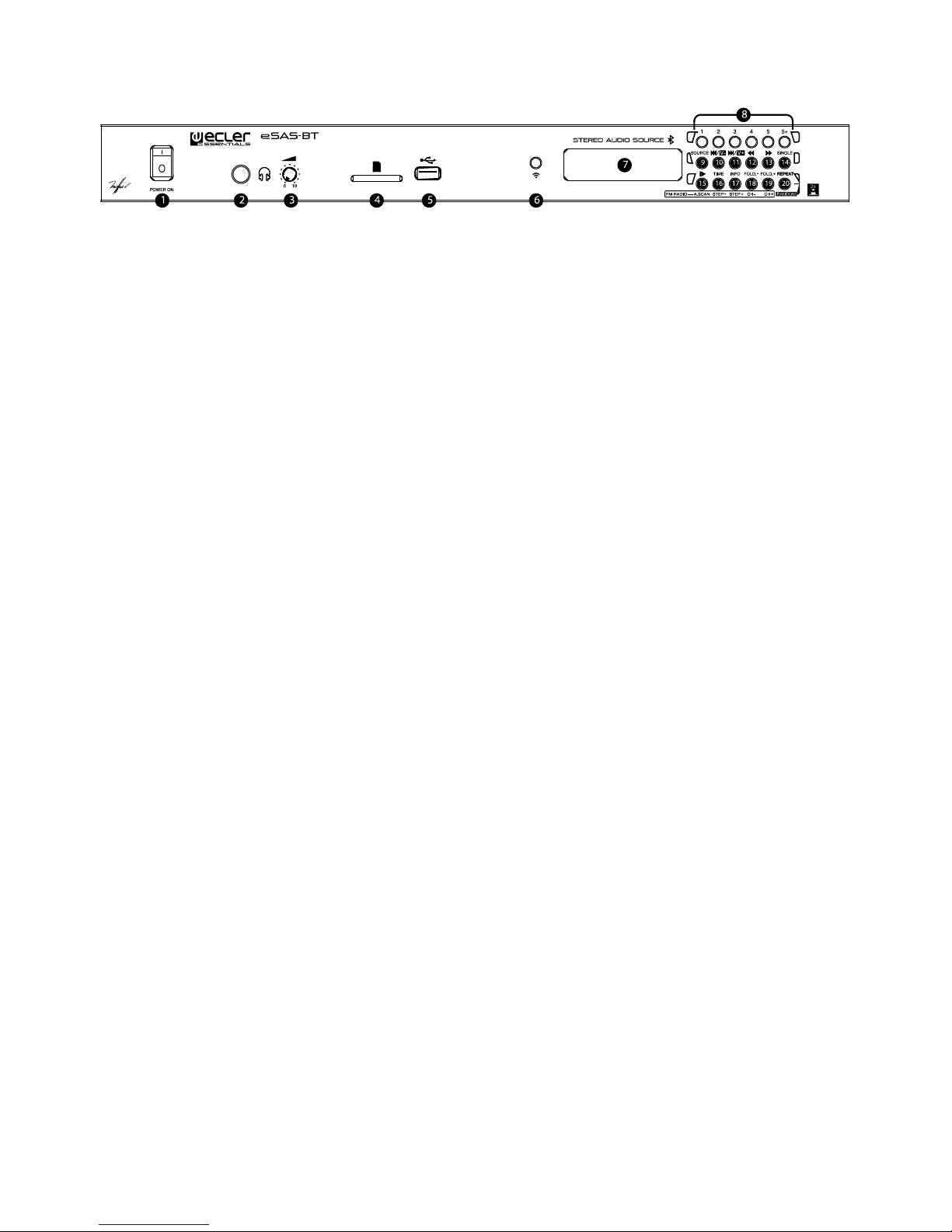

FRONT PANEL
1. ON / OFF switch
2. Headphones output: stereo Jack 6,3mm
3. Headphones volume control
4. SD/SDHC slot
5. USB port
6. IR receiver (remote control)
7. LCD screen
8. Track selection keys
9. Source selection key
10. PREV/ volume- key: hold to decrease the output volume
11. NEXT/ volume+ key: hold to increase the output volume
12. RW key: rewind
13. FF key: fast forward
14. SINGLE key (Play one / Play all)
15. PLAY / PAUSE key
16. TIME key (elapsed time / remaining time)
17. INFO key
18. FOLD.- key (folders navigation)
19. FOLD.+ key (folders navigation)
20. REPEAT / RANDOM key (hold to select random mode, RANDOM)
FM mode:
15. Auto-scan key: radio stations automatic search
16. STEP- key (FM frequency search)
17. STEP+ key (FM frequency search)
18. CH+ key (FM radio preset selection)
19. CH+ key (FM radio preset selection)

5
START-UP
FM
Press SOURCE key to select FM mode.
Automatic search: press A.SCAN to start the automatic channels search. The system
will automatically store available radio stations in presets.
Manual tuning mode: press STEP-/STEP+ to adjust desired FM frequency. You can
also adjust FM frequency by means of RW/FF keys.
Channel selection: press CH-/CH+ to navigate through saved channels (presets). You
can also navigate by means of PREV/NEXT keys.
If you want to access directly to a channel preset, you can use track selection keys:
key 4 will select channel preset 4; if you press key 5+ and then key 4, channel preset
9 (5+4=9) will be selected. If you press 5+ several times, you will be able to select
channel presets with higher index: 5+5+5+1canal 16.
Volume control: press V- or V+ to increase or reduce the current audio volume.
SD / USB
Press SOURCE key to choose SD or USB mode. If there is no SD card, the display will
show “NO SD”. If files in the SD card are not supported or there are no files, the
display will show “SD LOAD FAIL! “. If there is no USB device, the display will show
“NO USB”. If files in the USB device are not supported or there are no files, the display
will show “USB LOAD FAIL! “.
Play control: press PLAY/PAUSE to start / pause. Use PREV/NEXT to navigate
through tracks. Press RW/FF to rewind / fast forward the current song.
If you want to access directly to a track, you can use track selection keys: key 4 will
select track 4; if you press key 5+ and then key 4, track 9 (5+4=9) will be selected. If
you press 5+ several times, you will be able to select tracks with higher index:
5+5+5+1canal 16.

6
The display shows the track index: T01/12; where 01 would be the current track
index and 12 the number of all tracks available in the current folder.
Folders navigation: press FOLD.+ key to select the next folder; press FOLD.-key to
select the previous folder.
The display shows the folder index: F03/19; where 03 would be current folder index
and 19 the number of all folders available.
TIME key changes time display mode: elapsed time / remaining time.
SINGLE key changes playback mode: Play one: current track will play once (the
display shows “S.”). Play all: all compatible files will play (the display shows “C.”).
REPEAT/RANDOM key changes playback repeat mode. Press this key to repeat one
track (the display shows “R1”) or repeat all the tracks (the display shows “RA”). Hold
this key to select random mode (the display shows “RM”).
Press INFO to display current track information: title, artist, etc.
Volume control: press V- or V+ to increase or reduce the current volume.
BLUETOOTH CONNECTION
Press SOURCE key to choose Bluetooth mode. If there is no connection, the display
will show “BLUETOOTH DIS”. When the device is connected successfully, the display
shows “BLUETOOTH CON”. Regarding Bluetooth pairing, eSAS-BT is displayed in the
client devices as "ECLER eSAS-BT". No password required.
Play control: press PLAY/PAUSE to start / pause. Use PREV/NEXT to navigate
through tracks.
Volume control: press V- or V+ to increase or reduce the current volume.

7
REMOTE CONTROL
You can perform all the features available in eSAS-BT’s front panel from the remote
control, plus some added functions:
•RETURN: allows going back from a sub-menu to its parent menu.
•EQ: changes different equalization curves, suitable for different music
genders: classic, pop, rock, jazz, std (EQ deactivated).
•Added track selection keys: 0 is also available in key 10.
•GOTO/MEMORY (FM mode): allows introducing FM frequency manually.
Press GOTO to access edition sub-menu. Use tracks selection keys to enter the
frequency (you can use key 10 to introduce 0). Press MEMORY key to save the radio
station in the selected channel.
•MUTE: mutes the audio output.

8
TECHNICAL SPECIFICATIONS
eSAS-BT
Audio Outputs
1xstereo bal. (XLR) + 1xstereo unbal. (RCA)
+ 1xstereo jack (headphones)
Local media
USB, SD/SDHC, FM tuner & Bluetooth
connection
USB & SD card interfaces
Support FAT 32 (up to 32GB)
Bluetooth
BT2.1+EDR
Audio formats
mp3, AAC, WAV, AIFF & FLAC
Accessories supplied
IR remote control, FM antenna, RCA stereo
cable and rack mount bracket
Mains voltage
90~264VAC, 47/63Hz
Dimensions (HxWxD)
44x435x132mm
Weight
1,4 kg.
Remote control
Batteries
2xAAA batteries (not included)
PACKING LIST
•Stereo audio player with Bluetooth: eSAS-BT
•FM antenna
•Remote control: 2xAAA batteries (not included)
•2xRCA cable (1,3m)
•Rack mount accessory
•Warranty

9
