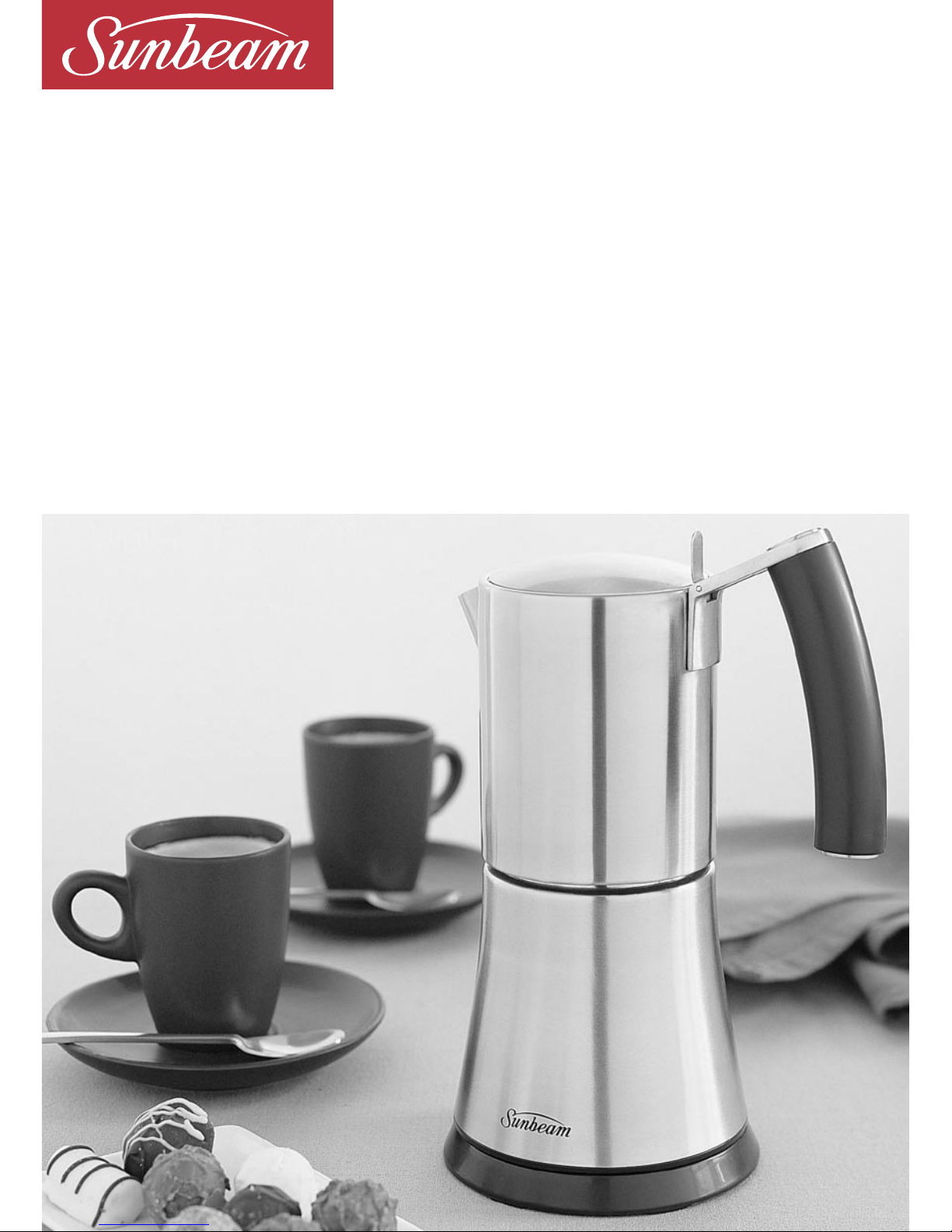

Sunbeam Cafe Moka MM8400 User manual

Café Moka
6 cup caffé maker in brushed stainless steel
Instruction Booklet
MM8400
Please read these instructions carefully
and retain for future reference.

Sunbeam’s Safety Precautions 2
Features of your Café Moka 4
Using your Café Moka 6
Moka coffee guide 9
Troubleshooting Guide 10
Cleaning 11
Contents

2
Sunbeam’s Safety Precautions
SAFETY PRECAUTIONS FOR YOUR
SUNBEAM CAFÉ MOKA.
• Always operate the appliance on a flat,
level surface.
• Do not operate without water in the base.
• Boiling water will scald. Do not leave a
boiling or hot caffé maker near or where
children may touch it.
• Do not leave the power cord near the edge
of a bench top where children may touch
or pull it.
• Do not allow the power cord to come into
contact with the hot/metal surfaces of the
appliance.
• Your Café Moka must only be used with the
power base supplied.
• Do not move the caffé maker while
switched on.
• This appliance has been manufactured to
make coffee. Other than ground coffee
never use any other extracts as these may
block the filtering holes.
• Keep hands away from hot/metal surfaces.
• Only operate the appliance when connected
to a power outlet, never use it directly on
the stove top.
• Ensure that the pressure release valve in
the base of the caffé maker is not covered
by water. The maximum amount of water
that can be placed in the caffé maker base
is 350mLs.
• Switch off and unplug the appliance at
power outlet before cleaning.

3
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line
Ensure the above safety precautions are understood.
Sunbeam’s Safety Precautions
Sunbeam are very safety conscious when
designing and manufacturing consumer
products, but it is essential that the product user
also exercise care when using an electrical
appliance. Listed below are precautions which
are essential for the safe use of an electrical
appliance:
• Read carefully and save all the instructions
provided with an appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug
when the appliance is not in use and
before cleaning.
• Do not use your appliance with an extension
cord unless this cord has been checked
and tested by a qualified technician or
service person.
• Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.
• Close supervision is necessary when your
appliance is being used near children or
infirm persons.
• Never leave an appliance unattended while
in use.
• Young children should be supervised to ensure
that they do not play with the appliance.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot
gas flame, electric element or on a heated
oven. Do not place on top of any other
appliance.
• Do not let the power cord of an appliance
hang over the edge of a table or bench top or
touch any hot surface.
• For safety reasons and to avoid maintenance
by unskilled persons, some appliances are
‘sealed’ using tamperproof screws. Such
appliances should always be returned to the
nearest Sunbeam Appointed Service Centre
for adjustment or repair if required.
• Do not operate any electrical appliance with
a damaged cord or after the appliance has
been dropped or damaged in any manner. If
damage is suspected, return the appliance
to the nearest Sunbeam Appointed Service
Centre
for examination, repair or adjustment.
• For additional protection, Sunbeam
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water
or any other liquid unless recommended.

4
Features of your Sunbeam
Café Moka
Upper stainless steel caffé chamber
Holds the freshly brewed moka coffee.
Stainless steel base
The base can be filled with enough water to
make 6 cups of moka coffee.
Stainless steel concealed element
The element is concealed in the base of
the caffé maker for longer element life. The
smooth stainless floor reduces scale build up
and allows for easy cleaning.
360 degree cordless power base
Designed to allow you to place the caffé
maker on the base in any direction.

5
Hinged lid
Contoured handle
Designed for easy handling and pouring.
Pressure release valve
Ensure that the pressure release valve is at
no time covered by water.
Stylish brushed stainless steel design
Long life stainless steel to suit any kitchen
décor.
Neon power switch with auto cut out
Lights up to indicate that the caffé maker is
on and brewing. Switches the caffé maker off
automatically.

6
Using your Sunbeam Café Moka
1. Place your caffé maker on a flat, level
surface.
2. Unscrew the upper caffé chamber from
the base, by holding the base with
one hand and turning the upper caffé
chamber anticlockwise with the other, see
figure 1.
3. Remove the stainless steel filter, and
fill the base with fresh, cold water, see
figure 2. Clear instructions indicating the
correct quantity of water required for a
standard coffee are shown in the Moka
Coffee Guide on page 9.
Note: Do not fill water above level of pressure
release valve.
Note: Do not operate the Sunbeam Café Moka
without water in the base and ensure the
water is cold. Do not use hot water for faster
operation.
4. Insert the stainless steel filter into the
base, see figure 3.
Figure 1
Figure 2
Figure 3
Pressure release valve
(Do not fill water
above this level).

7

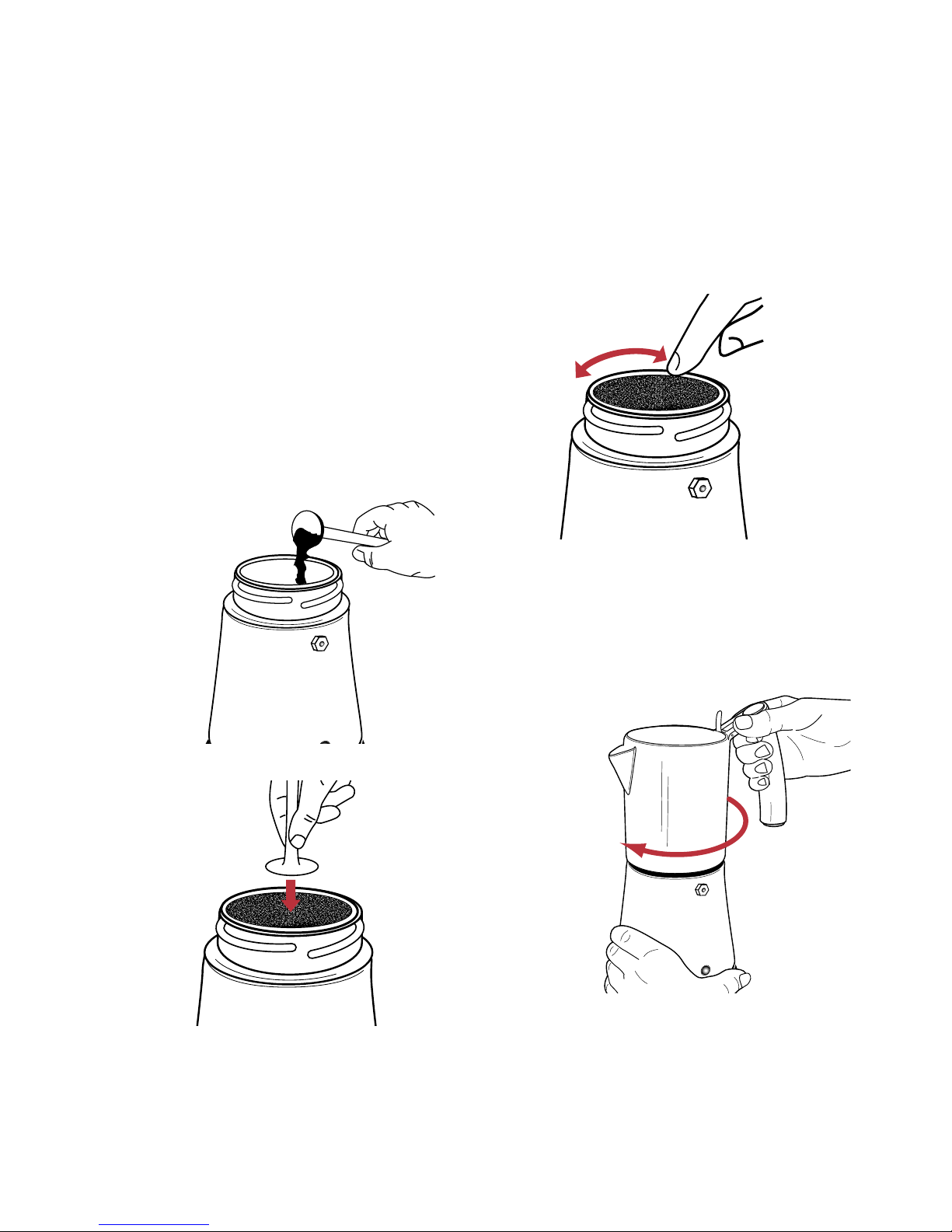

5. Using the measuring spoon supplied,
fill the stainless steel filter with a
medium-fine espresso grind, see figure
4. Level off and with the other end of the
measuring spoon, use the tamper to push
(pack) down the coffee grinds, see figure
5. Wipe around the edge of the filter to
remove any coffee grinds, see figure 6.
6. Secure the upper caffé chamber to the
base, by holding the base with one hand
and screwing/turning the upper caffé
chamber clockwise with the other, see
figure 7.
7. Place the caffé maker onto the power
base and connect the plug into a
230/240 volt AC power outlet. Turn the
power on.
Important: Only operate the appliance when
connected to a power outlet, never use it
Using your Sunbeam Café Moka (continued)
Figure 4
Figure 5
Figure 6
Figure 7

8
Using your Sunbeam Café Moka (continued)
directly on the stove top.

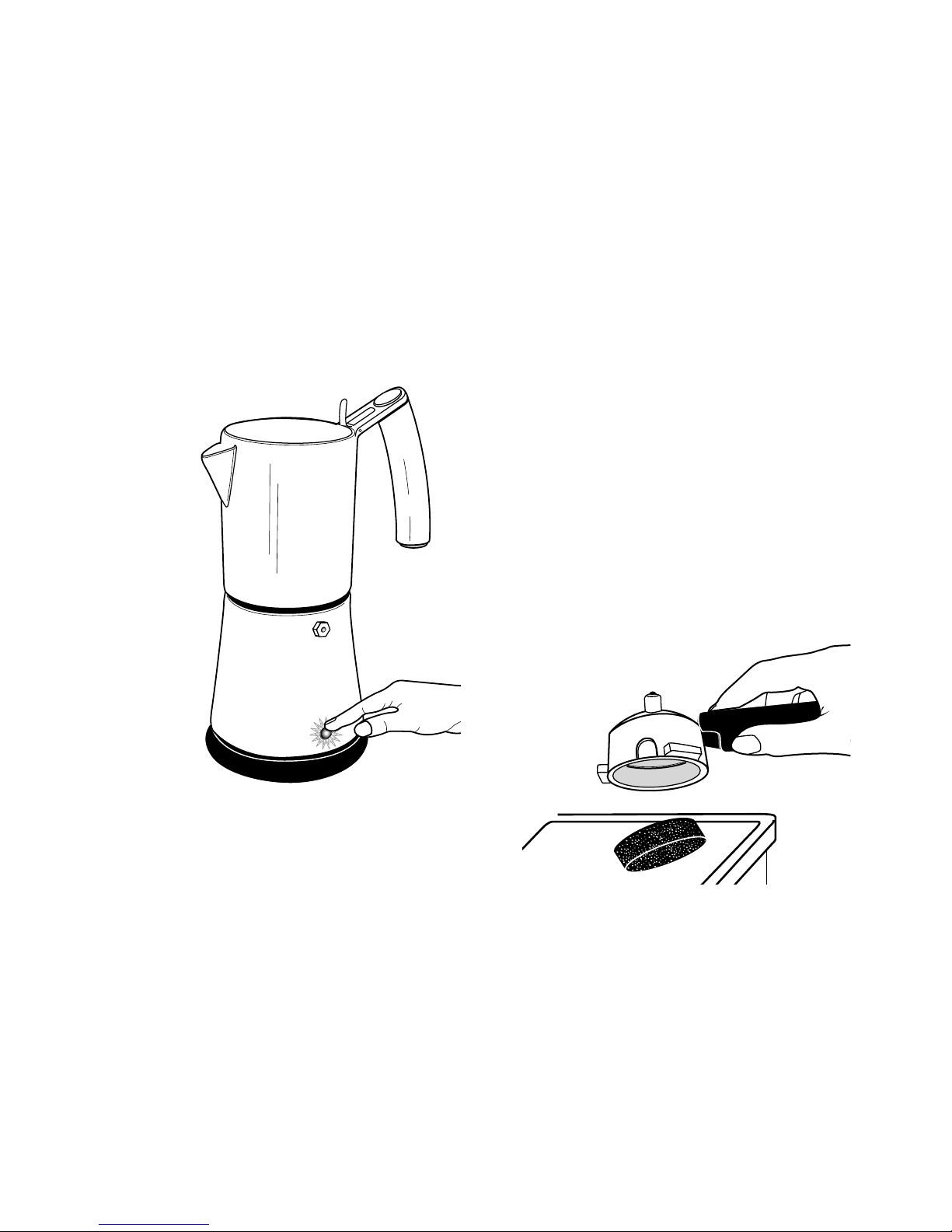

8. Press the power button. The neon light
will illuminate to indicate the caffé maker
is on and brewing, see figure 8.
9. The coffee will start to be released after
approximately 2 minutes. The caffé
maker will switch off automatically once
all the water has passed through the
coffee grinds and into the upper caffé
chamber.
10. Lift the caffé maker from the power base
and pour the moka coffee into cups.
11. When making consecutive cups of coffee,
allow the base of the caffé maker cool
down. Once cooled unscrew the upper
caffé chamber from the base, by holding
the base with one hand and turning the
upper caffé chamber anticlockwise with
the other, see figure1.
12. Lift the filter with the used coffee grinds
from the base.
13. To remove the used coffee grinds from
the filter simply turn the filter upside
down over a bin and spoon out the used
coffee grinds, see figure 9. Figure 9
Figure 8

9
Moka Coffee guide
For best results regardless of the amount or
strength of coffee being made, the stainless
steel filter needs to be completely filled with
ground coffee. Using the measuring spoon
supplied, this is approximately 6 level scoops
of ground coffee.
Number of coffee’s Water quantity
made (35mLs)
1 80mLs
2 110mLs
3 145mLs
4 180mLs
5 215mLs
6 250mLs
For a softer tasting coffee we recommend
that using the measuring spoon supplied that
you fill the stainless steel filter with only 4
level scoops of ground coffee and to produce
6 cups of coffee fill the base with 250mLs
of water.

10
Problem Possible cause What to do
No coffee is released into No water in the base. Fill the base with water
the upper caffé chamber.
Upper caffé chamber filter Clean using warm soapy
may be blocked. water and a fine bristled
brush and if necessary clean
using a pin.
The filter is blocked as the Ensure you are using a
coffee grounds are too fine or medium-fine grind of coffee
tamped down too hard. and do not compact/tamp
the coffee grinds so firmly.
The filter is blocked. Empty out the filter and
clean with a bristled brush
under water to remove any
coffee granules blocking
the filter holes. If necessary
clean using a pin.
The coffee takes a long Coffee grounds are too fine Ensure you are using a
time to flow into the upper or tamped down too hard. medium-fine grind of coffee
caffé chamber. and do not compact/tamp
the coffee grinds so firmly.
The filter is blocked. Empty out the filter and
clean with a bristled brush
under water to remove any
coffee granules blocking
the filter holes. If necessary
clean using a pin.
Upper caffé chamber filter Clean using warm soapy
may be blocked. water and a fine bristled
brush and if necessary clean
using a pin.
Coffee leaks from between The rubber seal is worn or Contact a Sunbeam Service
the upper caffé chamber damaged. Centre.
and the base of the
Sunbeam Café Moka.
Upper caffé chamber filter Clean using warm soapy
may be blocked. water and a fine bristled
brush and if necessary clean
using a pin.
Troubleshooting guide

11
Important: Before cleaning the caffé maker
ensure that the appliance has cooled down.
Always disconnect the caffé maker from the
power outlet before cleaning.
Never immerse the caffé maker switch area,
cord or power base in water, or allow moisture
to come into contact with these parts.
As the coffee making process involves
extracting oils out of coffee grinds, deposits
of these oils build up over time and affect
the taste of the coffee and operation of the
caffé maker. Cleaning to remove these oils is
essential to ensure the caffé maker continues
to produce good tasting coffee and to keep it
operating effectively.
Stainless steel filter
The stainless steel filter should be washed
after each use by rinsing it under warm
water. Firstly remove the used coffee grinds
from the filter by simply turning the filter
upside down and spoon out the used coffee
grinds into bin, see figure 9. Wash at regular
intervals in warm soapy water using a mild
detergent.
Should the holes in the filter become clogged
with coffee granules use a fine bristled brush
and if necessary clean using a pin.

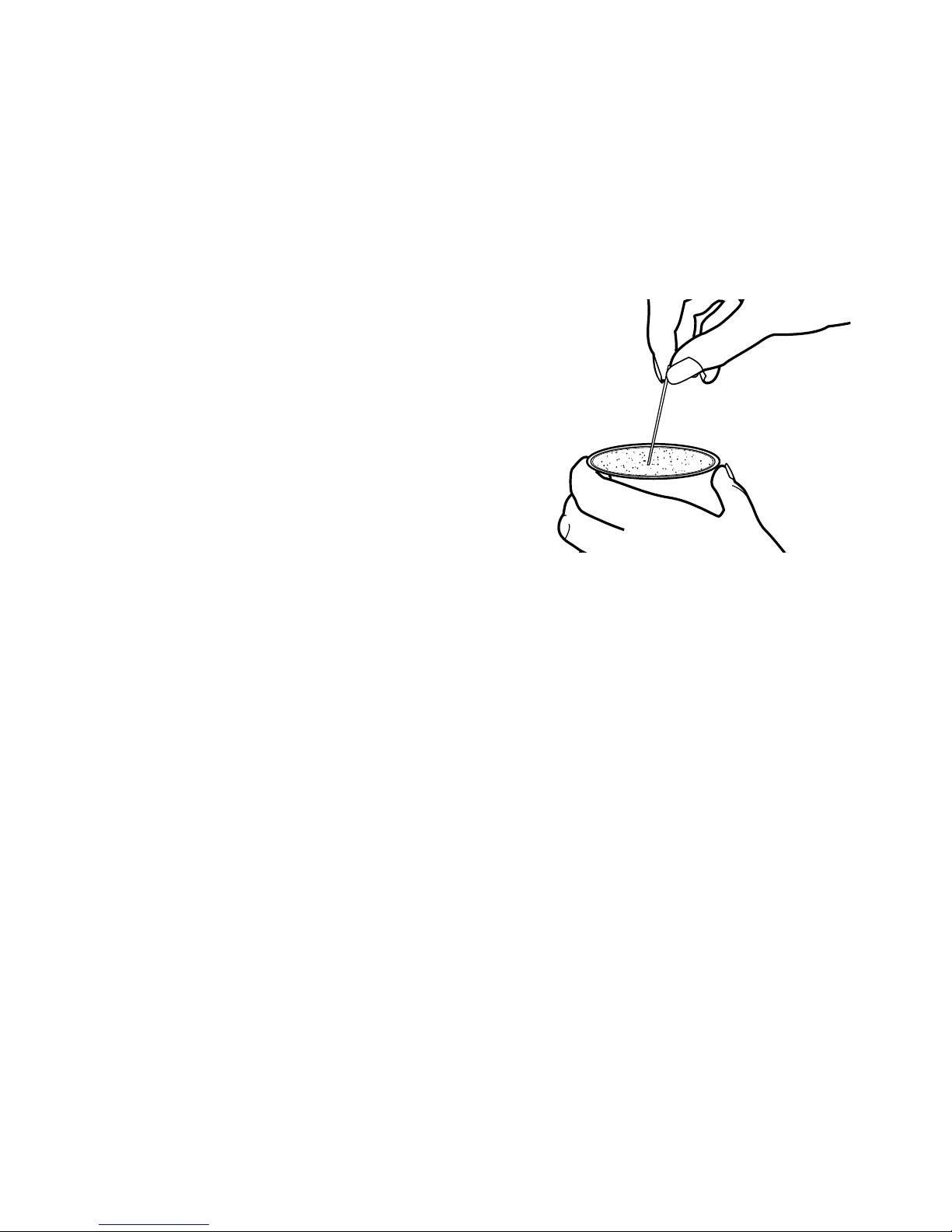

Upper caffé chamber filter
The filter located in the underside of the
upper caffé chamber also needs cleaning
at regular intervals. Should the holes in the
filter become clogged with coffee granules,
clean using warm soapy water and a fine
bristled brush and if necessary clean using a
pin, see figure 10.
Upper caffé chamber rubber seal
This seal is located in the underside of the
upper caffé chamber and creates a seal
against the base of the caffé maker when
making coffee.
Over time this seal looses its elasticity and
will require replacement. An indication
that the seal is deteriorating is when steam
escapes from around the base and the upper
caffé chamber during use.
Upper caffé chamber
The stainless steel upper caffé chamber may
be washed with warm, soapy water. Rinse
with clean water and dry.
The brushed stainless steel exterior
The stainless steel surface may be wiped over
with a damp cloth and polished with a soft
dry cloth.
Note: Do not use chemical, steel wool, or
abrasive cleaners to clean the outside of
the caffé maker, as these will scratch the
stainless steel surface.
Cleaning
Figure 10

‘Sunbeam’ is a registered trademark of Sunbeam
Corporation. Café Moka is a trademark of Sunbeam
Corporation.
Made in China. Designed and engineered in Australia.
Due to minor changes in design or otherwise, the
product may differ from the one shown in this leaflet.
Backed by Sunbeam‘s 12 Month Replacement
Guarantee and National Service Network.
© Copyright. SUNBEAM CORPORATION LIMITED 2004.
(INCORPORATED IN N.S.W.) A.C.N. 000 006 771
For more information or advice on this or any other
Sunbeam appliance, visit www.sunbeam.com.au or
contact the Sunbeam Consumer Service Line.
Australia 1800 025 059
New Zealand 0800 786 232.

Consumer Hotline
Australia
1800 025 059
New Zealand
0800 786 232
www.sunbeam.com.au
is a registered Trademark of Sunbeam
Corporation Limited. ACN 000 006 771.
© Sunbeam Corporation Limited 2004.
