Sunbeam WAM5000BK User manual

Shade Select
Vertical Waffle
Maker
User Guide
WAM5000BK

Contents
Sunbeam’s Safety Precautions 1
Features of your Sunbeam Shade Select Vertical Waffle Maker 2
An Introduction to your Sunbeam Shade Select Vertical Waffle Maker 4
Before using your Sunbeam Shade Select Vertical Waffle Maker 4
Preparing Waffles 5
Hints For Tasty Waffles 6
Care and Cleaning 7
Recipes 8
Troubleshooting 11

1
If you have any concerns regarding the performance and use of your appliance,
please visit www.sunbeam.com.au or contact the Sunbeam Consumer Service Line.
Ensure the above safety precautions are understood.
Sunbeam’s Safety Precautions
This symbol indicates, temperature of
accessible surfaces may be high when the
appliance is operating and for some time
after use.
Hot Surface
Do Not Touch
Sunbeam is very safety conscious when designing
and manufacturing consumer products, but it is
essential that the product user also exercise care
when using an electrical appliance. Listed below
are precautions which are essential for the safe
use of an electrical appliance:
• Read carefully and save all the instructions
provided with the appliance.
• Always turn the power off at the power outlet
before you insert or remove a plug. Remove
by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug
when the appliance is not in use and before
cleaning.
• Do not use your appliance with an extension
cord unless this cord has been checked
and tested by a qualified technician or
service person.
• Always use your appliance from a power
outlet of the voltage (A.C. only) marked
on the appliance.
• Children should be supervised to ensure that
they do not play with the appliance.
• The temperature of accessible surfaces may be
high when the appliance is operating.
• Never leave an appliance unattended while
in use.
• Do not use an appliance for any purpose
other than its intended use.
• Do not place an appliance on or near a hot gas
flame, electric element or on a heated oven.
• Do not place on top of any other appliance.
• Do not let the power cord of an appliance hang
over the edge of a table or bench top or touch
any hot surface.
• Do not operate any electrical appliance with
a damaged cord or after the appliance has
been damaged in any manner. If damage is
suspected, return the appliance to the nearest
Sunbeam Appointed Service Centre
for examination, repair or adjustment.
• For additional protection, Sunbeam
recommend the use of a residual current
device (RCD) with a tripping current not
exceeding 30mA in the electrical circuit
supplying power to your appliances.
• Do not immerse the appliance in water
or any other liquid unless recommended.
• Appliances are not intended to be operated
by means of an external timer or separate
remote control system.
• This appliance is intended to be used in
household and similar applications such
as: staff kitchen areas in shops, offices and
other working environments; farm houses; by
clients in hotels, motels and other residential
type environments; bed and breakfast type
environments.
• Refer to "Care and Cleaning" section for
details concerning precautions during use
maintenance.
• Cleaning and user maintenance shall not be
made by children unless they are older than
8 and supervised.
• Keep the appliance and its cord out of reach
of children less than 8 years old.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Keep appliance 15cm away from the wall
when in use.

2
Features of your Sunbeam Shade
Select Vertical Waffle Maker
1. Countdown timer & user
interface
2. Shade Select dial
3. Handle/lock
4. Pouring funnel
5. Accessory: Measuring cup
6. Non-stick grids
OPENCLOSE
OPEN
CLOSE
OPENCLOSE
21
6
5
4
3

3
Control Panel
1. Countdown timer
2. Shade Select dial
COOKING
FLUFFY CRISPY
2:25

4
An Introduction to your Sunbeam
Shade Select Vertical Waffle Maker
Before using your Sunbeam Shade
Select Vertical Waffle Maker
Now you and the whole family can make
golden brown, fluffy waffles at home, using
your choice of delicious and imaginative
fillings & toppings.
Prepare waffles for breakfast or brunch and
pile them high with fresh fruits, whipped
cream or just plain butter and warmed
syrup.
With your Sunbeam Shade Select Vertical
Waffle Maker the unique upright pouring
funnel helps to prevent messy overflow,
giving you the perfect fill for perfect
waffles every time! Plus, the non-stick
grids make clean up easy. It's a great
addition to any kitchen.

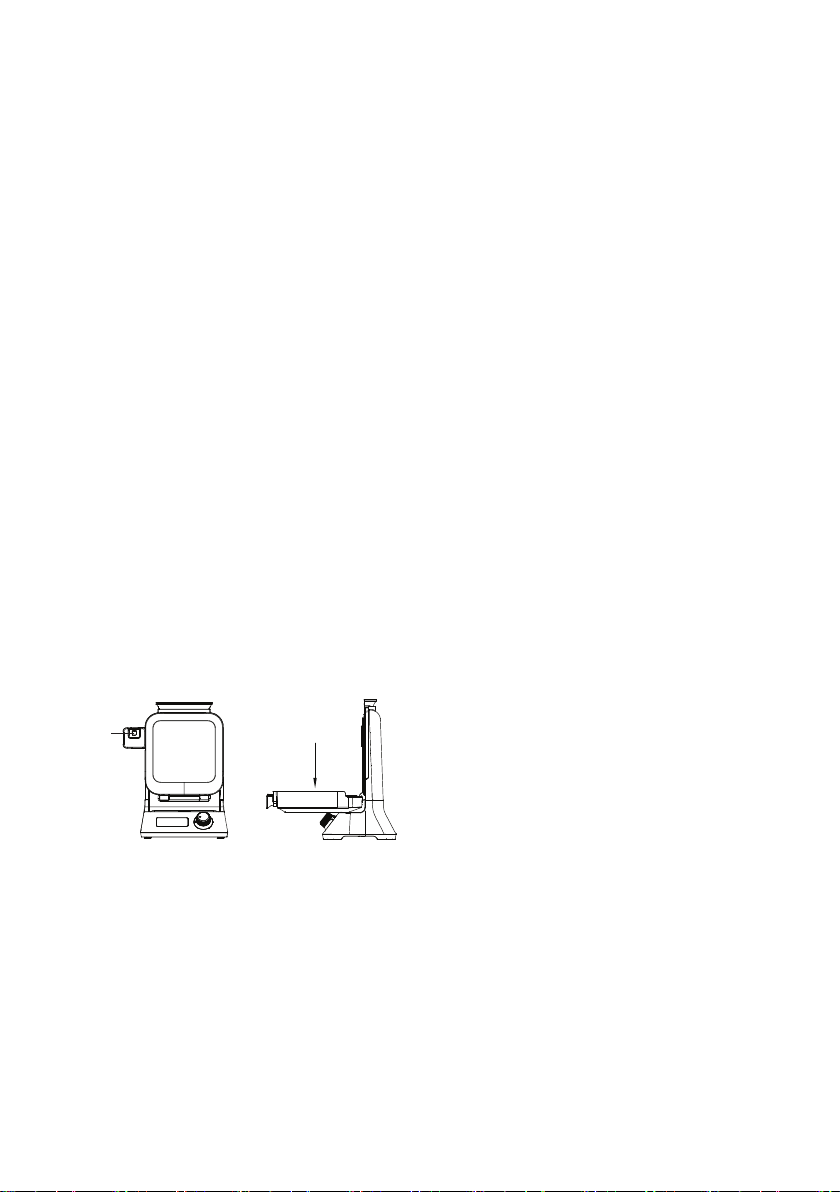

1. Open unit by pressing the side button on
the handle and allowing the front wafe
plate to come forward.
2. Clean cooking plates with cloth or
sponge, dampened with hot, soapy
water.
CAUTION: Do not immerse unit in water.
Rinse with dampened cloth or sponge
and wipe dry.
3. Season the grid plates by applying a thin
coat of cooking oil onto the surface and
rub in with paper towel. Alternatively
add oil to paper towel and rub over the
grid plates. After this initial seasoning,
there is no need to season the plates
after each use.
Note: When using your Sunbeam Shade
Select Vertical Wafe Maker for the rst
time, you may notice a ne smoke haze
being emitted. This is normal and is
due to the initial heating of the internal
components.
OPENCLOSE
Side Button
OPENCLOSE
OPEN
CLOSE

5
Preparing Waffles
1. Close unit and plug into outlet.
CAUTION: During use or after use do not
touch the pouring funnel at the top of
the unit as it will be hot.
Touch the unit at the side handle or the
control panel only during use or directly
after use.
Cooking Tip: Select a darker shade when
cooking heavier and more dense batters.
2. Use the Shade Select dial to select your
desired wafe texture. The screen will
display the words "Pre-heating" whilst it
is increasing it's temperature.
The Wafe Maker will beep once it has
reached the correct temperature and the
screen will display "Ready to cook".
3. Fill the measuring cup up to the very
top with wafe batter and pour into the
pouring funnel. Use a spatula to ensure
all batter is poured into the unit. User
should be advised to use caution when
pouring batter into the unit as the top of
the pouring funnel is very hot.
CAUTION: Do not add more scoops of
batter. This will result in overow and
give uneven results.
4. The control panel will count down the
time you have left to wait until your
wafes are ready.
5. When the timer is done, it will beep
and display "Cooking Complete" on
the display panel. This indicates that
the wafes are done. Press the release
button on the side handle to open the
front wafe plate.
CAUTION: The pouring funnel is
extremely hot!
6. Close unit and wait for the Pre-Heating
indication to come on before preparing
another wafe.
Note: Opening the Wafe Maker before
wafes are nished cooking will cause
wafe batter to separate, resulting in
torn wafes.
OPEN
CLOSE
OPEN
CLOSE
OPENCLOSE
OPENCLOSE
FLUFFY CRISPY
READY TO COOK

6
Hints For Tasty Waffles
• Select a darker shade when cooking
heavier and more dense batters.
• Do not over-mix wafe batter. Beating
egg whites separately and folding them
gently into the batter will create a
lighter, crispier wafe.
• Setting No.1 will produce the ufest
and lightest colour wafes. Setting 5
will produce the crispier darker colour
wafes. Experiment to determine which
setting produces the best wafe colour
for you. We recommend setting No. 3 for
golden brown wafes.
• Don't open the Wafe Maker while steam
is escaping from sides and front of the
unit.
• We recommend using the provided
measuring cup. Depending on the
thickness of the batter, you may be
using between ¾ and 1 cup of batter per
wafe.
• Do not overll the wafe maker – it
should not be lled to the top of the
funnel. Always ll the measuring scoop
full to the top. Do not add more batter to
the wafe maker.
• Thicker batters should be added a bit
more carefully, being sure that the batter
in the funnel drips into the grid plate
before adding more.
• Batters should be whisked well to be
sure there are no lumps. If the batter is
not owing easily through the funnel, it
is too thick. Either whisk to a smoother
batter, or add additional liquid, 1
tablespoon at a time.
• Why not freeze prepared wafes for
those busy days ahead? Just bake the
wafes as directed. Cool on a wire rack
and wrap in moisture-proof paper or
plastic. Quickly reheat in our oven or
microwave.

7
Always unplug your Shade Select Vertical
Wafe Maker and allow it to cool completely
before cleaning it. NEVER immerse the
MAIN body, power cord or plug in water or
any other liquid. To prevent damage to the
appliance do not use alkaline cleaning agents
when cleaning, use a soft cloth and a mild
detergent.
• Carefully wipe off oil after each batch of
wafes, prior to making the next batch.
This will improve the cooking quality
and prevent excess oil. The wafe batter
should be poured with the included
measuring cup for the perfect ll.
• Always use a plastic utensil to lift the
wafes from the wafe maker.
• Do not use metal utensils as these will
scratch the non-stick surface.
To clean after use
Always turn the power OFF and remove the
plug before cleaning.
Do not immerse the Wafe Maker in water
or any other liquid.
Do not use abrasives or metal scourers as
they will scratch the non-stick grid plates
and the exterior surface.
To clean the non-stick grid plates
Wipe over the plates with a dampened
cloth.
To clean the exterior
Wipe over with a dampened cloth and
polish with a soft dry cloth.
To clean cooked-on stains
Should your wafe maker require additional
cleaning of stubborn build up and
stains, the following cleaning method is
recommended:
1. Combine 2 tablespoons of bicarbonate
or baking soda with water to make a
paste.
2. Turn the power OFF and remove the
plug. Ensure the cooking plates are
cool.
3. Using a damp cloth, wipe the mixture
on the cooking plates to remove all
residue.
4. Before using the wafe maker again,
re-season the non-stick surface by
applying a little oil, and wiping clean
with paper towel.
This appliance has no user serviceable
parts. Any servicing beyond that described
in the Cleaning Section should be
performed by an Authorised Service
Representative only. See Warranty Section.
Care And Cleaning
