Sunburst Gear MM3P User manual

WHAT IS IN THE BOX
Your M3BR8/M3R8/MM3P* package contains the following:
M3BR8/M3R8/MM3P
Three Channel Mixer/Bi-Amp
Monitor Speaker w/ Built-In
Rechargeable Battery
Quick Start Guide
(1) Speaker
(1) 12V AC Power Supply Adapter
(1) 12V DC Car Battery Supply Adapter
(1) Right Angle Speaker Cable
(1) Quick Start Guide
(1) Registration Card
* Bluetooth® available in M3BR8 models only
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Ing. and any use of such marks
by Elite Acoustics Engineering, Inc is under license
NOTE: Due to continuous development and improvements of our products, features and specications are subject to
change without notice. All weights and measures are approximate.

QUICK START
1. Make sure the SPEAKER VOLUME [8] control is down before your turn the
POWER [14] on.
2. Connect the output of your microphone to the MIC IN [1]. Or you can connect a
¼” line input from an instrument [2]. Connect an additional mono or stereo [4]. A
direct USB connection can be made via the USB port [16].
3. Connect the DC power cord to the back panel [14].
4. Turn on the POWER [14] switch
5. Turn on your source signal(s) and adjust the volume on the source signal for
normal operation. Note if you are using an iPhone or iPad via Bluetooth®, set the
volume on your device about halfway. Maximum volume will distort.
6. Adjust the SPEAKER VOLUME [8] to a comfortable level.
7. Turn up GAIN [3] and TRIM [5] until there is a solid green light showing “signal” at
desired level, without a red “peak” light, indicating too much signal.
8. For USB charging of your source device, use USB Port [15]
Power LED: BLUE [9] Indicate unit is ON
Channel 1 [12]
Pan: split signal into Left/Right channel
Level: Volume Control
Peak LED: RED indicate Signal Clip
Signal LED: GREEN indicate Signal Present
Speaker
Speaker Volume [8]: Control speakers’ volume level
Equalizer [10]: Adjust Speaker High, Mid, and Low Frequency response
Peak LED [9]: RED indicate Signal Clip
Signal LED [9]: GREEN indicate Signal Present
Aux Input/Level [11]: Connect audio source with 1/8” jack from MP3/CD player
Channel 1 input:
Gain [3] knob: Input Level control
Line In [2]: 1/4” TRS inputs
Mic In [1]: XLR for Microphone Input
Channel 2/3 input:
Trim Knob [5]: Input Level control
Left/Right channel input [4]: 1/4” TRS inputs
Main Right to SPK switch [6]: Right channel signal. When the button is up, only the
Right channel mono signal is sent for connection to the L (mono) of additional speaker.
Main Right Output [6]: Connect with extra speakers/monitors
BLUETOOTH® FUNCTION(NOT AVAILABLE ON M3R8, MM3P)
• To turn ON/OFF Bluetooth® function
PRESS/HOLD down MODE button for approximately 5 seconds
Both LEDs will ash at the same time
• To pair device to the speaker system
Bluetooth® needs to be turned ON
QUICK TAP the MODE button once
Both Flashing LED: indicate Bluetooth ® is ready to be paired
Flashing Blue LED only: indicate Bluetooth® is connected

1
2
3
4
5
8
7
10
12
13
14
15
11
9
6

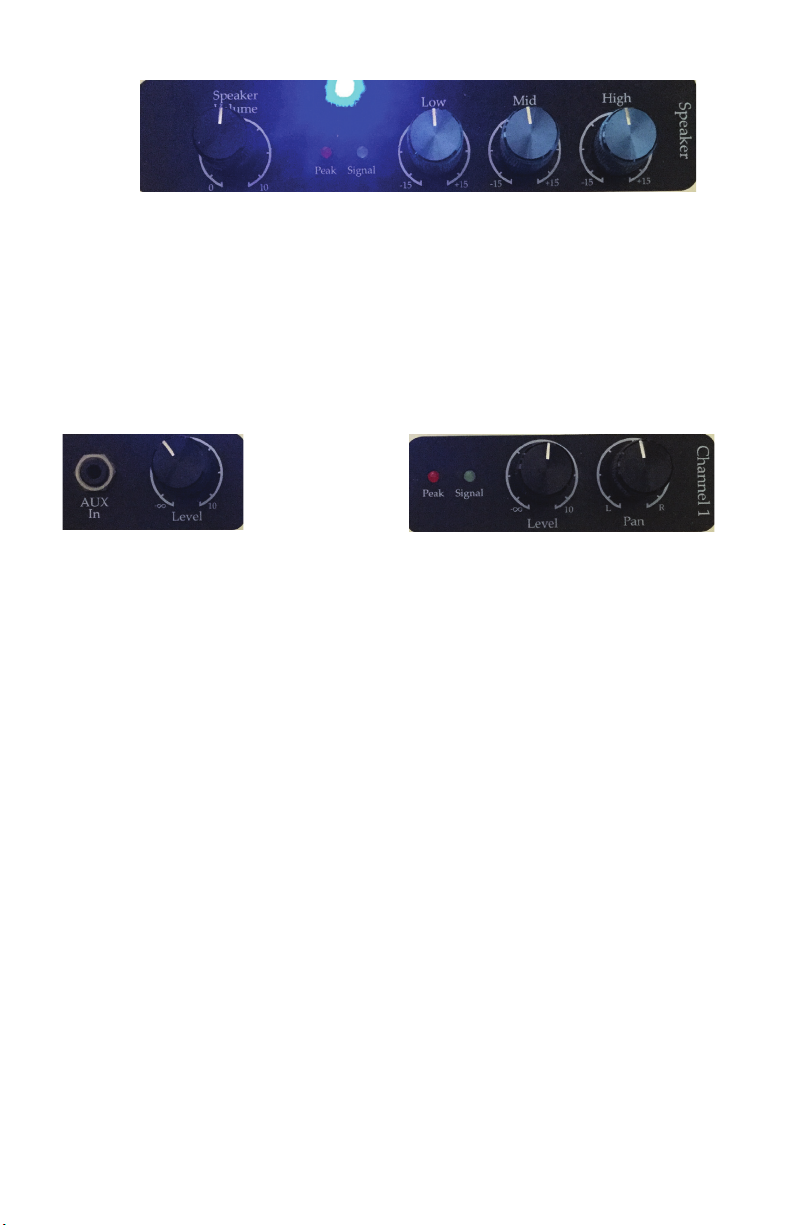

Speaker Volume and EQ
Speaker Volume - this should be set about 9 O’clock on
power up before increasing.
Signal - Green when input is present.
Peak - When Red light is ashing, means level is too high
and distortion can occur, reduce input level or Volume.
Aux Input and Level Control.
Use this for your MP3 Player with
1/8” cable.
Level - set to 12 O’clock on power up, in-
crease when neccessory,
Pan - Set to the 12 O’clock, when using 2
speaker, Chan 1 signal can be pan to Left or
Right.
Signal - Green when input is present for Chan
1 input.
Peak - When Red light is ashing, means lev-
el is too high and distortion can occur, reduce
input level on the rear panel.

Charge ONLY - use for Charging your MP3 Player or Phone.
Input GAIN Knob - this should
be use to set the input level.
Signal LED on Chan 1 should
be “GREEN” and Peak LED
should NOT be red when
setting this Gain Level.
Line or MIC input jacks for
CHAN 1.
Input TRIM or GAIN knob
for Chan 2.
Chan 2/3 or (Left/Right)
input Jacks.
When onlyu Left is plugged
in, signal will be connected
to both Chan 2/3 (Left/Right)
Main Outpur Right to Speaker Switch.
--- press this switch when only using ONE
speaker or a MONO signal is desired.
Main Output Right - when using a 2nd
second for Right Channel.

BLUETOOTH® FUNCTION (NOT AVAILABLE ON M3R8, MM3P)
• To turn ON/OFF Bluetooth® function
PRESS/HOLD down MODE button for approximately 5 seconds
Both LEDs will ash at the simultaneously
• To pair device to the speaker system
Bluetooth® needs to be turned ON
QUICK TAP the MODE button once
Both Flashing LED: indicate Bluetooth®is ready to be paired
Flashing Blue LED only: indicate Bluetooth®is connected
FOR MAXIMUM BATTERY LIFE
• Recharge after every use
• Use & recharge battery at least once a month
• DO NOT leave power switch in the “ON” position when it is not
in use. Doing so after a long period of time will damage the
battery
• Keep unit in a cool, dry place away from extreme temperatures
• Do not service, modify, or replace the battery
• If the battery fails to charge, contact Elite Acoustics Engineering
Battery
Level
3
2
1
Low
Charge
EAE BATTERY & RECHARGING INFORMATION
1. To fully charge a unit –
a. Turn Power Switch OFF
b. Connect “AC” adaptor to Power Jack.
c. Blue “Charge” LED should be lit, Charge time can vary from 24 – 36 hours
depending on model and also surrounding temperature. In some case, Battery
will be 99% charged after 24-36 hours, but the charge light will remain on.
2. Make sure battery is fully charged before UNIT is put into storage. We recommend fully
charging the battery at least once each month.
3. SLA battery lifetime is typically 1 – 2 years depending on usage.
4. DO NOT OVERDRAIN the battery by leaving unit ON for a long period of time.
CAR ADAPTOR
• Unit can operate normally when plug into the Car Adaptor.
• Battery can also be charged by using the Car Adaptor.
• It is not recommedate that you leave the unit plugged in while car is not running.

TIPS
• Distorted Sound
•
• 1) Check input level to make sure input on Chan 1 (PAN and LEVEL should be
set to 12 O’clock) Signal Light is in GREEN and not CLIPPING RED. Reduce
Input by turn down GAIN knob (3) on the rear Panel. If Channel 2/3 is used, there
is no input level metering. Gain Knob (5) controls the input level for Chan 2/3, set
it to about 3 O’clock to check signal before increasing.
•
•
• 2) Check Monitor Signal Light is also GREEN and not Clipping. Reduce Speaker
Level by turning Monitor Knob (3), make sure EQ is set to middle (FLAT)
•
• No Sound
• 1) Check LED signal lights. Green means there is Signal on the input.
• 2) Make sure PAN knob is at 12 o’clock position.
• 3) Make sure Channel level is set.
•
•
• Battery not Holding Charging
• 1) Power unit off and charge the unit for 24 hours with Battery switch in Connect-
replacement instructions.
•
•
ABOUT EQ SETTINGS
High – used to add sibilance and crispness to your sound, with the knob at 12:00, there is no
boost or cut to the high frequency content.
Mid – Helps control the clarity of your overall mix and should be adjusted to suit lower or
higher volume performance levels. Boosting the mids helps speech clarity and intelligibility at
lower volumes while cutting the mids produces a more natural sound at higher volumes. The
Mid frequency selection knob allows for a range extending from high LF to low HF. When set
to 12:00 the Mid frequency peak is around 1.2k Hz, with +/- 12dB of boost or cut depending
on the setting of the Mid knob. Here again, with Mid set to 12:00 the mid control is effectively
out of the circuit.
Low – In general, lower volumes can benet from LF boost to help bring out the bass at
these lower settings, but it is usually left at or even slightly cut for high playback levels.

• Speakers: 5 1/4” Woofer, one 1” Tweeter
• Amplier: Class D Bi-AMP
• Nominal Input Level (1 kHz): CH1: -60 dBu, CH2/3: -20 dBu, AUX in: -10 dBu
• Nominal output level (1 kHz): Right Channel Link out: -10 dBu
• Channel controls: CH1: pan knob, level knob CH2/3: level knob
• Master controls: Volume knob, Equalizer (Low freq knob, Mid freq knob, High freq knob)
• Aux in control: Level knob
• Indicators: Master: signal clip, power
• Connectors: CH1: input jacks (XLR type, 1/4” TRS phone type) CH2/3: input jack Left/
mono (1/4” TRS phone type), input jack Right (1/4” TRS phone type), AUX in: input jacks
(stereo miniature phone type), Right channel output: line out jack Right (1/4” TRS phone
type), DC in jack
• Power Switch
• Power Supply: DC 12V
• Built-in rechargeable SLA battery with battery meter: up to 15 hours of play time with
full charge
o NOTE: Battery can also be charged with the 12V DC Car Battery Supply
Adapter, which is included with the speaker, whether the switch is turned ON or
OFF
• Current Draw: 2000 mA
• Other features:
o Optimized front ports for extended low-frequency response
o Magnetic shielding eliminates interference with other electronic equipment
o Re-chargeable Battery can be recharged from Car battery when using DC car
adaptor cord that is included
o Built-in pole-mount, 35mm receptacle on bottom of unit
o **Playback from Bluetooth®device
• Accessories: AC cord, AC adaptor, DC cord for the car, Right Angle Speaker Cable, &
Owner’s Manual
• Dimensions: 9”L x 9”W x 14.5”H
• Weight: 24 lbs.
For a copy of the complete User’s Manual, please visit: www.sunburstgear.net

WARRANTY (USA ONLY)
Contact the Distributor in your area for service and warranty info.
Elite Acoustics Engineering Inc. warrants this product to be free of defects in material and workmanship (excluding
battery) for a period of 1 year from the date of original retail purchase. Elite Acoustics Engineering Inc. warrants
the Speaker’s Battery for 90 days from the date of original retail purchase. This warranty is enforceable only by the
original retail purchaser. To be protected by this warranty, the purchaser must complete and return the enclosed
warranty card within 14 days of purchase. During the warranty period EAE shall, as its sole and absolute option,
either repair or replace, free of charge, any product that proves to be defective on inspection by EAE or its authorized
service representative. To obtain warranty service, contact Elite Acoustics Engineering Technical Support via email:
[email protected]. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT
TO AN ELITE ACOUSTIC ENGINEERING SERVICE CENTER. All inquires must be accompanied by a description
of the problem. All authorized returns must be sent to the EAE repair facility postage prepaid, insured and properly
packaged. EAE reserves the right to update any unit returned for repair. EAE reserves the right to change or
improve the design of the product at any time without prior notice. This warranty does not cover claims for damage
due to abuse, neglect, alteration, or attempted repair by unauthorized personnel and is limited to failures arising
during normal use that are due to defects in material or workmanship in the product. Any implied warranties,
including implied warranties of merchantability and tness for a particular purpose, are limited in duration to the
length of this limited warranty. Some states do not allow limitations on how long an implied warranty lasts, therefore
above limitation may not apply to you. In no event will EAE be liable for incidental, consequential, or other damages
resulting from the breach of any express or implied warranty, including among other things, damage to property,
damage based on inconvenience or on loss of use of the product, and, to the extent permitted by law, damages
for personal injury. Some states do not allow the exclusion of limitation of incidental or consequential damages,
so the above limitation or exclusion may not apply to you. This warranty gives you specic legal rights, and you
may also have other rights, which vary from state to state. This warranty only applies to products sold and used in
the United States of America. For warranty information in all other countries please refer to your local distributor.
©Elite Acoustics Engineering Inc.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO
THE FOLLOWING TWO CONDITIONS.
1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
Legal Notice: CALIFORNIA PROPOSITION 65 WARNING
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
