Outlaw OSB-1 User manual

1
2
OSB-1 Outlaw Sound Bar
Quick Start Guide
1 OSB-1 Outlaw Sound Bar
1 Mounting Template
2 tall feetInstruction Manual 4 short feet
AC Power Supply Power Supply Cable
Remote Control
(with battery)
Inverse Control Panel Label
SOURCE
MODE
•2-CHANNEL
•3-CHANNEL
•5-CHANNEL
•5-EXPANDED
SPEECH
MUTE
TREBLE
VOLUME
BASS
MODESOURCE S1 IN
BASS
SPEECH
TREBLE
What’s in the Box?
For wall mounting (or
mounting on a TV bracket),
orient the speaker with
Control Pod on the bottom
For cabinet or shelf mount-
ing, orient the speaker with
Control Pod on the top.
Use the 4 Small
round rubber spacers
for level placement
Use the 2 large rect-
angular feet with 2
of the small round
rubber spacers for
angled placement
Use 2 of the small
round rubber spacers
to isolate the speaker
from the wall
Rubber foot
Rubber feet
Use taller feet for up or down tilt
Adhesive side
Side view
Side view
Adhesive side
Where should you locate your sound bar?
The OSB-1 can be used as a set-top or shelf-mounted speaker. Self-adhesive
rubber feet are included to prevent vibration,protect the mounting surface
and serve to angle the speaker up or down if needed.
You may also simply mount the speaker to the wall using the built-in keyhole
brackets or attach it to a suitably equipped articulating flat-panel TV wall
mount via the threaded inserts on the rear panel of the OSB-1.
24VDC 4A IR IN S3 INS2 IN S4 IN S5 IN analog
digital
coaxial optical L R
SUB OUT ON/OFF
16" (406mm)
97⁄8" (251mm)
415⁄16"
(125mm)
OSB-1 rear
1 Optical Cable

3
4
5
MODESOURCE S1 IN
BASS
SPEECH
TREBLE
If you’re planning to wall-mount
your OSB-1 in the inverse position
(with the control pod on the bot-
tom) you will need to make a few
modifications.

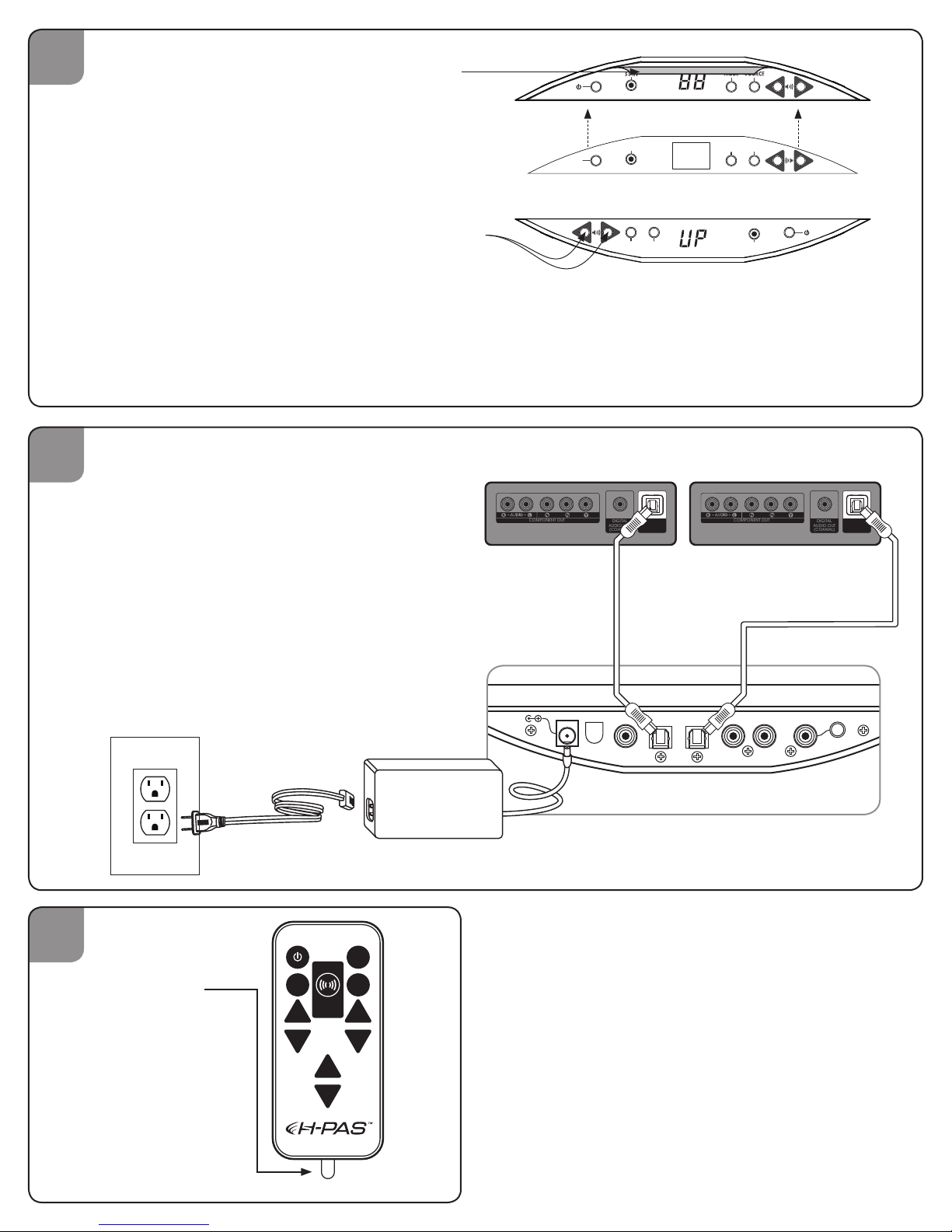

Step 3
Turn unit over. Make sure unit is in STANDBY.
Press and hold both the UP and DOWN Vol-
ume keys at the same time until the Central
Display reads "UP" as shown. (To switch
orientation back, simply perform this opera-
tion again.)
Step 1
Remove label from Front Control Panel
by peeling down from the edge.
Step 2
Apply included inverse control panel label.
MODESOURCE S1 IN
BASS
SPEECH
TREBLE
Rear of Cable Box or
Satellite Receiver Rear of DVD Player
Rear of OSB-1
24VDC 4A IR IN S3 INS2 IN S4 IN S5 IN analog
digital
coaxial optical L R
SUB OUT ON/OFF
Optical cable 1 (one
included) from Digital
Audio Out to OSB-1 Source
3 (S3) Optical Input
Optical cable 2 (not
included) from Digital
Audio Out to OSB-1 Source
4 (S4) Optical Input
For optimum performance connect all your sources
directly to the OSB-1 using the digital output from each
source.This will guarantee the highest sound quality and
reduce the risk of signal loss.
COMPONENT OUT DIGITAL
AUDIO OUT
(COAXIAL)
DIGITAL
AUDIO OUT
(OPTICAL)
COMPONENT OUT DIGITAL
AUDIO OUT
(COAXIAL)
DIGITAL
AUDIO OUT
(OPTICAL)
How should you connect it?
Connect Power Supply
Cable to Power Supply
Plug Power Cable
into AC Receptacle Connect Power Supply
to Power Input Jack
on OSB-1
Enjoy!
Remove battery insulator
tab from remote.
Turn unit on.
Select source.
Adjust volume.
Enjoy!
SOURCE
MODE
•2-CHANNEL
•3-CHANNEL
•5-CHANNEL
•5-EXPANDED
SPEECH
MUTE
TREBLE
VOLUME
BASS
Step 4
Remove and rotate the grille. To do so, gently pry the grille free from the cabinet starting at both ends. Continue to gently pry the grill
off moving towards the center of the cabinet. Do not use a tool or pick as this may damage the cabinet. Once the grille is free, rotate and
reattach. Make sure to line up the grille trees with the mounting cups. Press firmly until the grille is once again flush with the cabinet.
See Instruction Manual for detailed
information.
If you have a question or comment contact us. Call Outlaw Audio
Customer Service: 866-OUTLAWS (688-5297) or 866-OUTLAWA
(688-5292).(M-F 9-5 EST) or via our online support at http://support.
outlawaudio.com.
Wall Mounting?
