Sungale DVD-9100 User manual

1
FCC and Safety Information ................... 2
Important Safety Instructions ................. 3
Player Overview ....................................... 4
Front View .................................................................4
Rear View ..................................................................4

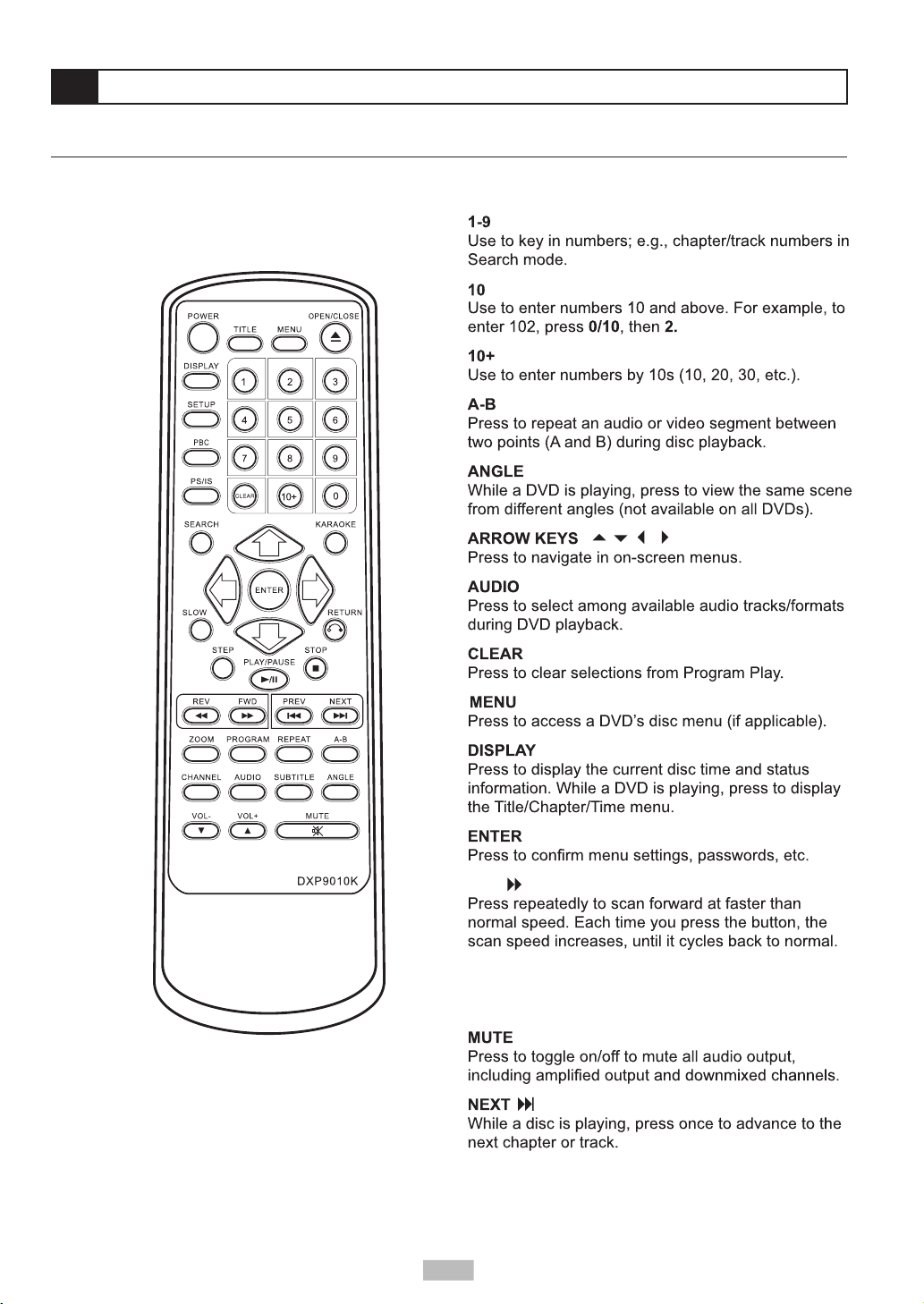

Remote Control .........................................................5
Inserting Remote Control Batteries ...........................6
Connections ............................................. 7
Basic TV Connections ...............................................7
Enhanced Video Connections ...................................8
Enhanced Audio Connections ...................................9
DVD Playback ........................................ 10
Before You Begin... ..................................................10
Basic DVD Playback ...............................................10
Stop .........................................................................10
Pause ......................................................................10
Forward/Reverse Scan ............................................10
Skip Next/Previous ..................................................10
Repeat .....................................................................10
Display .....................................................................11
Audio .......................................................................11
Subtitles ...................................................................11
Angle ......................................................................11
Mute ........................................................................11
Title .........................................................................11
Disc Menu ...............................................................11
A-B Repeat ..............................................................11
Other Disc Playback .............................. 12
Playing Audio CDs ...................................................12
Playing Kodak Picture CDs ....................................13
Playing JPEG Picture CDs .....................................13
Playing MP3 CDs ....................................................14
Playing CDs with MP3 and JPEG files ....................14
Language Setup ..................................... 15
On Screen Display (OSD) Language ......................15
Disc Menu Language ..............................................15
Audio Language ......................................................15
Subtitle Language ...................................................15
Screen Setup ......................................... 16
TV Type ...................................................................16
TV System ...............................................................16
Video Output ............................................................17
Brightness ...............................................................17
Contrast ...................................................................17
Audio Setup ........................................... 18
Digital Audio Output .................................................18
........................................ 19
Angle Mark
Restore Defaults ......................................................19
Troubleshooting .................................... 20
Disc Handling & Maintenance .............. 21
Table of Contents
Included Accessories
The following items are included with your DVD
player:
• Remote Control
• AAA Batteries (2)
• Audio/Video Cable
• User’s Guide

2
Region Codes
Since it is usual for DVD movies to be released at
different times in different regions of the world, all
players have region codes and disc can have an
optional region code. If you load a disc of a different
region code to your player, you will see the region
code notice on the screen. The disc will not play, and
should be unloaded. There are 6 regions (also called
“locals”). Each DVD player and disc will be played in
one region ONLY.
1 Canada, U.S., U.S. Territories
2 Japan, Europe, South Africa, Middle East
(including Egypt)
3 Southeast Asia, East Asia (including Hong Kong)
4 Australia, New Zealand, Pacific Islands, Central
America, Mexico, South America, Caribbean
5 Former Soviet Union, Indian Subcontinent, Africa
(also North Korea, Mongolia)
6 China
CAUTION:
This unit employs a laser. Due to possible eye
injury, only qualified service personnel should
remove the cover or attempt to service this device.
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Macrovision Notice
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other
rights owners. Use of this copyright protection
technology must be authorized by Macrovision
Corporation, and is intended for home and other
limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or
disassembly is prohibited.
CAUTION
VISIBLE AND INVISIBLE LASER RADIATION WHEN
OPEN. AVOID EXPOSURE TO BEAM. WARNING
LOCATION: INSIDE ON LASER COVERSHIELD.
FCC and Safety Information
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. The
apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases, shall be placed on the apparatus.
For DVD Players with 525p, but not 625p, Progressive Scan output:
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE
PICTURE. IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF
THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD
PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

3
1 Read Instructions - All the safety and operating
instructions should be read before the product is
operated.
2 Retain Instructions - The safety and operating
instructions should be retained for future reference.
3 Heed Warnings - All warnings on the product and in the
operating instructions should be adhered to.
4 Follow Instructions - All operating and using
instructions should be followed.
5 Cleaning - Unplug this product from the wall outlet
before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6 Attachments - Do not use attachments not
recommended by the product manufacturer as they may
cause hazards.
7 Water and Moisture - Do not use this product near
water - for example near a bath tub, wash bowl, kitchen
sink, or laundry tub; in a wet basement; or near a
swimming pool; and the like.
8 Accessories - Do not place this product on an unstable
cart, stand, tripod, bracket, or table.The product may fall,
causing serious injury to a child
or adult, and serious damage to
the product. Use only with a cart,
stand, tripod, bracket, or table
recommended by the manufacturer
or sold with the product. Any
mounting of the product should
follow the manufacturer’s
instructions and should use a
mounting accessory recommended
by the manufacturer.
9 A product and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces
may cause the product and cart combination to overturn.
10 Ventilation - Slots and openings in the cabinet are
provided for ventilation and to ensure reliable operation
of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings
should never be blocked by placing the product on a
bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a
bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11 Power Sources - This product should be operated only
from the type of power source indicated on the marking
label. If you are not sure of the type of power supplied
to your home, consult your product dealer or local
power company. For products intended to operate from
battery power, or other sources, refer to the operating
instructions.
12 Grounding or Polarization - This product may be
equipped with a polarized alternating - current line plug
(a plug having one blade wider than the other). This plug
will fit into the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the
outlet, try reversing the plug. If the plug should still fail
to fit, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the polarized
plug.
13 Alternate Warnings - This product is equipped with a
three-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into the outlet,
contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type
plug.
14 Power-Cord Protection - Power-supply cords should
be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the
product.
15 Outdoor Antenna Grounding - If an outside antenna
or cable system is connected to the product, be sure the
antenna or cable system is grounded so as to provide
some protection against voltage surges and built-up
Important Safety Instructions
static charges. Section 810 of the National Electrical
Code, ANSI/NFPA 70 provides information with regard to
proper grounding of the mast and supporting structure,
grounding of the lead-in
wire to an antenna
discharge
unit, size of
grounding
conductors,
location of
antenna-
discharge unit,
connection
to grounding
electrodes, and
requirements
for the grounding electrode.
16 Lightning - For added protection for this product during
a lightning storm or when it is left unattended and
unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna or cable system. This
will prevent damage to the product due to lightning and
power-line surges.
17 Power Lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other
electric light or power circuits, or where it can fall into
such power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact with
them might be fatal.
18 Overloading - Do not overload wall outlets, extension
cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
19 Object and Liquid Entry - Never push objects of any
kind into this product through openings as they may
touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid of
any kind on the product.
20 Servicing - Do not attempt to service this product
yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
21 Damage Requiring Service - Unplug this product from
the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a When the power-supply cord or plug is damaged.
b If liquid has been spilled or objects have fallen into
the product.
c If the product has been exposed to rain or water.
d If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result
in damage and will often require extensive work by
a qualified technician to restore the product to its
normal operation.
e If the product has been dropped or damaged in any
way.
f When the product exhibits a distinct change in
performance-this indicates a need for service.
22 Replacement Parts - When replacement parts are
required, be sure the service technician has used
replacement parts specified by the manufacturer or
that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock, or other hazards.
23 Safety Check - Upon completion of any service or
repairs to this product, ask the service technician to
perform safety checks to determine that the product is in
proper operating condition.
24 Heat - The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
25 Wall or Ceiling Mounting - The product should be
mounted to a wall or ceiling only as recommended by the
manufacturer.

4
Front View
Rear View
MIC VOL ECHO VOL

5
Player Overview
Remote Control
FWD
KARAOKE
press this button to switch karaoke on and karaoke off

6
Inserting Remote Control Batteries
1 Remove the battery cover from the back of
the remote control.
2 Insert the supplied batteries, paying
attention to the correct polarities (+ and -).
3 Replace the cover.
Player Overview
OPEN/CLOSE
Press to open and close the disc drawer.
PAUSE
Press to pause playback. Press again, or press
PLAY , to resume playback
PBC
Toggles Playback Control on and off (used on “Video
CDs”)
PLAY
Press to start playback.
POWER
Press to switch between power on and Standby
mode.
PREV 
While a disc is playing, press once to return to the
previous chapter or track.
PS/IS
While playback is stopped, press to switch between
Progressive Scan and Interlaced Scan (only
applicable when using the Component Video Out
connection to your TV).
PROGRAM
Press to set up Program Play (custom playback
order).
REPEAT
While a disc is playing, press to select the Repeat
options (Title, Chapter, or Track).
RETURN
Press to return to the last menu viewed or to exit the
menu system.
REV 
Press repeatedly to scan backward. Each time you
press the button, the scan speed increases, until it
cycles back to normal.
SEARCH
Press to jump to a specific time, title, chapter, or track
during disc playback.
SETUP
While the disc is stopped, press to display the Setup
menu for the DVD player.
SLOW
Press repeatedly for slow motion playback at various
speeds.
STEP
Press once to pause playback. Press repeatedly to
step forward one frame at a time.
STOP 
Press to stop and hold playback (press PLAY to
resume). Press STOP twice to reset playback to the
beginning of the disc.
SUBTITLE
While a DVD is playing, press to select among all
available subtitle languages.
TITLE
Press to display DVD title menus for discs with
multiple titles. If a disc has a single title, TITLE
functions like DISC MENU.
VOLUME +/-
Adjust the players audio output volume. This will not
change the settings on the TV or stereo.
ZOOM
Press to magnify part of the screen. The 
buttons will move the zoom area to various parts of
the scren.

7
Basic TV Connections

8
Enhanced Video Connections

9
Enhanced Audio Connections
or optical

10
Before You Begin...
• Turn on your TV and select the appropriate video
input.
• If you connected the player to your audio system,
turn on your stereo or audio system and select the
appropriate audio input.
Basic DVD Playback
1 Press POWER on.
2 Press OPEN/CLOSE to open the disc tray.
3 Hold the edge of the disc and place it in the tray
with the label side up.
4 Press OPEN/CLOSE again to close the disc
tray.
• The DVD player starts playback or opens the
DVD disc menu automatically.
• Proceed with steps 5 and 6 if a menu is
available on the disc.
5 Press  or use the number button(s) to
select the desired chapter/title.
• To select a chapter/title, input the number; e.g.,
press “1” for chapter 1, “10” for chapter 10, etc.
6 Press PLAY .
• The player starts playback of the selected item.
Stop
• Press STOP once to stop and hold playback at
the current position.
• Press STOP twice to stop and reset the disc to
the beginning.
Pause
Press PAUSEonce during playback.
• The screen is paused.
• To return to normal playback, press PLAY .
Forward/Reverse Scan
Press REV  or FWD  during playback.
• Normal playback is resumed when you press
PLAY .
• The Forward Scan ( x2, x4, etc.) and
Reverse Scan ( x2, x4, and etc.) speed
changes each time you press the REV /FF
buttons.
DVD Playback
Skip Next/Previous
You can skip to a specific chapter or track during
playback.
Skipping Ahead
Press NEXT during playback.
• Skips a chapter each time you press the NEXT
button.
Skipping Back
Press PREV during playback.
• If you press the PREV button midway through
a chapter, the DVD player returns to the beginning
of the chapter. The player then skips a chapter
each time you press the PREV button.
Repeat
Press REPEAT repeatedly during playback to select
from the following options:
• Press once to repeat the current Chapter
• Press twice to repeat the current Title
• Press three times to repeat the current Disc
• Press four times to turn repeat Off
To return to normal playback
Press REPEAT until “REPEAT Off” appears.
• Repeat playback works only with discs for which
the elapsed playing time appears on the player’s
display during playback.
• Repeat playback may not work correctly with
some DVDs.
When not in use...
When the DVD player is not in use, remove the disc
and press Power to turn off the player. Then close the
display panel.
• The disc continues to rotate while the menu
is displayed even after the player has finished
playing a particular disc. When no further
selections are to be played, be sure to press the
STOP button to clear the menu screen.
• If the disc is placed in the tray upside down (and
it is a single sided disc), the “NO DISC” message
will appear.
For your reference:
• If “ ” appears when a button is pressed, it means
that the corresponding function is not available.
The function may not be present on the disc, or
the player may need to be in STOP to access the
function.

11
Special DVD Features
Display
Press DISPLAY during playback.
• Press DISPLAY repeatedly to display the title
number, chapter number, and other information .
Stop Displaying Scene Information
• Press DISPLAY repeatedly until the information
disappears.
Audio
You can change the audio sound track to any
language available on the disc.
1 Press AUDIO repeatedly until the preferred
language is selected.
• If the language you want to hear is not selected
even after you have pressed the button several
times, it may indicate that language is not
available on the disc.
Subtitles
If a disc provides subtitles, you can choose to hide
or display them. This operation works only with discs
that provide subtitles.
1 Press SUBTITLE during playback.
• After you press SUBTITLE once, the first
subtitle language on the disc will be displayed.
The rest of the subtitles recorded will display in
sequence as you press the button.
• If no subtitles are recorded “ ” will display
instead of the language number.
2 Press SUBTITLE repeatedly until the preferred
language is selected.
• Clear the subtitles by pressing this button
repeatedly until “SUBTITLE OFF” appears .
• In some cases, the subtitle language may not
change immediately to the selected one.
• If the preferred subtitle language is not played
even even after you have pressed the button
several times, it may indicate that the language
is not available on the disc.
Angle
Some DVD discs contain scenes which were shot
simultaneously from multiple angles. Use the ANGLE
button to view these alternative scenes.
1 Press ANGLE during playback.
2 Press ANGLE repeatedly until the preferred
viewing angle is selected.
• ANGLE will only function on discs where
different angles have been recorded.
Mute
To mute the volume on the DVD player.
1 Press MUTE during playback.
• To resume normal sound, press MUTE
repeatedly until “MUTE OFF” appears on the
screen.
Title
Some DVDs have Title menus, which allow you to
choose among multiple titles (usually movies).
1 Press TITLE in stop mode
• The Title menu appears, if available.
2 Press ///to select the preferred item.
3 Press /Select.
Menu
Most DVDs have disc menus, which include special
disc features, including audio languages, subtitle
languages and more.
1 Press MENU .
• The Disc menu appears, if available.
2 Press ///or use the number button(s)
to select the preferred item, then pres ENTER.
• Menu details vary by disc.
A-B Repeat
A-B Repeat allows you to repeat any segment of a
DVD or CD. Mark the beginning point (A) and the
ending point (B) of the segment you want to review.
1 While playing a DVD or CD, at the place you want
the repeat to start, press the A-B button. “Repeat
A” will appear on screen.
2 Press A-B again at the end of the segment you
want to repeat. The segment will repeat in a
continuous loop.
3 Press A-B again to resume normal playback.

12
Playing Audio CDs
Before You Begin...
• Turn on your TV and select the appropriate video
input.
• Turn on your stereo or audio system and select
the appropriate audio input.
Basic Audio CD Playback
1 Press POWER on.
2 Press OPEN/CLOSE to open the disc tray.
3 Hold the edge of the disc and place it in the tray
with the label side up.
4 Close the disc tray.
• Standard CDs start playing automatically.
• If the CD has playback control, the CD disc
menu will appear.
Stopping Playback
• Press STOP once to stop and hold playback at
the current position.
• Press STOP twice to stop and reset the disc to
the beginning.
Forward/Reverse Scan
Press REV
REV
 or FWD  during playback.
• Normal playback is resumed when you press
PLAY .
• The Forward Scan ( x2, x4, etc.) and
Reverse Scan ( x2, x4, etc.) speed changes
each time you press the /FWD
 buttons.
Skipping Ahead
Press NEXT during playback.
• Skips a track each time you press the NEXT
button.
Skipping Back
• Press PREV during playback.
• If you press the PREV button midway through
a track, the DVD player returns to the beginning of
the track. The player then skips a track each time
you press the PREV button.
Pause
Press PAUSE once during playback.
• Playback is paused.
To return to normal playback
Press PLAY .
Other Disc Playback
Displaying Track Information
Press DISPLAY during playback.
• Press DISPLAY repeatedly to display the elapsed
time, track number, and other information on the
screen.
Stop Displaying Track Information
• Press DISPLAY repeatedly until the track
information disappears.
Program Mode
Program mode allows you to create a custom play list
The list will be remembered as long as the CD is in
the player. Removing the CD may erase the playlist.
1 Press PROG .
2 Press to access the list of tracks.
3 Press /// to highlight the first desired
track, then press ENTER to add it to your play list.
5 Press  to move to the next position on the play
list, and repeat steps 2 and 3.
6 Press PLAY to play the programmed tracks.
To delete a track from the programmed list
• Press /// to choose the track in the
playlist, then press CLEAR.

13
Playing Kodak Picture CDs
You can play Kodak Picture CDs in your DVD player.
Basic Playback
1 Load a Kodak Picture CD.
• After a few seconds, the DVD player starts a
slide show of available images.
2 Press DISPLAY to view the current image number
and total number of images.
3 Use the number keys to jump to a specific image.
• The DVD player will begin the slide show from
the selected image.
• Press PAUSE to pause the slide show.
• Press STOP to stop the slide show and
enter Thumbnail mode.
• You can rotate images during a slide show,
by pressing the /// keys when the
image appears on scren.
Playback Modes
There are two play modes for a Kodak Picture CD:
• Thumbnail Mode
• Rotate Mode
Thumbnail Mode
Thumbnail mode allows you to view thumbnails of up
to 20 images at a time.
1 Press STOP to stop the slide show.
2 Press PREV and NEXT to view the previous
or next page of thumbnail images.
3 Press /// to choose the desired image.
4 Press ENTER or PLAY to see the full size
image and start the slide show beginning with the
selected image.
Rotate Mode
You can rotate images or flip them horizontally and
vertically before starting a slideshow.
1 Press STOP to access thumbnail mode.
2 Press PREV and NEXT to view the desired
page of thumbnail images.
4 Press /// to choose the desired image.
5 Press ENTER to view the full size image, then
press /// to rotate the image, then
press STOP.
• The images will remain rotated until you remove
the picture CD
6 Repeat steps 1-5 for every picture you want to
rotate, then select the first thumbnail and press
PLAY to start the slideshow.
Other Disc Playback
Playing JPEG Picture CDs
You can play JPEG picture CDs in your DVD player.
Basic Playback
1 Load a JPEG Picture CD.
• After a few seconds, the DVD player starts a
slide show of available images.
2 Press DISPLAY to view the current image number
and total number of images.
3 Use the number keys to jump to a specific image.
• The DVD player will begin the slide show from
the selected image.
• Press PAUSE to pause the slide show.
• Press STOP to stop the slide show and
enter File Manager mode.
File Manager Mode
File Manager mode allows you to view your images in
a directory format.
• Press /// to choose the desired image,
then press ENTER to display the image.
• Press PREV and NEXT to view the previous
or next group of images in the list.
Play Mode
Play mode allows you to view your images in a slide
show.
• Press PREV and NEXT to view the previous
or next image.
• Press /// to rotate the images .
• Press PAUSE to pause the slide show.
• Press /Select to resume the slide show.
• Press STOP to return to File Manager mode.

14
Other Disc Playback
Playing MP3 CDs
1 Press POWER on.
2 Press OPEN/CLOSE to open the disc tray.
3 Hold the edge of the MP3 disc and place it in the
tray with the label side up.
4 Press OPEN/CLOSE to close the disc tray.
• After a few moments, the first MP3 file in
the disc’s root directory will start playing
automatically.
Browsing Directories
MP3 discs are often divided into directories (i.e.,
folders) which are subdivided into MP3 tracks. If your
disc contains directories:
1 Press STOP to stop playback.
2 Press /// to choose the desired
directory, then press ENTER to open it.
3 Press /// to choose the desired track,
then press ENTER or PLAY to start playback.
• You can also enter a track number directly with
the number buttons, then press ENTER to start
playback.
To stop playback
• Press STOP.
To skip to the previous/next track.
• Press PREV/ during playback.
To pause playback
• Press PAUSE.
To resume playback
• Press PLAY .
Playing CDs with MP3 and JPEG files
The DVD player will play CDs with MP3 and JPEG
files. The operations are the same as with standard
MP3 and JPEG discs.

15
On Screen Display (OSD) Language
You can select among various languages for the
player’s on-screen display (OSD).
1 Press SETUP in Stop mode.
2 Press  to select “Language Setup”, then
press .
3 Press / to select “OSD”, then press .
4 Press / to select your preferred language.
5 Press ENTER.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Disc Menu Language
You can select your preferred language for DVD
disc menus. If your preferred language is recorded
on a DVD, the player will use it for playback. If the
language is not recorded on a DVD, the player will
use the DVD’s default language.
1 Press SETUP in Stop mode.
2 Press / to select “Language Setup”, then
press .
3 Press / to select “Menu”, then press .
4 Press / to select your preferred language.
5 Press ENTER.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Language Setup
Language Setup
OSD
Menu
Audio
Subtitle
English
French
German
Spanish
Language Setup
OSD
Menu
Audio
Subtitle
Audio Language
You can select your preferred language for DVD
audio sound tracks.
1 Press SETUP in Stop mode.
2 Press / to select “Language Setup”, then
press .
3 Press / to select “Audio”, then press .
4 Press / to select your preferred language.
• Select “Original” if you want the default
language to always be played first.
5 Press ENTER.
• If the language selected is not recorded on the
disc, the DVD player will playback the disc’s
default language.
Subtitle Language
You can select your preferred language for DVD
subtitles.
1 Press SETUP in Stop mode.
2 Press / to select “Language Setup”, then
press .
3 Press / to select “Subtitle”, then .
4 Press / to select your preferred language.
5 Press ENTER.
• If the selected language is not available on the
disc, the player will select the disc’s default
language.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Language Setup
OSD
Menu
Audio
Subtitle
Language Setup
OSD
Menu
Audio
Subtitle
Italian English
French
German
Spanish
Italian
English
French
German
Spanish
Italian
English
French
German
Spanish
Italian

16
Screen Setup
TV Type
The TV Type feature allows you to set your preferred
aspect ratio for DVD movies. Choose from the
following:
• 4:3 PS (Pan & Scan) - Crops widescreen movies
to fit a standard television.
• 4:3 LB (Letterbox) - Shows the full width of
widescreen movies on a standard television with
black bars above and below the picture.
• 16:9 - Select if you have a widescreen television.
1 Press SETUP.
2 Press /to select “Screen Setup”, then
press .
3 Press /to select “TV Type”, then press .
4 Press /to select your preferred TV Type
setting.
5 Press ENTER.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Screen Setup
TV Type
Screen Saver
TV System
Video Output
4:3 PS
4:3 LB
16:9
Brightness
Contrast
TV System
When connecting the DVD player to a TV, you must
specify the broadcast system of your television.
Choose from the following:
• NTSC - The color TV broadcast standard for the
USA, Canada, Latin America and Taiwan.
• PAL - The color television broadcast standard for
Western Europe (except France, where SECAM
is the standard), Australia, China, Singapore and
Malaysia.
• AUTO - Select if you have a multi-system TV that
supports both NTSC and PAL.
1 Press SETUP.
2 Press /to select “Screen Setup”, then
press .
3 Press /to select “TV System”, then
press .
4 Press /to select the appropriate TV System
setting for your television.
5 Press ENTER.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Screen Setup
TV Type
Screen Saver
TV System
Video Output
NTSC
PAL
AUTO
Brightness
Contrast

17
Video Output
If you connected the DVD player to your TV using
the S-Video or Component Video output, you must
specify in the menu system which of these connection
types you are using.
• Before you select S+P-SCAN, make sure your
TV supports Progressive Scan and that the Y, Pb,
and Pr cables are properly connected.
• If your screen turns black after adjusting this
setting, press the PS/IS button on the remote
control to switch back to Interlace mode.
1 Press SETUP.
2 Press / to select “Screen Setup”, then
press .
3 Press / to select “Video Output”, then
press .
4 Press / to select the appropriate Video
Output setting for your television.
• S-Video - Choose when using a
standard Composite Video or S-Video connection to your TV.
• S+Component - Choose when using
a standard Composite Video or Component
Video connection to your TV.
• P-SCAN - Choose when using a
Progressive Scan connection to your TV.
5 Press ENTER.
• If you selected P-SCAN, you will be
prompted to confirm that your TV supports
Progressive Scan. Press ENTER to continue,
or STOP to cancel.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Screen Setup
Screen Setup
TV Type
Screen Saver
TV System
Video Output
S-Video
S+Component
Brightness
Contrast
Brightness
You can change the light intensity of DVD playback to
“Normal”, “Bright”, or “Soft”.
1 Press SETUP.
2 Press / to select “Screen Setup”, then
press .
3 Press / to select “Brightness”, then
press .
4 Press / to select the desired Brightness
setting.
5 Press ENTER.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Contrast
You can increase or decrease the difference between
light and dark tones during DVD playback.
1 Press SETUP.
2 Press / to select “Screen Setup”, then
press .
3 Press / to select “Contrast”, then press .
4 Press / to select the desired Contrast setting
from -4 (least contrast, may lose detail in dark
scenes) to +4 (most contrast, may lose detail in
well-lit scenes).
5 Press ENTER.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Screen Setup
TV Type
Screen Saver
TV System
Video Output
Normal
Bright
Soft
Brightness
Contrast
Screen Setup
TV Type
Screen Saver
TV System
Video Output
Brightness
Contrast
-3
-2
-1
0
+1
+2
+3
P-SCAN

18
Audio Setup
Digital Audio Output
The digital audio output jack (labeled “Coaxial”) is
used to output the audio signal recorded on DVD
discs to an external amplifier/receiver. The player
provides three options for this audio signal:
• SPDIF/PCM - Select if you are using a 2-channel
digital amplifier.
• SPDIF/RAW - Select if you are using a Dolby
Digital 5.1 or DTS capable amplifier.
• Off - Select if you are not using the Coaxial audio
output.
1 Press SETUP in Stop mode.
2 Press / to select “Audio Setup”, then
press .
3 Press / to select “Digital Out”, then
press .
4 Press / to select your preferred Digital Out
setting.
Audio Setup
Digital
Out
SPDIF/PCM
SPDIF/RAW
Off
5 Press ENTER.
WARNING:
• Do not set “Digital Out” to “SPDIF/RAW”
unless you are connecting the player to an
A/V amplifier/receiver with Dolby Digital (AC-3)
decoding capability.
• High volume sound may damage your hearing
as well as the speakers.
To exit the Setup menu
Press SETUP or select “Exit Setup” on the Setup
Menu screen.
Analog Out
KARAOKE
