Sunix VGA2788 User manual

1
_______________________________
User’s Manual
Second Edition, October 2012
USBGraphics Adapter

3
Table of Contents
Chapter 1 Introduction...............................................................................................3
Overview..........................................................................................................4
Package Checklist...........................................................................................4
Product Features.............................................................................................5
Product Specifications.....................................................................................5
System Requirements……………………………………………………………..6
Chapter 2 Hardware Installation...............................................................................7
Hardware Guide……......................................................................................7
Driver Installation.......................................................................................... 8
Driver Uninstallation.......................................................................................11
Verify Installation...........................................................................................14
Chapter 3 Display Manager Operation............................................................................14
Windows 7/8 Display Manager Operation……...............................................15
Windows XP Display Manager Operation…...................................................20
Audio Output Setting…..................................................................................26
Others…………..............................................................................................27
Chapter 4 Appendix .................................................................................................28
Troubleshooting............................................................................................29
Regulatory Compliance................................................................................31
Limited Warranty...........................................................................................32
Driver Installation.......................................................................................... 9

4
1.
Introduction
_______________________________________________________
The USB Graphics Adapter provides a unique solution to add extra displays to a
computer without using additional graphics cards. This product has successfully challenged
the limitations of current display connectivity to deliver a highly interactive user experience
across USB 3.0 or USB2.0 connectivity. Users can instantly clone or extend a desktop onto
another display via DisplayPort, HDMI, DVI or VGA (D-Sub) interface, such as LCD, CRT,
projector and plasma displays. With USB interface plug-n-play and bus power feature, this
product brings multi-monitor applications into the mainstream.
The following topics covered in this chapter:
Overview
Package Checklist
Product Features
Product Specifications
System Requirements

5
Overview
SuperSpeed USB interface is the next revo lution in I/O interconnect standards that will
deliver the bandwidth and features required by PCs, consumer electronics and
communications devices. With 10 times faster throughput than USB 2.0 standard, USB
Graphic adapter enhances better VGA performance effect and reduce CPU loading
substantially.
With this handy adapter, you can enjoy many benefits brought by an add-on monitor. The
most obvious one is that you get more desktop area to have more applications visible at one
time. For example, you may work on one monitor while your family watches video on the
other. No more stacking windows within the confines of a single display. Or you may span an
application, e.g. spreadsheets, across two displays. What's more, the adapter is hot
pluggable. If you are not using the extra monitor, just unplug the adapter at any time; no
reboot needed.
Package Checklist
Check if the following items are present and in good condition upon opening your package.
Contact your retailer if any of the items is damaged or missing.
1. USB Graphics Adapter
2. Driver CD ROM
3. Quick Installation Guide

6
Product Features
•Add-on monitor, LCD or projector through USB3.0 or USB2.0 connectivity.
•Supports widescreen aspect ratio of 16:9 Full HD 1080P video streaming.
•High performance USB Graphics Engine supports resolutions up to 2048 x 1152 @ 32bit.
•Low power consumption via USB Bus power supply (without Heat Sink).
•Supports desktop display mirror, extend, multi screen, and screen rotation modes.
•Up to six USB graphic adapters working simultaneously.
•Hot-swapping / Plug-n-Play of monitors without reconfiguration.
•Movement of windows on the desktop is smooth, with no trail or shuddering.
•Compatible with Windows power management hibernate and suspend modes.
•Specialized for office using, home entertainment, and video playing.
•Supports Microsoft Windows XP, Vista, and 7/8 operation systems.
•Certified by CE, FCC, and RoHS approval.
Product Specifications
•Interface: USB Super Speed, and backw ard compatible with USB2.0 High Speed
•Memory: 16 MB DDR Synchronous DRAM (SDRAM)
•Connectivity: DisplayPort, HDMI, DVI-I or D-Sub VGA (Product dependant)
•Resolution: 640x480, 800x600, 1024x768, 1152x864, 1280x720, 1280x768, 1280x800,
1280x960, 1280x1024, 1360x768, 1400x1050, 1440x900, 1600x1200,
1680x1050, 1920x1080, 1920x1200, 2048x1152
•Color Depth: 32-but True Color
•Power Supply: USB Bus Power +5VDC
•OS Support: Windows XP, Vista, and 7/8
•Environment: Operation temp. 10 °C ～40 °C (50-104°F)
Relative humidity: < 85% non-condensing
Storage temp. -10 °C ～85 °C (14~176°F)
•Regulatory Approvals: FCC Part 15 Class B, CE (EN55022, EN61000, EN55024) ,
VCCI, C-Tick, BSMI, RoHS

7
System Requirements
The USB Graphics Adapter software can be installed on any desktop or laptop system
running one of the following Operating Systems:
•Windows XP Home or Professional with Service Pack 2
•Windows Vista
•Windows 7/8
The minimum hardware requirements for the PC are:
•PC with 1.6GHz or higher processor clock speed required. Intel Pentium/Celeron family,
or AMD K6/Athlon/Duron family, or compatible processor recommended
•1024 megabytes (MB) of RAM
•At least one USB2.0 or USB3.0 port
•20Mb of available disk space
•VGA (640x480) or higher- resolution video adapter and monitor
•CD-ROM or DVD drive for driver installation.
To play DVD on the adapter-attached monitor, in addition to the requirements above, the
following requirements should also be met:
•PC with 2.0GHz or higher processor clock speed required.
•2048 megabytes (MB) of RAM
NOTE:
USB Graphics Adapter does NOT support Apple MAC and Linux operation system.

8
2.
Hardware Installation
_______________________________________________________
This chapter includes information about hardware installation for USB Graphics Adapter.
The following topics are covered:
Hardware Guide
Driver Installation
Driver Uninstallation
Verify Installation

10
Driver Installation
r to your monitor with video cable ready. Connect the
smaller end of the USB cable to the adapter. Then connect the other end of the USB cable to
an USB 3.0 or 2.0 port on your computer.
Note:
1. To get best performance, we recommend USB Graphics Adapter working via Super
Speed USB connectivity. But it’s also backward compatible with High Speed USB2.0
environment.
2. It's suggested that you remember which USB port is used for the driver installation and
always connect the adapter to the same USB port, otherwise Windows will treat the
adapter as a new device and ask to install the drivers again.
Connect your USB Graphics Adapter via the USB cable to your PC. Windows detects the
new hardware and follows the procedures below to install correct driver.

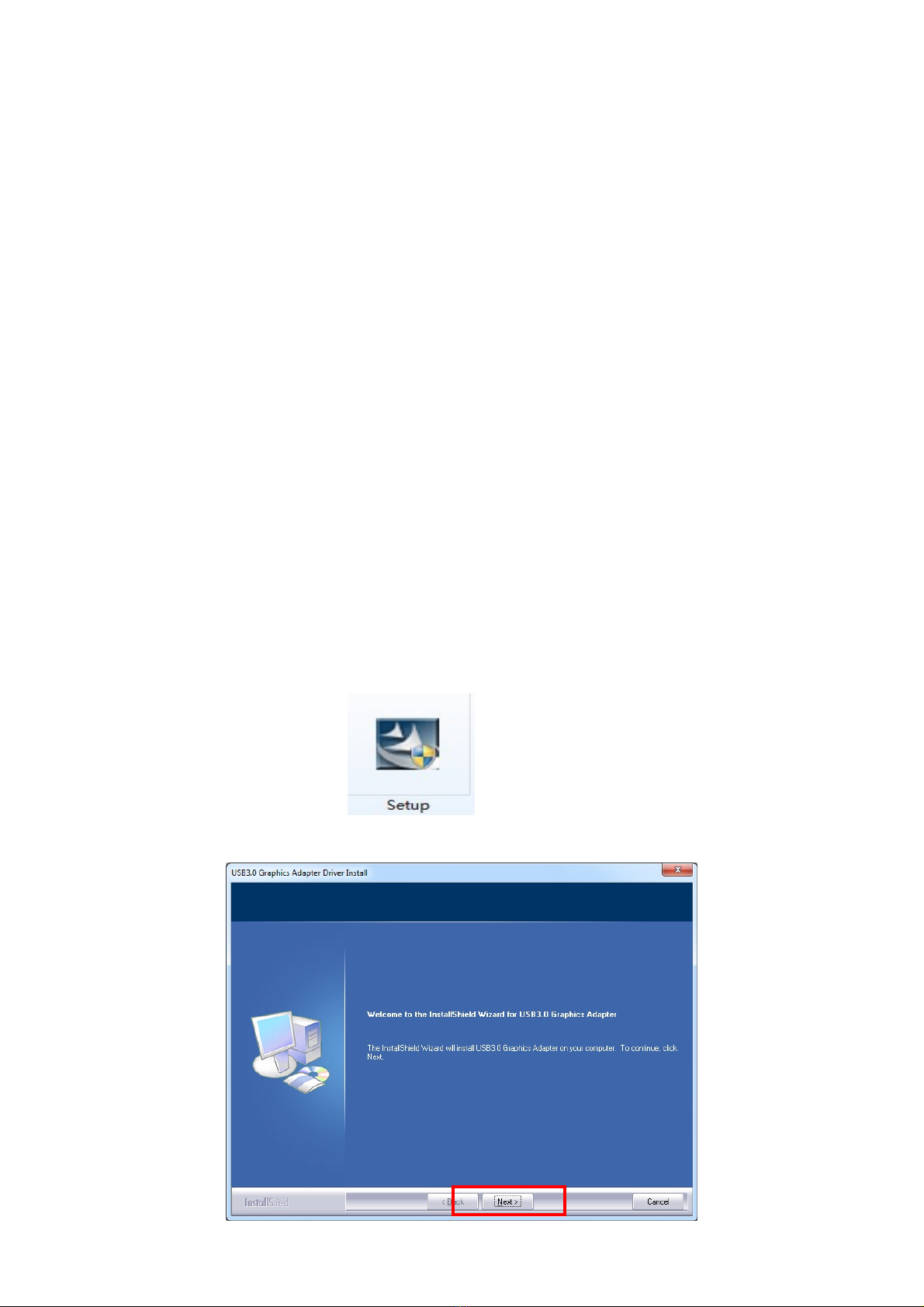

1. Insert the provided driver CD into your CD-ROM drive. The setup program will run
automatically. If not, locate and double-click the Setup.exe file in driver folder.
2. Please “Next” to start USB Graphics Adapter driver installing steps.
Connect USB Graphics Adapte

11

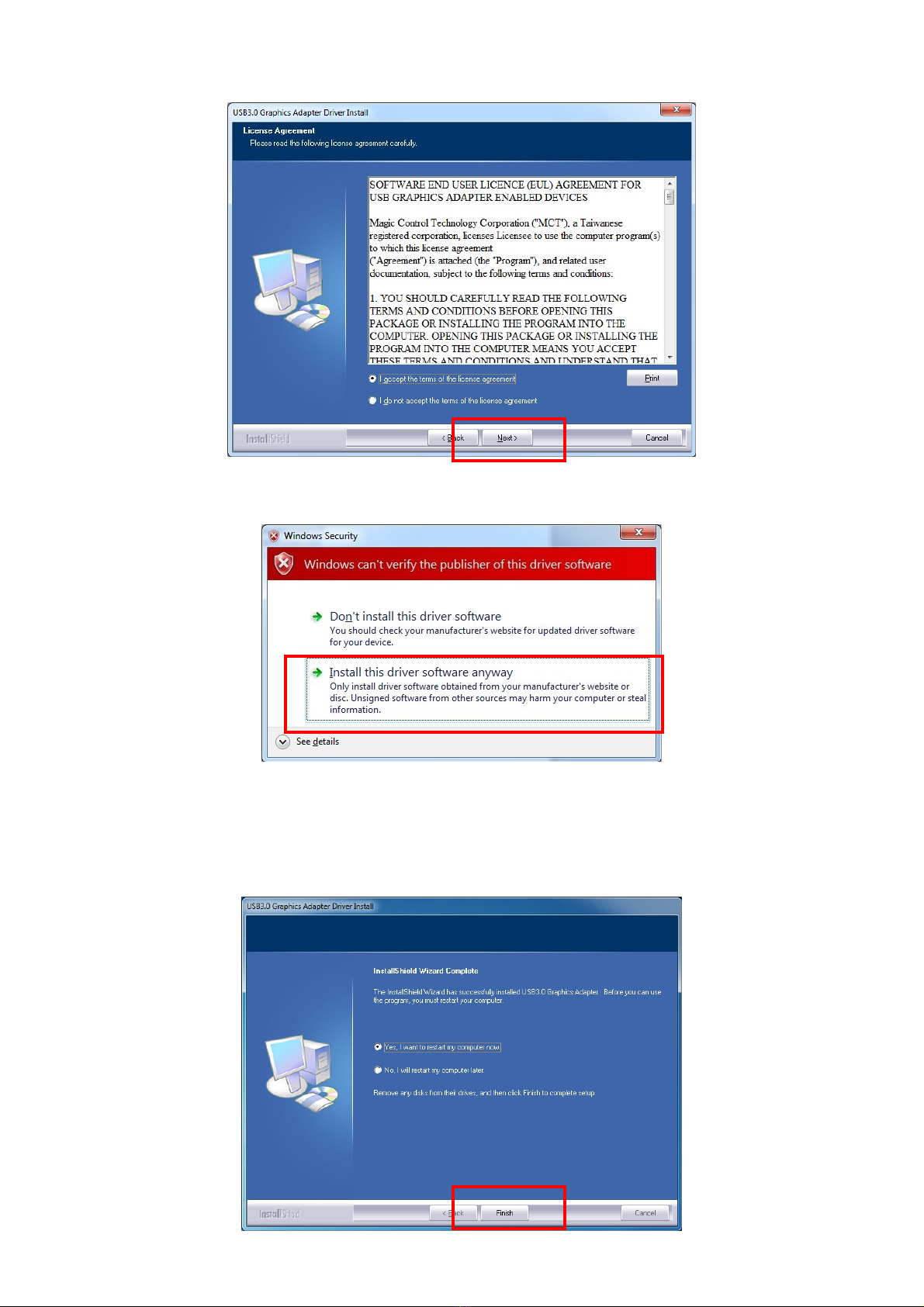

3. Select I accept the terms in the License Agreement.
Click “Next” to start driver installation steps.
4. Click “Install this driver anyway” to continue driver installation steps.
5. Click “Finish” to complete the driver installation steps and restart your computer. Note that
a reboot is always needed for a successful installation. If the reboot prompt doesn't appear,
make sure to manually reboot your computer.

12

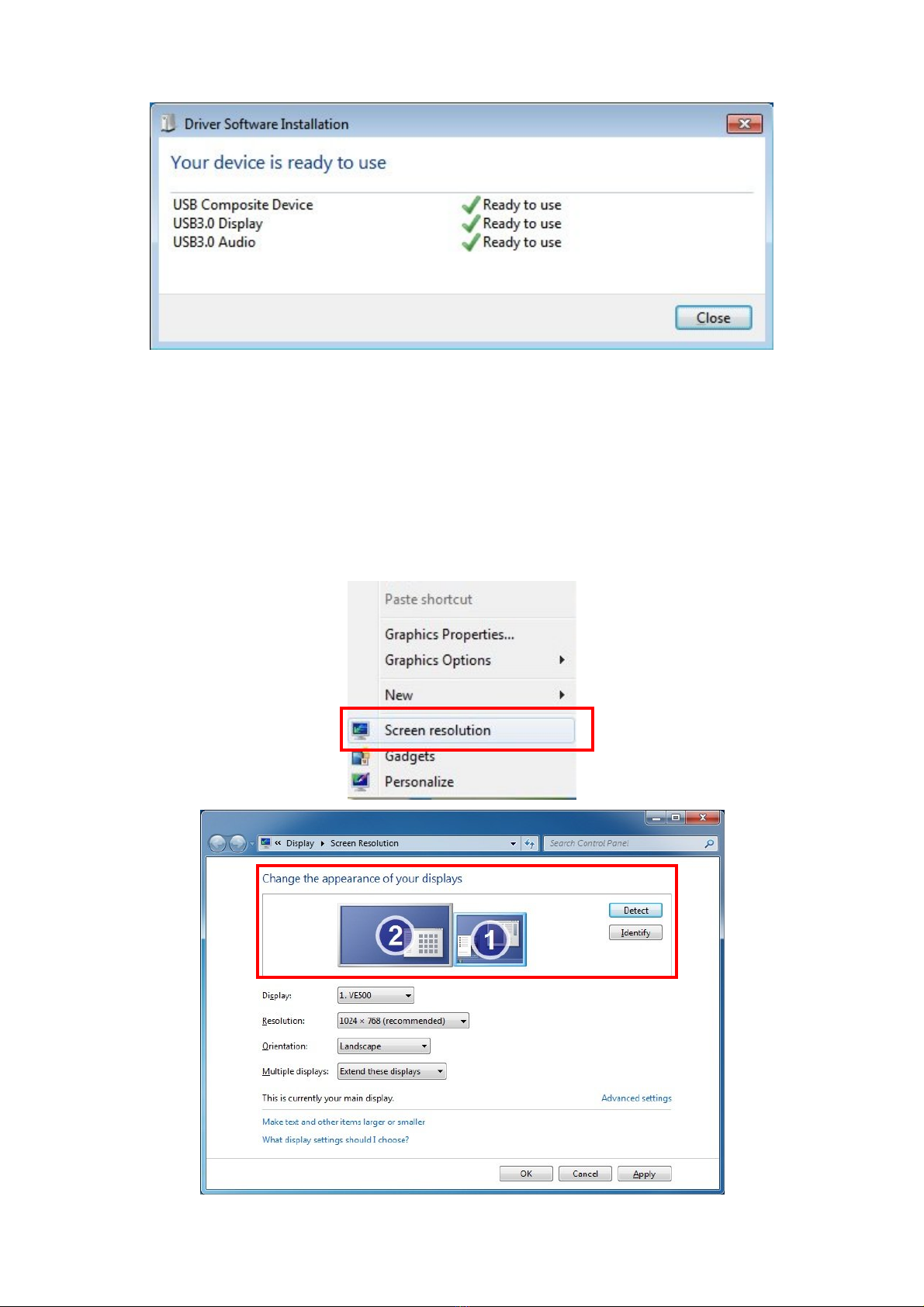

6. After finishing driver installation step, system will install properly driver for USB Graphics
Adapter. Note that only DisplayPort and HDMI connectivity support USB Audio feature.
7. You can configure USB Graphics Adapter through the use of Windows Display
Properties. Windows Display Properties provides a simple method to attach, duplicate or
extend screens as well as modify screen resolution.
Position the mouse anywhere on the Windows desktop, and then right-click to select
“Screen Resolution” to configure all settings.

13
Driver Uninstallation
The USB Graphics Adapter software can be removed from the “Programs and Features”
utility under the Windows control panel. (On Windows XP this is called “Add or Remove
Programs”)
1. Open “Programs and Features”.
2. Find the “USB Graphics Adapter” entry and click on “Remove”.
3. Click “Yes” to confirm that you want to remove it.
The uninstaller will then automatically uninstall the software. Reboot is always needed for a
successful driver remove.

14
Verify Installation
You can use Windows “Device Manager” to verify proper installation.
(1) Click on the “Programs and Features” tab in the Windows Control Panel.
Start > Controller Panel > Device Manager
(2) Under Microsoft Widows 7, you can read “ USB Display ” and “ USB Audio ” device
In the Device Manager.

15
(3) Under Microsoft Widows XP, you can read “ USB Graphic Adapter ” and “USB Audio”
device In the Device Manager.
Note:
USB Audio Device only supports USB Graphics Adapter with DisplayPort and HDMI
connectivity. DVI and VGA (D-Sub) interfaces does NOT support audio function.

16
3.
Display Manager Operation
_______________________________________________________
This chapter includes information about how to operate USB Graphics Adapter. The
following topics are covered:
Windows 7/ 8Display Manager Operation
Windows XP Display Manager Operation
Audio Output Setting
Others

17
Window 7/ 8Display Manager Operation
You can configure USB Graphics Adapter through the use of Windows Display Properties.
Windows Display Properties provides a simple method to attach, duplicate or extend screens
as well as modify screen resolution.
Position the mouse anywhere on the Windows desktop, and then right-click to select
“Screen Resolution”.
Drag the icons in the window at the top of the screen to match the physical arrangement of
your primary monitor and add-on monitor. The add-on monitor connected to the adapter may
be identified as either "2" or “3”, depending on your computer, although there may not be a
total of 3 screens connected.
In the Display drop-down menu, select the monitor which has been assigned to the
secondary monitor. Then you can configure

18
1. Resolution
The number of pixels displayed on screen horizontally and vertically. USB Graphics
Adapter supports resolution lists as below.
640x480, 800x600, 1024x768, 1152x864, 1280x720, 1280x768, 1280x800,1280x960,
1280x1024, 1360x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1080,
1920x1200, 2048x1152.
USB Graphics Adapter detects display in formation and lists available resolutions. System
will run recommended resolution for your system. (e.g. 1920 x 1080 in the example)

19
2. Orientation
There’re four kinds of screen rotation modes, including Landscape (Normal) , Portrait
(Rotated 90°), Landscape flipped (Rotated 180°), and Landscape flipped (Rotated 270°).
For example, under “Portrait” mode, the second monitor will show vertical display type.
Normal
Landscape (default) Rotated 90°
Portrait Rotated 180° Landscape (flipped) Rotated 270° Portrait (flipped)

20
3. Multiple Displays
User can set “Extend these displays” to extend the second display. (System default), or
“Duplicate these displays” to mirror the primary display settings.
Select “Extend these displays” in the multiple displays drop-down menu, and then click
“Apply”. Then Click “OK” to exit the settings screen. Once the setting is finished simply drag
and drop the application windows to secondary monitor.
In extend mode, the monitor attached to the USB Graphics adapter forms part of the
extended Windows desktop. The extra desktop area is a great productivity aid, allowing more
applications or documents to be visible at a time. However, some applications may not
support display on the extended desktop.
•Extension Mode

21
Select “Duplicate these displays” in the multiple displays drop-down menu, and then click
“Apply”. Then Click “OK” to exit the settings screen. In mirror mode, the monitor attached to
the USB Graphics Adapter duplicat
es what is on the primary display. The resolution, color
depth and refresh rate of the primary screen are replicated on the monitor connected to the
USB Graphics Adapter.
In mirror mode, the adapter will automatically select the settings (screen resolution, color
quality and refresh rate) for the secondary monitor. But you can manually adjust the settings
as required. However, the settings of the secondary monitor are limited by that of the primary
monitor. For example, even though your secondary monitor supports a resolution of up to
1920x1080, you can only configure it to use 1280x1024 due to the primary monitor only
supports a resolution of up to 1280x1024.
4. Primary Mode Setting.
Under extension mode, user can make extend (second) monitor as the primary display by
clicking “Make this my main display” option.
•Mirror Mode

22
Window XP Display Manager Operation
When USB Graphics Adapter is attached, adisplay manager icon appears in the taskbar.
Using the display manager you can perform the configuration tasks in an easier way. In
addition, you can use it to rotate the extended screen. Right-clicking the display manager
sectary icon will bring out the context menu. Click the Show hidden icons arrow to show all
available icons.
* Blue color icon shows up when USB Graphics Adapter connects to computer ready.
* Gray color icon shows up when USB Graphics Adapter doesn’t connect to computer.
Click this icon on the taskbar. The quick access menu appears as shown below.
Mirror mode will be the system default setting.
