Sunrain YC-030TA1 User manual

- 1 -
Installation & Operation Manual
Swimming Pool Air Source Heat Pump
Model Number : YC-030TA1
Thank you very much for purchasing our product,please keep and read this manual carefully
before you install heat pump.
Company:
Add:
Tel:
Web:
Email:

- 2 -
Packing List
Please keep installation manual properly, and read it carefully before using.
The unit must be installed by professional personnel, and install it based on this manual as
possible.
No.
Name
Qty.
Remark
1
Installation & Operation Manual
1
2
Wire-controller
1
3
Wire controller box and sponge pad
(Will install on the heat pump shell)
1
4
Wire-controller Cable
1
5
Drain-pipe (2 m)
1
6
Drain-pipe connector
1
8
Rubber shock absorber
4
9
Heat Pump Unit
(The pipe connector has been
installed on the machine)
1

- 3 -
Special reminding: if the unit would be installed where is vulnerable to lightning stroke,
lightning protection measurements must be carried out.
Special reminding: The unit is not suitable for using in the winter, the water reserved in the pipe
network system must be drained.
Content
Accessories description.........................................................................4
Attention for safety..................................................................................5
Heat pump unit working principle..........................................................6
Installation of the unit..............................................................................8
Installation of the pipeline.....................................................................11
Installation of optional accessories......................................................13
Installation and operation of electric devices......................................14
Instruction of operation ........................................................................18
Adjusting and Initial operation..............................................................31
Operation and maintenance..................................................................32
Fault analysis and elimination method.................................................34
Technical parameter................................................................................35
After-sale service....................................................................................35

- 4 -
Each unit produced by our factory is with the following accessories:
For function you need to purchase at least the following parts for each unit:
No.
Name
Qty.
use
1
Water pump
1
Cycle the heated water
2
Filter system
1
Protect the heat pump from pool water
3
Water pipes system
1
Connect the equipment and make circulation
NOTE
The types and quantity of the water pipes, valves, filter equipment, sterilizing equipment which
used for the swimming pool heating/circulation pipe system, depend on the project design. We do
not suggest to install auxiliary electric heaters in the system. If must install auxiliary electric
heaters, must install the electric heaters by the specialized persons, and our company has no
responsibility for all the problem cause by the auxiliary electric heater.
No.
Name
Qty.
Use
1
Installation & Operation Manual
1 PC
Guide users to install the system
2
Wire controller
1 PC
Used for the man-machine operation interface
3
Wire controller connecting cable
1 PC
Connect wired controller to heat pump unit
4
Drain-pipe
1 PC
Used for draining the condensate water
5
Drain-pipe connector
1 PC
Connect the drain pipe to the heat pump unit
6
Power cable
1 PC
Power cable for the heat pump unit
7
Rubber shock absorber
4 PCS
Reduce vibration and reduce noise
8
Heat pump unit
1 SET
For heating water
1. Accessories description

- 5 -
●The installation shall be done by the professional persons, to prevent leaking, electric shock, or fire
disaster.
●Confirm the ground connection, if the ground connection is not correctly done, it may cause electric
shock.
●When install the heat pump in a small room, must keep well ventilated.
●Don't put finger or sticker into the air inlet or air outlet. Because the internal rotor high-speed
operation may cause injury.
●When an exception happens (burning smell), turn off the manual power switch immediately, stop
operating, and contact with after-sale service department. If continue the abnormal operation, it may
cause electric shock or fire disaster.
●When the unit needs to be removed or re-installed, please entrust after-sale service department
and specialized personnel to do it. If the installation is not well done, it may cause unit operation
failure, electric shock, fire, hurt, leaking, etc.
●Must not be unauthorized reformed, otherwise it may cause electric shock or fire.
Range of application:
1.Power supply: 380-415V/3N~50Hz.
2.Environment temperature: -15°C 〜43°C ：
3.Working water temperature: Min. inlet water temperature 8°C, Max. outlet Water
Temperature 40°C . If the system is always used beyond the available water range,
please contact with manufacturer.
2. Attention for safety

- 6 -
●When needs to be repaired, please entrust after-sale service department or a specialized
personnel to implement. If improper repaired, it may cause unit operation failure, electric shock, fire,
hurt, leaking, etc.
●Can not install the unit in combustible gas easy-leaking places, once the combustible gas leaks
around the unit, it may cause a fire.
●Confirm if the installation base is strong enough, if it is not strong and has been used for a long time,
it may cause falling and injuries.
●Confirm if leakage protection switch is installed, if don't install a leakage protection switch, may
cause electric shock or fire.
●When cleaning the unit, the operation should be stopped, and power switch should be turned off.
3.1 Heat pump working process
●First, the low pressure and superheated gas in the evaporator is inhaled into the compressor then
becomes the high temperature and high pressure overheated vapour.
●Second, the overheated vapour is exhausted into the condenser and exchange the heat with the
water, then the refrigerant is condensed and becomes the saturated or over cooling high pressure
and high temperature refrigerant liquid. The water is heated up by heat pump when absorbing the
heat energy which released by the refrigerant.
●Third, the refrigerant liquid releases the pressure by passing the expansion valve, then becomes
the low temperature and low pressure liquid.
●Fourth, the refrigerant liquid flows into the evaporator and absorb the energy from the air, then is
vaporized and became the low pressure and overheated vapour. The refrigerant working repeatedly
as described above, then the water which flows through the condenser is heated up constantly, the
temperature rise and can get the hot water.
3. Heat pump unit working principle

- 7 -
COP
3.2 Air source heat pump working principle
4 way valve
Water inlet
Water Outlet
Condenser
Gas-liquid
separator
Compressor
Filter
Expansion valve
Filter
Evaporator
Fan unit
Figure 1
Qc(Heat energy get) =Qa(Compressor consumption) +Qb(Heat energy absorbed from ambient
environment)
3.3 Heat pump performance curve for variable working condition
Figure 2
Environment temperature (°C )
Attention pipeline anti-freezing in case the environmental temperature drops to 0°C.

- 8 -
4.1 Installation attention
●Avoid installations in such locations with mineral oil.
●Avoid installation in locations where air contains salt or other corrosive gas.
●Avoid installation in locations with serious power supply voltage fluctuation.
●Avoid installation in an unstable place, such as car or cabin
●Avoid installation near flammable items.
●Avoid installation in locations with strong electromagnetic wave.
●Avoid installation in locations with special harsh environmental conditions.
4.2 Installation check
●Check the model, number, name etc, avoid incorrect installation.
●Make sure enough space for installation and maintenance.
●Make sure barrier-free for air inlet and outlet, also dry ventilated place.
●Make sure the bearing surface can meet the requirement and avoid shocks.
●The power supply and its capacity, wire diameter choice should be in accordance with the electrical
installation requirements.
●Electrical installation must comply with the relevant technical standards of electrical equipment,
and electrical insulation work must be done.
●The unit must be power on for at least eight hours before running and debugging.
4. Installation of the unit

- 9 -
4.3 Installation space
Keep the following indicated space for operation and maintenance first before installation
Figure 3 Horizontal type installation space（units: mm）
4.4 Heat pump unit size
Figure 4 Horizontal type heat pump size

- 10 -
Size(mm)
Model No.
A
B
C
D
E
F
G
YC-030TA1
1086
420
1318
1003
374
780
394
4.5 Reserve the installation base for the heat pump
Please refer to Figure 5.
A nchor bolt
Drainage tray Heat Pump
Installation base
Concrete
Anchor bolt
Screw nut/washer
Shock absorb
Heat Pump
Drainage tray
Figure 5 Reserved installation base
4.6 Hoisting attention
●Please use four or more soft lifting belts to move the sets Figure 6.
●Please use protective plate on the surface of the sets when moving, to avoid scratch and
deformation.
●Recheck whether the foundation is correct before hoisting the unit.
●The heat pump will produce condensation water,please consider the drainage channel when make
the installation base.
●Please put shock absorb on base surface.
Figure 6 Hoisting diagram

- 11 -
5.1 Attention
●Prevent air, dust and other sundries from going into the water pipes.
●Fix the whole system before install the water pipes.
●Water inlet and outlet pipes shall be protected by the insulation layer.
●Stable water velocity shall be ensured, so that excessive throttling can be avoid.
●When moving, water inlet and outlet pipe shall not be used for hanging, only the holes on the beam
of the base can be used, please refer to Figure 9

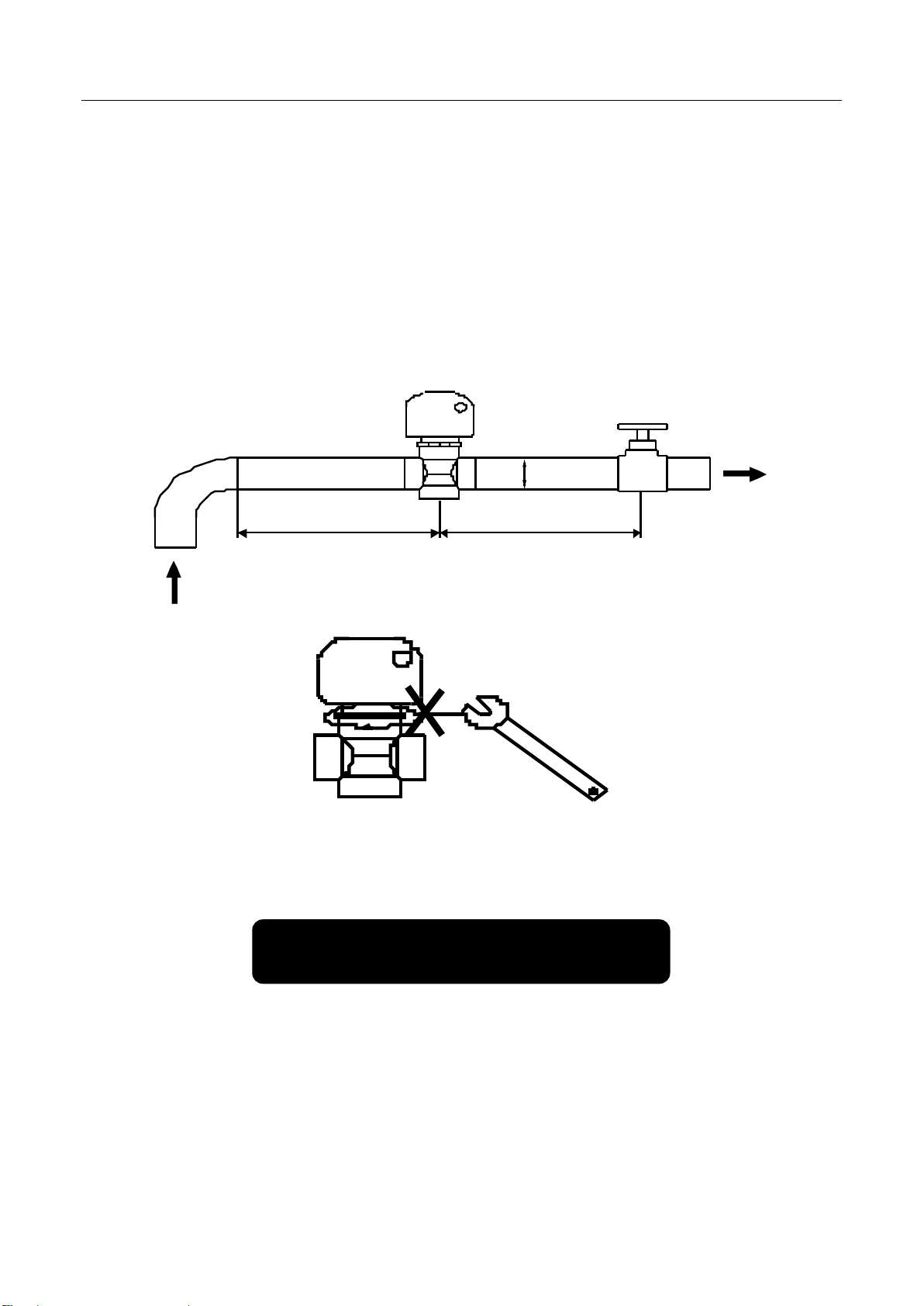

●When connect the water inlet and outlet pipes, two pipe wrenches shall be used to control the two
parts of the pipes, and ensure the water inlet and outlet pipes not turning around, please refer to the
Figure 7
Figure 7
5.2 Instruction
5.2.1 Marginal data
5. Installation of the pipeline

- 12 -
5.2.2 Pipeline installation diagram
Controller
Heat
Pump
Water temp sensor wire.
Swimming Pool
Pump signal wire
Pump
Drainage
Drainage
Feeding water
Figure 8 Diagram（Single unit for reference）
●The one-way valve is suggested for each unit, to prevent the water back flow.
●The system can be combined with multiple units, but should be controlled by each unit
independently.
●Regarding the installation of backup pump, maintenance valve and temperature measure point,
please consider it yourself.
●All pipes and valves of the unit need the heat preservation.
5.2.3 Selection of the water pipes
Model No.
Inlet
Outlet
YC-028TA1
DN50
DN50
The swimming pool heat pump adopt the titanium heat ex-changer, can connect the swimming pool
directly, but must install a water filtration equipment before water go into heat pump, the filter meshes is
about 40 meshes.
Main pipe diameter selection of the parallel connected multiple units (example)
Inlet/outlet pipe
YC-030TA1
One unit
DN50
Inlet/outlet pipe
YC-030TA1
Two units connection
DN65
Inlet/outlet pipe
YC-030TA1
Three units connection
DN80
Inlet/outlet pipe
YC-030TA1
Four units connection
DN80
Inlet/outlet pipe
YC-030TA1
Five units connection
DN100
●The pipe press and flow rate should be calculated before the diameter selection, the range of
pressure drop is 0.3〜0.5 kgf/cm2(3〜5m）the range of head pipe flow rate is 1 .2〜2. 5 m/s.

- 13 -
●The hydraulic calculation should be made after the selection of pipe diameter, if the resistance is
more than pump head, then need to choose a more power pump, or choose a bigger pipe.
5.2.4 The demanded quality of water
●The bad quality water will produce more scale and sand, so this kind of water should be filtered and
demineralized.
●The water quality should be analyzed before system running, to measure the PH value,
conductivity, Chloride ion concentration and sulphate ion concentration.
●The acceptable water quality standard is showed as below table.
PH value
Total hardness
Conductivity
Sulphate ion
Chlorine ion
Ammonia ion
7～8.5
< 50ppm
<200μV/cm(25℃)
None
< 50ppm
None
Sulfate ion
Silicon
Iron content
Sodium
Ca
< 50ppm
< 50ppm
< 0.3ppm
No requirement
< 50ppm
●Suggest the filter meshes is about 40 meshes.
●Must install the sand filter, hair collector etc. Swimming pool special impurity filter equipment.
6.1 Selection of the water pump
●The circulation pump is needed for the system, the power port is prepared for the pump, (one
phase)
NOTE For the single phase pump, please check the circuitry diagram.
●The head of circulation pump = height difference between water level and main unit + total
pipelines resistance (determined by the hydraulic calculation) + pressure loss of main unit (see the
nameplate on heat pump ).
NOTE
when multi paralleled, the water pump head is subject to the worst working condition loop.
6.2 Selection of the flow switch
●The selection of the flow switch is based on the actual system, the target flow switch is
recommended. Temperature of fluid: 0-120 °C , max working pressure 13.5 bar.
●The flow switch can be installed on the horizontal pipeline or the vertical pipeline which the fluid
6. Installation of optional accessories

- 14 -
flow direction is upward, but should not be installed on the vertical pipeline which the fluid flow
direction is downward.
● The flow switch must be installed on a straight pipeline, there must be more than five times the
length of the pipe diameter at its two sides. And, the direction of fluid must follow the arrow on the
controller. The terminal block should be in an easy operation position, (Figure 10)
●The pannier is absolutely forbid to touch the flow switch floor, or the switch will be deformed and
invalid, (Figure 8)
●Please be sure that the model of target sheet is determined by the system rated flow, diameter of
outlet pipe and the adjustable range of the target(see the user manual). And the target sheet can not
contact the inwall of pipe or other throttlers in pipe, or will cause the switch can not reset.
A
5A 5A
Figure 9
Figure 10
7.1 Electrical wiring
●The unit should use a dedicated power supply, power supply voltage with rated voltage.
●Unit power supply circuit must be ground, power supply wire and external grounding reliable
connection, and the external grounding is effective.
●Wiring must be constructed by the professional installation technicians in accordance with the
circuit diagram.
7. Installation of electric devices

- 15 -
●Power line and signal line layout should be neat, reasonable, can not interfere with each other, but
not with the connecting pipe and the valve body contact.
●If the unit is not matching the power line, please supply specifications refer to provisions, wires
connecting is not allowed.
●After all wiring construction is completed, please check it before switch on the power supply
carefully.
Figure 11
Figure 12 Electrical Box
Screw out the bolt and take off
the up cover panel
Screw out the bolt and open
this front panel, will find the
main control board and terminal
block.

- 16 -
NOTE:
If the pump power less than 150w,
please connect the pump wire refer
to the left drawing
7.2 Electrical Wiring Specification
Model
Electrical Wiring Specification
YC-028TA1
2*2.5 mm²+1*1mm²
Terminal
The terminal can connect the wire max. is 4 mm²
Figure 14
7.3 Circulation pump installation
The heat pump provide power to the pump as the follow drawing.
Figure 15

- 17 -
Figure 16
7.4 Electric wiring diagram
Figure 17

- 18 -
7.5 Main Control Board Interface
Figure 18
8.1 Control system specifications
8.1.1 Operating condition
●Voltage: 220V～±10%,50Hz±1Hz.
●Ambient temperature: -15～+43℃
●Storage temperature: -20～+75℃
●Relative humidity: 0～95%RH
●Temperature accuracy: ±1℃
8.1.2 Main function
●Three operation mode: heating,cooling and constant temperature mode.
●Display the pool temperature and setting temperature, and also can query the coil
temperature, ambient temperature and exhaust temperature and so on.
●Power cut memory function.
8. Instruction of operation

- 19 -
●When power cut, the clock will still work.
●Timing on/off.
●Automatic defrosting.
●Forced to defrost.
●Large LCD display.
●Has perfect protection function.
●The error code display and query
●Key-Lock Function
●Anti-freezing function
●When there is no wire controller or wire controller is broken, the system can recognize it,
and control the heat pump to run automatically.
8.2 Wire controller and operation
8.2.1 Controller Instruction
symbol
status
meaning
Constantly bright
heat pump is on
Extinguished
Heat pump is off
Constantly bright
at cooling mode

- 20 -
Constantly bright
at heating mode
Constantly bright
need repair
Constantly bright
at AUTO mode
Extinguished
Currently in the manual set temperature state
Constantly bright
this unit is a water connection heat pump
Extinguished
this unit is a refrigerant connection heat pump
Constantly bright
heat pump is on and at defrosting
Flashing
Heat pump is on and at defrost delay
Flashing
heat pump is off and at refrigerant recovery status
Constantly bright
electric heater is on for quick heating
Flashing
electric heater is on for disinfection
Constantly bright
current water temperature in the tank
Constantly bright
set water temperature in the tank
Constantly bright
current outlet water temperature
Constantly bright
current inlet water temperature
display
Display actual water temperature, set water temperature and
fault code
Constantly bright
Currently showing Celsius temperature
display
Show real time
display
Timer function is on
display
Currently in the on-time working hours
Flashing
set start time for working time
display
Currently at boot time, non-working time
Flashing
end time of current set working time
1
Constantly bright /
Extinguished
Timing working period 1,always on when set, at other
conditions are off.
2
Constantly bright /
Extinguished
Timing working period 2,always on when set, at other
conditions are off.
3
Constantly bright /
Extinguished
Timing working period 3,always on when set, at other
conditions are off.
Constantly bright
start timing water return function
Flashing
start manual water return function
Extinguished
turn off water return (timing/manual) function
display
Currently the return water is in regular timing working period
Flashing
Current set start time of backwater working time
display
Currently the return water is in the non-working hours
Flashing
Currently set end time of water return period
1
Constantly bright /
Extinguished
Timing zero cold water period 1, always on when setting, at
other conditions are off.
