SPRSUN CGK/C-XX(L) Series User manual

Heat Pump User Manual
Comprehensive version
(EVI heat pump and High temp. heat pump)
Version: CG2017111601
This manual is suitable for below heat pumps:
No Abbreviations Details Model
1 EVI-HW EVI air source heat pump hot
water series
CGK/C-XX(L),
CGK/D-XX(L)
2 EVI-HH EVI air source heat pump
heating + hot water series
CGK/C-XX(L),
CGK/D-XX(L)
3 EVI-HC EVI air source heat pump
heating and cooling series
CGK/C-XX(LHC),
CGK/D-XX(LHC)
4 HT Air source high temperature
heat pump
CGK/C-XX(H),
CGK/D-XX(H)
Note: Abbreviations name will be used in the below content, pls check the
related content for your heat pump referring to the form above.

P1
Contents
Part 1. Before use …….…………………………………………………2-6
A. Attentions ...............................................................................................2
B. Installation ............................................................................................4-6
Heat pump installation location and attentions……………………………….….4
Installation diagram and tips…………………………...………………………...5
Pre-stat up………………………………………………………………………..6
Part 2. Use …………………………………………….….……………….7-21
Operation and display…………………………………………………..…….9-12
Data query and setting……………………………………………………...…..13
Error code………………………………………………………………………14
Working modes…………………………………………………………………19
Electrical component controlling……………………………………….………21
Part 3.Maintenance and Reparing ………………………………...23-26
Warranty card………………………………………………………………...26

P2
Part 1 Before Use
Attentions

P3

P4
2.Installation
A. Heat pump installation location and attentions
*. Heat pump is not allowed to be installed in the place where combustible gas
may leaks.
*. Heat pump is not allowed to be installed in the place where there is oil or
corrosion gas released.
*. Heat pump should be installed in a open space, and good ventilating.

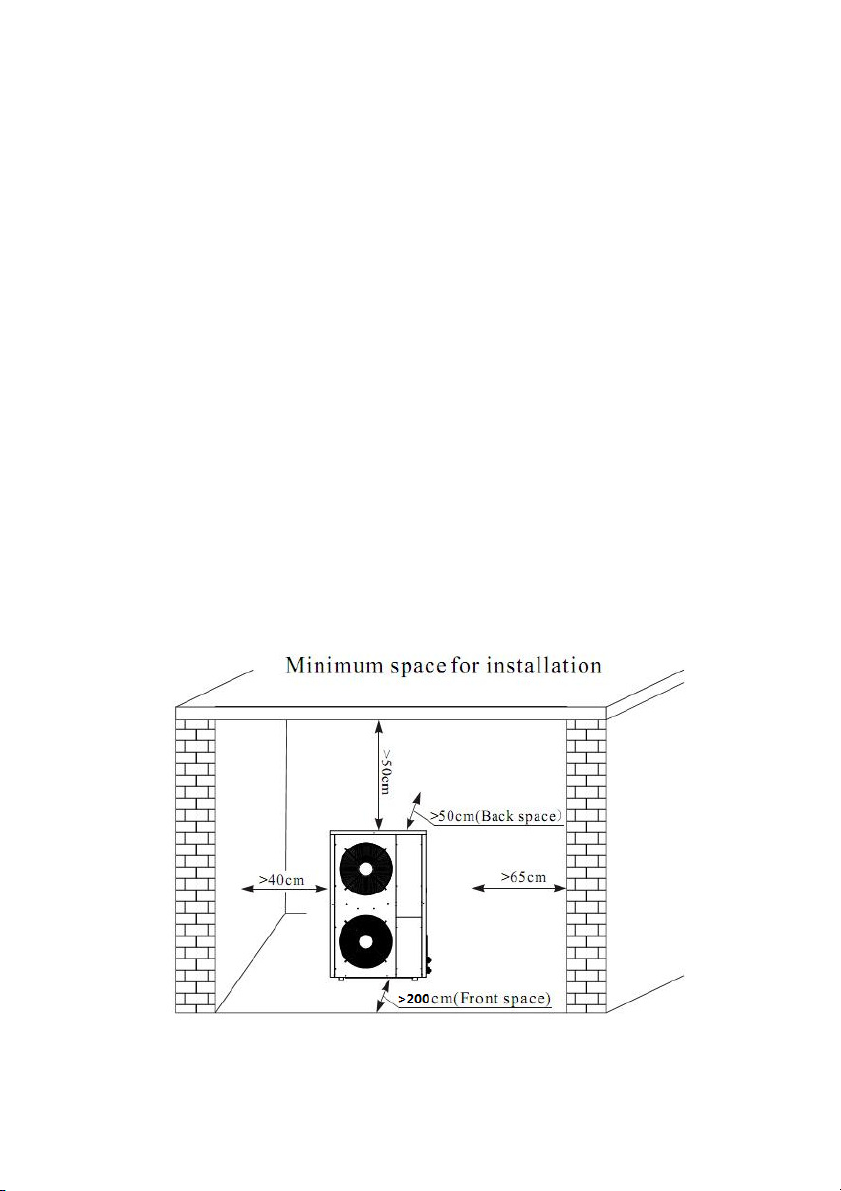

*. Heat pump each side to wall or barrel should be keep certain distance, air
outlet to barrel distance should ≥2m, air inlet distance to wall or barrel≥0.5m,
bottom distance to ground ≥0.5m, other side distance should be enough for
installation or repairing.
*. Heat pump should be installed on concrete basic or steel bracket, and
anti-shock pad should be put between heat pump and basic or bracket. Then use
expansion bolt to fix heat pump on bracket.
* Water drainage pipe and ditch should be set around heat pump and water pipes
and water tank. When testing or repairing, maybe need drain plenty of water, and
when heat pump is working, there are some condensed water flow down.
B. Installation diagram ( it is only for reference,the actual installation shall be
based on actual project)

P5
* for hot water and floor heating
*for heating/cooling

P6
Tips for installation related to the water pipe part:
*Install a valve at the highest point of each water circulations for releasing air
from water system.
* A Y filter is very important in front of circulating water pump of heat pump.
* If more heat pumps installed in one water pipe system, the connection of these
heat pumps can’t be in series, only can be in parallel or independent.
C. Pre-start up
1.Checking before pre-start up
* Check if the water pipe are connected well and if there is any leakage. The
water supply valve are open.
* Make sure the water flow is enough and meet the demand of the heat pump
selected and water flow smoothly without air . In cold area, pls make sure that
the water flow is without freezing
* Check if the power cable is connected well and properly grounded.
* Check if fan blade is blocked by the fixing plate of fan blade and fan blade
protecting grill.
* Check if the tank has been filled with water or enough water volume that can
meet the demand of heat pump running
Pre-start up
After check completely and confirm no problem for installation, the unit can be
power to start up .
After connect power supply, heat pump delay 3 mins to start. Check carefully
is there is some abnormal noise or vibration or if the working current is normal
or if water temp increasing is normal.
After the unit is working properly for 10 minutes without any problem, then the
pre-start up is usefully completed. If not, pls refer to Service and Maintenance
Chapter to solve the problem.

P7
Part 2. Use

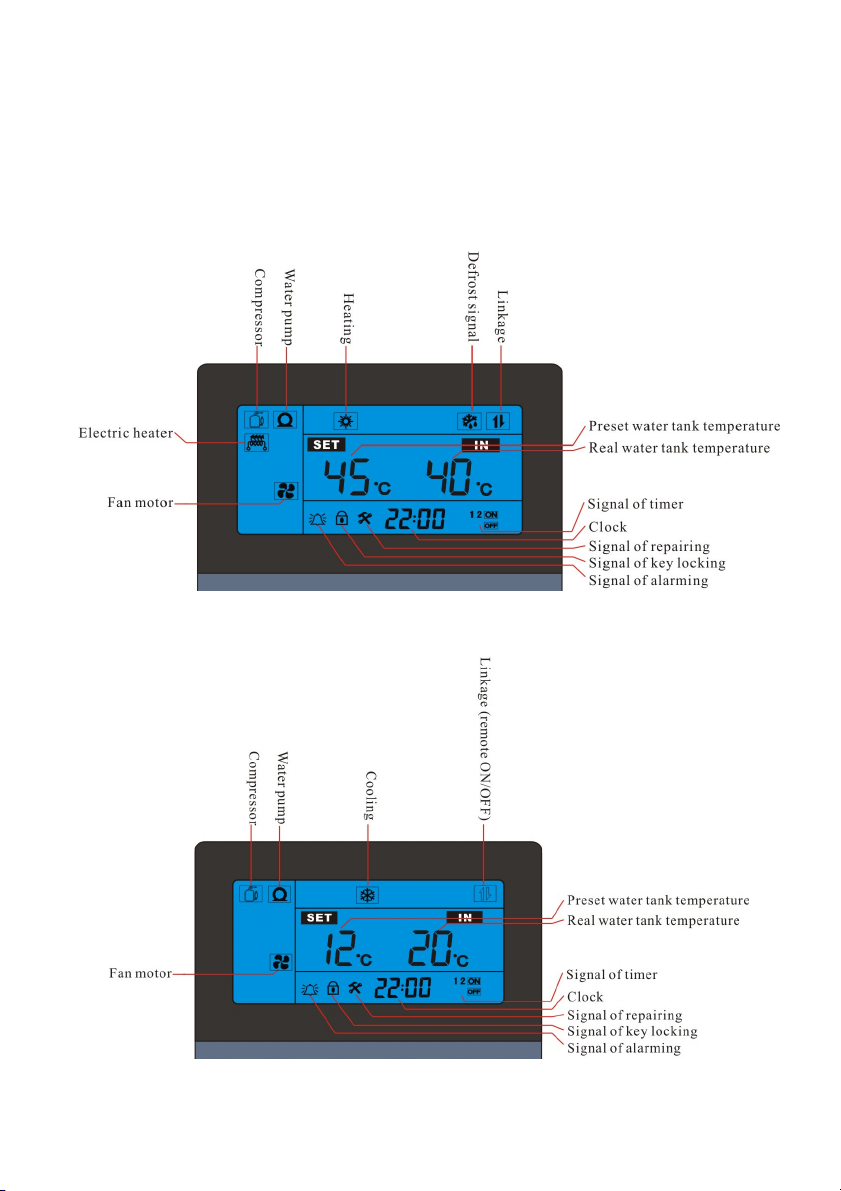

Operating panel display
EVI-HC
A. Heating mode
B. Cooling mode

P8

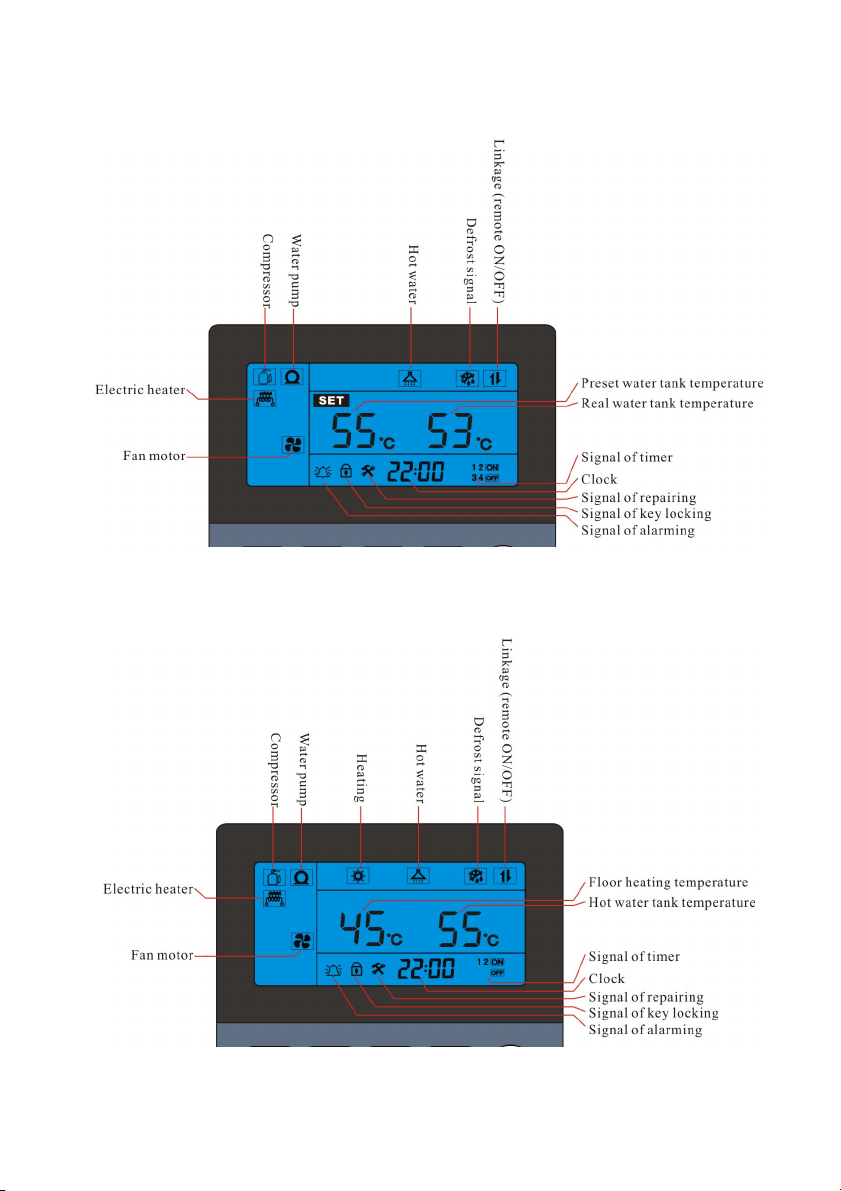

EVI-HH
A. Only hot water mode
B. Heating + hot water mode

P9
EVI-HW
HT series

P10
Buttons function
↓↓↓↓↓
Clock M + - power
“Power” button
2.1.1 Under unlock state, press this button for 1second, can turn on and turn off
heat pump.
2.1.2 Under other state, press this button, can return main interface.
2.1.3 Under locking state, press this button for 5 seconds, can unlock buttons.
“M” button
Under main interface, press “M” button, can query the working status
parameters
“+”and “-“ button
2.3.1 Turns page, change value
2.3.2 Combine with “M” button, can query and set parameter
2.3.3 Under power on state, press “+”and “-“button, can set current working
mode water temperature (except heating + hot water mode).
“Clock” button
2.4.1 Press this button for 10seconds, enter clock setting interface
2.4.2 Press this button, can enter timer of ON/OFF setting, combine “+”and
“-“button, can set timers.
Operating
Operating panel get electricity
When heat pump power supply is supplied, operating panel and PC board will
get electricity, then display panel displays, background light is very weak, all
buttons are locked now, any touching is invalid.
Unlock buttons
Press “power” button for 3sec, when hear “Du” voice, move finger, now
background light is strong, all buttons are unlocked, the lock symbol disappear.

P11
(if there is not operating on buttons for 60sec, buttons will be locked
automatically, and displays lock symbol)
Turn on/off heat pump.
Press “power” button, if operating panel shows off state, will turn on heat pump.
If operating panel shows on state, will turn off heat pump.

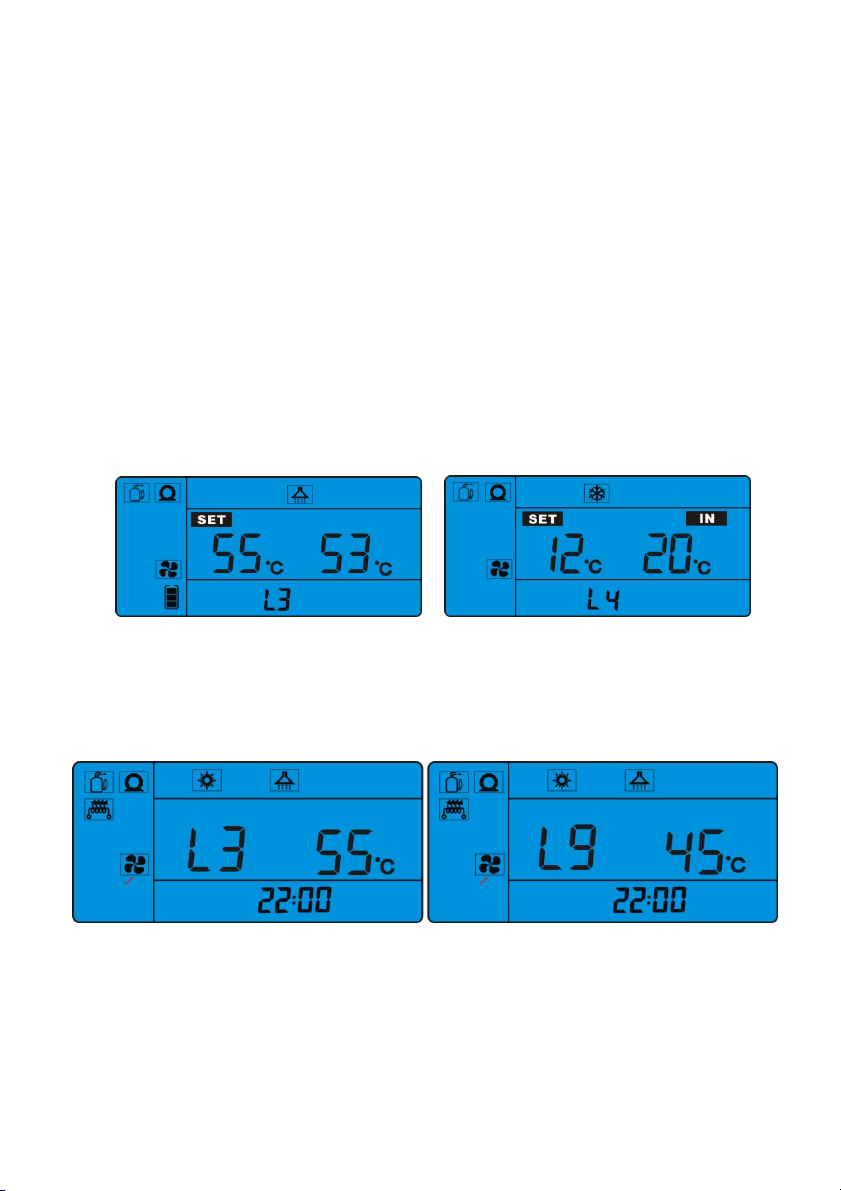

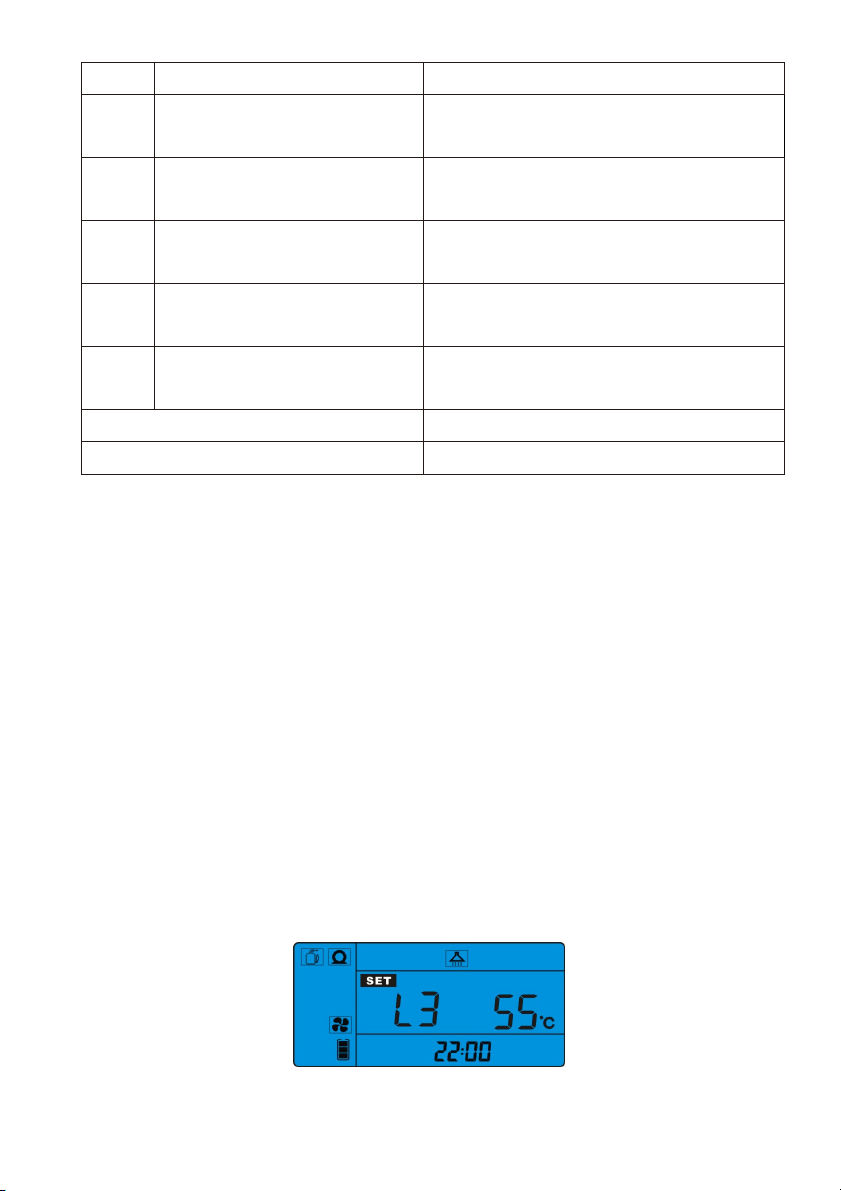

Water tank temperature setting (L3 or L4)
Except EVI-HH and HH series, other series have two way to set water tank
temperature:
Way 1:
Under on state and main interface, press “+” and “-“ button, can adjust current
working mode water tank preset temp. The preset water tank temp is the left one
temperature, the real water tank temp is the right one temperature. When setting,
the left temp will change, and display L3 or L4 below it.
Way 2:
Refer to “Table 3: user parameters query and setting” in P15. All user parameters
can be set by the same way. Floor heating water temperature only can be set by
this way.
Parameters query and setting operation
①Working status parameters and history error code query
How to enter? Under main interface, press ”M” button, can query the working
status parameters and history error codes
Working status parameters (table 1)

P12
Table 1: heat pump working status parameters query
Code Meaning Note
A0 Water tank temperature
A1 Outlet water temperature
A2 Air heat exchanger 1 lowest
tube temp
Same meaning for all series
A3 Inlet gas temperature of
compressor 1
Same meaning for all series
A4 Outlet gas temperature of
compressor 1
Same meaning for all series
A5 Ambient air temperature Same meaning for all series
A6 Inlet economic unit 1 Same meaning for all series
A7 Outlet economic unit 1
A8
Return water temperature of
water tank For EVI-HW and HT series
Inlet water temp For EVI-HC
Floor heating water temp
For EVI-HH and HH series
(displayed on main interface, the
left one temperature)
A9 Compressor 1 current Same meaning for all series
A10 Primary electronic expansion
valve opening degree 1
For HW and HH and SP-H series,
rated heating capacity less than
52KW models
A11 Secondary electronic expansion
valve opening degree 1 Same meaning for all series
A12 After throttling1 temperature
A13 Air heat exchanger 2 lowest Same meaning for all series

P13
tube temp
A14 Outlet gas temperature of
compressor 2
Same meaning for all series
A15 Inlet gas temperature of
compressor 2
Same meaning for all series
A16 After throttling 2 temperatures
A17 Inlet economic unit 2
A18 Outlet economic unit 2
A19 Compressor 2 current Same meaning for all series
A20
Primary electronic expansion
valve opening degree 2
For HW and HH and SP-H series,
rated heating capacity less than
52KW models
A21 Secondary electronic expansion
valve opening degree 2 Same meaning for all series
A22 Air conditioning (floor heating)
inlet the water temperature
A23 User return water temperature
E1～
E6 History error code Same meaning for all series
Note:
1.A23 return water temperature:
It is the return temperature of hot water mode, the temp sensor need to be
installed in the water tank on the return pipe, used to control the return valve;
2. about water tank temp sensor, installation position in each series is
different.
A. EVI-HW: should be installed in hot water tank by installer
B. EVI-HH series: hot water tank temp sensor should be installed in hot water
tank by installer. (Floor heating water temp sensor should be installed in floor
heating water tank or on floor heating system return water pipe)
C. EVI-HC series: water tank temp sensor has been installed on inlet water pipe
by factory (if project has A/C water tank, installer can move the sensor to tank
from heat pump)

P14
Table 2: Error code
Code Meaning Method
Er 01
Wrong phase error Exchange phase sequence
Er 02 Lack phase error Check the power supply
Er 03 Water flow switch error
Check the hot water side of the water
flow is sufficient or the water flow
switch wiring, such as damage please
replace
Er 04
A/C side of the water flow
switch
Check the hot water side of the water
flow is sufficient or the water flow
switch wiring, such as damage please
replace
Er 05 System (1) High pressure
Check water flow is too small; check
the dust of fin heat exchanger
Er 06 System (1) Low pressure
Check water flow is too small; check
whether the refrigerant leak
Er 07 System (2) High pressure
Er 08 System (2) Low pressure
Er 09 Communication error
Check the PC board and control panel
line is connected, if damaged please
replace
Er10 Tank temp sensor
Er 11
Time limit for locking heat
pump reached
Please cancel setting time of
running
Er 12
System (1) Outlet gas
pressure of compressor 1 is

P15
too high
Er 13
System (2) Outlet gas
pressure of compressor 2 is
too high
Er 14 Throttling temperature 1
Check the sensor contact is good;
replace the temp sensor
Er 15 Throttling temperature 2
Er 16
Air heat exchanger 1 coil
temp sensor
as above
Er 17
Air heat exchanger 2 coil
temp sensor
Er 18
Outlet gas temp sensor 1 of
compressor error
as above
Er 19
Outlet gas temp sensor 2 of
compressor error
Er 20 Ambient air temp sensor error as above
Er 21
A/C Return water temp
sensor
as above
Er 22 HE outlet water temp sensor as above
Er 23 Inlet gas temp sensor 1 as above
Er 24 Inlet gas temp sensor 2
Er 25
The economic unit 1 inlet
the sensor error
as above
Er 26
The economic unit 2 inlet
the sensor error
Er 27
The economic unit 1 outlet
the sensor error
as above
Er 28
The economic unit 2 outlet
the sensor error
Er 29
Compressor 1 current too
high protection
Check the current and voltage are
stable
Er 30 Compressor 2 current too

P16
high protection
Er 31 Water level switch error Check the wiring contact is good; replace
the pressure switch
Er 32 Ambient temp too low
protection
Beyond the normal operating temperature
range of the heat pump
Er 33 Outlet water temp too high
error at heating mode
Check the sensor contact is good; replace
the temperature sensor
Er 34 Air conditioning supercooling
protection
Check if the air conditioning water pump
is low water
Er 35 Return water temp sensor error
of water tank
Check the sensor contact is good; replace
the temperature sensor
Hot water symbol flashing Anti-freeze protection for hot water side
Heating symbol flashing Anti-freeze protection for heating side
②User parameters query and setting (both ON and OFF state can set)
How to enter?
◆Under main interface, press “M” for 3seconds, enter user parameter query
interface, then press “+”and “-“ button , can query L0 to L9value.
◆Under user parameter query interface, press “M” button, enter setting interface,
press “+”and “-“ button, to set the value of current parameter, press “M” button
again, return query interface.
◆Under user parameters query interface and setting interface, if there is not
operation for 30seconds constantly, system will quit user parameter query or setting
interface automatically, and return to main interface, press “power” button can return
main interface too.
Table 3: user parameters query and setting

P17
Code Meaning Setting
range Factory setting
L0 Compressor restart temperature
of hot water drop 2℃─18℃3℃
L1 Preset water tank temperature of
heating mode 20℃─58℃
1. HT series: 75
℃
2. EVI-HC series: 45
℃
3. Other series: 55
℃
L2 Compressor restart temperature
cooling drop 2℃─18℃5℃
L3 Preset water tank temperature of
cooling mode 10℃─32℃12℃
L4 Heating drop 2℃─18℃5℃
L5 Heating set the temperature 12℃─99℃45℃
L6
Ambient air temperature below
which electric heater is allowed
to start
─30℃─35
℃0℃
L7 Return water temperature 20℃─80℃30℃
L8 Water compensate temperature 20℃-80℃48℃(20℃no need
water compensate）
L9 Compressor current 0～48A 0A（0A: will not detect
current）
Note:
L1, L3 is the water tank setting temperature . Water tank temperature is directly
displayed on PC board. The left side is the setting temperature, the right side is the
actual temperature.
For heating, User need put the temp sensor into blind tube which is installed on
water tank.
The pool temp sensor is installed on a titanium tube heat exchanger by factory
The water temp sensor of the heating and cooling mode is installed in the return pipe
of the heat pump by factory.
Other operation

P18
①Clock setting
A. At main interface, press “clock” button for 5 seconds, enter clock setting interface
B. At clock interface, press “clock” button, then “hour” flash, press “+”or “-”button，
can set hour.
C. After finish setting hour, press “clock” button, then “minute” flash, now press
“+”or“-”button，can set minute.
D. After finish setting minute, press “clock” button, to confirm clock setting, and
back to main interface.
E. At clock setting interface, if there is not operation within 30seconds, system will
confirm clock setting and back to main interface automatically.
F. At clock setting interface, press “power” button, can confirm current clock setting
and back to main interface.
②Timer setting and cancelling (ON/OFF timer)
A. At main interface, press “clock” button, enter timer group setting.
Now press “+”or“-”button, can switch timer groups, there are 4 groups ON/OFF
timer.
B. When group 1 ON timer flashing, press “clock” button, enter group 1 ON timer
“hour” setting interface, “hour” flash, then press “+”or“-”button，then can set “hour”
for group 1 ON timer.
C. After finish setting “hour”, press “clock” button, then “minute” flash, then press
“+”or“-”button，can set “minute” for group 1 timer.
D. After finish setting group 1 ON timer “minute”, press “clock” button, enter group
1 OFF timer setting, same way like ON timer setting.
E. After finish setting group 1 ON/OFF timer, press “clock” button, confirm group 1
setting, and enter group 2 ON/OFF timer setting, same way like group 1 setting.
F. At timer interface, if there is not operation within 30seconds, then confirm current
timer setting, and back to main interface (this setting can be remembered if
electricity is cut off)
G. At timer interface, press “power” button, confirm current timer setting, and back
to main interface.
H. Other groups ON/OFF timer setting are same way like group1.
Remarks: groups 1 and 2 are heat pump ON/OFF timer, group 3 is return water timer,
group 4 is cool water compensating timer.

P19
group 3 and 4 only valid for EVI-HW, HT series.
I. How to cancel timer?
At timer interface, press “clock” button for 5seconds, when the ON and OFF signal
disappear, then press “power” button to confirm, can cancel current group ON/OFF
timer.
③
③③
③Forced defrosting
◆At ON status, press “-” for 3seconds, enter forced defrost.
◆To quit forced defrost, there are two ways.
a. Automatic quitting: when defrost time reach preset quitting temperature, can quit
forced defrost.
b. Forced quitting: Press “power” button，after power off, 3minutes later, will quit
forced defrost completely.
④
④④
④Remove history error code
At the interface of query history error code, press “power” and “M” button together
for 5seconds, can remove all the history error code.
⑤
⑤⑤
⑤Change working mode
Press “+” button for 5seconds, can change the working mode For EVI-HC series,
change working mode between heating mode and cooling mode.
For EVI-HH series, change working mode between hot water mode and heating +
hot water mode.
C. Working mode
1. EVI-HW, HT series
The three series mainly used to supply hot water, (sometimes used for house
heating), have only one working mode: hot water mode.
1.1 The unit start and stop based on the hot water tank temp. and setting temp.
2. EVI-HH series
The two series mainly used to supply hot water and heating house, have two
working mode: Hot water mode and hot water + heating mode.
2.1 Hot water mode controlling, the unit start and stop based on the hot water tank
temp. and the setting temp.
2.2 Hot water + heating mode controlling
2.2.1 Hot water mode: working same as 2.1
