Sunrain BYC-007TF1 User manual

Installation &Operation Manual
Full Inverter
Swimming Pool Heat Pump
Thank you very much for purchasing our product, please keep and read this manual
carefully before you install heat pump.
MODEL NO.
BYC-007TF1
BYC-010TF1
BYC-013TF1
BYC-017TF1
BYC-021TF1

- 3 -

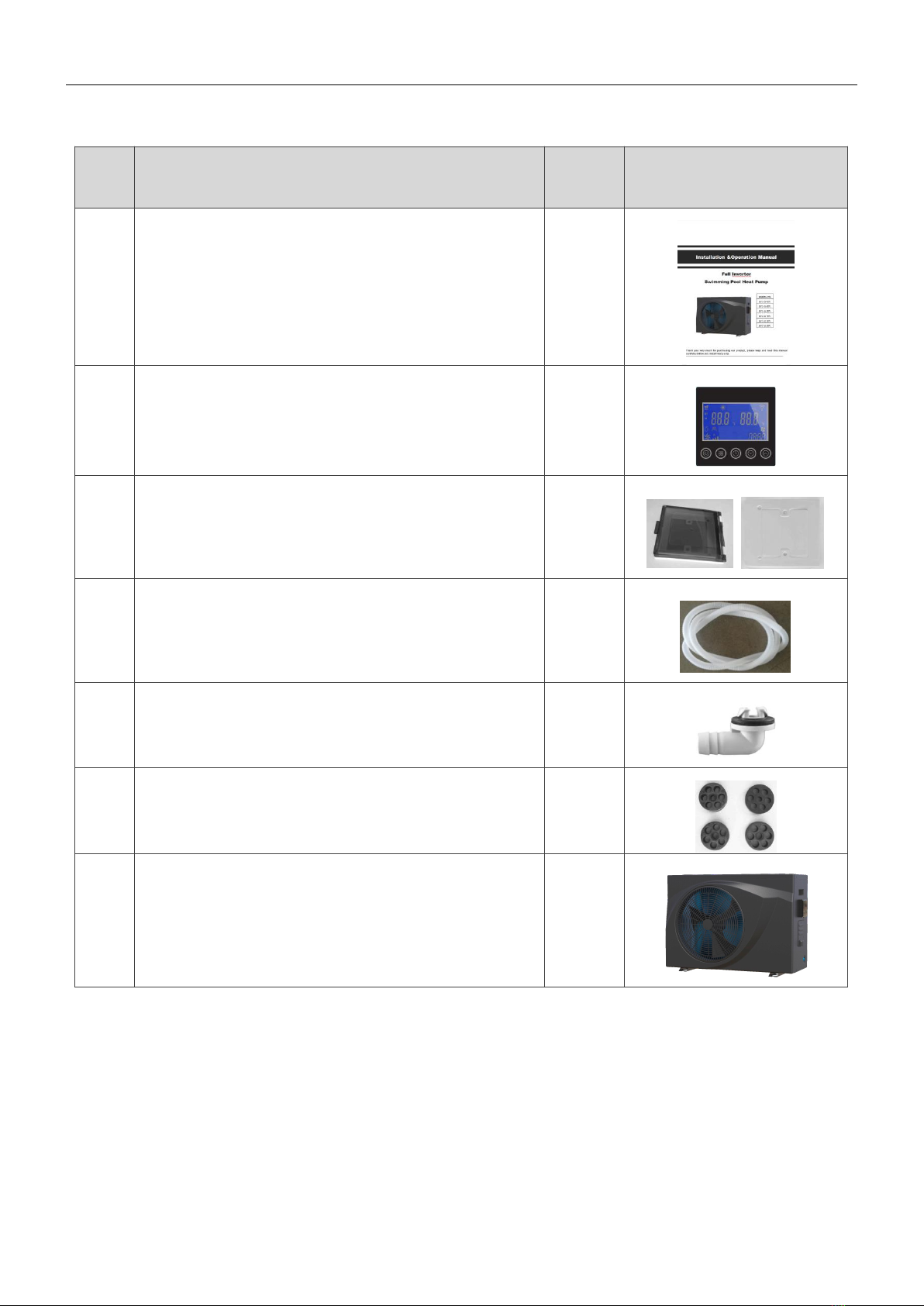

Packing List
No.
Name
Qty.
Remark
1
Installation &Operation Manual
1
2
Wire-controller
1
3
Wire controller box and sponge pad
(to be installed on the heat pump shell)
1
4
Drain-pipe (2 m)
1
5
Drain-pipe connector
1
6
Rubber shock absorber
4
7
Heat Pump Unit
(The pipe connector has been installed on the
machine)
1

- 4 -
Please keep installation manual properly, and read it carefully before using.
The unit must be installed by professional personnel according to the instructions in this manual.
WARNING: if the unit is installed in locations that are at risk of lightning strikes, lightning
protection measures must be provided.
WARNING: The unit is not suitable for use in winter: all water must be drained from the unit during
winter or it could freeze inside the unit causing damage to the internal components.
Content
Accessories……………............................................................................5
Safety.........................................................................................................6
Heat pump working principle..................................................................7
Installation of the unit..............................................................................8
Installation of the pipeline.....................................................................10
Installation of optional accessories......................................................13
Installation and operation of electric devices......................................14
Instruction for operation .......................................................................17
Initial operation and setting ..................................................................22
Operation and maintenance...................................................................23
Fault analysis and solution method………………................................25
Technical parameters.............................................................................26
After-sale service....................................................................................27

- 5 -
1. Accessories
Each unit produced by our factory comes with the following accessories:
No.
Name
Qty.
Use
1
Installation & Operation Manual
1 PC
User Guide to install the unit
2
Wire controller
1 PC
Used for the machine operation interface
3
Drain-pipe
1 PC
Used for draining the condensate water
4
Drain-pipe connector
1 PC
To connect the drain pipe to the heat pump
5
Rubber shock absorber
4 PCS
To reduce vibration and noise
6
Heat pump unit
1 SET
For heating water
In order for the system to work the following parts are required
No.
Name
Qty.
use
1
Water pump
1
To circulate the pool water
2
Filter system
1
To clean the pool water which passes through
the heat pumps
3
Water pipes system
1
To connect the equipment and circulate the
water in the pool
NOTE
The types and quantity of the water pipes, valves, filter equipment, sterilizing equipment used for the swimming
pool heating/circulation pipe system, depend on the project design. We do not recommend to install auxiliary
electric heaters in the system.

- 6 -
2. Safety
Range of application:
1.Power supply: 220V-240V/1N~50Hz.
2.Ambient temperature: -15°C〜43°C ：
3.Working water temperature: Min. inlet water temperature 8°C,Max. outlet Water
Temperature 40°C. If the system is always used beyond the available water range,
please contact with manufacturer.
●The installation should be done by the professional persons, to prevent leaking, electric shock or fire.
●Confirm the ground connection, if the ground connection is not correctly done, it may cause electric
shock.
THE UNIT MUST BE EARTHED PROPERLY BEFORE USAGE
When installing the heat pump in a small room, make sure it is well ventilated.
●Don't put fingers or objects into the air inlet outlet as the rotating fan could cause serious injuries.
●If you smell anything burning, turn off the manual power switch immediately, stop operation and contact
the after-sale service department. Continued abnormal operation may cause electric shock fire.
●When the unit needs to be removed or re-installed, please ensure that the work is carried out by
qualified professionals. If the installation is not correct, it may cause unit operation failure, electric shock,
fire, hurt, leaking, etc.
●Please ensure that any repairs carried out by qualified professionals: failure to make proper repairs
could cause unit operation failure, electric shock, fire, hurt, leaking, etc..
● Do no install the unit near flammable sources, as any leakages could cause a fire.
●Make sure the base on which the unit is installed is strong enough to support it.
●Make sure a leakage protection switch is installed to prevent electric shock or fire.
●When cleaning the unit, stop operation, switch off the power and disconnect the power.

- 7 -
3. Heat pump unit working principle
3.1 Heat pump operation
Heat pumps use heat from the sun by collecting and absorbing energy from the outside air.
This energy is then compressed and transferred to the pool water. Your existing water pump circulates the
water through the heat pump, which is normally installed next to the pool filtration system, and the water warms
up. The heat pump timer can be set so that the pump operates at the times you want: for example, during
daylight hours from 9am to 5pm.
The unit contains a fan that draws in outside air and directs it over the surface of the EVAPORATOR
(energy collector). The liquid refrigerant inside the EVAPORATOR coil absorbs the heat from the outside air
and becomes a gas.
The warm gas inside the coil passes through the COMPRESSOR, which concentrates and increases the
heat to form a very hot gas, which then passes through the CONDENSER (water heat exchanger). It is here
that the heat exchange occurs as the heat from the hot gas is transferred to the cool swimming pool water
circulating through the heat exchanger.
The pool water becomes warmer and the hot gas returns to its liquid form as it flows through the
CONDENSER coil. The gas then passes through the Electronic Expansion Valve and the whole process
begins again.
Developments in heat pump technology mean that today heat pumps can efficiently collect heat from the
outside air even when the temperature is as low as 7-10°C. This means that for tropical and subtropical
climates the pool can be maintained between 26°C and 32°C.

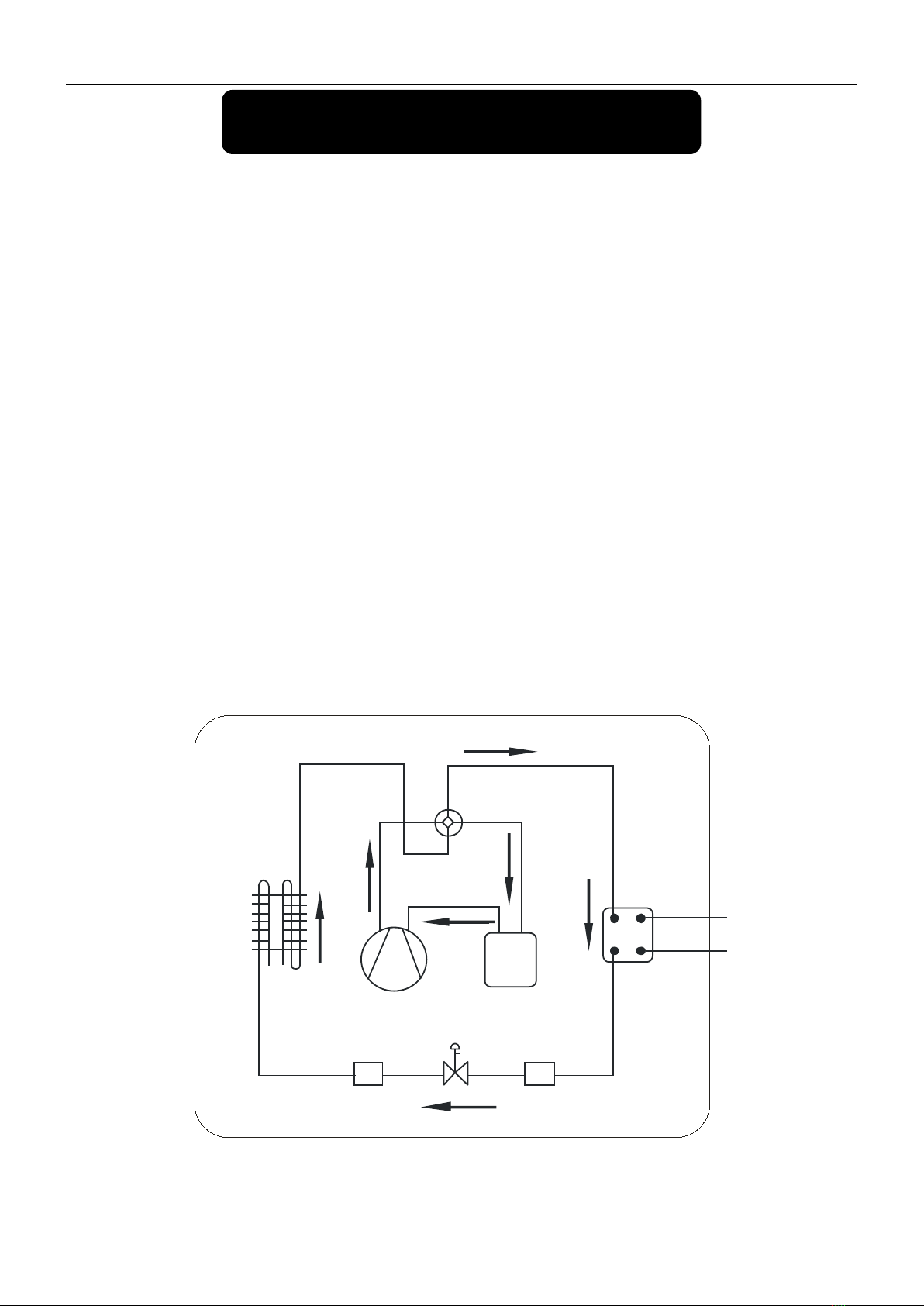

3.2 Air source heat pump working principle
4 way valve
Water inlet
Water Outlet
Condenser
Gas-liquid
separator
Compressor
Filter
Expansion valve
Filter
Ev aporato r
Fa nun i t
Figure 1
Qc(Heat energy) =Qa(Compressor consumption) +Qb(Heat energy absorbed from ambient
environment)

- 8 -
4. Installation of the unit
4.1 Installation Guidelines
● Avoid installations in locations containing mineral oil.
● Avoid installation in locations where the air contains salt or other corrosive gases.
● Avoid installation in locations with serious power supply voltage fluctuation.
● Avoid installation in unstable places, such as a car or cabin.
● Avoid installation near flammable items.
● Avoid installation in locations with strong electromagnetic forces.
● Avoid installation in locations with harsh environmental conditions.
4.2 Installation check
● Check the model, number, name etc, to avoid incorrect installation.
● Make sure there is enough space for installation and maintenance.
●Install in a dry well-ventilated place and make sure there are no obstructions around the air inlet and
outlet.
● Make sure the supporting base is strong enough and prepared to that shocks can be avoided.
● The power supply and diameter of the cables used must be in accordance with the electrical installation
requirements.
● Electrical installation must comply with the relevant technical standards of electrical equipment, and
electrical insulation work must be done.
●The unit must be put horizontally for at least eight hours before running.

- 9 -
4.3 Installation space
Please observe the space requirements indicated below for optimal operation and maintenance.
Figure 2 Horizontal installation space requirements(mm)
4.4 Heat pump dimensions
Figure 3 Heat pump dimensions
A
B
C
D
E
F
G
H
I
J
K
BYC-007TF1
BYC-010TF1
591
836
379
335
98
640
98
107
290
26
11
BYC-013TF1
BYC-017TF1
BYC-021TF1
641
896
389
363
128
640
128
107
340
26
11

- 10 -
4.5 Installation base for heat pump
Please refer to Figure 4.
A n c h o r b o lt
Drainage tray
Heat Pump
Installation base
Concrete
Anchor bolt
Screw nut/washer
Shock absorb
Heat Pump
Drainage tray
Figure 4 Installation base
4.6 Lifting
●Please use four or more soft lifting belts to move the sets(see Figure 5).
●Please use protective plates on the surface of the units when handling to avoid scratches and
deformation.
●Double-check that the support base is strong enough before fixing the unit.
● The heat pump will produce condensation water:remember to provide a drainage channel when making
the installation base.
●Please install shock absorber on the surface of the base.
Figure 5 Lifting diagram
5. Installation of pipelines
5.1 Attention
● Prevent air, dust and other material from going into the water pipes.
● Fix the whole system before installing the water pipes.

- 11 -
● Water inlet and outlet pipes should be protected by an insulation layer.
●Make sure that there is a stable water flow, to prevent excessive throttling.
●Do not handle, move or lift the unit by holding the water inlet and outlet pipe: use only the holes on the
beam of the base (see Figure 5)

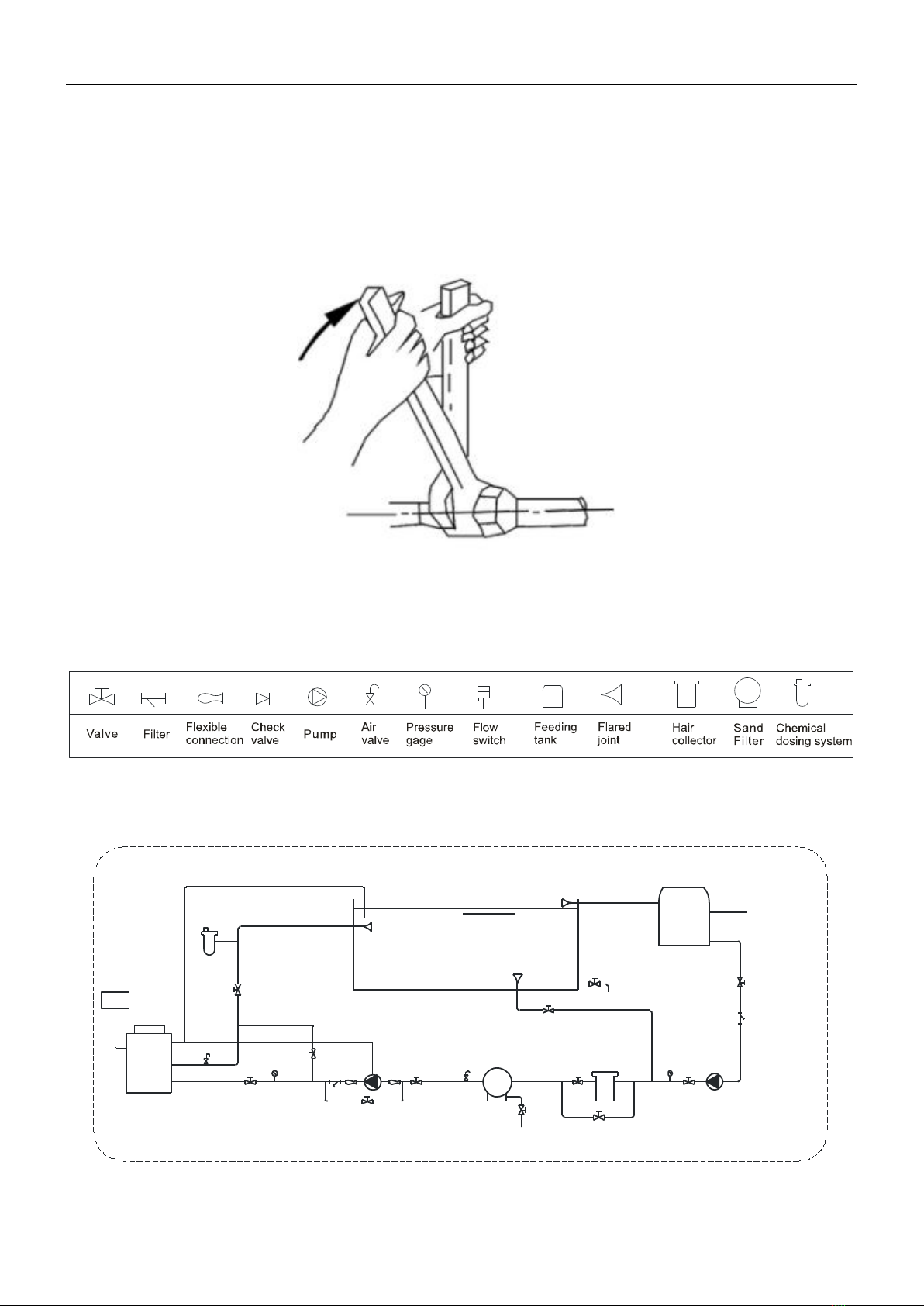

● When connecting the water inlet and outlet pipes, use two pipe wrenches to adjust the two parts of the
pipes, and make sure the water inlet and outlet pipes do not twist (see Figure 6).
Figure 6
5.2 Instructions
5.2.1 Symbols
Figure 7
5.2.2 Pipeline installation diagram
Controller
Heat
Pump
Water temp sensor wire .
Swimming Pool
Pump signal wire
Pump
Drainage
Drainage
Feeding water
Figure 8 Diagram(Single unit for reference)

- 12 -
●It is recommended to install a one-way valve for each unit to prevent water back flow.
●Multiple units can be installed as part of a system, but each unit should be controlled independently.
●All pipes and valves should be insulated.
5.2.3 Connection sizes
Model No.
Inlet
Outlet
BYC-007TF1
BYC-010TF1
BYC-013TF1
BYC-017TF1
BYC-021TF1
DN50
DN50
●The pipe pressure and flow rate should be calculated before selecting the diameter of the pipe, pressure
drop range is 0.3〜0.5 kgf/cm2(3〜5m)head pipe flow rate range is 1 .2〜2. 5 m/s.
●The hydraulic calculation should be made after selecting the pipe diameter. If the resistance is more
than the pump head, then a more powerful pump or larger pipes are required.
5.2.4 Required Water Quality
●Bad quality water will produce more limescale and sand: this kind of water should be filtered and
demineralized.
●The water quality should be analyzed before operating the unit: PH value, conductivity, Chloride ion
concentration and sulphate ion concentration should be checked.
●Acceptable water quality shown below:
PH value
Total hardness
Conductivity
Sulphate ion
Chlorine ion
Ammonia ion
7~8.5
< 50ppm
<200μV/cm
(25°C)
None
< 50ppm
None
Sulfate ion
Silicon
Iron content
Sodium
Ca
< 50ppm
< 50ppm
< 0.3ppm
No requirement
< 50ppm
● Suggested filter mesh = 40.

- 13 -
6. Installation of optional accessories
6.1 Selection of the water pump
●The circulation pump is required for the system to operate, there is a terminal connection for the pump
(single phase)
NOTE
For single-phase water pumps, please check the wiring diagram.
●Head of circulation pump = height difference between water level and main unit + total pipeline
resistance (determined by the hydraulic calculation) + pressure loss of main unit (see nameplate on heat
pump).
NOTE
Multiple units are installed in parallel place more demand on the water pump requirement.
6.2 Water pipe selection
●The selection of the water pipe should be based on the actual system specifications

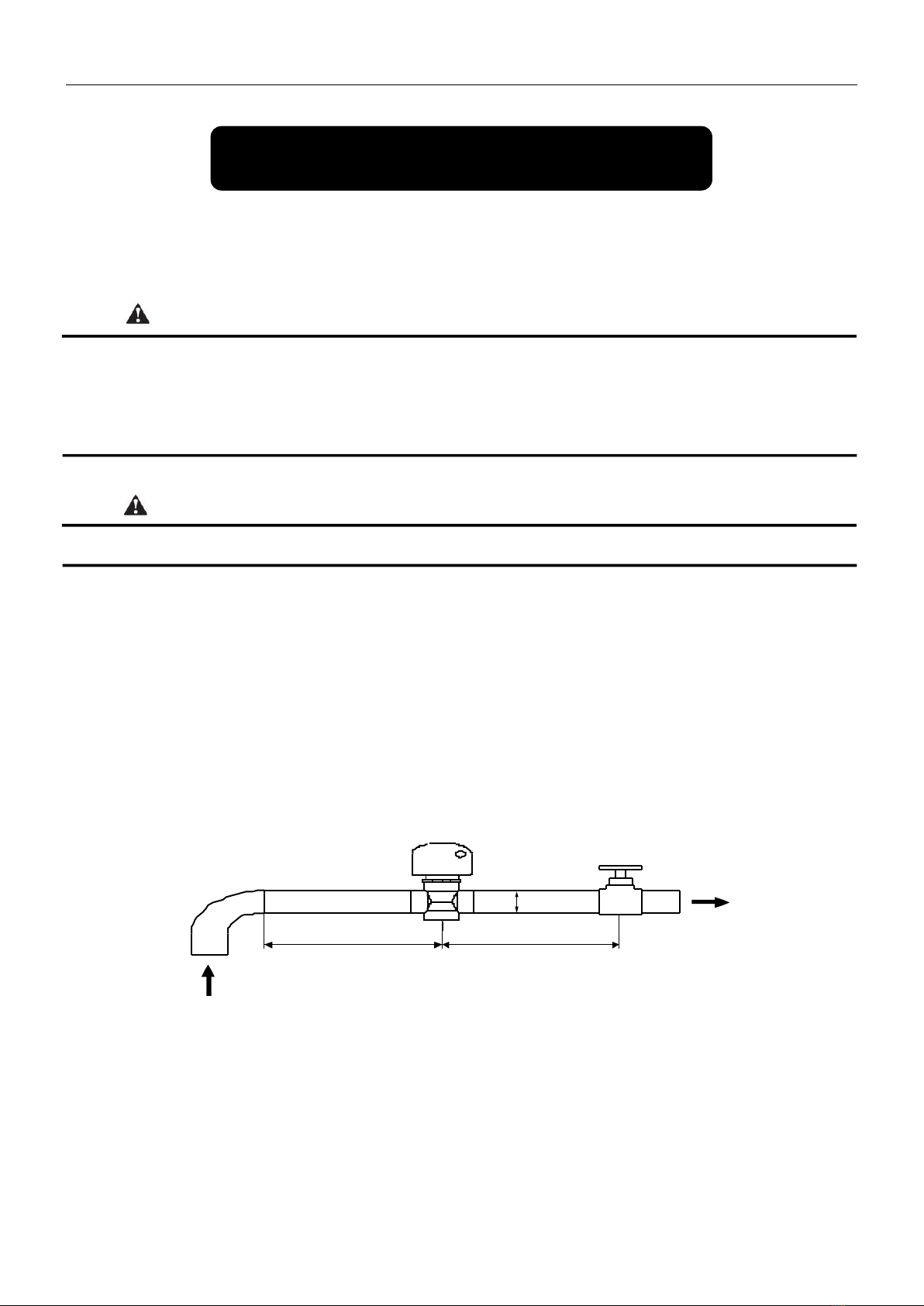

●The flow switch can be installed horizontally or vertically. If installed the direction of the water flow must
be upwards and NOT downwards.
● The flow switch must be installed on a straight pipeline, and there must be more than five times the
length of the pipe diameter on either side of the flow switch (see Figure 9 below). The direction of fluid
must follow the arrow on the controller. The terminal block should be installed in a position that is easy to
operate.
A
5A 5A
Figure 9

- 14 -
7. Installation and operation of electric devices
7.1 Electrical wiring
●The unit should have a dedicated power supply in accordance with the recommended voltage.
●Unit power supply circuit must have an effective external grounding.
●Wiring and electrical connections must be made by qualified professionals in accordance with the wiring
diagram.
●Power line and signal line layout should be neat and cables should not interfere with each other.
●Do not install the units if the power supply specifications are not met.
●After all wiring connections have been completed, check them again carefully before switching on the
power.
7.2 Electrical Wiring Specification
Model
Electrical Wiring Specification
BYC-007TF1
BYC-010TF1
BYC-013TF1
BYC-017TF1
3*2.5 mm²
BYC-021TF1
3*4.0 mm²
Terminal
Terminal cable max. 4 mm²
POWER SUPPLY Circulation Pump
220V~50/60HZ <250W
Figure 10 220V~50/60HZ single-phase
7.3 Circulation water pump installation
The heat pump only provides a signal for the circulation water pump, A separate A.C.
contactor is required to connect the circulation pump.

- 15 -
NOTE:
If the water pump power is more than
250W, the heat pump will only provide
signal control, not direct connection to
power supply, please refer to figure 12
To water pump
AC 220~50Hz/60hz
Maximum 250W
Figure 11
Figure 12
7.4 Electric wiring diagram
COMP : COMPRESSOR
GND : GROUND
AMBT: AMBIENT TEMPERATURE SENSOR
WFS: WATER FLOW SWITCH
LOW : LOW PRESSURE SWITCH
HIGH : HIGH PRESSURE SWITCH
COIL: EVAPORATOR COIL TEMPERATURE
SENSOR
OWT/INWT: INLET / OUTLET WATER
TEMPERATURE SENSOR

- 16 -
Figure 13 Electrical wiring diagram

- 17 -
8. Instructions of operating

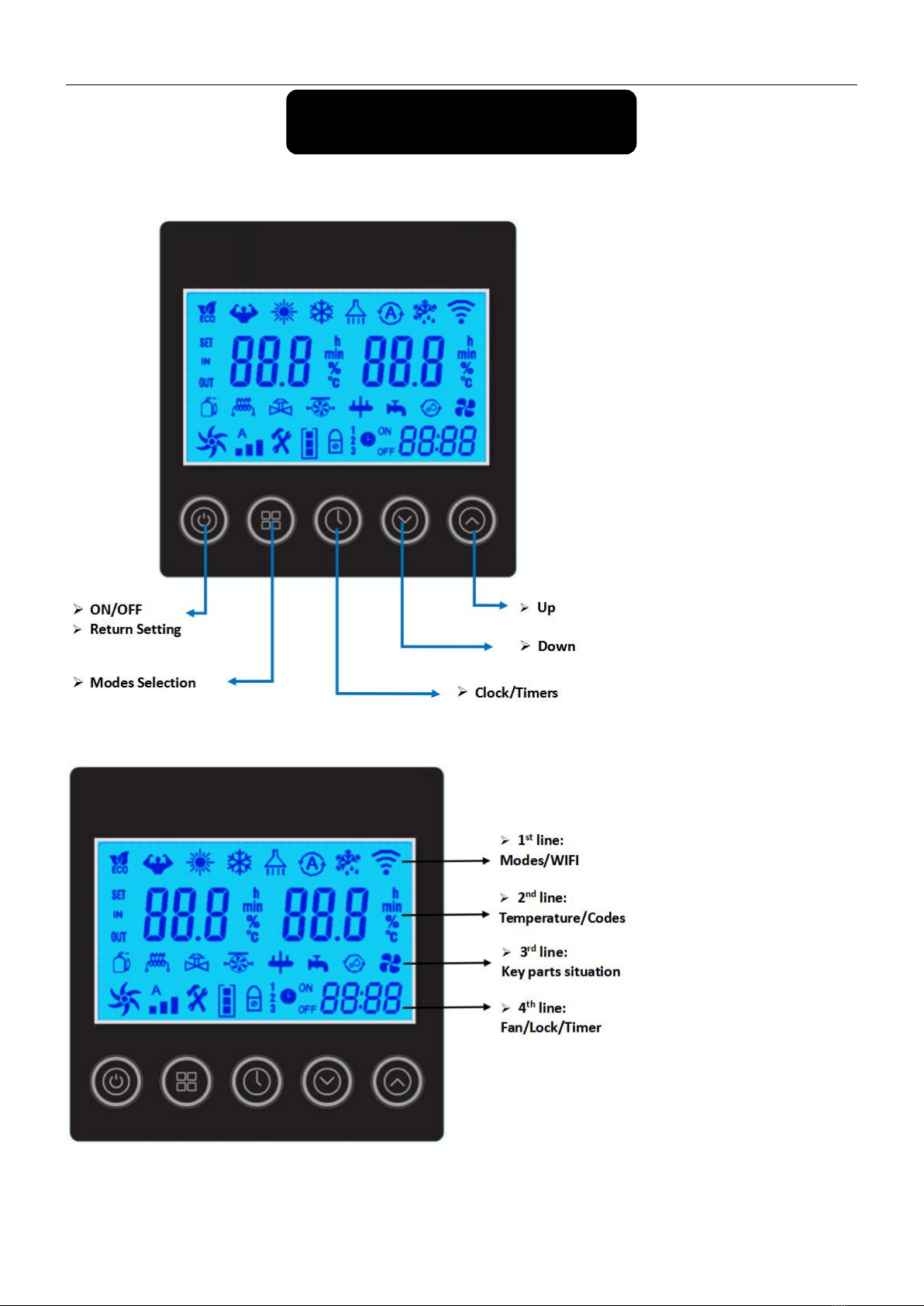

8.1 Wire controller (Function of buttons)
8.2 Definition of display

- 18 -
8.3 Start up & Locking
Press the button to switch the heat pump on or off. This button is also used to return to the main
interface.
When the heat pump is in operation, hold the button for 3 seconds to lock or unlock the controller.
(The lock is activated automatically after 60 seconds of inactivity). When the display is locked, the logo
appears.
* Please unlock the controller before the other operations every time.
Attention:Before you start, make sure the filtration pump is running and that water is flowing
through the heat pump.
8.4 Operation Mode Selected
Hold the button for 3 seconds to change the below four operating modes each time:
:Mode ECO Inverter: Choose this heating mode that the heat pump operates silently.
:Mode Boost Inverter: Choose this heating mode that the heat pump operates powerfully.

- 19 -
:Mode Cooling Inverter:Choose this cooling mode that the heat pump intelligently cools the water
of your pool.
:Mode Auto: The heat pump can switch Heating and Cooling function automatically
8.5 Set the required temp.
On the main interface, press and to adjust the desired water temp. of your pool, then press
the to save the setting.
When setting the water temp., the icon ‘SET’ will light on, the left one is Setting temp., the right one is the
Outlet water temp.
After finished the setting, the icon ‘SET’ will extinguish, the left one will become Inlet water temp., the
right one Outlet water temp.
8.6 Clock setting
Press the button to enter the clock setting interface. Clock display on right bottom flashes.
Change the hours using and , then press again to go to minute setting, change the
minutes using the and .

- 20 -
Press again to confirm the setting and return to the main menu.

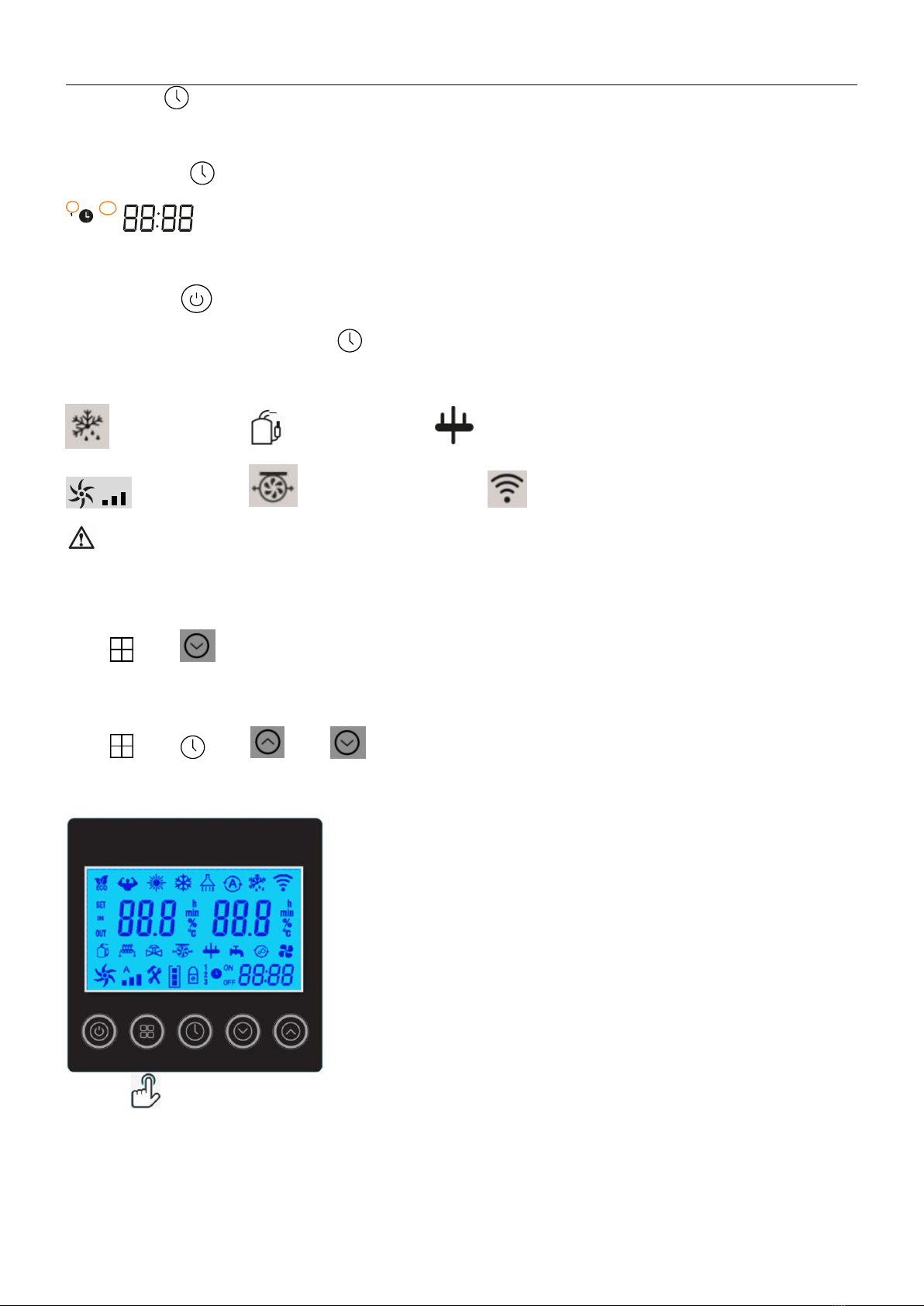

8.7 Timer setting
Hold the button for 3 seconds to enter the setting of Timer ON & Timer Off groups.
1
ON
OFF
2
3
will flash, then set the Turn On and Off timer like the Clock setting.
Pay attention: There are 3 groups Timer for your every day setting.
You can press to save the current setting and go back to the main interface.
Cancel the Timer: Hold the button for 3 seconds to cancel all the timer setting.
8.8 Definition of other icons
: Defrosting :Compressor : 4-way valve
A
Fan Speed : Signal of Water pump : Wi-Fi function
Attention:With the indication of the functions or key parts, it is helpful for service team to
maintain or repair the heat pump.
8.9 Manual defrosting
Hold and for 3 seconds to start Manual defrosting function.
8.10 Factory setting recovery
Hold and and and for 5 seconds to recover factory setting.
8.11 Running Parameter checking
