SUNWAYTECH SW51B100TW2 User manual

1/ 15
SW51B100TW2/SW51B200TW2
Battery System Quick Installation Guidance
51.2V 5.22KWH/10.44KWH
CAUTION
* Ensure to read the Guidance before installation in order to understand product
information and safety precautions.
* Operators should be well trained to fully understand grid-connected photovoltaic power
system andnational/regionalstandards.
* Installersmustuseinsulatingtoolsandwearsafetyequipment.
* Devicedamagescausednoncompliancewithstorage,transportation,installationandusage
requirements specified in Quick Guidance and Manual are not coved by Warranty.

2/ 15
CONTENTS
Battery System Quick Installation Guidance .......................1
1. Introduction..................................................................3
2. Important Safety Warning ............................................3
2.1 Before Connecting .................................................4
3. Necessary installation Tools.........................................4
4. Unpacking & Overview ...............................................5
4.1 Packing List ...........................................................5
5. Installation Process ......................................................6
5.1 Installation Location Requirements.......................6
5.2 Wall Mountable Installation ..................................7
5.3 Floor Standing Installation ....................................8
5.4 Floor Standing Installation(10kwh).......................9
6. Wiring operation guide: ...............................................9
6.1 Power Cable connection: .......................................9
6.2 Communication crystal definition .......................10
6.3 Parallel instruction：...........................................11
7. Power ON/OFF & Touch screen display guide: ........12
8. Battery Combiner box(optional) ................................14

3/ 15
1. Introduction
The Energy storage pack is an essential component of the photovoltaic power generation system. It can
provide electricity for the connected load, and it can also store photovoltaic solar modules, fuel generators, or
wind energy generators by charging the remaining energy in case of emergency. When the sun goes down,
energy demand is high, or there is a power outage, you can use the energy stored in the system to meet your
energy needs at no additional cost. In addition, the energy storage Pack can help you achieve energy self-
consumption and ultimately achieve the goal of energy independence. According to different power
conditions, the energy storage PACK can output power during peak power consumption, and can also store
energy during low power consumption. Therefore, when connecting the matching photovoltaic modules or
inverter arrays, external equipment is required to match the energy storage the working parameters of the
pack to achieve the highest operating efficiency. For a simple diagram of a typical energy storage system.
Energy storage System Overview
It is very important and necessary to read the user manual carefully before installing or using the battery. Failure to
follow any of the instructions or warnings in this document can result in electrical shock, serious injury, death, or
may damage the battery and the whole system. If the battery is stored for a long time, it is requirement that they are
charged every three to six months, and the SOC should be no less than 80%,after fully discharging,The battery needs
to be recharged within 12 hours.
Do not expose cable outside;
Do not use cleaning solvents to clean the battery.
All battery terminals must be disconnected before maintenance.
2. Important Safety Warning
Do not expose the battery to flammable or harsh chemicals or vapors.
Do not paint any part of the battery, include any internal or external components.
Do not connect battery with PV solar wiring directly.
Any foreign object is prohibited to be inserted into any part of the battery.
Our company will not bear any warranty claims for direct or indirect damage caused by violation of the above
items.

4/ 15
2.1 Before Connecting
After unpacking, please check the battery and pack list first, if the battery is damaged or spare parts are missing,
Please contact the dealer. Before installation, be sure to cut off the grid power and make sure the battery is in
the turned-off mode; Wiring must be correct, do not mix-connect the positive and negative cables, and ensure
no short circuit with the external device; It is prohibited to connect the battery with AC power directly;
The BMS in the battery is designed for 48VDC, DO NOT connect battery in series; It is prohibited to connect
the battery with different type of battery; Please ensure the electrical parameters of battery system are
compatible to inverter; Keep the battery away from fire or water.

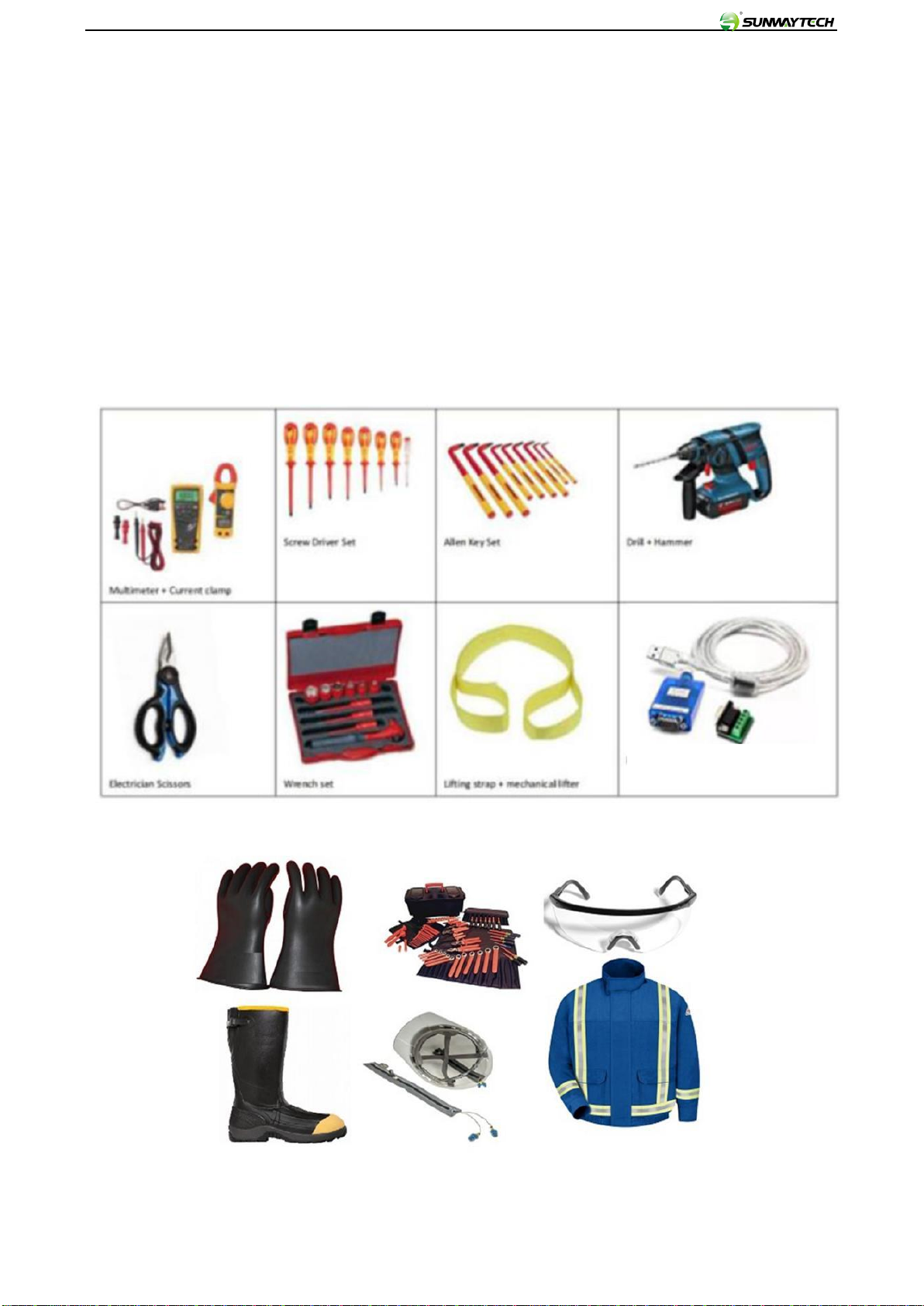

3. Necessary installation Tools.
Tool preparation: wall-mounted electric drill, hammer, Phillips screwdriver, M8/10 wrench, multimeter, etc.
Personal protective equipment
Optional(computer
to battery wire)

5/ 15
4. Unpacking & Overview
4.1 Packing List

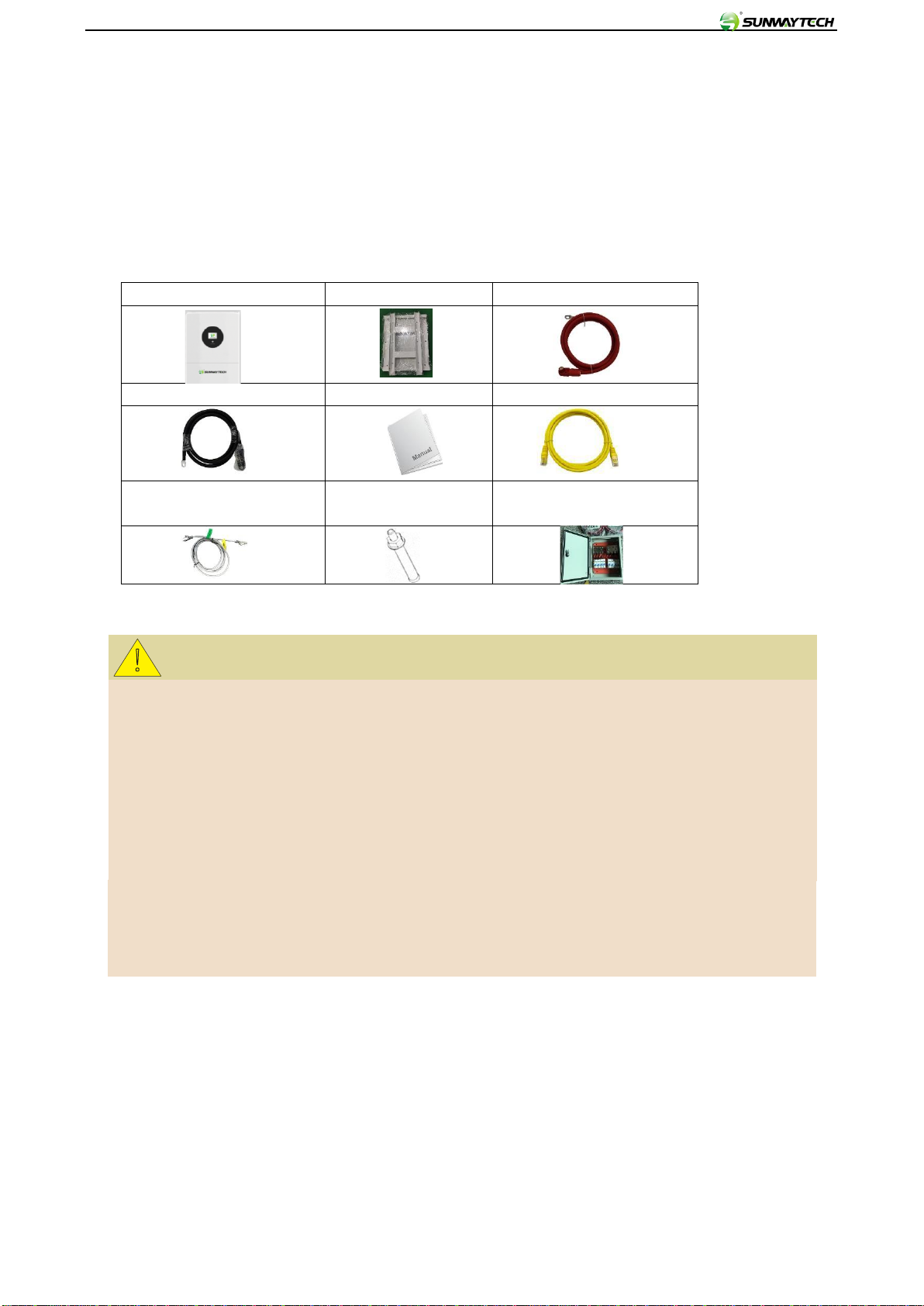

You will receive the following parts(Not a full set),sample as follow picture.For
customized requirements, please place an order with the manufacturer.
Battery pack
Mounting brackets
Power out positive cable
Power out Negative cable
Manual *1
Parallel com cable(RJ45)
Inverter com cable(RJ45
optional)
Mounting frame screw
Combiner box(Optional)
NOTE : Combiner box and extra communication tools need to place extra order.
! CAUTION
* Amanuallyoperating breaker shouldbe installed betweenbattery andPCStocontrol
the main circuit under installation, wire connection and maintenance mode. The breaker
canbeoperatedmanuallywithoutusinganytool.Thedistancebetweenbatteryandthe
breaker should comply with local regulations.
* Donotinstallorusebattery nearexplosive orinflammablesubstances.
* Usebatteryinwell-ventilatedenvironmentwithtemperaturerangingfrom-10℃to50℃.
* For outdoor installation, build sun & rain shade to avoid direct sunlight and rain exposure.
* Donotplacebatteryupsidedownnoralongsideastheabovepictureshown.
* Maintain a minimum level of dust and dirt in the environment.
* Donot install battery in highly humid area such asbathroom.
* Ensuretwobatteriesinparallelconnectionarefromthesamebatch,samemodelandsame
manufacturer. Do not mix old battery with new battery. Batteries with no more than 300
cyclesaredefinedasnewbatteries.

6/ 15
5. Installation Process

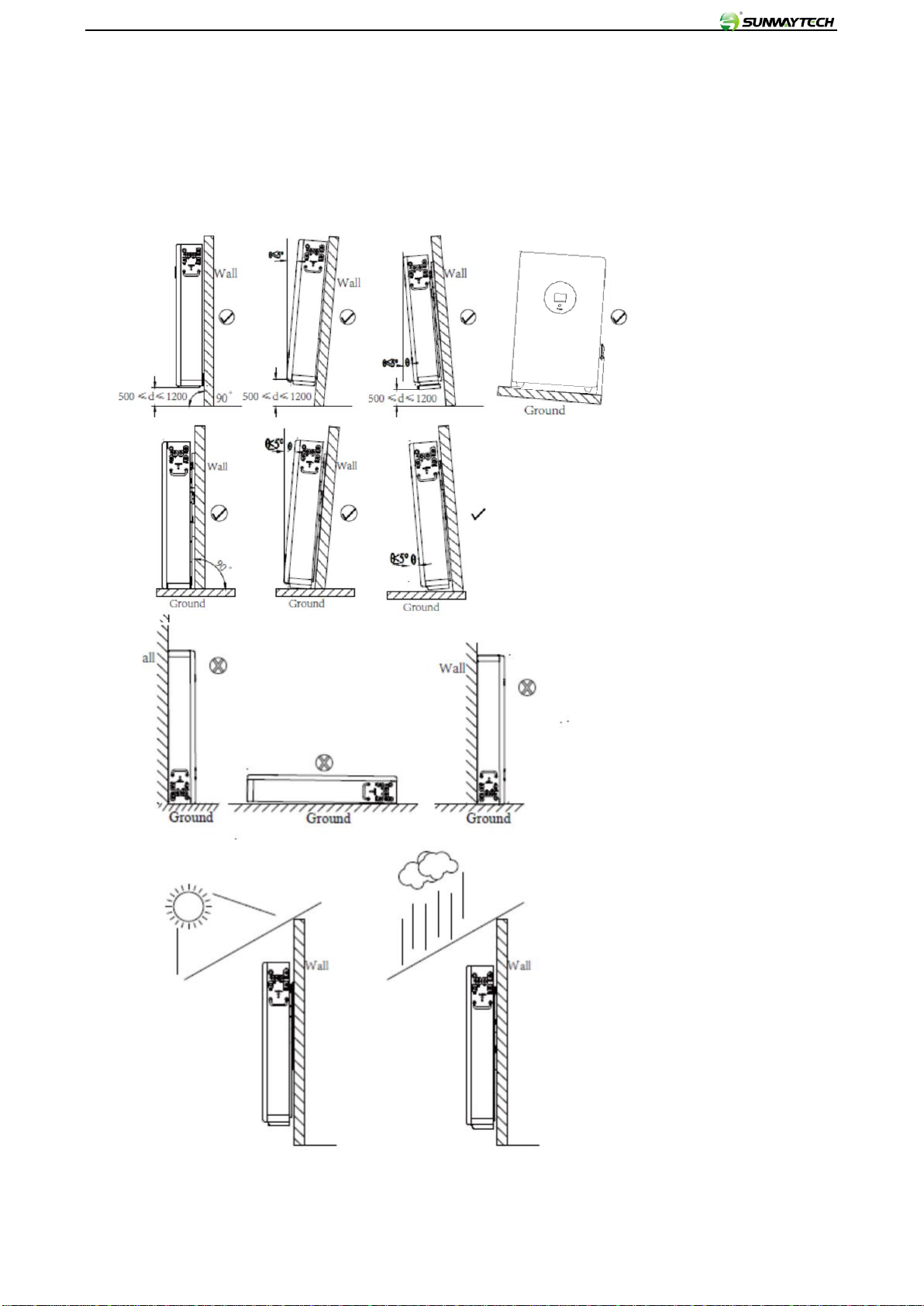

5.1 Installation Location Requirements

7/ 15
765mm

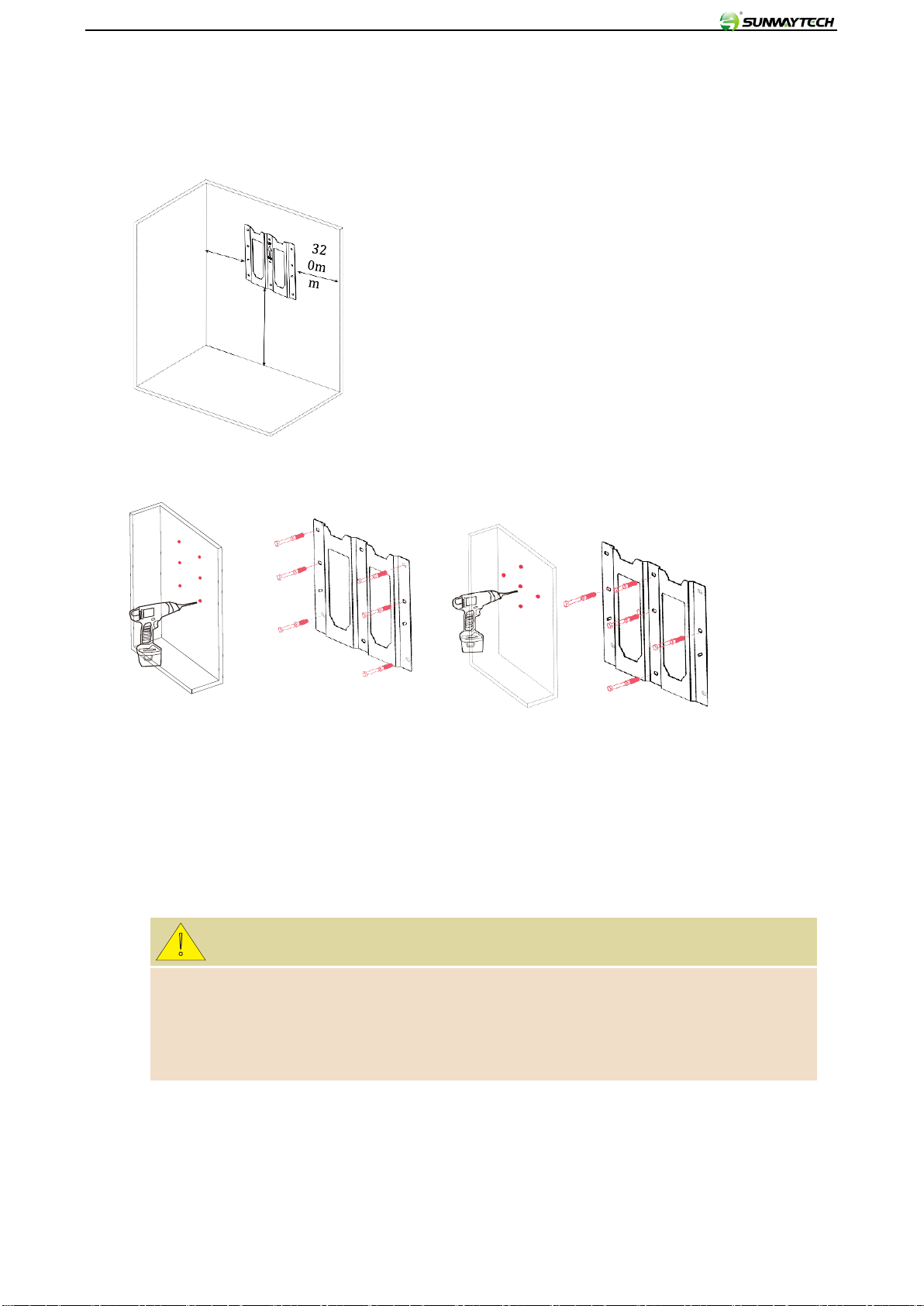

5.2 Wall Mountable Installation
Step 1
:Putbracketonwallandmarkdrillingspots
Note ：
1. Keep aminimal distance of320mm between wall and bracket;
a maximum distance of 765mm between bracket and ground. Leave a minimum
clearanceof133mmbeforethefrontsurfaceofbattery.
2. Theweightcapacity ofwallshouldexceed4times weightofbatteries.
3. Atleast twopersons conduct theinstallation. One personplacesthe
bracketonwallandensurethe gradienter horizontal; theother person
marksfour spots ofscrew driving.
Step 2
: Drill in the spots for at least 60mm. Clean the soil and drive expansion
tube into the hole
Note:
1.Choose alloy drill bit with a diameter of 12mm.
2.One person puts the bracket on wall and minds to keep gradienter horizontal.
The other person drives M8 screw through the bracket into holes.
!
CAUTION
Therearetwo spot drillingproposalsavailable.
Forinstallationonawallwithits main supportingbeamsatadistanceof16inches,
itisrecommendedtoadoptthefirstdrillingspots.
Forwallwithitsmainsupportingbeamatadistanceof24inches,itisrecommendedto
adopttheseconddrillingspots.

8/ 15

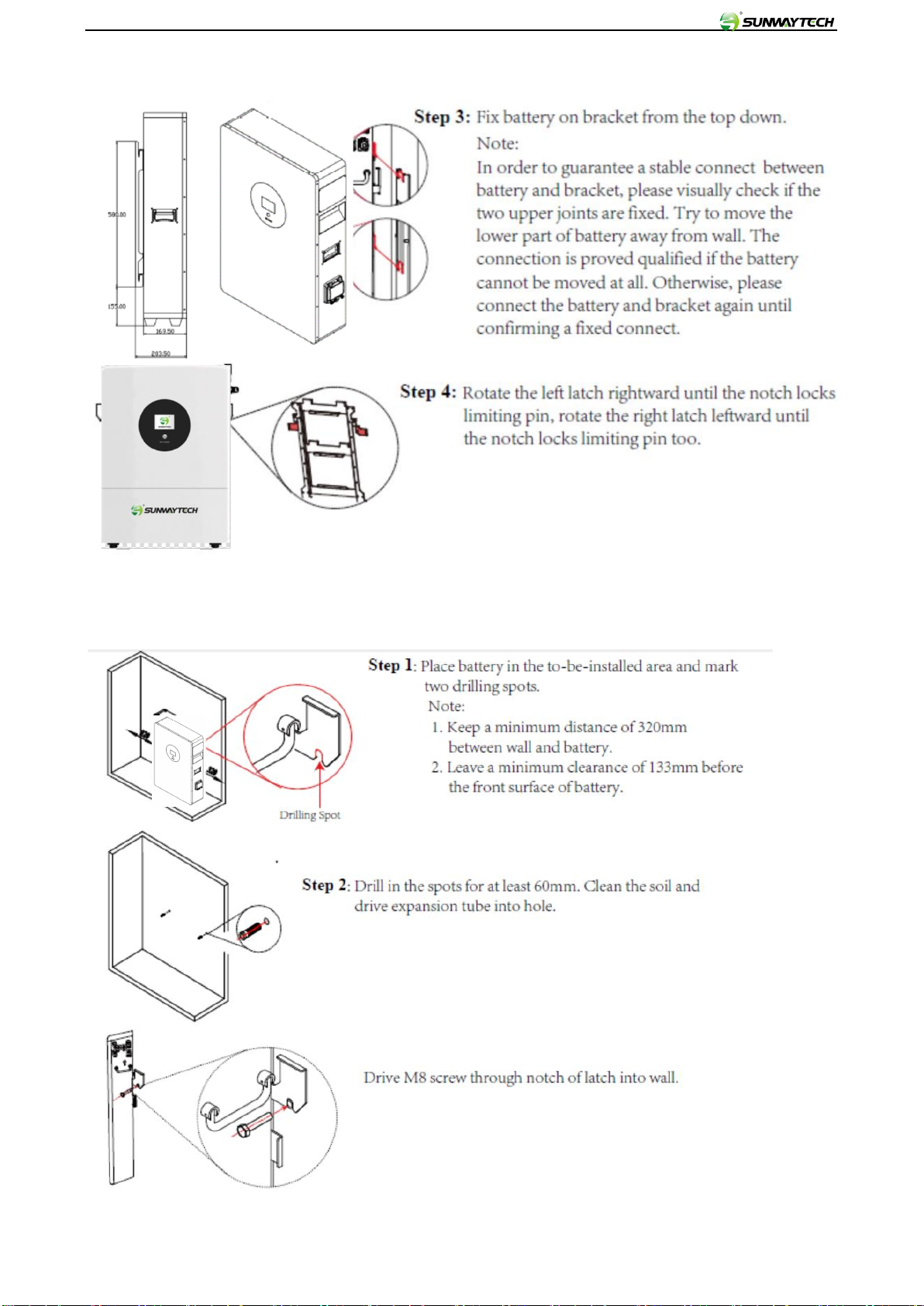

5.3 Floor Standing Installation

9/ 15
5.4 Floor Standing Installation(10kwh)
1. Floor-standing type: Support the lithium battery pack equipment on the ground through the lower 4 feet;
install the battery shell and wall handle to prevent it from falling forward; install the handle (both sides): first
tighten the M4*6 flat head screws as shown in the figure Display direction is fixed:
2. Use expansion screws to fix it to the wall:
6. Wiring operation guide:
6.1 Power Cable connection:
Use a cross screwdriver to remove the protective cover of the battery wiring compartment. The 5KWh
protective cover is located on the lower right side of the housing (marked by the red line), and the 10KWh
protective cover is located on the upper right side of the case. Then pass the wire harness through the
protective coil at the bottom of the battery and lock it. on the corresponding terminal. See below

10 / 15
The red wire (positive pole) for ++ terminal (++ terminals are all positive, just connect any one);
The black wire (negative pole) for -- position (-- all terminals are negative, you can connect any one); see the
picture below (5KWh terminal diameter is M5, 10KWh terminal diameter is M8):

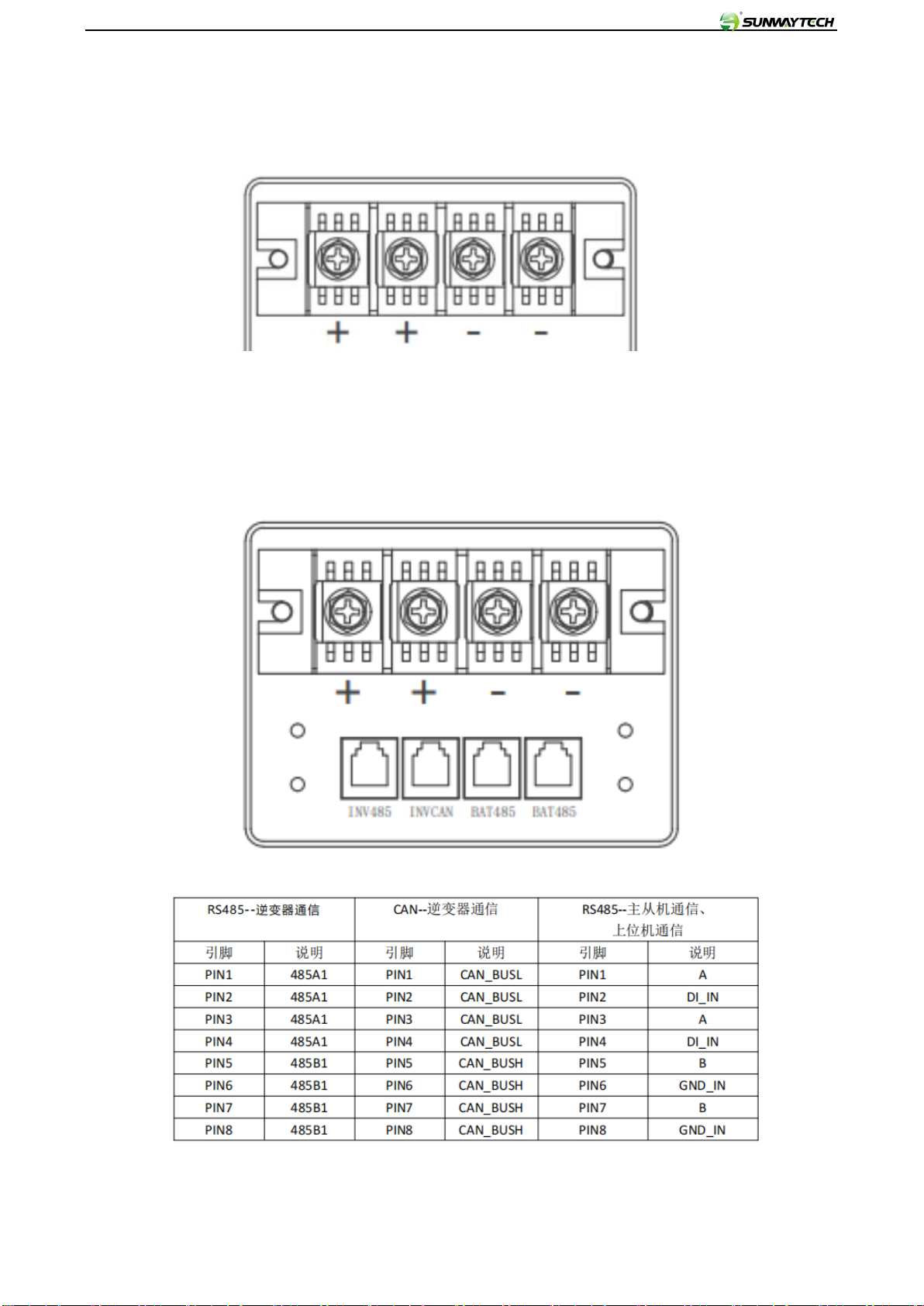

6.2 Communication crystal definition
The definition is as follows:
The sequence is inverter serial port 485, CAN; battery parallel serial port 485, 485; and pin definition:

11 / 15

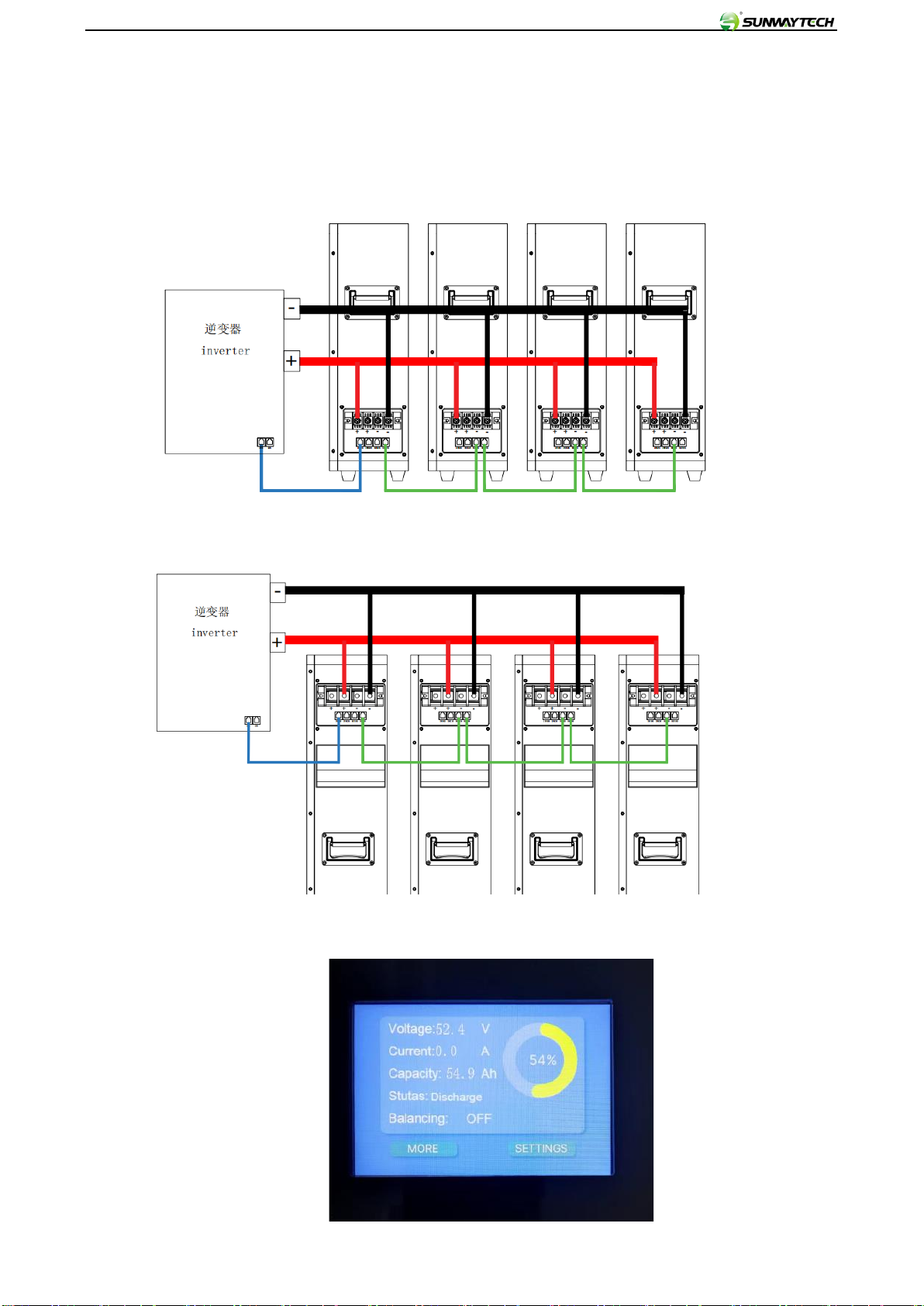

6.3 Parallel instruction：
5KWh parallel:
10KWh parallel：

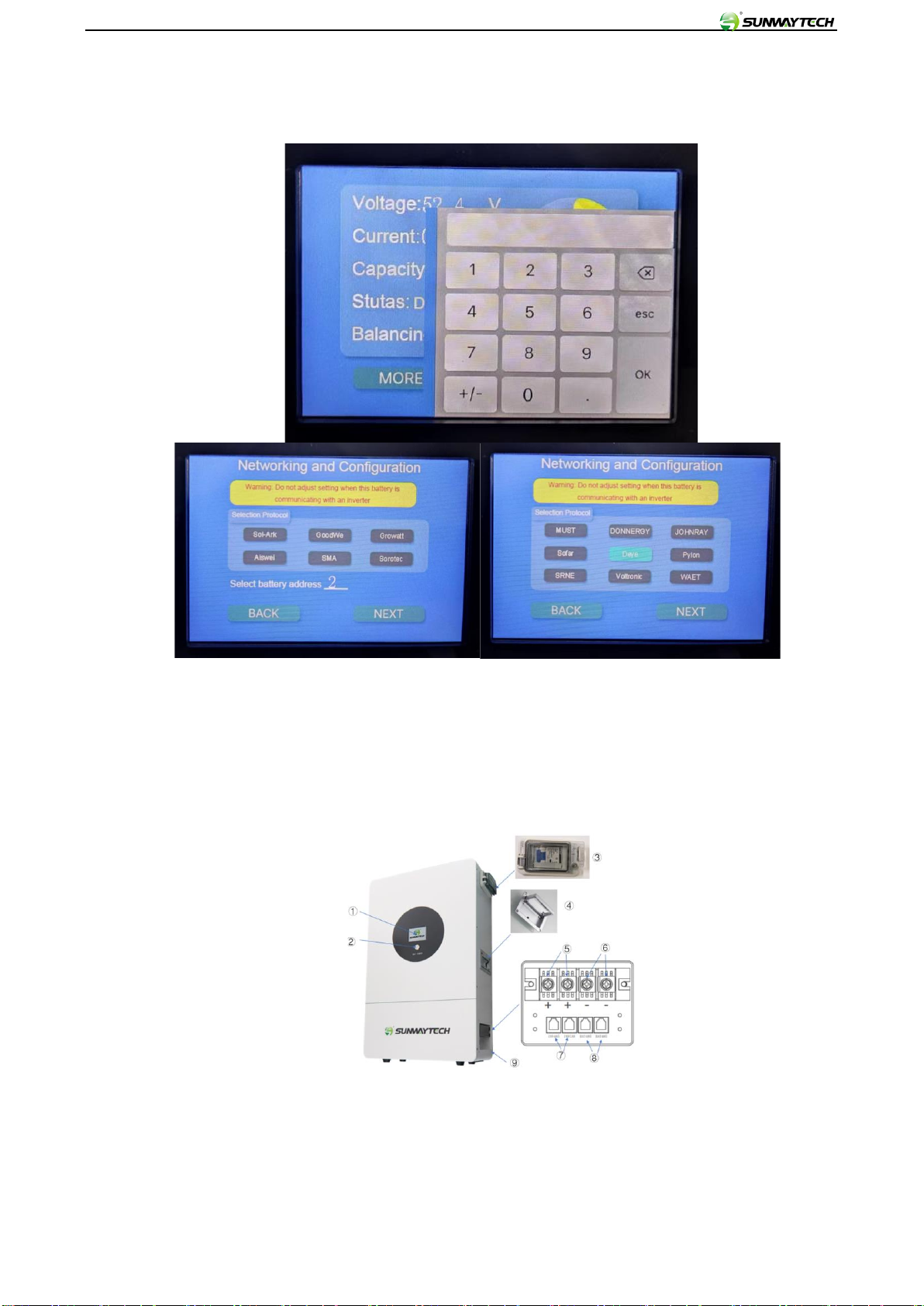

Screen set for Parallel: Open this interface to display SETTINGS (as shown below):

12 / 15
Click SETTING, put password 1981 and press OK to enter the inverter brand chosen interface:
Choose inverter brand, and battery address 1 2 3 4...etc
7. Power ON/OFF & Touch screen display guide:
7.1 POWER ON: Switch POWER BREAKER on right side(No.3)
7.2 Press BAT POWER (No.2)on the front panel of the battery pack (see the picture below for the
button)
7.3 After power on, the screen will display the SUNWAY interface and redirect to the following interface
after 3seconds then (see the picture below). Like voltage V, current A, capacity Ah, status, balance, and
remaining capacity.

13 / 15
7.4 Step 2: Touch the MODE button to display the cell voltage interface:
7.5 Step 3: Touch the NEXT button to display the temperature interface:

14 / 15
7.6 Step 4: The warning message is as shown below:
REMARKS: Recommended measuring range (used within the measuring range):
➢5KWh: Maximum charging and discharging operating current 1C/100A;
Working voltage 43.2~56.8V, charging temperature 0~45℃, discharge temperature -20~55℃
➢10KWh: Maximum charging and discharging operating current 0.75C/150A;
Working voltage 43.2~56.8V, charging temperature 0~45℃, discharge temperature -20~55℃
8. Battery Combiner box(optional)
3 port IN-1 port out

15 / 15
