LVS LED-BP-SLIM Series User manual

INSTRUCTION MANUAL 13C20
SAVE THIS INSTRUCTIONS
LED-BP-SLIM Series
1. To prevent electric shock, switch off the mains power supply until installation is complete and AC
power is supplied to this product.
2. This product requires an un-switched AC power supply of 120-277V, 50/60Hz.
3. Make sure all connections are in accordance with the National or Canadian Electrical code and
any local regulations.
4. To reduce the risk of electrical shock, disconnect both normal and emergency power supplies
and connector of this product before servicing.
5. It can provide minimum 90 minutes illumination under the emergency mode.
6. The product is UL Listed for field installation, and use with grounded.
7. The LED-BP-Slim units are suitable for use in dry or damp locations. Do not mount in or near
gas, heaters, air outlets or other hazardous location.
8. Use this product in 0°C minimum, 55°C maximum ambient temperatures (Ta).
9. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that is not
field replaceable. Contact the manufacturer for information or service.
10. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition and void warranty.
11. Do not use this product for other than intended use.
12. Installation and service should be performed by qualified service personnel.
13. This product should be mounted in locations and at heights where it will not readily be subjected
to tampering by unauthorized personnel.
E206507
BC
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
LINEAR EMERGENCY EQUIPMENT
UNIVERSAL INPUT
THIS PRODUCT CONTAINS A RECHARGEABLE LI-ION BATTERY.
THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.
Li-ion

INSTALLATION
1-800-982-4587
www.lvscontrols.com 2/6
CAUTION: MAKE CERTAIN THE AC POWER IS OFF UNTIL THE INSTALLATION IS COMPLETE.
1. SPECIFICATION OF LED-BP-SLIMMODELS
See the table below for the selected model.
2. INSTALLING THE LED-BP-SLIM SERIES UNITS
The unit can be mounted inside or outside (nearby or on top of) the luminaire.
3. INSTALLING THE LED TEST SWITCH (LTS)
Select a convenient location for the LTS so that it can be seen after installation.
Drill a 1/2"(12 mm) hole for mounting the LTS. Connect the wires from LTS to the
LED-BP-SLIM model according to the wiring diagram on page 3.
INSIDE THE LUMINAIRE
LED test switch
LED- BP-SLI M-XX-T B
LED-BP-SLIM MODEL SPECIFICATIONS
MODEL EMERGENCY OUTPUT(CONSTANT)
4.5 WATTS
13.5 WATTS
LED-BP-SLIM-4.5W
LED-BP-SLIM-4.5W-TB
VOLTAGE OUTPUT
5-200VDC
15-300VDC
LED-BP-SLIM-9W
LED-BP-SLIM-9W-TB
LED-BP-SLIM-13.5W
LED-BP-SLIM-13.5W-TB
LED-BP-SLIM-18W
LED-BP-SLIM-18W-TB
9 WATTS10-300VDC
18 WATTS20-300VDC
OUTSIDE THE LUMINAIRE
LED test switch
Two 5/8"(15mm) holes with
conduit connector for LED-BP-SLIM-XX.
LED-BP-SLIM-XX

3/6

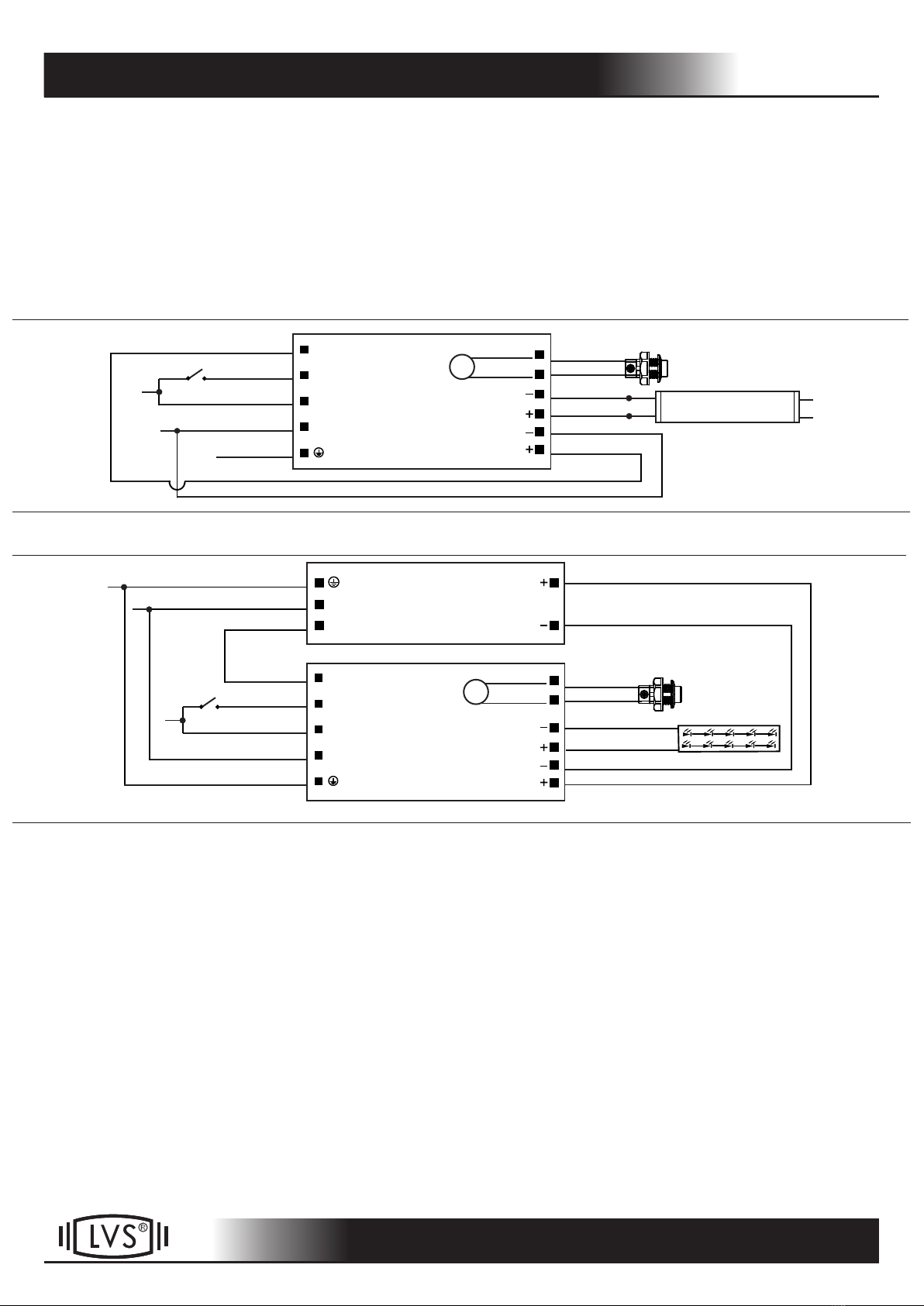

WIRING
1. The LED-BP-SLIM-XX Series requires an unswitched AC power supply of 120-277 volt,
50/60Hz.
2. The LED-BP-SLIM-XX Series and AC driver must be on the same branch circult. Ensure
the output current of the AC driver does not exceed 3A.
3. Refer the wiring diagrams below for wiring. Consult the factory for other wiring diagrams.
FOR AC LED TUBE/BULB/LUMINAIRE
FOR DC LED LOAD
N
L
L IN
L OUT LED Test Switch
Red(+)
White(-)
LED DRIVER
N
L
Red(+)
White(-)
LED Test Switch
LED LO AD
LED(-)
LED(+)
Red/Blue
Blue
White/Red
Blue/White
Input
Output
Output
Gray
White/Black
Green/Yellow
Switch
Black
White/Black
HOT
Common
GND
LINEAR EMERGENCY
EQUIPMENT
Green/Yellow
N
L
L IN
L OUT LED Test Switch
Red(+)
White(-)
LED Test Switch
N
L
Red/Blue
Blue
White/Red
Blue/White AC LED TUBE/BULB
/LUMINAIRE
Input
Output
Gray
Switch
Black
White/Black
HOT
White/Black
Common
GND
Red(+)
White(-)
LINEAR EMERGENCY
EQUIPMENT
1-800-982-4587
www.lvscontrols.com

4/6
DIMENSION
Below are the wiring configurations for the LED-BP-SLIM Series:
LED-BP-SLIM-XX-TB
Push in terminal block
Built-in battery
LED-BP-SLIM-XX
Dual 3/8' flexible conduit
Built-in battery
25.2 [0.99] 25.2 [0.99]
L2
5.0 [0.20] 5.0 [0.20]
4.2 [0.17]
30.0 [1.18]
22 [0.87]
L1
M
Dimension unit: mm [inch]
1000.0 [39.37]
600.0 [23.62] W30.5 [1.20] 1000.0 [39.37]
600.0 [23.62]
31.9 [1.26]
H22 [0.87] 14.3 [0.56]
18.5 [0.73]
M
L
* 5 wires in, 6 wires out
1-800-982-4587
www.lvscontrols.com
LED-BP-SLIM-4.5W-TB
LED-BP-SLIM-9W-TB
Item No. L1
mm [inch]
200 [7.87]
W
mm [inch]
H
mm [inch]
260 [10.24]
345 [13.58]
410 [16.14]
190 [7.48]
250 [9.84]
335 [13.19]
400 [15.70]
30 [1.18] 22 [0.87]
30 [1.18] 22 [0.87]
30 [1.18] 22 [0.87]
30 [1.18] 22 [0.87]
M (Mounting)
mm [inch]
LED-BP-SLIM-13.5W-TB
LED-BP-SLIM-18W-TB
Dimension unit: mm [inch]
LED-BP-SLIM-4.5W*
LED-BP-SLIM-9W*
Item No. L1
mm [inch]
258 [10.16]
W
mm [inch]
H
mm [inch]
318 [12.52
403 [15.87]
468 [18.43]
209 [8.23]
269 [10.59]
354 [13.94]
419 [16.50]
30 [1.18] 22 [0.87]
30 [1.18] 22 [0.87]
30 [1.18] 22 [0.87]
30 [1.18] 22 [0.87]
M (Mounting)
mm [inch]
LED-BP-SLIM-13.5W*
LED-BP-SLIM-18W*

5/6
OPERATION / TESTING / MAINTENANCE
OPERATION
When AC ower is appli d, the LED test switch is illuminated indicating that the batteri s are beingp e e ,
charged. When C power fails, the LED-BP-SLIM Series automatically switches to emergency power A ,
operating the lighting load at rated emergency power. During power failure, the LED
test switch will be off. When the AC power is restored, the emergency LED-BP-SLIM Series switches the
system back to normal mode of operation and resumes battery charging. The minimum emergency
operation time is 90 minutes. The charging time for a full discharge is 24 hours.
TESTING AND MAINTENANCE
The following Periodic testing is recommended to ensure the system is working correctly.
1. Visually inspect the LED test switch (LTS) monthly. It should be illuminated when AC power is applied.
2. Conduct a 30-second discharge test by switching off the emergency breaker every month. The LTS will
be off.
3. Conduct a 90-minute discharge test once per year. The LTS will be off during test.
AUTO TEST
The LED-BP-SLIM Series has an Auto Test feature which saves cost by reducing the need for manual
testing.
1. Initial Auto Test
When the system is connected properly and powered on, the wLED-BP-Slim Series ill perform an initial
Auto Test. If any abnormal conditions exist, the LTS will blink quickly. Once the abnormal condition is
corrected, the LTS will function correctly.
2. Preprogrammed Scheduled Auto Test
a) The unit will conduct the first Monthly Auto Test after 24 hours and up to 7 days after initial power on.
Then monthly tests will be performed every 30 days.
b) Annual Auto test will occur every 52 weeks after initial power on.
- Monthly Auto Test
The Monthly Auto Test shall be executed every 30 days, and will test;
Normal to emergency transfer function, emergency, charging and discharging conditions are normal.
Monthly test time is approximately 30~60 seconds.
- Annual Auto Test
Annual Auto Test will occur every 52 weeks after the initial 24 hours full charge, and will test;
Proper initial battery voltage, 90-minute emergency operation and acceptable battery voltage at the end
of the full 90-minute test.
If the Auto Test is interrupted by a power failure, a full 90-minute Auto Test will occur again 24 hours after
the power is restored.If the power failure causes the battery to fully discharge, the product will restart
the Initial Auto Test and Preprogrammed Scheduled Auto Test.
MANUAL TEST
- Press the LTS one time to simulate emergency mode.
- Press the LTS 2 times continuously within 5 seconds to force a monthly test.After the test is completed,
the next (30-day) monthly test will count from this date.
- Press the LTS 3 times continuously within 5 seconds to force a annual test. After the test is completed,
the next (52-week) annual test will count from this date.
- During any manual test, press and hold the LTS for greater than 3 seconds to terminate a manual test.
The Preprogrammed Scheduled Auto Test time will not change.
LED TEST SWITCH CONDITIONS
LTS Slow Blinking: Normal Charging
LTS On: Battery Fully Charged - Normal Condition
LTS Off: Power Failure
LTS Gradual Change: In Testing Mode
LTS Quickly Blinking: Abnormal Condition - Corrective Action Required
1-800-982-4587
www.lvscontrols.com

GUIDELINE FOR FIELD INSTALLATION
The LED-BP-SLIM-XX Series ELBP-XX-S units is suitable for field installation with suitable LED
loads including LED luminaires, LED lamps and others. Follow below 3 steps to determine if
your luminaire is eligible for field installation.
1) Determine Electrical Compatibility
Verify that the emergency driver selected does not exceed the power delivered to the LED
loads (both voltage and current) of the normal LED driver.
2) Calculate Lumen Output in Emergency Mode
A) Access luminaire data from Designlights Consortium website (www.designlights.org).
B) Select “Search the DLC Qualified Product List’ on the DLC homepage.
C) Enter luminaire manufacturer name and part number in the “search by keyword” text
window.
D) Select ”Search” tab to open the “Qualified Products List”.
E) Determine luminaire Lumens per Watt efficacy in “Rated Data” specifications.
F) Multiply luminaire Lumens per Watt by Emergency rated output of the ELBP-XX-S series
(Refer to the table below).
3) Determine Suitability of Means of Egress Lighting Levels
Using industry standard lighting design software with the IES files for the emergency
luminaires, verify that the above calculated emergency lumens are sufficient to meet
Code-compliant path of egress illumination levels.
While the LED-BP-SLIM-XX Series, ELBP-XX-S equipment has been found compliant with
the requirements of UL Standard 924, it is ultimately the responsibility of the Designer/
Specifier to assure the as-installed system delivers code-compliant path of egress
illumination in accordance with national, state and local code requirements.
LED-BP-SLIM-XX SERIES, ELBP-XX-S SPECIFICATIONS
6/6
MODEL / CATALOG NUMBER EMERGENCY OUTPUT(CONSTANT)
9 WATTS
13.5 WATTS
LED-BP-SLIM-9W-TB / ELBP-9W-S-TB
LED-BP-SLIM-13.5W-TB / ELBP-13.5W-S-TB
1-800-982-4587
www.lvscontrols.com
