Super Handy GUR058 User manual

Operator’s Manual
REV 1.0
Retractable Cord Reel
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.

GENERAL SAFETY REGULATIONS
WARNING: The warnings, cautions, and instructions
discussed in this instruction manual cannot cover all
possible conditions or situations that could occur. It
must be understood by the operator that common
sense and caution are factors that cannot be built into
this product, but must be supplied by the operator.
1. Ensure that only the qualified electrician can installs/services this cable reel.
And it must not be permitted by children or unskilled persons.
2. Ensure that power supply voltage does not exceed maximum voltage rating
of reel.
3. Ensure that reel is properly installed before connecting to power supply.
4. Ensure that all electrical power is removed from reel before servicing.
5. Check for frayed and broken wires before each use.
6. When pull electrical cable from the reel always grasp the electrical cable
itself, not the work device.
7. Remove power from the reel immediately when any malfunction occurs.
8. Never remove, tamper with or cut out the safety devices fitted by the
manufacture.
9. Do not use the reel in damp or wet conditions. Keep the work area is clean.
Avoid put in sundries in cable reel.
10. Nor for in hazardous location or above hazardous location use.

TECHNICAL DETAILS
INSTALLATION
1. The reel must be installed in premises conforming to current regulation and standards
covering electrical systems and work environments.
2. Secure the reel to the wall and the ceiling according to the installation diagrams. Using
screw anchors or suitable screws which must be fitted in the holes in the brackets.
3. If it is necessary to adjust the position of the stopper, first pull the cable out of the guide
frame for a distance and lock the drum. Loosen the stopper with wrench, adjust to the
required position, and lock the screw.
4. The reel is supplied with a hose guide roller bracket. The bracket position may be changed
depending on the reel mounting position. Figure 2 shows “Typical Mounting Positions”. If
bracket position needs to be changed, do the following:
(1) Pull out some cable and let reel latch.
(2) Remove the bolts that attach the guide roller bracket to the support post.
(3) Rotate guide roller bracket to correct position, replace bolts and tighten.

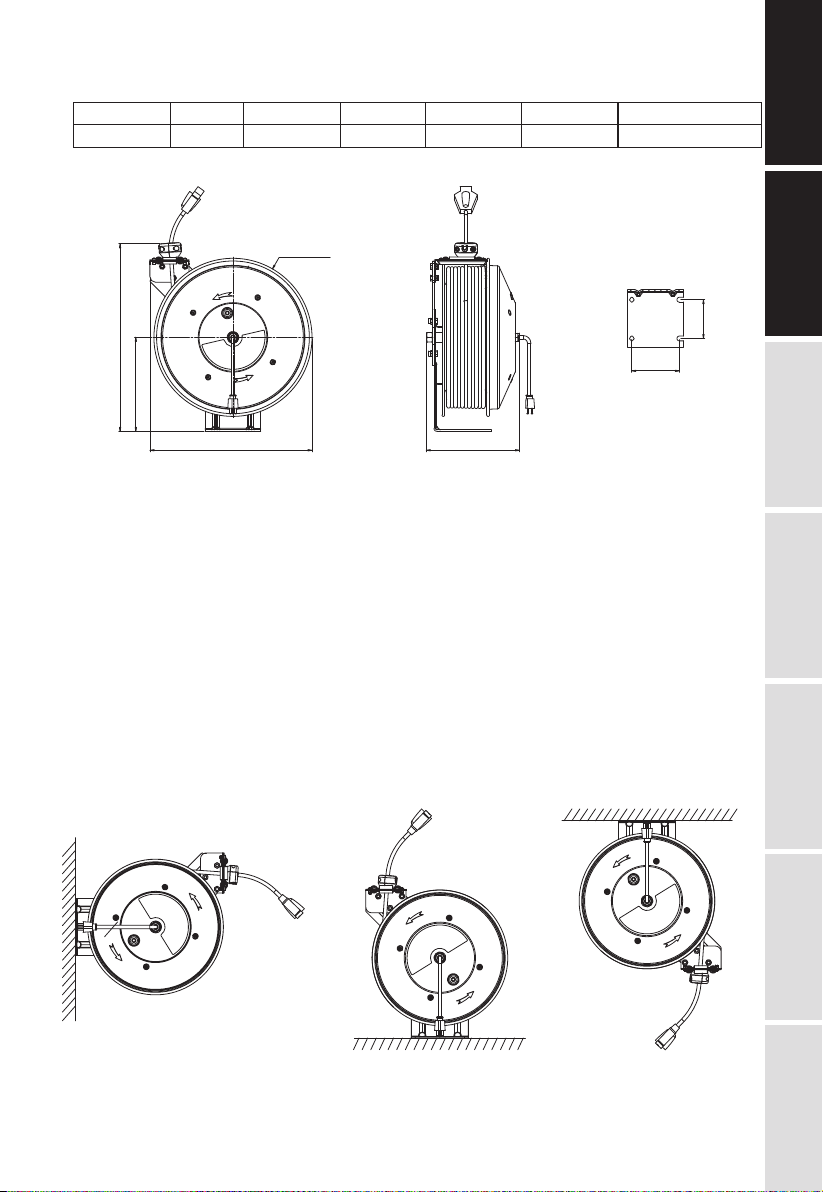

Typical installation of CR8xx
Item No.
GUR058 100ft. 125v 13A
Cord Length
AWG Volt Ampere
SJTOW
Cord Type
5ft.
Lead-In Cord Length
14
480 [18.9"]
245 [9.64"]
Ø412 [16.22"]
422 [16.61"] 243 [9.56"]
101 [3.97"]
124 [9.56"]
Wall Floor Ceiling
E1
TECHNICAL
DETAILS
LIMITED
WARRANTY
EXPLODED AND
PARTS LIST OPERATIONOTHERS INSTALLATIONMAINTENANCE

OPERATION
1. Check reel for correct operation by slowly pulling out cable. A “clicking” noise will be heard
every half revolution of the drum.
2. To latch the reel, pull out the cable and allow it to retract after hearing the first second or
third “click”.
3. To unlatch, slowly pull out the cable until the “clicking” noise stops, then let cable retract until
the bumper block rests against the cable guide.
4. When over loading, the supplementary protector will cut off automatically, then push the
button until restore.
Note: To avoid damage to the reel, always hold on to the cable while it is rewinding.
MAINTENANCE
1. Make sure the cable is in proper working order and that the insulation is not cut or worn as
this could represent a hazard and jeopardize operation.
2. Clean the cable with a cloth dipped in warm water to remove dirt or deposits and ensure
correct rewinding.
3. Do not use detergents or solvents which could prove incompatible with cable-winder
materials.
4. If the event of having to perform maintenance on the electrical, mechanical parts or replace
the cable, contact an authorized after-sale service center.
5. Dismantling of the unit by unskilled personal could prove hazardous; the risk involved mainly
concern the preloaded springs.
LIMITED WARRANTY
1. The manufacturer warrantees this cable reel against defects in material and craftsmanship,
for a period of 12 months from date of purchase.
2. Manufacturer’s liability is limited to replacement or repair of defective material within the
warranty period, when returned freight prepaid to the distributor or their designated service
depot.
3. The warranty does not cover damage caused by accident, misuse or faulty installation.
4. The reel must be installed and maintained in compliance with the instructions.
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to filter out
microscopic particles.
OTHERS
Transportation
During the transportation, the products should be protected from direct sunlight and rain. It is
forbidden to contact with corrosive substances and mix loading.
Storage
1. Storage temperature range: - 4°F (- 20°C) to 140°F (60°C)
2. Storage period: 6 months.
3. Storage conditions: the warehouse shall be well ventilated, avoid direct sunlight and rain,
and shall not contact with corrosive substances.
E2
TECHNICAL
DETAILS
LIMITED
WARRANTY
EXPLODED AND
PARTS LIST OPERATIONOTHERS INSTALLATIONMAINTENANCE

E3
TECHNICAL
DETAILS
LIMITED
WARRANTY
EXPLODED AND
PARTS LIST OPERATIONOTHERS INSTALLATIONMAINTENANCE
EXPLODED AND PARTS LIST
12 4 8912 1310 11 20 21
14 15 17 18 19
46 45 44
765
4849 47
16 22 23 24 25 27
36 33 31 30 29 2832383940414243 35 3437
326

E4
TECHNICAL
DETAILS
LIMITED
WARRANTY
EXPLODED AND
PARTS LIST OPERATIONOTHERS INSTALLATIONMAINTENANCE
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Description
Nut
Washer
Hexagon screw
Nut
Guide arm
Guide platen
Guide frame
Short roller
Long roller
Long guide axle
Short guide axle
Screw
Nut
Main axle
Shaft ring
Screw rod
Spring buckle
Washer
Ratchet plate
Cord stopper assembly
Cord assembly
Double end stud
Spiral spring
Spring assembly
Screw assembly
Q’ty
1
1
8
7
1
1
1
2
2
2
2
9
9
1
2
2
1
2
1
1
1
4
1
1
2
Part No.
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
Description
Connecting column
Plate assembly
Lead-in cord assembly
Cord connector
Locking nut
Compression plug
Protector
Protecting cover
Connecting cord
Connecting cord
Screw
Ground cord
Screw
Grounding sign
Hoop
Cord connector
Drum(With holes)
Drum
Screw
Plastic triangle sleeve
Nut
Tension spring
Base assembly
Ratchet
Q’ty
4
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
3
1
3
1
1
1

Size: 145x210mm REV 07/29/21 3.02.02.1170157克铜版纸
Great Circle USA
Support Line: 1-866-493-0524
[email protected]
www.greatcircleus.com
