Super SOCO TC-MAX User manual

USER MANUAL
Follow us
Scan QR code to
download e-user manual
SUPER SOCO World
SUPER SOCO World
SUPER SOCO World
www.supersoco.com

Warning
1
2
3
4
5
1
USER INSTRUCTIONS
Welcome to the family of SUPER SOCO owners! We will guide you to know every function for the
right and safe use of TC-MAX smart electric bikes. To ensure your safety, please read this manual
carefully before riding and make sure you are always following the requirements below:
Fully understand the information in this manual, including but not limited to the relevant instructions, precautions
and warnings.
Fully understand the operation and contingency measures of TC-MAX smart electric bikes.
Be fully aware of warning labels of TC-MAX smart electric bikes.
Do not disassemble the electric bike and parts without permission, Please contact customer service department
and dealers if you need any replacement or do further purchase.
Please keep this User Manual properly
All parameters have been permanently set according to national standards before delivery, our company is not responsible for
anything change like the original electrical circuit ,wire harness and maximum speed.
Please contact the SUPER SOCO Customer Service Center 400-021-2008 if you have any questions about this bike. We are at our service
at any time. Wish you safe and pleasant riding experience!

To ensure the safety of you and others, please make sure to observe the following matters:
1
2
3
4
5
6
7
8
9
10
2
Please do not lend your vehicle to someone who can not control it to avoid injury
Minors under 16 years old is not allowed to ride our bike on the road.
Please ride your bike in the bicycle lane, do not exceed the maximum speed (Keep right on the road if there is no
bicycle lane)
Do not ride after you take medications which may effect your riding ability, drink alcohol or when you feel physically
upset.
Observe traffic regulations and traffic signs,manned and loaded in accordance with local laws and regulations and
confirm the surrounding road conditions and bike’s conditions at any time, so as to actively avoid danger.
In case of rain and snow, the braking distance shall be increased. Pay attention to slowing down the speed.Try to
avoid traveling as much as possible in inclement weather condition.
Wear safety equipment, such as helmet, and appropriate protective clothing if necessary, such as gloves and boots.
In order to ensure the safety of you and others, please DO NOT use high beam in good lighting conditions. The
continuous use of high beam will cause the visual disturbance to vehicles and pedestrians on the opposite side,
affecting normal driving.
Please turn off the power , remove the key immediately after riding. Keep away from the children, avoid the loss of
your family and property.
Perform a basic check each time before riding, so as to confirm the light, brake, tread and tire pressure and check
other parts for looseness or abnormal noise, and regularly go to official dealer’s service center for maintenance.
SAFETY INSTRUCTIONS

Check before riding. In case of any abnormality, please timely repair or go to official dealer’s service center.
a. Check the power circuit, lighting circuit statues etc.
b. Check whether the front and rear brakes work properly
c. Check the handlebar and the front and rear wheels fixing
d. Check the tire pressure
e. Check the belt whether loose or damaged
f. Check the belt wheels whether it is damaged
g. Check the belt whether belt wheel tooth groove
SAFETY INSTRUCTIONS
11
3

PARTS INSPECTION
2 1 1
1 12
Quick Start
Keys
Mirrrors
Spanner for mirrors
User manual
Charger
01
QUICK START
4

Open storage,take out
cover.
INSTALL BATTERY PACK
1Put battery package in. Connect power plug. 2 3 Switch of circuit protector,
put cover back and close
storage.
4
02
QUICK START
5

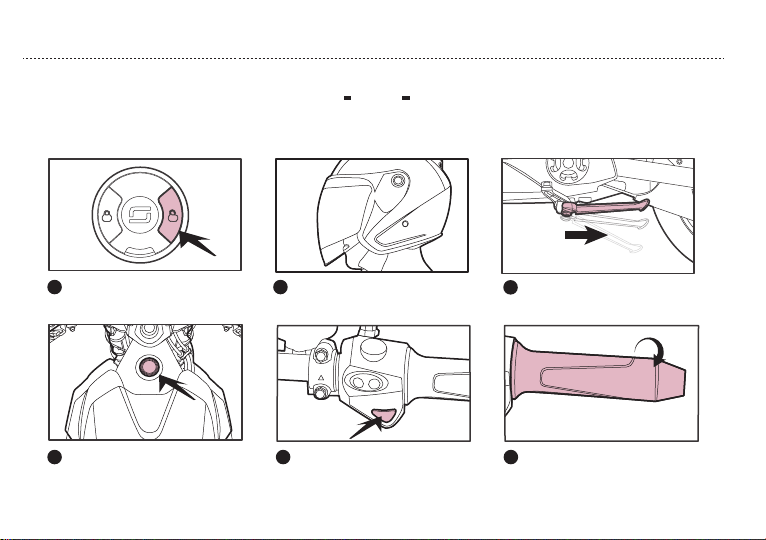

Press ‘UNLOCK’ on remote
control, “POWER” button on.
03
IGNITE TC-MAX
1Put helmet on.
Press ‘Power’ , power on.
2 3
4Press ‘Parking’ button,
unpacking TC-MAX,
parking symbol off.
5Turn accelerator gently,
TC-MAX run.
6
Get on TC-MAX, kick side
stand out.
QUICK START
6

DOWNLOAD APP
TC-MAX smart electric bikes has GPRS function,can connect with your smart phone.
By APP,you can use smart phone to manage and query your TC-MAX.
Only IOS and Android are currently available now,
please confirm your smart phone operating system in advance.
IOS system:APP only supports Apple ISO 9.0 system and above.
Android system: APP only supports Android 4.4 system and above.
Download and install the SUPER SOCO APP by QR code in this manual or key box.
SOCO APP
04
QUICK START
7

Description of Components and Parts
Operation guide
Riding guider
Battery use instruction
App instruction
Maintenance
FAQ & Trouble shooting
09
12
17
20
23
24
25
CONTENTS
8

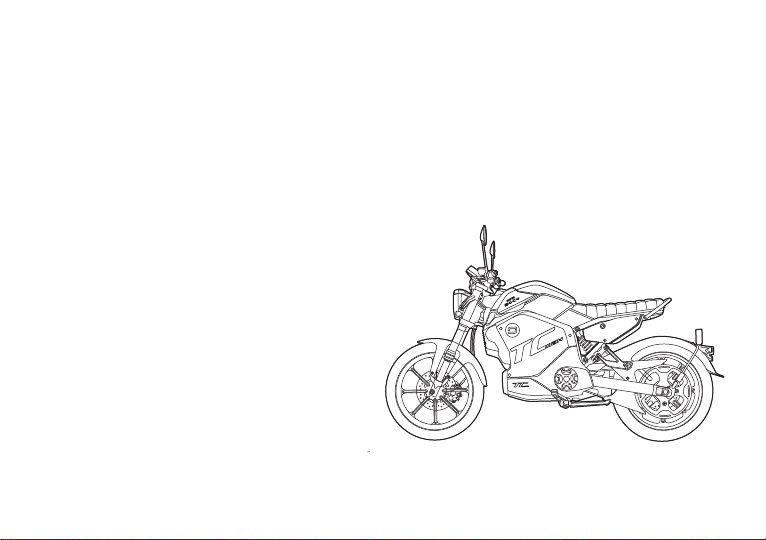

SIDE VIEW

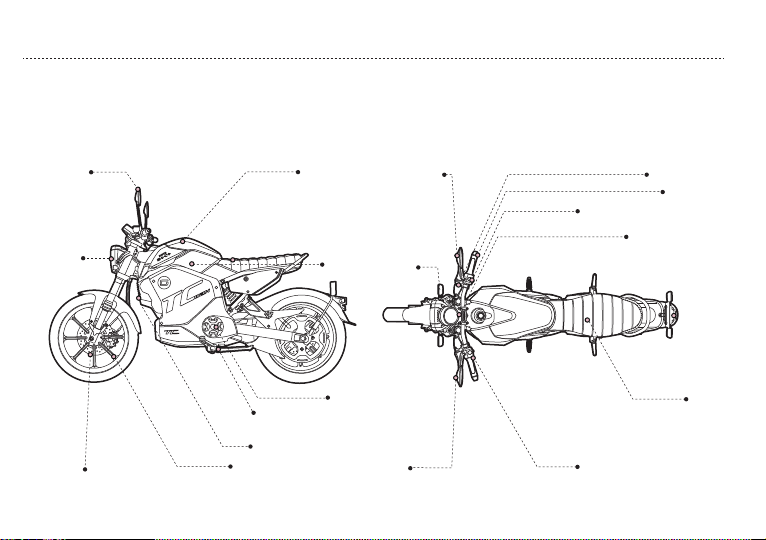

A. SCHEMATIC DIAGRAM OF COMPONENTS AND PARTS
TOP VIEW
Headlamp
Storage box
Battery
compartment
Front brake
lever
Rear brake
lever
Tall lamp
Left-handlebar switch assy
Accelerator
Right-handlebar switch assy
Brake cylinder
Winker
Rear mirror
Brake disc
FOC vector controller
Motor
Electronic side stand
Spoke-type aluminum rim
Speedometer assy
Saddle
DESCRIPTION OF COMPONENTS AND PARTS
9

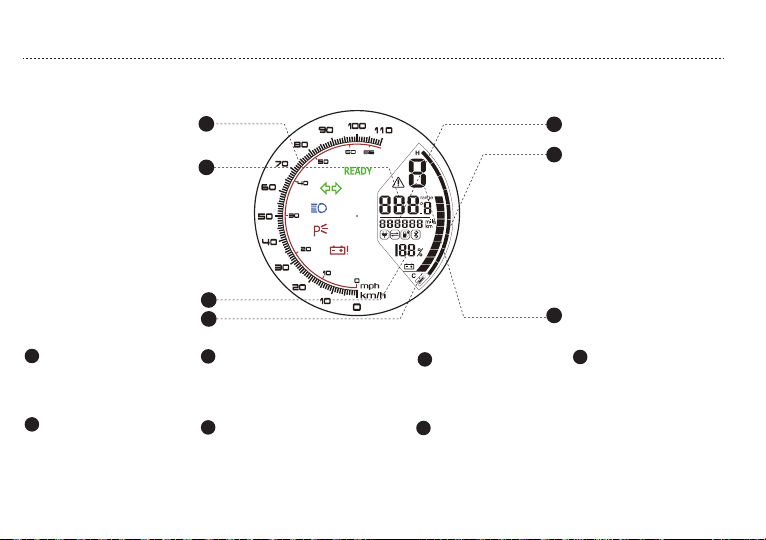

B. DIAGRAM OF SPEEDOMETER
2
5
6
1
123
3
4
4
7
Speed Temperature & distance
Display current speed Display the temperature under
current operating conditions
Distance per charge/ trip distance/
rotating speed, ambient temperature
Total mileage Controller temperature
7
Display current driving gear.
Gear Display
56
Display current battery power
level
Power display bar Battery percentage display
Display the total mileage
Display the current battery power
percentage
DESCRIPTION OF COMPONENTS AND PARTS
10

B. DIAGRAM OF SPEEDOMETER
M
Displacement switching Range/Temperature Change between KM/Mile and KM/P & MPH
M bottom instruction
Data connecting
Charging
NORMAL Mode ECO Mode
High beam indicator
Winker indicator light on
Battery error
Parking Light
Prompt fault code
M
DESCRIPTION OF COMPONENTS AND PARTS
In normal mode，press the switch for one second, turned into
force switch and keep the status.
Manually start the back light of Speedometer (Back light for
Letters + LCD back light)
In normal mode, press it longer than two seconds but shorter
than 8 seconds, start the back light for speedometer and
head light.
In normal mode, press it longer than 8 seconds, then release.
Press it less than 2 seconds, change indications, and keep
the status.
Press it longer than 2 seconds but shorter than 8 seconds,
start the back light for speedometer and head light.
Press it longer than 8 seconds, then release.
11

13 2
2

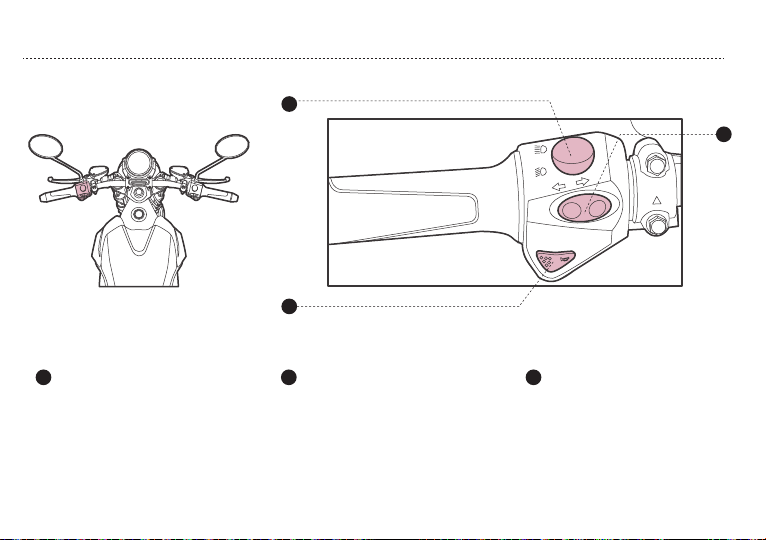

A.LEFT SWITCH
Press, horn on; release, horn off.
Right switchWinker switchHigh/low beam switch
Turn to left, left winker on;
Turn to right, right winker on.
Up position, high beam on;
Down position, low beam on.
3
1
OPERATION GUIDE
12

1
B. RIGHT SWITCH
Front Light switch
1
3
2Parking switch
Mode switch
2
3
Up position, front light on; Down
position, front light automatically on.
(Front light adjust the lightness
automatically according to environment)
Remark:The front light always on at EEC
state.
TC-MAX is set with 3 modes:
1: ECO mode 2: NORMAL mode 3:
SPORT mode.
Position at left, mode 1;
position in the middle, mode 2;
position at right, mode 3.
Press,light on, TC-MAX at parking
position;
Press again, TC-MAX ready to ride.
OPERATION GUIDE
13

D.LOCK
E.UNLOCK
UNLOCK, When TC-MAX in lock state,press “UNLOCK”,
“POWER” continuously on,TC-MAX unlocked.
F.POWER
After unlocking TC-MAX via remote control,
press the “POWER”, power on, press again,
power off.
“POWER” flash, locked status.
“POWER” continuously on, stand-by status
Red circle continuously on, TC-MAX ready to ride.
C.REMOTO CONTROL
TC-MAX use second generation smart remote control, within 50 meter radius, press the button, can lock or unlock your TC-MAX.
OPERATION GUIDE
LOCK, when TC-MAX in resting
state, press “LOCK”, “POWER” flash,
TC-MAX locked.
14

g.HANDLEBAR LOCK
TC-MAX in parking position, turn handlebar to the extreme left position, put key in handlebar lock, and turn the key to right
position, handlebar locked.
Put the key in handlebar lock, turn the key to left position, handlebar unlocked.
1
2
h.STORAGE & SEAT
Put key in storage&seat lock, turn key to right direction, when hear sound “click”, storage open.
Put key in storage&seat lock, turn key to left direction, seat open.
1
2
OPERATION GUIDE
15

g.KILL SWITCH
Kill switch, protect power, when current over than set range cause by abnormal situation or short circuit, kill switch will stop the
connection between battery and TC-MAX automatically, for safety reason.
TIPS: For your own safety, please put kill switch at “OFF” position:
A. Before taking out battery pack;
B. Before cleaning and washing;
C. Long time storage.
ON
OFF
OPERATION GUIDE
16

Whether the handlebar is stable and flexible when turning.
Whether the right and left switches on the handlebar can work properly or not.
Whether the accelerator can work properly or not.

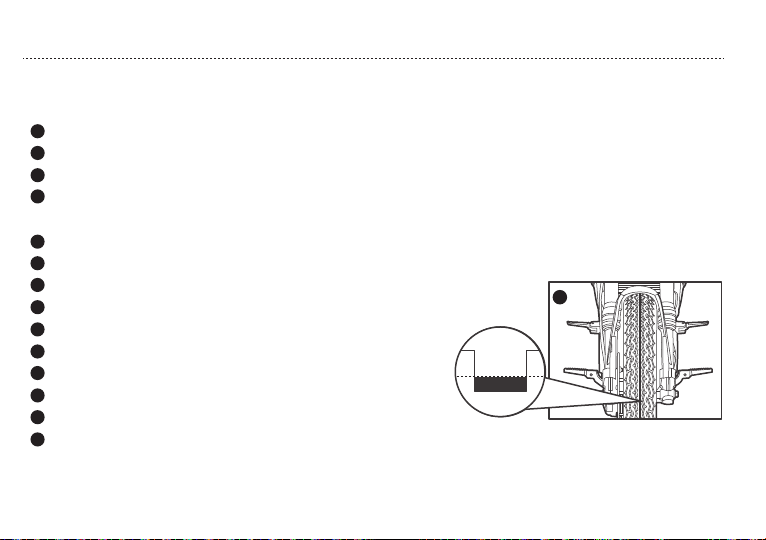

Make sure the tyre pressure is connect. The recommended tire pressure is 200Kpa for front wheel, 225Kpa for rear with
rider only and 200Kpa for front wheel,250Kpa for rear when 1 rider with 1 passenger.
Check tyre surface, make sure no cracks, damage, and foreign matter puncture or attachment.
Whether the tread depth is enough,such as worn to the black shadow position on the sketch ,tyre need to be replaced.
Whether the belt has abrasion, cracks, broken teeth or not.
Whether there are stones or other foreign bodies in the belt teeth or not.
Whether any error warning light in the speedometer with power on or not.
Whether the battery capacity is enough for your trip.
Whether all light work properly or not.
Whether the horn work properly or not.
Whether the mirrors are clean and adjust them to the appropriate angle.
Whether the brake oil is enough, whether the brake lever and brake system work properly or not.
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
a. CHECKING LIST BEFORE RIDING
Make sure to check the following items before riding your TC-MAX
Any exceptions or operational doubts, please contact Super SOCO official dealer’s service center.
RIDING GUIDE
17

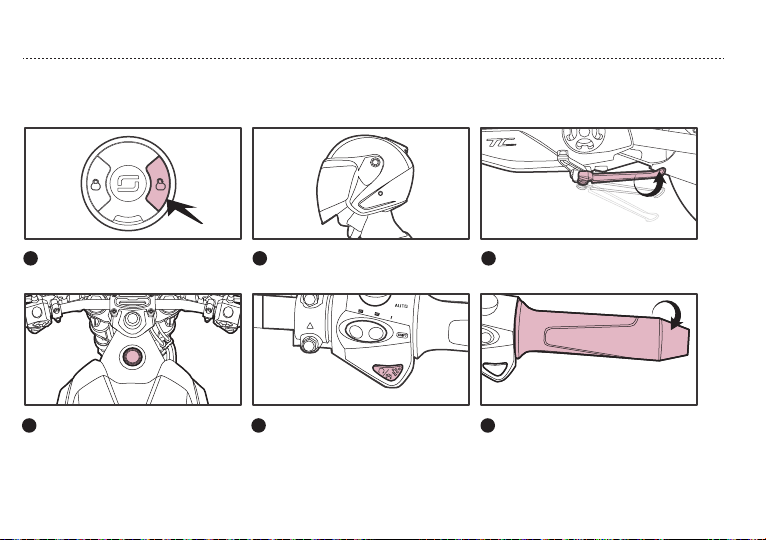

Press “UNLOCK” on remote
control, “POWER” continuously
on.
Press “POWER”, power on. Press ‘Parking’ button,
unpacking TC-MAX, parking
symbol off.
Turn throttle gently, TC-MAX
run
Put on helmet. Riding TC, kick out side stand.
b. POWER ON
1 2 3
45 6
RIDING GUIDE
18

c. NOTICE
TIPS：
1
2
3
4
5

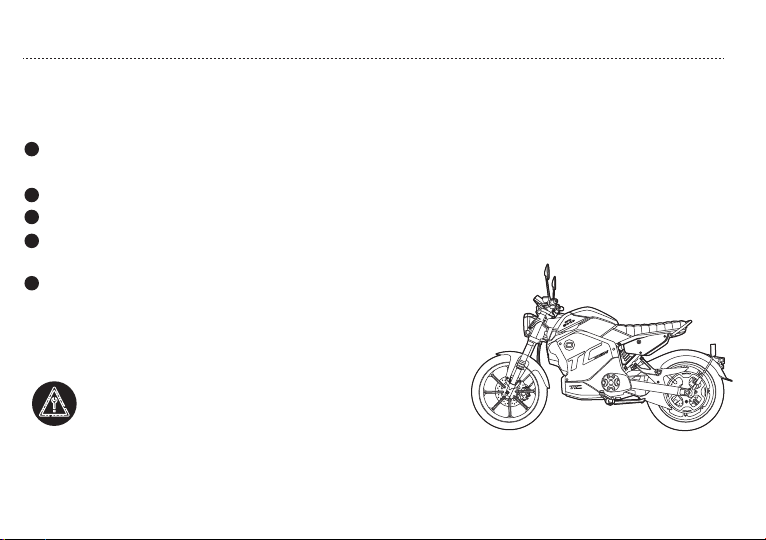

Before riding, make sure side stand is kicked out, handlebar is unlocked.
DON’T press “PARKING” during riding, in case any dangerous due to motor power off and in parking
status.
DON’T put side stand at standing position, in case any dangerous due to motor power off and in
standing status.
TC-MAX need to power on under steady standing status. In case any unusual situation, please move the
bike to side of the road, in case any dangerous,please don’t restart the bike when it still running or in the
middle of the road.
1
2
3
4
After the riding start, it should accelerate slowly to avoid excessive starting current caused by instanta-
neous rapid acceleration and increase energy consumption
Under the premise of ensuring safety, try to keep a constant speed on the way you are driving, reduce
frequent starts, brake, instant acceleration, etc.
The maximum load of TC-MAX is 150KG. Overload is strictly prohibited
Press “Parking” switch while pushing the bike, in order to prevent the unintentional handlebar rotation
causing an accident.
Please turn off the power while packing and remove the key
RIDING GUIDE
19
