Supera Cg-16-1 User manual

This manual contains importatant information regarding your Supera unit. Please read this manual thoroughly prior to equipment set-up,

operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.

CG-16-1, CG-24-1, CG-30-1

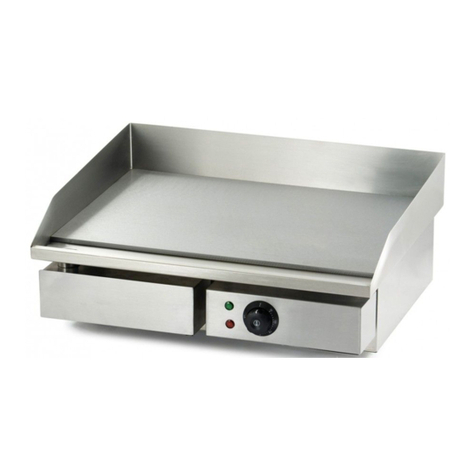

ELECTRIC GRIDDLES

INSTRUCTION MANUAL

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

WARNINGS

• Do not touch any hot surfaces

• Do not immerse unit, cord or plug in liquid at any time

• Unplug cord from outlet when not in use and before cleaning

• Plug only into a 3-hole grounded electrical outlet

• Do not operate unattended

• Do not use this unit for anything other than intended use

• Do not use outdoors

• Always use on a ﬁrm, dry and level surface at least 12” from walls or any other obstruction

• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has

been damaged in any manner

• Keep children and animals away from unit

• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to

property loss and injury. All repairs should be done by authorized professionals only

• Ensure that the designated power supply is adequate for continual usage and the voltage is

correct

In order to protect the plates of your new grill during transportation, a layer of food-safe oil was

coated on the surface prior to shipment. This oil is harmless, but must be removed before you

begin to use. To remove, preheat the grill until the oil liqueﬁes. Next, carefully wipe away the melted

oil with a clean, soft cloth. Once all of the oil is removed you can begin to use your grill.

TO USE

1. Un-box unit and remove protective packaging.

2. The cooking area is coated with an oil based protectant to prevent rusting during shipment.

This protectant will need to be cleaned o before use with a food safe degreaser.

3. Plug the power cord into the appropriately rated outlet.

4. The green power light will illuminate.

5. Turn the temperature controller clockwise to the desired temperature.

6. When the surface reaches the designated temperature, the indicator light will shut o and cycle

to maintain the temperature.

7. For best results allow unit to preheat for 15 minutes before placing food on the surface.

CLEANING - NOTE: To maintain cleanliness and increase service life, the griddles should be cleaned

daily. Do not immerse the griddle in water or any other liquid, if liquid enters the electrical com-

partment it may cause a short circuit or electrical shock

• Before cleaning or attempting to move griddle, unplug and let the unit cool completely

• Wipe the entire unit with a clean soft cloth until it is completely dry

• To avoid damage, do not use abrasive cleaners or scouring pads

• If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water

immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Wiring Diagrams for the Griddles

CG-16-1 CG-24-1

CG-30-1

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Parts Diagram and Replacement Parts for the Griddles

©SUPERA V.1.0 | August 2014

INSTRUCTION

MANUAL

Replacement Parts for the Griddles

Reference Number GRID-16 Part Number GRID-24 Part Number

GRID-30 Part

Number Description

1Body

2 GRID-2 GRID-2 GRID-2 Rubber Foot and Screw

4 GRID-4 GRID-4 GRID-4 Terminal

6 GRID16-6 GRID24-6 GRID30-6 Power Cord and Strain Releif

7 GRID16-7 GRID24-7 GRID30-7 Heating Element

8 Pressure Board for Element

9 Partition Plate for Insulation

10 Heat Preservation Insulation

11 Cover Board for Insulation

12 GRID-12 GRID-12 GRID-12 Terminal

13 Bottom Plate

14 Screw for Bottom Plate

15 GRID-15 GRID-15 GRID-15 Power Indicator Light - Green

17 TH-1201 TH-1201 TH-1201 Thermostat

18 GRID-18 GRID-18 GRID-18 Temperature Indicator Light - Orange

19 GRID-19 GRID-19 GRID-19 Knob Base, Knob and Screw for Thermostat

20 GRID-20 GRID-20 GRID-20 Oil Collector

CG-16-1 CG-24-1 CG-30-1

Part Number

www.SuperaCo.com LIMITED WARRANTY

SUPERA COUNTERTOP COOKING EQUIPMENT MODELS:

Griddles: [CG-16-1, CG-24-1, CG-30-1]

Claims: All claims for parts or labor must be made directly through SUPERA, LLC. All claims should include: model number of the unit,

the serial number of the unit, proof of purchase, date of installation, and all pertinent information supporting the alleged defect. Failure

to comply with warranty policies will result in voiding claims. Any service provided without authorization from Supera, LLC will not be

covered by Supera, LLC.

One-Year Parts & Labor Warranty: SUPERA, LLC warrants to the original purchaser of new equipment that said equipment, when

installed in accordance with our instructions within North America and subjected to normal use, is free from defects in material or

workmanship for one year. Warranty includes onsite service calls within 60 miles of an authorized service company. End user is

responsible for all extra travel and mileage at prevailing rates and for original call to Supera expressing need for warranty service. Any

service provided without authorization from Supera, LLC will not be covered by Supera, LLC.

EXCLUSIONS: Example of items not covered under warranty, but not limited to only these items:

1) Acts of God, fire, water damage, burglary, accident, theft

2) Freight damage

3) Improper installation or alteration of equipment

4) Use of generic or after market parts.

5) Repairs made by anyone other than a SUPERA designated servicer

6) Lubrication

7) Expendable wear parts, adjustable feet, blown fuses, lamps, etc

8) Cleaning of equipment

9) Misuse or abuse

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. SUPERA EXPRESSLY

DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED WARRANTY OF FITNESS FOR A

PARTICULAR PURPOSE. SUPERA, LLC HAS FINAL DESCRETION ON ALL WARRANTY REQUESTS.

SUPERA’S OBLIGATIONS: SUPERA’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO

REPAIRING AND REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP WITHIN THE

APPLICABLE WARRANTY PERIOD.

All repairs pursuant to this Warranty will be performed by an Authorized Designated SUPERA Service Location during normal working

hours. This warranty does not cover services performed at overtime or premium labor rates. End user is responsible for the difference

between normal service rates and premium service rates. This warranty does not cover any service technician errors. IN NO EVENT

SHALL SUPERA BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY,

INCLUDING, WITHOUT LIMITATION, LOSS OF PROPERTY, PERSONAL INJURY, LOSS OF BUSINESS OR PROFITS OR OTHER

ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES, WHETHER IN NEGLIGENCE, WARRANTY, STRICT

LIABILITY, OR OTHERWISE.

This warranty is given only to the first purchaser from a retail dealer. No warranty is given to subsequent transferees. Installation in a

residential application will void all warranties.

Warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to excess water, fire, normal

wear, improper set up and use. Periodic maintenance is not covered. Warranty does not cover service requests for free replacement

and/or recall parts.

THE FOREGOING WARRANTY PROVISIONS ARE A COMPLETE AND EXCLUSIVE STATEMENT BETWEEN THE BUYER AND

SELLER. SUPERA NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS TO ASSUME FOR IT ANY OTHER OBLIGATION OR

LIABILITY IN CONNECTION WITH SAID EQUIPMENT.

Not Covered Under This Warranty: SUPERA, LLCʼs sole obligation under this warranty is limited to either repair or replacement of parts, subject to

the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by

this warranty. Warranty does not cover service requests for free replacement and/or recall parts.

SUPERA, LLC HAS FINAL DESCRETION ON ALL WARRANTY REQUESTS. NO CONSEQUENTIAL DAMAGES. SUPERA, LLC IS NOT RESPONSIBLE FOR ECONOMIC

LOSS; PROFIT LOSS; OR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION, LOSSES, SERVICE TECHNICAN ERRORS, OR

DAMAGES ARISING FROM FOOD OR PRODUCT SPOILAGE REGARDLESS OF WHETHER OR NOT THEY RESULT FROM REFRIGERATION FAILURE. WARRANTY

IS NOT TRANSFERABLE, This warranty is not assignable and applies only in favor of the original purchaser/user to whom delivered. ANY SUCH ASSIGNMENT OR

TRANSFER SHALL VOID THE WARRANNTIES HEREIN AND SHALL VOID ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF

MERCHANTABILITY OR LABOR COVERAGE FOR COMPONENT FAILURE OR OTHER THE WARRANTY PACKET PROVIDED WITH THE UNIT. ALTERATION,

NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FOOD, ACTS OF GOD. SUPERA, LLC is not responsible for the repair

www.SuperaCo.com

or replacement of any parts that SUPERA, LLC determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during

transit or installation, fire, flood, or act of GOD. IMPROPER ELECTRICAL CONNECTIONS. SUPERA, LLC IS NOT RESPONSIBLE FOR THE REPAIR OR REPLACEMENT

OF FAILED OR DAMAGED COMPONENTS RESULTING FROM ELECTRICAL POWER FAILURE, THE USE OF EXTENSION CORDS, LOW VOLTAGE, OR VOLTAGE

DROPS TO THE UNIT. NO IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE; THERE ARE NO OTHER WARRANTIES,

EXPRESSED, IMPLIED OR STATUTORY, EXCEPT THE TWO (2) YEAR PARTS & LABOR WARRANTY AND THE ADDITIONAL THREE (3) YEAR COMPRESSOR

WARRANTY AS DESCRIBED ABOVE. THESE WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, INCLUDING IMPLIED WARRANTY AND

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THERE ARE NO WARRANTIES, WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE

HEREOF. Outside U.S. and Canada; this warranty does not apply, and SUPERA, LLC is not responsible for, any warranty claims made on products sold or used outside the
