Supera PZO-18-1 User manual

This manual contains importatant information regarding your Supera unit. Please read this manual thoroughly prior to equipment set-up,
operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty.
PZO-18-1, PZO-22-1
PIZZA OVENS
INSTRUCTION MANUAL

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
WARNINGS
• Do not touch any hot surfaces
• Do not immerse unit, cord or plug in liquid at any time
• Do not plug or unplug unit with wet hands
• Do not store items on top of appliance
• Use appropriate gloves, pizza peels etc.
• Unplug cord from outlet when not in use and before cleaning
• Plug only into a 3-hole grounded electrical outlet
• Do not operate unattended
• Do not use this unit for anything other than intended use
• Do not use outdoors
• Keep children and animals away from unit
• Always use on a firm, dry and level surface at least 12” from walls or any other obstruction
• Do not use if unit has a damaged cord or plug, in the event the appliance malfunctions, or has
been damaged in any manner
• Any incorrect installation, alterations, adjustments and/or improper maintenance can lead to
property loss and injury. All repairs should be done by authorized professionals only
• Ensure that the designated power supply is adequate for continual usage and the voltage is
correct
TO USE
Perform the following steps before using the pizza oven:
1. Remove all packaging within the oven. Oven should be completely empty before initial use.
2. Unit will need approximately 2 to 3 hours to burn o. This could produce smoke or fumes and
should be done in a well-ventilated area.
3. It is recommended that the burn o should be done at 400°F for the first hour with the oven
door open. Then at 500°F with the door closed for 90 minutes.
Operating the unit
1. Preheat to desired temperature. When the oven reaches the set temperature, the indicator light
will shut o and turn back on to maintain the temperature.
2. Make sure the baking decks are properly installed.
3. The only products that have contact with the pizza decks are PIZZA and BREAD. Place all
other foods in appropriate baking tins.
4. Make sure oven is in well-ventilated area and unplug when not in use.
CLEANING – NOTE: To maintain cleanliness and increase service life, the pizza oven should be
cleaned daily. Do not immerse the unit in water or any other liquid. If liquid enters the electrical
compartment it may cause a short circuit or electrical shock.
• Before cleaning or attempting to move, allow oven to cool down completely then unplug from
outlet
• Do not immerse oven in water. Wipe outside of unit with a damp cloth then wipe dry
• Remove excess spillage. For tough areas, run the oven on the highest setting for 30 minutes.
Allow oven to cool completely then remove residue with a brush/scraper.
• To avoid damage, do not use abrasive cleaners or scouring pads
• If soap or chemical cleaners are used, be sure they are completely rinsed away with clear water
immediately after cleaning. Chemical residue could damage or corrode the surfaces of the unit.

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL

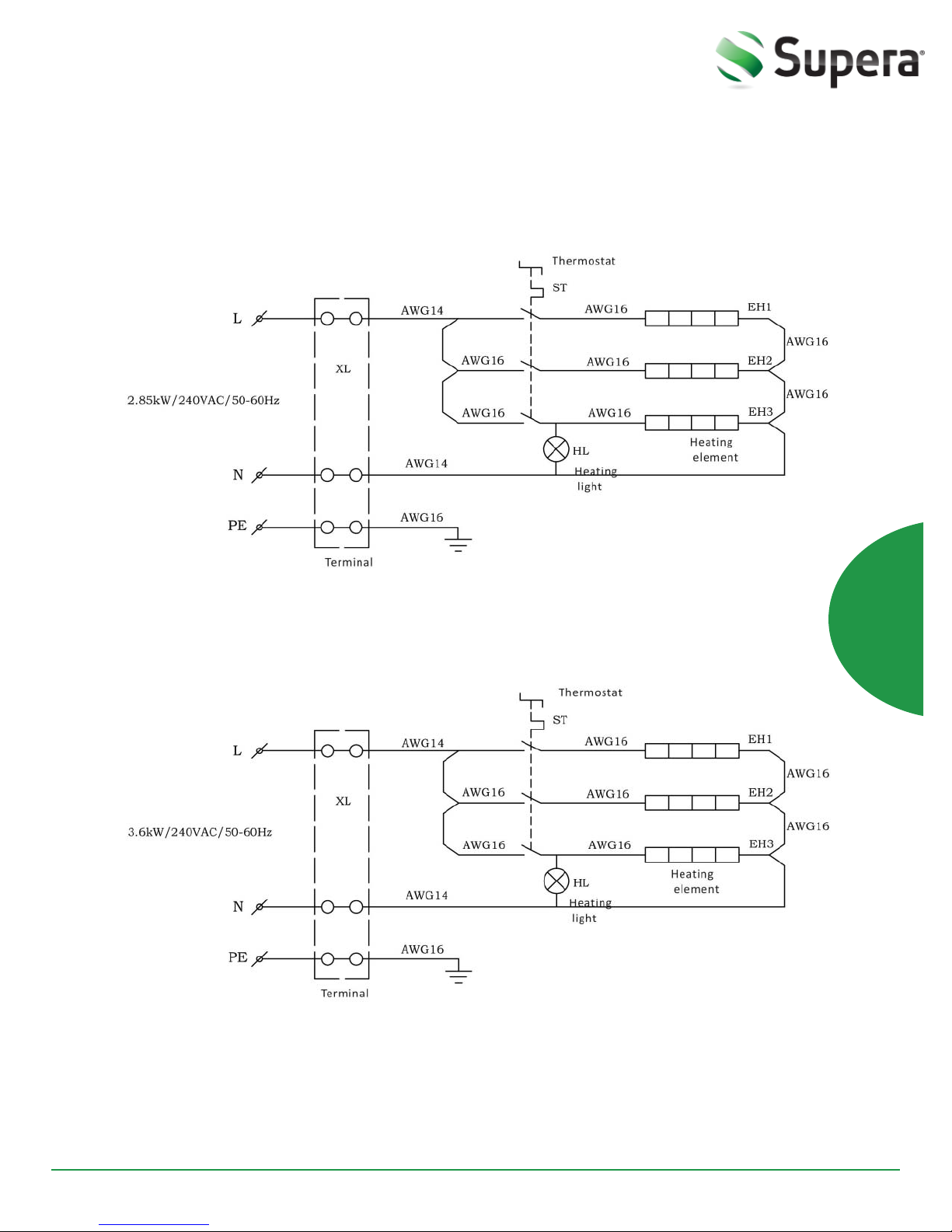

Wiring Diagrams for the Pizza Oven
PZO-18-1
PZO-22-1

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL

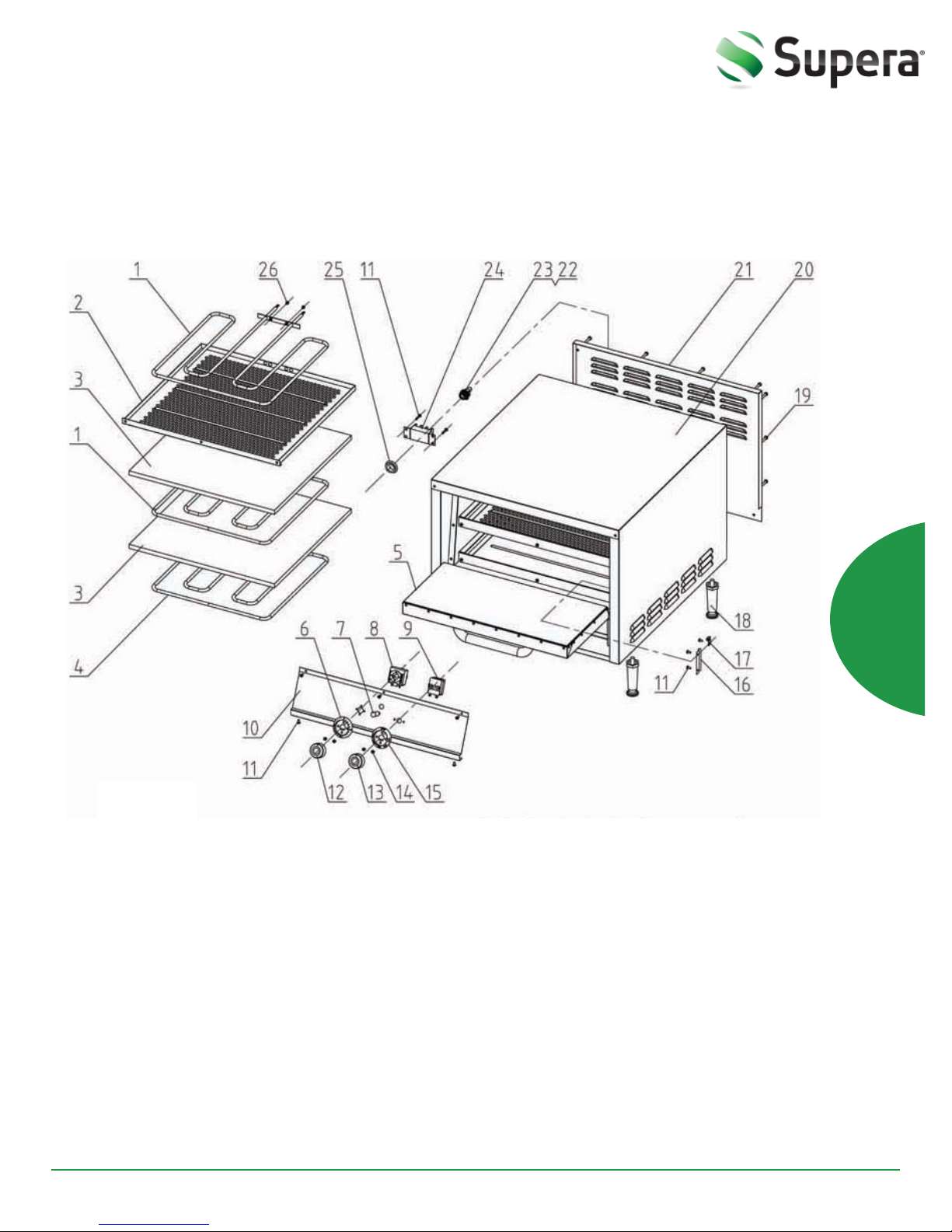

Parts Diagram and Replacement Parts for the Pizza Ovens

©SUPERA V.1.0 | August 2014
INSTRUCTION
MANUAL
Parts Diagram and Replacement Parts for the Pizza Oven
Reference
Number
PO-18 Part
Number
PO-22 Part
Number Description
1 PO1-1 PO2-1 Top and Middle Heating element
2 Top Heating Element Box
3 PO1-3 PO2-3 Ceramic Hearth Baking Shelf
4 PO1-4 PO2-4 Bottom Heating Element
5 PO1-5 PO2-5 Door
7 PO-7 PO-7 Temperature Indicator - Orange
8 PO-8 PO-8 Timer
9 PO-9 PO-9 EGO Thermostat
10 Control Panel
11 Screw- S/S
12 PO-12 PO-12 Timer Knob and Scale Plate
13 PO-13 PO-13 Thermostat Knob and Scale Plate
14 Screw- S/S
16 Thermostat Wire Support
17 Thermostat Probe Rack
19 Screw- Zinc Plated
20 Oven Body
21 Back Plate
23 PO-23 PO-23 Power Cord and Strain Releif
24 PO-24 PO-24 Terminal
25 PO-25 PO-25 Gasket
26 Screw- Zinc Plated
27 PO-27 PO-27 Steel Foot
PZO-22-1PZO-18-1

©SUPERA V.1.0 | August 2014
LIMITED WARRANTY
Supera, LLC warrants to the original purchaser of new equipment that said equipment, when installed in accordance with our in-
structions within North America and subjected to normal use, is free from defects in material or workmanship for one year. War-
ranty includes onsite service calls within 60 miles of an authorized service company. End user is responsible for all extra travel and
mileage at prevailing rates and for original call to Supera, LLC expressing need for warranty service. Any service provided without
authorization from Supera, LLC will not be covered by Supera, LLC.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED. SUPERA, LLC EX-
PRESSLY DISCLAIMS ANY IMPLIED WARRANTY OF MERCHANTABILITY OR EXPRESSED OR IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR PURPOSE. SUPERA, LLC HAS FINAL DESCRETION ONALLWARRANTY REQUESTS.
SUPERA, LLC’S OBLIGATION AND LIABILITY UNDER THIS WARRANTY IS EXPRESSLY LIMITED TO REPAIRING AND
REPLACING EQUIPMENT WHICH PROVES TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIPWITHIN THE APPLI-
CABLE WARRANTY PERIOD. All repairs pursuant to this Warranty will be performed by an Authorized Designated Supera, LLC
Service Location during normal working hours. This warranty does not cover services performed at overtime or premium labor rates.
End user is responsible for the difference between normal service rates and premium service rates. This warranty does not cover any
service technician errors. IN NO EVENT SHALL SUPERA, LLC BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAM-
AGES TO BUYER OR ANY THIRD PARTY, INCLUDING, WITHOUT LIMITATION, LOSS OF PROPERTY, PERSONAL IN-
JURY, LOSS OF BUSINESS OR PROFITS OR OTHER ECONOMIC LOSSES, OR STATUTORY OR EXEMPLARY DAMAGES,
WHETHER IN NEGLIGENCE, WARRANTY, STRICT LIABILITY, OR OTHERWISE.
This warranty is given only to the first purchaser from a retail dealer. No warranty is given to subsequent transferees. Installation in a
residential application will void all warranties.
Warranty does not cover product failures caused by: failure to maintain, neglect, abuse, damage due to excess water, fire, normal wear,
improper set up and use. Periodic maintenance is not covered. Warranty does not cover service requests for free replacement and/or
recall parts.
THE FOREGOING WARRANTY PROVISIONSAREACOMPLETEAND EXCLUSIVE STATEMENT BETWEEN THE BUYER
AND SELLER. SUPERA, LLC NEITHER ASSUMES NOR AUTHORIZES ANY PERSONS TOASSUME FOR ITANY OTHER
OBLIGATION OR LIABILITY IN CONNECTION WITH SAID EQUIPMENT.
Example of items not covered under warranty, but not limited to only these items:
1. Acts of God, fire, water damage, burglary, accident, theft.
2. Freight damage.
3. Improper installation or alteration of equipment.
4. Use of generic or after market parts.
5. Repairs made by anyone other than a Supera, LLC designated servicer.
6. Lubrication.
7. Expendable wear parts, adjustable feet, blown fuses, lamps, etc.
8. Cleaning of equipment.
9. Misuse or abuse.
FOR WARRANTYAND NON-WARRANTY related issues, technical support, purchase replacement parts and warranty registration
visit www.admiralcraft.com or call 1-800-223-7750 for technical support. Please have your model number, serial number and proof of
purchase ready. It is not necessary to contact the place where you originally purchased your product from.
