User Manual
Dimmable LED Panel Light
LPD4 Series
User Manual
Rev Date: V1 11/16/2018Rev Date: V1 11/16/2018
LPD4 Series
5yr
Dimensional Drawings
Dimmable LED Panel Light
Important: Read all instructions prior to installation.
.37in
9.40mm
1.75in
44.45mm
5.50in
139.70mm
POWER WIRE
48.00in
1219.09mm
45.75in
1162.05mm
24.00in
609.60mm
21.75in
552.45mm
3.31in
84.07mm
7.00in
177.80mm
5.30in
134.62mm
1.90in
48.26mm
DRIVER BOX
DRIVER BOX
.83in
21.08mm
21.75in
552.45mm
24.00in
609.60mm
LPD4-xK24-50-SM21N
LPD4-xK22-40-SM15NLPD4-xK24-50-SM21N

Dimmable LED Panel Light
Important: Read all instructions prior to installation.
Rev Date: V1 11/16/2018
Recommended Accessories
Included Parts
Specications
1 - LED panel Light
• 0–10V Slide Dimmer (F019)
• 0–10V Knob Dimmer (A019)
Model LPD4-xK22-40-SM15N LPD4-xK24-50-SM21N
Operating Voltage 120–277 VAC
Rated Power Consumption 40 W 50W
Current Draw 330mA @ 120 VAC 420mA @ 120 VAC
Beam Angle 110 degree
Dimmable 0–10 V
Operating Temperature 14–104°F (-10–40° C)
Product Weight 5 lb (2.3 kg) 10 lb (4.5 kg)
IP Rating IP20
LPD4 Series

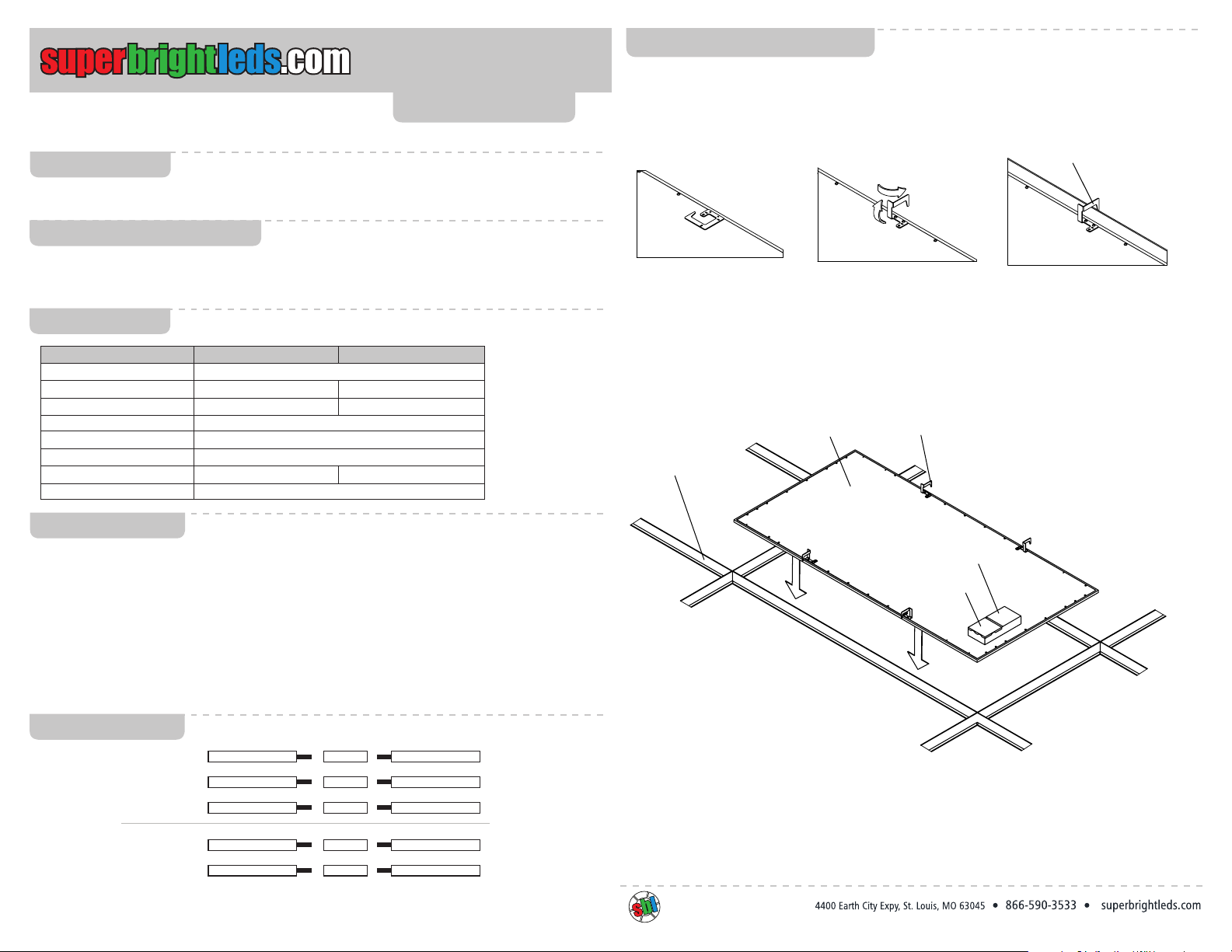

Drop Ceiling Installation
Safety Information
• Product should be installed by a certied electrician in accordance with
applicable national, state, and local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power source
and circuit breakers are switched o󰀨 before performing any installation
or wiring procedures.
• Avoid looking directly into the light when illuminated.
• Failure to properly support the xture may result in damage or injury, for
which the manufacturer does not assume responsibility. A safety cable
is not included, but it is recommended that one be connected to grid clip
during installation.
Wiring Diagram
1. Turn supply power to circuit o󰀨. If installing as a retrot, remove existing xture.
2. Open driver box and remove knockout(s) for wiring. Make electrical connections using
wiring diagram. Once complete, resecure driver box cover.
3. Bend out safety tab to be vertical, then upper portion out 90 degrees.
It is recommended that a safety cable (purchased separately) be installed
to anchor the xture as well.
4. Lay xture into T-grid.
Note: Tabs should secure light in
T-grid while still allowing reinstallation
of adjacent ceiling tiles.
FIG 2
FIG 1
Safet Tab
Driver Box
Fixture
Driver Box
Cover
T-Grid
Firmly bend Safety Tabs
up and out
Safety Tab
User Manual
Black
L L
N N
GND GND
White
Green
+ +
– –
Purple
Gray
Black
White
Green
Purple
Gray
120–277 VAC
Supply
0–10 V Dimmer
