Superior Broadcast SBFM1000SS User manual

18208 Preston Rd. Suite D9-297, Dallas, TX 75252. www.sbp-tv.com
User Manuals
Superior Broadcast LLC
Superior Broadcast
Superior Broadcast LLC
SBFM1000-SS

Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
18208 Preston Rd. Suite D9-297, Dallas, TX 75252. www.sbp-tv.com
Superior Broadcast where the Best Cost Less
Call us today. We want to talk to You
Superior Broadcast
18208 Preston Rd, Suite D9-297, Dallas, TX 75252
Tel: [phone] | Email: [email protected]
www.sbp-tv.com
All rights reserved.
Printed and bound in the U.S.A . No part of this manual may be reproduced, memorized or transmitted
in any form or by any means, electronic or mechanic, including photocopying, recording or by any
information storage and retrieval system, without written permission of the copyright owner.
Superior Broadcast
Jimmie Joynt
Tel: [phone] | Email: [email protected]

Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
TEX500-LCD & TEX1000LIGHT
iUser Manual Rev. 1.0 - 27/10/06
Table of Contents
1. Preliminary Instructions 1
2. Warranty 1
3. First Aid 2
3.1 Treatment of electrical shocks 2
3.2 Treatment of electrical Burns 2
4. Unpacking 3
4.1 General Description 3
5. Installation and conguration procedure 5
5.1 Preparation 5
5.2 First power-on and setup 8
5.3 Operation 11
5.4 Management Firmware 12
5.5 Optional Functions 18
6. Front and Rear Panel Description 20
6.1 Front Panel 20
6.2 Rear Panel 21
6.3 Connector Pinouts 22
 7. Technical Specications 24
8. Operating principles 25
8.1 Power supply 25
8.2 Interface board (SL010IN3001) 27
8.3 Panel board - CPU (SL007PC2001A) 28
8.4 Main Board (SLMBDTEXLC06) 28
8.5 Driver Board (SLDRVTEX1KL) 28
8.6 Power amplier 29
8.7 LPF Board (SLLPFTEX1KL) 29
8.8 BIAS board (SLBIAS1K3U-2) 29
8.9 External Telemetry Interface Board (SLTLMTXLCD03) 30
 9. Identication and Access to the Modules 31
9.1 Top View (TEX500-LCD) 31
9.2 Bottom View (TEX500-LCD) 32
9.3 Top View (TEX1000LIGHT) 33
9.4 Bottom View (TEX1000LIGHT) 34

Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
User Manual
Rev. 1.0 - 22/11/10
ATVCA
ii
This page was intentionally left blank

 1
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
1 / 44User Manual Rev. 1.0 - 01/07/08
ATVST-CNV
1. Preliminary Instructions
• General Warnings
This equipment should only be operated, installed and
maintained by “trained” or “qualied” personnel who are familiar
with risks involved in working on electric and electronic circuits.
“Trained” means personnel who have technical knowledge of
equipment operation and who are responsible for their own
safety and that of other unqualied personnel placed under
their supervision when working on the equipment.
“Qualified” means personnel who are trained in and
experienced with equipment operation and who are
responsible for their own safety and that of other unqualied
personnel placed under their supervision when working on
the equipment.
WARNING: Residual voltage may be present inside
the equipment even when the ON/OFF switch is set to
Off. Before servicing the equipment, disconnect the
power cord or switch off the main power panel and
make sure the safety earth connection is connected.
Some service situations may require inspecting the
equipment with live circuits. Only trained and qualied
personnel may work on the equipment live and shall be
assisted by a trained person who shall keep ready to
disconnect power supply at need.
R.V.R. Television shall not be liable for injury to persons or
damage to property resulting from improper use or operation
by trained/untrained and qualied/unqualied persons.
WARNING: The equipment is not water resistant.
Any water entering the enclosure might impair proper
operation. To prevent the risk of electrical shock or
re, do not expose this equipment to rain, dripping or
moisture.
Please observe local codes and re prevention rules when
installing and operating this equipment.
WARNING: This equipment contains exposed
live parts involving an electrical shock hazard. Always
disconnect power supply before removing any covers
or other parts of the equipment.
Ventilation slits and holes are provided to ensure reliable
operation and prevent overheating; do not obstruct or
cover these slits. Do not obstruct the ventilation slits under
any circumstances. The product must not be incorporated
in a rack unless adequate ventilation is provided or the
manufacturer’s instructions are followed closely.
WARNING: This equipment can radiate
radiofrequency energy and, if not installed in compliance
with manual instructions and applicable regulations,
may cause interference with radio communications.
WARNING: This equipment is tted with earth
connections both in the power cord and for the chassis.
Make sure both are properly connected.
Operation of this equipment in a residential area may cause
radio interference, in which case the user may be required
to take adequate measures.
The specications and data contained herein are provided
for information only and are subject to changes without
prior notice. R.V.R. Television disclaims all warranties,
express or implied.While R.V.R. Television attempts to
provide accurate information, it cannot accept responsibility
or liability for any errors or inaccuracies in this manual,
including the products and the software described herein.
R.V.R. Television reserves the right to make changes to
equipment design and/or specications and to this manual
at any time without prior notice.
• Notice concerning product intended purpose and use
limitations.
This product is a radio transmitter suitable for frequency-
modulation audio radio broadcasting. Its operating
frequencies are not harmonised in designated user countries.
Before operating this equipment, user must
obtain a licence to use radio spectrum from the
competent authority in the designated user country.
Operating frequency, transmitter power and other
characteristics of the transmission system are subject to
restrictions as specied in the licence.
2. Warranty
La R.V.R. Television warrants this product to be free from
defects in workmanship and its proper operation subject to
the limitations set forth in the supplied Terms and Conditions.
Please read the Terms and Conditions carefully, as purchase
of the product or acceptance of the order acknowledgement
imply acceptance of the Terms and Conditions.
For the latest updated terms and conditions, please visit our web
site at WWW.RVR.IT. The web site may be modied, removed
or updated for any reason whatsoever without prior notice.
The warranty will become null and void in the event the
product enclosure is opened, the product is physically
damaged, is repaired by unauthorised persons or is used for
purposes other than its intended use, as well as in the event
of improper use, unauthorised changes or neglect.
In the event a defect is found, follow this procedure:
1 Contact the seller or distributor who sold the equipment;
provide a description of the problem or malfunction for
the event a quick x is available.
Sellers and Distributors can provide the necessary
information to troubleshoot the most frequently encountered
problems. Normally, Sellers and Distributors can offer a
faster repair service than the Manufacturer would. Please
note that Sellers can pinpoint problems due to wrong
installation.
2 If your Seller cannot help you, contact R.V.R. Television
and describe the problem; if our staff deems it
appropriate, you will receive an authorisation to return
the equipment along with suitable instructions;
3 When you have received the authorisation, you may
return the unit. Pack the unit carefully before shipment;
use the original packaging whenever possible and seal
the package perfectly. The customer bears all risks of
loss (i.e., R.V.R. shall not be liable for loss or damage)
until the package reaches the R.V.R. factory. For this
reason, we recommend insuring the goods for their full
value. Returns must be sent on a C.I.F. basis (PREPAID)
to the address stated on the authorisation as specied
by the R.V.R. Service Manager.
IMPORTANT
The lightning ash with arrowhead, within a triangle, is intended to alert the user of the presence
of dangerous voltage that may constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the equipment.
1. Preliminary Instructions
• General foreword The equipment in object is to considering for uses,
installation and maintenance from “trained” or “qualied” staff, they conscious
of the risks connected to operate on electronic and electrical circuits electrical.
The “trained” denition means staff with technical knowledge about the use of
the equipment and with responsibility regarding the own safety and the other
not qualied staff safety place under his directed surveillance in case of works
on the equipment. The “qualied” denition means staff with instruction and
experience about the use of the equipment and with responsibility regarding
the own safety and the other not qualied staff safety place under his directed
surveillance in case of works on the equipment.
WARNING: The machine can be equipped with an ON/OFF switch
which could not remove completely voltages inside the machine. It is
necessary to have disconnected the feeding cord, or to have switched
off the control panel, before to execute technical operations, making sure
himself that the safety connection to ground is connected. The technical
interventions that expect the equipment inspection with circuits under
voltage must be carry out from trained and qualied staff in presence of
a second trained person that it is ready to intervene removing voltage in
case of need.
Superior Broadcast doesn’t assume responsibility for injury or damage
resulting from improper procedures or practices by untrained/unqualied
personnel in the handling of this unit.
WARNING: The equipment is not water resistant and an inltration could
seriously compromise its correct operation. In order to prevent res or
electric shocks, do not expose the equipment to rain, inltrations or
humidity.
Please observe all local codes and re protection standards during installation
and use of this unit.
WARNING: The equipment has to its inside exposed parts to risk of electric
shock, always disconnect power before opening covers or removing any part
of this unit.
Fissures and holes are supplied for the ventilation in order to assure a reliable
efcacy of the product that for protect itself from excessive heating, these
ssures do not have to be obstructed or to be covered. The ssures doesn’t be
obstructed in no case. The product must not be incorporated in a rack, unless
it is supplied with a suitable ventilation or that the manufacturer’s instructions
are been followed.
WIRING: This equipment can irradiate radio frequency energyand if it’s
not installed following the instructions contained in the manual and local
regulations it could generate interferences in radio communications
WIRING: This device has a connection to ground on the power cord and
on the chassis. Check that they are correctly connected.
Operate with this device in a residential ambient can cause radio disturbs;
in this case, it can be demanded to the user to take adequate measures.
Specications and informations contained in this manual are furnished for
information only, and are subject to change at any time without notice, and
should not be construed as a commitment by Superior Broadcast.
The Superior Broadcast assumes no responsability or liability for any errors
or inaccuracies that may appear in this manual, including the products and
software described in it;and it reserves the right to modify the design and/
or the technical specications of the product and this manual without notice.
• Warning regarding the use designated and the use limitations of the
product.
This product is an transmitter radio indicated for the audio broadcasting
service in frequency modulation. It uses working frequencies that are not
harmonized in the states of designated user. The user of this product must
obtain from the Authority for spectrum management in the state of designated
user the appropriate authorization to use the radio spectrum, before putting
in exercise this equipment. The working frequency, the transmitter power, let
alone other specications of the transmission system are subject to limitation
and denited in the authorization obtained.
2. Warranty
Superior Broadcast guarantees absence of manufacturing defect and the
good operation for the products, within the provided terms and conditions.
Please read the terms carefully, because the purchase of the product or
acceptance of order conrmation, constitutes acceptance of the terms and
conditions. For the last legal terms and conditions, please visit our web site
www.sbp-tv.com) wich may also be changed, removed or updated for any
reason without prior notice. Warranty will be void in cases of opened products,
physical damage, misuse, modication, repair by unauthorised persons,
carelessness and using the product for other purpose than its intended use. In
case of defect, proceed like described in the following:
1. Contact the dealer or distributor where you purchased the unit.
Describe the problem and, so that a possible easy solution can be
detected.
Dealers and Distributors are supplied with all the information about problems
that may occur and usually they can repair the unit quicker than what the
manufacturer could do. Very often installing errors are discovered by dealers.
2. If your dealer cannot help you, contact Superior Broadcast and explain
the problem. If it is decided to return the unit to the factory, Superior
Broadcast will mail you a regular authorization with all the necessary
instructions to send back the goods;
3. When you receive the authorization, you can return the unit. Pack it
carefully for the shipment, preferably using the original packing and seal
the package perfectly. The customer always assumes the risks of loss
(i.e.,

 2Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
Superior Broadcast. is never responsible for damage or loss), until the
package reaches R.V.R. premises. For this reason, we suggest you to insure
the goods for the whole value. Shipment must be effected C.I.F. (PREPAID)
to the address specied by Superior Broadcast’s service manager on the
authorization
DO NOT RETURN UNITS WITHOUT OUR
AUTHORIZATION AS THEY WILL BE REFUSED
4 Be sure to enclose a written technical report where mention all the
problems found and a copy of your original invoice establishing the starting
date of the warranty.
Replacement and warranty parts may be ordered from the following address.
Be sure to include the equipment model and serial number as well as part
description and part number.
Superior Broadcast
18208 Preston Rd, Suite D9-297
Dallas, TX 75252
Tel: [phone]
3. First Aid
The personnel employed in the installation, use and maintenance of the
device, shall be familiar with theory and practice of rst aid.
3.1 Treatment of electrical shocks
3.1.1 If the victim is not responsive
Follow the A-B-C’s of basic life support.
• Place victim at on his backon a hard surface.
• Open airway: lift up neck, push forehead back
(Figure 1).
Figure 1
• clear out mouth if necessary and observe for breathing
• if not breathing, begin articial breathing (Figure 2): tilt head,
pinch nostrils, make airtight seal, four quick full breaths
Remember mouth to mouth resuscitation must be commenced as
soon as possible.
Figure 2
• Check carotid pulse (Figure 3); if pulse is absent, begin
articial circulation (Figure 4) depressing sternum (Figure 5).
Figure 3 Figure 4
Figure 5
• In case of only one rescuer, 15 compressions alternated to two
breaths.
• If there are two rescuers, the rythm shall be of one brath each 5
compressions.
• Do not interrupt the rythm of compressions when the second
person is giving breath.
• Call for medical assistance as soon as possible.
3.1.2 If victim is responsive
• Keep them warm.
• Keep them as quiet as possible.
• Loosen their clothing (a reclining position is recommended).
• Call for medical help as soon as possible.
3.2 Treatment of electrical Burns
3.2.1 Extensive burned and broken skin
• Cover area with clean sheet or cloth.
• Do not break blisters, remove tissue, remove adhered particles of
clothing, or apply any salve or ointment.
• Treat victim for shock as required.
• Arrange transportation to a hospital as quickly as possible.
• If arms or legs are affected keep them elevated.
If medical help will not be available within an hour and the victim is conscious
and not vomiting, give him a weak solution of salt and soda: 1 level teaspoonful
of salt and 1/2 level teaspoonful of baking soda to each quart of water (neither
hot or cold).
Allow victim to sip slowly about 4 ounces (half a glass) over a period of 15
minutes.
Discontinue uid if vomiting occurs.
DO NOT give alcohol.
3.2.2 Less severe burns
• Apply cool (not ice cold) compresses using the cleansed available
cloth article.
• Do not break blisters, remove tissue, remove adhered particles of
clothing, or apply salve or ointment.
• Apply clean dry dressing if necessary.
• Treat victim for shock as required.
• Arrange transportation to a hospital as quickly as possible.
• If arms or legs are affected keep them elevated.

 3
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
3 / 34User Manual Rev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
4. Unpacking
The package contains:
1 TEX500-LCD or TEX1000LIGHT
1 User Manual
1 Mains power cable
The following accessories are also available from Your R.V.R. Dealer:
• Accessories, spare parts and cables
4.1 General Description
TEX500-LCD and TEX1000LIGHT are compact FM transmitters manufactured by
R.V.R. Elettronica SpA for audio radio broadcasting in the 87.5 to 108 MHz band
in 10kHz steps, featuring adjustable RF output up to 500 and 1000 W, respectively,
under 50 Ohm standard load.
TEX500-LCD and TEX1000LIGHT have been designed for installation in a 3HE
box for 19” rack.
These transmitters incorporate a low-pass lter to keep harmonics below the limits
provided for by international standards (CCIR, FCC or ETSI) and can be connected
directly to the antenna.
Two major features of TEX500-LCD and TEX1000LIGHT are compact design and
user-friendliness. Design is based on a modular concept: the different functions
are performed by modules that, for the most part, are connected through male and
female connectors or through at cables terminated by connectors. This design
facilitates maintenance and module replacement.
The RF power section of TEX500-LCD uses two MOSFET modules delivering up
to 300W output power each, whereas TEX1000LIGHT features three MOSFET
modules with up to 350 W output power each.
Operating frequency stability is ensured by a temperature-compensated reference
oscillator and is maintained by a PLL (Phase Locked Loop) system. The transmitters
will go into frequency lock within 30 seconds after power-on.
TEX500-LCD and TEX1000LIGHT can operate throughout the frequency bank
with no need for calibration or set-up.
An LCD on the front panel and a push-button board provide for user interfacing
with the microprocessor control system, which offers the following features:
• Output power setup.
• Operating frequency setup.
• Power output enable/disable.
• Power Good feature (User-selectable output power alarm threshold).

 4Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
4 / 34 User ManualRev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
• Measurement and display of transmitter operating parameters.
• Communication with external devices such as programming or telemetry
systems via RS232 serial interface or I2C.
Four LEDs on the front panel provide the following status indications: ON,
LOCK, FOLDBACK and RF MUTE; two yellow LEDs indicate power supply unit
malfunction.
The exciter management rmware is based on a menu system. User has four
navigation buttons available to browse submenus: ESC (Sect.6.1 - [6]), , ,
and ENTER (sect. 6.1 - [9]).
The rear panel features the mains input connectors with a mains voltage switch
(see Sect. 6.2 - [30]) to select the appropriate mains input voltage, as well as audio
input connectors and RF output connector, telemetry connector, protection fuses
and two inputs for signals modulated onto subcarriers by suitable external coders,
such as RDS (Radio Data System) signals commonly used in Europe.

 5
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
5 / 34User Manual Rev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
5. Installation and conguration procedure
This section provides a step-by-step description of equipment installation and
conguration procedure. Follow these procedures closely upon rst power-on
and each time any change is made to general conguration, such as when anew
transmission station is added or the equipment is replaced.
Once the desired conguration has been set up, no more settings are required
for normal operation; at each power-up (even after an accidental shutdown),
the equipment defaults to the parameters set during the initial conguration
procedure.
The topics covered in this section are discussed at greater length in the next
sections, with detailed descriptions of all hardware and rmware features and
capabilities. Please see the relevant sections for additional details.
IMPORTANT: When conguring and testing the transmitter in which the equipment
is integrated, be sure to have the Final Test Table supplied with the equipment ready
at hand throughout the whole procedure; the Final Test Table lists all operating
parameters as set and tested at the factory.
5.1 Preparation
5.1.1 Preliminary checks
Unpack the exciter and immediately inspect it for transport damage. Ensure that
all connectors are in perfect condition.
Provide for the following (applicable to operating tests and putting into service)
√ Single-phase 230 VAC or 115 VAC (-15% / +10%) mains power supply with
adequate earth connection
√ For operating tests only: dummy load with 50 Ohm impedance and adequate
capacity (500W for TEX500-LCD or 1000W for TEX1000LIGHT as a
minimum)
√ Connection cable kit including:
• Mains power cable
• Coaxial cable with BNC connectors for interlock signal connection
• RF cable for output to load / antenna (50 Ohm coaxial cable with N-type
connector for TEX500-LCD or standard 7/8” connector for TEX1000LIGHT)
• Audio cables between transmitter and audio sources.

 6Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
6 / 34 User ManualRev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
5.1.2 Mains power supply
WARNING: Disconnect mains power supply before beginning these
procedures.
Both power supply units (please see section 8.1 for a detailed description) are
equipped with fuses and voltage selection blocks; check all fuses and voltage
selection blocks to ensure their are properly rated for the power mains and
change them as required to match mains voltage.
All mains power supply protection fuses are conveniently located on the rear panel
and are easily accessed (see gure 6.2): to check or replace a fuse, disconnect
equipment from power mains, unscrew fuse cover and pull fuse out of socket.
The following fuses are used:
TEX500-LCD
@ 230 Vac/115 Vac
TEX1000LIGHT
@ 230 Vac/115 Vac
Main power supply
(g. 6.2 – items [20] and [35]) (2x) 16A type 10x38 (2x) 25A type 10x38
Service power supply
( g. 6.2 – item [32]) (1x) 1A type 5x20 (1x) 2A type 5x20
Table 5.1: Fuses
Ensure that the equipment is appropriately set for available mains voltage (supply
voltage rating is reported in the Final Test Table) as follows: disconnect equipment
from mains and ensure that the voltage selection block of the power supply located
on the rear panel (see g. 6.2 - item [30]) is set to the appropriate voltage; change
setting as required.
The main power supply unit is the full-range type and requires no voltage setup.
When supply voltage is other than 230 Vac and might cause erratic operation (say,
less than 200 Vac), it may help to move jumper JP3 on the PFC controller board
from position 2-3 to 1-2 (see PFCPSL1000 diagram, item [6] in gures 9.1 and 9.3
and detail in gure 5.1 below).

 7
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
7 / 34User Manual Rev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT

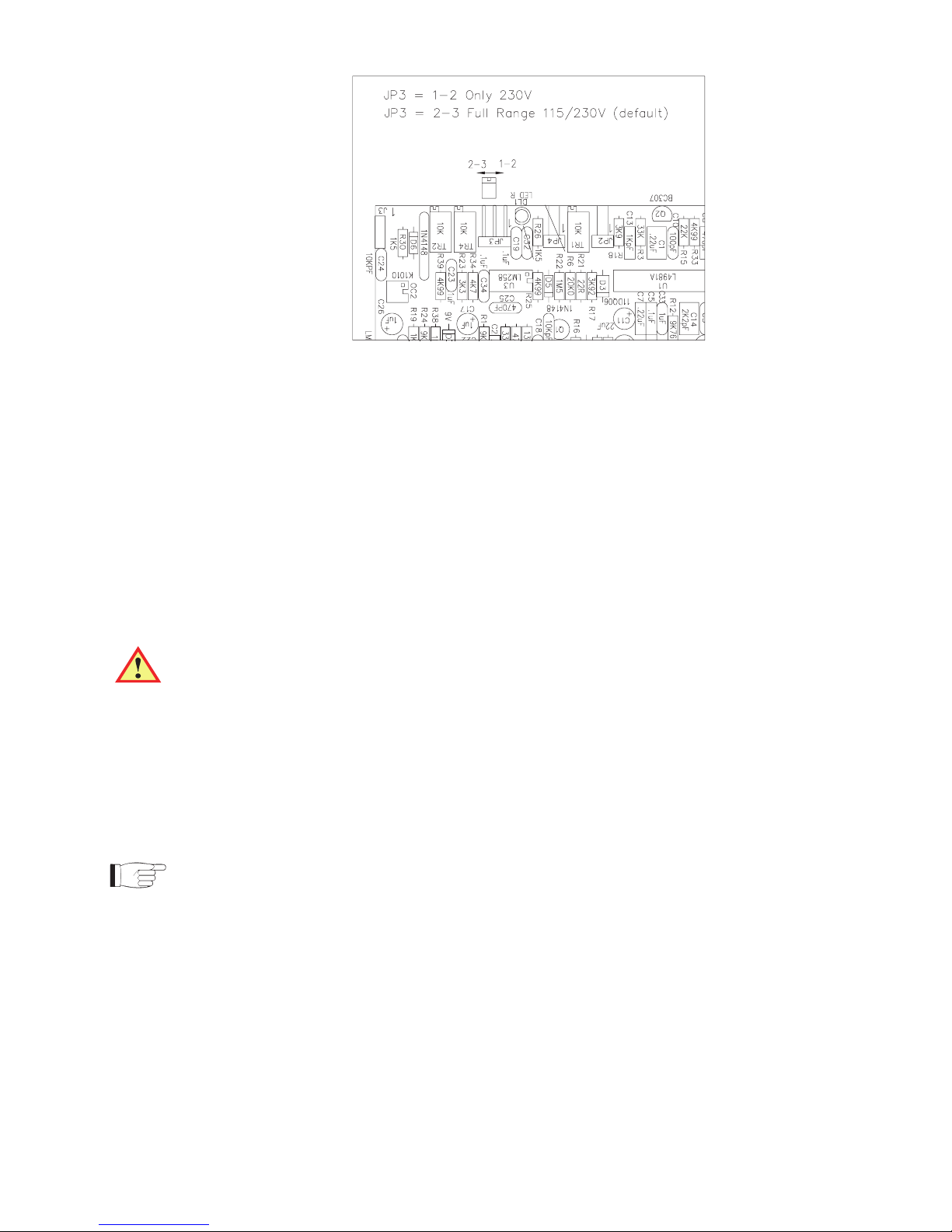

Figure 5.1: Voltage selection jumper on PFC
5.1.3 Connections
Connect the RF output of the transmitter (see gure 6.2 - note [21]) to the antenna
cable or a dummy load capable of dissipating amplier output power. To begin
with, set exciter to minimum output power and switch it off.
Connect the transmitter INTERLOCK IN input (gure 6.2 - note [24]) to the matching
INTERLOCK OUT output tted on R.V.R. Elettronica equipment to act as hybrid
couplers. If your equipment is a different brand, identify an equivalent output.
WARNING: Electric shock hazard! Never handle the RF output connector
when the equipment is powered on and no load is connected. Injury or death
may result.
Ensure that the POWER switch on the front panel (see gure 6.1 - note [11]) is
set to “OFF”.
Connect the mains power cable to the MAINS connector on the rear panel (see
gure 6.2 - note [19]).
Note : The mains must be equipped with adequate earth connection properly
connected to the equipment. This is a pre-requisite for ensuring operator safety
and correct operation.

 8Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
8 / 34 User ManualRev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
WARNING: The power supply connector is a terminal box. Ensure that the
wire is not live before performing the connection.
Connect the audio and RDS/SCA signals from user’s sources to the transmitter
input connectors.
5.2 First power-on and setup
Perform this procedure upon rst power-up and each time you make changes to
the conguration of the transmitter this component is integrated into.
Note : Standard factory settings are RF output power off (Pwr OFF) and regulated
output power set to upper limit (unless otherwise specied by customer).
5.2.1 Power-on
When you have performed all of the connections described in the previous
paragraph, power on the exciter using the suitable power switch on the front panel
(gure 6.1 - item [11]).
5.2.2 Power check
Ensure that the ON LED turns on (see gure 6.1 - note [1]). Equipment name should
appear briey on the display, followed by forward power and modulation readings
(gure 5.2 - menu 1). If the RF output is disabled, those readings will be zero.
When the PLL locks to operating frequency, the LOCK LED will turn on (see gure
6.1 - note [2]).
5.2.3 How to enable the RF output
Check output power level and set it to maximum level (unless it has already been
set) from the Power Setup menu that you will have accessed by pressing the
following sequence of key: ESC (opens Default Menu) ⇒ENTER (hold down for
2 seconds) ⇒SET ⇒use keys to set bar to upper limit (gure 5.2 - menu 2).
5.2.4 Output power level control
IMPORTANT: The exciter incorporates Automatic Gain Control (AGC) and output
power is modulated based on the power level set by the user and actual operating
conditions, such as temperature, reected power and other parameters. Please
read section 5.3 for more details of RF power modulation.
Access the Power Setup Menu (gure 5.2 - menu 2) pressing the following keys
in the order:
ESC (opens Default Menu)⇒ENTER (hold down for 2 seconds)

 9
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
9 / 34User Manual Rev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
Use the keys and in the SET menu to set exciter output power; the setting bar
at the side of SET provides a graphic indication of power setting; please consider
that the forward power readout provided on the display (FWD: xxxx W) reects
actual output power reading, which may be lower than regulated power supply
when Automatic Gain Control is running in power supply limitation mode
(please read section 5.3 about RF power supply modulation for more details).
Note : Output power may be set using the Pwr OFF control. In this condition, the
output power readout (Fwd) on the display will read 0 (zero); the SET bar will reect
any adjustments you make using the keys and provides a graphic indication of how
much power supply will be delivered the moment you return to Pwr On state.
5.2.5 Changing the Power Good alarm threshold
Change Forward Power Good alarm setting PgD from the Fnc menu as desired
(factory setting is 50%).
Please read section 5.4.1 for more details.
5.2.6 Setting equipment I2C address
Change the IIC address in the MIX (Miscellaneous) menu as desired (factory
setting is 01).
Please read section 5.4.1 for more details.
5.2.7 Adjustments and calibration
The only manual adjustments are the level adjustments and the audio mode
adjustment.
The rear panel holds the trimmers for all exciter inputs. Trimmer identication is
printed on the rear panel. Input sensitivity can be set within the limits set out in
the tables below through the trimmers:
Input sensitivity in Mono mode:
Input Figure 6.2 Trimmer Sensitivity Note
SCA1 [11] [15] - 8 ÷ +13 dBm
SCA2 [10] [13] - 8 ÷ +13 dBm
Input level for 7,5 kHz deviation (-20 dB)
MPX [12] [14] -13 ÷ +13 dBm
Mono [34] [33] -13 ÷ +13 dBm
Input level for 75 kHz deviation (0 dB)

 10 Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
10 / 34 User ManualRev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
Input sensitivity in Stereo mode:
Input Figure 6.2 Trimmer Sensitivity Note
MPX [12] [14] -20 ÷ +13 dBm Input level for 75 kHz deviation (0 dB)
SCA1 [11] [15] - 8 ÷ +13 dBm
SCA2 [10] [13] - 8 ÷ +13 dBm
Input level for 7,5 kHz deviation (-20 dB)
Left [34] [33] -13 ÷ +13 dBm
Right [17] [16] -13 ÷ +13 dBm
Input level for 75 kHz deviation (0 dB)
When setting input sensitivity, please consider that the default menu reports
instantaneous modulation level and an indicator provides a 75 kHz reading. To
ensure correct adjustment, apply a signal with the same level as user’s audio
broadcast maximum level and then adjust using the trimmer until instantaneous
deviation matches the 75 kHz reading.
To set subcarrier input levels, you may use the same procedure and option “x10”
available in the Fnc menu. With this option, modulation level is multiplied by a factor
of 10, which means that default menu bar meter reects a 7.5 kHz deviation.
A special menu with separate indications of Left and Right channel levels and
relating indicators of nominal levels for maximum deviation (75 kHz) is provided.

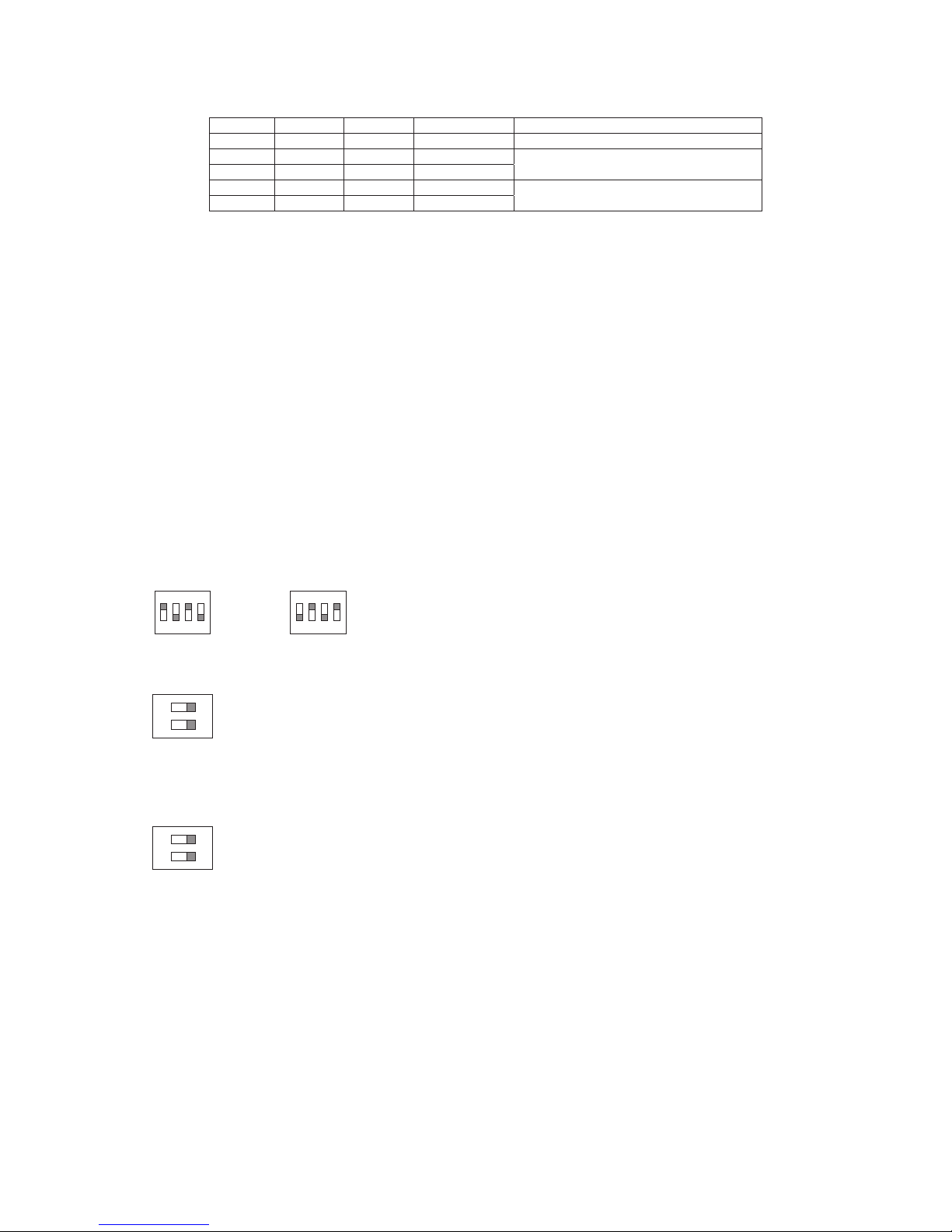

• Preemphasis (switch [8] Figure 6.2):
ON
1
2
3
4
50 ms
ON
1
2
3
4
75 ms
• L and R (XLR type) input impedance (switch [9] Figure 6.2):
Switch 1: R XLR input impedance, ON = 600 W, OFF = 10 kW
Switch 2: L XLR input impedance, ON = 600 W, OFF = 10 kW
• MPX input operation mode/impedance (switch [18] Figure 6.2):
Switch 1: Mode of operation ON = Mono, OFF = Stereo
Switch 2: MPX input impedance, ON = 50 W, OFF = 10 kW
ON
1 2
ON
1 2

 11 
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
11 / 34User Manual Rev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
5.3 Operation
NOTE: For better clarity, only the typical screens of TEX1000LIGHT are reported
below. TEX500-LCD screens look the same except that full scale values are
different.
1) Power on the exciter (sect. 6.1 - [11]) and ensure that the ON light turns on
(section 6.1 - note [1]). Equipment name should appear briey on the display,
quickly followed by modulation and forward power readings (Menu 1), provided
that the exciter is delivering output power.
Menu 1
1b) To modify power level setting, hold down the ENTER button until opening
the power setup menu.
The edit screen will look like this:
Menu 2
Next to SET indication, a bar provides a graphic display of preset output power.
The lled portion of the bar is proportional to set power level.
Example
100% output power Full bar
≅1000W output
(mod.TEX1000LIGHT)
≅500W output
(mod.TEX500-LCD)
50% output power Half-full bar
≅500W output
(mod.TEX1000LIGHT)
≅250W output
(mod.TEX500-LCD)
25% output power Quarter-full bar
≅250W output
(mod.TEX1000LIGHT)
≅125W output
(mod.TEX500-LCD)
The bottom line provides instantaneous power reading (997W for TEX1000LIGHT
shown here); press button to increase level, press to decrease it. When
you have achieved the desired level, press ENTER to conrm and exit the default
menu. Please note that the setting is stored automatically; in other words, if you
press ESC or do not press any keys before the preset time times out, the latest
power level set will be retained.

 12 Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
12 / 34 User ManualRev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
NOTE: This feature prevents the equipment from delivering maximum power
as soon as output is enabled from menu 4, or in the event the equipment is
already set to ON when you energise it.
2) Ensure that the equipment is not in a locked-out state. Press ESC (sect. 6.1 -
[6]) to call up the selection screen (menu 3). Highlight Fnc and press ENTER
to conrm (sect. 6.1 - [9]) and access the selected menu (menu 4).
If PWR is set to OFF, i.e. power output is disabled, move cursor to PWR.
Press ENTER (sect. 6.1 - [9]) and label will switch to ON, i.e. power output is
enabled.
Press ESC (sect. 6.1 - [6]) twice to go back to the default menu (menu 1).
3) Fine tune power setting from menu 2 (see description of item 1b) until achieving
the desired value.
WARNING: Equipment is capable of delivering more than rated output power
(500W for TEX500-LCD or 1000 W for TEX1000LIGHT); however, never exceed
the specied power rating.
NOTE: If power is set to 0 W in the Power Setup Menu, the INTERLOCK OUT
contact (sect. 6.2 - [22]) is activated and any external appliances connected to
it are immediately inhibited.
Next, you can review all operating parameters of the equipment through the
management rmware.
Normally, the equipment can run unattended. Any alarm condition is handled
automatically by the safety system or is signalled by the LED indicators on the
panel or by display messages.
NOTE: Standard factory settings are output power set to upper limit (unless
otherwise specied by customer) and OFF.
5.4 Management Firmware
The equipment features an LCD with two lines by 16 characters that displays a
set of menus. Figure 5.2 below provides an overview of equipment menus.
The symbols listed below appear in the left portion of the display as appropriate:
(Cursor) - Highlights selected (i.e. accessible) menu.
(Filled arrow) - Editable parameter marker. This symbol appears in menus that
take up more than two lines to aid browsing.
(Three empty arrows) - Parameter is being edited.
(Empty arrow) - Current line marker; the parameter in this line cannot be
edited. This symbol appears in menus that take up more than two lines to aid
browsing.

 13 
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
13 / 34User Manual Rev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
 
 






 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 
 

Figure 5.2
When the display is off, touching any key will turn on backlighting.
When the display is on, pressing the ESC button (sect. 6.1 - [6]) from the default
menu (menu 1) calls up the selection screen (menu 3), which gives access to
all other menus:
Menu 3
If the temperature alarm is enabled and the alarm threshold is exceeded, the
following screen will be displayed (only if you are in the default screen):
State 1

 14 Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
14 / 34 User ManualRev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
As soon as operating conditions are restored, power output is re-enabled with the
same settings in use prior to the alarm condition.
Under 20kHz, no modulation occurs. After a preset time of about 5 minutes (not
editable), a NO AUDIO condition is indicated in the main screen, but power is not
inhibited.
State 2
To gain access to a submenu, select menu name (name is highlighted by cursor)
using button or and press the ENTER button (sect. 6.1 - [9]).
To return to the default menu (menu 1), simply press ESC again (sect. 6.1 -
[6]).
5.4.1 Operation Menu (Fnc)
In this menu, you can toggle exciter power output On/Off, set deviation display
mode and the threshold rate for Forward (PgD) or Reected (PgR) Power
Good.
To edit an item, highlight the appropriate line using the and buttons and then
press and hold the ENTER button (sect. 6.1 - [9]) until the command is accepted.
This way, Pwr setting is toggled between On and Off and Mod setting is toggled
between “x1” and “x10”. To edit the Power Good rate, simply select item “PgD” or
“PgR” and edit its value using the UP and DOWN buttons; nally, press ENTER
to conrm (sect. 6.1 - [9]).
Menu 4
Pwr Enables (ON) or disables (OFF) exciter power output.
Mod Modies modulation display (toggles between “x1” and “x10”). In “x10”
mode, instantaneous deviation indication is multiplied by a factor of 10,
and the bar meter on the default menu will reect 7.5 kHz instead of
75 kHz. This display mode is convenient when you wish to display low
deviation levels, such as those caused by pilot tone or subcarriers.

 15 
Superior Broadcast SBFM1000SS Transmitter User Manual
Superior Boadcast SBFM1000SS Transmitter
15 / 34User Manual Rev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
PgD
 Modies Power Good threshold for forward power. The Power Good
rate is a percent of equipment rated power (500W for TEX500-LCD and
1000 W for TEX1000LIGHT), not of forward output power. This means
that this threshold set at 50% will give 250 W and 500 W, respectively,
regardless of set power level. The Power Good feature enables output
power control and reporting. When output power drops below set Power
Good threshold, the equipment changes the state of pin [7] of the DB15
“Remote” connector located on the rear panel (gure 6.2 - [28]).
PgR Modies Power Good threshold for reected power. The Power Good
rate is a percent of equipment rated power (50W for TEX500-LCD
and 100 W for TEX1000LIGHT), not of reected output power. This
means that this threshold set at 2.5% and 5%, respectively, will give
5W regardless of set power level. The Power Good feature enables
output power control and alarm management.
NOTE: This alarm does not trip any contacts in the DB15 “Remote” connector and
is only available in systems equipped with telemetry.
5.4.2 Power Menu (Pwr)
This screen holds all readings related to equipment output power:
Menù 5
Fwd Forward power reading.
R Reected power reading.
Note that these are readings, rather than settings, and cannot be edited (note
the empty triangle). To change power setting, go to the default menu as outlined
earlier.

 16 Superior Broadcast
SBFM1000SS Transmitter User Manual
Superior Broadcast SBFM1000SS Transmitter
16 / 34 User ManualRev. 1.0 - 27/10/06
TEX500-LCD & TEX1000LIGHT
5.4.3 Power Amplier (P.A) Menu
This screen is made up of four lines that can be scrolled using the and
buttons and shows the readings relating to nal power stage:
Menu 6
Note that these are readings, rather than settings, and cannot be edited (note the
empty arrow).
VPA Voltage supplied by amplier module.
IPA Current draw of amplier module.
Eff Efciency based on ratio of forward power to amplier module power,
in percent ( FWD PWR/(Vpa x Ipa) % ).
Tmp Equipment internal temperature reading.
5.4.4 Setup Menu (Set)
This menu lets you view and set operating frequency.
Menu 7
F1 Operating frequency setup. Set a new frequency value and then
press the ENTER button to confirm your selection; the exciter
unlocks from current frequency (the LOCK LED turns off) and will
lock to the new operating frequency (LOCK turns back on again).
If you press ESC or let the preset time time out, the previous frequency
setting is retained.
5.4.5 Miscellaneous Menu (Mix)
This menu lets you set equipment address in an I2C bus serial connection:
Menu 8
