SuperLead 5130HS-QD User manual

Bluetooth Barcode Reader User Guide
V 2.0

1
Table of Contents
1Getting Started ..................................................................................................................................................................... 3
1.1 About This Guide.....................................................................................................................................................................................3
1.2 Factory Defaults .......................................................................................................................................................................................3
1.3 Scanner Firmware Version....................................................................................................................................................................3
1.4 Cradle Firmware Version.......................................................................................................................................................................3
2Communication Interfaces ............................................................................................................................................... 4
2.1 Bluetooth Scanner Setting...................................................................................................................................................................4
2.1.1 Connect with Bluetooth Cradle ...................................................................................................................................................4
2.1.2 Bluetooth Keyboard.........................................................................................................................................................................4
2.1.3 Bluetooth serial port .......................................................................................................................................................................4
2.1.4 Country Keyboard Types................................................................................................................................................................5
2.1.5 Convert Case......................................................................................................................................................................................6
2.1.6 Input Method.....................................................................................................................................................................................6
2.1.7 Power Setting.....................................................................................................................................................................................7
2.1.8 Standby time ......................................................................................................................................................................................7
2.2 Bluetooth Cradle/Dongle Settings....................................................................................................................................................7
2.2.1 Cradle Factory Defaults ..................................................................................................................................................................7
2.2.2 Baud Rate ............................................................................................................................................................................................8
2.2.3 Data Bit & Parity Check & Stop Bit ............................................................................................................................................9
2.2.4 USB Interface................................................................................................................................................................................... 10
2.2.5 USB COM Port Emulation ........................................................................................................................................................... 10
2.2.6 Synchronous transfer mode....................................................................................................................................................... 10
2.2.7 Asynchronous transfer mode.................................................................................................................................................... 11
2.2.8 Mass storage mode ...................................................................................................................................................................... 11
3General Configuration......................................................................................................................................................12
3.1 Trigger Mode ......................................................................................................................................................................................... 12
3.2 Presentation Mode .............................................................................................................................................................................. 12
3.3 Inverse color........................................................................................................................................................................................... 13
3.4 Illumination ............................................................................................................................................................................................ 13
3.5 Good Read Beeper............................................................................................................................................................................... 14
3.6 Good Read Beeper Volume .............................................................................................................................................................. 15
3.7 Vibrate-Good Read.............................................................................................................................................................................. 15
3.8 Goodread Delay.................................................................................................................................................................................... 16
3.9 Reread Delay.......................................................................................................................................................................................... 16
4Data Formatting .................................................................................................................................................................17
4.1 General Configuration........................................................................................................................................................................ 17
4.2 Add Prefix................................................................................................................................................................................................ 18
4.3 Add Suffix................................................................................................................................................................................................ 19

2
4.4 Clear All Prefix and Suffix .................................................................................................................................................................. 19
5Symbologies ........................................................................................................................................................................20
5.1 General Setting ..................................................................................................................................................................................... 20
5.1.1 Enable/Disable All Symbologies............................................................................................................................................... 20
5.2 Code 128 ................................................................................................................................................................................................. 20
5.3 EAN-8 ....................................................................................................................................................................................................... 21
5.4 EAN-13..................................................................................................................................................................................................... 23
5.5 UPC-E........................................................................................................................................................................................................ 26
5.6 UPC-A....................................................................................................................................................................................................... 29
5.7 Interleaved 2 Of 5................................................................................................................................................................................. 32
5.8 Matrix 2 Of 5.......................................................................................................................................................................................... 33
5.9 Industrial 2 Of 5 .................................................................................................................................................................................... 34
5.10 Code 39 ................................................................................................................................................................................................. 35
5.11 Coda Bar................................................................................................................................................................................................ 37
5.12 Code 93 ................................................................................................................................................................................................. 39
5.13 GS1-128................................................................................................................................................................................................. 40
5.14 Code 11 ................................................................................................................................................................................................. 41
5.15 PDF 417 ................................................................................................................................................................................................. 42
5.16 QR Code................................................................................................................................................................................................ 43
5.17 Data Matrix .......................................................................................................................................................................................... 44
5.18 Maxi code ............................................................................................................................................................................................. 45
5.19 Aztec....................................................................................................................................................................................................... 46
6Appendix...............................................................................................................................................................................47
6.1 Appendix 1: AIM ID Table.................................................................................................................................................................. 47
6.2 Appendix 2: ASCII Table ..................................................................................................................................................................... 50

3
1Getting Started
1.1 About This Guide
This guide provides programming instructions for the SuperLead 2D Barcoder Reader. Users can
configure the SuperLead 2D Barcoder Reader by scanning the programming barcodes included in
this manual.
1.2 Factory Defaults
Scanning the following barcode can restore the engine to the factory defaults.
Note: Use this feature with discretion.
1.3 Scanner Firmware Version
Scanning the barcode below can display the firmware version number.
Display Scanner Firmware Version Number
1.4 Cradle Firmware Version
Scanning the barcode below can display the firmware version number.
Display Cradle Firmware Version Number

4
2Communication Interfaces
2.1 Bluetooth Scanner Setting
Press the sanner`s button for 3s ,then it is powered on.
2.1.1 Connect with Bluetooth Cradle
STEP1：Scan the barcode stuck at the bottom of the cradle, wait for connection.
2.1.2 Bluetooth Keyboard
STEP1: Scan the barcode below to start a new connection. The scanner will be discoverable in 120s.
Bluetooth keyboard
STEP2：Set your personal laptop or tablet so it searches for other Bluetooth devices.
STEP3：Select the scanner name (named after 12 SN characters) on your device, the scanner will work
as a keyboard.
2.1.3 Bluetooth serial port
STEP1: Scan the barcode below to start a new connection. The scanner will be discoverable in 120s.
Bluetooth serial port
STEP2：Set your personal laptop or tablet so it searches for other Bluetooth devices.
STEP3：Select the scanner name (named after 12 SN characters) on your device, the scanner will work
as a serial port.

5
2.1.4 Country Keyboard Types
Keyboard layouts vary from country to country. The default setting is U.S. keyboard.
If your interface is Bluetooth Keyboard, scan the Keyboard Country barcode below to change this
layout.
US(default)
Belgian
Finnish_Swedish
French
German
Italian
Swiss_German
British
Danish
Novwegian
Spanish

6
2.1.5 Convert Case
Scan the appropriate barcode below to convert barcode data to your desired case.
No Case Conversion (Default)
Convert All To Upper Case
Convert All To Lower Case
2.1.6 Input Method
When a Bluetooth terminal connect with scanner, its virtual keyboard will disappear at once. You may
need to scan the barcodes below to switch input language into English.
Switch Input Method（Windows/Android）
Switch Input Method(iOS)
Popup/Hide Virtual Keyboard(iOS)

7
2.1.7 Power Setting
Power Off
2.1.8 Standby time
The scanner will power off if no operation is done within the standby time.
1h
30min
10min
Never Power off
2.2 Bluetooth Cradle/Dongle Settings
Connect a scanner to Bluetoothcradle or dongle at first and then you can configure the cradle/dongle.
2.2.1 Cradle Factory Defaults
Scan the barcode below can restore the cradle to factory defaults.
Restore Cradle FactoryDefaults

8
2.2.2 Baud Rate
Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the
Host requirements.
2400
4800
9600
19200
38400
57600
115200 （default）

9
2.2.3 Data Bit & Parity Check & Stop Bit
None Parity /7 Data Bits/1 Stop Bit
None Parity /8 Data Bits/1 Stop Bit (default)
Even Parity /8 Data Bits/1 Stop Bit
None Parity /7 Data Bits/2 Stop Bits
Even Parity /7 Data Bits/2 Stop Bits
Even Parity /7 Data Bits/1 Stop Bit
Odd Parity /7 Data Bits/1 Stop Bit
Odd Parity /8 Data Bits/1 Stop Bit
Odd Parity /7 Data Bits/2 Stop Bits

10
2.2.4 USB Interface
When you connect cradle to the Host via a USB Cable, you can enable the USB HID-KB feature by
scanning the barcode below. Then cradle’s transmission will be simulated as keyboard input. The
Host receives keystrokes on the virtual keyboard. It works on a Plug and Play basis and no driver is
required.
USB-HID（default）
2.2.5 USB COM Port Emulation
When you connect cradle to the Host via a USB connection, the USB COM Port Emulation feature
allows the Host to receive data in the way as a serial port does. A driver is required for this feature,
visit the official website (www.isuperlead.com) to download and install .
USB COM Port Emulation
2.2.6 Synchronous transfer mode
Note: Data transmit when Bluetooth connected, drop when disconnected.

11

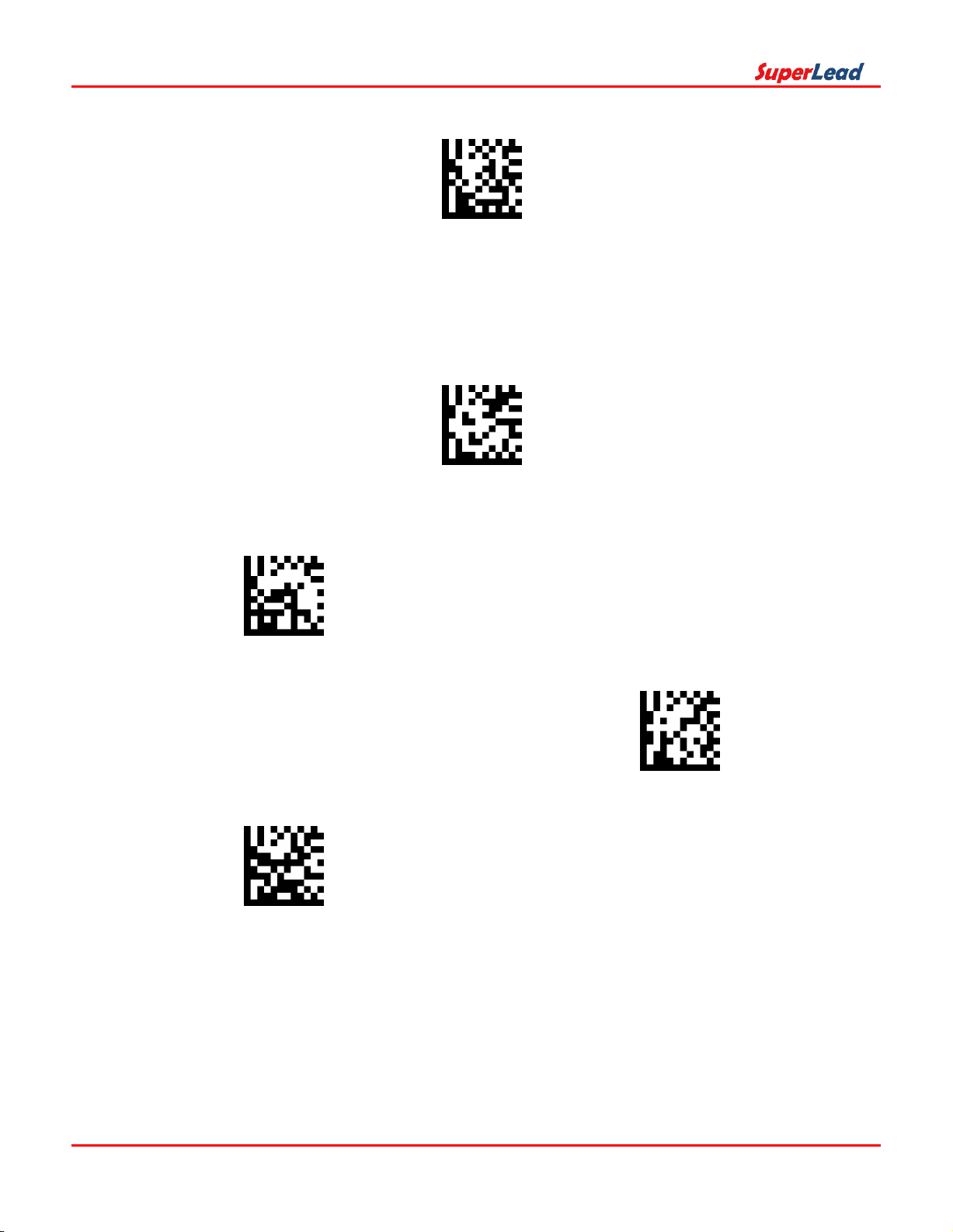

2.2.7 Asynchronous transfer mode
Note: Data is stored when Bluetooth disconnected and will upload automatically when reconnect.
2.2.8 Mass storage mode
Note: Data is always stored.
Upload all stored data
Count total amount of uploaded data
Clear stored data

12
3General Configuration
3.1 Trigger Mode
If the Trigger Mode is enabled, you could activate the scanner by providing an external hardware trigger, or
using a serial trigger command. When in manual trigger mode, the scanner scans until a barcode is read,
or until the hardware trigger is released. When in serial mode, the scanner scans until a barcode has been
read or until the deactivate command has been sent.
Manual Trigger Mode –Normal (Default)
3.2 Presentation Mode
This set the scanner to work in presentation mode.
Presentation Mode –Normal
Presentation Mode –Continue Scan

13
3.3 Inverse color
OFF (Default)
Only Inverse ON
Inverse And Normal Both ON
3.4 Illumination
Manual Trigger Mode Illumination setting for 22XX/24XX/26XX BLE series.
Illumination Level 4 (Default)
Illumination Level 3
Illumination Level 2
Illumination Level 3

14
Illumination on
Illumination off
Presentation Mode Illumination setting for 22XX/24XX/26XX BLE series.
Illumination Level 4 (Default)
Illumination Level 3
Illumination Level 2
Illumination Level 3
3.5 Good Read Beeper
ON (Default)
OFF

15
3.6 Good Read Beeper Volume
Low
Middle
High (Default)
3.7 Vibrate-Good Read
Vibrate-Good Read Off
Vibrate-Good Read On

16
3.8 Goodread Delay
No Delay (Default)
Delay 500 MS
Delay 1000 MS
3.9 Reread Delay
Delay 500 MS (Default)
Delay 750 MS
Delay 1000 MS

17
4Data Formatting
4.1 General Configuration
Add CR
Add LF
Add CRLF
Add TAB

18
4.2 Add Prefix
Set Custom Prefix
Save
Not Save
To set a customer prefix, scan the Set Custom Prefix barcode and the numeric barcodes which
representing the hexadecimal values of a desired prefix, and then scan the Save barcode. Refer to
Appendix 2: ASCII Table for hexadecimal values of characters.
Example: Set the custom Prefix to “ODE”
1. Check the hex values of “ODE” in the ASCII Table. (“ODE”: 4F, 44, 45)
2. Scan the Set Custom Prefix barcode.
3. Scan the numeric barcodes”9”,”9”,“4”,“F”,“4”,“4”,“4”and“5”in Appendix 3 .
4. Scan the Save barcode.

19
4.3 Add Suffix
Set Custom Suffix
Save
Not Save
To set a customer suffix, scan the Set Custom Suffix barcode and the numeric barcodes which
representing the hexadecimal values of a desired suffix, and then scan the Save barcode. Refer to Appendix
2: ASCII Table for hexadecimal values of characters.
Example: Set the custom Suffix to “ODE”
1. Check the hex values of “ODE” in the ASCII Table. (“ODE”: 4F, 44, 45)
2. Scan the Set Custom Suffix barcode.
3. Scan the numeric barcodes”9”,”9”,“4”,“F”,“4”,“4”,“4”and“5”in Appendix 3 .
4. Scan the Save barcode.
4.4 Clear All Prefix and Suffix
Clear All Prefix And Suffix (Default)
