Supermicro PWS-1K03B-1R User manual

Improves stability, redundancy, and ease of maintenance
Patent Pending Hot-swappable Technology
Increases overall data center power efficiency
Frees UPS space to increase server density deployment
Flexible configurations available for current Supermicro systems
More cost-effective than expensive Data Center UPS
Battery Backup Power - Evolutionary Design to Replace UPS!
BBP® Server SolutionsBBP® Server Solutions
www.supermicro.com/BBP January 2013
MKT-0005-1/2013
SYS-6037R-72RFT+
(rear view) PWS-1K03B-1R
1000W / 2.5 minutes
PWS-206B-1R
200W / 5 minutes
SYS-1027R-72BRFTP

Supermicro Battery Backup Power (BBP®) Modules
The Supermicro BBP® modules are designed for high availability and easy maintenance.
They are entirely self-contained, hot-swappable units, charging and delivering power
to the system through an internal connector. In the event of an AC power interruption,
the BBP module reacts in real time to take over and maintain the power load, providing
time for failsafe switchover to an alternative power source or an orderly shutdown.
Incorporating the latest rechargeable Lithium-Ion cell technology, the BBP modules
feature I²C / Smart Battery Monitoring through remote management that promotes
long life and high durability. This Smart Battery Monitoring technology is ideally suited
for environments with AC reliability issues or that requires backup power solutions.
Supermicro servers configured with redundant BBPs provide maximum system protection
for Enterprise and SMB deployments running mission-critical HPC, cloud computing, data
center and storage applications.
Model PWS-206B-1R PWS-1K03B-1R
Total Output Power 200W / 5 minutes 1000W / 2.5 minutes
Input Work w/ PWS-406P / 503P / 606P / 703P-1R Work w/ PWS-1K28P-SQ / PWS-920P-SQ /
PWS-741P-1R / PWS-501P-1R
Form Factor 1U 1U
Dimension (LxWxH) cm 22 x 5.45 x 4 36 x 7.6 x 4
Battery Capacity 40Whr 97Whr
Redundant Yes Yes
I2C Remote Monitoring FRU/Smart battery I2C FRU/Smart battery I2C
+12V 16.7A 83.3A
5VSB 2A 4A
Eciency
Online mode power
consumption less than 2W
Online mode power
consumption less than 2W
Applications
• Data protection
• Flash SSD for SAN storage Performance and Scalability
by reducing I/O bottlenecks and lowering latency
• Non-disruptive operations
• BBP Management System
• Space saving for servers in container environments
Key Benefits
• Increases overall data center power efficiency
• Eliminates UPS while maintaining system power
redundancy
• Flexible configurations available for current Supermicro
systems
• Significantly more cost-effective than traditional UPS
• Available in 200W and 1000W battery pack capacities
• Extend back-up time by easily adding additional
modules
Hot-swappable,
compact, and
easily deployed
BBP®(Battery Backup Power) Server Solutions

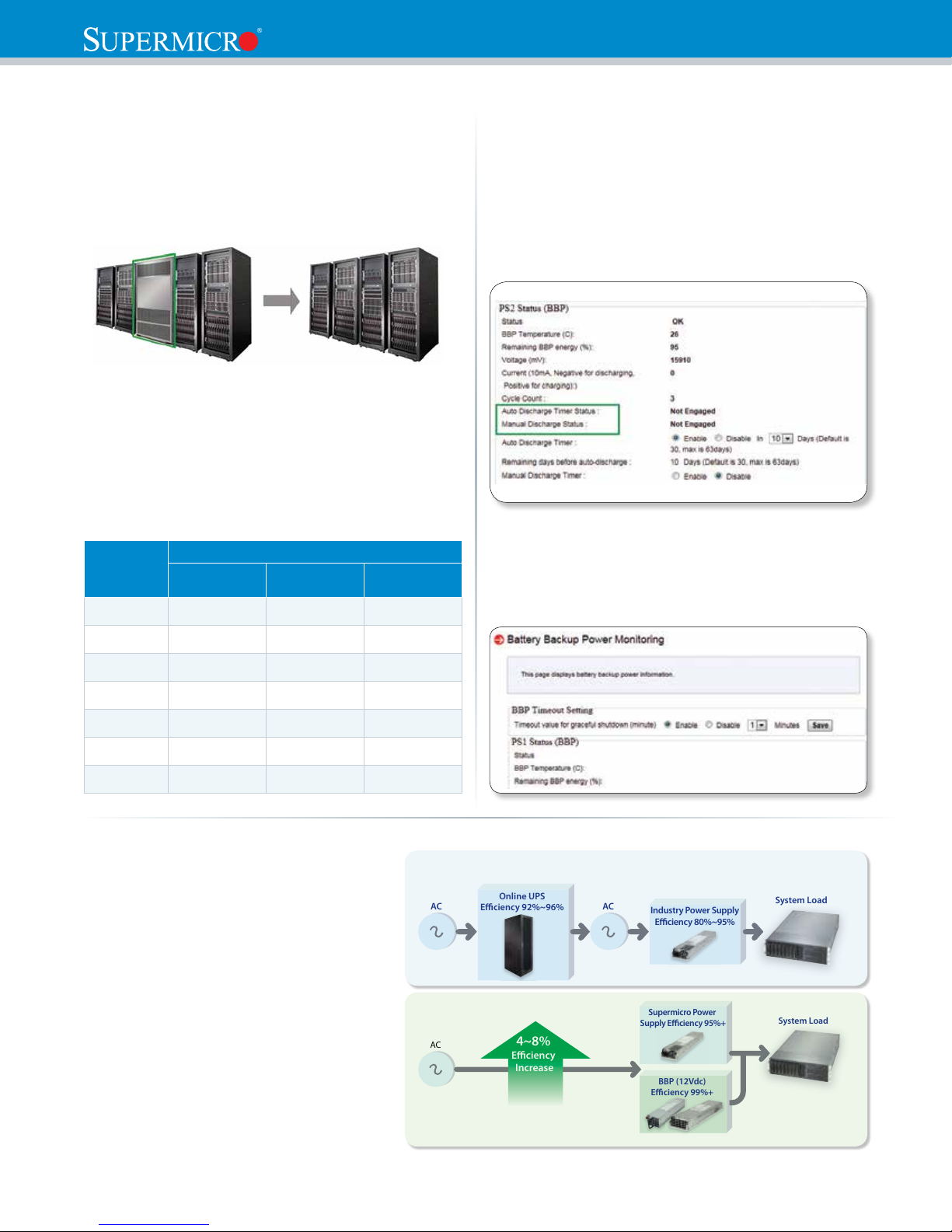

Space Optimization
• Space savings is achieved by using servers with BBP®
modules installed instead of connecting the servers to
bulky external UPS systems.
• Additional savings can be realized by utilizing the space
savings from eliminated or downsized UPS system to
accommodate more rack-mounted servers.
Power Efficiency
Supermicro server solutions that incorporate
BBP® modules offer greater power efficiency
by replacing external 92% - 96% efficient UPS
systems with an inline solution that offers
99% efficiency. In addition, BBPs maintain
system availability, reduce installation space,
facility costs and administrative burden.
Supermicro BBP® can allow systems to shut
down gracefully or provide necessary power
until AC power is resumed by the electric
generator during the event of a power failure,
without installing extra UPS systems.
Management
Advanced System Management
• IPMI Command line interface and web GUI are both
available for remote monitoring and control of the BBP.
• Flexible system control is initiated in the event of a
power failure.
• Manual or Auto Discharge maintenance options are
available.
Flexible System Control and Power Down Options
• Performs graceful shutdown during a power failure
• Allows a specific power on time to facilitate data backup
or to allow the power generator to resume power.
Runtime
Under typical conditions, below is the Estimated Runtime
of the current BBP® modules. Runtime can be extended
by adding additional BBP® modules to a system.
Power
Loading
Estimated Runtime
PWS-206B-1R PWS-206B-1R
x2 PWS-1K03B-1R
100W 15 min. 20 min. 45 min.
200W 5 min. 10 min. 27 min.
250W 2 min. 7 min. 18 min.
350W -- 6 min. 15 min.
400W -- 5 min. 13 min.
500W -- 1.5 min. 10 min.
1000W -- -- 2.5 min.
BBP®(Battery Backup Power) Server Solutions BBP®(Battery Backup Power) Server Solutions
Eliminates UPS
while maintaining system power redundancy
Online UPS
Eciency 92%~96% Industry Power Supply
Eciency 80%~95%
AC AC
y
System Load
System
Load
Using Traditional UPS
BBP (12Vdc)
Eciency 99%+
Supermicro Power
Supply Eciency 95%+
System Load
AC 4~8%
Eciency
Increase
y
Sy
stem
Load
Using BBP Module
✕

BBP®(Battery Backup Power) Server Solutions
MKT-0005-1/2013
We Keep IT Green®
www.supermicro.com/BBP
BBP®Compatible Systems
SYS-1027R-72BRFTP SYS-5017R-MTRF SYS-5017C-MTRF 2U Twin SYS-6037R-72RFT+
• Cloud and other virtualization
needs, hosting & application
delivery, database processing
& storage, simulation,
automation
• Dual Intel® Xeon® processor
E5-2600 series; Socket R (LGA
2011)
• 8 Hot-swap 2.5" SAS/SATA2
HDD Bays (SAS2 via LSI 2208)
• 16 DIMMs support up to 512GB
DDR3 1600MHz reg. ECC
memory
• Riser card support: 2 (x16) and
1 (x8) PCI-E 3.0 slots
• I/O ports: 2 GbE, 2 SFP+ 10GbE,
1 Video, 1 COM/Serial, 5 USB
2.0
• System management: Built-in
Server management tool (IPMI
2.0, KVM/media over LAN) with
dedicated LAN port
• 6x 4cm Counter-rotating PWM
fans
• 700W Redundant Gold Level
Power Supplies
• Come with two BBPs:
PWS-206B-1R
• 1U Mainstream Server
• Single Intel® Xeon® processor
E5-2600 series; Socket R (LGA
2011)
• 4 Hot-swap 3.5" SATA HDD Bays
• 8 DIMMs support up to 256GB
DDR3 1600MHz reg. ECC
memory
• 1 (x16) PCI-E 3.0 slot
• I/O ports: 2 GbE, 1 Video, 1
COM/Serial, 9 USB 2.0
• System management: Built-in
Server management tool (IPMI
2.0, KVM/media over LAN) with
dedicated LAN port
• 4x PWM Cooling fans
• 400W Redundant Gold Level
Power Supplies (5017R-MTRF)
• Support 1 optional BBP: PWS-
206B-1R
(need to remove one PWS in
order to install BBP)
• File server, e-mail server, web
server for small business
• Intel® Xeon® processor E3-1200
& v2 series, Intel® 2nd Gen Core
i3 processor; Socket H2 (LGA
1155)
• Intel® C202 PCH Express
Chipset
• 4 Hot-swap 3.5" SATA2 HDDs
• 1 PCI-E 3.0/2.0 x8 Expansion
Slot
• Up to 32GB DDR3
1333/1600MHz ECC UDIMMs
• Integrated IPMI 2.0 with
Dedicated LAN port
• Intel® 82579LM and 82574L; 2x
Gigabit Ethernet LAN ports
• 6 SATA2 (3 Gbps) with RAID 0,
1, 5, 10
• 9x USB 2.0 ports (2 rear + 6 via
header + 1 Type-A)
• 400W Redundant Gold Level
High-efficiency Power Supplies
• Support 1 optional BBP:
PWS-206B-1R (need to remove
one PWS in order to install BBP)
• SYS-6027TR-D / SYS-2027TR-D
series; each node (x2 nodes):
• Dual Intel® Xeon® processor
E5-2600 family; Socket R (LGA
2011)
• 6x 3.5" or 12x 2.5" Hot-
swapHDD Bays: SATA3 ("T")
• SAS2 via LSI 2108 ("71" SKUs), or
SAS via LSI 2008 ("70" SKUs)
• 16 DIMMs support up to 512GB
DDR3 1600MHz reg. ECC
memory
• 1 (x8) PCI-E 3.0 Micro Low-
profile slot
• IPMI 2.0, KVM/media over LAN
with dedicated LAN port
• 4 heavy duty fans w/ optimal
fan speed control
• 1280W Redundant Platinum
Level Digital Power Supplies
• Support 1 optional BBPs:
PWS-1K03B-1R (need to remove
one PWS in order to install BBP)
• 3U Server for Cloud,
virtualization, and GPU/MIC
applications
• Dual Intel® Xeon® processor
E5-2600 series; Socket R (LGA
2011)
• 8 Hot-swap 3.5" HDD Bays and
2 5.25" Peripheral Drive Bays
• 24 DIMMs support up to 768GB
DDR3 1600MHz reg. ECC
memory
• 2 (x16) PCI-E 3.0 and 4 (x8)
PCI-E 3.0 expansion slots
• 2 GPU/MIC supported, optional
(Fermi/Kepler/Xeon Phi)
• I/O ports: 2 10GBase-T, 1 Video,
1 COM/Serial, 2 USB 2.0
• System management: Built-in
Server management tool (IPMI
2.0, KVM/media over LAN) with
dedicated LAN port
• 3x middle fans and 2 rear
exhaust fans
• 1280W Redundant Platinum
Level Digital Power Supplies
• Support 1 or 2 optional BBPs:
PWS-1K03B-1R
( two PWS by default)
BBP®Supported Chassis
PWS-1K03B-1R (1000W)
BBP Compatibility
PWS-206B-1R (200W)
BBP Compatibility
• 2U Twin with 1K28W
(1 PSU + 1 BBP)
- SC827HD-R1K28B
• SC829B (1 PSU + 1 BBP)
- SC829BTQ-R1K28LPB
• SC826B (1 PSU + 1 BBP)
- SC826BA-R1K28LP/W
- SC826E16-R1K28LP/W
- SC826E26-R1K28LP/W
- SC826BA-R920LP/W/UB
- SC826E16-R920LP/W/UB
- SC826E26-R920LP/W/UB
• SC216B (1 PSU + 1 BBP)
- SC216BA-R1K28LP/WB
- SC216E16-R1K28LP/WB
- SC216E26-R1K28LP/WB
- SC216BA-R920LP/W/UB
- SC216E16-R920LP/W/UB
- SC216E26-R920LP/W/UB
• SC835B (2 PSU + 1 BBP or
1 PSU + 2 BBP))
- SC835BTQ-R1K28B (BBP
optional)
• SC836BH (2 PSU + 1 BBP):
- SC836BHA-R1K28B
- SC836BE16-R1K28B
- SC836BE26-R1K28B
(BBP optional)
• SC836B (1 PSU + 1 BBP):
- SC836BA-R1K28B
- SC836BE16-R1K28B
- SC836BE26-R1K28B
- SC836BA-R920B
- SC836BE16-R920B
- SC836BE26-R920B
• SC846B (1 PSU + 1 BBP):
- SC846BA-R920B
- SC846BE16-R920B
- SC846BE26-R920B
- SC846BA-R1K28B
- SC846BE16-R1K28B
- SC846BE26-R1K28B
• SC745 (1 PSU + 1 BBP):
- SC745BTQ-R1K28B
- SC745BTQ-R1K28B-SQ
• Fat Twin with 1K28W
(1 PSU + 1 BBP)
• SC813MTQ-R400CB
(1 PSU + 1 BBP)
• SC113MTQ-R400CB
(1 PSU + 1 BBP)
• SC842XTQ-R606B
(1 PSU + 1 BBP)
• SC119XTQ-BR700WB
(2 PSU + 2 BBP, BBP included)
Notes: BBP only works with power supplies with PMbus 1.2
Ex. PWS-1K28P-SQ, PWS-741P-1R, PWS-920P-SQ, PWS-501P-1R, PWS-406P-1R, PWS-606P-1R, PWS-503P-1R, PWS-703P-1R BBP only works with newer PDB with SMBAlert signal. The new
PDB are already implemented into the “B” Chassis or X9 servers.
