QUICK REFERENCE GUIDE
Revision 1.00

Standardized Warning Statements
Motherboards
About Standardized Warning Statements
The following statements are industry standard warnings, provided to warn the user of situations where bodily injury
might occur. Should you have questions or experience di󰀩culty, contact Supermicro's Technical Support Department
for assistance. Only certied technicians should attempt to install or congure components.
Read this section in its entirety before installing or conguring components in the Supermicro chassis.
Battery Handling
Warning!
There is a danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or an equiva-
lent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
警告
電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有電池。請按照製造商的說明指示處理
廢棄舊電池。
警告
电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更换原有电池。请按制造商的说明处理
废旧电池。
電池の取り扱い
電池交換が正しく行われなかった場合、破裂の危険性があります。 交換する電池はメーカーが推奨する型、または同等のもの
を使用下さい。 使用済電池は製造元の指示に従って処分して下さい。
경고!
배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제조사에서 권장하는 동등한
종류의 배터리로만 교체해야 합니다. 제조사의 안내에 따라 사용된 배터리를 처리하여 주십시오.




Note: For complete product safety information, refer to https://www.supermicro.com/about/policies/safety_information.cfm.
WARNING: This product can expose you to chemicals including
lead, known to the State of California to cause cancer and birth
defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
!
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE Product Safety Information

H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE 限用物質含有情況標示聲明書
限
限
用
用
物
物
質
質
含
含
有
有
情
情
況
況
標
標
示
示
聲
聲
明
明
書
書
設備名稱：主機板 /
Motherboard
型號（型式）：H13SRA-F, H13SRA-TF
單元Ｕnit
限用物質及其化學符號
鉛Lead
(Pb) 汞Mercury (Hg) 鎘Cadmium (Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
電路板組件
(PCBA) －○○○○○
連接器
(Connector)
－○○○○○
備考1.〝超出0.1 wt %〞及〝超出0.01 wt %〞係指限用物質之百分比含量超出百分比含量基準
值。
備考2.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考3.〝－〞係指該項限用物質為排除項目。
Equipment name
Type designation (Type)
Restricted substances and its chemical symbols
Declaration of the Presence Condition of the Restricted Substances Marking
Note 1
：
“Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the
reference percentage value of presence condition.
Note 2
：
“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 3
：
The “−” indicates that the restricted substance corresponds to the exemption.

AMI BIOS POST Codes
About AMI BIOS POST Codes
The table below lists some of AMI BIOS POST codes for this motherboard. For more information, refer to https://www.
supermicro.com/manuals/other/AMI_AptioV_BIOS_POST_Codes_for_SM_Motherboards.pdf.
Code Description
0x32 CPU post-memory initialization is started
0x55 No Memory detected or memory failed
0x63 CPU DXE initialization is started
0x69 North Bridge DXE initialization is started
0x70 South Bridge DXE initialization is started
0x92 PCI Bus initialization is started
0x99 Super IO Initialization
0x9A USB initialization is started
0xA0 IDE initialization is started
0xA9 Boot into BIOS setup menu
0xB4 USB hot plug
0xD6 No console output devices are found
0xD7 No console input devices are found
0xF2 Recovery process started
0xF9 Recovery capsule is not found
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE BIOS POST Codes

M.2 Device Installation
M.2 Device Installation
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE
Note : It is strongly recommended that you install a heatsink on the M.2 device or use a M.2 device
with a built-in heatsink.
This motherboard has two M.2 M-key sockets that support the 2280 and 22110 M.2 devices.
One stando󰀨 and a screw are pre-installed into the position of each 22110 mounting hole.

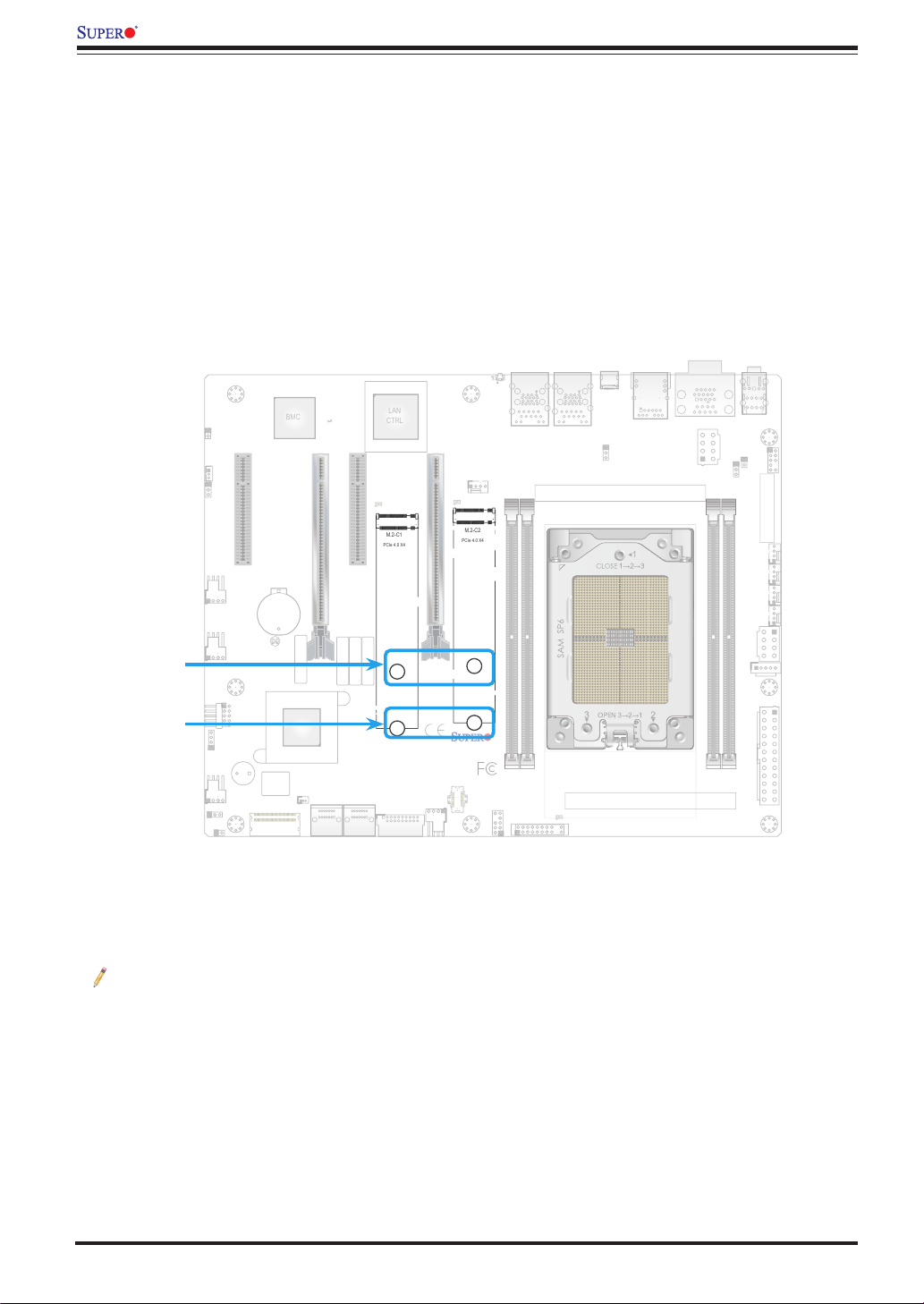

Refer to the illustration below for the locations of M.2 sockets and mounting holes. Follow the
steps on the next two pages to install the M.2 device.
BMC
LAN
CTRL
DESIGNED IN USA
H13SRA-TF
REV:1.01
PCIe 4.0 X4
M.2-C2
M.2-C1
PCIe 4.0 X4
22110
2280

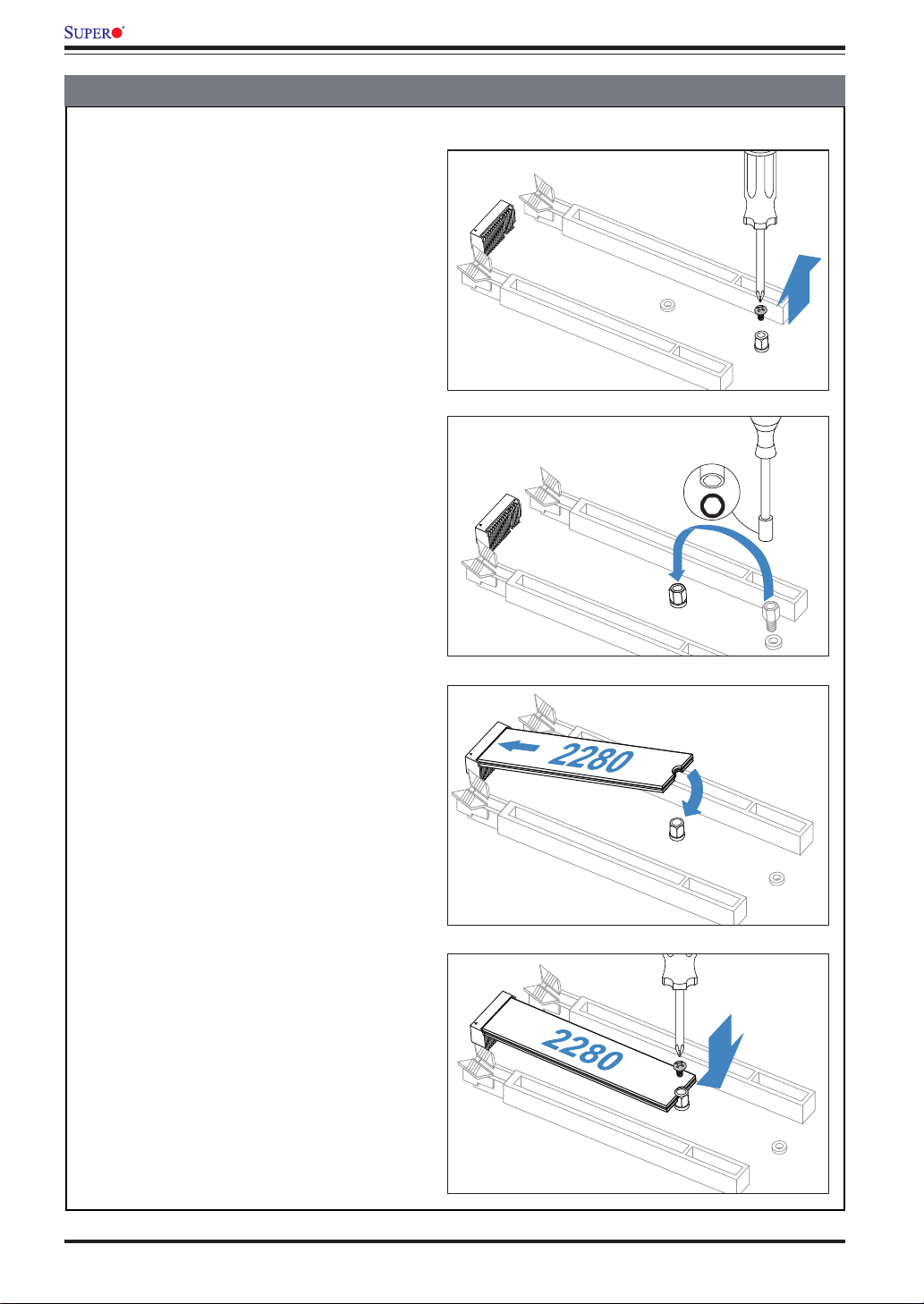

2280 M.2 Device Installation
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE 2280 M.2 Device Installation
1. Locate the pre-installed stando󰀨 and
screw. Remove the screw and set it
aside.
2. Using a hex socket screwdriver, remove
and then reinstall the stando󰀨 to the posi-
tion of the 2280 mounting hole.
3. Insert the M.2 device into the M.2 socket
at a 30-degree angle and press it down.
4. Tighten the screw to secure the M.2 device
into place. Do not overtighten so as to
avoid damaging the M.2 device.

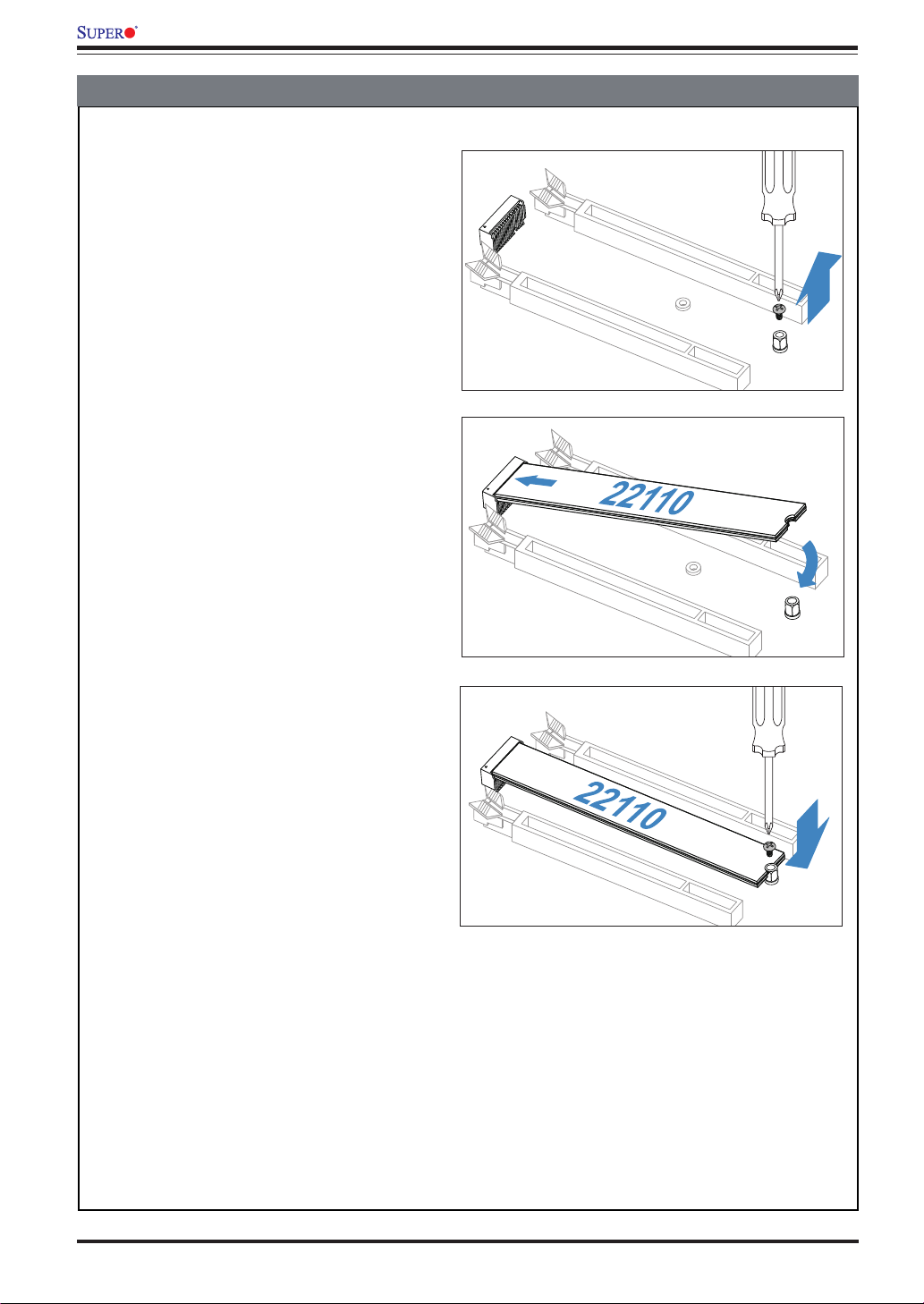

22110 M.2 Device Installation
H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE 22110 M.2 Device Installation
1. Locate the pre-installed screw. Remove
the screw and set it aside.
2. Insert the M.2 device into the M.2 socket
at a 30-degree angle and press it down.
3. Tighten the screw to secure the M.2 device
into place. Do not overtighten so as to
avoid damaging the M.2 device.

H13SRA-TF/H13SRA-F QUICK REFERENCE GUIDE GPU Cards and the Required Connectors
GPU Cards and the Required Connectors
Important: To provide adequate power supply to the motherboard, be sure to connect the 24-pin ATX
power connector and the required 8-pin power connectors to the power supply. Failure to do so may void
the manufacturer warranty on your power supply and motherboard.
When installing GPU card(s), it is strongly recommended that you connect the power supplies to the 24-
pin ATX power connector and the 8-pin power connectors as shown in the table below.
GPU Cards and the Required Connectors
Type of GPU Number of GPU Cards JPW1 JPW2 JPW3
Single-Width GPU x1 V V V
GPU x2 V V V
Double-Width GPU x1 V V V
GPU x2 V V V
Triple-Width GPU x1 V V V
GPU x2 V V V
Note 1: When using heavy loading devices, it is strongly recommended that you connect the power
supplies to the 24-pin ATX power connector and all the 8-pin power connectors.
Note 2: To use the CPU/memory overclocking feature, be sure to connect the power supplies to the 24-
pin ATX power connector and all the 8-pin power connectors.
Note 3: To avoid possible system overheating, be sure to provide adequate airow to your system.

H13SRA-TF/H13SRA-F
Quick RefeRence Guide Rev. 1.00
SUPERMICR R

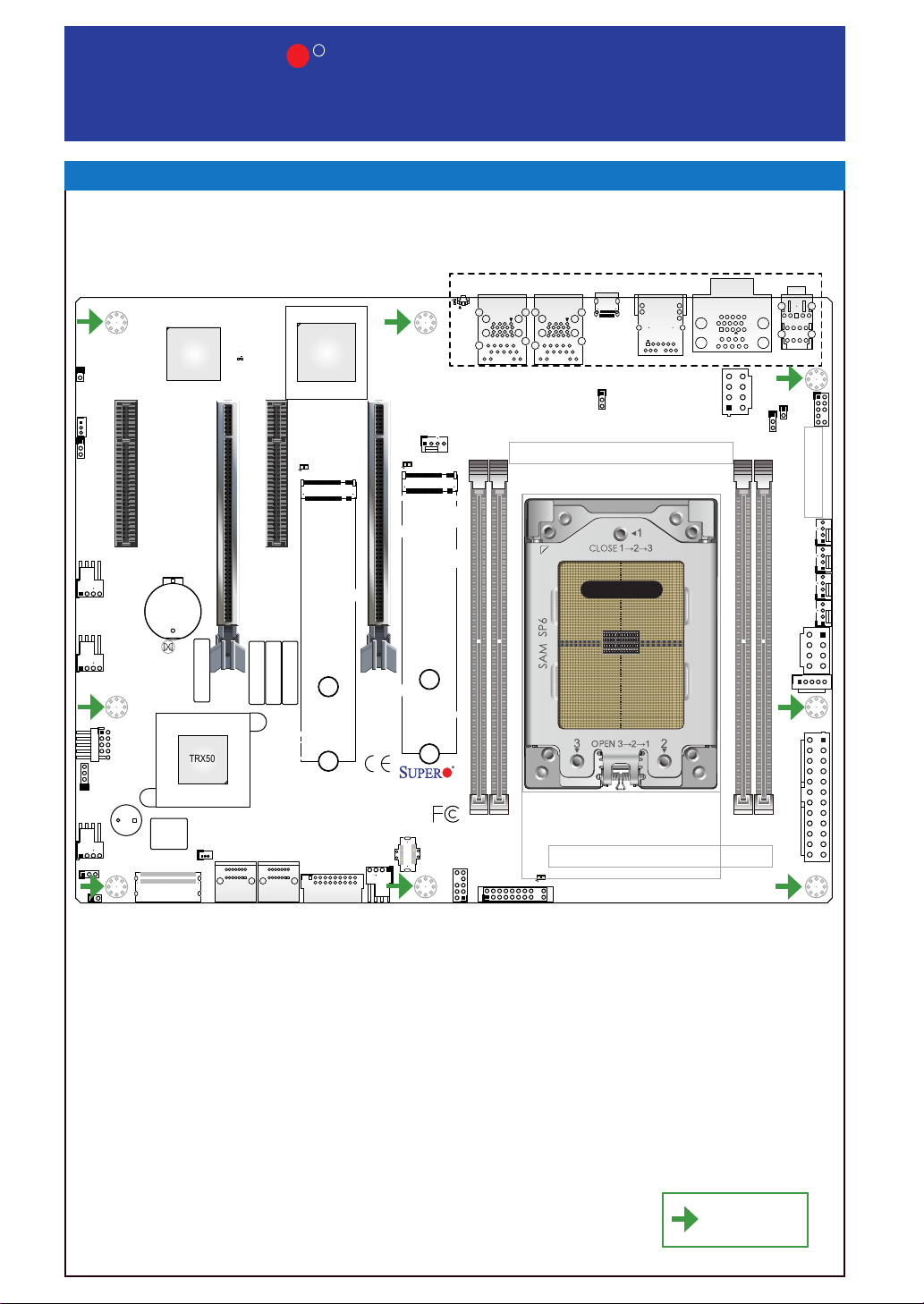

Motherboard Layout and Features
=mounting hole
BACK PANEL I/O
BMC LAN
CTRL
TRX50
BIOS
LICENSE
BMC CODE
MAC CODE
BAR CODE BAR CODE
DESIGNED IN USA
H13SRA-TF
REV:1.01
+
+
LAN2
BMC_LAN
VGA
COM1
SATA3
SATA2
JMCIO-1/2
PCIe 4.0 X4
M.2-C2
2280
CPU SLOT6 PCIe 5.0 X16
CPU SLOT4 PCIe 5.0 X8
CPU SLOT3 PCIe 5.0 X16
JAFP1
JPI2C1
JPUSB1
JUIDB1
(UID)
JL1
JPL1
JD1
JBT1
BT1
FAN3
FAN2
FAN1
FAN4
FANC
FANB
12V_PUMP_PWR2
LED3601
(M.2-C1 LED)
LEDBMC
LED1
(UID-LED)
JPW3
LED7 (Power LED)
2280
22110
JPAC1
JSPDIF_OUT
JAUDIO1
USB9
(3.2 GEN2X2)
LAN1
JSD1
JTPM1
JOH1
JWD1
SATA1
SATA0
USB2/3
(3.2 GEN1)
M.2-C1
PCIe 4.0 X4
JPW2
FANA
JSTBY1
JF1
22110
12V_PUMP_PWR1
USB0/1
(2.0)
CPU SLOT1 PCIe 5.0 X8
JPW1
CPU
DIMME1
DIMMG1
DIMMC1 DIMMA1
SP1
USB8
(3.2 GEN2)
USB4/5
(3.2 GEN2)
USB6/7
(3.2 GEN2)
LED3602
(M.2-C2 LED)
LGA-4844

Package contents
• One Supermicro Motherboard
• Four SATA Cables
• One I/O Shield
• One Quick Reference Guide
Connector Description
12V_PUMP_PWR1 12 V 4-pin Power Connector (for CPU liquid cooling pump)
12V_PUMP_PWR2 12 V 4-pin Power Connector (for GPU liquid cooling pump)
BMC_LAN Dedicated BMC LAN Port (RJ45)
BT1 Onboard Battery
COM1 Back Panel COM Port
CPU SLOT1/4 PCIe 5.0 x8 Slots
CPU SLOT3/6 PCIe 5.0 x16 Slots
FAN1 – FAN4 CPU Fan Headers
FANA, FANB, FANC System Fan Headers
JAFP1 Front Panel Audio Header
JAUDIO1 Back Panel High Denition Audio Ports
JD1 Speaker/Buzzer Header
JF1 Front Control Panel Header
JL1 Chassis Intrusion Header
JMCIO PCIe 4.0 x8 MCIO Connector with support of two NVMe 2.5" SSDs (NOT hot-swappable, supported by
TRX50)
JOH1 Overheat LED Header
JPI2C1 Power Supply SMBus I2C Header
JPW1 24-pin ATX Main Power Connector (Required)
JPW2, JPW3 12 V 8-pin CPU Power Connectors (Required)
JSD1 SATA Disk-On-Module (DOM) Power Connector
JSPDIF_OUT Sony/Philips Digital Interface (S/PDIF) Out Header
JSTBY1 Standby Power Header (5 V)
JTPM1 Trusted Platform Module (TPM)/Port 80 Header
JUIDB1 Unit Identier (UID) Switch / BMC Reset Button
LAN1, LAN2 RJ45 1 GbE LAN Ports (H13SRA-F only); RJ45 10 GbE LAN Ports (H13SRA-TF only)
M.2-C1, M.2-C2 PCIe 4.0 x4 M.2 M-key Slots (Support 22110/2280 form factors and RAID 0/1)
SATA0 – SATA3 SATA 3.0 Ports (6 Gb/second, support RAID 0/1/5/10)
SP1 Internal Speaker/Buzzer
USB0/1 Front Access USB 2.0 Header
USB2/3 Front Access USB 3.2 Gen. 1 Header (5 Gb, Type-A)
USB4, USB5, USB6, USB7 Back Panel USB 3.2 Gen. 2 Ports (10 Gb, Type-A)
USB8 Front Access USB 3.2 Gen. 2 Header (10 Gb, Type-C)
USB9 Back Panel USB 3.2 Gen. 2x2 Port (20 Gb, Type-C)
VGA VGA Port supported by BMC
Jumpers and Connectors
Jumpers
Jumper Description Default Setting
JBT1 Clear CMOS (Onboard) Short Pads to Clear CMOS
JPAC1 HD Audio Enable/Disable Pins 1-2 (Normal)
JPL1 LAN1/LAN2 Enable/Disable Pins 1-2 (Enabled)
JPUSB1 USB4/5 Wake Up Pins 1-2 (Enabled)
JWD1 Watchdog Function Enable Pins 1-2 (Reset)
Connectors

ContaCt InformatIon
• www.supermicro.com (Email: [email protected])
• Manuals: https://www.supermicro.com/support/manuals
• Drivers & Utilities: https://www.supermicro.com/wdl/driver/
• Safety: https://www.supermicro.com/about/policies/safety_information.cfm

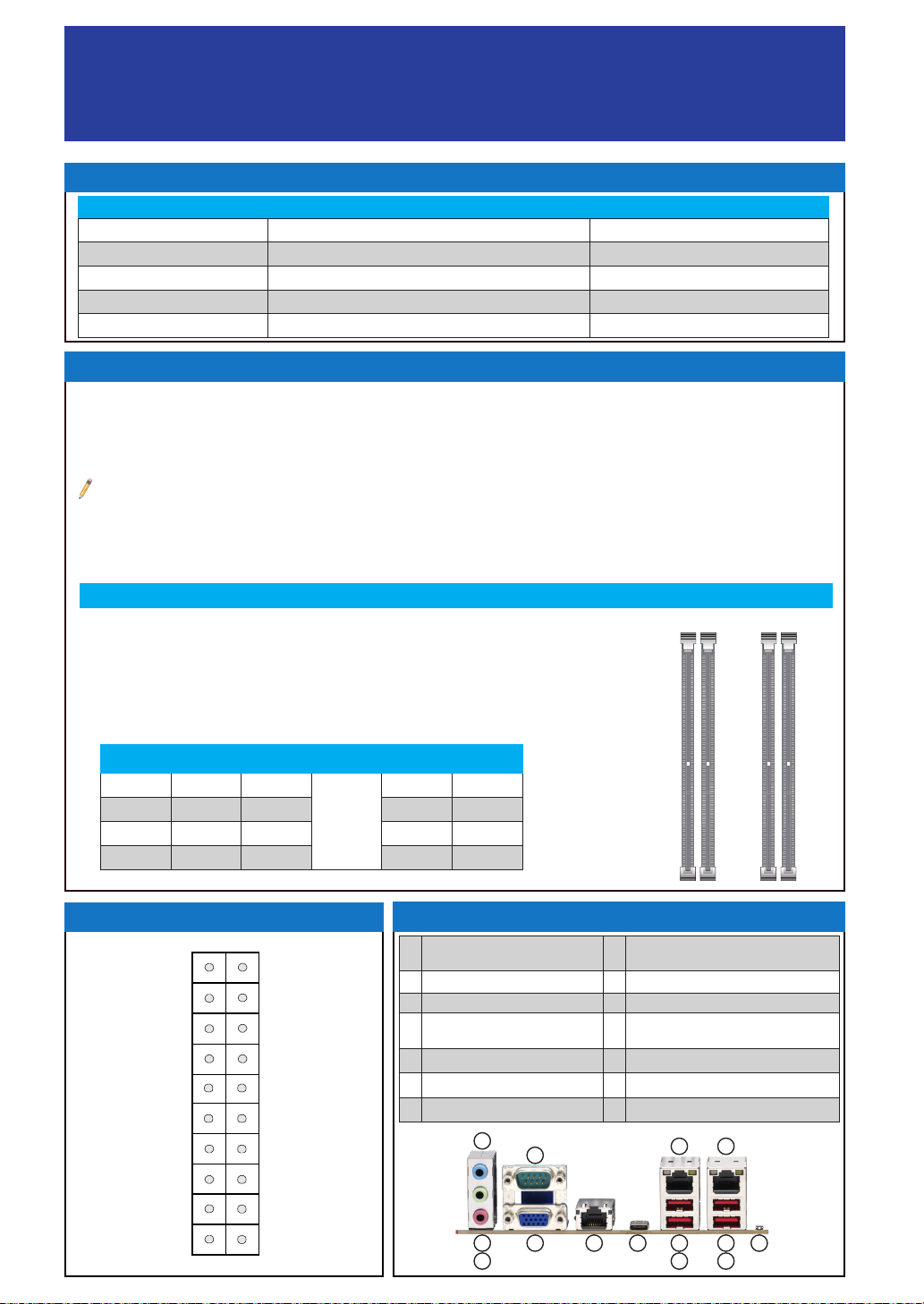

LED Indicators
LED Description Color/State
LED1 Unit Identier (UID) LED Blue On: Unit Identied
LED3601, LED3602 M.2 LEDs for M.2-C1 and M.2-C2 Blinking Green: Device Working
LED7 Onboard Power LED Solid Green: Power On
LEDBMC BMC Heartbeat LED Blinking Green: BMC Normal
LED Indicators
Back Panel I/O Connectors
1 Line In (Default) 8 LAN1: RJ45 LAN Port
(1 GbE for H13SRA-F, 10 GbE for H13SRA-TF)
2 Line Out (Default) 9 USB4: USB 3.2 Gen. 2 Port
3 Mic In (Default) 10 USB5: USB 3.2 Gen. 2 Port
4 COM1 Port 11 LAN2: RJ45 LAN Port
(1 GbE for H13SRA-F, 10 GbE for H13SRA-TF)
5 VGA Port 12 USB6: USB 3.2 Gen. 2 Port
6 Dedicated BMC LAN Port 13 USB7: USB 3.2 Gen. 2 Port
7 USB9: USB 3.2 Gen. 2x2 Port 14 UID Switch / BMC Reset Button
The H13SRA-TF/H13SRA-F motherboard supports an AMD Ryzen™ Threadripper™ PRO 7000 WX-Series and Ryzen Threadripper 7000
Series processor with a TDP of up to 350 W in an sTR5 socket. The memory support is up to 4 TB ECC RDIMM/3DS RDIMM memory with
speeds of up to 5200 MT/s (1DPC) or higher with overclocking support in four ECC DDR5 (288-pin) DIMM slots.
Populating these DIMM slots with a pair of memory modules of the same type and size will result in interleaved memory, which will improve
memory performance.
Notes: 1) For memory optimization, use only DIMM modules that have been validated by Supermicro. For the latest memory updates,
please refer to our website at https://www.supermicro.com/products/motherboard.
2) Always connect the power cord last, and always remove it before adding, removing, or changing any hardware components.
3) Memory addressing up to 1 TB/channel is subject to AMD Infrastructure Roadmap for sTR5 socket processors.
DIMM Memory Installation
Memory Population Guidelines
• It is recommended to use DDR5 DIMM modules of the same size, type, and speed to improve
memory performance.
• Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the slowest DIMM.
• The DDR5 DIMM module is NOT hot-swappable and be sure to disconnect power for a minimum
of 20 seconds before inserting or removing it.
• Removing a DDR5 DIMM module at a slant angle will cause module damages. It is strongly recom-
mended that you lift the module straight up out of the slot.
DIMME1 (Gray Slot) DIMMG1 (Gray Slot)
DIMMC1 (Gray Slot)
DIMMA1 (Gray Slot)
CPU
Front Control Panel (JF1)
Recommended Memory Population Guide (1DPC)
DIMMG1 DIMME1
CPU
DIMMA1 DIMMC1
1 DIMM DDR5
2 DIMMs DDR5 DDR5
4 DIMMs DDR5 DDR5 DDR5 DDR5
2
3
5 6 7 9
10
12
13
14
1
4811
Power Button
Reset Button
HDD LED
FP PWR LED
ID_UID/3.3V Stby
Ground
19
Ground
20
1 2
Ground
Power Fail LED
NIC2 Active LED
NMI
3.3V
OH/Fan Fail/PWR Fail LED
3.3V
UID LED
P3V3_STBY
NIC1 Active LED
Key Key
P3V3_STBY
CPU and Memory Support

MNL-2640-QRG-100
© 2023 Supermicro Computer Inc. All rights reserved. Reproduction of this document whether in part or in whole is strictly prohibited without Supermicro's written consent. All Trademarks are property of their respective entities. All information provided is deemed accurate at the time of printing; however, it is not guaranteed.
Notes
• Graphics shown in this quick reference guide are for illustration only. Your components may or
may not look exactly the same as drawings shown in this document.
• Refer to Chapter 2 of the User's Manual for detailed information on jumpers, connectors, LED
indicators, memory support and CPU/motherboard installation instructions.

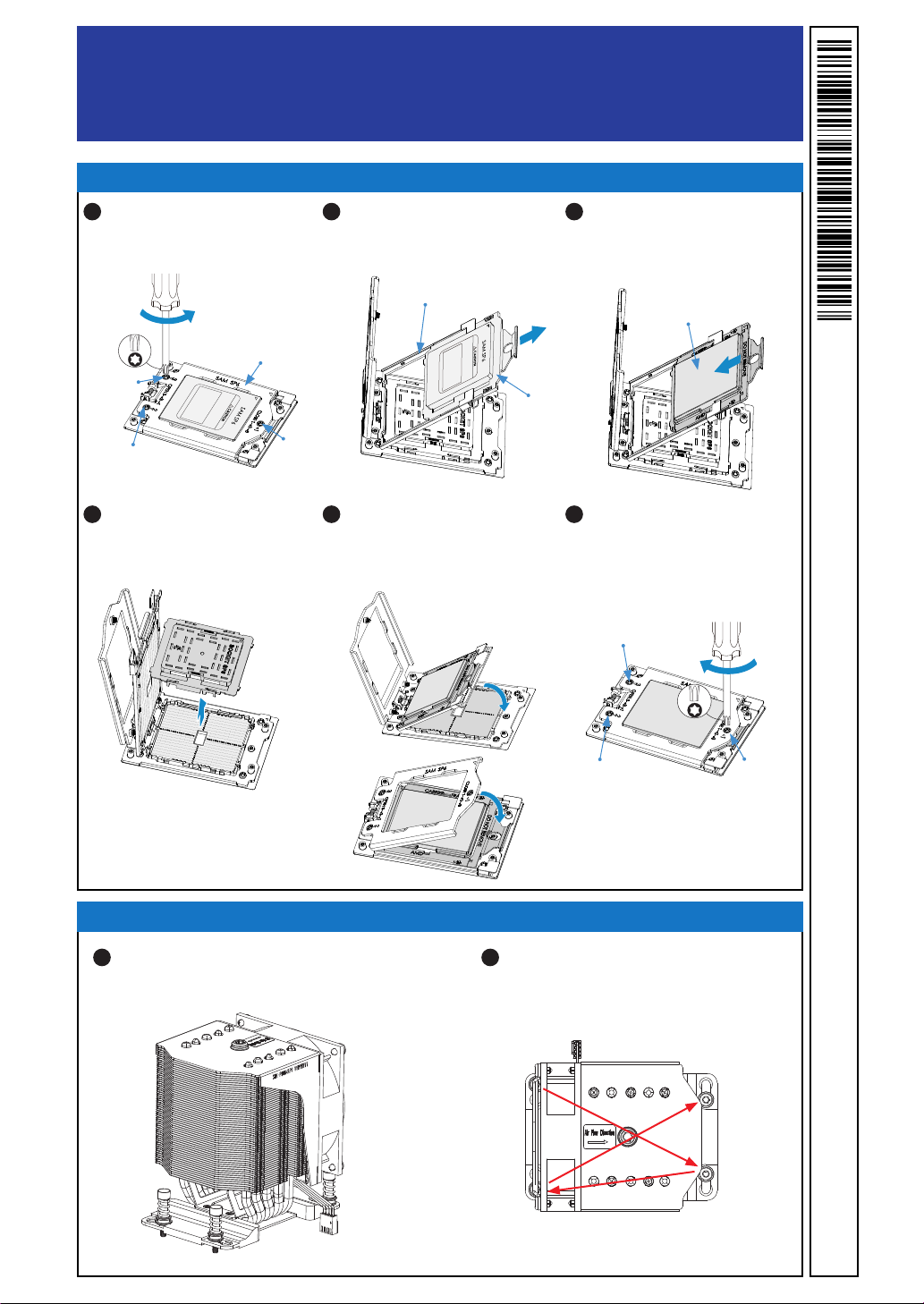

CPU Installation
1With a T20 Torx-bit screwdriver,
unscrew the screws holding down thge
Force Frame in the sequence of 3-2-1.
4Remove the PnP Cover Cap from the
socket.
2Remove the External Cap from the
Rail Frame by pulling it out of the rail
guides on the Rail Frame.
5Gently lower the Rail Frame down onto
the socket until it clicks into place.Then
gently lower the Force Frame down onto
the Rail Frame and hold it in place until
it is seated in the socket housing.
3The processor is shipped from the
factory with the Carrier Frame pre-
assembled. Slide the Carrier Frame/
Processor Assembly downwards to the
bottom of the Rail Frame.
6Re-screw the screws in the sequence
of 1-2-3. When nished, the socket
Force Frame will secure the processor.
Screw #3
Screw #2 Screw #1
Force Frame
Rail Frame
External Cap
Carrier Frame/Processor Assembly
Screw #3
Screw #3
Screw #2
Screw #2
Screw #4
Screw #1
Screw #1
Heatsink Installation
1Lower the heatsink down till it rests securely over
the four screw holes on the socket frame of the
CPU Package.
2As illustrated, tighten the four screws down on the
heatsink in a diagonal pattern till it is secured.

SUPERMICR R
美超微電腦股份有限公司
H13SRA-TF/H13SRA-F 快速參考指南版本 1.00
主機板元件配置圖
=裝機孔
背板 I/O
BMC LAN
CTRL
TRX50
BIOS
LICENSE
BMC CODE
MAC CODE
BAR CODE BAR CODE
DESIGNED IN USA
H13SRA-TF
REV:1.01
+
+
LAN2
BMC_LAN
VGA
COM1
SATA3
SATA2
JMCIO-1/2
PCIe 4.0 X4
M.2-C2
2280
CPU SLOT6 PCIe 5.0 X16
CPU SLOT4 PCIe 5.0 X8
CPU SLOT3 PCIe 5.0 X16
JAFP1
JPI2C1
JPUSB1
JUIDB1
(UID)
JL1
JPL1
JD1
JBT1
BT1
FAN3
FAN2
FAN1
FAN4
FANC
FANB
12V_PUMP_PWR2
LED3601
(M.2-C1 LED)
LEDBMC
LED1
(UID-LED)
JPW3
LED7 (Power LED)
2280
22110
JPAC1
JSPDIF_OUT
JAUDIO1
USB9
(3.2 GEN2X2)
LAN1
JSD1
JTPM1
JOH1
JWD1
SATA1
SATA0
USB2/3
(3.2 GEN1)
M.2-C1
PCIe 4.0 X4
JPW2
FANA
JSTBY1
JF1
22110
12V_PUMP_PWR1
USB0/1
(2.0)
CPU SLOT1 PCIe 5.0 X8
JPW1
CPU
DIMME1
DIMMG1
DIMMC1 DIMMA1
SP1
USB8
(3.2 GEN2)
USB4/5
(3.2 GEN2)
USB6/7
(3.2 GEN2)
LED3602
(M.2-C2 LED)
LGA-4844

單一主機板包裝盒內容清單
• Supermicro 主機板 x1
• SATA 訊號線 x4
• 後擋板 x1
• 快速參考指南 x1
連接埠 說明
12V_PUMP_PWR1 12 V 4針腳 CPU 水冷幫浦電源插座
12V_PUMP_PWR2 12 V 4針腳 GPU 水冷幫浦電源插座
BMC_LAN BMC 專用網路連接埠 (RJ45)
BT1 內建電池
COM1 (背板) COM 序列連接埠
CPU SLOT1/4 PCIe 5.0 x8 插槽
CPU SLOT3/6 PCIe 5.0 x16 插槽
FAN1 – FAN4 中央處理器 (CPU) 風扇接頭
FANA、FANB、FANC 系統風扇接頭
JAFP1 前面板音效接頭
JAUDIO1 (背板) 高清晰音效插孔
JD1 喇叭/蜂鳴器接頭
JF1 前控制面板接頭
JL1 機殼防盜裝置接頭
JMCIO PCIe 4.0 x8 MCIO 連接埠 (由TRX50 支援; 可接2顆 NVMe 2.5" 固態硬碟; 不支援熱插拔)
JOH1 過熱顯示指示燈接頭
JPI2C1 電源供應 SMBus I2C 接頭
JPW1 24 針腳 ATX 主電源連接埠 (必備)
JPW2、JPW3 +12 V 8 針腳 CPU 電源連接埠 (必備)
JSD1 SATA Disk-On-Module (DOM) 磁碟模組電源連接埠
JSPDIF_OUT S/PDIF (索尼/飛利浦數位傳輸介面) 輸出接頭
JSTBY1 5 V 待機電源接頭
JTPM1 TPM 信任平台模組 /Port 80 接頭
JUIDB1 單位識別按鈕 / BMC 重設按鈕
LAN1、LAN2 RJ45 1 GbE 網路連接埠 (僅限 H13SRA-F)
RJ45 10 GbE 網路連接埠 (僅限 H13SRA-TF)
M.2-C1、M.2-C2 PCIe 4.0 x4 M.2 M-key 裝置連接埠 (支援 2280/22110 尺寸 M.2 模組規格、RAID 0/1)
SATA0 – SATA3 SATA 3.0 連接埠 (6 Gb/秒) (支援 RAID 0/1/5/10)
SP1 內建喇叭/蜂鳴器
USB0/1 前面板 USB 2.0 規格接頭
USB2/3 前面板 USB 3.2 Gen. 1 規格接頭 (5 Gb, Type-A)
USB4、USB5、USB6、USB7 (背板) USB 3.2 Gen. 2 規格連接埠 (10 Gb, Type-A)
USB8 前面板 USB 3.2 Gen. 2 規格接頭 (10 Gb, Type-C)
USB9 (背板) USB 3.2 Gen. 2x2 規格連接埠 (20 Gb, Type-C)
VGA VGA 連接埠 (由BMC 支援)
跳線器/連接埠
跳線器 (Jumper)
跳線器 說明 預設值
JBT1 (板上) CMOS 組態資料清除 設為短路清除 CMOS 資料
JPAC1 啟用/停用音源 針腳 1-2 (正常)
JPL1 啟用/停用 LAN1/LAN2 針腳 1-2 (啟用)
JPUSB1 USB4/5 喚醒 針腳 1-2 (啟用)
JWD1 啟用系統監控 (Watchdog) 功能 針腳 1-2 (重設)
連接埠 (Connector)

線上技術支援及下載
• 聯絡我們 ( 技術支援信箱 ) ： www.supermicro.com (Email: [email protected])
• 產品手冊文件： https://www.supermicro.com/support/manuals
• 驅動程式及工具程式： https://www.supermicro.com/wdl/driver/
• 產品安全性須知： https://www.supermicro.com/about/policies/safety_information.cfm
1音效輸入 (預設值) 8LAN1: RJ45 LAN 網路連接埠 (H13SRA-F 為
1 GbE 規格, H13SRA-TF 為 10 GbE 規格)
2音效輸出 (預設值) 9USB4: USB 3.2 Gen. 2 規格連接埠
3麥克風插孔 (預設值) 10 USB5: USB 3.2 Gen. 2 規格連接埠
4COM 連接埠 (COM1) 11 LAN2: RJ45 網路連接埠 (H13SRA-F 為
1 GbE 規格, H13SRA-TF 為 10 GbE 規格)
5VGA 連接埠 12 USB6: USB 3.2 Gen. 2 規格連接埠
6BMC 專用網路連接埠 13 USB7: USB 3.2 Gen. 2 規格連接埠
7 USB9: USB 3.2 Gen. 2x2 規格連接埠 14 單位識別按紐 / BMC 重啟按紐
19 20
1 2
3.3V
3.3V
Key Key
單位識別指示燈
網卡1 指示燈
硬碟指示燈
FP 電源指示燈
單位識別按紐/
3.3V 待機電源
P3V3 待機電源
接地
接地
P3V3 待機電源
接地
電源故障指示燈
網卡2 指示燈
非可遮蔽中斷
過熱/風扇故障/
電源故障指示燈
電源鍵
重設鍵
背板輸出/輸入連接埠
主機板 H13SRA-TF/H13SRA-F 支援單顆 AMD Ryzen™ Threadripper™ PRO 7000 WX-系列及 Ryzen Threadripper 7000 系列處理器，
採用 sTR5 插槽，TDP 功耗最高為 350 W。本主機板支援四根 288 支針腳 ECC DDR5 記憶體插槽，記憶體最高可支援 4 TB
ECC RDIMM/3DS RDIMM，傳輸速度最高可達 5200 MT/s (1DPC)，或者在記憶體超頻支援下達到更高速度。
欲取得雙通道效能，請安裝成對相同型號與速度的記憶體。
註：1) 請安裝使用本公司所認可的記憶體模組以達記憶體模組最佳化。更多的記憶體模組相關訊息，請參閱本公司
網頁 https://www.supermicro.com/products/motherboard。
2) 增加、移除和更換任何硬體元件前，請務必先拔掉電源線。待確實完成所有程序後，再重新連接電源線。
3) 每通道高達 1 TB 的記憶體定址取決於 AMD sTR5 插槽處理器的基礎架構規劃。.
4) ECC 是Error Correction Code 的縮寫，中譯為「錯誤修正碼」；DDR 為「雙倍速動態隨機存取記憶體」。
記憶體模組 (DIMM) 安裝
請依以下說明安裝記憶體模組：
• 請使用相同型號與速度的記憶體 (DDR5)。
• 若混合使用不同速度的記憶體，系統將依較低的記憶體速度執行。
• DDR5 記憶體模組不可熱插拔，在安裝或取出前請務必斷開電源至少 20 秒。
• 傾斜拆卸會導致 DDR5 記憶體模組損壞。請以垂直向上方式將記憶體模組從插
槽中取出。
DIMME1 (灰色插槽) DIMMG1 (灰色插槽) DIMMC1 (灰色插槽) DIMMA1 (灰色插槽)
CPU
前控制面板配置 (JF1)
記憶體建議安裝方式 (1DPC)
DIMMG1 DIMME1
CPU
DIMMA1 DIMMC1
1 DIMM DDR5
2 DIMM DDR5 DDR5
4 DIMM DDR5 DDR5 DDR5 DDR5
2
3
5 6 7 9
10
12
13
14
1
4811
中央處理器和記憶體支援
LED 指示燈
LED 說明 燈號顏色及狀態
LED1 單位識別指示燈 藍燈恆亮：識別中
LED3601、LED3602 分別代表 M.2-C1/M.2-C2 的M.2 裝置指示燈 綠燈閃爍：M.2 裝置使用中
LED7 內建電源指示燈 綠燈恆亮：開啟
LEDBMC BMC 運作指示燈綠燈閃爍：BMC 正常運作
LED 指示燈

備註
• 快速參考指南中圖例僅供安裝及操作說明使用，可能與實際產品外觀不同。
• 欲知更多跳線器/連接埠/指示燈/記憶體/主機板/中央處理器安裝相關資訊，請參閱
《Supermicro H13SrA-TF/H13SrA-F 使用手冊》第二章。
© 2023 美超微股份有限公司（以下簡稱「本公司」）版權所有。未經本公司書面同意，嚴禁重製本文件部分或全部內容。所有商標均為所屬公司所有， 所有提供資訊於印刷之際視為但不保證正確。 MNL-2640-QRG-100

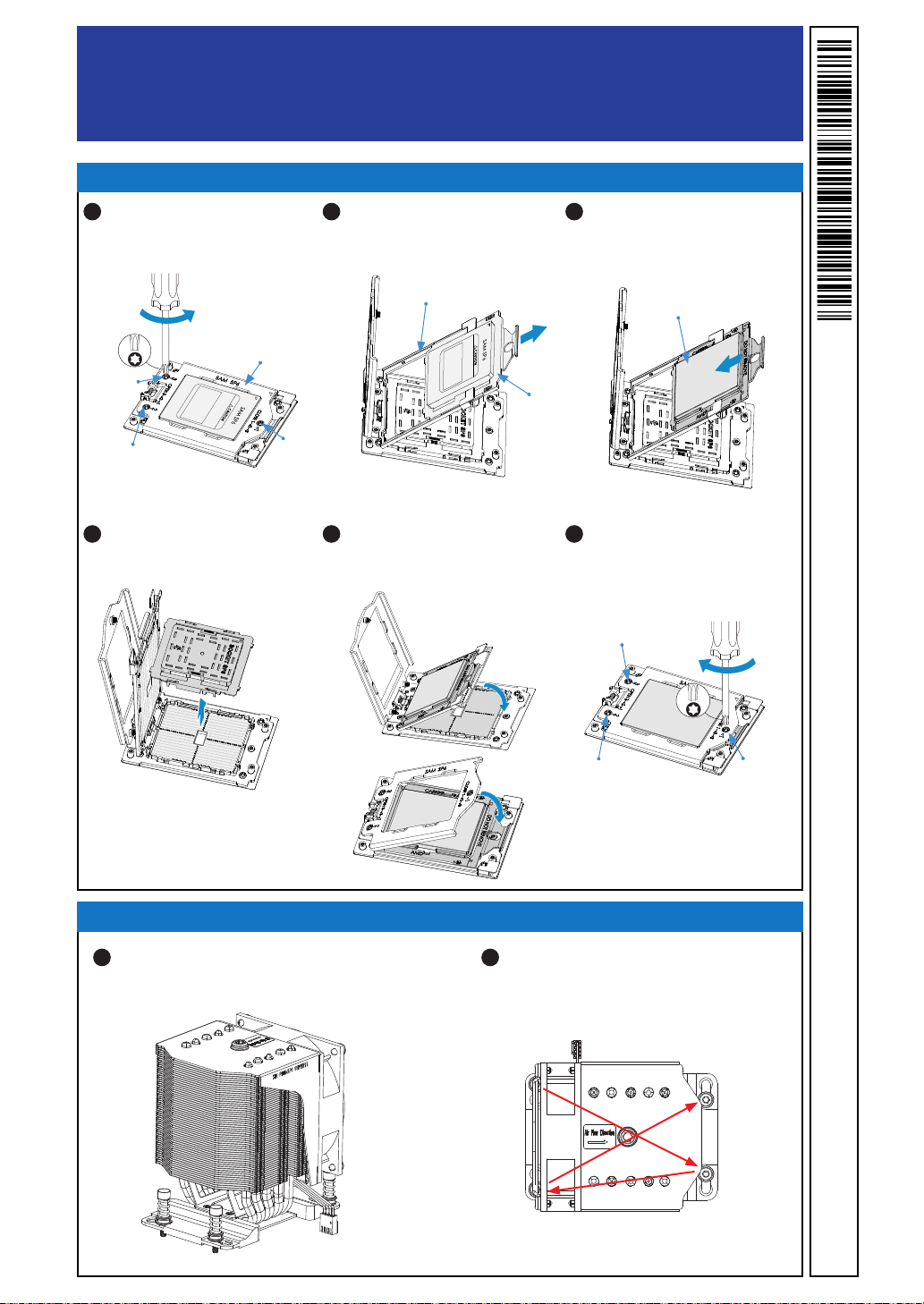

安裝中央處理器
1使用 T20 星型螺絲起子，按照 3-2-1 的
順序，依序鬆開鎖住固定框的螺絲，
然後掀開固定框。
4取下插槽上的 PnP (隨插即用)保護蓋。
2掀開導軌框，沿著導軌抽出外蓋。
5將導軌框向下輕壓扣回插槽位置，然後
將固定框扣回導軌框位置固定。
3CPU 出廠時己預先安裝於托架中。將
托架/CPU 組件沿著導軌框的導軌往下
滑到底。
6按照 1-2-3 的順序，依序鎖回固定框的
螺絲，將 CPU 組件固定。
安裝散熱器
1CPU 組件的插座框架上有四個螺絲孔，將散熱器
對準四個螺絲孔往下放穩。
2如圖所示，按照斜對角的方向，依序將四顆固定
散熱器的螺絲緊緊鎖牢。
螺絲 #2
螺絲 #3
螺絲 #1
固定框
導軌框
外蓋
托架/CPU組件
螺絲 #3
螺絲 #1
螺絲 #2
螺絲 #3
螺絲 #4
螺絲 #1
螺絲 #2

SUPERMICR R
美超微电脑股份有限公司
H13SRA-TF/H13SRA-F 快速参考指南版本 1.00
主板布局和功能
= 安装孔
I/O后面板
BMC LAN
CTRL
TRX50
BIOS
LICENSE
BMC CODE
MAC CODE
BAR CODE BAR CODE
DESIGNED IN USA
H13SRA-TF
REV:1.01
+
+
LAN2
BMC_LAN
VGA
COM1
SATA3
SATA2
JMCIO-1/2
PCIe 4.0 X4
M.2-C2
2280
CPU SLOT6 PCIe 5.0 X16
CPU SLOT4 PCIe 5.0 X8
CPU SLOT3 PCIe 5.0 X16
JAFP1
JPI2C1
JPUSB1
JUIDB1
(UID)
JL1
JPL1
JD1
JBT1
BT1
FAN3
FAN2
FAN1
FAN4
FANC
FANB
12V_PUMP_PWR2
LED3601
(M.2-C1 LED)
LEDBMC
LED1
(UID-LED)
JPW3
LED7 (Power LED)
2280
22110
JPAC1
JSPDIF_OUT
JAUDIO1
USB9
(3.2 GEN2X2)
LAN1
JSD1
JTPM1
JOH1
JWD1
SATA1
SATA0
USB2/3
(3.2 GEN1)
M.2-C1
PCIe 4.0 X4
JPW2
FANA
JSTBY1
JF1
22110
12V_PUMP_PWR1
USB0/1
(2.0)
CPU SLOT1 PCIe 5.0 X8
JPW1
CPU
DIMME1
DIMMG1
DIMMC1 DIMMA1
SP1
USB8
(3.2 GEN2)
USB4/5
(3.2 GEN2)
USB6/7
(3.2 GEN2)
LED3602
(M.2-C2 LED)
LGA-4844

包装内容
• Supermicro超微服务器主板x1
• SATA连接线x4
• I/O扩展板x1
• 快速参考指南x1
接口 描述说明
12V_PUMP_PWR1 12 V4 针电源连接器（用于 CPU 液冷装置）
12V_PUMP_PWR2 12 V4 针电源连接器（用于 GPU 液冷装置）
BMC_LAN BMC 专用 LAN 端口（RJ45）
BT1 板载电池
COM1 后面板 COM 端口
CPU SLOT1/4PCIe 5.0x8 插槽
CPU SLOT3/6PCIe 5.0x16 插槽
FAN1 – FAN4 CPU 风扇插座
FANA、FANB、FANC 系统风扇插座
JAFP1 前面板音频插座
JAUDIO1 后面板高清音频端口
JD1 扬声器/蜂鸣器插座
JF1 前端控制面板插座
JL1 机箱侵入插座
JMCIO PCIe 4.0x8 MCIO 接口，支持两个 NVMe 2.5" SSD（不可热插拔，由 TRX50 支持）
JOH1 过热 LED 插座
JPI2C1 电源 SMBus I2C 插座
JPW1 24 针ATX主电源接口（必需）
JPW2、JPW3 12 V8 针CPU电源接口（必需）
JSD1 SATA 模块上磁盘 (DOM) 电源接口
JSPDIF_OUT Sony/Philips数字接口（S/PDIF）输出插座
JSTBY1 备用电源插座（5V）
JTPM1 受信任平台模块（TPM）/ 端口 80 插座
JUIDB1 单元标识符（UID）开关 / BMC重置按钮
LAN1、LAN2 RJ45 1GbE LAN 端口（仅 H13SRA-F）；RJ45 10 GbE LAN 端口（仅H13SRA-TF）
M.2-C1、M.2-C2 PCIe 4.0x4 M.2M-key 插槽（支持 22110/2280 规格和 RAID 0/1）
SATA0 – SATA3 SATA 3.0 端口（6Gb/秒，支持 RAID 0/1/5/10）
SP1 内置扬声器/蜂鸣器
USB0/1 前置 USB 2.0 插座
USB2/3 前置 USB 3.2Gen. 1 插座（5Gb、Type-A）
USB4、USB5、USB6、USB7 后面板 USB 3.2Gen. 2 端口（10 Gb、Type-A）
USB8 前置 USB 3.2Gen. 2 插座（10 Gb、Type-C）
USB9 后面板 USB 3.2Gen. 2x2 端口（20 Gb、Type- C）
VGA BMC 支持的 VGA 端口
跳线和接口
跳线
跳线 描述说明 默认设置
JBT1 清除 CMOS 信息（板载） 清除 CMOS 信息的短接焊盘
JPAC1 HD 自动启用/禁用 针脚 1-2（正常）
JPL1 LAN1/LAN2 启用/禁用 针脚 1-2（已启用）
JPUSB1 USB 设备唤醒 针脚 1-2（已启用）
JWD1 看门狗功能启用 针脚 1-2（重置）
接口

联系信息
• www.supermicro.com (Email: [email protected])
• 产品手冊文件：： https://www.supermicro.com/support/manuals
• 驱动程序及工具：https://www.supermicro.com/wdl/driver/
• 产品安全性须知：： https://www.supermicro.com/about/policies/safety_information.cfm
LED 指示器
LED 描述说明 颜色/状态
LED1 单元标识符 (UID) LED 蓝灯亮起:设备已识别
LED3601、LED3602 用于 M.2-C1 和 M.2-C2 的 M.2LED 闪烁绿灯：设备工作中
LED7 板载电源 LED 绿灯保持亮起：开机
LEDBMC BMC 心跳 LED 闪烁绿灯：BMC 正常
LED 指示器
I/O 后面板接口
1线路输入（默认） 8LAN1：RJ45 LAN 端口
（H13SRA-F 为 1GbE，H13SRA-TF 为10 GbE）
2线路输出（默认） 9 USB4：USB 3.22代 接口
3麦克风输入（默认） 10 USB5：USB 3.22代 接口
4 COM1 端口 11 LAN2：RJ45 LAN 端口
（H13SRA-F 为 1GbE，H13SRA-TF 为 10 GbE）
5 VGA 端口 12 USB6：USB 3.22代 接口
6专用 BMC LAN 端口 13 USB7：USB 3.22代 接口
7USB9：USB 3.2Gen. 2x2 端口 14 UID 开关 / BMC 按钮
H13SRA-TF/H13SRA-F 主板支持 AMD Ryzen™ Threadripper ™ PRO 7000 WX 系列和 Ryzen Threadripper 7000 系列处理器，
sTR5 管座中的 TDP（热功耗）达 350 W。内存支持最高 4TB ECC RDIMM/3DS RDIMM内存，速度达 5200 MT/s（1DPC）或
更高，并在四个 ECC DDR5（288 针）DIMM 插槽中支持超频。
使用一对相同类型和大小的内存模块插入这些 DIMM 插槽将形成交叉内存模式，可提高内存性能。
注意： 1） 为优化内存，仅使用经过Supermicro验证的 DIMM 模块。有关最新内存更新，请参阅我们的网站
https://www.supermicro.com/products/motherboard。
2）始终最后连接电源线，且添加、移除或更换任何硬件组件之前始终将其断开。
3）高达 1 TB/通道的内存寻址遵循 sTR5 管座处理器 AMD 架构路线图。
DIMM 内存安装
内存安装指南
• 建议使用大小、类型和速度相同的 DDR5 DIMM 模块，以提高内存性能。
• 当安装不同频率 DIMM 内存模组时，所有 DIMM 将以最低 DIMM 的速度运行。
• DDR5 DIMM 模块不可热插拔，插入或取下之前，请确保断开电源至少 20 秒。
• 倾斜取下 DDR5 DIMM 模块会导致模块损坏。强烈建议直接将模块从插槽中提起。
DIMME1 （灰色插槽） DIMMG1 （灰色插槽） DIMMC1 （灰色插槽） DIMMA1 （灰色插槽）
CPU
前面控制面板 (JF1)
电源按钮
重置按钮
硬盘 LED
FP电源LED
ID_UID/3.3V待机
接地
19
接地
20
12.
接地
电源故障LED
NIC2 活动状态 LED
NMI
3.3V
过热/风扇故障/电源故障LED
3.3V
UID LED
P3V3_STBY
NIC1 活动状态 LED
密钥 密钥
P3V3_STBY
CPU 和内存支持
2
3
5 6 7 9
10
12
13
14
1
4811
推荐内存配置指南 (1DPC)
DIMMG1 DIMME1
CPU
DIMMA1 DIMMC1
1 DIMM DDR5
2 DIMM DDR5 DDR5
4 DIMM DDR5 DDR5 DDR5 DDR5
