Supermicro SUPERSERVER 6015B-8+ User manual

®
SUPERSERVER 6015B-8
USER’S MANUAL
1.0b
SUPER

Manual Revision 1.0b
Release Date: October 4, 2007
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software, if any,
and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for
all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2007 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America

iii
Preface
Preface
About This Manual
This manual is written for professional system integrators and PC technicians. It
provides information for the installation and use of the SuperServer 6015B-8. Instal-
lation and maintainance should be performed by experienced technicians only.
The SuperServer 6015B-8 is a high-end server based on the SC815S-560 1U
rackmount chassis and the X7DBR-8, a dual processor serverboard that supports
Intel®Xeon®5100/5000 series processors at a Front Side (System) Bus speed of
1333/1066/667 MHz and up to 32 GB of FBD ECC DDR2-667/533 SDRAM.
Manual Organization
Chapter 1: Introduction
The first chapter provides a checklist of the main components included with the
server system and describes the main features of the X7DBR-8 serverboard and
the SC815S-560 chassis, which comprise the SuperServer 6015B-8.
Chapter 2: Server Installation
This chapter describes the steps necessary to install the SuperServer 6015B-8 into
a rack and check out the server configuration prior to powering up the system. If
your server was ordered without processor and memory components, this chapter
will refer you to the appropriate sections of the manual for their installation.
Chapter 3: System Interface
Refer here for details on the system interface, which includes the functions and
information provided by the control panel on the chassis as well as other LEDs
located throughout the system.

SUPERSERVER 6015B-8 User's Manual
iv
Chapter 4: System Safety
You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
SuperServer 6015B-8.
Chapter 5: Advanced Serverboard Setup
Chapter 5 provides detailed information on the X7DBP-8 serverboard, including the
locations and functions of connections, headers and jumpers. Refer to this chapter
when adding or removing processors or main memory and when reconfiguring the
serverboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the SC815S-560 server chassis.
You should follow the procedures given in this chapter when installing, removing or
reconfiguring SCSI or peripheral drives and when replacing system power supply
units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed informa-
tion on running the CMOS Setup Utility.
Appendix A: BIOS POST Messages
Appendix B: BIOS POST Codes
Appendix C: Software Installation
Appendix D: System Specifications

v
Preface
Notes

vi
Table of Contents
Preface
About This Manual ...................................................................................................... iii
Manual Organization ................................................................................................... iii
Chapter 1: Introduction
1-1 Overview ......................................................................................................... 1-1
1-2 Serverboard Features ..................................................................................... 1-2
1-3 Server Chassis Features ................................................................................ 1-3
1-4 Contacting Supermicro ................................................................................... 1-6
Chapter 2: Server Installation
2-1 Overview ......................................................................................................... 2-1
2-2 Unpacking the System ................................................................................... 2-1
2-3 Preparing for Setup ........................................................................................ 2-1

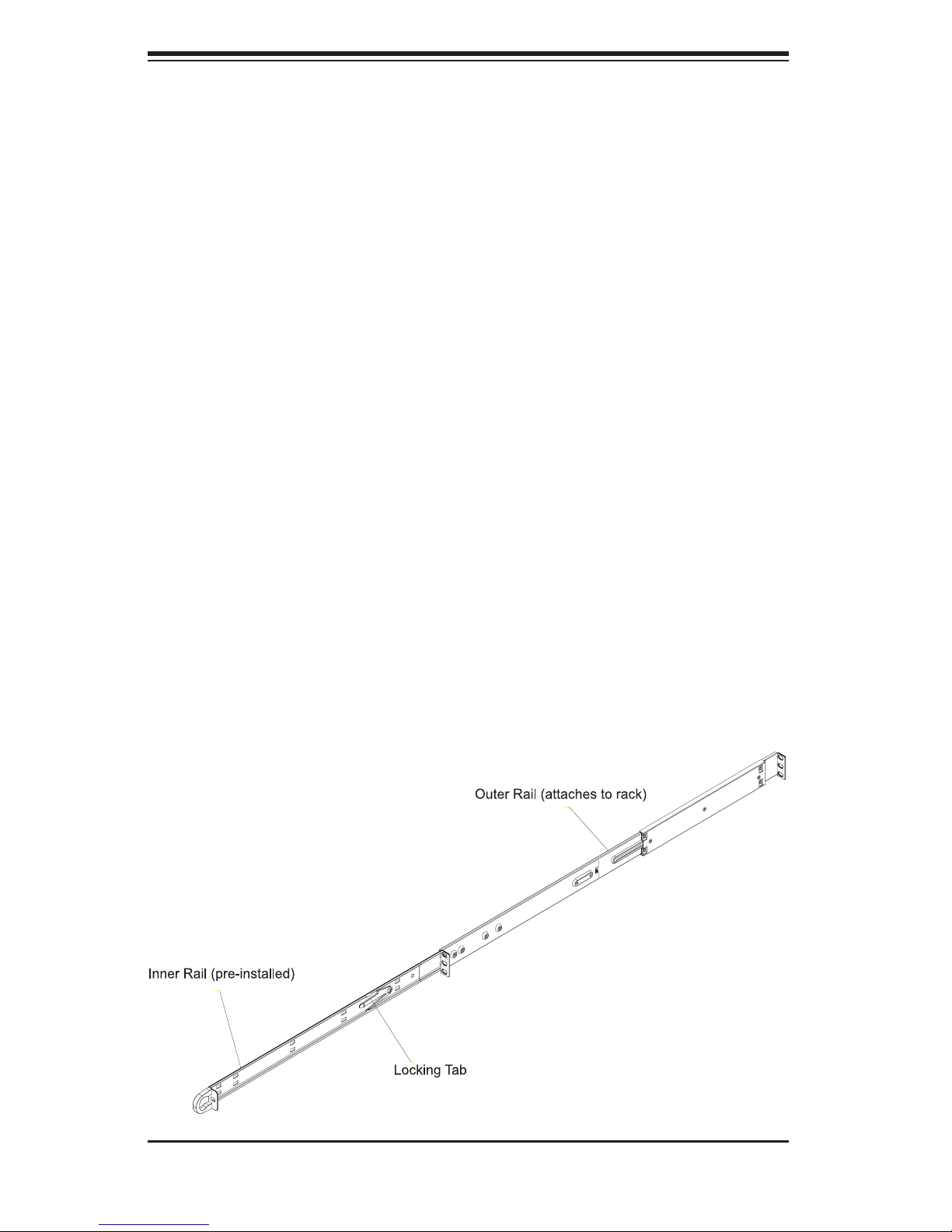

2-4 Installing the System into a Rack ................................................................... 2-4
2-5 Checking the Serverboard Setup ................................................................... 2-8
2-6 Checking the Drive Bay Setup ..................................................................... 2-10
Chapter 3: System Interface
3-1 Overview ......................................................................................................... 3-1
3-2 Control Panel Buttons .................................................................................... 3-1
Reset ........................................................................................................ 3-1
Power ....................................................................................................... 3-1
3-3 Control Panel LEDs ........................................................................................ 3-2
Overheat/Fan Fail .................................................................................... 3-2
NIC2 ......................................................................................................... 3-2
NIC1 ......................................................................................................... 3-2
HDD .......................................................................................................... 3-2
Power ....................................................................................................... 3-3
3-4 SCSI Drive Carrier LEDs ................................................................................ 3-3
Chapter 4: System Safety
4-1 Electrical Safety Precautions .......................................................................... 4-1
4-2 General Safety Precautions ........................................................................... 4-2
4-3 ESD Safety Precautions ................................................................................. 4-3
4-4 Operating Precautions .................................................................................... 4-4
SUPERSERVER 6015B-8 User's Manual

Chapter 5: Advanced Serverboard Setup
5-1 Handling the Serverboard .............................................................................. 5-1
5-2 Processor and Heatsink Installation ............................................................... 5-2
5-3 Connecting Cables ......................................................................................... 5-5
Connecting Data Cables .......................................................................... 5-5
Connecting Power Cables ....................................................................... 5-5
Connecting the Control Panel .................................................................. 5-6
5-4 I/O Ports ......................................................................................................... 5-7
5-5 Installing Memory ........................................................................................... 5-7
5-6 Adding PCI Cards ........................................................................................... 5-9
5-7 Serverboard Details ...................................................................................... 5-10
X7DBR-8 Layout .................................................................................... 5-10
X7DBR-8 Quick Reference .................................................................... 5-11
5-8 Connector Definitions ................................................................................... 5-12
ATX Power Connector ........................................................................... 5-12
Auxiliary Power Connector ..................................................................... 5-12
Processor Power Connector .................................................................. 5-12
NMI Button ............................................................................................. 5-12
Power LED ............................................................................................. 5-12
HDD LED ............................................................................................... 5-13
NIC1 LED ............................................................................................... 5-13
NIC2 LED ............................................................................................... 5-13
Overheat/Fan Fail LED .......................................................................... 5-13
Power Fail LED ...................................................................................... 5-14
Reset Button .......................................................................................... 5-14
Power Button .......................................................................................... 5-14
Universal Serial Bus (USB0/1) ............................................................... 5-14
Serial Ports ............................................................................................. 5-15
Power Fail Header ................................................................................. 5-15
Fan Headers .......................................................................................... 5-15
Chassis Intrusion .................................................................................... 5-15
Universal Serial Bus Headers ................................................................ 5-16
Power LED/Speaker ............................................................................... 5-16
ATX PS/2 Keyboard and Mouse Ports .................................................. 5-16
Overheat LED ........................................................................................ 5-16
Wake-On-LAN ........................................................................................ 5-17
Wake-On-Ring ........................................................................................ 5-17
SMB ........................................................................................................ 5-17
vii
Table of Contents

viii
SMBUS_PS ............................................................................................ 5-17
JLAN1/2 .................................................................................................. 5-18
Alarm Reset ........................................................................................... 5-18
Compact Flash Card Power Connector ................................................. 5-18
SGPIO .................................................................................................... 5-18
5-9 Jumper Settings ............................................................................................ 5-19
Explanation of Jumpers ......................................................................... 5-19
CMOS Clear ........................................................................................... 5-19
VGA Enable/Disable ............................................................................... 5-19
3rd Power Supply Fail Detect Enable/Disable ....................................... 5-20
JLAN Enable/Disable ............................................................................. 5-20
Watch Dog Enable/Disable .................................................................... 5-20
Compact Flash Master/Slave ................................................................. 5-21
SCSI Controller Enable/Disable ............................................................. 5-21
SCSI Termination Enable/Disable .......................................................... 5-21
SMB to PCI Slots ................................................................................... 5-22
5-10 Onboard Indicators ....................................................................................... 5-22
JLAN1/JLAN2 LEDs ............................................................................... 5-22
5-11 Floppy, IDE and SCSI Drive Connections .................................................... 5-23
Floppy Connector ................................................................................... 5-23
IDE Connectors ...................................................................................... 5-24
Ultra320 SCSI Ports ............................................................................... 5-25
Chapter 6: Advanced Chassis Setup
6-1 Static-Sensitive Devices ................................................................................. 6-1
6-2 Control Panel .................................................................................................. 6-2
6-3 System Fans ................................................................................................... 6-3
System Fan Failure .................................................................................. 6-3
Replacing System Fans ........................................................................... 6-3
6-4 Drive Bay Installation/Removal ...................................................................... 6-4
Removing the Front Bezel ....................................................................... 6-4
Accessing the Drive Bays ........................................................................ 6-5
SCSI Drive Installation ............................................................................. 6-6
DVD-ROM and Floppy Drive Installation ................................................. 6-8
6-5 Power Supply ................................................................................................. 6-9
Power Supply Failure ............................................................................... 6-9
Removing/Replacing the Power Supply ................................................... 6-9
SUPERSERVER 6015B-8 User's Manual

Table of Contents
ix
Chapter 7: BIOS
7-1 Introduction ..................................................................................................... 7-1
7-2 Running Setup ................................................................................................ 7-2
7-3 Main BIOS Setup ............................................................................................ 7-2
7-4 Advanced Setup ............................................................................................. 7-7
7-5 Security ......................................................................................................... 7-24
7-6 Boot .............................................................................................................. 7-25
7-7 Exit ................................................................................................................ 7-26
Appendices:
Appendix A: BIOS POST Messages
Appendix B: BIOS POST Codes
Appendix C: Software Installation
Appendix D: System Specifications

Notes
x
SUPERSERVER 6015B-8 User's Manual

Chapter 1
Introduction
1-1 Overview
The SuperServer 6015B-8 is a high-end server comprised of two main subsystems:
the SC815S-560 1U server chassis and the X7DBR-8 dual processor serverboard.
Please refer to our web site for information on operating systems that have been
certified for use with the SuperServer 6015B-8 (www.supermicro.com).
In addition to the serverboard and chassis, various hardware components have
been included with the 6015B-8, as listed below:
 One (1) slim 8x DVD/24x DVD-ROM drive [DVM-PNSC-824(B)]
 Four (4) sets of 40-mm counter-rotating fans (FAN-0086L)
 One (1) front control panel cable (CBL-0087)
 One (1) rackmount kit (CSE-PT51)
 Riser Cards: (see Section 5-6 for details)
One (1) riser card (CSE-RR1U-XR) for PCI-X add-on card
One (1) riser card (CSE-RR1U-X) for PCI-X add-on card
One (1) riser card (CSE-RR1U-ER) for PCI-E add-on card
One (1) riser card (CSE-RR1U-EL) for PCI-E add-on card
 SCSI Accessories
One (1) SAF-TE compliant SCSI backplane (CSE-SCA-813S-O-P)
Four (4) hot-swap drive carriers [MCP-220-00001-03(01)]
One (1) Ultra320 SCSI cable (CBL-0063L)
 One (1) CD containing drivers and utilities
 SuperServer 6015B-8 User's Manual
Note: the "V" and "B" at the end of a server name (e.g. 6015B-8V or 6015B-8B)
denotes the chassis color. V is for silver and B is for black.
Chapter 1: Introduction
1-1

1-2
SUPERSERVER 6015B-8 User's Manual
1-2 Serverboard Features
At the heart of the SuperServer 6015B-8 lies the X7DBR-8, a dual processor
serverboard based on Intel's 5000P chipset. Below are the main features of the
X7DBR-8 (see Figure 1-1 for a block diagram of the chipset).
Processors
The X7DBR-8 supports single or dual 771-pin Intel Xeon 5100/5000 series pro-
cessors at a FSB speed of 1333/1066/667 MHz. Please refer to the serverboard
description pages on our web site for a complete listing of supported processors.
Memory
The X7DBR-8 has eight 240-pin DIMM sockets that can support up to 32 GB of ECC
FBD (Fully Buffered DIMM) DDR2-667 or DDR2-533 SDRAM. The memory is an
interleaved configuration, which requires modules of the same size and speed to be
installed in pairs. Please refer to Chapter 5 for memory speed jumper settings.
Onboard SCSI
Onboard SCSI is provided with an Adaptec AIC-7902 SCSI chip, which supports
Ultra320 SCSI at a throughput of 320 MB/sec for each channel. The X7DBR-8 pro-
vides two LVD Ultra320 SCSI ports. The SCSI drives are hot-swappable units.
Note: The operating system you use must have RAID support to enable the hot-
swap capability and RAID function of the SCSI drives.
PCI Expansion Slots
The X7DBR-8 has two Universal PCI slots (each consisting of a x8 PCI-Express
slot and a 100 MHz PCI-X slot). Two preinstalled riser cards support the use of
one standard size 100 MHz PCI-X and one low profile PCI-X 100 MHz add-on card.
(Two riser cards to support one standard size and one low-profile x8 PCI-Express
add-on cards are included in the accessory box.) See Section 5-6 for details.
Onboard Controllers/Ports
An onboard ATA/100 controller is provided to support up to two IDE hard drives or
ATAPI devices. The color-coded I/O ports include one COM port, a VGA (monitor)
port, two USB 2.0 ports, PS/2 mouse and keyboard ports and two gigabit Ethernet
ports.

1-3
Chapter 1: Introduction
ATI Graphics Controller
The X7DBR-8 features an integrated ATI video controller based on the ES1000
graphics chip. The ES1000 was designed specifically for servers, featuring low
power consumption, high reliability and superior longevity.
Other Features
Other onboard features that promote system health include onboard voltage moni-
tors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU
overheat sensors, virus protection and BIOS rescue.
1-3 Server Chassis Features
The SuperServer 6015B-8 is a high-end, scaleable server platform built upon the
SC815S-560 1U server chassis. The following is a general outline of the main
features of the SC815S-560 chassis.
System Power
The SC815S-560 features a single 560W power supply. Power must be removed
from the system before servicing or replacing the power supply.
Serial ATA Subsystem
The SC815S-560 chassis was designed to support four SCSI hard drives, which
are hot-swappable units.
Note: The operating system you use must have RAID support to enable the hot-
swap capability of the drives.
PCI Expansion Slots
One standard size and one low-profile PCI-X/PCI-E add-on card may be used with
the SC815S-560 chassis. See section 5-6 for details.
Front Control Panel
The SC815S-560's control panel provides you with system monitoring and control.
LEDs indicate system power, HDD activity, network activity (2) and overheat/fan
failure. A main power button and system reset buttons are also included.

1-4
SUPERSERVER 6015B-8 User's Manual
I/O Backplane
The SC815S-560 is an ATX form factor chassis that is designed to be used in a
1U rackmount configuration. Ports on the I/O backplane include one COM port,
a VGA port, two USB 2.0 ports, PS/2 mouse and keyboard ports and two gigabit
Ethernet ports.
Cooling System
The SC815S-560 chassis has an innovative cooling design that features four sets
of 40-mm counter-rotating fans located in the middle section of the chassis. There
is a "Fan Speed Control Mode" setting in BIOS that allows chassis fan speed to
be determined by system temperature. The power supply module also includes
a cooling fan.

1-5
Chapter 1: Introduction
Figure 1-1. Intel 5000P Chipset:
System Block Diagram
Note: This is a general block diagram. Please see Chapter 5 for details.
5000P MCH
PROCESSOR#2
ESB2
FBD CHNL0
FBD CHNL1
FBD CHNL2
FBD CHNL3
FBD DIMM
#1 #1 #1 #1
#0 #0 #0 #0
FBD DIMM
FBD DIMM
FBD DIMM
PCI33MMZ
SATA
#0
#1
#2
#3
#4
#5
PCIE X4
PCIE X4
GILGAL
GB LAN FWH
RJ45
RJ45
LPC
COM2
COM1
SIO
W83627
FDD
USB
#0
#1
#2
#3
#4
EBUS CONN
EXP.BUS
IDE CONN
ATA100
KB
MS
PORT
PORT
PORT PORT
PORTPORT
PORT
PORT
#0
#3
#4,5
#6,7
#4#4
#1,2
#0
USB2.0
3.0Gb/S
VRM
ISL6307
VRM
ISL6307
PROCESSOR#1
HG
PCI-Ex4Slot(R1)
J41
#7
PORT
#2
PCIE X4
PCI-Ex8
PCI-Ex4Slot(L1)
J42
#6
VGA
ES1000
VGA
CONN
SIMSO
PCI-X_SLOT(L)
J9
#4
PCIX
PCI-33
ESI
SCSI
J12
PCI-X_SLOT(R)_ZCR
PCI-Ex8
LSB
MSB
