Supermicro SUPERSERVER 6015TW-INF User manual

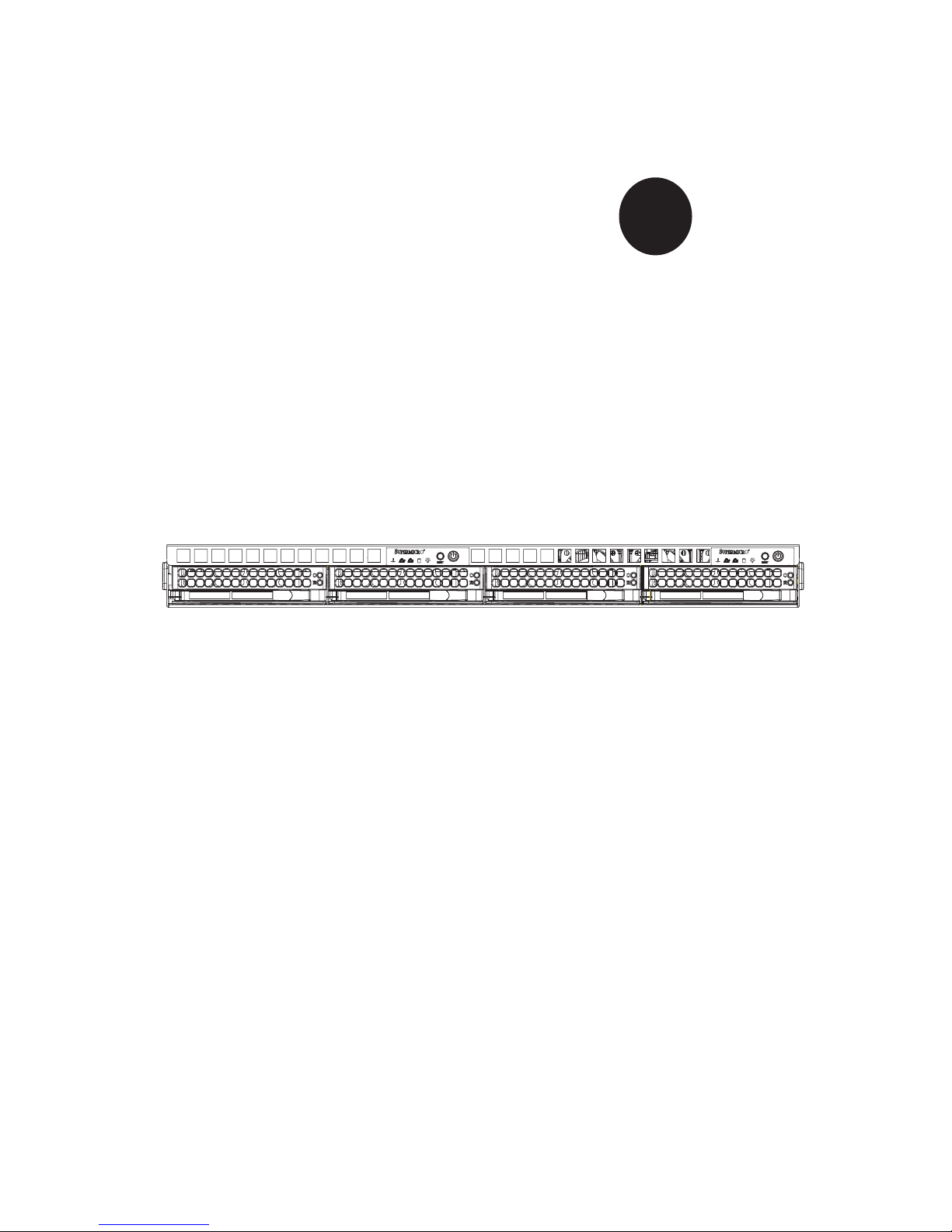

SUPER
SUPERSERVER 6015TW-T
SUPERSERVER 6015TW-INF
USER’S MANUAL
Revision 1.0
®

Manual Revision 1.0
Release Date: December 19, 2007
Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.
Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.
Copyright © 2007 by Super Micro Computer, Inc.
All rights reserved.
Printed in the United States of America
The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this
manual, please see our web site at www.supermicro.com.
Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software, if any,
and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.
IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.
Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for
all claims will not exceed the price paid for the hardware product.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class
A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the manufacturer’s instruction manual, may cause harmful
interference with radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference, in which case you will be required to correct the interference at your
own expense.
California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”
WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Preface
About This Manual
This manual is written for professional system integrators and PC technicians.
It provides information for the installation and use of the SuperServer 6015TW-
T/6015TW-INF. Installation and maintenance should be performed by experienced
technicians only.
The SuperServer 6015TW-T/6015TW-INF is a 1U Twin (two serverboards in a 1U
chassis) rackmount server based on the SC808T-980 server chassis and two Super
X7DWT/X7DWT-INF serverboards. The X7DWT/X7DWT-INF supports dual Intel®
5400/5300LV/5200/5100LV Series processors.
Manual Organization
Chapter 1: Introduction
The first chapter provides a checklist of the main components included with the
server system and describes the main features of the Super X7DWT/X7DWT-INF
serverboard and the SC808T-980 chassis.
Chapter 2: Server Installation
This chapter describes the steps necessary to install the SuperServer 6015TW-
T/6015TW-INF into a rack and check out the server configuration prior to powering
up the system. If your server was ordered without the processor and memory
components, this chapter will refer you to the appropriate sections of the manual
for their installation.
Chapter 3: System Interface
Refer to this chapter for details on the system interface, which includes the functions
and information provided by the control panel on the chassis as well as other LEDs
located throughout the system.
iii
Preface

SUPERSERVER 6015TW-T/6015TW-INF User's Manual
iv
Chapter 4: System Safety
You should thoroughly familiarize yourself with this chapter for a general overview
of safety precautions that should be followed when installing and servicing the
SuperServer 6015TW-T/6015TW-INF.
Chapter 5: Advanced Serverboard Setup
Chapter 5 provides detailed information on the X7DWT/X7DWT-INF serverboard,
including the locations and functions of connectors, headers and jumpers. Refer
to this chapter when adding or removing processors or main memory and when
reconfiguring the serverboard.
Chapter 6: Advanced Chassis Setup
Refer to Chapter 6 for detailed information on the SC808T-980 1U rackmount server
chassis. You should follow the procedures given in this chapter when installing, re-
moving or reconfiguring SAS/SATA or peripheral drives and when replacing system
power supply units and cooling fans.
Chapter 7: BIOS
The BIOS chapter includes an introduction to BIOS and provides detailed informa-
tion on running the CMOS Setup Utility.
Appendix A: BIOS POST Messages
Appendix B: BIOS POST Codes
Appendix C: Intel HostRAID Setup Guidelines
Appendix D: Adaptec HostRAID Setup Guidelines
Appendix E: System Specifications

v
Preface
Notes

vi
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
Table of Contents
Chapter 1 Introduction
1-1 Overview ......................................................................................................... 1-1
1-2 Serverboard Features ..................................................................................... 1-2
Processors ...................................................................................................... 1-2
Memory ........................................................................................................... 1-2
Serial ATA........................................................................................................ 1-2
PCI Expansion Slots ....................................................................................... 1-2
Ethernet Ports ................................................................................................. 1-2
Onboard Controllers/Ports .............................................................................. 1-3
ATI Graphics Controller................................................................................... 1-3
Other Features ................................................................................................ 1-3
1-3 Server Chassis Features ................................................................................ 1-5
System Power ................................................................................................. 1-5
SATA Subsystem............................................................................................. 1-5
Control Panel .................................................................................................. 1-5
Rear I/O Panel ................................................................................................ 1-5
Cooling System ............................................................................................... 1-5
1-4 1U Twin: System Notes................................................................................... 1-6
System Power ................................................................................................. 1-6
SATA Backplane/Drives................................................................................... 1-6
1-5 Contacting Supermicro.................................................................................... 1-7
Chapter 2 Server Installation
2-1 Overview ......................................................................................................... 2-1
2-2 Unpacking the System .................................................................................... 2-1
2-3 Preparing for Setup......................................................................................... 2-1
Choosing a Setup Location............................................................................. 2-1
Rack Precautions ............................................................................................ 2-2
Server Precautions.......................................................................................... 2-2
Rack Mounting Considerations ....................................................................... 2-3
Ambient Operating Temperature ................................................................ 2-3
Reduced Airflow ......................................................................................... 2-3
Mechanical Loading ................................................................................... 2-3
Circuit Overloading..................................................................................... 2-3
Reliable Ground ......................................................................................... 2-3
2-4 Installing the System into a Rack ................................................................... 2-4

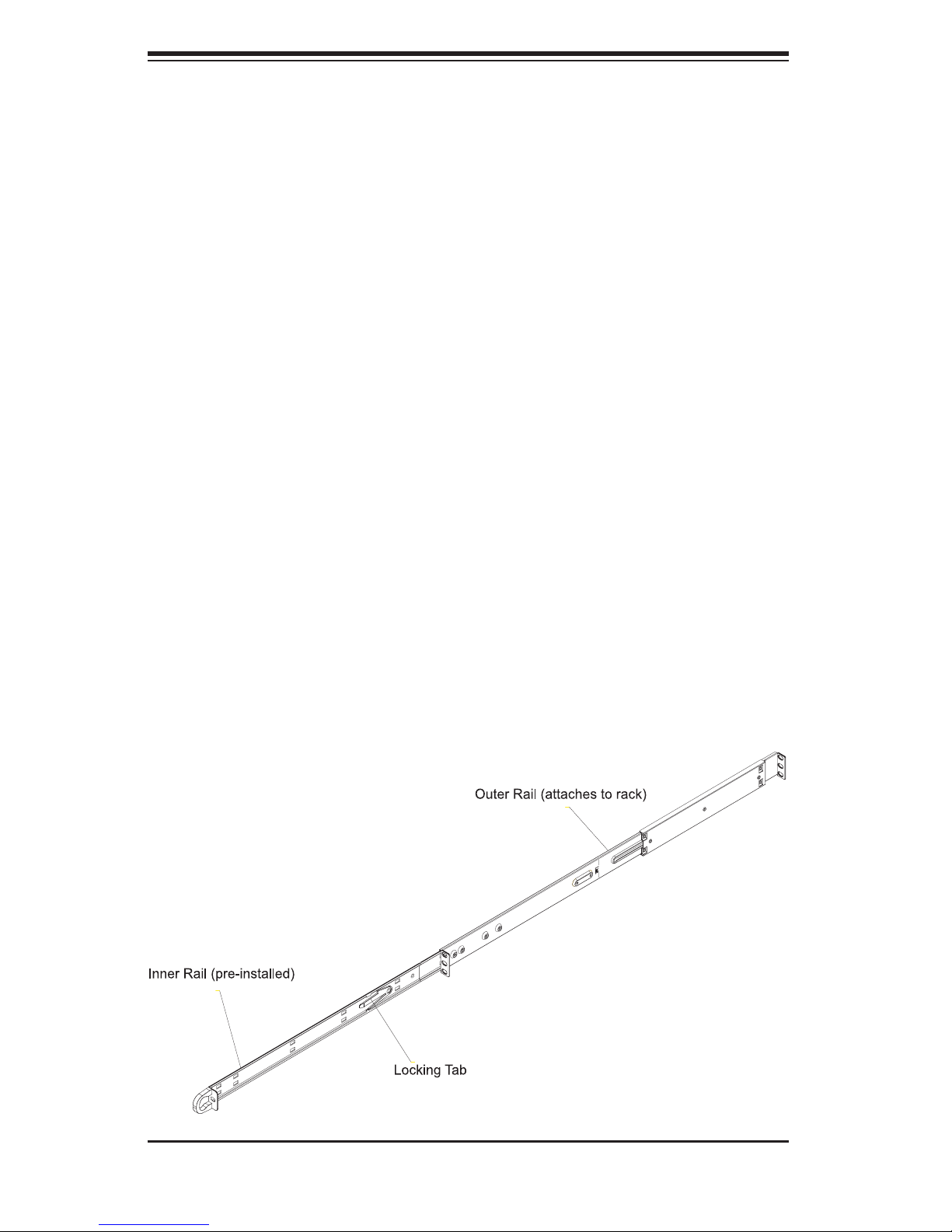

Identifying the Sections of the Rack Rails...................................................... 2-4

vii
Table of Contents
Installing the Inner Rails ................................................................................. 2-4
Installing the Outer Rails................................................................................. 2-5
Locking Tabs .............................................................................................. 2-5
Installing the Server into the Rack.................................................................. 2-6
Installing the Server into a Telco Rack ........................................................... 2-6
2-5 Checking the Serverboard Setup.................................................................... 2-6
2-6 Preparing to Power On ................................................................................... 2-8
Chapter 3 System Interface
3-1 Overview ......................................................................................................... 3-1
3-2 Control Panel Buttons ..................................................................................... 3-1
Reset............................................................................................................... 3-1
Power .............................................................................................................. 3-1
3-3 Control Panel LEDs ........................................................................................ 3-2
Overheat/Fan Fail ........................................................................................... 3-2
NIC2 ................................................................................................................ 3-2
NIC1 ................................................................................................................ 3-2
HDD................................................................................................................. 3-2
Power .............................................................................................................. 3-3
3-4 SATA Drive Carrier LEDs ................................................................................ 3-3
Chapter 4 System Safety
4-1 Electrical Safety Precautions .......................................................................... 4-1
4-2 General Safety Precautions ............................................................................ 4-2
4-3 ESD Precautions............................................................................................. 4-3
4-4 Operating Precautions .................................................................................... 4-4
Chapter 5 Advanced Serverboard Setup
5-1 Handling the Serverboard ............................................................................... 5-1
Precautions ..................................................................................................... 5-1
5-2 Serverboard Installation .................................................................................. 5-2
Unpacking ....................................................................................................... 5-2
5-3 Connecting Cables.......................................................................................... 5-3
Connecting Data Cables ................................................................................. 5-3
Connecting Power Cables .............................................................................. 5-3
Connecting the Control Panel......................................................................... 5-4
5-4 I/O Ports .......................................................................................................... 5-4
5-5 Processor and Heat Sink Installation.............................................................. 5-5
Installing the Processor ................................................................................. 5-5
Installing the Heat Sink ................................................................................... 5-7
Removing the Heat Sink ................................................................................. 5-7

viii
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
5-6 Installing Memory ............................................................................................ 5-8
5-7 Adding PCI Cards ........................................................................................... 5-9
5-8 Serverboard Details ...................................................................................... 5-10
X7DWT-T/X7DWT-INF Quick Reference ......................................................5-11
5-9 Connector Definitions.................................................................................... 5-12
5-10 Jumper Settings ............................................................................................ 5-17
5-11 Onboard Indicators........................................................................................ 5-19
Chapter 6 Advanced Chassis Setup
6-1 Static-Sensitive Devices.................................................................................. 6-1
Precautions ..................................................................................................... 6-1
Unpacking ....................................................................................................... 6-1
6-2 Control Panel .................................................................................................. 6-2
6-3 System Fans ................................................................................................... 6-3
System Fan Failure......................................................................................... 6-3
6-4 Drive Bay Installation/Removal ....................................................................... 6-3
Accessing the Drive Bays ............................................................................... 6-3
6-5 Power Supply .................................................................................................. 6-5
Power Supply Failure...................................................................................... 6-5
Replacing the Power Supply........................................................................... 6-5
Chapter 7 BIOS
7-1 Introduction...................................................................................................... 7-1
7-2 Running Setup ................................................................................................ 7-2
7-3 Main BIOS Setup ............................................................................................ 7-2
7-4 Advanced Setup.............................................................................................. 7-6
7-5 Security ......................................................................................................... 7-22
7-6 Boot............................................................................................................... 7-23
Appendix A BIOS POST Messages
Appendix B BIOS POST Codes
Appendix C Intel HostRAID Setup Guidelines
Appendix D Adaptec HostRAID Setup Guidelines
Appendix E System Specifications

Chapter 1
Introduction
1-1 Overview
The SuperServer 6015TW-T/6015TW-INF is a "1U Twin" server comprised of the
SC808T-980 1U chassis and two (twin) X7DWT/X7DWT-INF serverboards. Please
refer to our web site for information on operating systems that have been certified
for use with the 6015TW-T/6015TW-INF (www.supermicro.com).
In addition to the serverboard and chassis, various hardware components may have
been included with the 6015TW-T/6015TW-INF, as listed below.
Four (4) CPU heatsinks (SNK-P0017)
SATA Accessories:
Four (4) SATA hard drive carriers [MCP-220-00001-03(01)]
One (1) internal SATA backplane (BPN-SAS-808)
One (1) SATA cable set (CBL-0201L)
Two (2) PCI-E x16 riser cards (RSC-R1U-E16R)
Six (6) 4-cm high-performance fans (FAN-0085L)
Rackmount hardware with screws (CSE-PT51L):
Two (2) rack rail assemblies
Six (6) brackets for mounting the rack rails in a rack/telco rack
One (1) CD containing drivers and utilities
SuperServer 6015TW-T/6015TW-INF User's Manual
Note: "03" at the end of a part number indicates the part is available in silver, a "01"
indicates it's available in black.
•
•
•
•
•
•
•
Chapter 1: Introduction
1-1

1-2
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
1-2 Serverboard Features
At the heart of the SuperServer 6015TW-T/6015TW-INF lies two X7DWT/X7DWT-
INF dual processor serverboards, which are based on Intel's 5400 chipset. Below
are the main features of the X7DWT/X7DWT-INF. Note that the features on each
board are doubled for the server.
Processors
Each X7DWT/X7DWT-INF supports dual Intel® 5400/5300LV/5200/5100LV Series
processors. Please refer to our web site for a complete listing of supported proces-
sors (www.supermicro.com).
Memory
The X7DWT/X7DWT-INF has eight 240-pin DIMM sockets that can support up to 64
GB of ECC FBD (Fully Buffered DIMM) DDR2-800/667/533 SDRAM. Memory can
be installed in both interleaved (dual-channel) and non-interleaved (single-channel)
configurations. All memory modules used to populate the system should be the
same size, type and speed.
Serial ATA
The South Bridge (ESB2) of the 5400 chipset includes a Serial ATA controller for
3 Gb/s SATA drives. The hot-swappable SATA drives are connected to a backplane
that provides power, bus termination and configuration settings. RAID 0 and 1 are
supported.
PCI Expansion Slots
Each X7DWT/X7DWT-INF board has one PCI-Express 2.0 x16 slot, so two PCI-
Express 2.0 x16 slots are provided in the server. In the 6015TW-T/6015TW-INF
server configuration, riser cards have been pre-installed to support two low-profile
PCI-Express 2.0 x16 add-on cards.
Ethernet Ports
Two Intel® 82563EB network controllers are integrated into each of the serverboards
to support a total of four Gigabit LAN ports (100/1000Base-T/1000BaseTX, RJ45
output).

Chapter 1: Introduction
1-3
Onboard Controllers/Ports
Onboard I/O backpanel ports include one COM port, a VGA port, two USB ports, two
Gigabit LAN (NIC) ports and (on the 6015TW-INF only) an InfiniBand® (MT25204
controller) 20 Gbps port. There are two sets of I/O ports included in the server (one
set for each severboard).
InfiniBand Port Bracket: The InfiniBand port bracket is a small "U" shaped bracket
that secures the connector to the I/O port shield. This allows the I/O shield, not
the serverboard, to support the cable's weight. The bracket can be found on the
connector itself.
When installing the serverboard, remove the bracket from the InfiniBand port. Slide
the port through the shield, and then replace the bracket to secure the port to the
I/O shield.
ATI Graphics Controller
The X7DWT/X7DWT-INF features an integrated ATI video controller based on the
ES1000 graphics chip. The ES1000 was designed specifically for servers, featuring
low power consumption, high reliability and superior longevity.
Other Features
Other onboard features that promote system health include voltage monitors, a
chassis intrusion header, auto-switching voltage regulators, chassis and CPU
overheat sensors, virus protection and BIOS rescue.
!

1-4
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
Figure 1-1. Intel 5400P Chipset:
System Block Diagram
Note: This is a general block diagram. Please see Chapter 5 for details.
USB 2.0
3.0 Gb/S
KUMERAN
Intel 5400
MCH
PROCESSOR#2
ESB2
PCI-EXP x8
GILGAL
GB LAN
FWH
RJ45
RJ45
LPC
COM2
SIO
W83627
VGA
PCI 33MHz
ES1000
VGA
CONN
KB
MS
PROCESSOR#1
1067/1333/1600
MT/S
1067/1333/1600
MT/S
FBD DIMM
FBD DIMM FBD DIMM
HF
USB
PCIE x4 PCIE x4
FBD CHNL0
FBD CHNL1
FBD CHNL2
FBD CHNL3
FBD DIMM
SATA
PCI-EXP x16
MT25204
PCI-E SLOT

Chapter 1: Introduction
1-5
1-3 Server Chassis Features
The following is a general outline of the main features of the SC808T-980 1U chas-
sis. Details on the chassis can be found in Chapter 6.
System Power
When configured as a SuperServer 6015TW-T/6015TW-INF, the SC808T-980 in-
cludes a single 980W cold-swap power supply, which provides the power to both
serverboards housed in the chassis.
SATA Subsystem
The SC808T-980 chassis was designed to support four SATA hard drives, which
are hot-swappable units.
Control Panel
The SC808T-980 features two independant control panels associated with each
serverboard in the chassis. Each control panel has LEDs to indicate power on, net-
work activity, hard disk drive activity and system overheat conditions. Each control
panel also includes a main power button and a system reset button.
Rear I/O Panel
The SC808T-980 is a 1U rackmount chassis. Its I/O panel provides a slots for two
low-profile PCI-E x16 expansion cards, two COM ports, four USB ports, two VGA
ports and four Gb Ethernet ports. The 6015TW-INF also provides two InfiniBand
ports. See Chapter 6 for details.
Cooling System
The SC808T-980 chassis has an innovative cooling design that features two sets
of triple (for a total of six) 4-cm high-performance fans. A fan speed control setting
in BIOS allows fan speed to be determined by system temperature.

1-6
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
1-4 1U Twin: System Notes
As a 1U Twin configuration, the 6015TW-T/6015TW-INF is a unique server system.
With two system boards incorporated into a single chassis, there are several points
you should keep in mind.
System Power
A single power supply is used to provide the power for both serverboards. Each
serverboard however, can be shut down independently of the other with the power
button on its own control panel.
Although they share a common power supply, the I2C signals used for power supply
monitoring are received by the primary serverboard only. (When viewed from the
front of the chassis, the serverboard on the left is referred to as the primary board
and the serverboard on the right as the secondary.)
SATA Backplane/Drives
As a system, the 6015TW-T/6015TW-INF supports the use of four SATA drives.
The SATA backplane works as a single backplane divided into two sections. This
means that while a single power connector is used and functions such as overheat-
ing apply to both sections together, each pair of SATA drives is logically connected
to its own serverboard. Consequently, RAID setup is limited to a two-drive scheme
(RAID cannot be spread across all four drives).

Chapter 1: Introduction
1-7
1-5 Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: [phone]
Fax: [phone]
Email: [email protected] (General Information)
[email protected] (Technical Support)
[email protected] (Customer Support)
Asia-Pacific
Address: Super Micro, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: [phone]
Fax: [phone]
Web Site: www.supermicro.com.tw
Technical Support:
Email: [email protected]
Tel: [phone], ext.132 or 139

1-8
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
Notes

Chapter 2: Server Installation
2-1
Chapter 2
Server Installation
2-1 Overview
This chapter provides a quick setup checklist to get your 6015TW-T/6015TW-INF
up and running. Following these steps in the order given should enable you to have
the system operational within a minimum amount of time. This quick setup assumes
that your system has come to you with the processors and memory preinstalled. If
your system is not already fully integrated with a serverboard, processors, system
memory etc., please turn to the chapter or section noted in each step for details on
installing specific components.
2-2 Unpacking the System
You should inspect the box the 6015TW-T/6015TW-INF was shipped in and note
if it was damaged in any way. If the server itself shows damage you should file a
damage claim with the carrier who delivered it.
Decide on a suitable location for the rack unit that will hold the 6015TW-T/6015TW-
INF. It should be situated in a clean, dust-free area that is well ventilated. Avoid
areas where heat, electrical noise and electromagnetic fields are generated. You
will also need it placed near a grounded power outlet. Be sure to read the Rack
and Server Precautions in the next section.
2-3 Preparing for Setup
The box the 6015TW-T/6015TW-INF was shipped in should include two sets of rail
assemblies, two rail mounting brackets and the mounting screws you will need to
install the system into the rack. Follow the steps in the order given to complete
the installation process in a minimum amount of time. Please read this section
in its entirety before you begin the installation procedure outlined in the sections
that follow.
Choosing a Setup Location
Leave enough clearance in front of the rack to enable you to open the front
door completely (~25 inches).
•

2-2
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
Leave approximately 30 inches of clearance in the back of the rack to allow for
sufficient airflow and ease in servicing.
This product is for installation only in a Restricted Access Location (dedicated
equipment rooms, service closets and the like).
This product is not suitable for use with visual display work place devices accord-
ing to §2 of the the German Ordinance for Work with Visual Display Units.
•
•
•
!!
Warnings and Precautions!
Rack Precautions
Ensure that the leveling jacks on the bottom of the rack are fully extended to
the floor with the full weight of the rack resting on them.
In single rack installation, stabilizers should be attached to the rack.
In multiple rack installations, the racks should be coupled together.
Always make sure the rack is stable before extending a component from the
rack.
You should extend only one component at a time - extending two or more si-
multaneously may cause the rack to become unstable.
Server Precautions
Review the electrical and general safety precautions in Chapter 4.
Determine the placement of each component in the rack before you install the
rails.
Install the heaviest server components on the bottom of the rack first, and then
work up.
Use a regulating uninterruptible power supply (UPS) to protect the server from
power surges, voltage spikes and to keep your system operating in case of a
power failure.
Allow the hot plug SATA drives and power supply modules to cool before touch-
ing them.
•
•
•
•
•
•
•
•
•
•

Chapter 2: Server Installation
2-3
Always keep the rack's front door and all panels and components on the servers
closed when not servicing to maintain proper cooling.
Make sure all power and data cables are properly connected and not blocking
the chassis airflow. See Chapter 5 for details on cable connections.
Rack Mounting Considerations
Ambient Operating Temperature
If installed in a closed or multi-unit rack assembly, the ambient operating tempera-
ture of the rack environment may be greater than the ambient temperature of the
room. Therefore, consideration should be given to installing the equipment in an
environment compatible with the manufacturer’s maximum rated ambient tempera-
ture (Tmra).
Reduced Airflow
Equipment should be mounted into a rack so that the amount of airflow required
for safe operation is not compromised.
Mechanical Loading
Equipment should be mounted into a rack so that a hazardous condition does not
arise due to uneven mechanical loading.
Circuit Overloading
Consideration should be given to the connection of the equipment to the power
supply circuitry and the effect that any possible overloading of circuits might have
on overcurrent protection and power supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
Reliable Ground
A reliable ground must be maintained at all times. To ensure this, the rack itself
should be grounded. Particular attention should be given to power supply connec-
tions other than the direct connections to the branch circuit (i.e. the use of power
strips, etc.).
•
•

2-4
SUPERSERVER 6015TW-T/6015TW-INF User's Manual
2-4 Installing the System into a Rack
This section provides information on installing the 6015TW-T/6015TW-INF into a
rack unit with the rack rails provided. If the system has already been mounted into
a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack
units on the market, which may mean the assembly procedure will differ slightly.
You should also refer to the installation instructions that came with the rack unit
you are using.
Identifying the Sections of the Rack Rails
You should have received two rack rail assemblies in the rack mounting kit. Each
assembly consists of two sections: an inner fixed chassis rail that secures directly
to the server chassis and an outer fixed rack rail that secures directly to the rack
itself (see Figure 2-1). Two pairs of short brackets to be used on the front side of
the outer rails are also included.
Installing the Inner Rails
Both the left and right side inner rails have been pre-attached to the chassis. Pro-
ceed to the next step.
Figure 2-1. Identifying the Sections of the Rack Rails
(right side rail shown)
